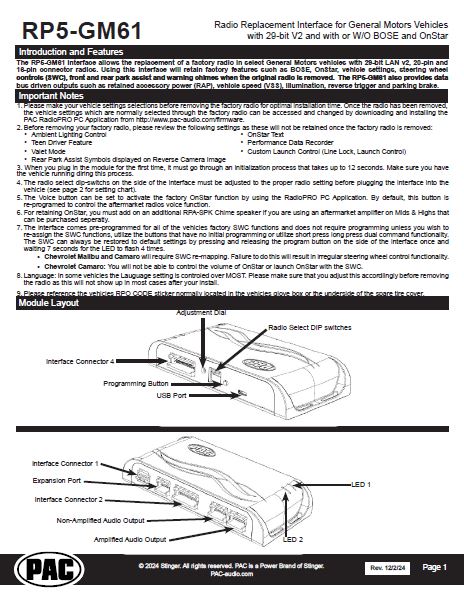

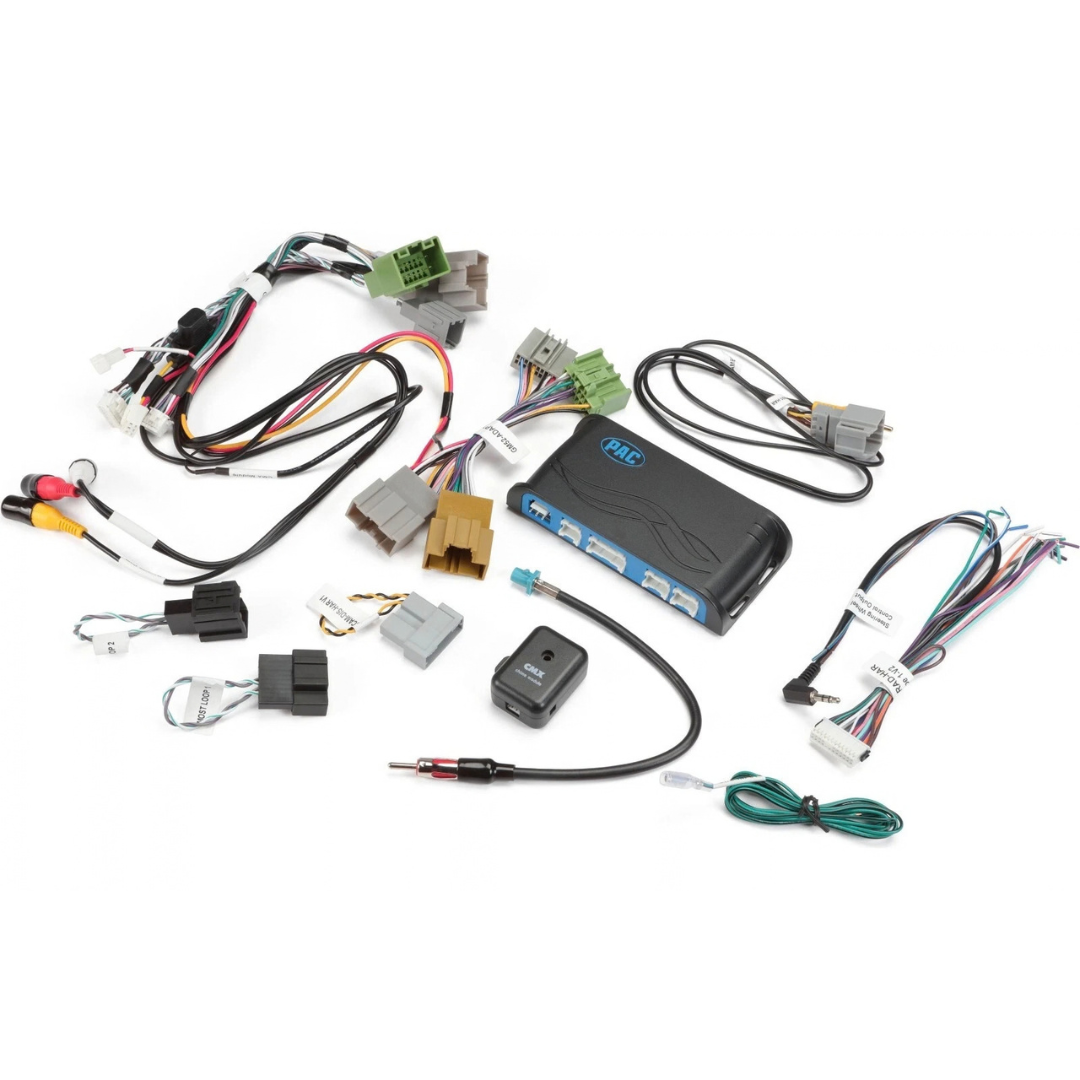

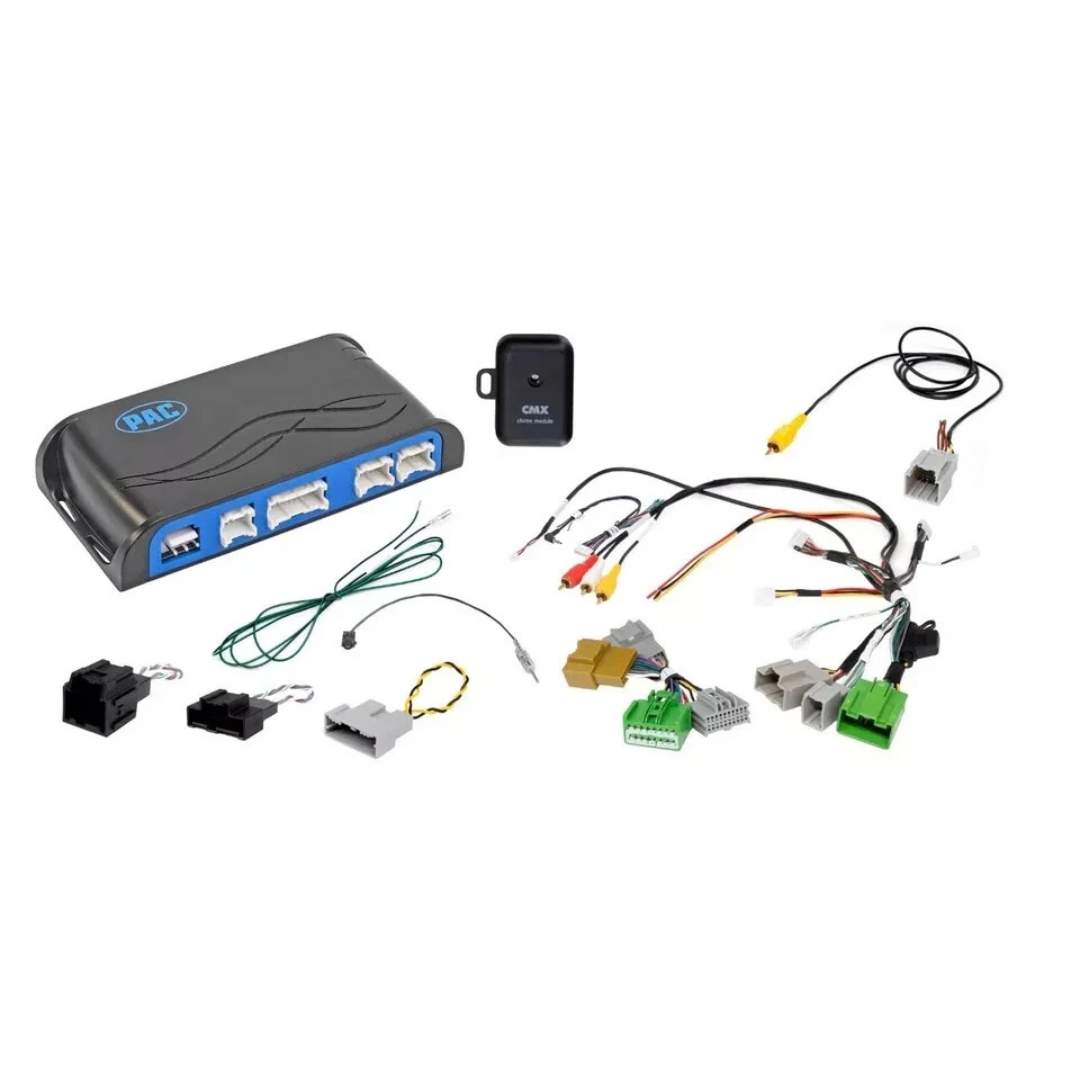

The RP5-GM61 interface allows the replacement of a factory radio in select General Motors vehicles with 29-bit LAN v2, 20-pin and 16-pin connector radios. Using this interface will retain factory features such as BOSE, OnStar, vehicle settings, steering wheel controls (SWC), front and rear park assist and warning chimes when the original radio is removed. The RP5-GM61 also provides data bus driven outputs such as retained accessory power (RAP), vehicle speed (VSS), illumination, reverse trigger and parking brake.

Compatibility Notes:

• Does not retain any of the following factory features:

• Rear Seat Entertainment

• Wi-Fi

• Teen Driver Features

• Valet Mode

• Rear Park Assist symbols on reverse camera image

• OnStar Text or Time of Day on Instrument Panel Cluster

• Performance Data Recorder

• Custom Launch Control (Line Lock, Launch Control)

• Ambient Lighting controls

• Front Camera

• The following vehicle setting cannot be changed once the radio is removed:

• Remote Mirror Folding

• Hill Start Assist

• Auto Power Assist Steps

• Hands Free Liftgate Control

• Remote Unlock Light Feedback

• When installing into an Impala, Malibu or Corvette, you will need to follow this tech brief

• Chevrolet Camaro: You will not be able to control the volume of OnStar with the steering wheel controls nor will you be able to launch OnStar from the steering wheel controls.

Important Notes:

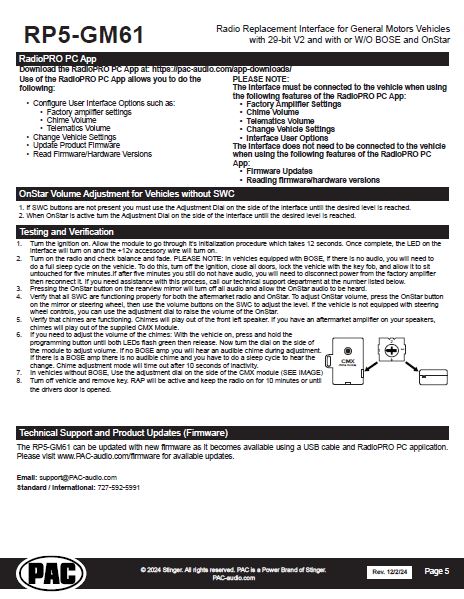

• Please make your vehicle settings selections before removing the factory radio for optimal installation time. Once the radio has been removed, the vehicle settings which are normally selected through the factory radio can be accessed and changed by downloading and installing the PAC RadioPRO PC Application from http://www.pac-audio.com/firmware.

• When you plug in the module for the first time, it must go through an initialization process that takes up to 12 seconds. Make sure you have the vehicle running diring this process.

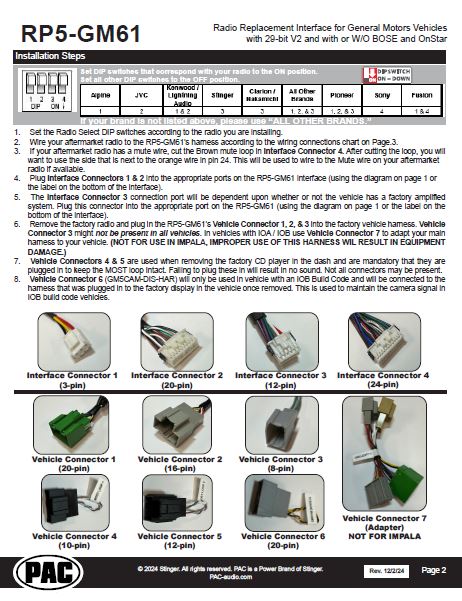

• The radio select dip-switchs on the side of the interface must be adjusted to the proper radio setting before plugging the interface into the vehicle (see page 2 for setting chart).

• The Voice button can be set to activate the factory OnStar function by using the RadioPRO PC Application. By default, this button is re-programed to control the aftermarket radios voice function.

• For retaining OnStar, you must add on an additional RPA-SPK Chime speaker if you are using an aftermarket amplifier on Mids & Highs that can be purchased seperatly.

• The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless you wish to re-assign the SWC functions, utilize the buttons that have no initial programming or utilize short press long press dual command functionality.

• Language: In some vehicles the Lauguage setting is controled over MOST. Please make sure that you adjust this accordlingly before removing the radio as this will not show up in most cases after your install.

• Please reference the vehicles RPO CODE sticker normally located in the vehicles glove box or the underside of the spare tire cover.

Before removing your factory radio, please review the following settings as these will not be retained once the factory radio is removed:

• Ambient Lighting Control

• Teen Driver Feature

• Valet Mode

• Rear Park Assist Symbols displayed on Reverse Camera Image

• OnStar Text

• Performance Data Recorder

• Custom Launch Control (Line Lock, Launch Control)

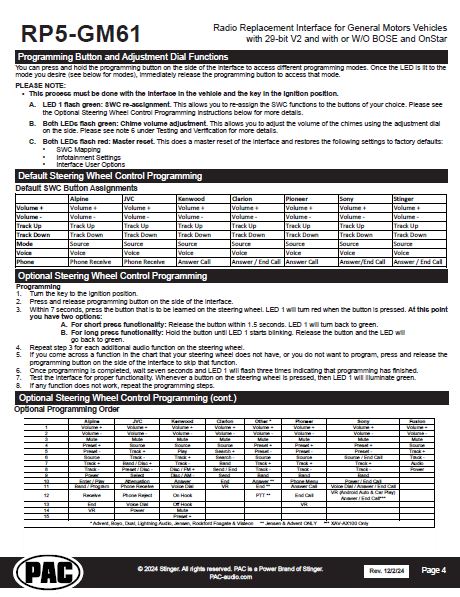

The SWC can always be restored to default settings by pressing and releasing the program button on the side of the interface once and waiting 7 seconds for the LED to flash 4 times.

• Chevrolet Malibu and Camaro will require SWC re-mapping. Failure to do this will result in irregular steering wheel control functionality.

• Chevrolet Camaro: You will not be able to control the volume of OnStar or launch OnStar with the SWC.
