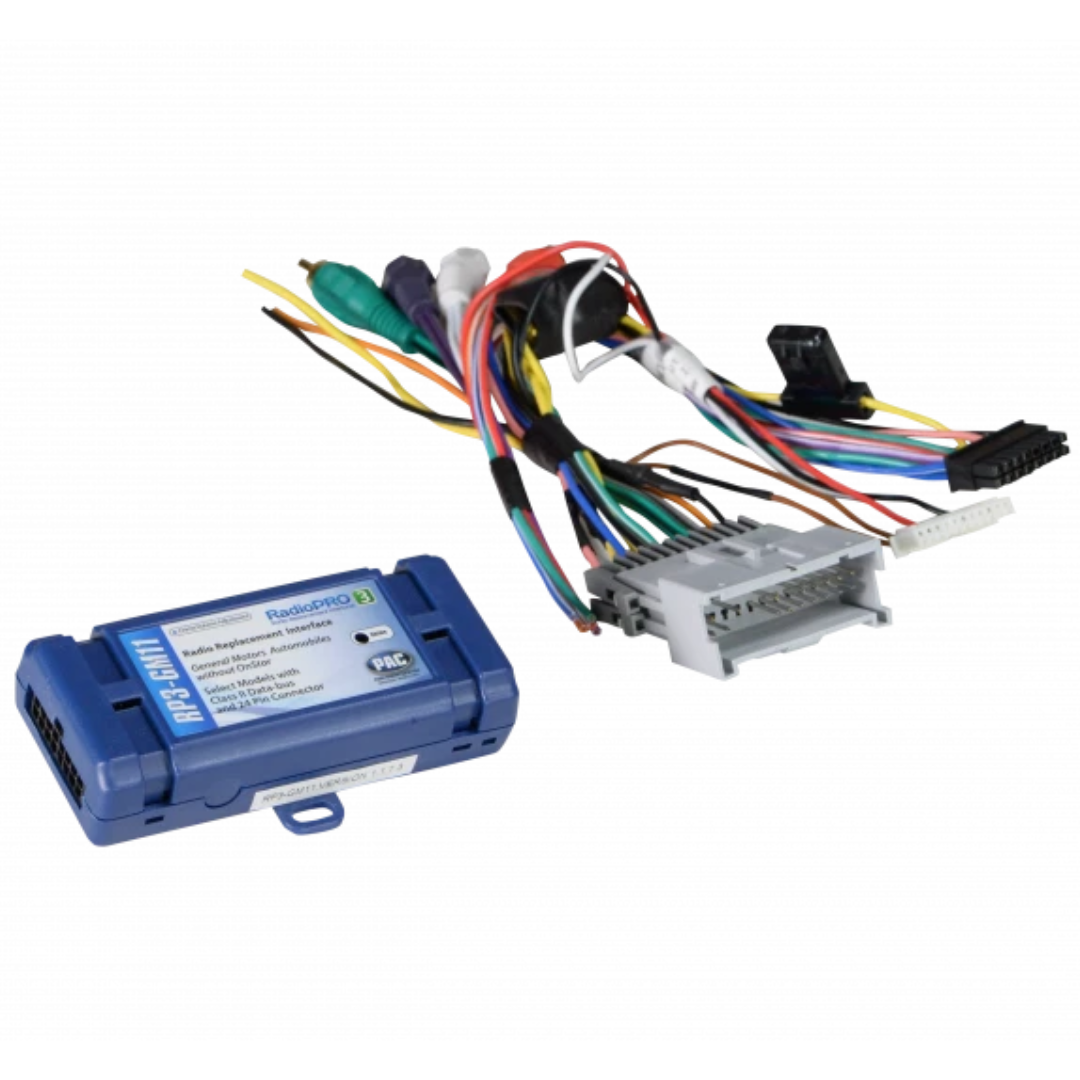

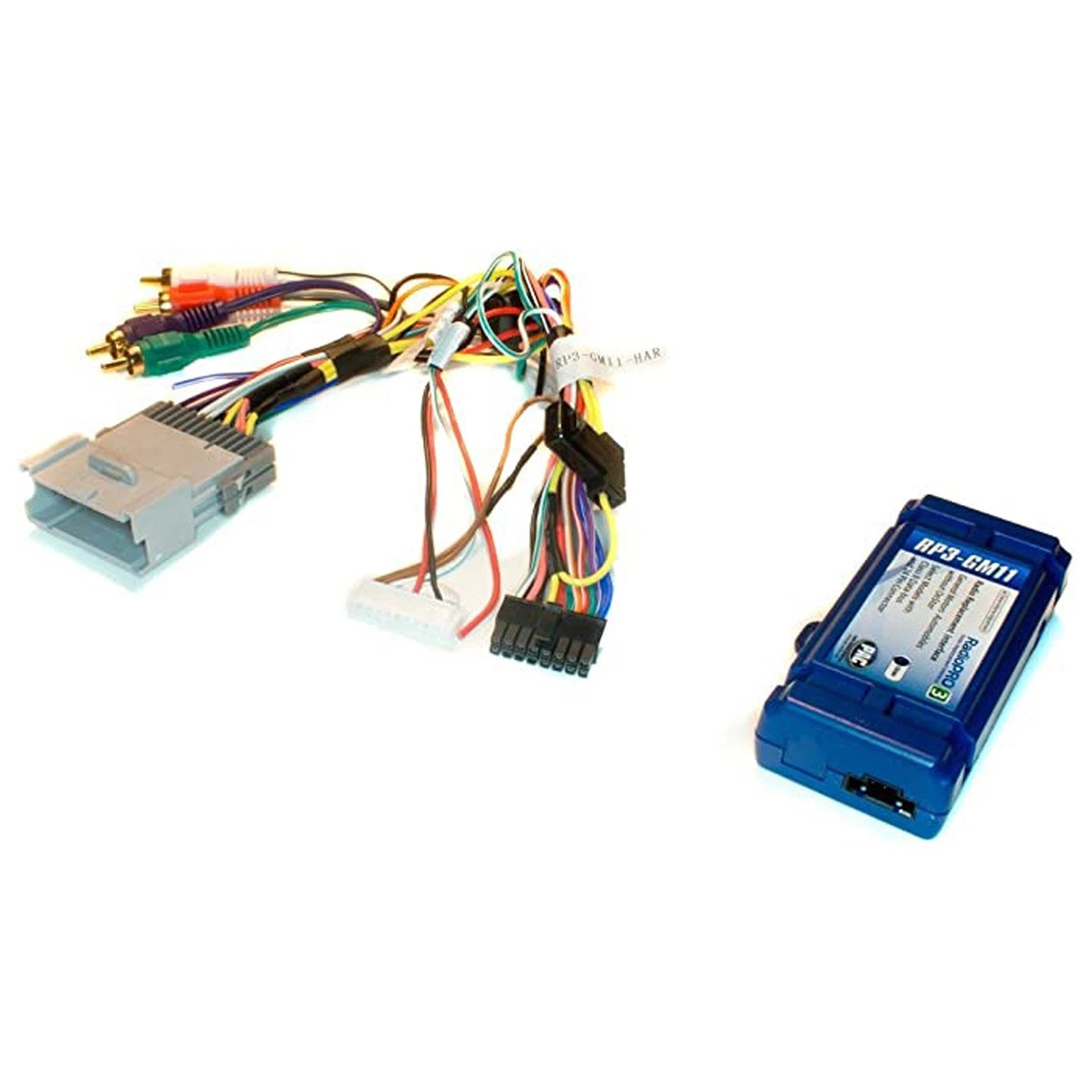

Pac-Audio RP3-GM11 Radio Replacement Interface Module for Select 2000-2013 Buick, Cadillac, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile, Pontiac, Saab or Saturn Vehicles
Radio Replacement Interface for GM Vehicles with Class II databus and 24-pin harness. High current 10A accessory output Data-controlled outputs for connection to your navigation radio; speed, reverse, and E-brake status output wires. Retains factory-installed amplifier (standard & premium) Data controlled RAP accessory output Keeps vehicle data bus intact for service Plug-in-connection for steering wheel control module (SWI-RC, SWI-RC-1, or SWI-CP2) In package updatable using the PAC-UP Adjustable chime volume: 4 levels, and off
Compatibility Notes:
- Does not retain OnStar. For OnStar retention please use the RP5-GM11
Important Notes:
- When used in Non-BOSE® applications simply cut off the RCA connectors and connect the remaining wires to the aftermarket radios high level speaker outputs.
- For BOSE® systems, the recommended line level input is between 2-4 volts from the aftermarket radio.
- RSC buttons that are identical to the SWC will mimic the SWC one for one
- To prevent over driven audio when installing the interface into a vehicle with a BOSE® system, and the aftermarket radio does not have low level outputs, then an LOC (part #

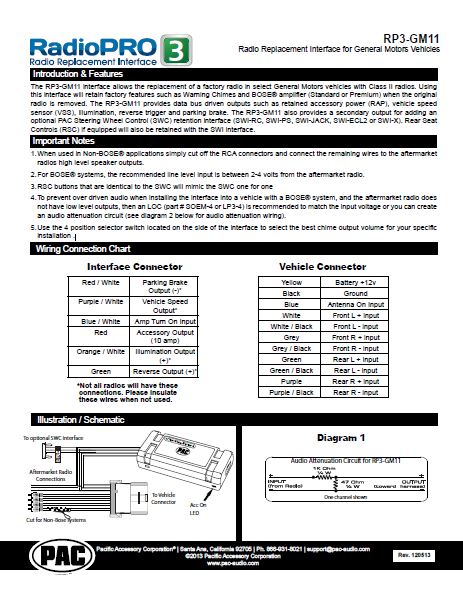

- SOEM-4 or LP3-4) is recommended to match the input voltage or you can create an audio attenuation circuit (see diagram 2 below for audio attenuation wiring).
- Use the 4 position selector switch located on the side of the interface to select the best chime output volume for your specific installation.
| Year(s) | Make | Model | Compatible feature(s) | Not compatible feature(s) |
|---|---|---|---|---|
| 2004-2005 | BUICK | CENTURY | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2007 | BUICK | LACROSSE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2004-2007 | BUICK | RAINIER | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2007 | BUICK | RENDEZVOUS | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2007 | BUICK | TERRAZA | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CADILLAC | ESCALADE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CADILLAC | ESCALADE ESV | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CADILLAC | ESCALADE EXT | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CHEVROLET | AVALANCHE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2000-2005 | CHEVROLET | CAVALIER | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2004-2012 | CHEVROLET | COLORADO | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2013 | CHEVROLET | CORVETTE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2004-2007 | CHEVROLET | EXPRESS VAN | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2000-2005 | CHEVROLET | IMPALA | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2001-2003 | CHEVROLET | MALIBU | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2000-2005 | CHEVROLET | MONTE CARLO | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2004 | CHEVROLET | S-10 PICKUP | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CHEVROLET | SILVERADO | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2007 | CHEVROLET | SILVERADO | Classic model, Without OnStar, Without Steering Wheel Controls | New model, With OnStar, With Steering Wheel Controls |
| 2003-2006 | CHEVROLET | SSR | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CHEVROLET | SUBURBAN | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | CHEVROLET | TAHOE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2002-2009 | CHEVROLET | TRAILBLAZER | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2008 | CHEVROLET | UPLANDER | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2005 | CHEVROLET | VENTURE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2004-2011 | GMC | CANYON | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2002-2009 | GMC | ENVOY | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2007 | GMC | SAVANA | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | GMC | SIERRA | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2007 | GMC | SIERRA | Classic model, Without OnStar, Without Steering Wheel Controls | New model, With OnStar, With Steering Wheel Controls |
| 2003-2006 | GMC | YUKON | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2006 | GMC | YUKON XL | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2007 | HUMMER | H2 | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2010 | HUMMER | H3 | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2009-2010 | HUMMER | H3T | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2003-2008 | ISUZU | ASCENDER | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2001-2004 | OLDSMOBILE | ALERO | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2002-2004 | OLDSMOBILE | BRAVADA | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2000-2004 | OLDSMOBILE | SILHOUETTE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2001-2005 | PONTIAC | AZTEK | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2001-2005 | PONTIAC | GRAND AM | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2004-2008 | PONTIAC | GRAND PRIX | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2000-2006 | PONTIAC | MONTANA | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2000-2005 | PONTIAC | SUNFIRE | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2008 | SAAB | 9-7X | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
| 2005-2007 | SATURN | RELAY | Without OnStar, Without Steering Wheel Controls | With OnStar, With Steering Wheel Controls |
