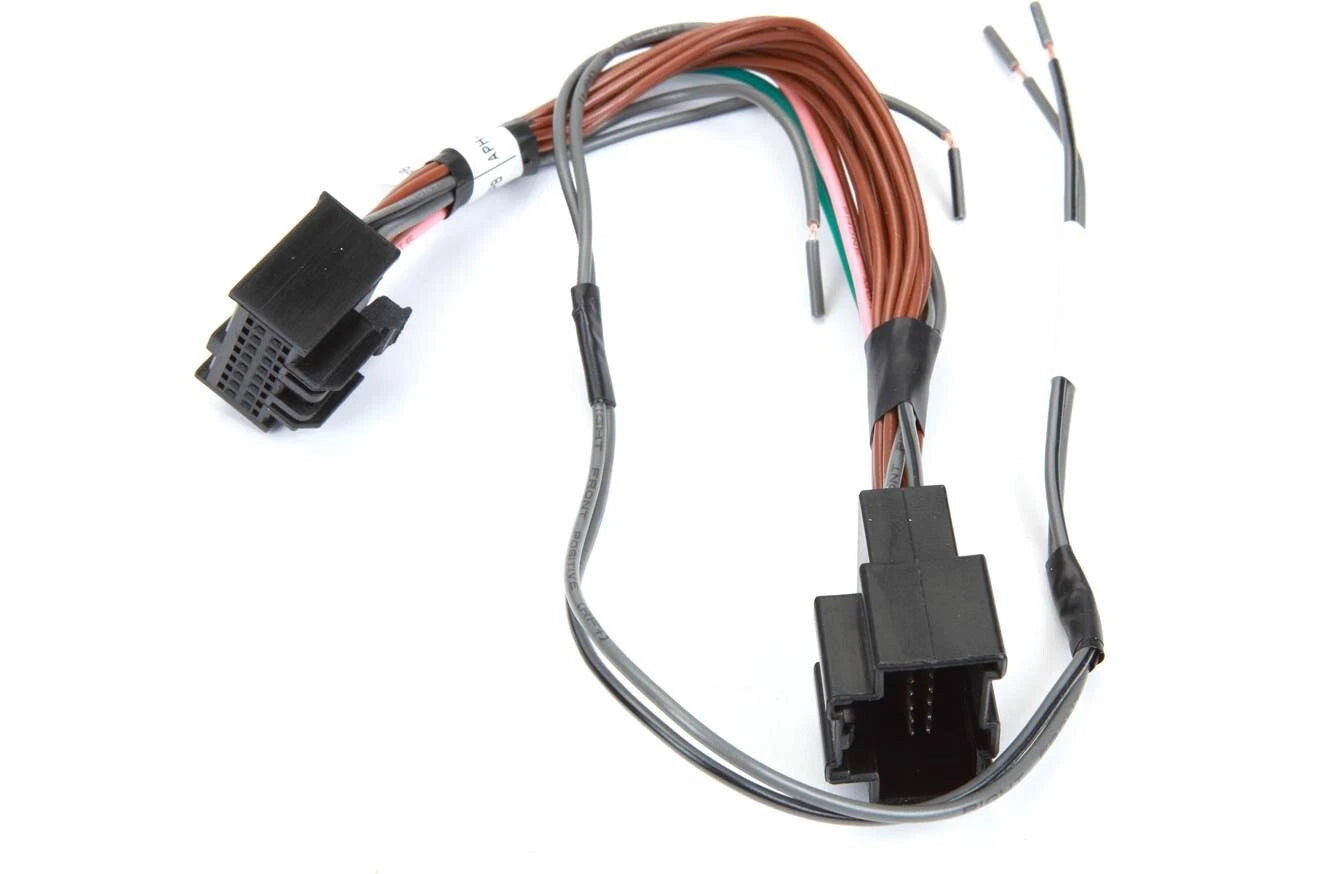

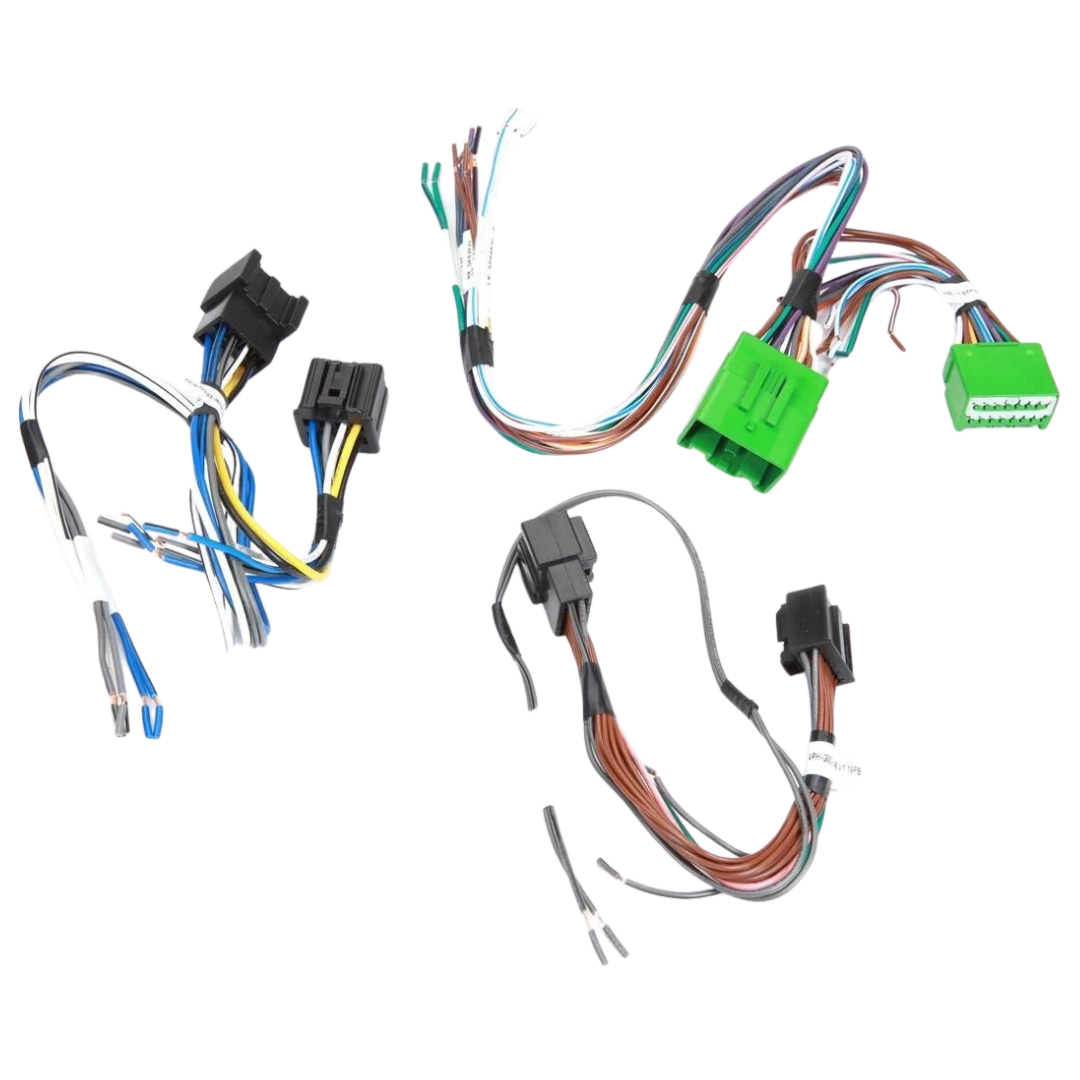

The APH-GM02 simplifies speaker wire connections when adding aftermarket amplifiers. Aftermarket amplifiers can be easily added with no need to cut or modify a vehicle’s original wiring. Each pair of wires has been labeled with the corresponding speaker name.

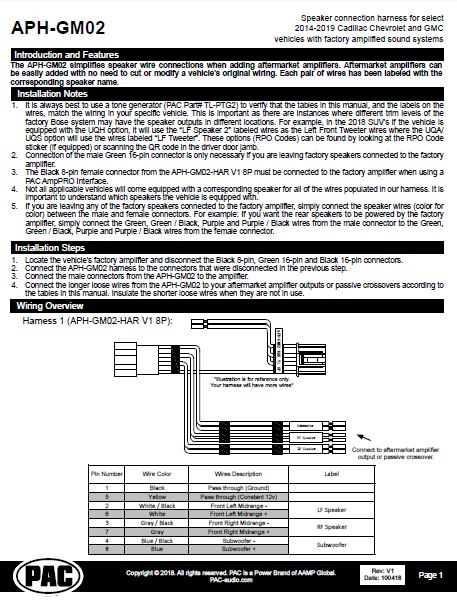

Installation Notes:

• It is always best to use a tone generator (PAC Part# TL-PTG2) to verify that the tables in this manual, and the labels on the wires, match the wiring in your specific vehicle. This is important as there are instances where different trim levels of the factory Bose system may have the speaker outputs in different locations. For example, in the 2018 SUV’s if the vehicle is equipped with the UQH option, it will use the “LF Speaker 2” labeled wires as the Left Front Tweeter wires where the UQA/ UQS option will use the wires labeled “LF Tweeter”. These options (RPO Codes) can be found by looking at the RPO Code sticker (if equipped) or scanning the QR code in the driver door jamb.

• Connection of the male Green 16-pin connector is only necessary if you are leaving factory speakers connected to the factory amplifier.

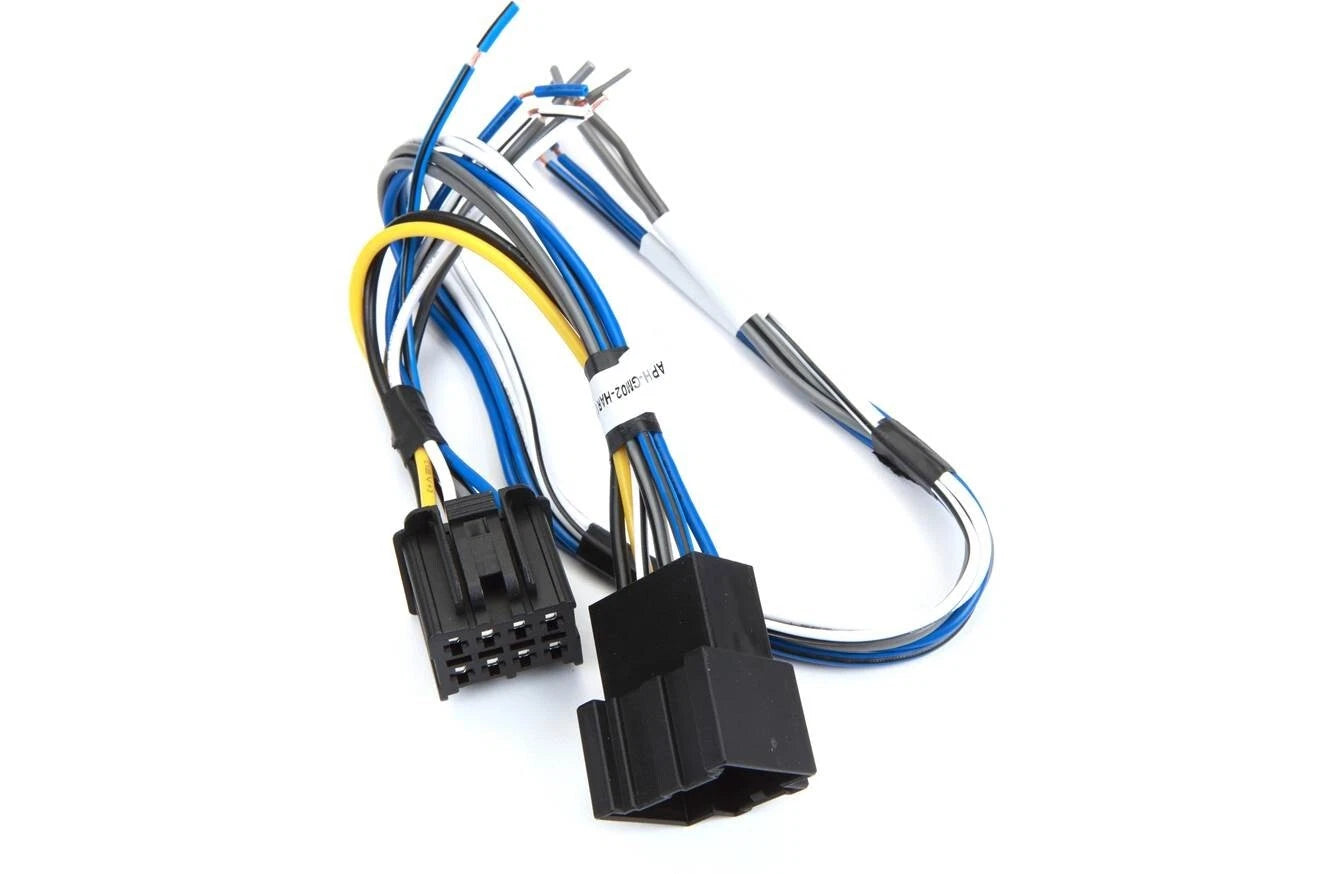

• The Black 8-pin female connector from the APH-GM02-HAR V1 8P must be connected to the factory amplifier when using a PAC AmpPRO Interface.

• Not all applicable vehicles will come equipped with a corresponding speaker for all of the wires populated in our harness. It is important to understand which speakers the vehicle is equipped with.

• If you are leaving any of the factory speakers connected to the factory amplifier, simply connect the speaker wires (color for color) between the male and female connectors. For example: If you want the rear speakers to be powered by the factory amplifier, simply connect the Green, Green / Black, Purple and Purple / Black wires from the male connector to the Green, Green / Black, Purple and Purple / Black wires from the female connector.
