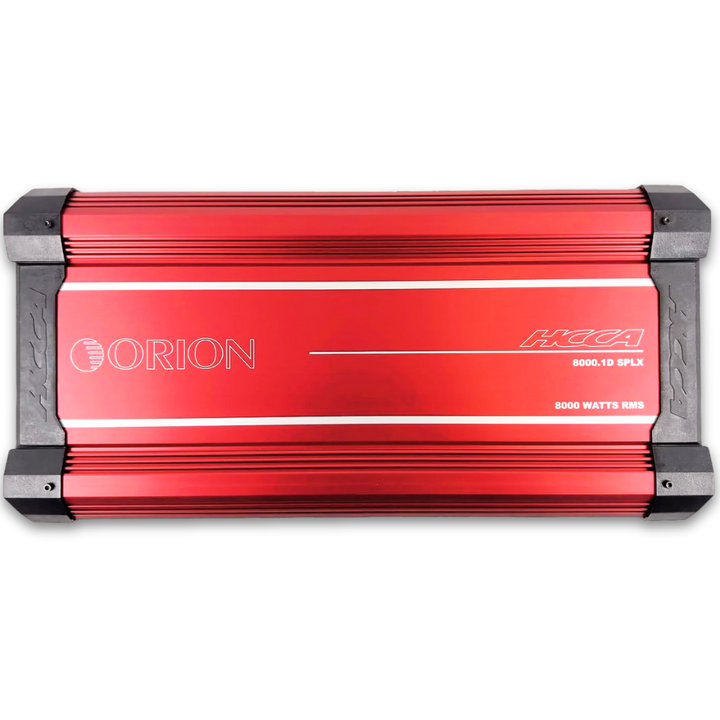

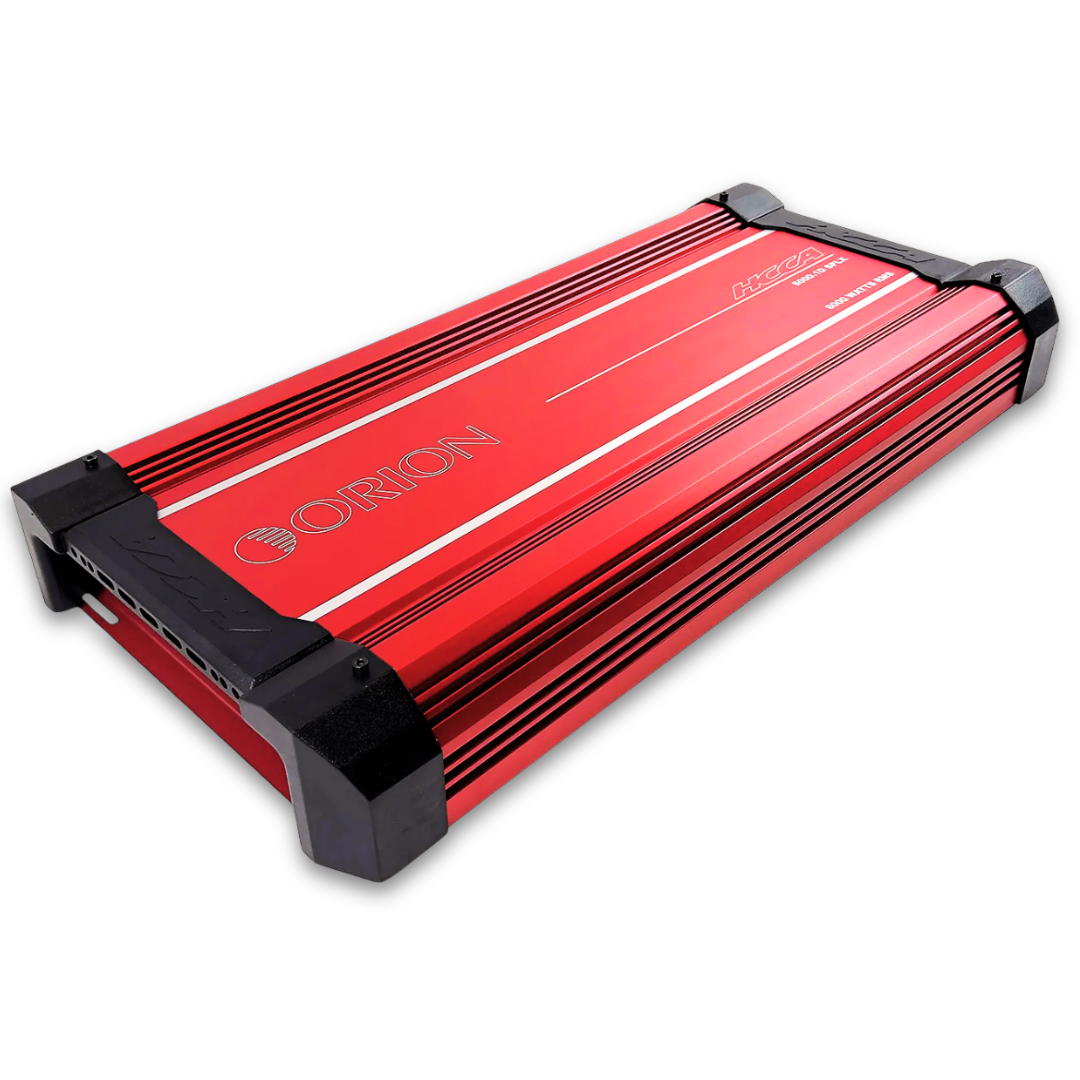

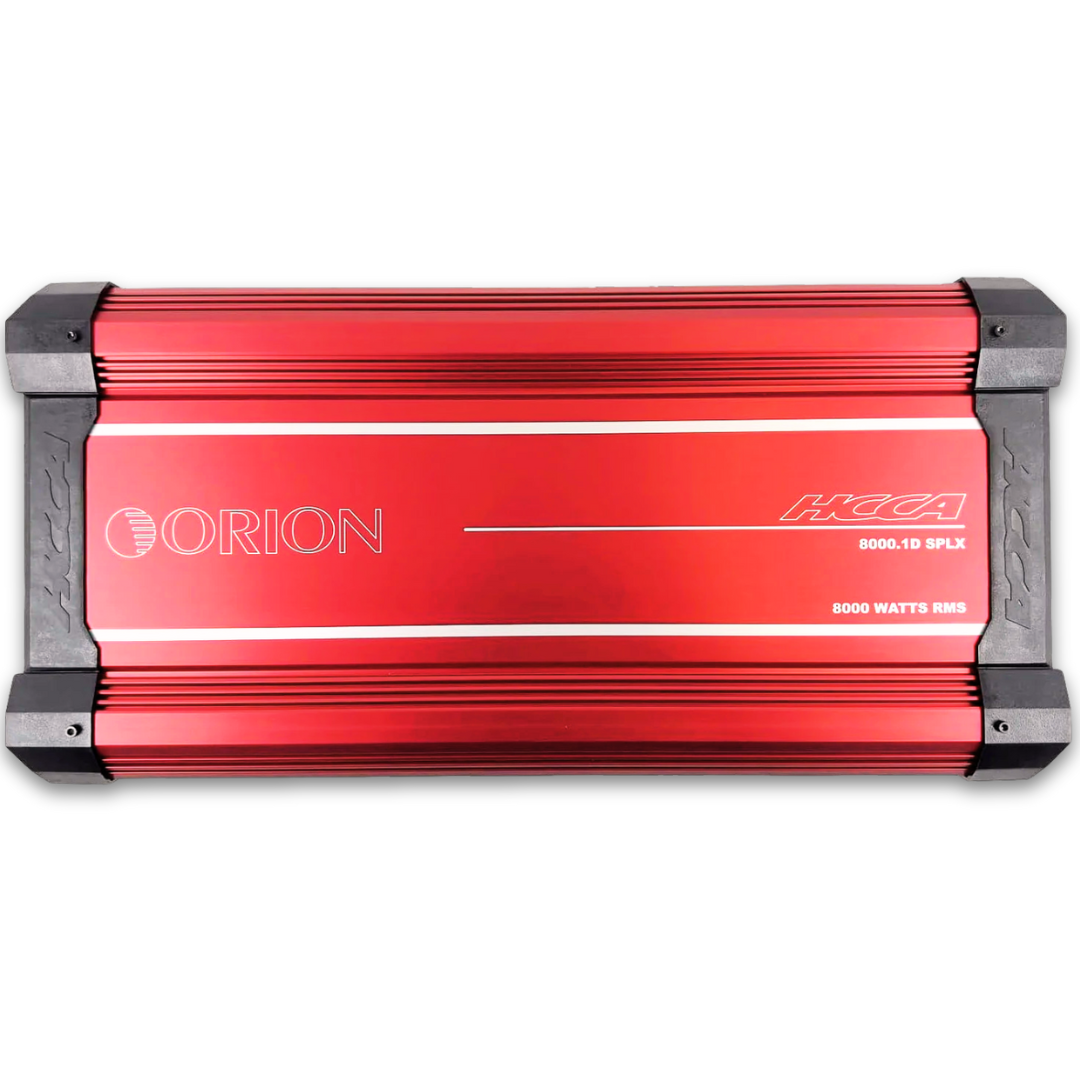

The ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier

Unleash Unrivaled Power and Precision: The ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier defines the pinnacle of power and precision in car audio. Engineered for audio purists and enthusiasts seeking unparalleled performance, this amplifier redefines your audio experience with unprecedented power and accuracy.

Unleash Auditory Excellence: Elevate your audio journey with the ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier. Crafted with precision engineering and advanced features, this amplifier redefines power and accuracy, delivering an auditory experience that resonates profoundly.

Immersive Sound Reproduction: Rediscover your music in its purest form. Every note, beat, and melody – from the softest to the most intense – is meticulously reproduced for an immersive and authentic listening experience.

Unrivaled Power and Precision: Experience your music with unrivaled power and precision. The ORION HCCA8000.1DSPLX HCCA Series Amplifier seamlessly blends colossal power with exceptional audio quality, creating an auditory masterpiece that leaves a lasting impact.

Elevate Your Drive: Step into the realm of unmatched power with the ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical supremacy. It's time to embrace sound in its purest form.

Key Features:

• Class D Amplification: Experience the pinnacle of efficiency and power with Class D amplification, delivering unmatched and precise sound reproduction.

• 8000 Watts RMS: Immerse yourself in a realm of unmatchable audio power with 8000 Watts RMS, delivering commanding and precise sound performance.

• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.

• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.

• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.

• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

Specifications:

• Frequency Response: 15Hz - 250Hz

• Low Pass Crossover: 40Hz - 300Hz

• Supply Voltage: 9 - 16V

• Amplifier Efficiency: >88%

• Damping Factor: 200dB

• Signal to Noise Ratio: >90dB

• T.H.D. & Noise: 0.5%

• Input Impedance: 24K Ohms

• Phase Shift: 0 - 180

• Bass Boost: 0-18dB Variable

• Subsonic Filter: 10 - 40Hz

• Variable Input Level Control: 0.2V - 6.0V

• Fuses: 750A recommended (not included)

Power:

• Rms Power @ 4 Ohms: 2900W

• Rms Power @ 2 Ohms: 5000W

• Rms Power @ 1 Ohm: 8500W

• Strapped Rms Power @ 2 Ohms: 17000W

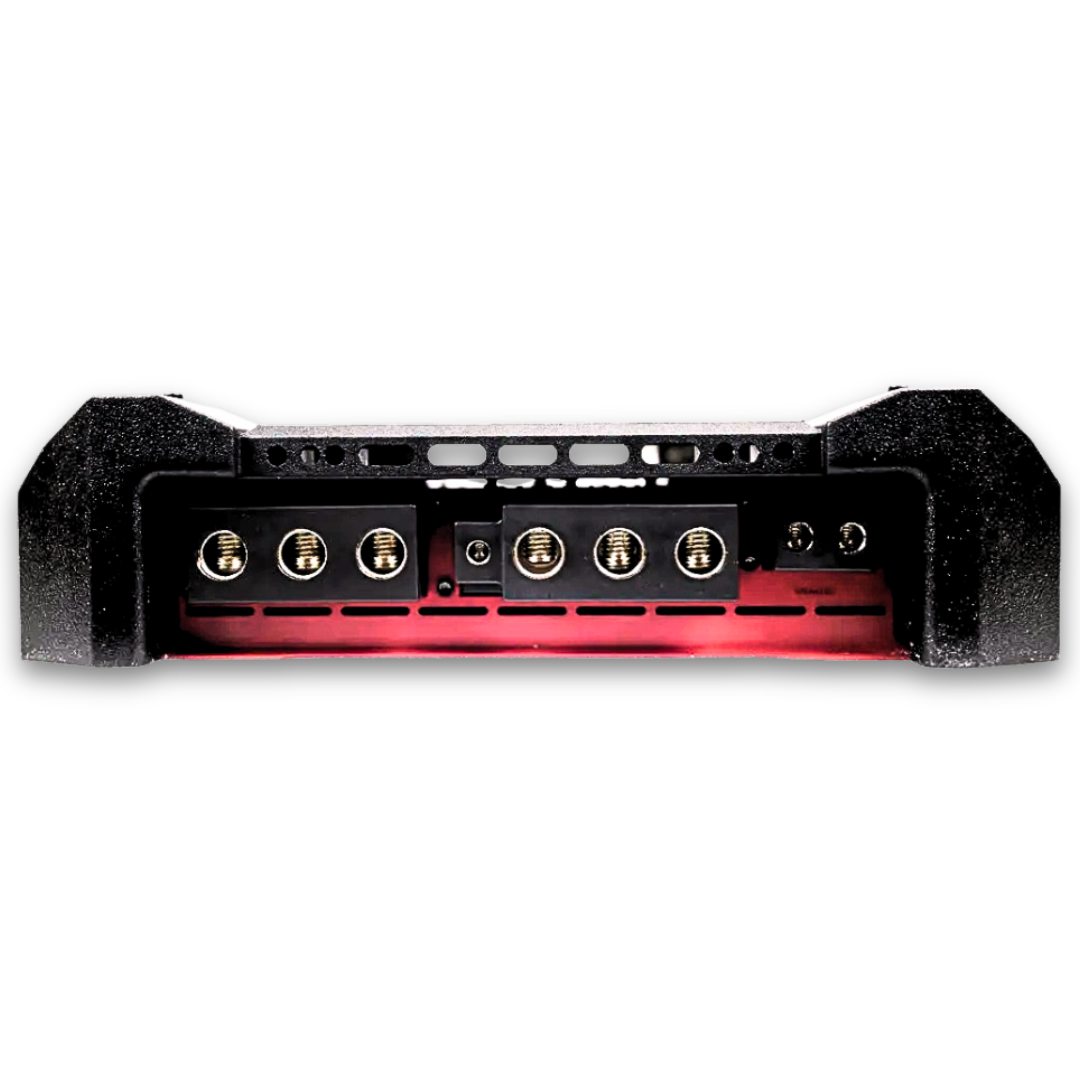

Power Terminal Management:

• Positive Terminals: 3x 0 AWG

• Negative Terminals: 3x 0 AWG

• Remote Turn-ON Signal: 10 AWG

• Speaker Output Terminals: 4 AWG

Additional Features::

• All Mosfet Power Supply & Output Stage

• Heavy Gauge / High Current Custom Power and Speaker Terminals

• 12/24dB / Octave Low-Pass Filter

• Remote Gain Controller Included

• Low-Level and High-Level Balanced Input

• Infrasonic Filter

• Concealed Controls Under Locking Top Panel Orion Patented ESP®

• Digitally Programmed Input Voltage for Fast, Accurate System Setup

• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!

• Turn-On Delay

• Fault and Protection Monitoring

Measurements:

• Dimensions (L x W x H): 24.02"x 11.89"x 3.15"
