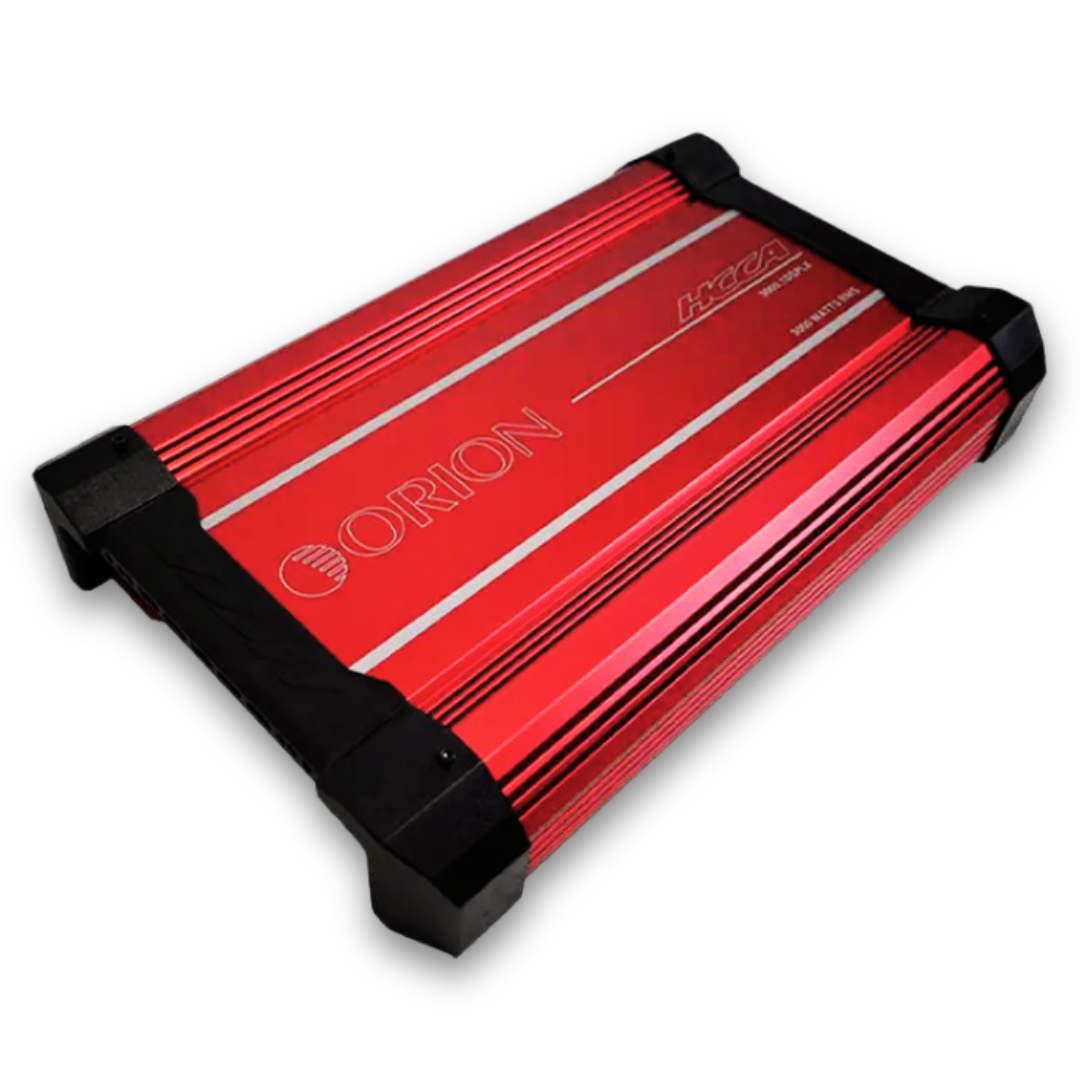

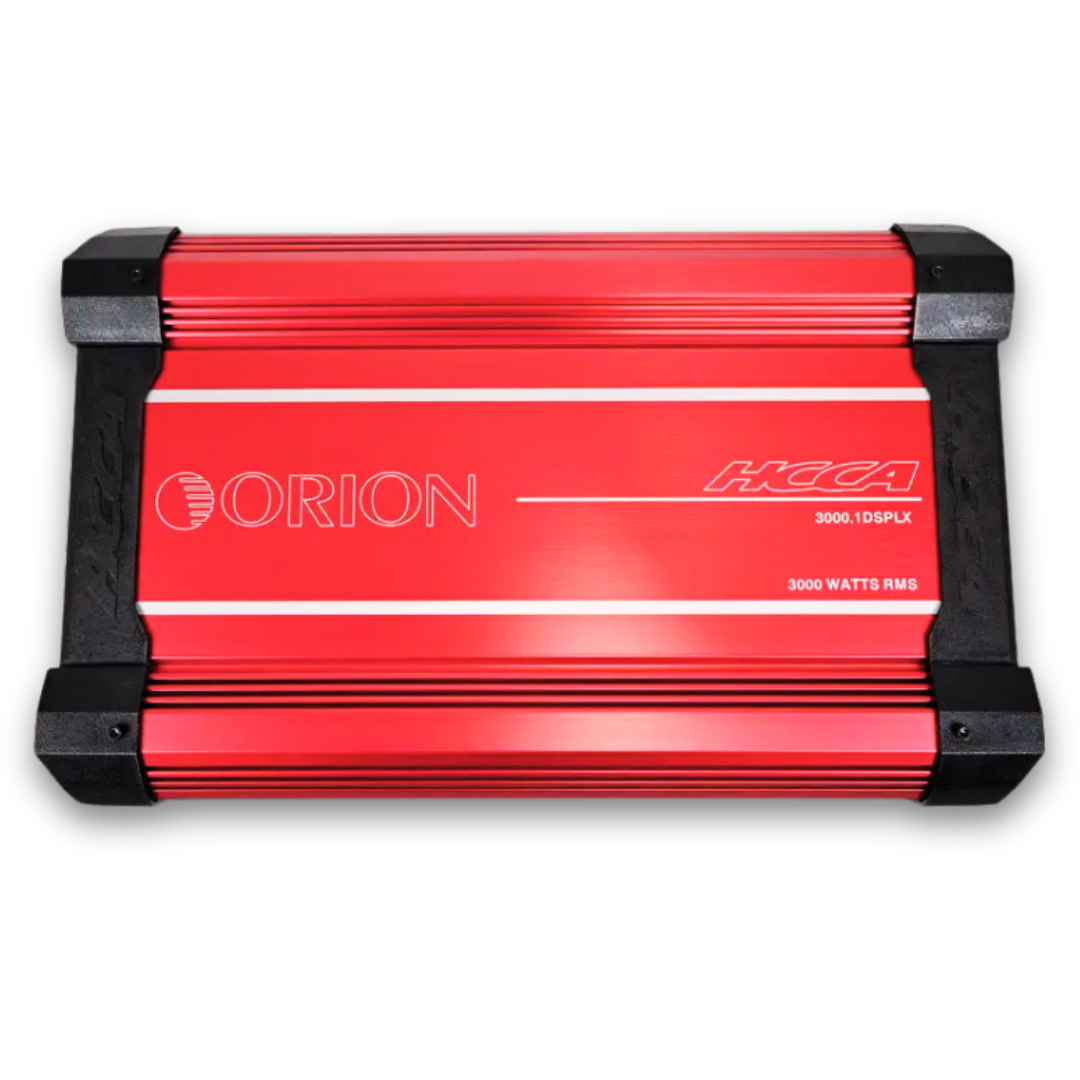

ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class D Amplifier

The HCCA3000.1DSPLX Class D Amplifier is built for those who demand nothing less than competition-level performance. Delivering an astounding 3,000 watts RMS at 1 ohm, this amplifier is engineered to dominate SPL (Sound Pressure Level) competitions with ground-shaking bass and crisp, clear sound. Featuring the iconic HCCA Red design, it not only performs like a beast but looks the part too, adding a sleek, bold statement to your audio setup.

Powered by advanced Class D technology, the HCCA3000.1DSPLX runs cooler and more efficiently, pushing your subwoofers to their limits without sacrificing performance. Its robust construction and intelligent protection circuits guard against overheating and overload, ensuring long-lasting, reliable power for your most intense sessions.

Perfect for competitive car audio or those who want a show-stopping system, the HCCA3000.1DSPLX combines HCCA’s legendary durability with unmatched power. Bring your vehicle to life with SPL-winning bass and superior sound quality, all while rocking the iconic HCCA Red.

Key Features:

• Class D Amplification: Experience the pinnacle of efficiency and power with Class D amplification, delivering unmatched and precise sound reproduction.

• 3000 Watts RMS: Immerse yourself in a realm of unmatchable audio power with 3000 Watts RMS, delivering commanding and precise sound performance.

• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.

• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.

• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.

• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

Specifications:

• Frequency Response: 10Hz - 300Hz

• Low Pass Crossover: 40Hz - 300Hz

• Supply Voltage: 9 - 16V

• Amplifier Efficiency: >88%

• Damping Factor: 200dB

• Signal to Noise Ratio: >90dB

• T.H.D. & Noise: 0.5%

• Input Impedance: 24K Ohms

• Phase Shift: 0 - 180

• Bass Boost: 0-18dB Variable

• Subsonic Filter: 10 - 40Hz

• Variable Input Level Control: 0.2V - 6.0V

• Fuses: 350A recommended (not included)

Power:

• Rms Power @ 4 Ohms: 1350W

• Rms Power @ 2 Ohms: 2100W

• Rms Power @ 1 Ohm: 3000W

• Strapped Rms Power @ 2 Ohms: 6000W

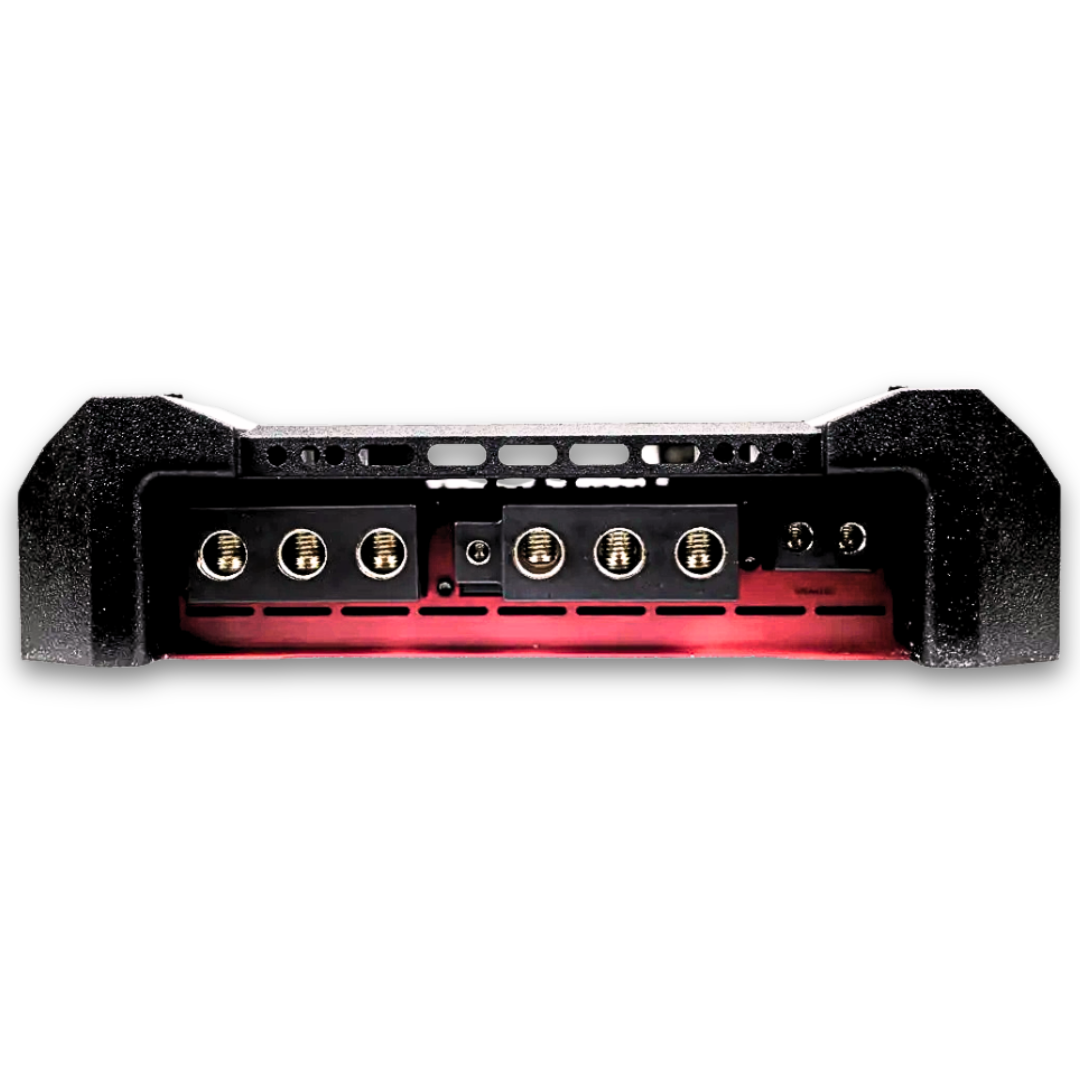

Power Terminal Management:

• Positive Terminals: 3x 0 AWG

• Negative Terminals: 3x 0 AWG

• Remote Turn-ON Signal: 10 AWG

• Speaker Output Terminals: 4 AWG

Additional Features::

• All Mosfet Power Supply & Output Stage

• Heavy Gauge / High Current Custom Power and Speaker Terminals

• 12/24dB / Octave Low-Pass Filter

• Remote Gain Controller Included

• Low-Level and High-Level Balanced Input

• Infrasonic Filter

• Concealed Controls Under Locking Top Panel Orion Patented ESP®

• Digitally Programmed Input Voltage for Fast, Accurate System Setup

• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!

• Turn-On Delay

• Fault and Protection Monitoring

Measurements:

• Dimensions (L x W x H): 18.89"x 11.89"x 3.15"
