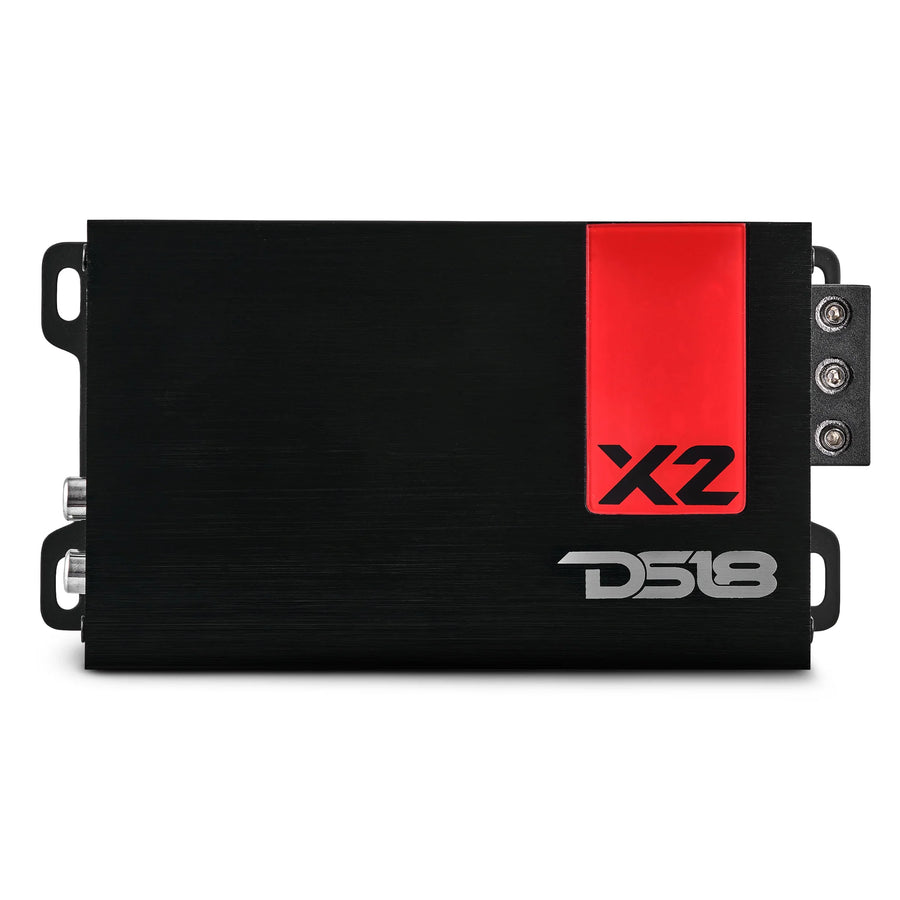

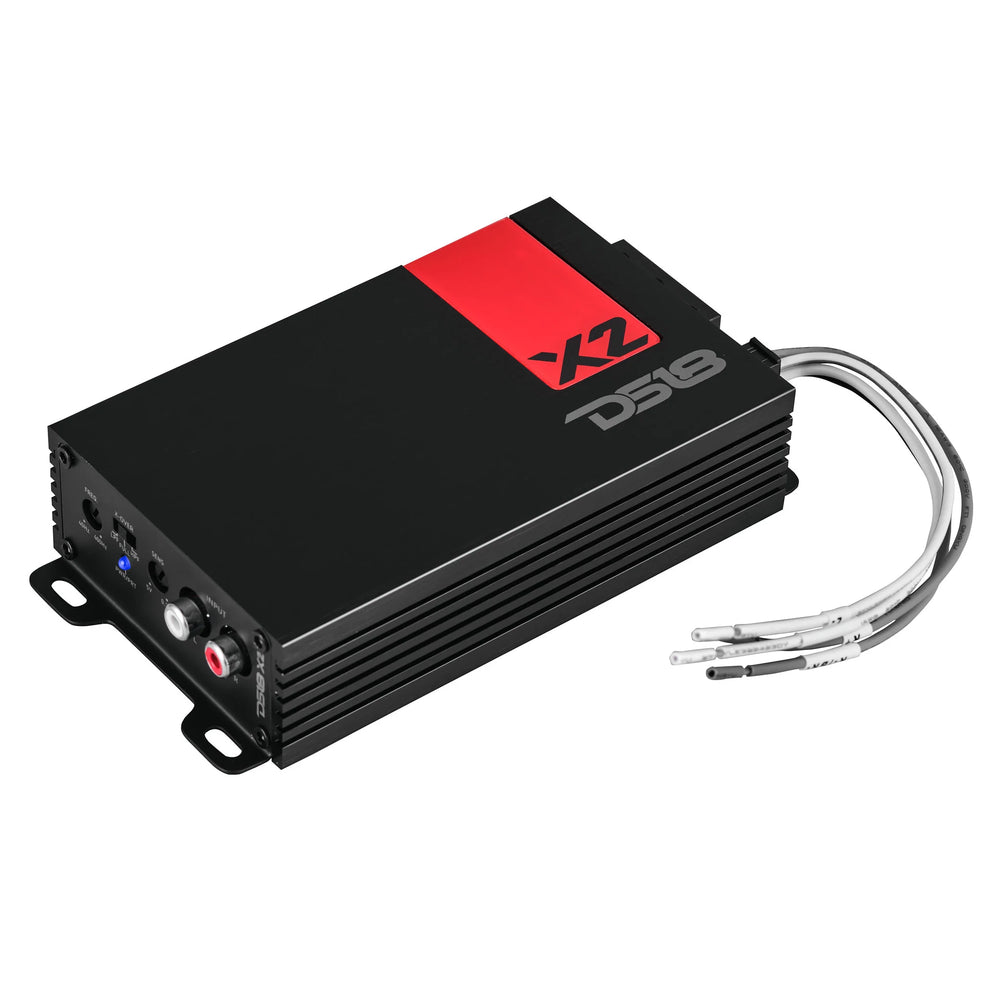

2-Channel Class D Full-Range Amplifier with Bluetooth Streaming

The latest addition to DS18’s X Series is the X2BT: an ultra-compact 2-channel amplifier engineered for modern audio systems that demand Bluetooth connectivity, digital tuning, and efficient power delivery in a tight package.

Built-In Bluetooth Streaming: Thanks to onboard Bluetooth 5.1, the X2BT allows you to stream high-quality audio directly from your phone or device. This means your music is always accessible!

Full Range Flex: The X2BT is optimized for full-range performance, making it ideal for mids, highs, or even small subwoofer setups in tight spaces.

Compact + Weather-Resistant: The rugged housing is designed for tough environments, with a compact chassis that fits anywhere. It’s perfect for powersports builds where space and reliability matter.

Upgrade your ride with wireless control and clean power! DS18’s X2BT is the go-to amplifier for flexible, high-performance audio.

Key Features:

• Bluetooth 5.1 Streaming Built-In – Play music wirelessly straight from your phone

• 2-Channel Class D Power – 2×140W RMS @ 4Ω, 2×230W RMS @ 2Ω, or 380W bridged @ 4Ω

• Compact, High-Efficiency Design – Big output in a small, low-heat chassis

• Full Protection Circuitry – Thermal, overload, short-circuit, DC, and voltage protection

• Motorcycle & Powersports Ready – Water-resistant build for bikes, ATVs, UTVs, and marine

Power:

• Total Watts (Peak): 1140W

• RMS Power @ 4 ohm: 2 x 140W

• RMS Power @ 2 ohm: 2 x 230W

• RMS Power @ 4 ohm Bridge: 380W

Audio:

• Frequency Response: 20Hz-20KHz

• Signal to Noise Ratio: 90dB

• Efficiency @ 4ohm: 80%

• Damping Factor: 200

• Total Harmonic Distortion (THD): 0.20%

• Low Level Input Range: 0.2-5V

• Selectable X-Over: LPF / FLAT / HPF

• X-Over Filter Range: 40Hz-400Hz

Features:

• Amplifier Class: Digital (D)

• Amplifier Type: Stereo Full Range

• Number of Channels: 2

• Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge

• Led Indicator: Power / Protect

• Power Input Terminal Size: 8Ga

• Fuse Size: 40A

• Body Color / Finish: Brushed Black Aluminum

Bluetooth Specifications:

• Version: 5.1

• Services: A2DP 1.3.1

• Bluetooth Name: DS18 X2BT

• Range (Up to): 60ft / 18m

• Supported Devices: iOS / Android

• Audio Codec: SBC / ACC

Measurement:

• Overall Length: 5.54" / 140.8mm

• Overall Width: 3.24" / 82.4mm

• Overall Height: 1.37" / 34.8mm

• Heatsink Length: 4.75" / 120.8mm
