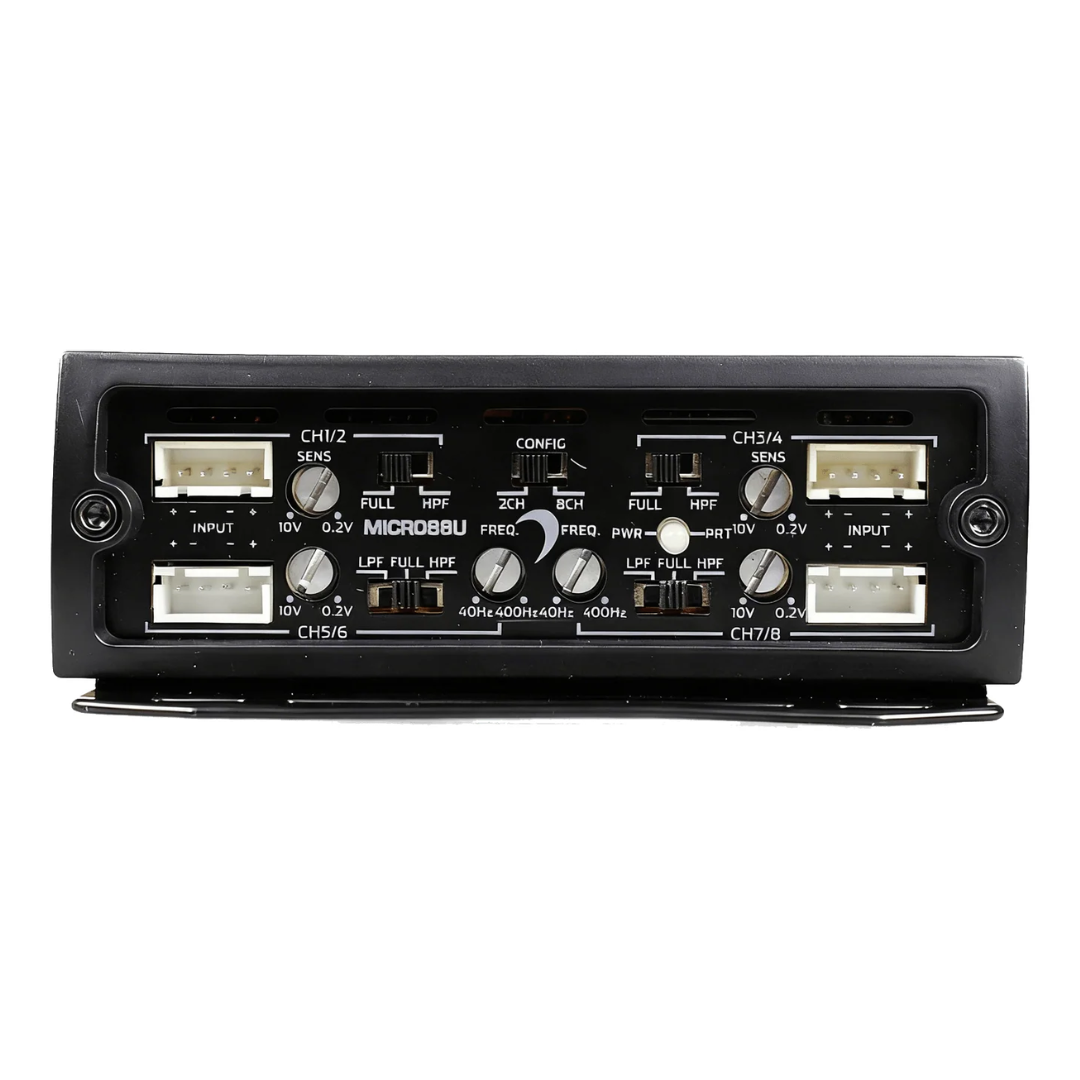

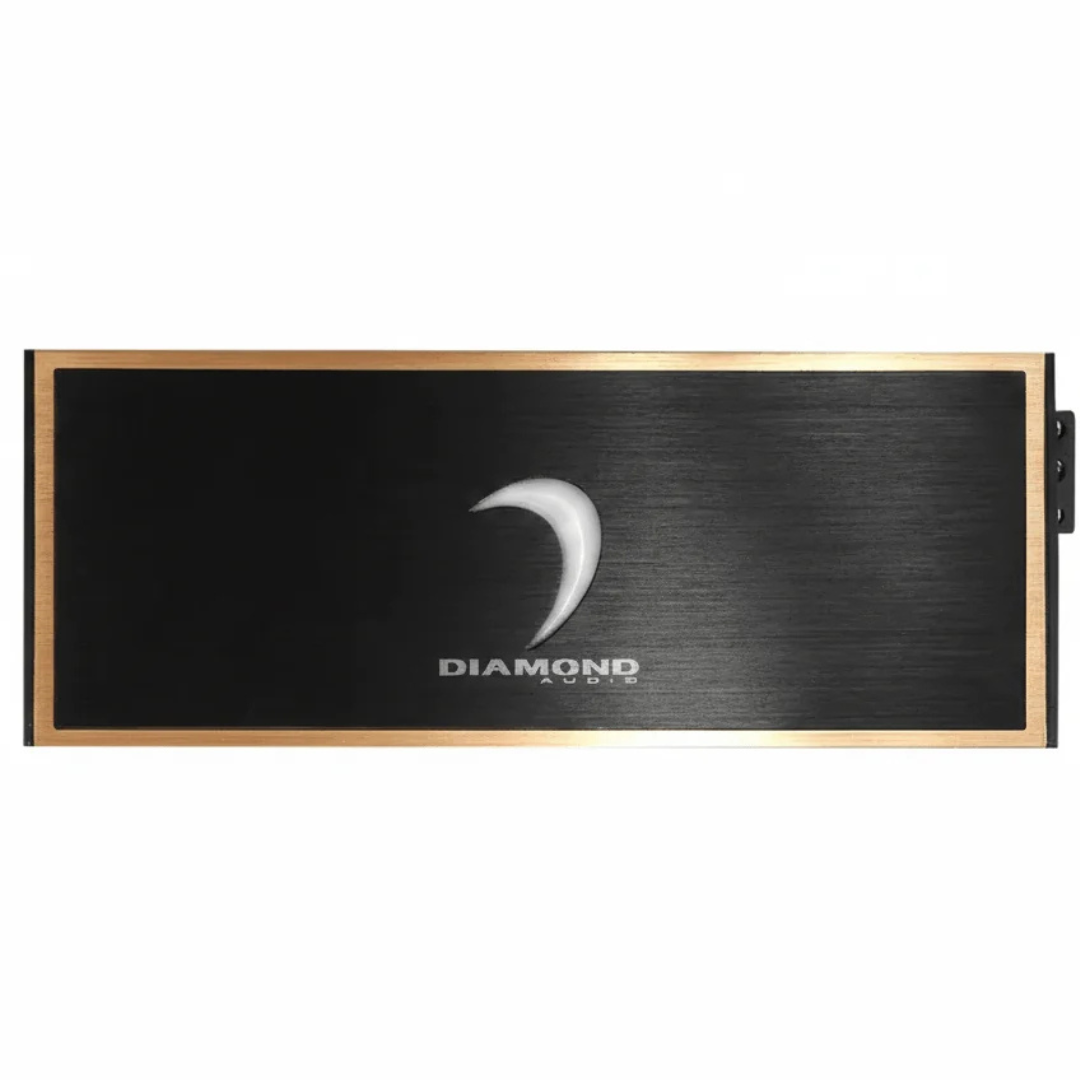

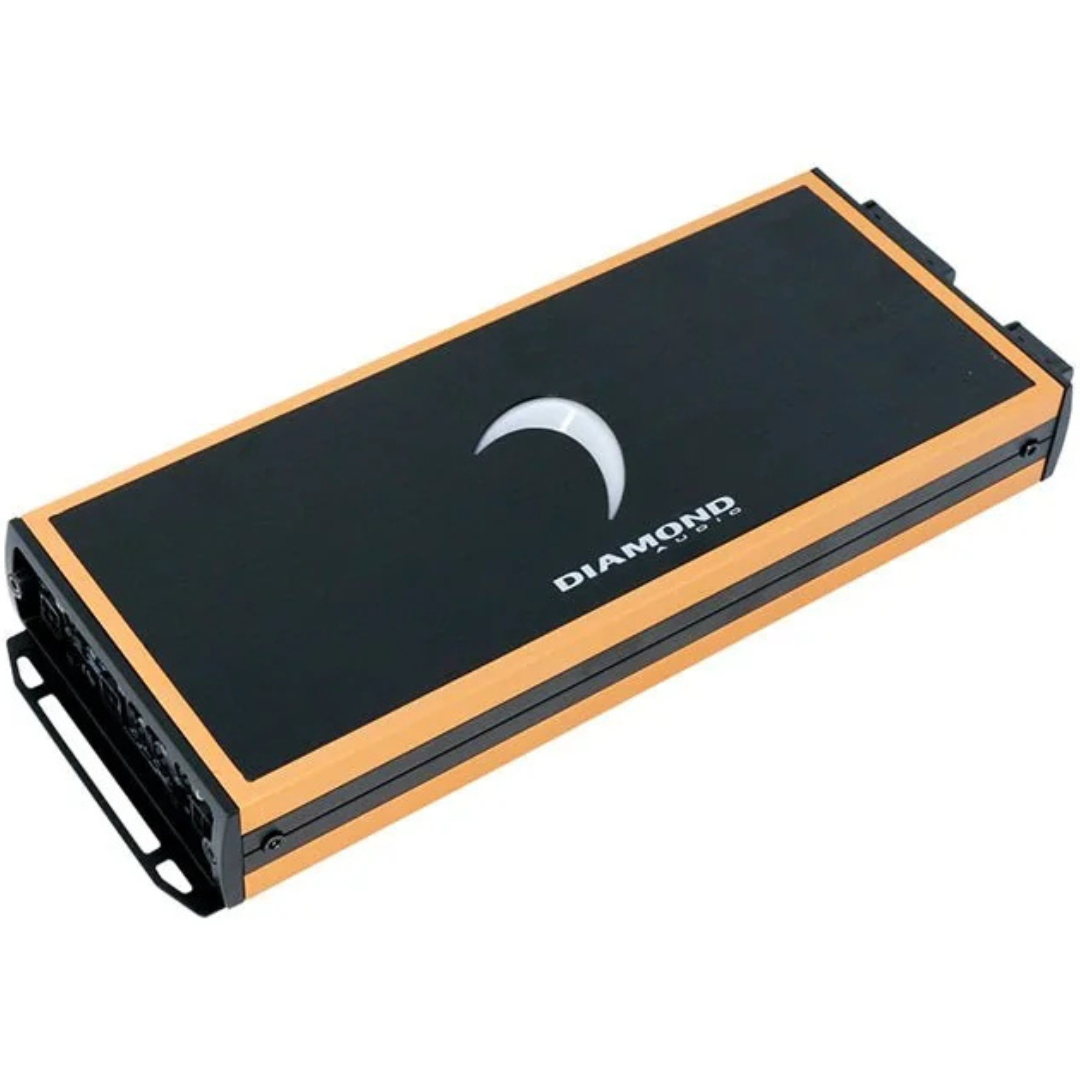

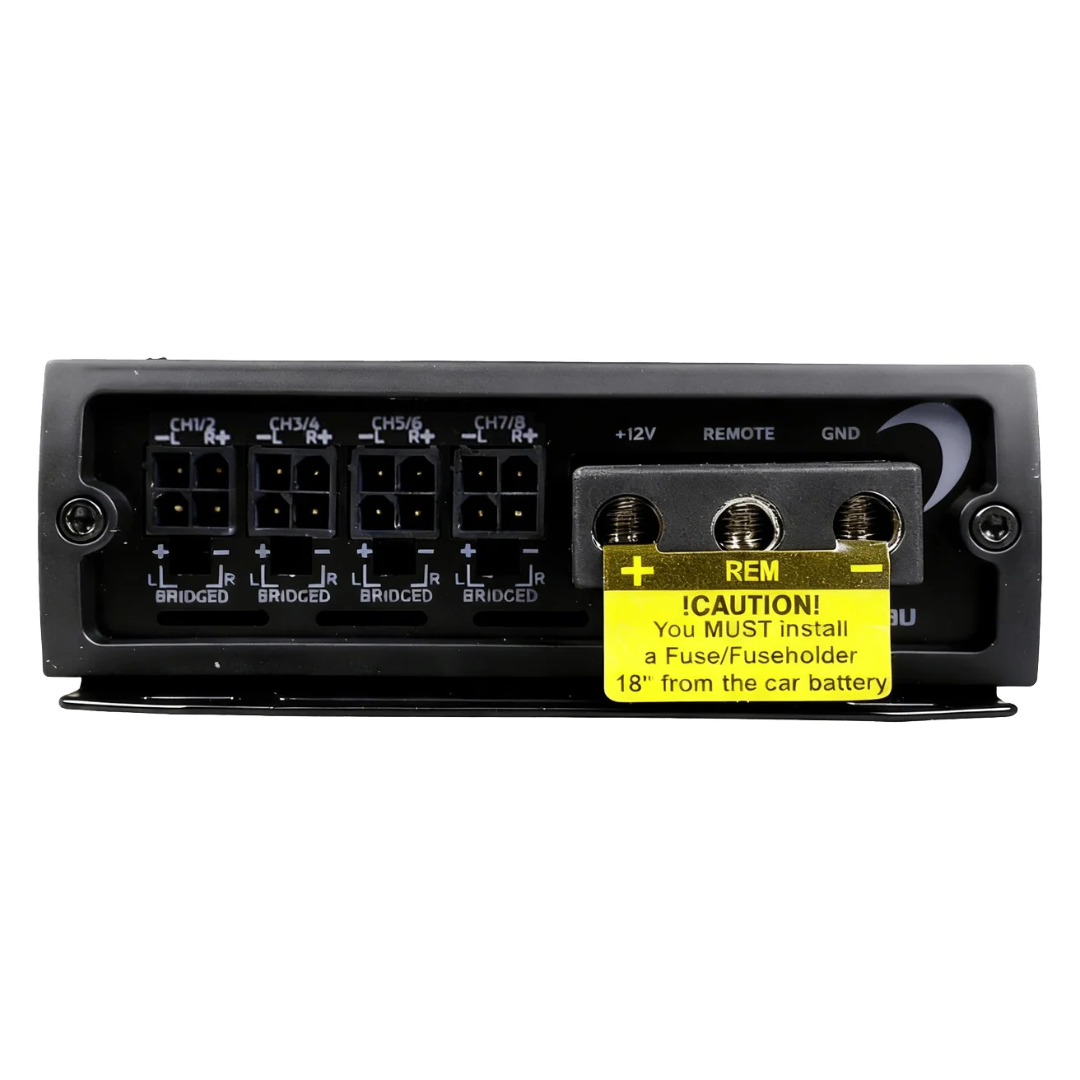

Take your system to the next level with the Diamond Audio MICRO8U 8-Channel Full Range Class D Amplifier, engineered for maximum control, efficiency, and all-weather performance. Designed for serious enthusiasts, this 8-channel car audio amplifier delivers clean, powerful output for multi-speaker systems in cars, boats, motorcycles, and powersports vehicles.

As part of the advanced Diamond Audio MICRO8U amplifier series, this full range Class D amplifier provides exceptional performance in a compact chassis. With 75W x 8 at 4 ohms, 100W x 8 at 2 ohms, and 200W x 2 bridged at 4 ohms, the MICRO8U 8-channel amplifier is ideal for powering full active systems, multi-zone audio setups, or complex custom installations requiring precise channel control.

Built for demanding environments, the Diamond Audio MICRO8U amplifier features a conformal-coated circuit board, making it a true all-weather amplifier for marine audio systems, motorcycles, UTVs, ATVs, and outdoor installations. This rugged design ensures long-lasting performance by protecting internal components from moisture, dust, and harsh conditions.

The compact amplifier design allows for flexible installation in tight spaces while maintaining a clean and uniform look across MICRO8U systems. With selectable 2-channel or 8-channel input modes, this versatile multi-channel amplifier integrates seamlessly into factory or aftermarket audio systems.

Advanced tuning features include a fixed 70Hz high-pass filter for channels 1–4 and a variable 40–400Hz crossover for channels 5–8, along with a wide frequency response (10Hz–33kHz) and adjustable input sensitivity (0.2–10V). These controls allow precise tuning for optimal sound clarity and system performance.

Key Features

• 8-channel full range Class D amplifier

• 75W x 8 @ 4Ω / 100W x 8 @ 2Ω / 200W x 2 bridged

• Compact, high-efficiency amplifier design

• Conformal-coated for all-weather durability

• Selectable 2CH / 8CH input modes

• Advanced crossover tuning options

• Ideal for multi-speaker and active audio systems

• Includes RCA input & speaker output harness kits

The Diamond Audio MICRO8U 8-Channel Amplifier delivers powerful, precise, and reliable performance, making it the ultimate solution for high-end multi-channel car audio and outdoor sound systems.

Specifications

• 100W x 8CH @ 2Ω

• 75W x 8CH @ 4Ω

• 200W x 2CH @ 4Ω Bridged RMS Power Output

• Input Sensitivity: 0.2-10 Volt

• Crossover Filter :

• Fixed 70Hz (HPF) 12dB Per Octave Slope (CH1/CH2/CH3/CH4 )

• 40-400Hz, 12dB Per Octave Slope (CH5/CH6/CH7/CH8 )

• Frequency Response: 10-33KHz

• Selectable 2CH / 8CH Input Modes

• Dimensions: 11.44″ x 4.0″ x 1.6″ (290.5 x 103 x 40.6 mm)

• Disconnected RCA Input & Speaker Output Harness Kits Included
