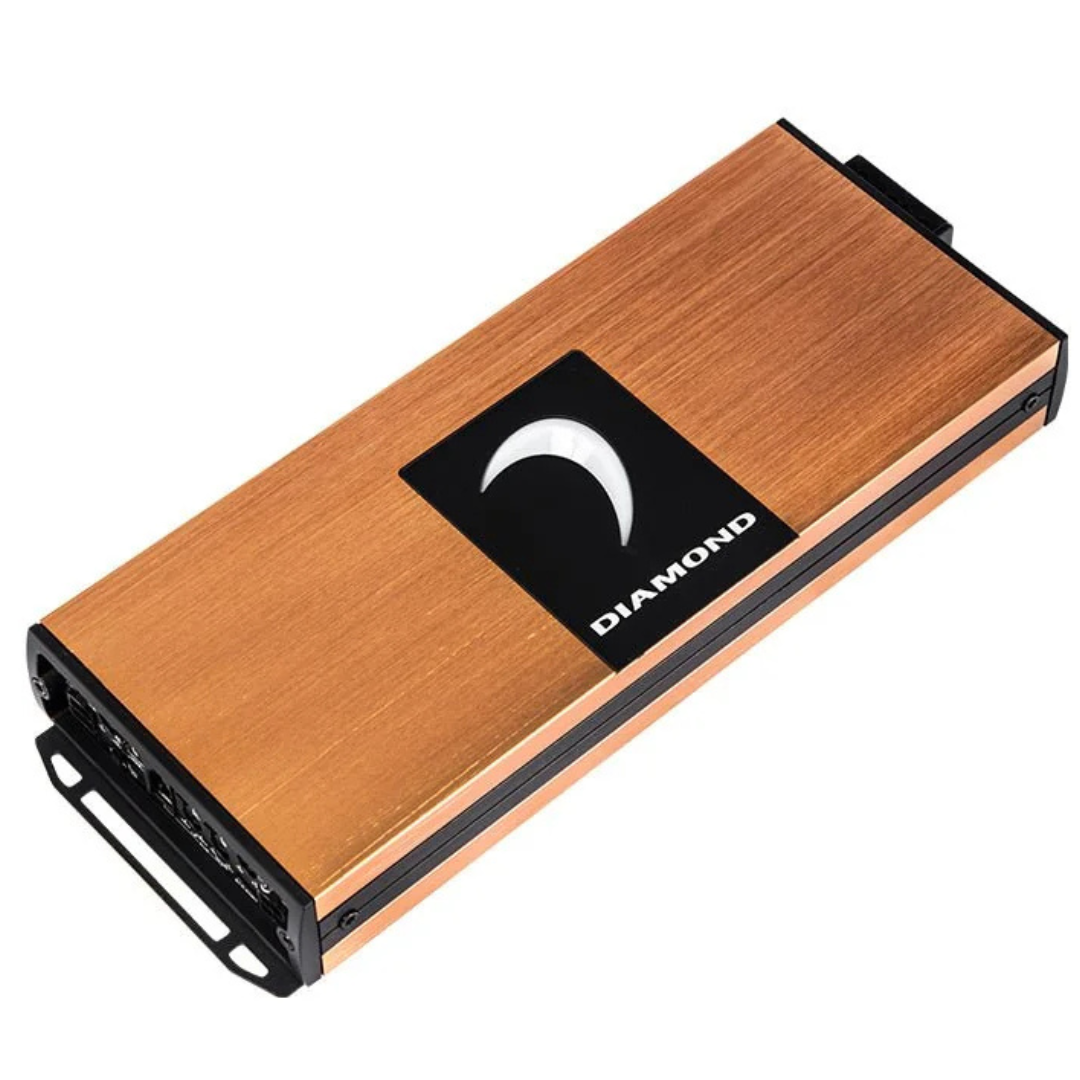

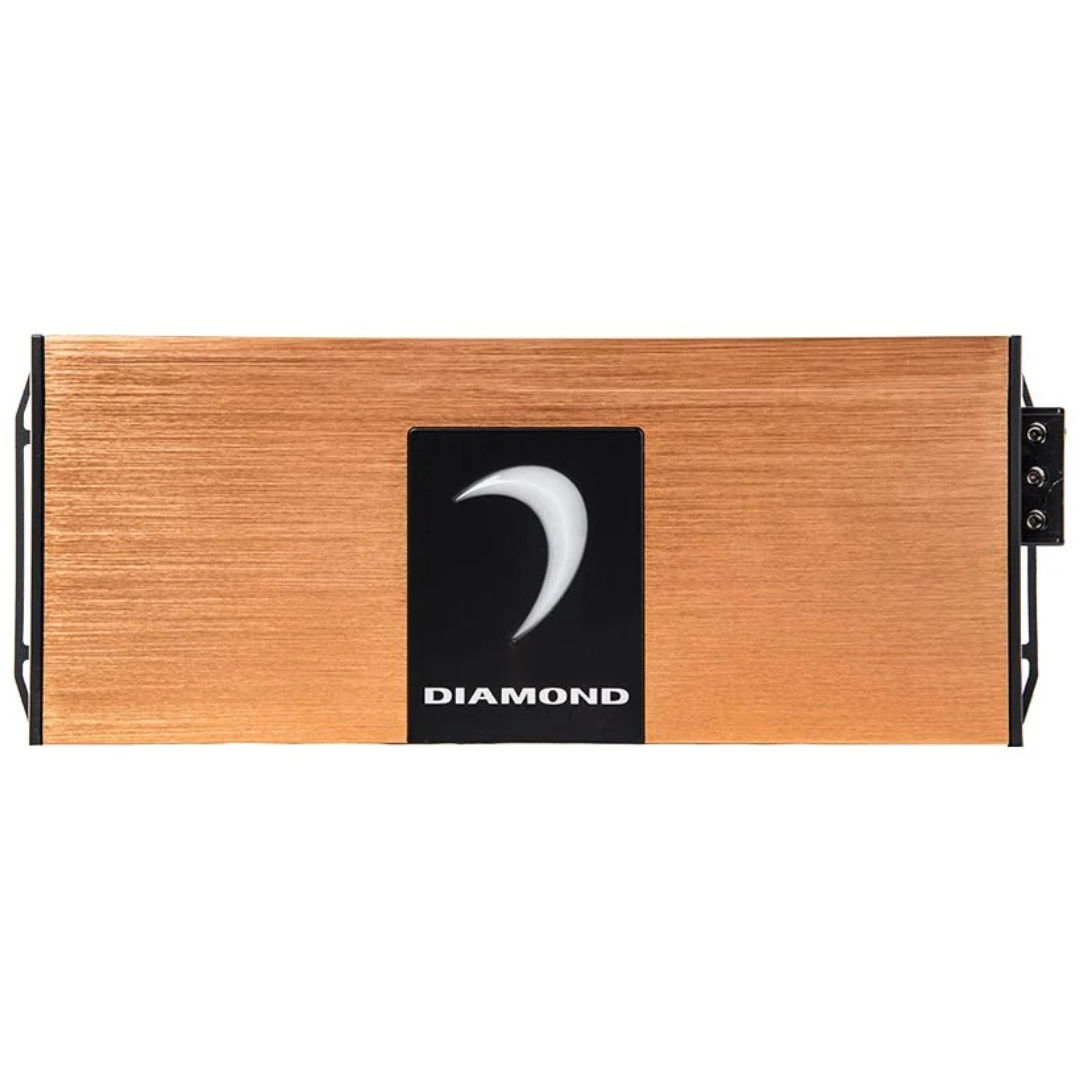

Power your entire system with one compact solution using the Diamond Audio MICROV2 5-Channel Full Range Class D Amplifier. Designed for maximum efficiency and flexibility, this 5-channel car audio amplifier delivers clean, powerful sound for car audio, marine, motorcycle, and powersports applications where space and performance are critical.

Built on ultra-efficient full-range Class D technology, the Diamond Audio MICROV2 5-channel amplifier produces impressive output with 150W x 4 + 350W x 1 at 2 ohms and 80W x 4 + 250W x 1 at 4 ohms. This all-in-one design allows you to power front speakers, rear speakers, and a subwoofer from a single amplifier, making it perfect for complete audio system upgrades and custom installations.

Engineered for reliability, the MICROV2 Class D amplifier features advanced Rollback and Thermal Protection, ensuring continuous playback without overheating or shutdown. The high-density aluminum alloy chassis enhances heat dissipation while maintaining an ultra-compact design for easy installation in tight spaces.

The Diamond Audio MICROV2 amplifier also incorporates balanced differential inputs, delivering noise-free signal transmission for clear, distortion-free sound. With a fixed 70Hz high-pass filter for front and rear channels and a 25–250Hz low-pass filter (24dB slope) for the subwoofer channel, this versatile amplifier provides precise tuning for optimal system performance.

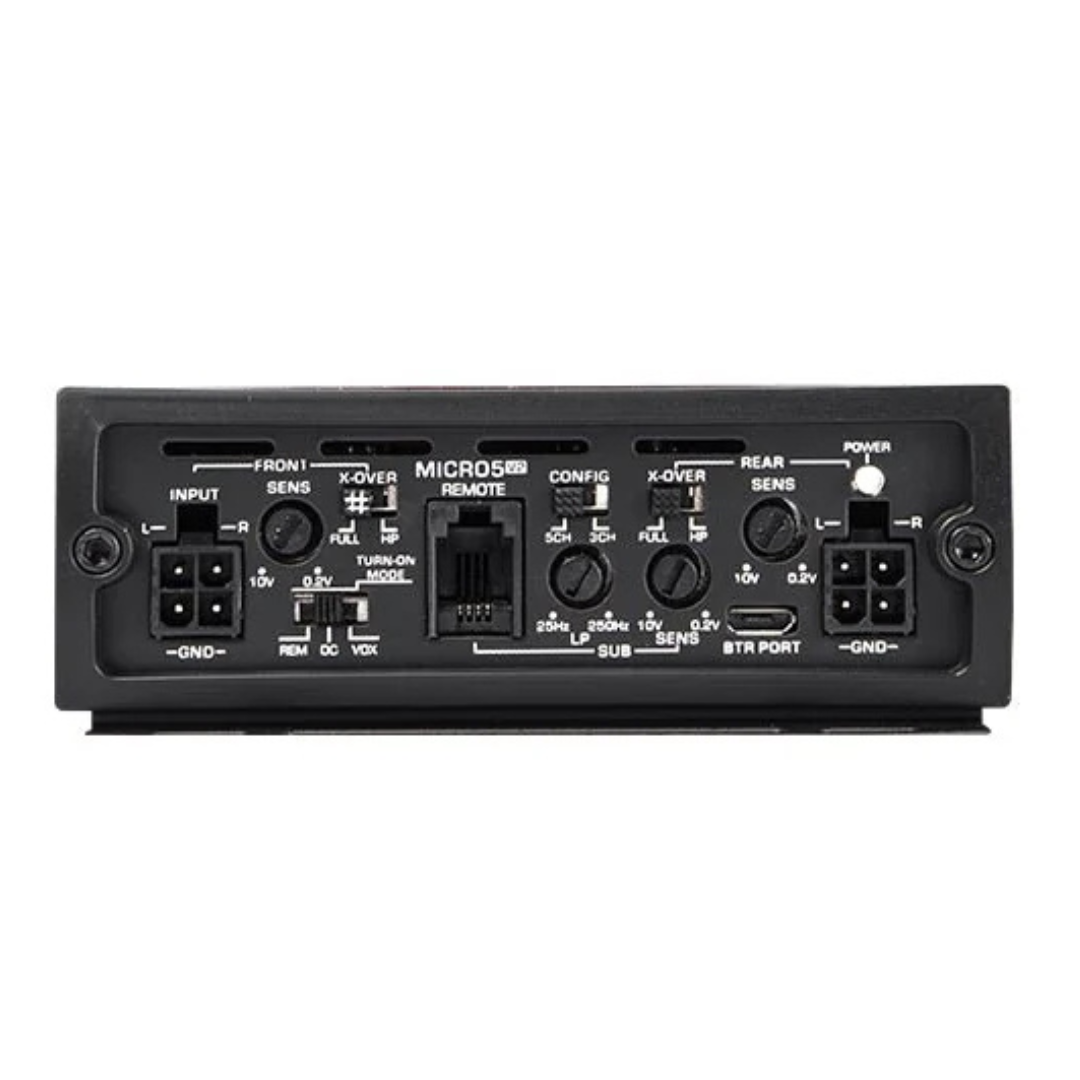

Installation is simplified with selectable REM, VOX, and DC turn-on modes, making the MICROV2 5-channel amplifier compatible with both factory and aftermarket head units. The selectable 3-channel or 5-channel input modes add further flexibility for a wide range of setups. The included remote bass knob allows real-time adjustment of subwoofer output.

Key Features:

• 5-channel full range Class D amplifier

• 150W x 4 + 350W x 1 @ 2Ω / 80W x 4 + 250W x 1 @ 4Ω

• Compact all-in-one amplifier design

• Advanced Rollback & Thermal Protection

• Balanced differential inputs for clean signal

• Dedicated crossover tuning for speakers and subwoofer

• Selectable REM / VOX / DC turn-on modes

• 3CH / 5CH input flexibility

• Includes remote bass knob and wiring harness kits

The Diamond Audio MICROV2 5-Channel Amplifier delivers powerful, efficient, and crystal-clear performance in a compact design, making it the ultimate solution for complete high-performance audio systems in any environment.

Specifications:

• 150W x 4CH @ 2Ω/350W x 1 CH @ 2Ω

• 80W x 4CH @ 4Ω/250W x 1CH @ 4Ω

• Input Sensitivity: 0.2-10 Volt

• Crossover Filter : Fixed 70Hz (HPF), 12dB Per Octave Slope (Front & Rear)

• 25-250Hz (LPF), 24dB Per Octave Slope (Sub)

• Frequency Response: 10-33KHz

• Selectable REM / VOX / DC Turn On Modes

• Selectable 3CH / 5CH Input Modes

• Dimensions: 10.65” x 4.0” x 1.46” / 270.5 x 103 x 37.2 mm

• Remote Bass Knob Included

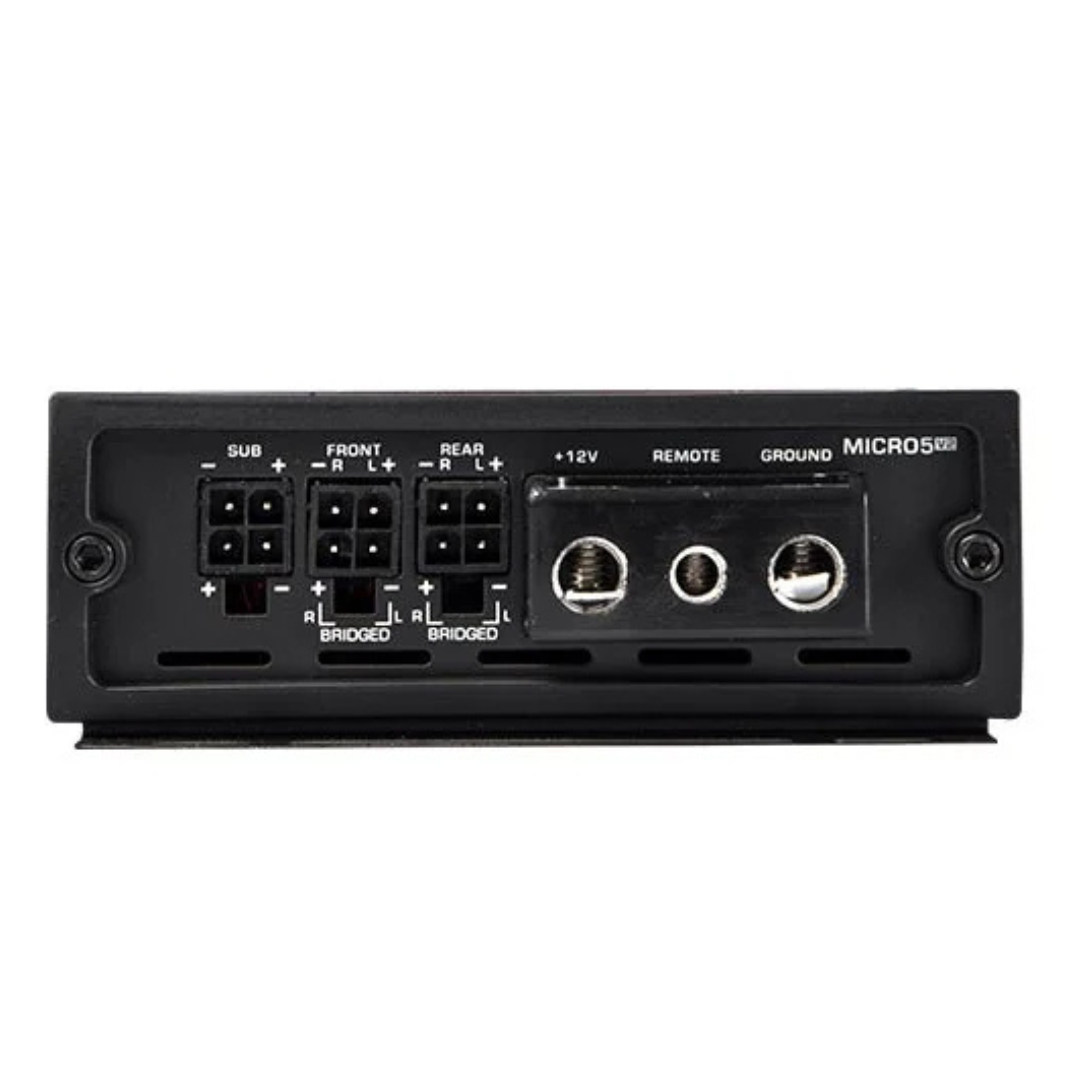

• Disconnected RCA Input & Speaker Output Harness Kits Included
