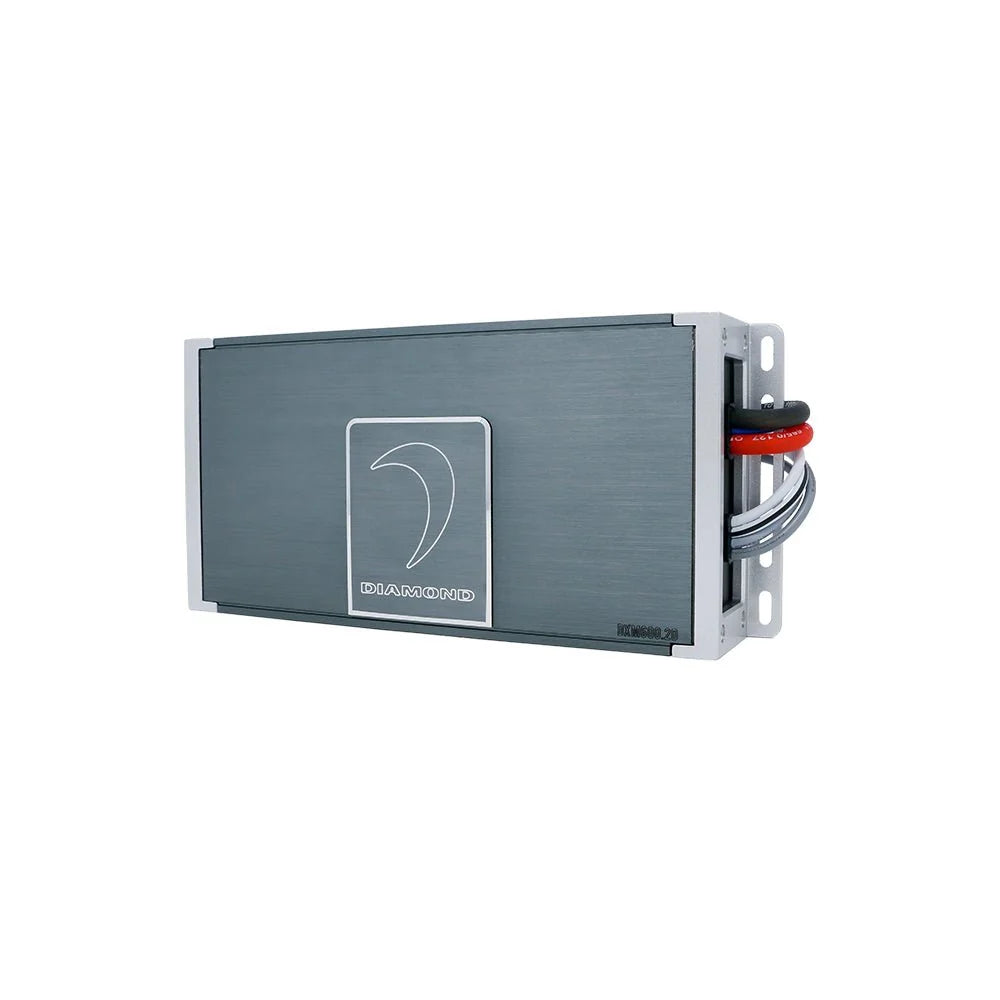

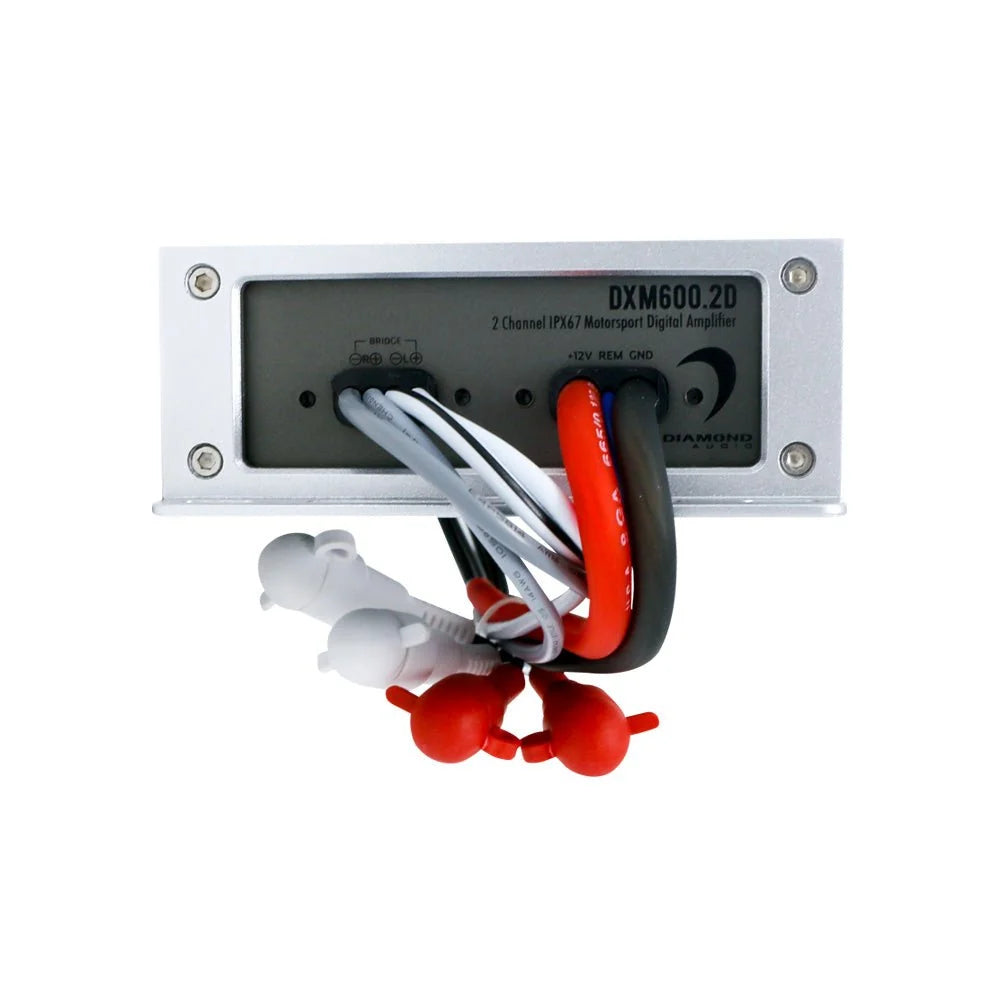

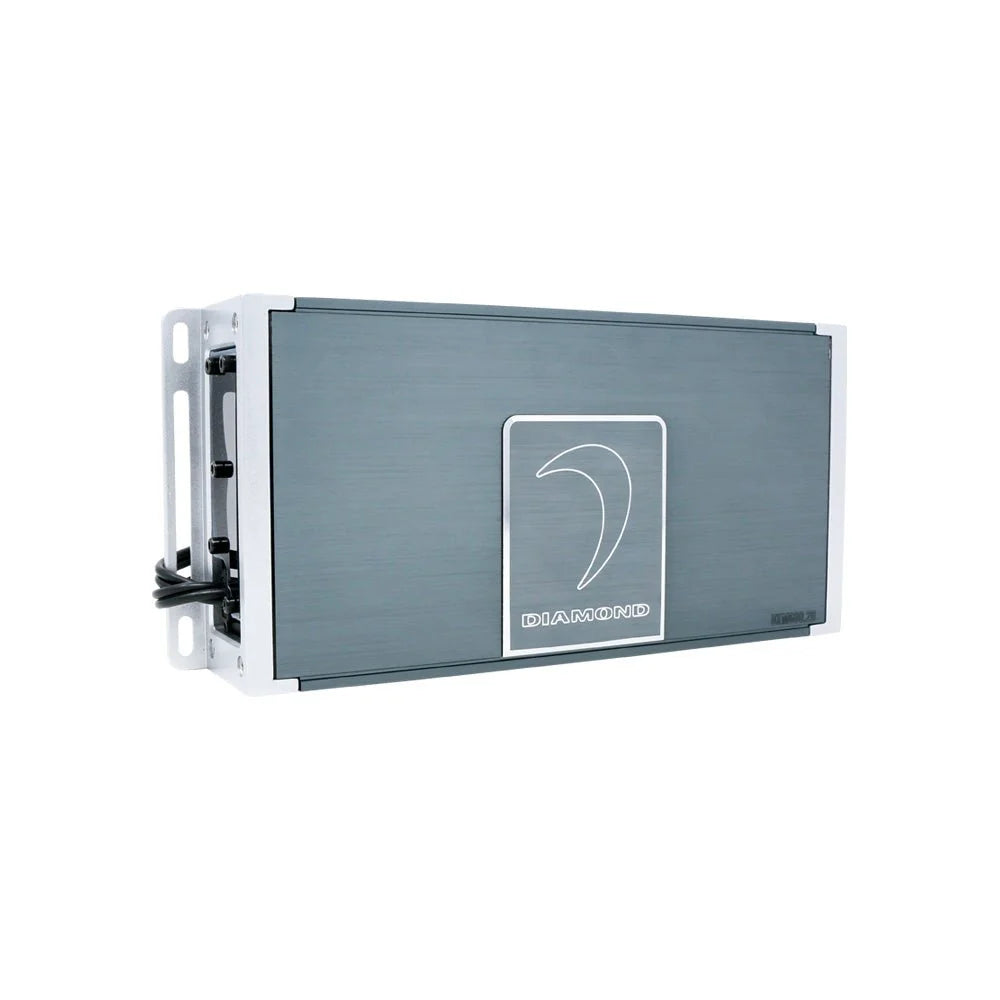

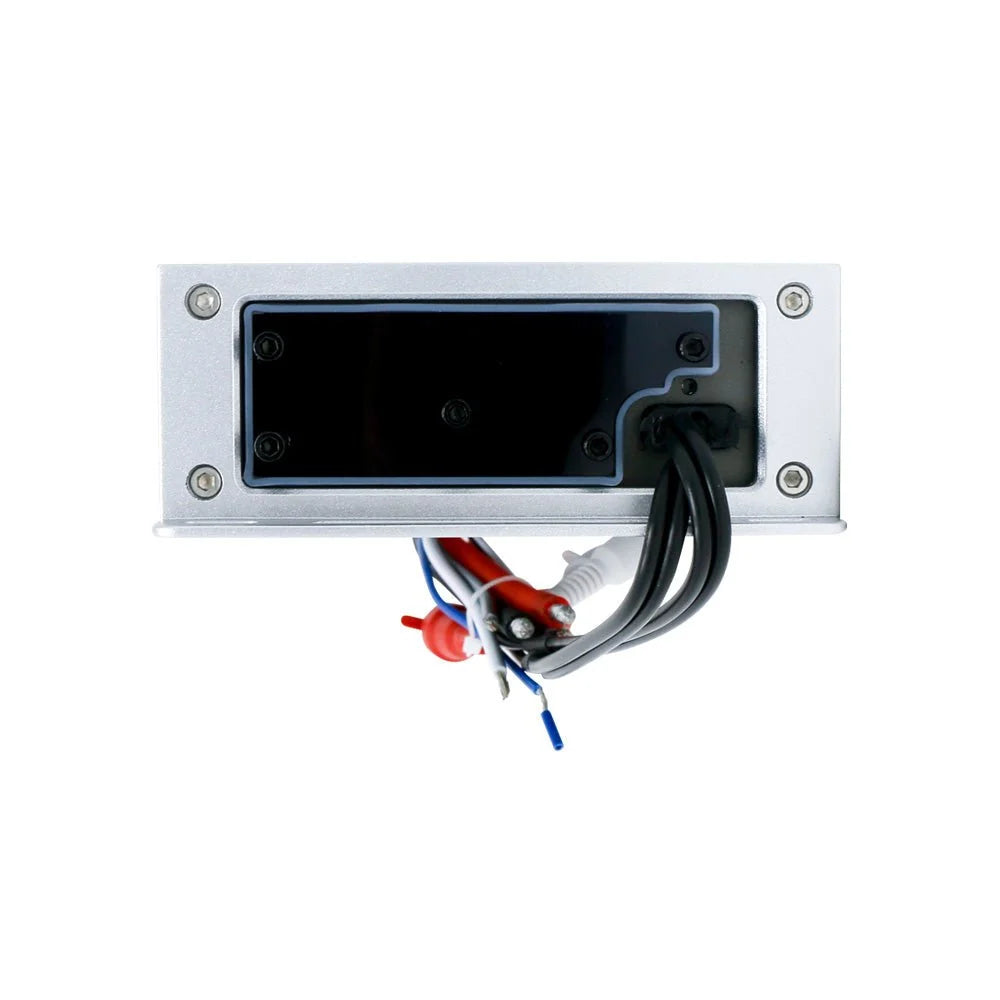

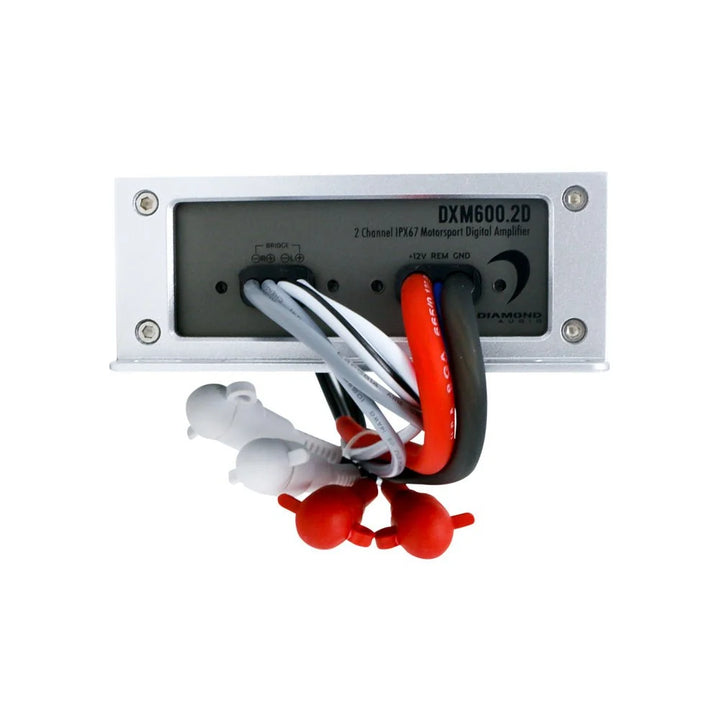

Power your outdoor audio system with confidence using the Diamond Audio DXM600.2D 2-Channel Full Range Class D Waterproof Amplifier. Designed for extreme environments, this marine-grade amplifier delivers powerful, clean sound while offering the durability required for boats, motorcycles, ATVs, UTVs, and off-road vehicles.

Engineered with advanced full-range Class D digital technology, the DXM600.2D amplifier provides impressive output with 200W x 2 at 4 ohms, 300W x 2 at 2 ohms, and 600W x 1 bridged at 4 ohms, making it ideal for powering full-range speakers or subwoofers. The Direct FET power MOSFET output stage ensures efficient power delivery with minimal distortion, giving you dynamic, high-quality sound in any environment.

Built for harsh conditions, the Diamond Audio DXM600.2D waterproof amplifier features IPX67-rated multi-layer circuit boards, offering superior protection against water, dust, and environmental exposure. Whether installed in a marine vessel or powersports vehicle, this waterproof car audio amplifier is built to last.

The DXM600.2D 2-channel amplifier also includes balanced differential inputs, ensuring noise-free signal transmission for clear and accurate sound reproduction. With adjustable crossovers (40Hz–400Hz), selectable LPF / FULL / HPF modes, and up to 18dB bass boost, this versatile amplifier allows precise system tuning to match your audio preferences.

Installation is simple with selectable REM, VOX, and DC turn-on modes, making it compatible with both factory and aftermarket head units. Additional features such as power and protection LED indicators and built-in short circuit, thermal, and voltage protection ensure reliable performance.

Key Features:

• 2-channel full range Class D waterproof amplifier

• IPX67-rated for marine and outdoor applications

• 200W x 2 @ 4Ω / 300W x 2 @ 2Ω / 600W bridged @ 4Ω

• Balanced differential inputs for noise-free signal

• Adjustable crossover and bass boost control

• Short circuit, thermal, and voltage protection

• Compact, durable design for easy installation

• LED power and protection indicators

The Diamond Audio DXM600.2D Amplifier delivers powerful, reliable, and crystal-clear sound, making it the ultimate solution for marine and powersports audio systems that demand performance and durability.

Specifications:

• Power @ 2Ω: 300W RMS x 2

• Power @ 4Ω: 200W RMS x 2

• Power @ 4Ω Bridged: 600W RMS x 1

• Total Harmonic Distortion: <0.3%

• S/N Ratio (1W@4Ω): >-102dB

• Gain Range: 0.2v-10v

• Crossover Range: 40Hz-400Hz

• Frequency Range: 10Hz-33KHz

• Bass Boost: 0dB-18dB

• Current Draw Full Power(Music): 70A (7A) AVG

• Fuse Rating: 35A

• Dimensions: 9.5”x4.3”x1.7” (241.6mm x 110mm x 44.0mm)

• Power & Protection Led Light Status Indicator

• Short Circuit, Thermal and Voltage Protection

• Selectable X-Over: LPF/FULL/HPF

• IPX67 Rated
