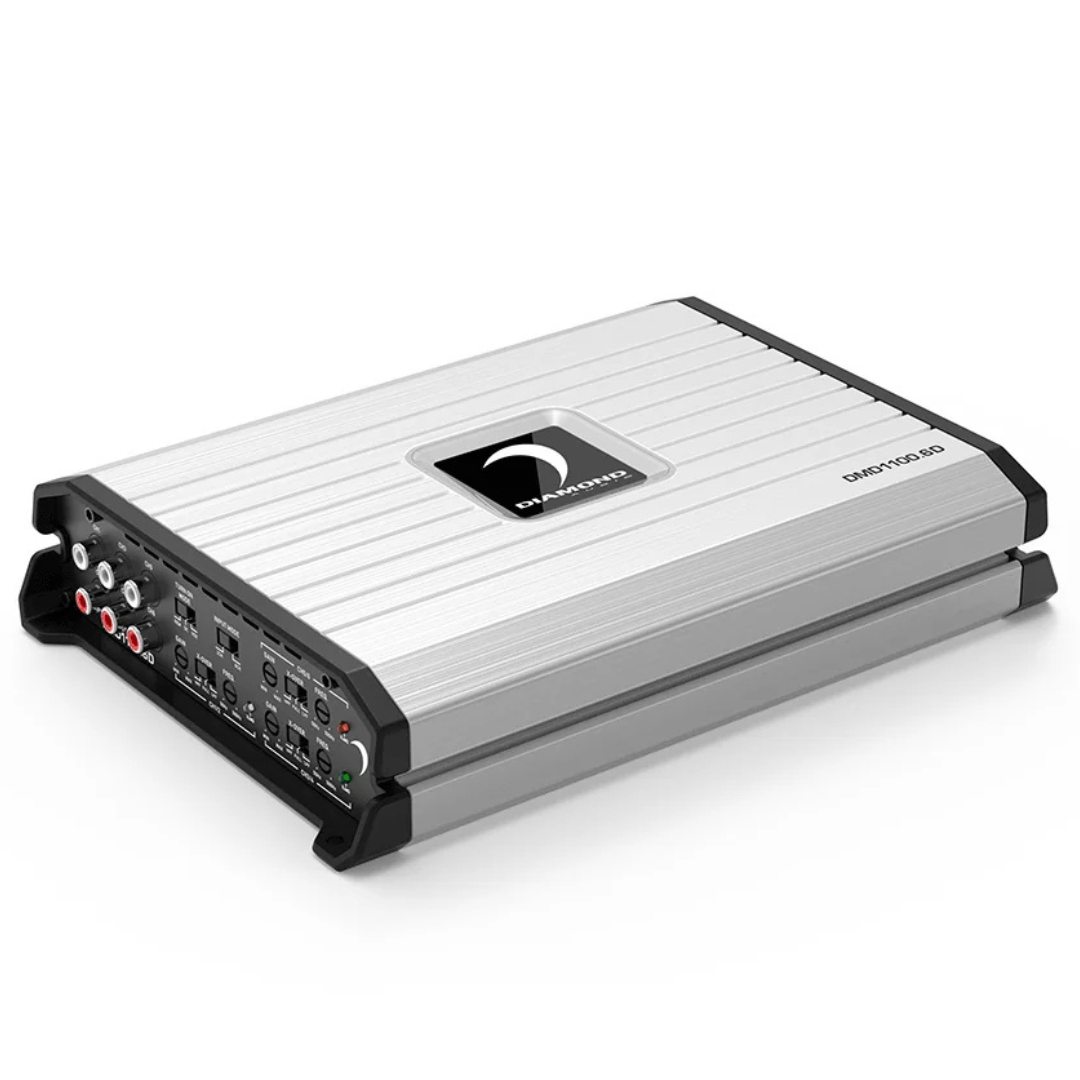

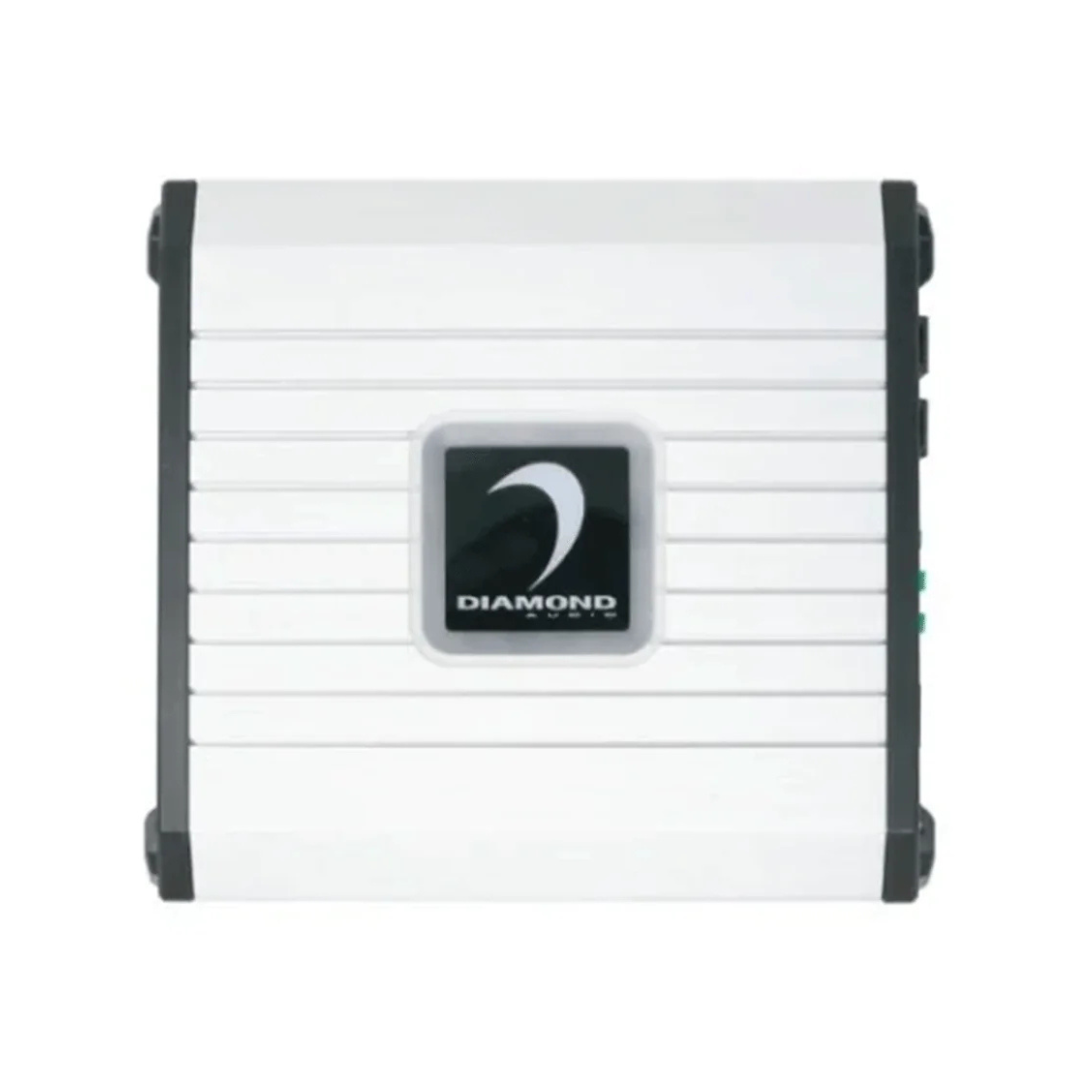

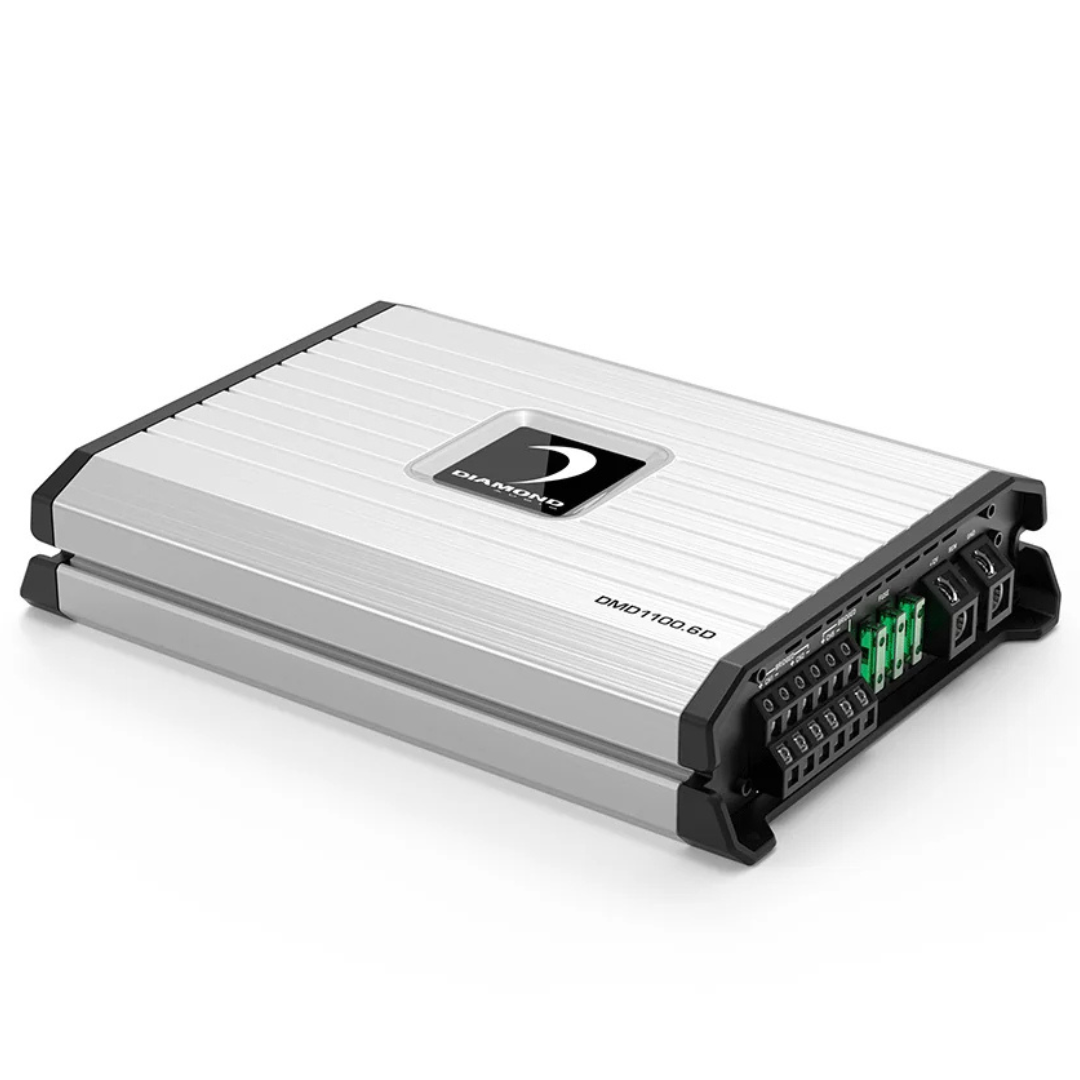

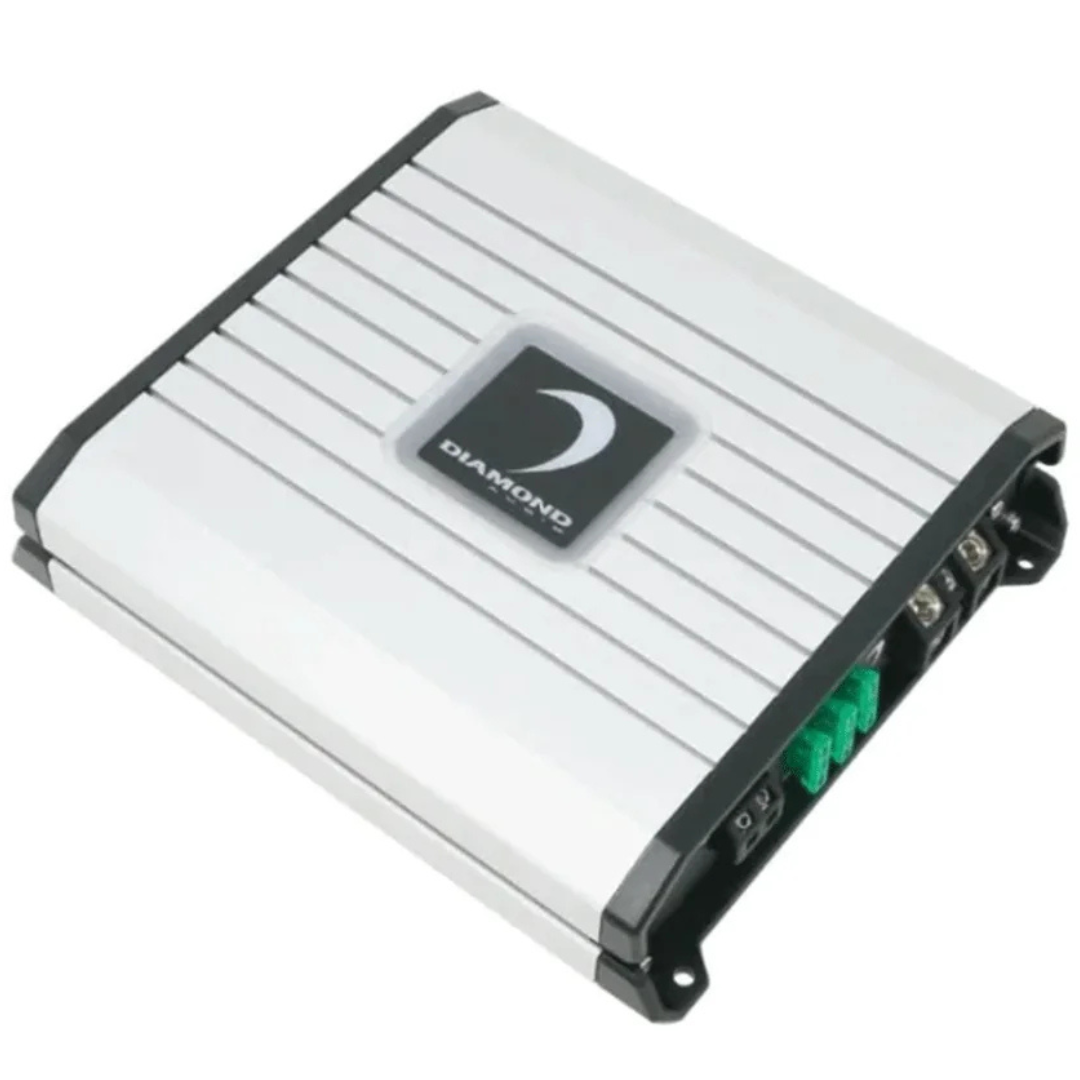

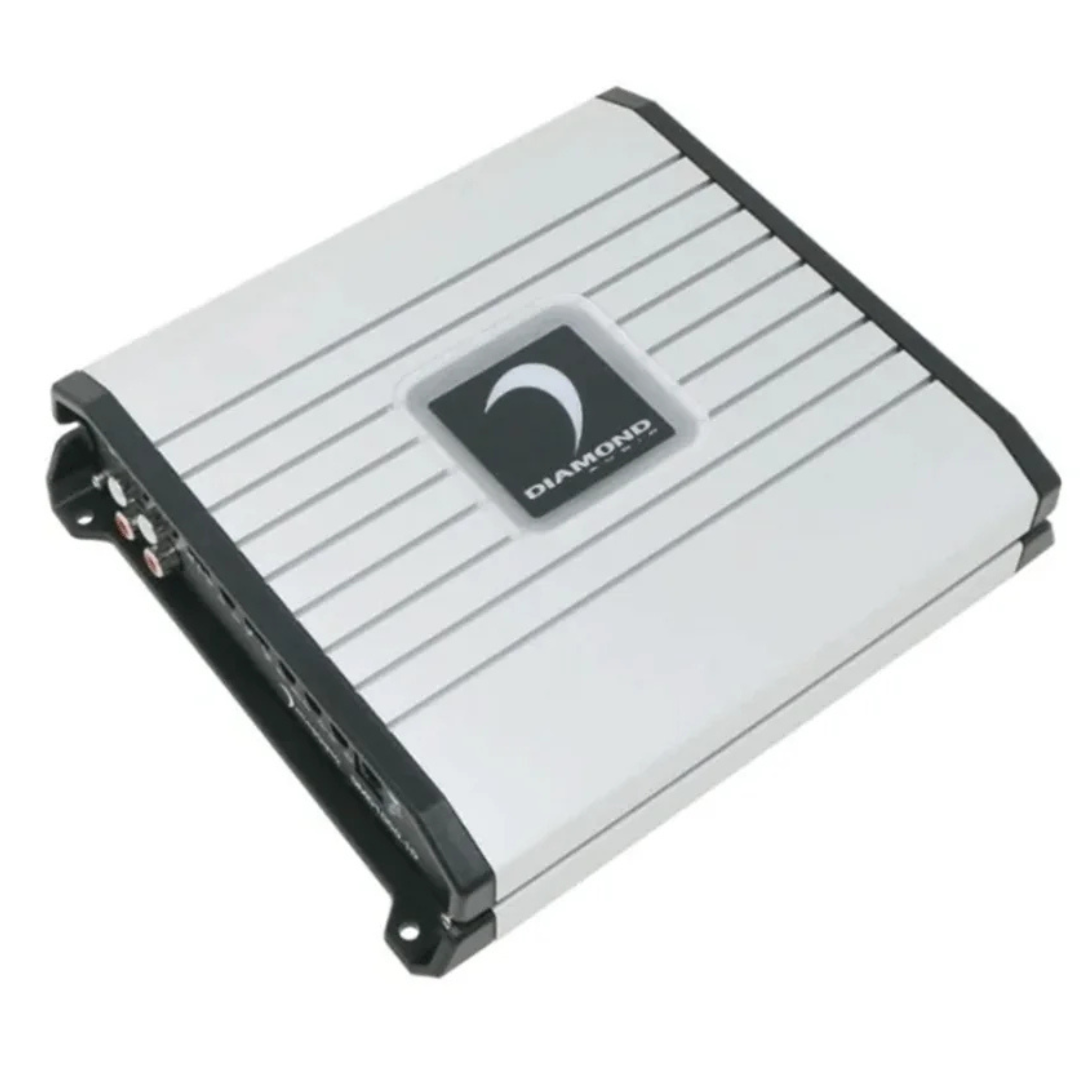

Take complete control of your system with the Diamond Audio DMD Series 6-Channel Full Range Class D Digital Amplifier, engineered for power, flexibility, and value in modern car audio installations. Designed to drive full-range speakers and subwoofers from a single amplifier, this 6-channel car amplifier delivers dynamic performance with efficient power output.

Built with advanced Class D digital amplifier technology, the Diamond Audio 6-channel amplifier produces 125W x 4 + 250W x 2 at 2 ohms and 80W x 4 + 125W x 2 at 4 ohms, offering versatile power for multi-speaker setups. With bridging capabilities up to 500W x 1 at 4 ohms and dedicated subwoofer channel options delivering 700W x 1 at 2 ohms, this amplifier is ideal for powering a complete audio system with clarity and authority.

Engineered with 4-layer FR4 PCB construction and advanced SMD circuitry, the DMD Series amplifier ensures reliable performance, efficient heat dissipation, and long-term durability. Balanced differential inputs provide clean, noise-free signal transfer, making it perfect for both factory and aftermarket integrations.

Fine-tune your sound with variable high-pass and low-pass crossover controls (50Hz–500Hz), allowing precise tuning for speakers and subwoofers. Whether you’re building a fully active system or a traditional front/rear/sub setup, this full-range Class D amplifier delivers balanced, distortion-free sound across the frequency spectrum.

Installation is simple with selectable 2-channel or 6-channel input modes and REM, VOX, and DC turn-on options, ensuring seamless compatibility with any head unit. Built-in short circuit, thermal, and voltage protection safeguards your system, while the compact chassis allows flexible mounting options.

Key Features

• 6-channel full range Class D digital amplifier

• 125W x 4 + 250W x 2 @ 2Ω / 80W x 4 + 125W x 2 @ 4Ω

• Bridging capability up to 700W subwoofer output

• 4-layer PCB with advanced SMD technology

• Variable HPF/LPF crossover controls (50Hz–500Hz)

• Balanced differential inputs for clean signal

• Selectable 2CH / 6CH input modes

• REM / VOX / DC auto turn-on options

• Compact, high-efficiency design

The Diamond Audio DMD 6-Channel Amplifier delivers powerful, flexible, and efficient performance, making it the ultimate solution for all-in-one car audio systems seeking premium sound on a budget.

Specifications:

• 125W X 4 + 250W X 2 @ 2Ω

• 80W X 4 + 125W X 2 @ 4Ω

• 250W X 2 + 500W X 1 @ 4Ω (Bridged)

• 350W X 2 @ 1Ω (CH5 & CH6 Only)

• 700W X 1 @ 2Ω (Bridged: CH.5 & CH.6 Only)

• Power Supply: Full WPM

• Power Supply Threshold: 10.0V-17.0V (DC)

• Idle Current: (0.7A)

• THD 4 (1KHZ @4Ω): 0.03%

• Low Level Input: 0.2mV-10.0V

• High Level Input: Up to 25W RMS

• Low Level Input: 22KΩ

• Output Impedance:

• Damping Factor (50Hz@4Ω):

• Bandwidth (-3db):

• Crossover (1-12dB/Oct)

• Variable High-Pass: 50Hz-500Hz

• Variable low-Pass: 50Hz-500Hz

• Fuse Rating: 3x40A

Dimensions:

• Length x Width x Height: 9.76”x6.85”x1.9” (248.1mm x 174mm x 48.4 mm)
