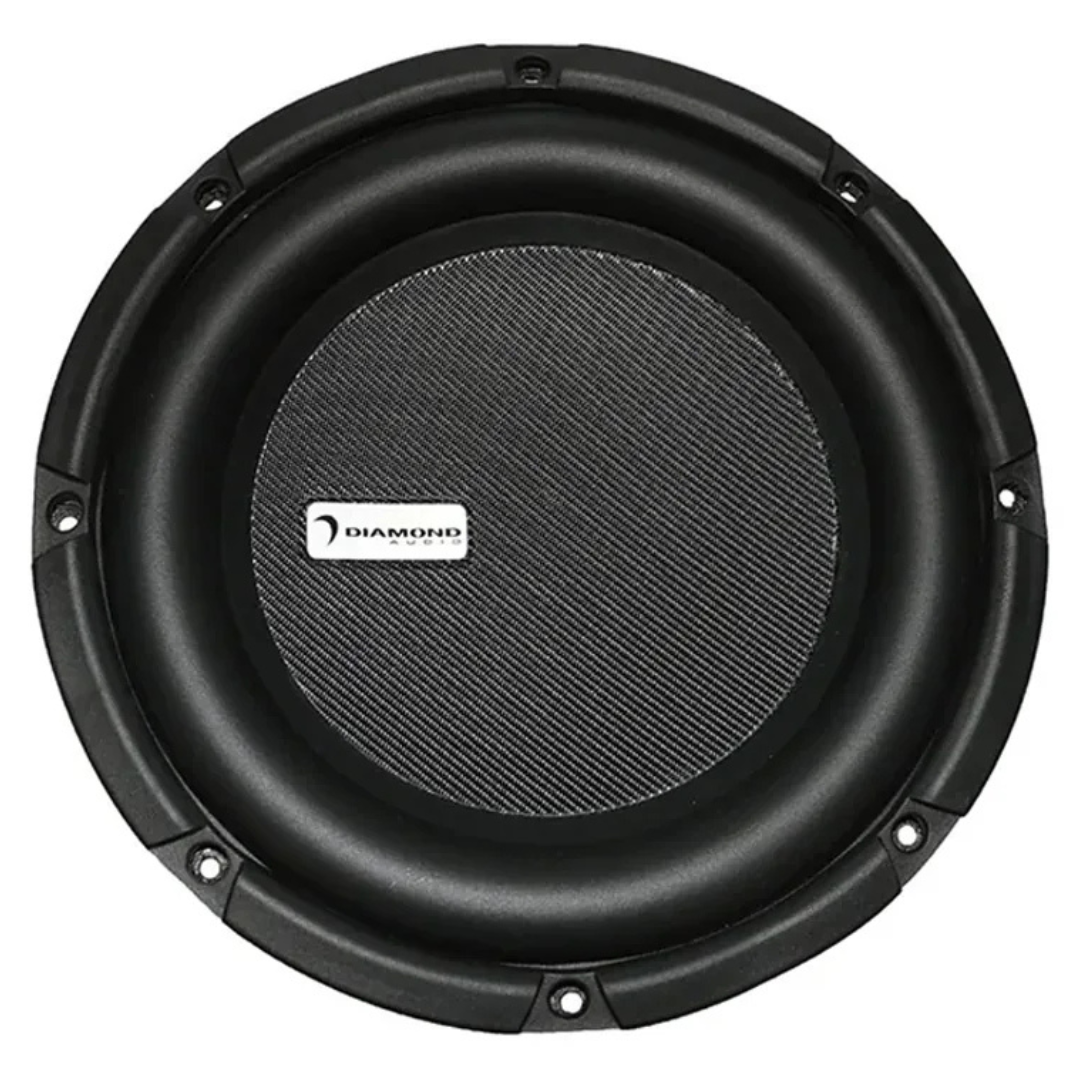

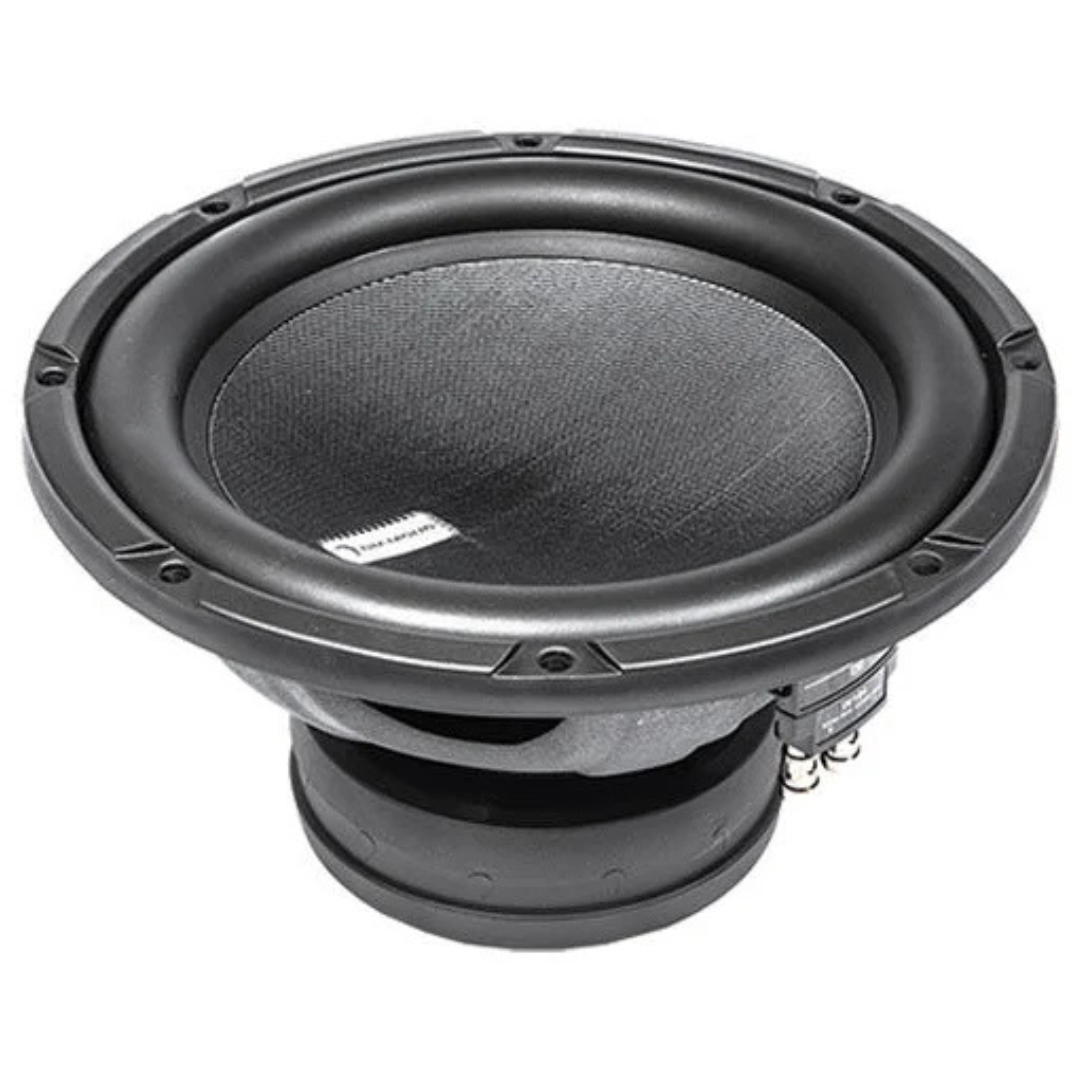

Experience premium low-frequency performance with the Diamond Audio DES Series 12-inch dual voice coil subwoofer (4Ω), engineered for audiophiles who demand powerful, precise, and musical bass. As part of the flagship Diamond Elite DES Series, this 12" car audio subwoofer combines advanced engineering, premium materials, and flexible system integration for superior performance.

Built for versatility, the Diamond Audio DES 12" subwoofer performs exceptionally in both sealed and ported enclosures, delivering deep, controlled bass across a wide range of system designs. With 500W RMS and 1000W MAX power handling, this high-performance subwoofer produces strong, dynamic low-end output while maintaining clarity and control.

At its core, the DES Series subwoofer features a reinforced hybrid fiber weave paper cone, designed for fast transient response and excellent rigidity. This ensures clean, accurate bass reproduction with reduced distortion, even during extended high-output listening sessions. The dual 4-ohm voice coil configuration, combined with Diamond Audio’s impedance switch technology, allows flexible wiring and easy system matching for optimal amplifier performance.

Engineered for durability, this 12-inch subwoofer includes a vented pole and voice coil gap for improved cooling, along with a dual mirror image spider design for enhanced stability and linear excursion. The Klippel optimized motor and suspension symmetry further improves performance by delivering balanced, distortion-free bass.

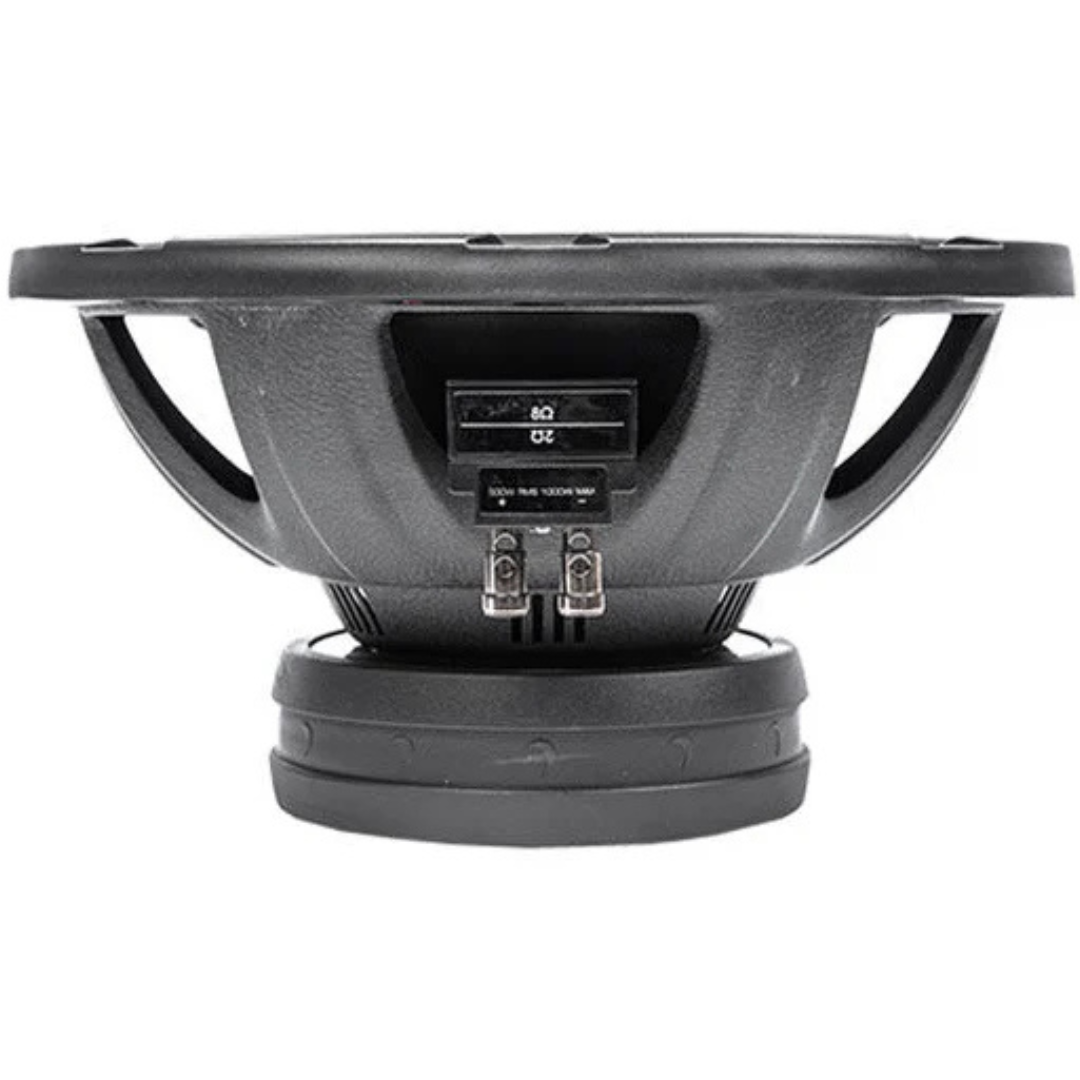

With a high-strength stamped steel frame, oversized chrome push terminals, and a protective mounting gasket, the Diamond Audio DES subwoofer is built for long-term reliability in demanding car audio environments.

Key Features:

• 12" dual voice coil subwoofer (4Ω)

• 500W RMS / 1000W MAX power handling

• Hybrid fiber weave paper cone for accurate bass

• Impedance switch technology for flexible wiring

• Dual spider design for improved control and durability

• Klippel optimized motor for reduced distortion

• Vented cooling system for thermal efficiency

• Ideal for sealed and ported enclosures

The Diamond Audio DES Series 12-inch subwoofer delivers powerful, refined, and dynamic bass, making it the ultimate upgrade for high-end car audio systems seeking performance and versatility.

Specifications:

• Power: 500W RMS

• Power: 1000W MAX

• SPL(dB): 82.8

• Re(Ω): 6.30

• Qms: 9.0

• Qes: 0.96

• Qts: 0.87

• Fs(Hz): 34.0

• Vas(L): 30.0

• Cms(mm/N): 0.08

• Mms(g): 263

• Sd(cm²): 0.050

• BL(T*M): 19.3

• Xmax(mm): 15.7

Measurements:

• Diameter: 12.57" (319.4mm)

• Mounting Diameter: 11.0" (280.6mm)

• Mounting Depth: 6.63" (168.5mm)

• Magnet Diameter: 6.51" (165.2mm)
