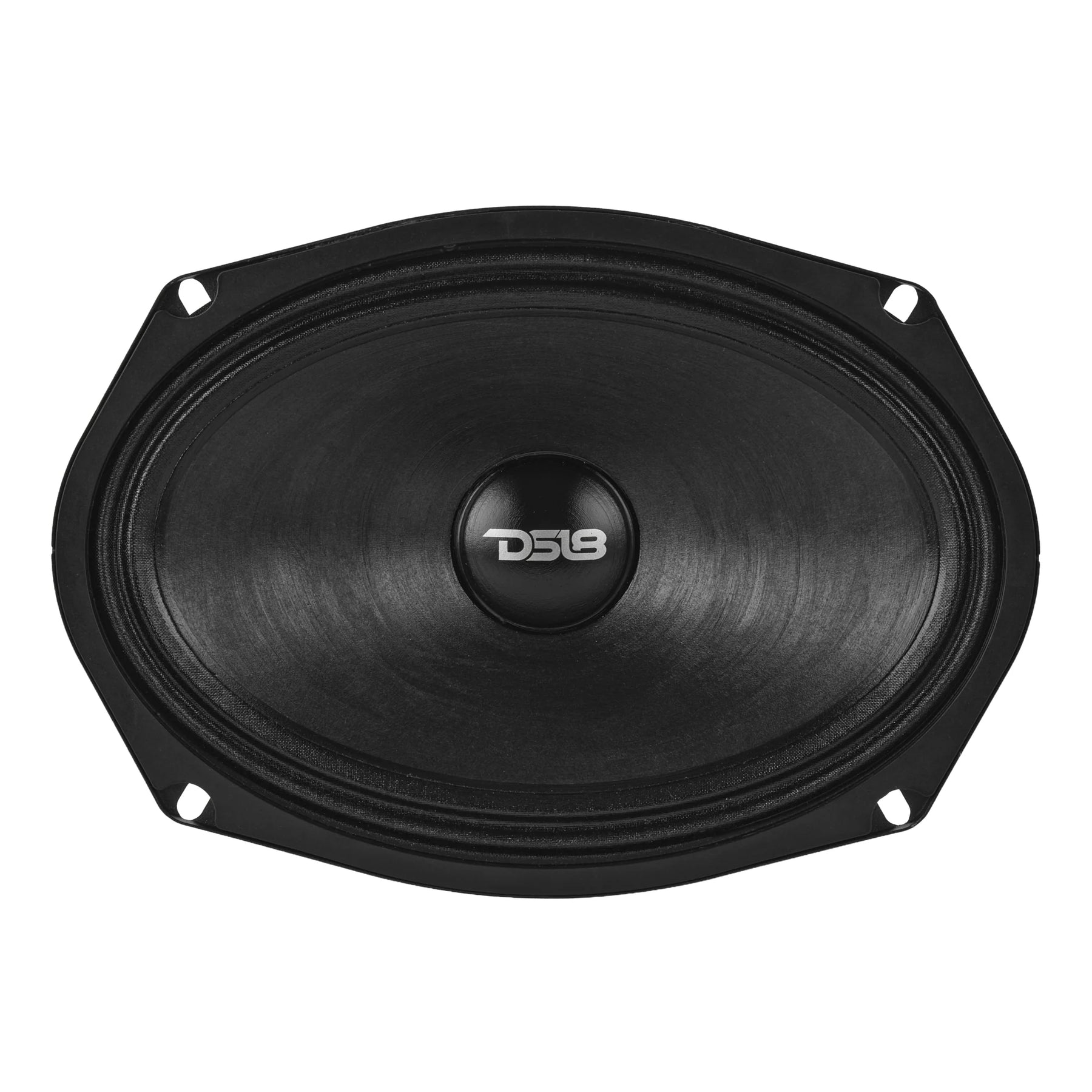

Tuned for loud, clean output in cars and motorcycles: DS18’s 69PRO300MB hits harder and offers elite mid-bass performance without drawing insane amounts of power.

Effortless Loudness: Rated at 98dB, this speaker delivers massive volume using less power than other mid-bass drivers in its class. When installed in sealed or open-air environments, the 69PRO300MB produces powerful impact that cuts through any road noise.

Road-Ready: Featuring a water-resistant coated paper cone and dust cap, this mid-bass driver is built to survive harsh outdoor conditions. Its heavy-duty design provides durability for performance in all elements.

Low-Distortion Performance: A precision-tuned copper demodulation ring widens the magnetic field and allows the voice coil to move smoothly, drastically reducing distortion at high volume. You get more accurate, harder-hitting mid-bass response from 50Hz to 12.5kHz.

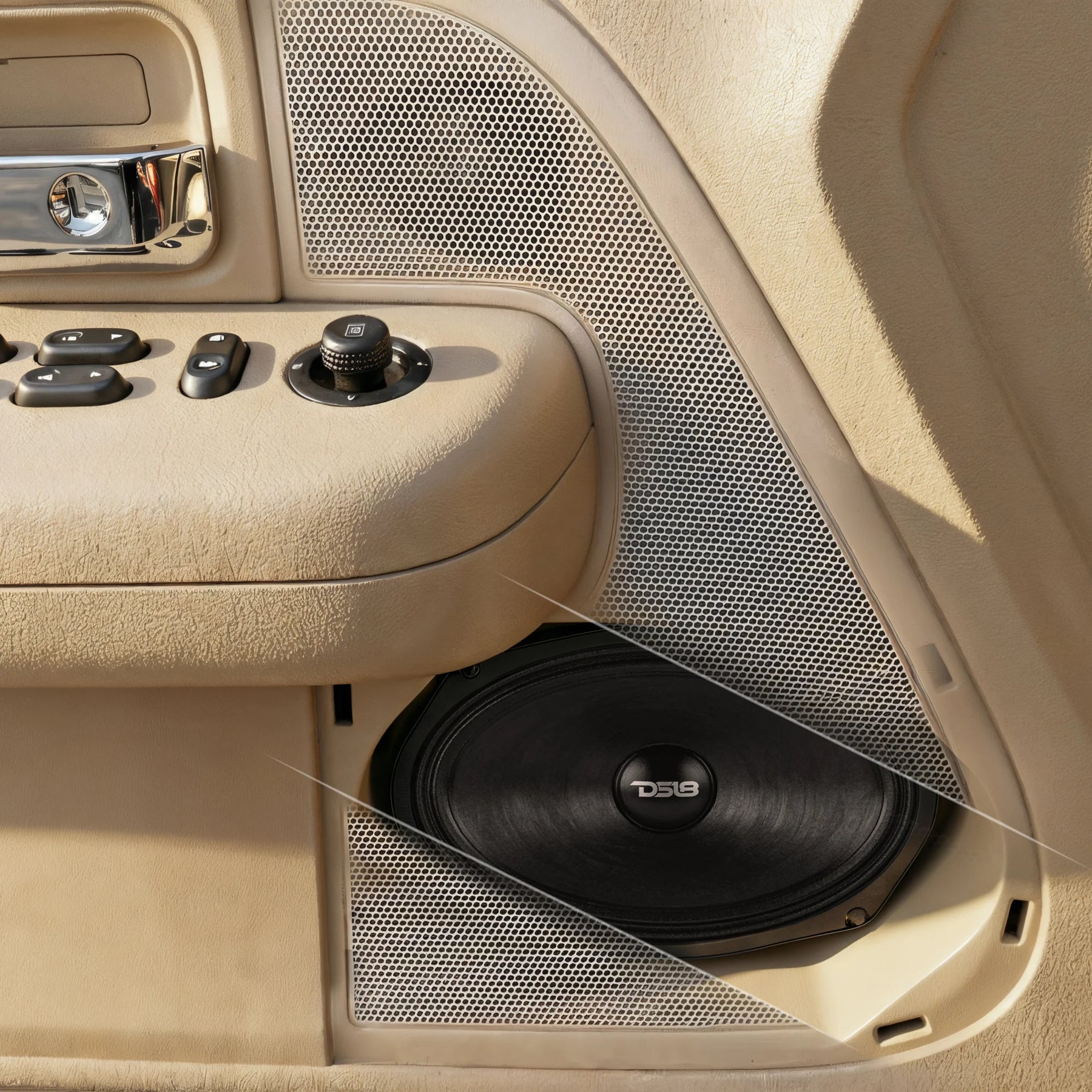

Optimized for Power and Versatility: This speaker thrives in car door panels and motorcycle fairings where strong mid-bass is essential for a balanced sound system.

If you want a mid-bass speaker that outperforms ordinary speakers in every category—the 69PRO300MB delivers.

Key Features:

• Durable 6x9” Build for efficient, long-lasting performance

• 98dB High Sensitivity for big volume with less power

• Water-Resistant Cone for reliable use in harsh conditions

• Copper Demodulating Ring for reduced distortion and cleaner mid-bass

• High-Impact Mid-Bass ideal for motorcycle fairings and cars

Specifications:

• Nominal Diameter: 6x9" / 152x228mm

• Nominal Impedance: 4 Ohms or 8 Ohms

• RMS Power Handling: 150W

• MAX Power Handling: 300W

• Sensitivity (1w/1m): 98dB

• Frequency Response: 50Hz-12.5kHz

• Recommended HI Pass Crossover: 80Hz

• Demodulating Rings: Copper Ring

• Cone Shape: Curvilinear

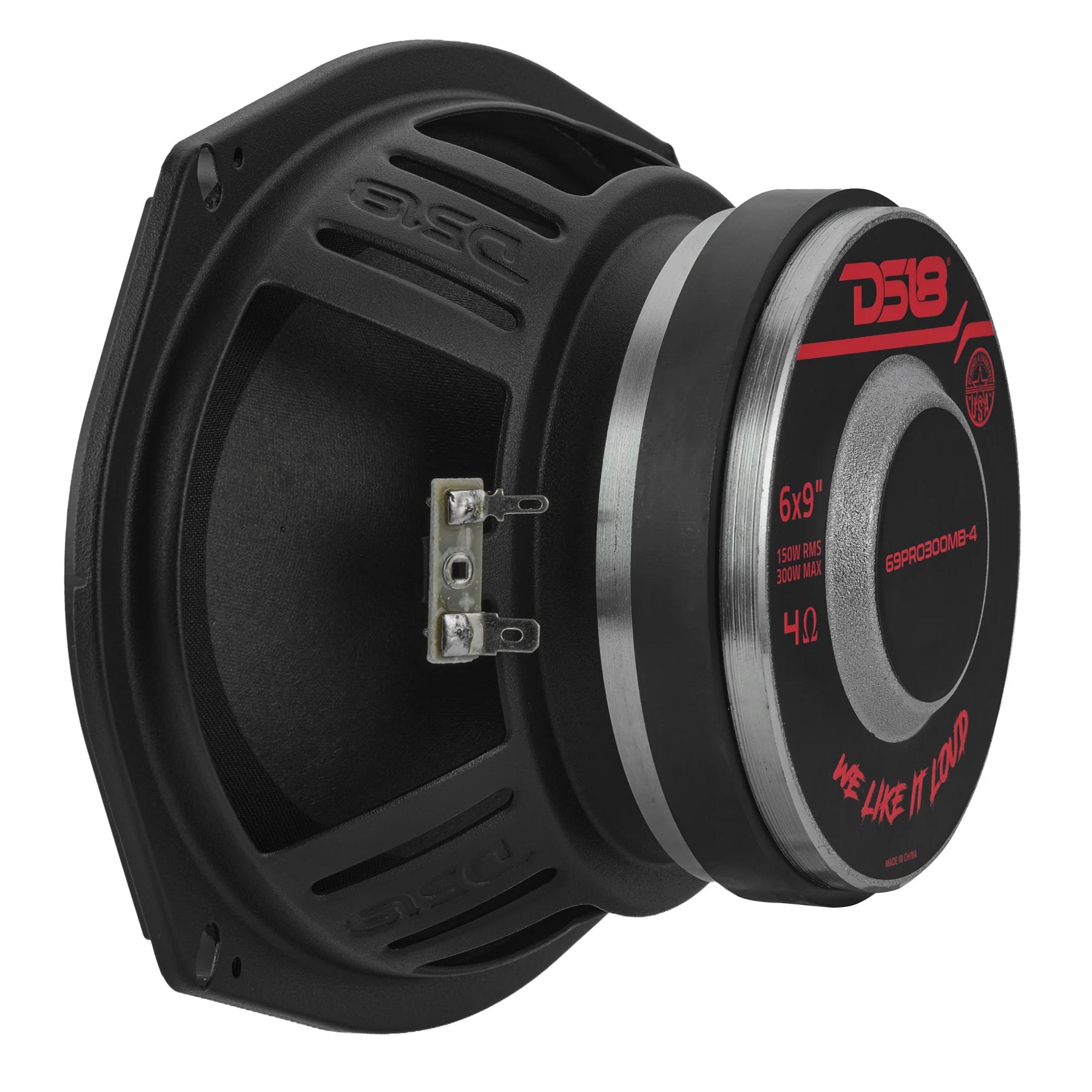

• Speaker Terminals: Spade

Motor:

• Voice Coil Diameter: 1.5" / 38.6mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Cone Material: Paper With Water Resistant Coat

• Dust Cap Material: Paper With Water Resistant Coat

• Surround Material: Cloth

• Basket Material: Steel

• Basket Color/Finish: Satin Black

• Magnet Material: Ferrite

• Magnet Weight: 20 Oz

• Displacement Volume: 0.48L / 0.016ft3

Thiele & Small Parameters:

• Equivalent Volume: 11.61L / 0.41ft3

• Excursion (one way): 1.6mm

• Free Air Resonance: 100Hz

• Mechanical Factor: 2.270

• Electrical Factor: 1.02

• Total Factor: 0.7

• Mechanical Mass: 11.74G

• Mechanical Compliance: 0.18mm/N

• BL Factor: 6.69

• Voice Coil Inductance: 0.31mH

• Cone Area: 213.82 cm2


Measurement:

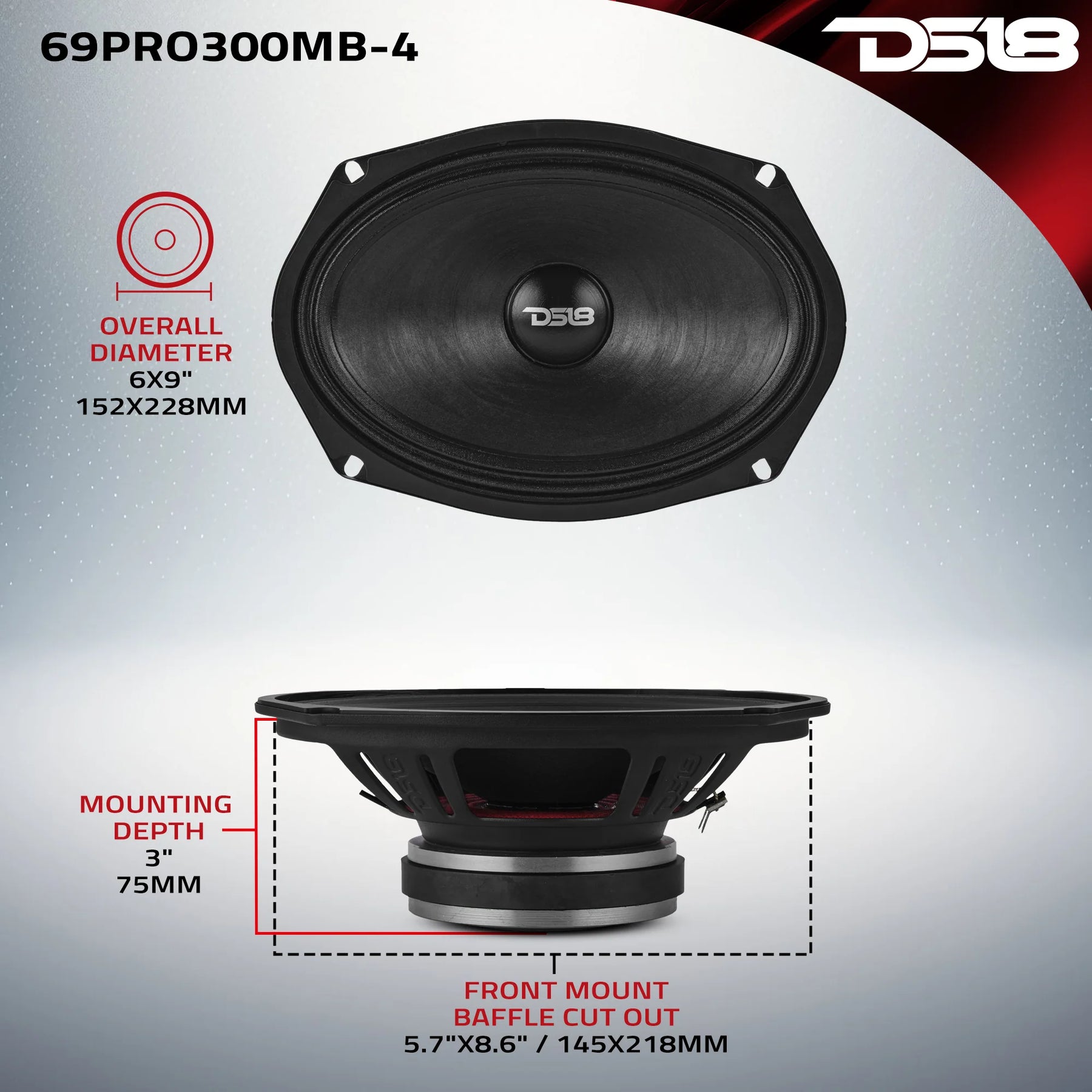

• Overall Diameter: 6.4"x9.2" / 164x234mm

• Overall Depth: 3.1" / 79mm

• Front Mount Baffle Cutout: 5.7"x8.6" / 145x218mm

• Mounting Depth: 3" / 75mm

• Motor Diameter: 4.5" / 115mm
