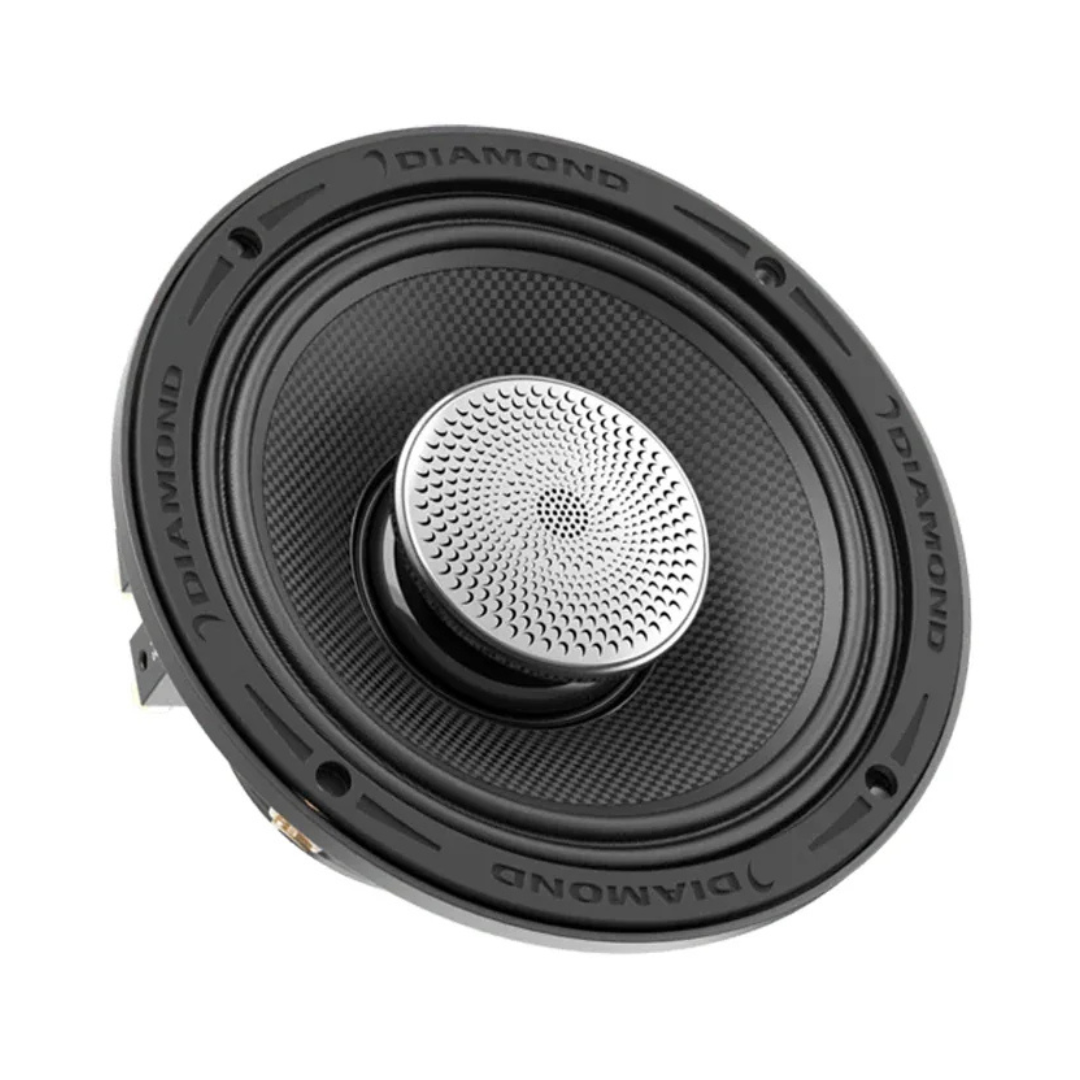

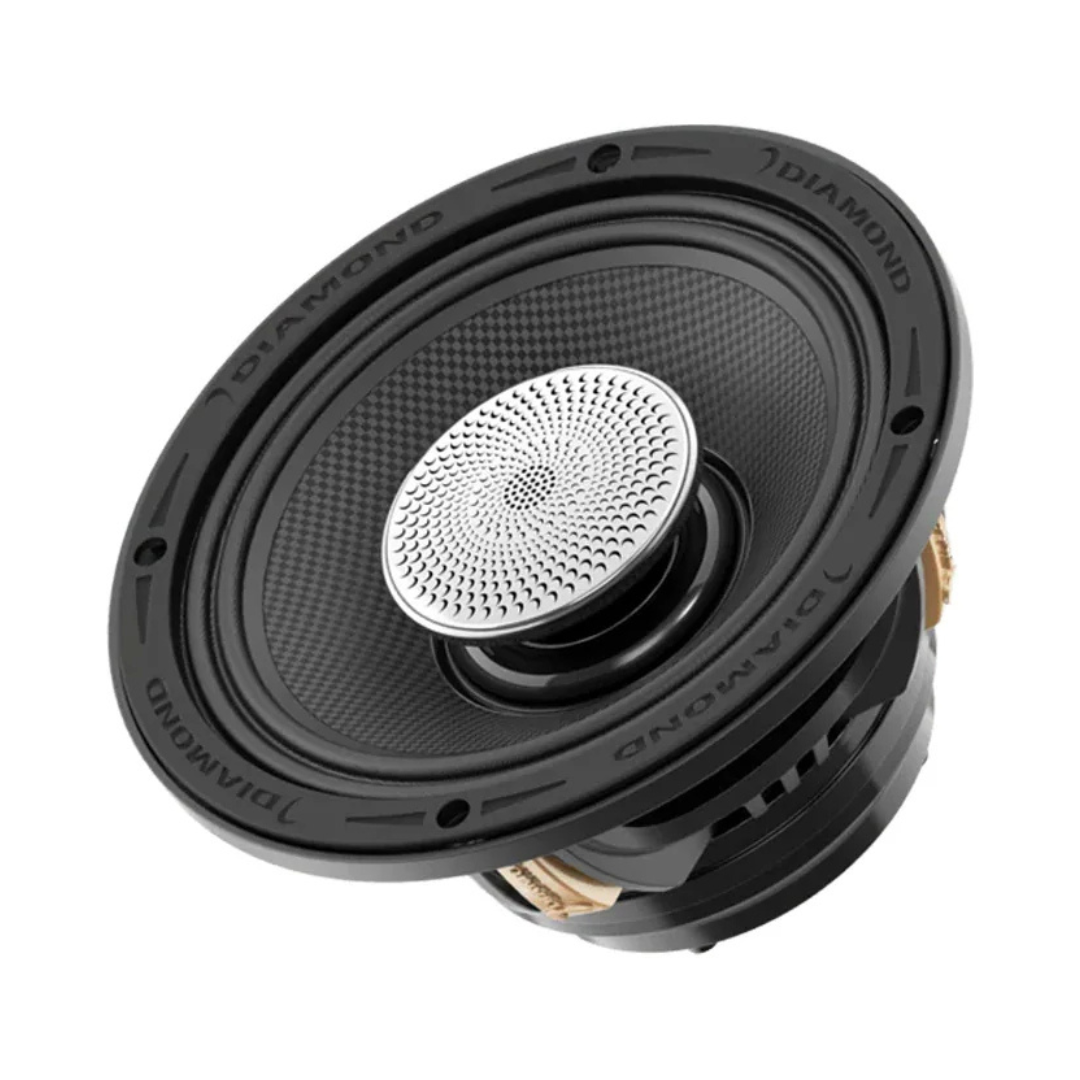

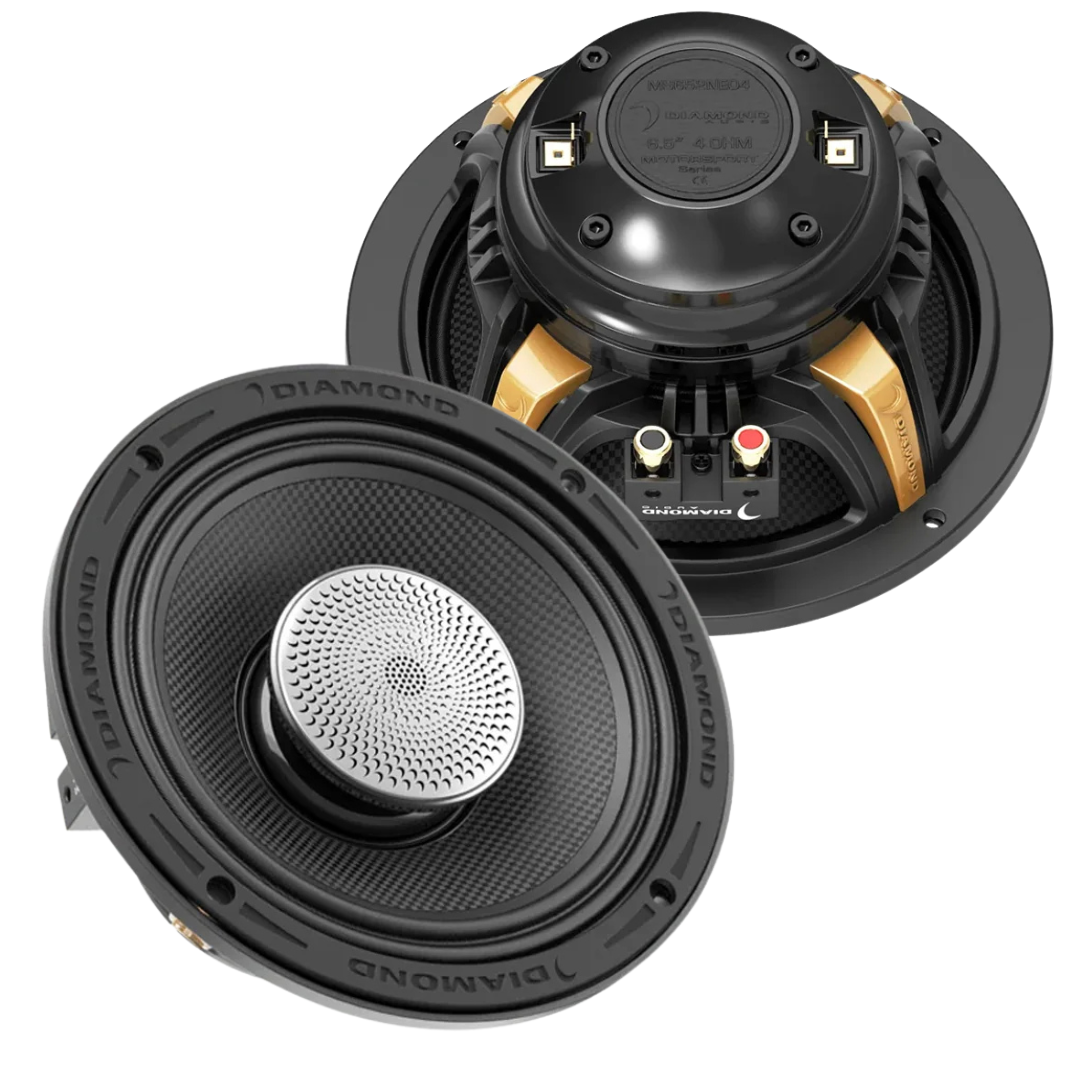

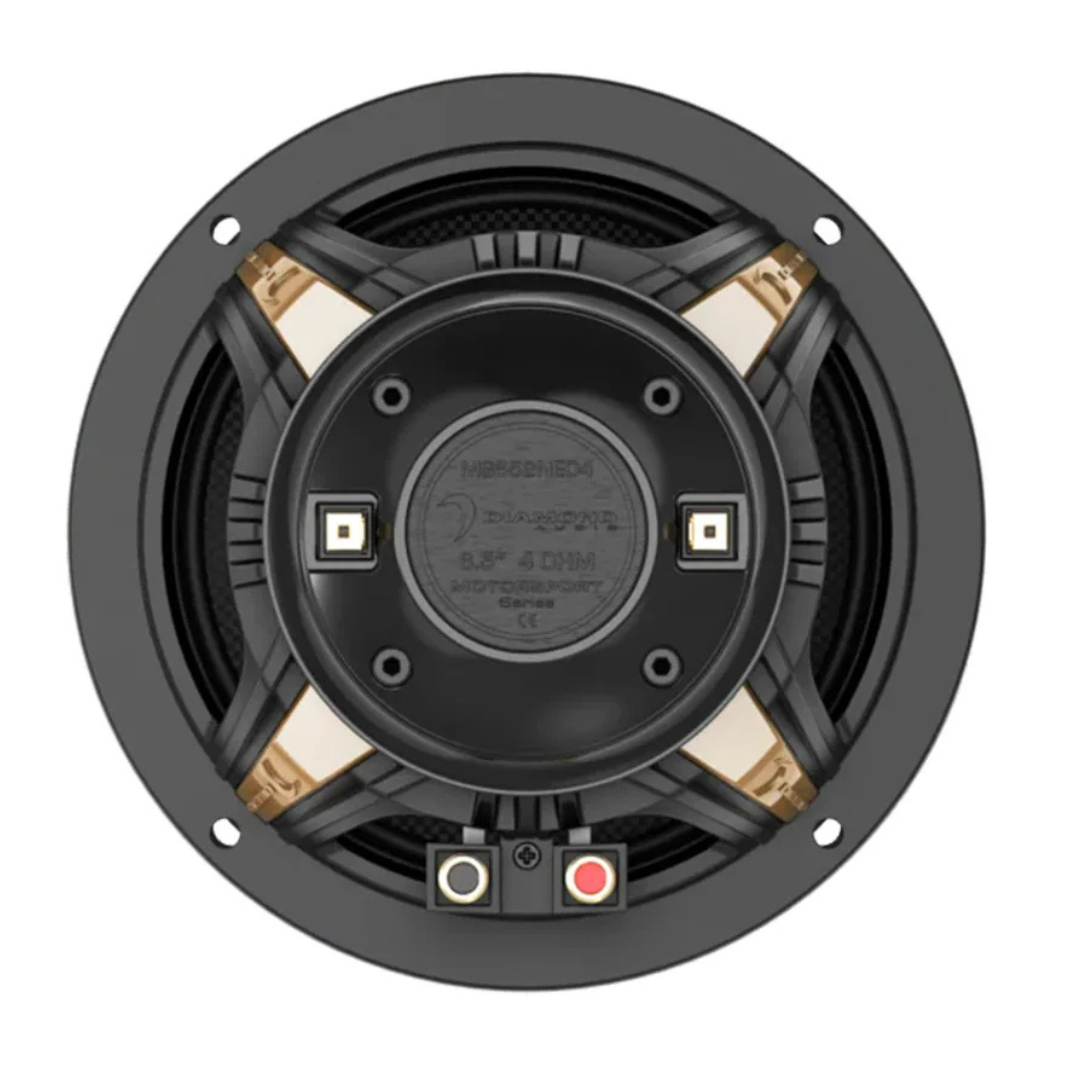

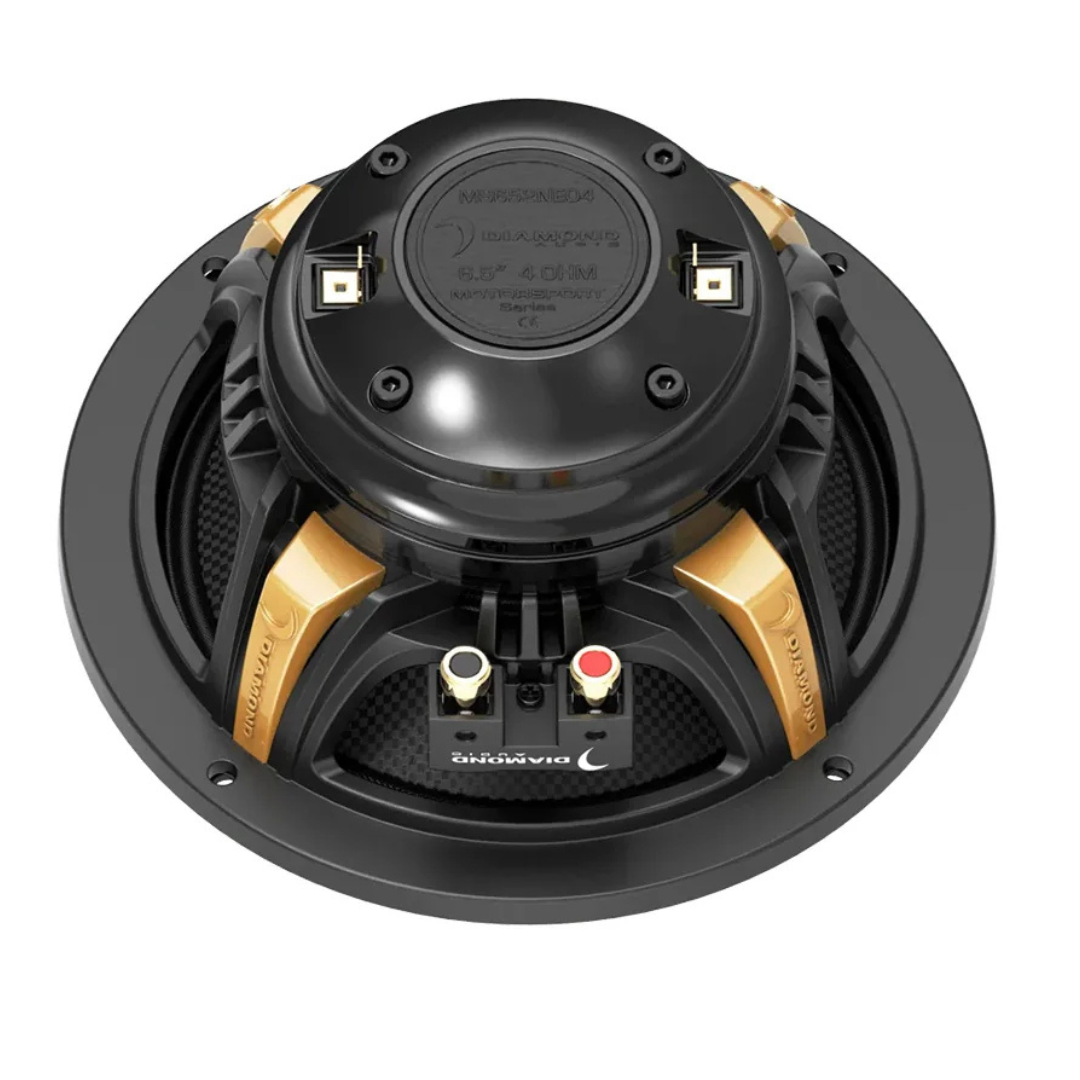

Slim profile, massive attitude. The Diamond Audio MS652NEO4S 6.5" 2-way coaxial shallow mount NEO speakers (4Ω) are engineered for tight installation spaces without sacrificing the bold, high-output performance the NEO Series is known for. Designed for motorcycles, cars, and powersports vehicles, these speakers deliver clean, aggressive sound that slices through wind and road noise like a sonic blade.

Built around a horn-loaded coaxial design, the MS652NEO4S projects audio with exceptional clarity and distance, making vocals and instruments stand out even in open-air environments. Whether mounted in fairings, doors, or compact enclosures, these 6.5-inch shallow mount speakers provide a powerful and immersive listening experience.

The carbon fiber cone offers excellent rigidity and responsiveness, producing tight, controlled mid-bass with minimal distortion. Paired with a PEN (polyethylene naphthalate) diaphragm, the high frequencies remain crisp and detailed, creating a balanced and dynamic sound profile.

At the heart of the system is a high-efficiency neodymium motor, delivering strong output in a compact footprint. With 200W RMS / 600W MAX power handling and 93dB sensitivity, the 4-ohm configuration ensures stable performance and compatibility with a wide range of amplifiers.

The dual voice coil, bi-ampable design allows for flexible system tuning, giving installers and enthusiasts greater control over their audio setup. A rugged cast aluminum basket provides structural strength and vibration resistance, ensuring long-lasting durability even in demanding riding conditions.

With an ultra-slim 2.74-inch mounting depth, the MS652NEO4S is perfect for space-restricted installations where traditional speakers won’t fit.

Key Features

• Model: MS652NEO4S

• 6.5" 2-way coaxial shallow mount speakers (4Ω)

• 200W RMS / 600W MAX power handling

• Horn-loaded design for superior projection

• Carbon fiber cone for accurate mid-bass

• Neodymium motor for high efficiency

• Bi-amp capable dual voice coils

• Cast aluminum basket for durability

• Ultra-shallow mounting depth (2.74")

The Diamond Audio MS652NEO4S NEO Series speakers deliver powerful, precise, and space-saving performance, making them the perfect upgrade for high-performance audio systems where every inch matters and every note counts.

Specifications

• Speaker Size: 6.5"

• Rms Power: 200 Watts

• Max Power: 400 Watts

• Speaker Type: Coaxial with Horn

• Bi-Ampable: Yes

• Impedance: 4-ohm

• Number of Voice Coils: 2

• Cone Material: Carbon Fiber

• Basket Material: Cast Aluminum

• Magnet Type: Neodymium

• Surround Material: Rubber

• Voice Coil Size: 2"

Thiele & Small Parameters

• S/N (1W/1M): 93

• RE (Ω) [SERIES]: 3.2

• QMS: 10.357

• QES: 0.67

• QTS: 0.629

• FS (HZ): 151

• VAS (L): 2.756

• CMS (MM/N): 0.094

• MMS (G): 11.728

• SD (M2): 143.14

• BL (T*M): 7.289

• XMAX (MM): 1.2

Measurements:

• Mounting Depth: 2.74"

• Cut-out Diameter: 5.63"

• Overall Diameter: 6.65"

• Overall Depth: 3.38"
