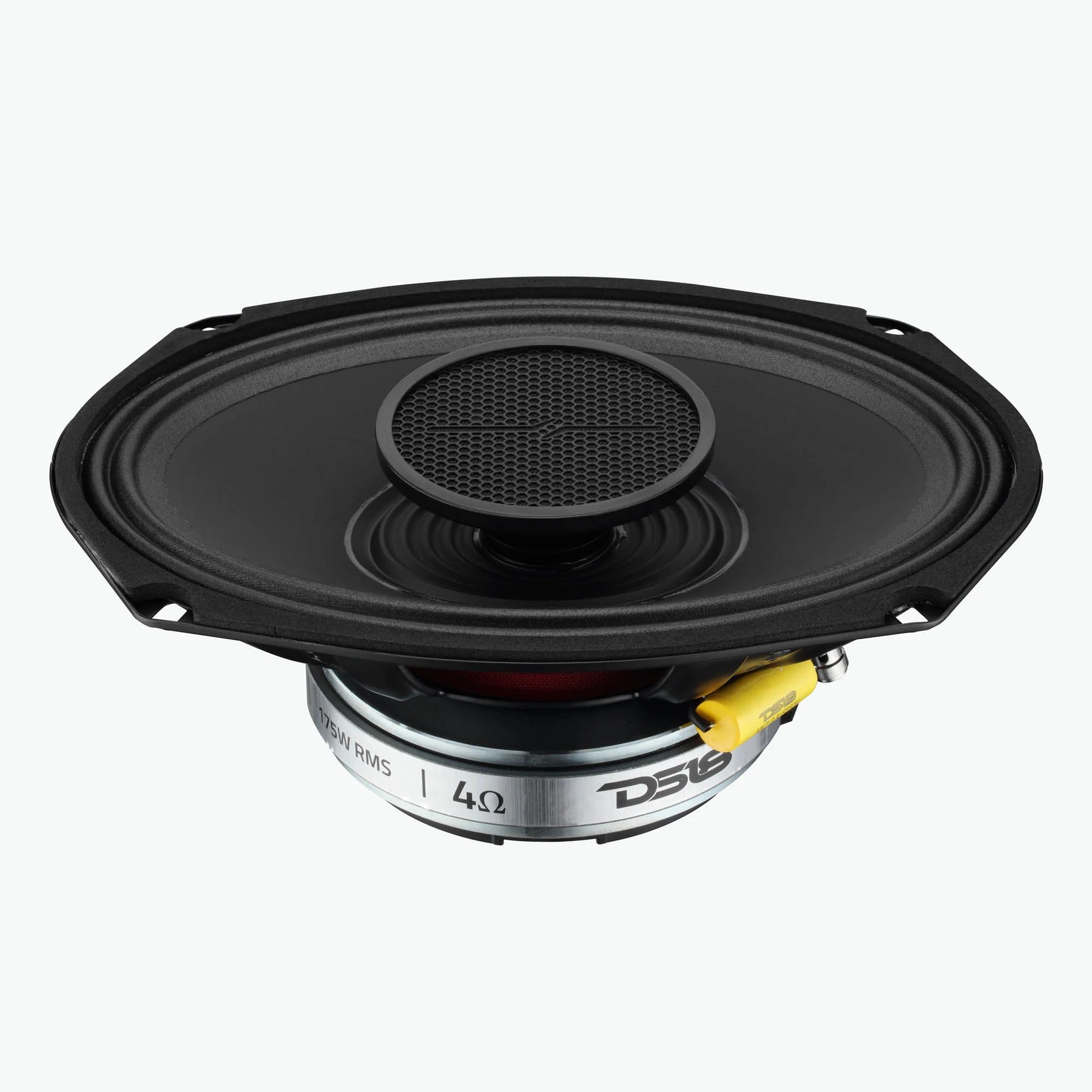

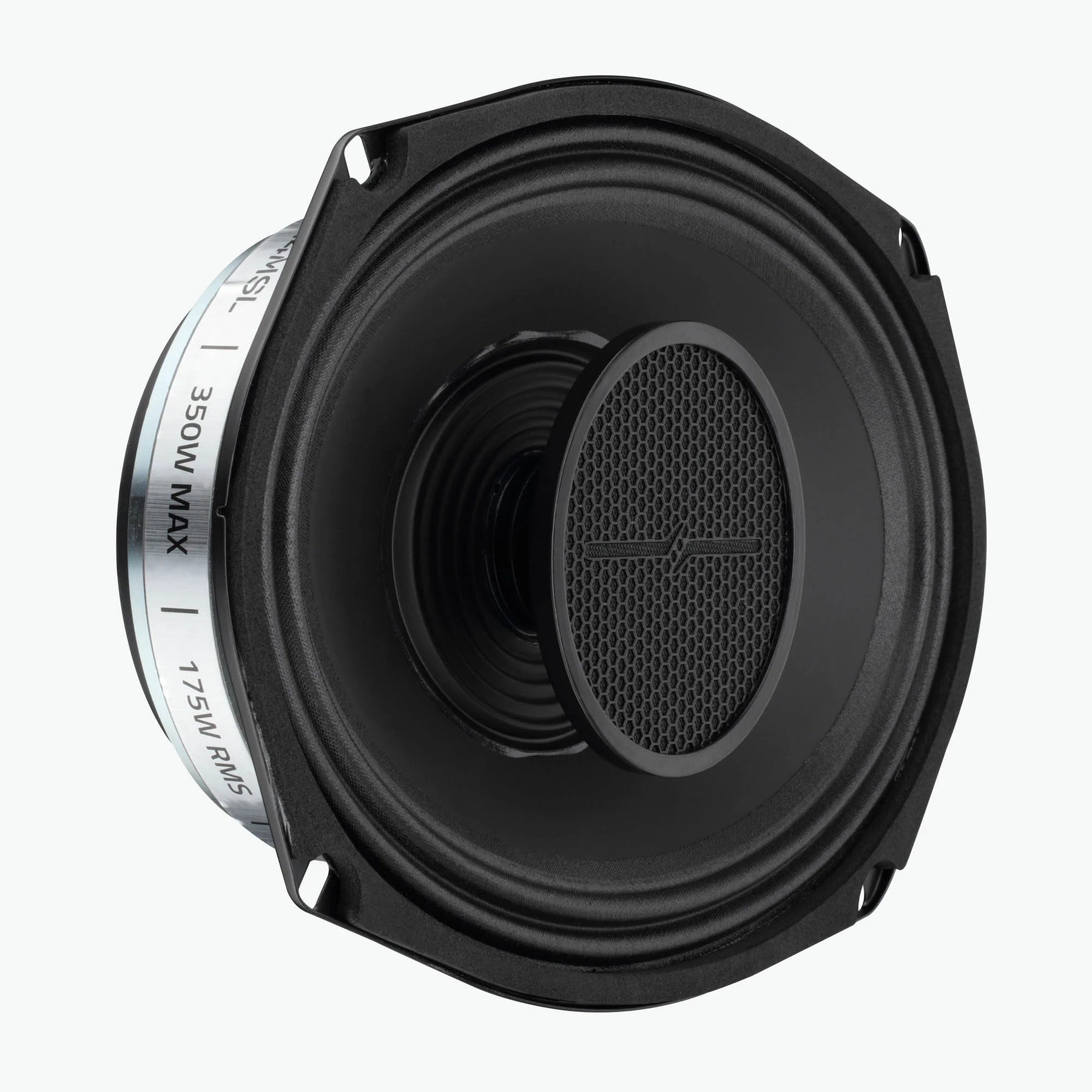

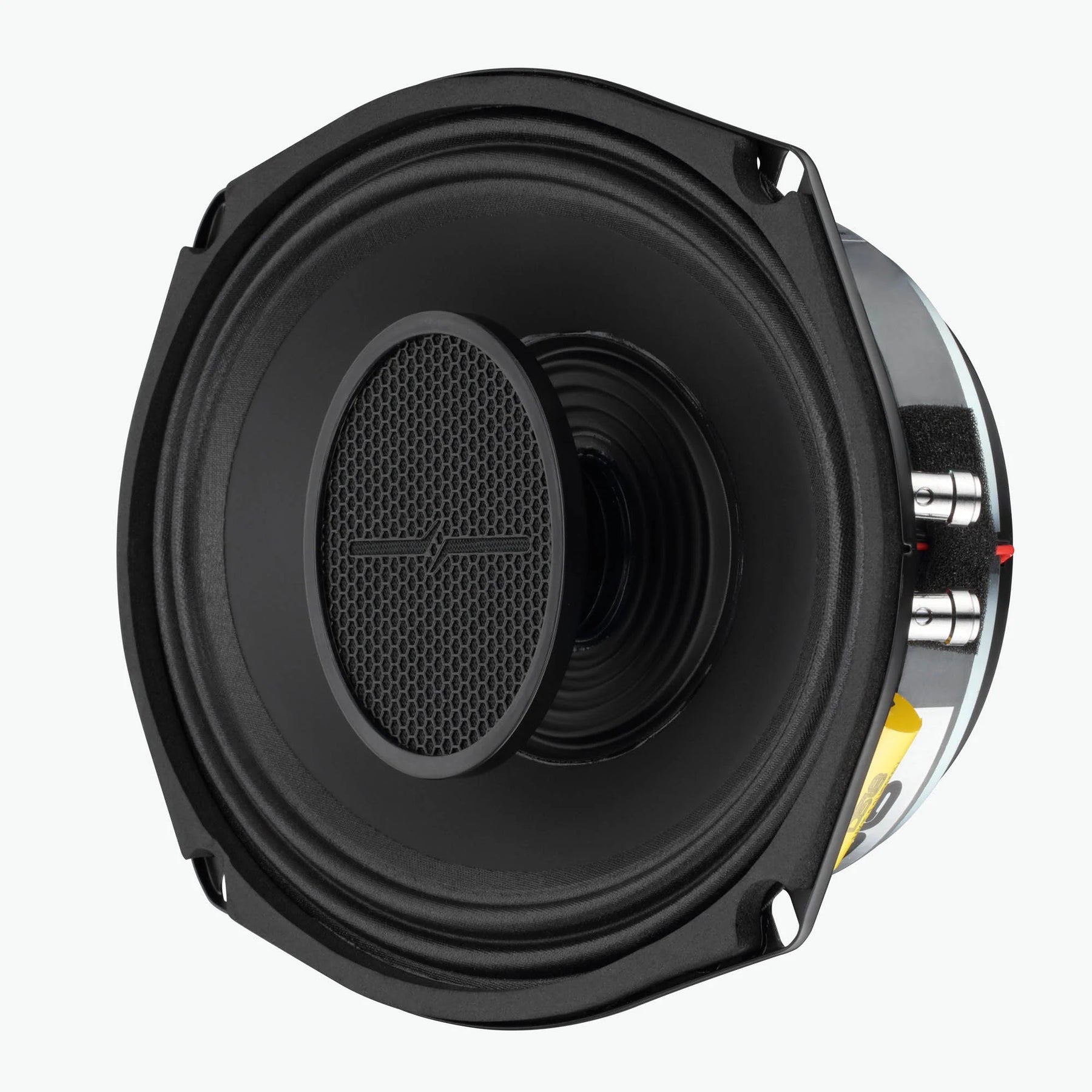

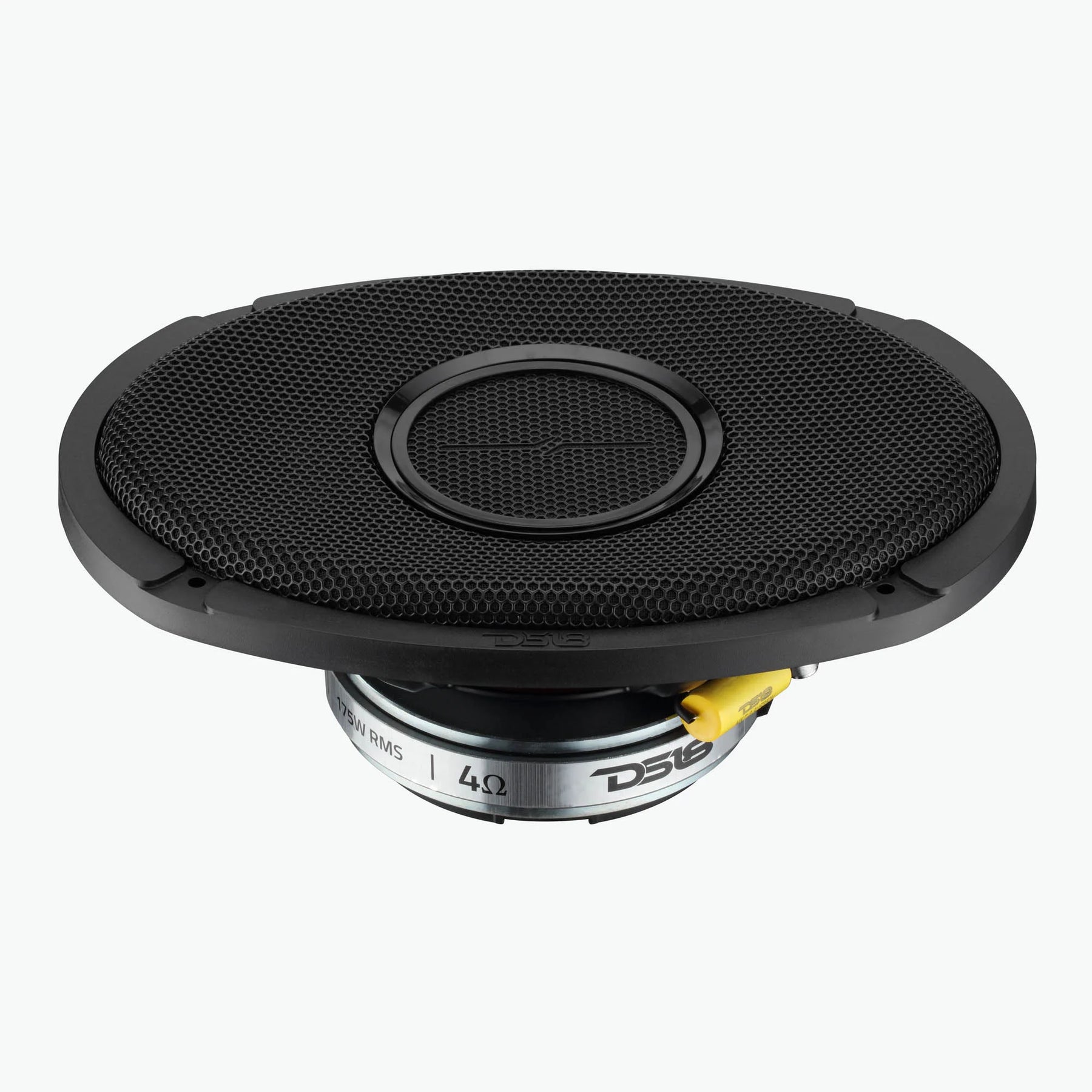

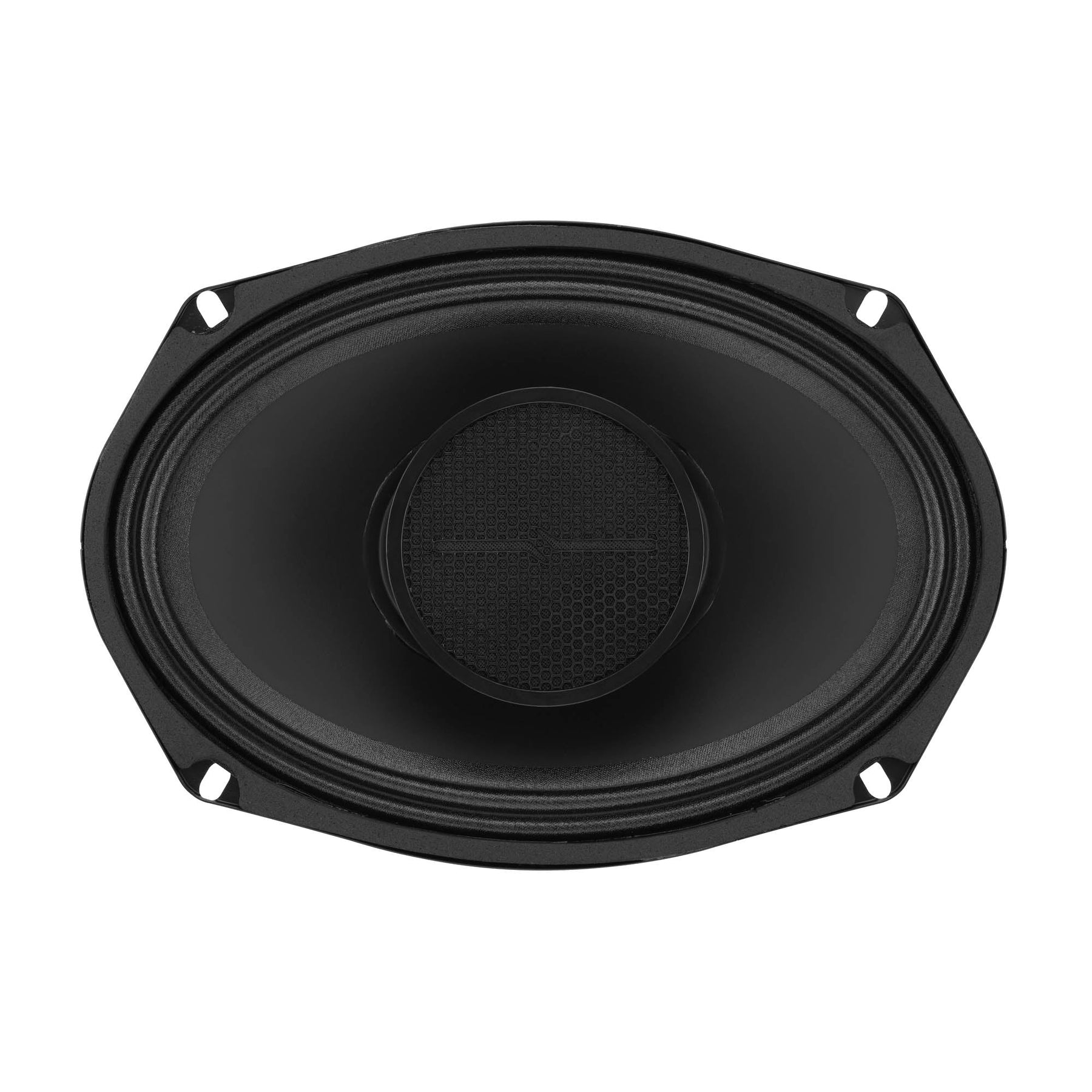

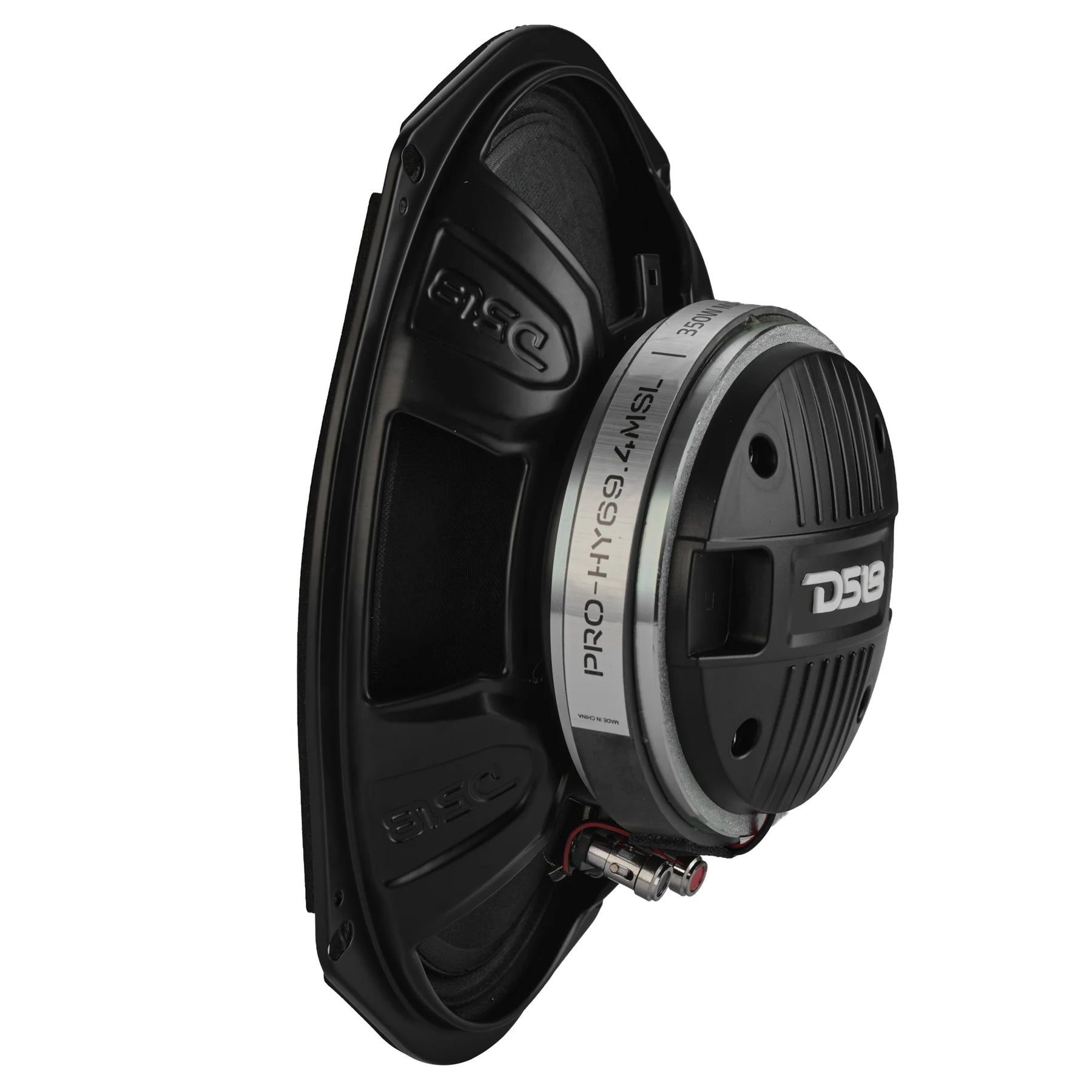

6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn

The PRO-HY69.4MSL is a slim hybrid 6x9” speaker made to give riders the best of both worlds: big volume that fits and is extremely durable.6x9

2-Way Hybrid = Full-Range Output: We’ve combined a water-resistant woofer with a 1” titanium compression driver, all in one slim speaker. This combination delivers wide-bandwidth sound from 60Hz to 20kHz with 97dB sensitivity.

Easy Fit: At just 3.4” mounting depth, the PRO-HY69.4MSL installs cleanly in fairings, pods, or panels, especially in motorcycles, UTVs, Slingshots, and Jeeps where space is tight.

IP65-Rated Water Resistance: Rain, washdowns, and trail spray are no threat. The water-resistant paper cone and cloth surround hold up against the elements, while the grille’s built-in sun/water protection cloth keeps your internals safe.

Ferrite + Neodymium = Lightweight Power: A 25.5 oz ferrite magnet drives the woofer, while a neodymium motor powers the compression driver. This combo delivers the output of a full-size system in a lighter, more compact form.

Ready for Real Builds: With a 4Ω impedance, it pairs easily with most aftermarket amps and factory systems. Build out your custom audio setup with a driver that drops in and turns heads easily.

The PRO-HY69.4MSL is a hybrid speaker made to play LOUD, stay tough, and fit where others can’t: order yours today and get the best of both worlds!

Key Features:

• 6x9” Slim Hybrid Loudspeaker

• 175W RMS / 350W MAX

• 1” Titanium Compression Driver

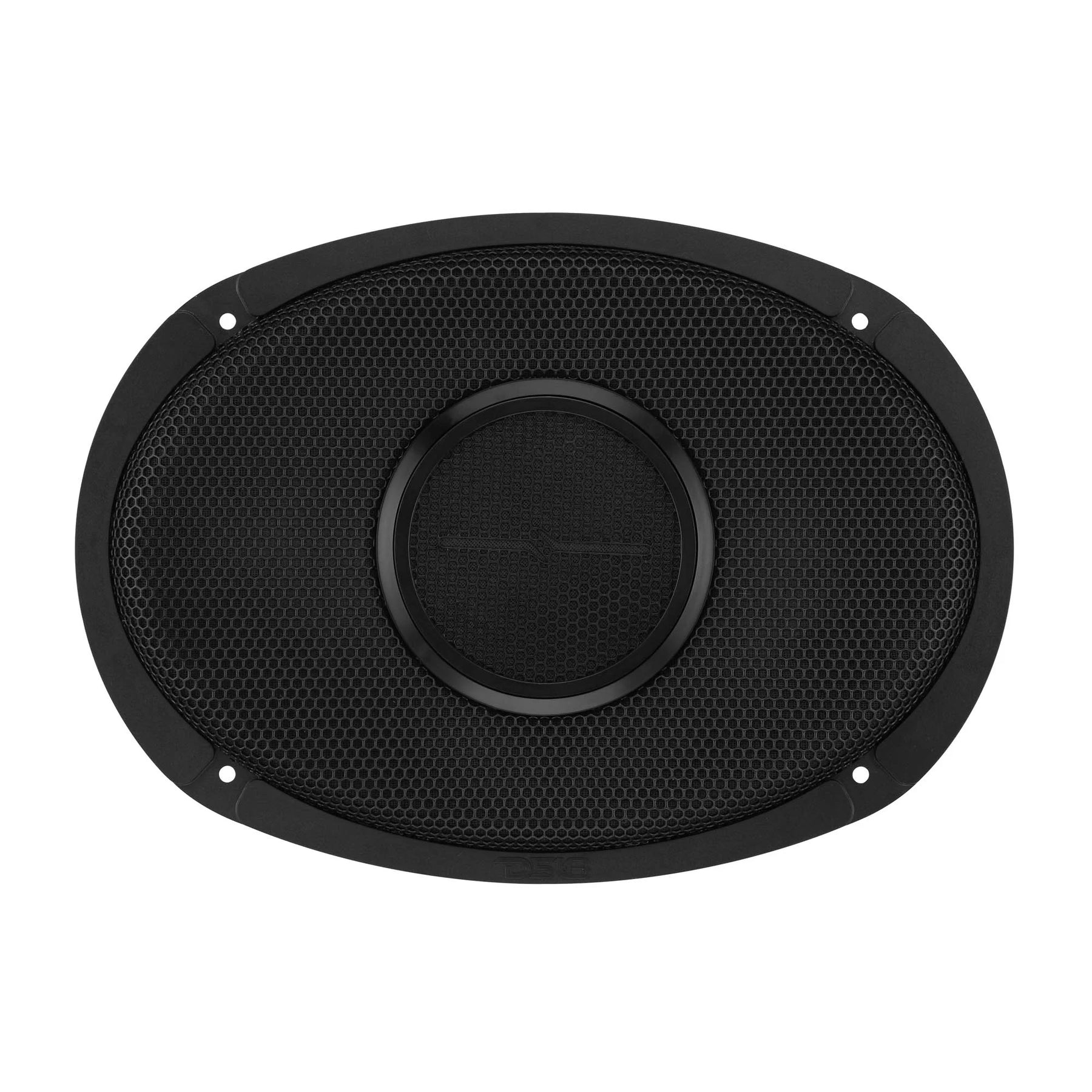

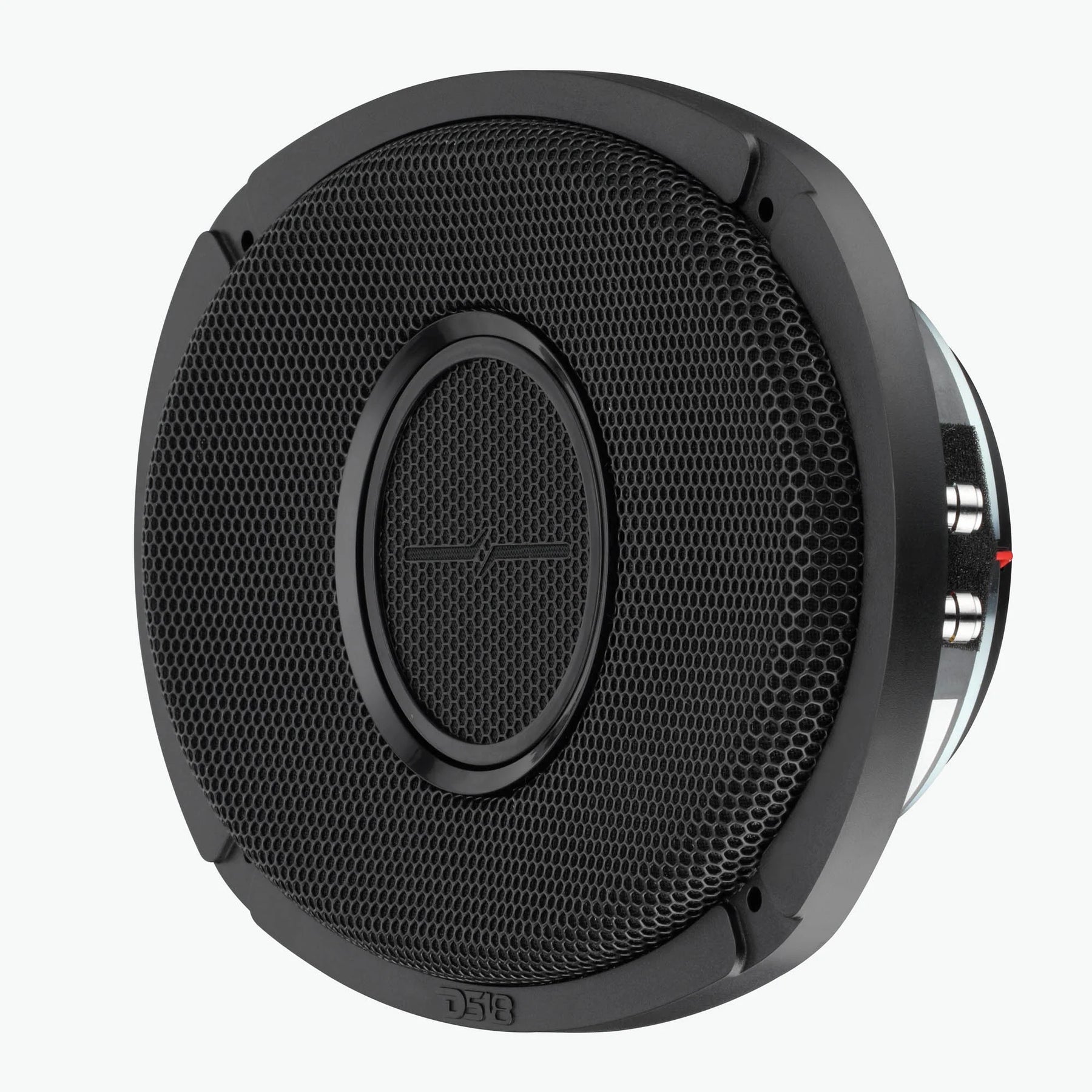

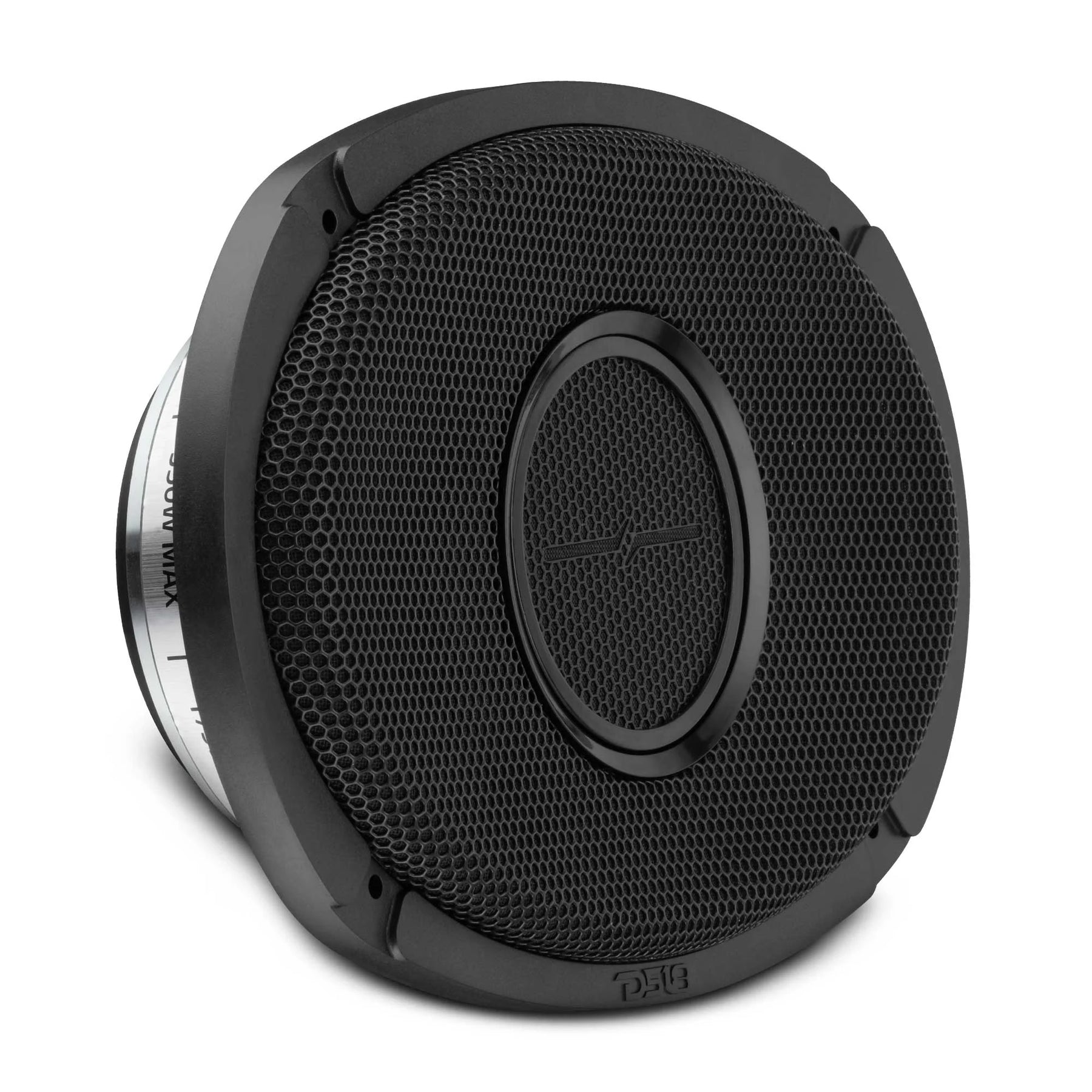

• IP65 Rated + Grille w/ Water/Sun Protection Cloth

• Neodymium Driver Magnet / Ferrite Woofer Magnet

• Mounting Depth: 3.4”

General Specifications:

• Nominal Diameter: 6x9" / 152x228mm

• Nominal Impedance: 4 Ohms

• RMS Power Handling: 175W

• MAX Power Handling: 350W

• Sensitivity (1w/1m): 97dB

• Frequency Response: 60Hz - 20kHz

• Recommended High-Pass Crossover: 80Hz

• Number of Ways: 2 ways

Woofer Specifications:

• Voice Coil Diameter: 1.5" / 38.6mm

• Voice Coil Former Material: KSV

• Winding Material: CCAW

• Cone Material: Water-Resistant Paper

• Surround Material: Treated Cloth

• Basket Material: Steel

• Basket Color/Finish: Black

• Magnet Material: Ferrite

• Magnet Weight: 25.5 Oz

Thiele & Small Parameters:

• Equivalent Volume: 5.68L / 0.2ft3

• Excursion (one way): 2mm

• Free Air Resonance: 117Hz

• Mechanical Factor: 7.821

• Electrical Factor: 0.979

• Total Factor: 0.87

• Mechanical Mass: 15.242g

• Mechanical Compliance: 0.103 mm/N

• BL Factor: 5.312

• Voice Coil Inductance: 0.59mH

• Cone Area: 156.2 cm2

• DC Resistance: 3.2 Ohms

• Mechanical Mass w/o air: 12.3g

Driver Specifications:

• Voice Coil Diameter: 1" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: Titanium

• Magnet Material: Neodymium

• Horn Diameter: 3.15" / 80mm

Speaker Measurements:

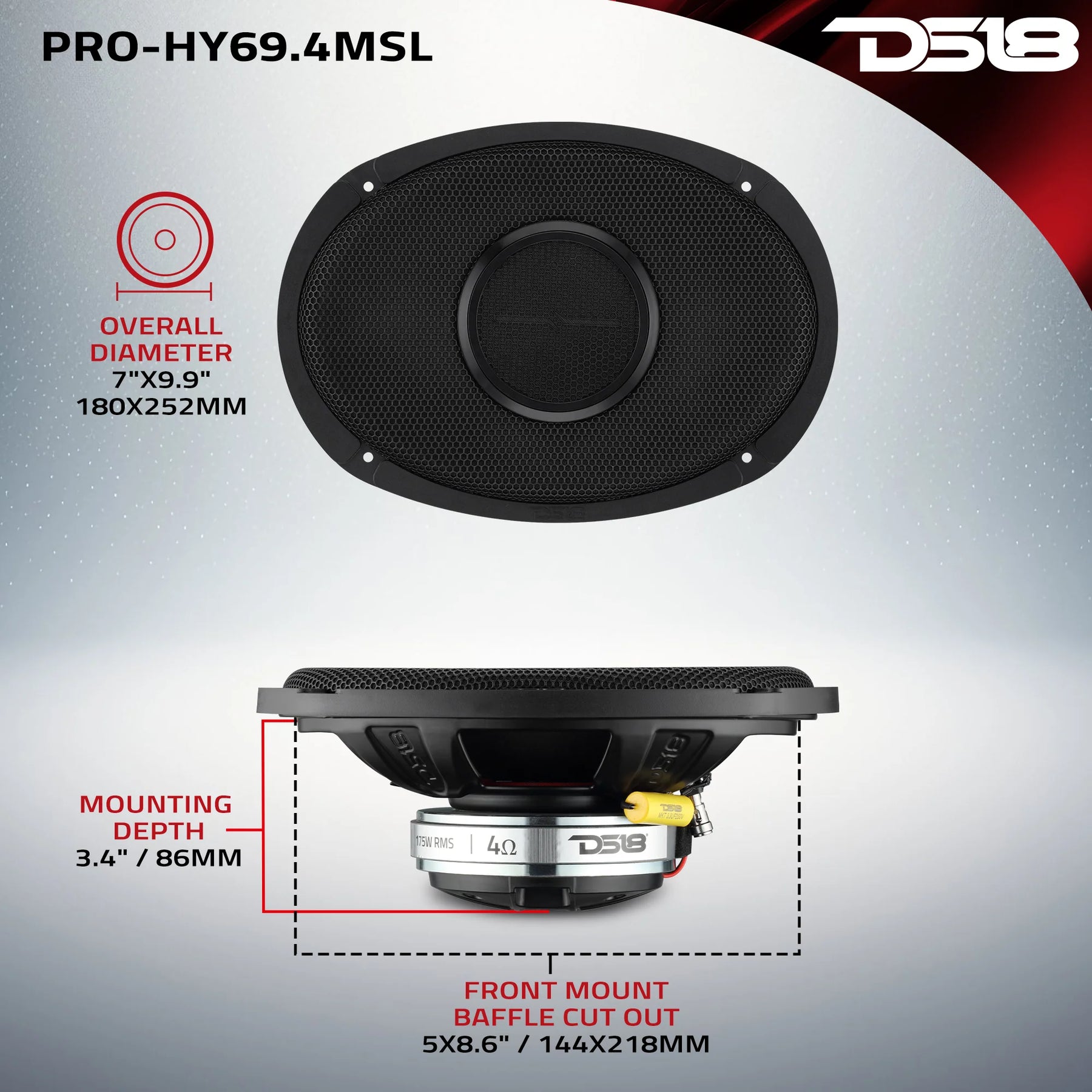

• Overall Diameter (Without Grill): 6.4"x9.2" / 164x234mm

• Overall Diameter (With Grill): 7"x9.9" / 180x252mm

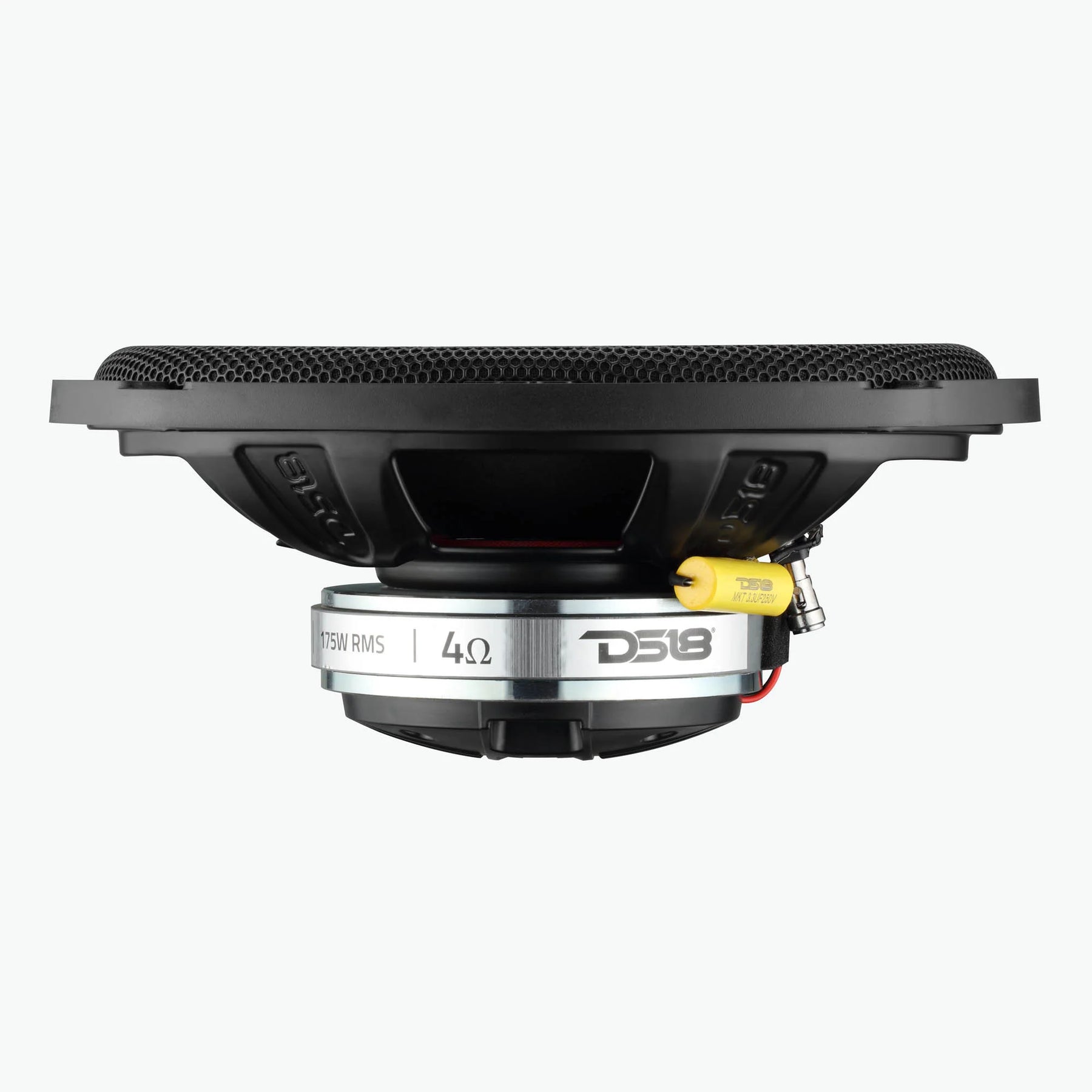

• Overall Depth (Without Grill): 3.9" / 100mm

• Overall Depth (With Grill): 4.2" / 107mm

• Front Mount Baffle Cutout: 5.7"x8.6" / 144x218mm

• Mounting Depth: 3.4" / 86mm

• Motor Diameter: 4.7" / 120mm
