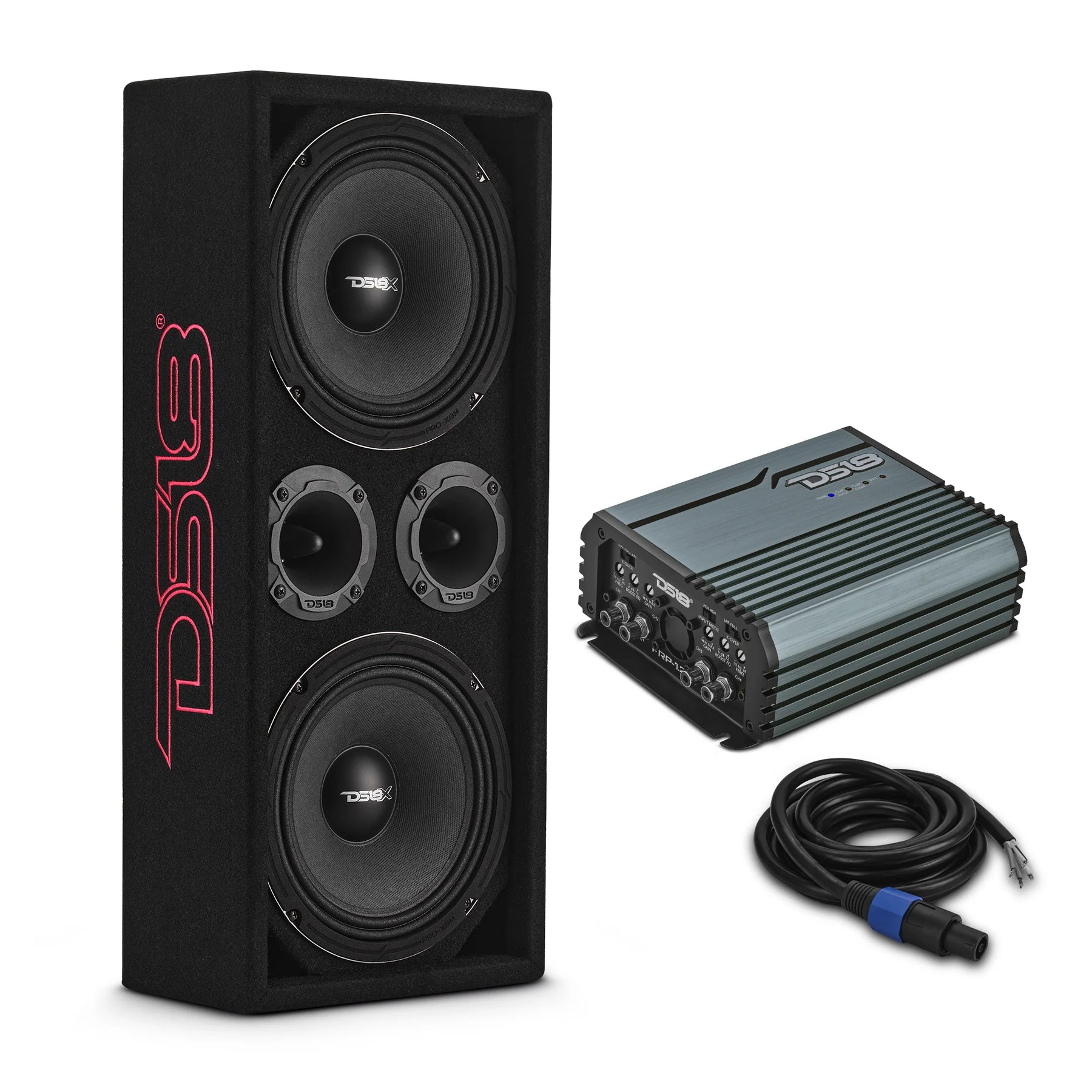

DS8” Loaded Voceteo Enclosure with Tweeters, Full-Range Amp & Speakon Cable

DS18’s VOC8LD-PK brings the energy of the streets into a plug-and-play box that’s ready to get LOUD!

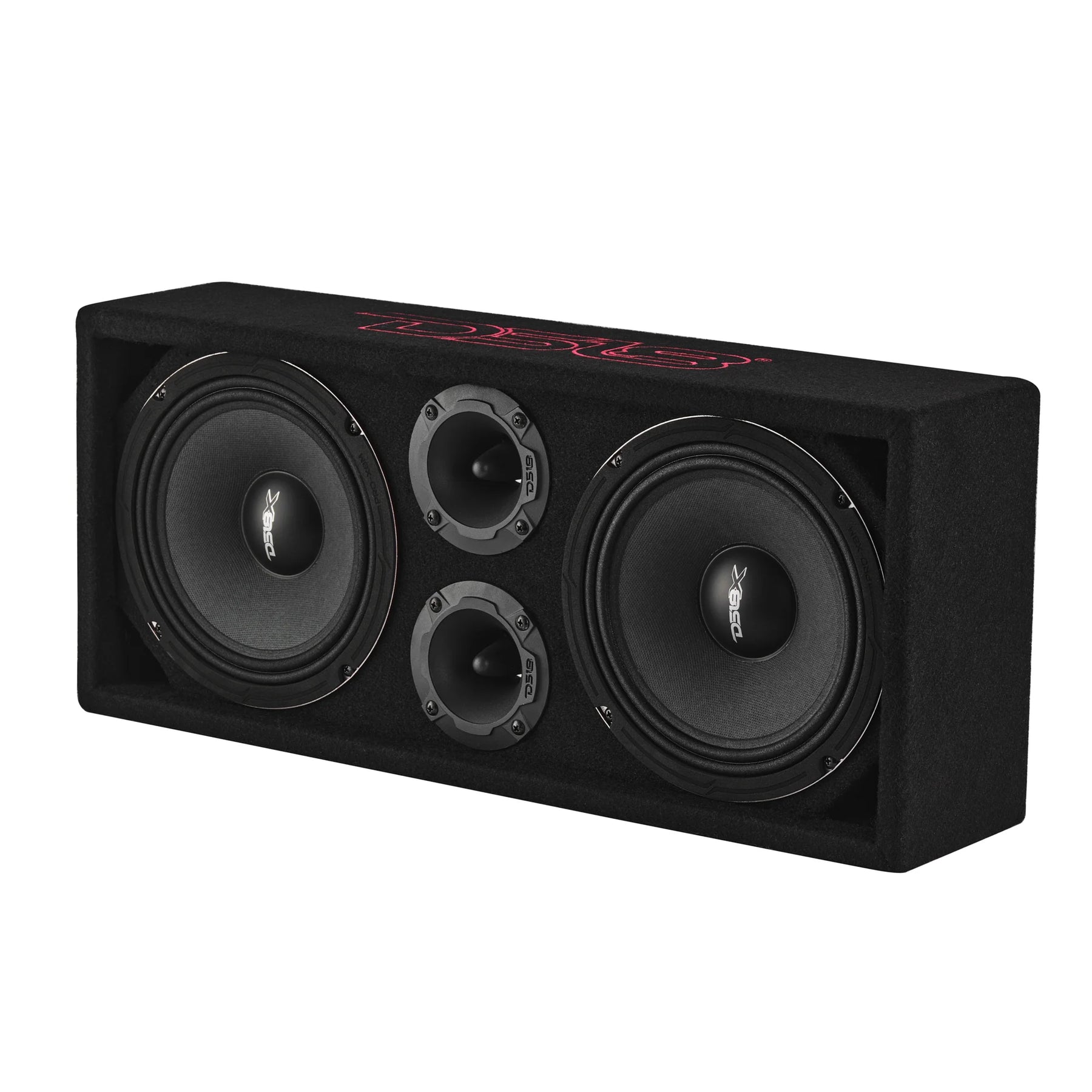

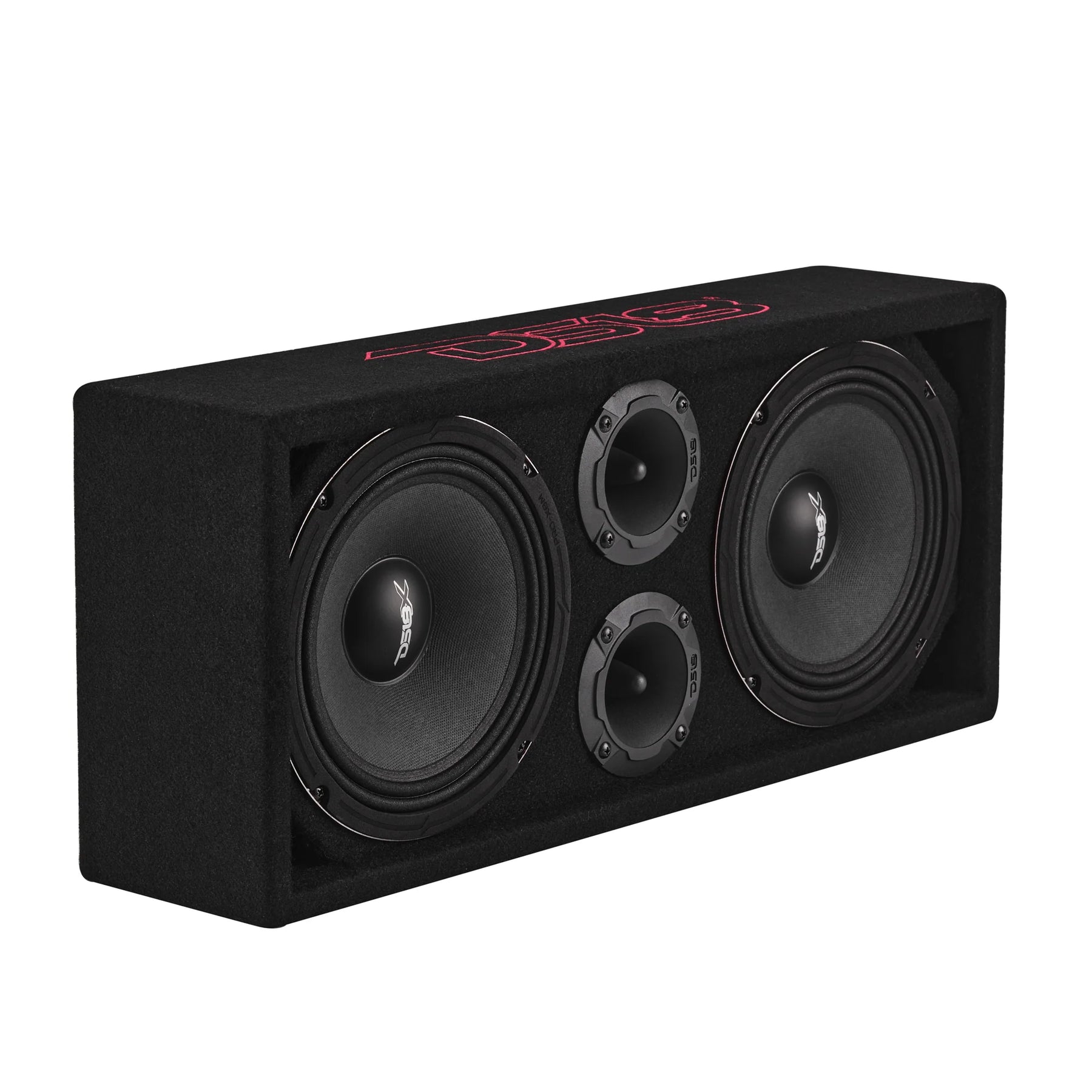

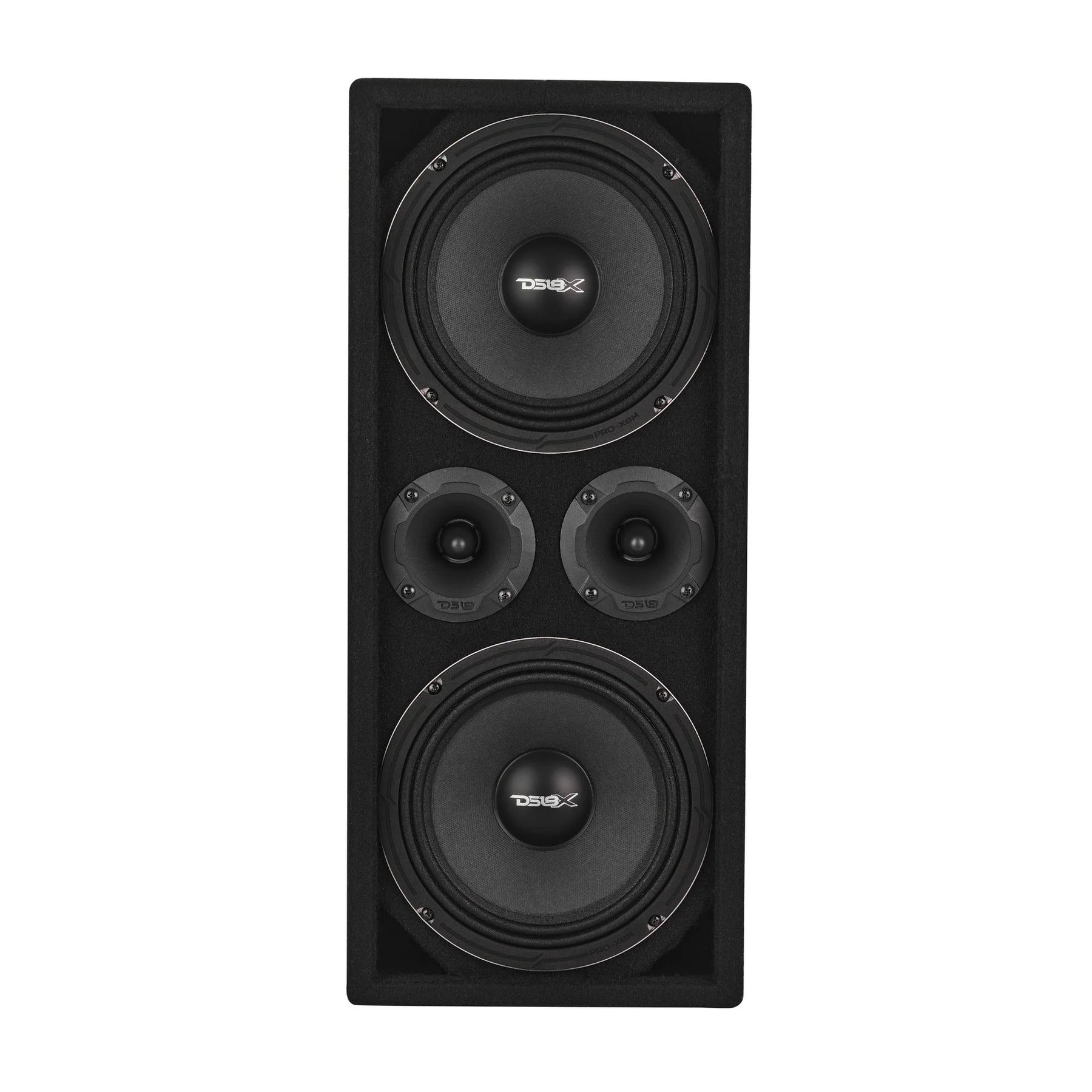

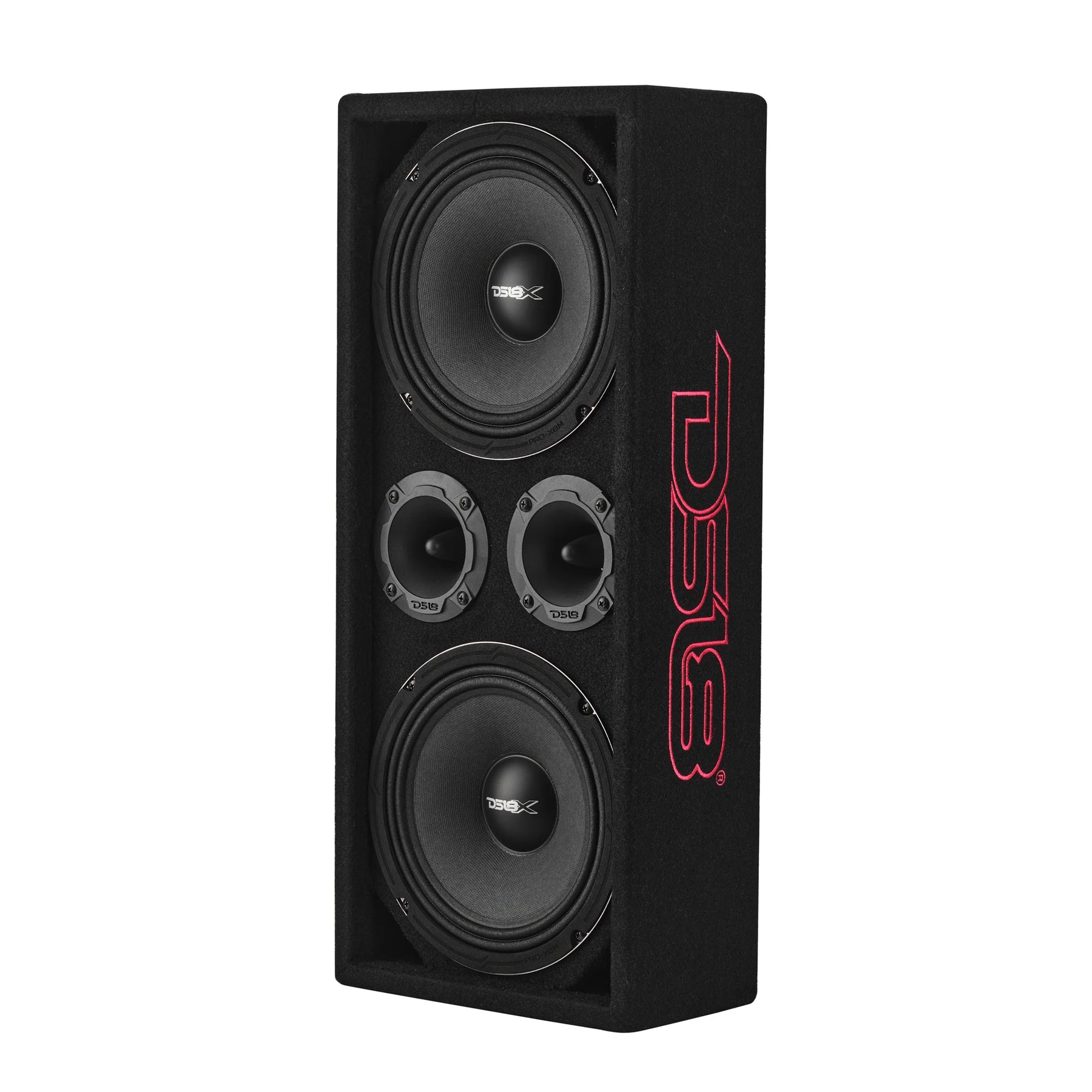

Loaded with dual 8" PRO-X8M mid-range drivers, two ear-piercing PRO-TWX2 bullet tweeters, and powered by the mighty FRP-1.2K4 full-range amp—this system hits every note with serious punch.

Turnkey Voceteo Setup: This full-stack voceteo enclosure is built to skip the guesswork. We matched the enclosure, drivers, amp, and even tossed in a 12-foot 4-conductor Speakon cable for clean, fast setup. All you need is power.

Built Tough: Wrapped in sleek black carpet and made from ½” MDF, the VOC8LD-PK is road-tested and show-ready. With 550W RMS midrange power, 240W tweeter power, and a 4-ohm parallel load, it’ll keep your vocals cutting through no matter how wild the setup gets.

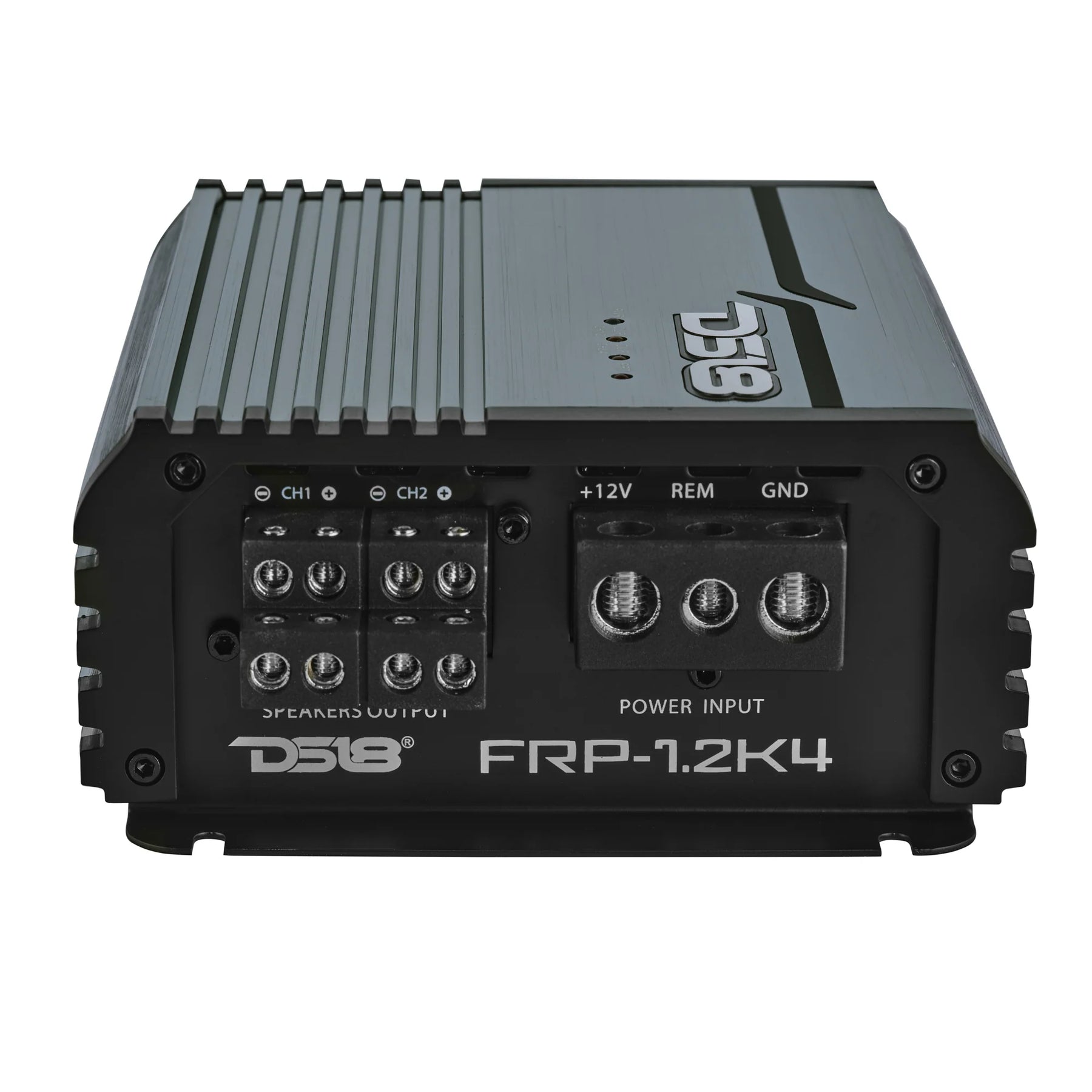

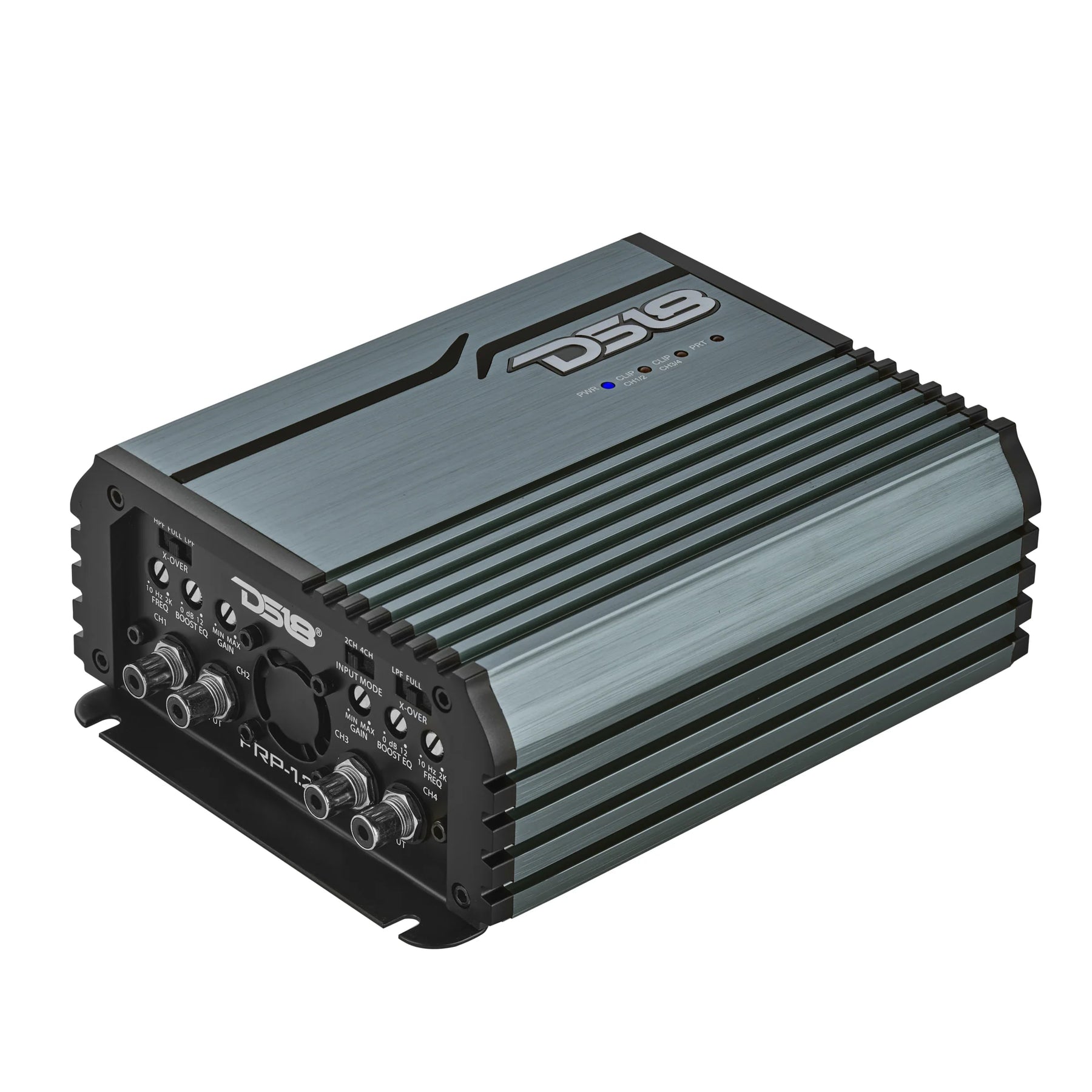

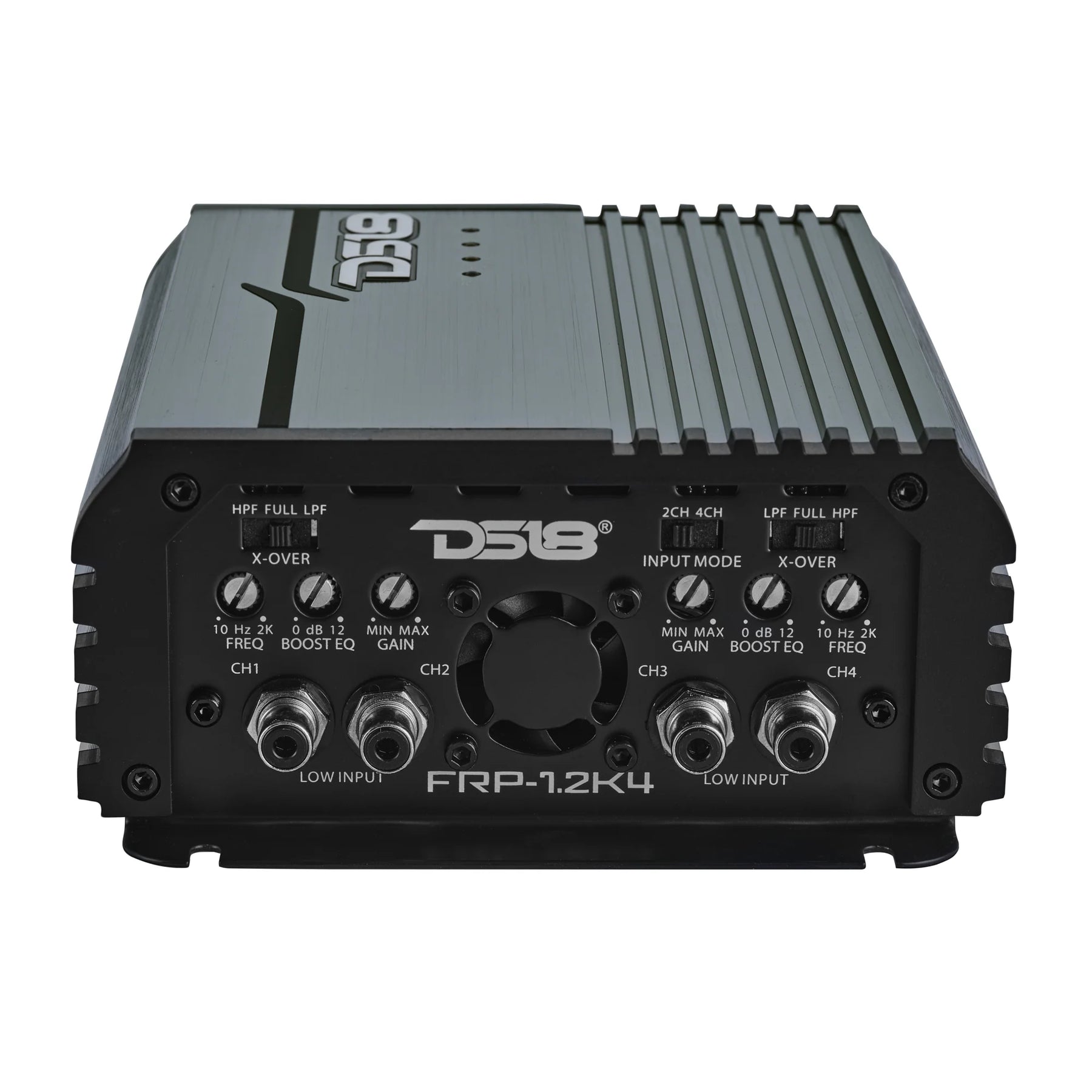

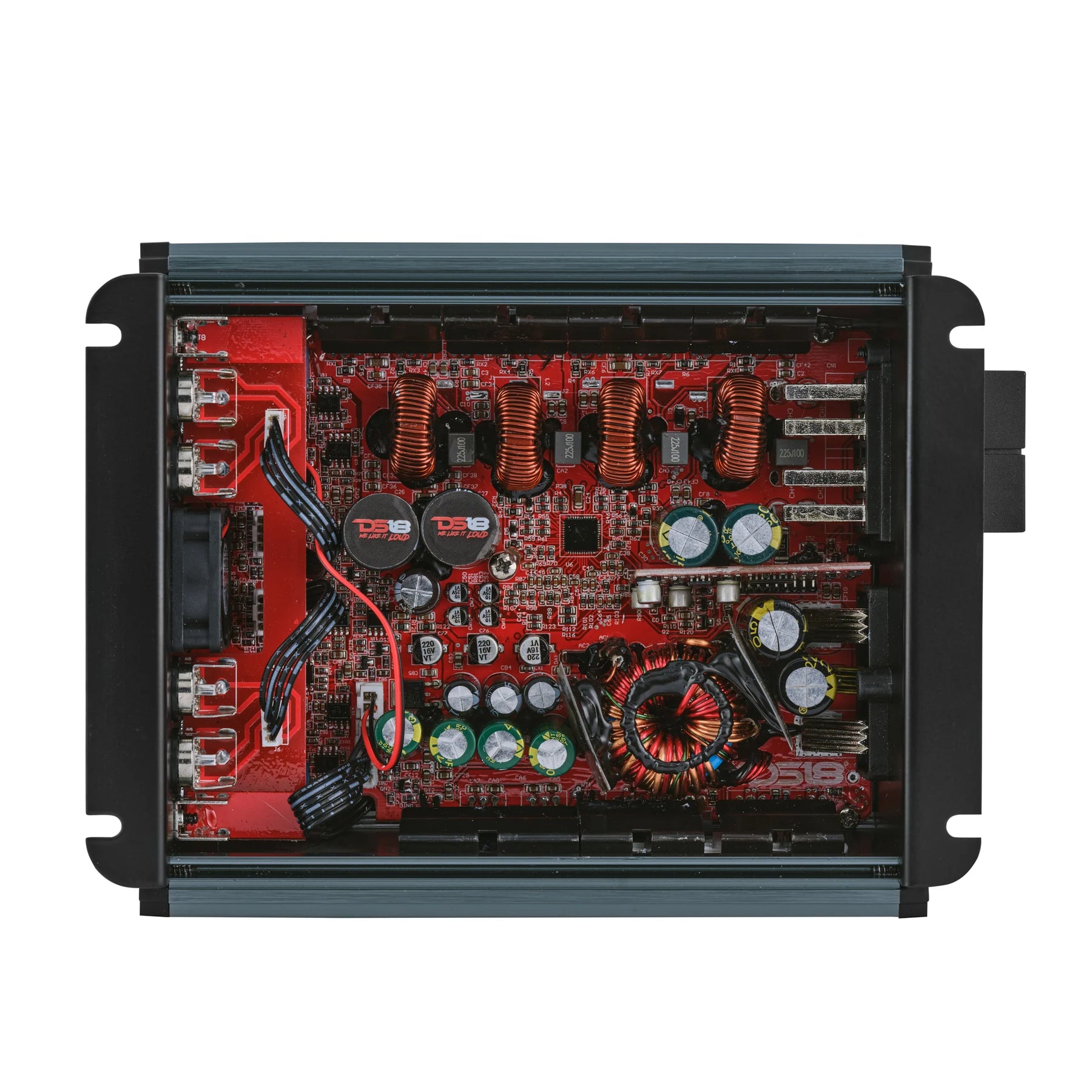

Amped to Perform: The included FRP-1.2K4 4-channel amplifier is compact, powerful, and fully loaded with HPF/LPF/FULL crossover settings, bass boost, and smart cooling tech. It delivers clean power at 1, 2, or 4 ohms, perfectly matched to your new loadout.

Get DS18’s VOC8LD-PK and bring the show to the streets!

Pro Tip: For max output and proper protection, pair this setup with DS18’s OFCKIT0 amp wiring kit. You’ll get the cleanest install and the strongest signal.

Key Features:

• 2x 8” PRO-X8M Mid-Range Speakers

• 2x 3.78” PRO-TWX2 Bullet Tweeters

• RMS Power: 550W Mid / 240W Tweeter

• Enclosure Type: Ported

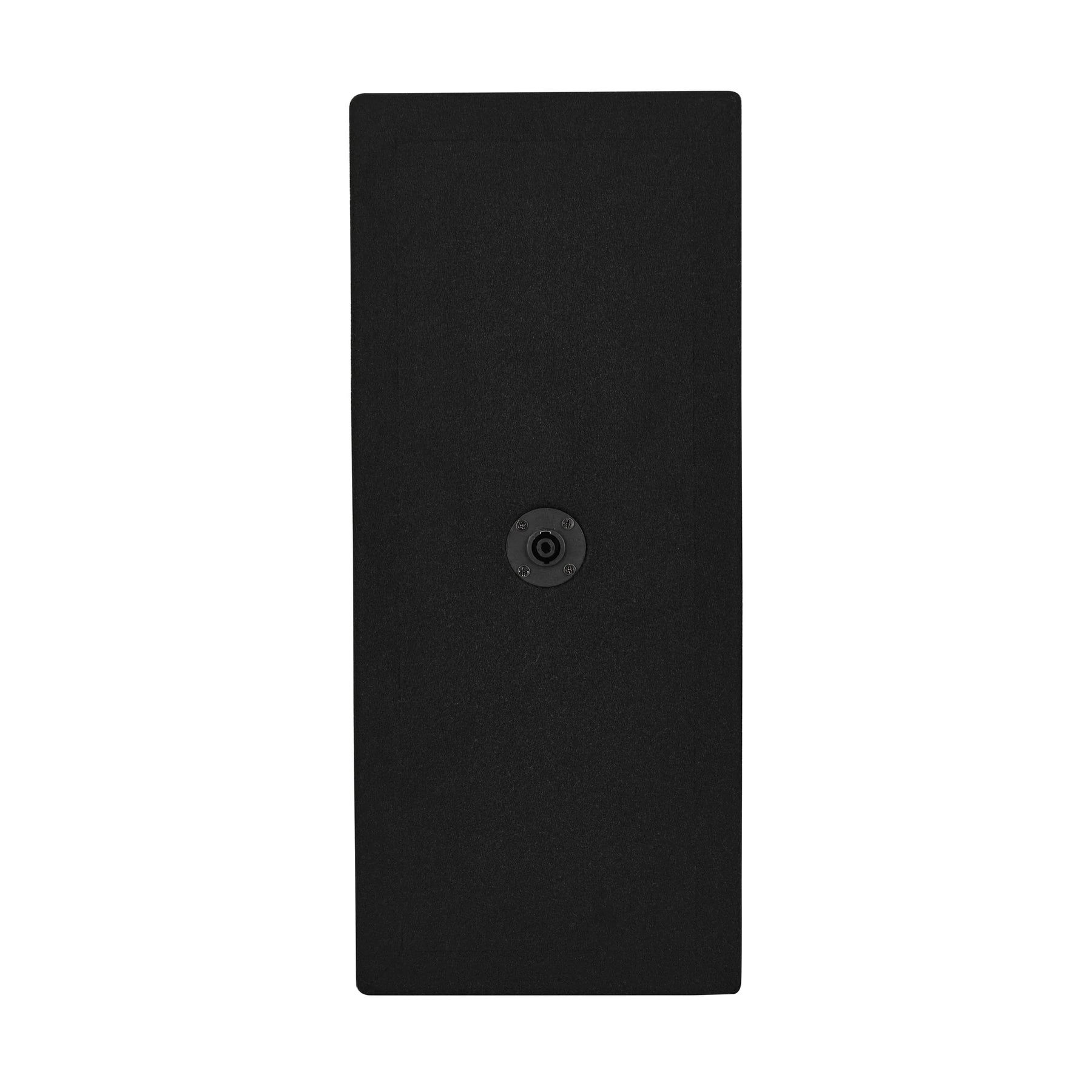

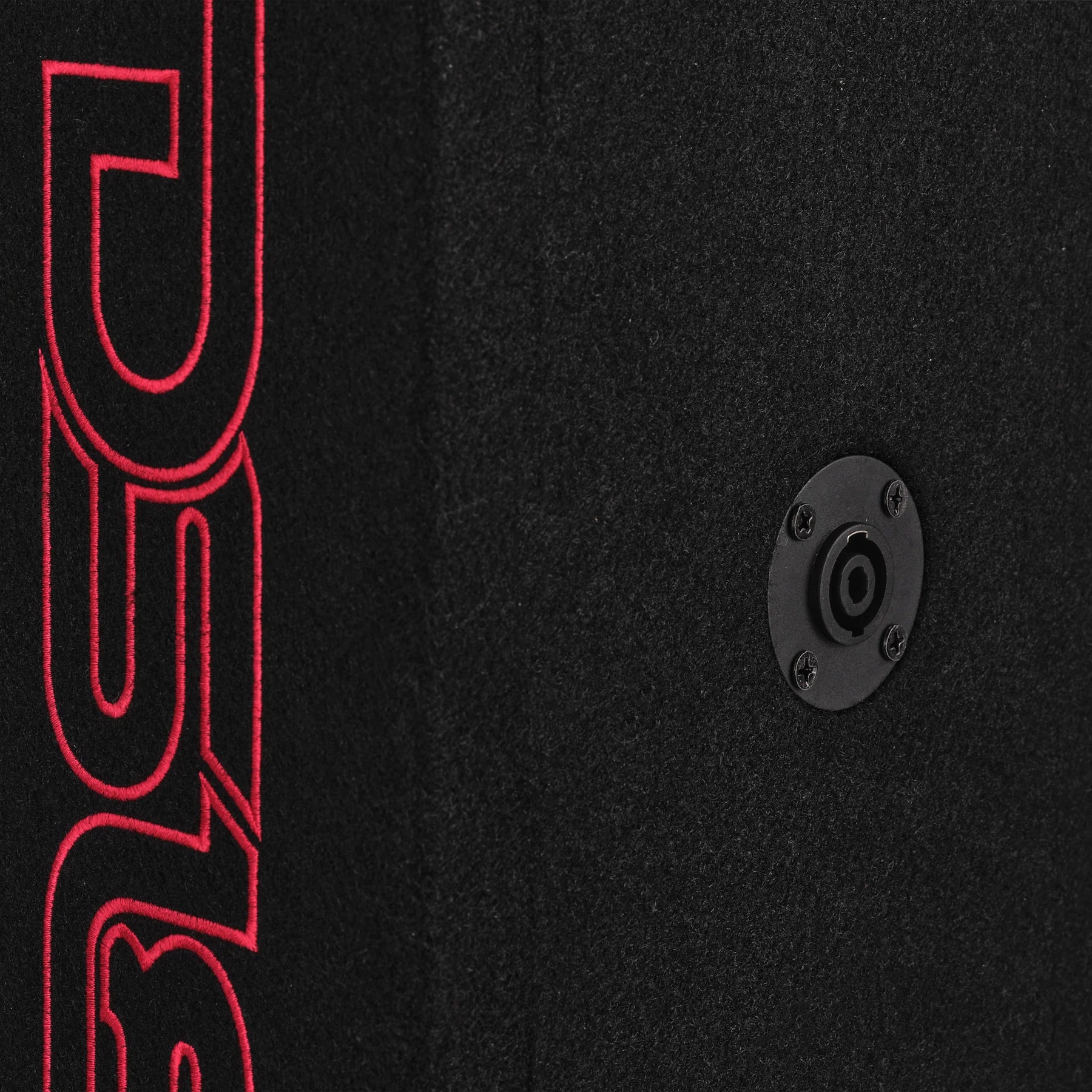

• Speakon terminal + 12ft OFC 4-conductor Speakon cable

• FRP-1.2K4 included

General:

• Speaker Type / Size: Dual 8" Mid-Range (PRO-X8M) + Dual 3.78" Tweeter (PRO-TWX2)

• Total Impedance: 4 Ohms

• Total RMS Power Handling: 275W

• Total MAX Power Handling: 550W

• Sensitivity (1W/1M): 97 dB

• Frequency Response: 80Hz-20kHz

• Recommended High-Pass Crossover: 120 Hz

Enclosure Specifications:

• Internal Volume: 11.6L / 0.41ft3

• Port Tune (Fb): 120 Hz

• Load Configuration: Parallel

• Enclosure Type: Side Ported

• Enclosure Material: 1/2" (15mm) MDF

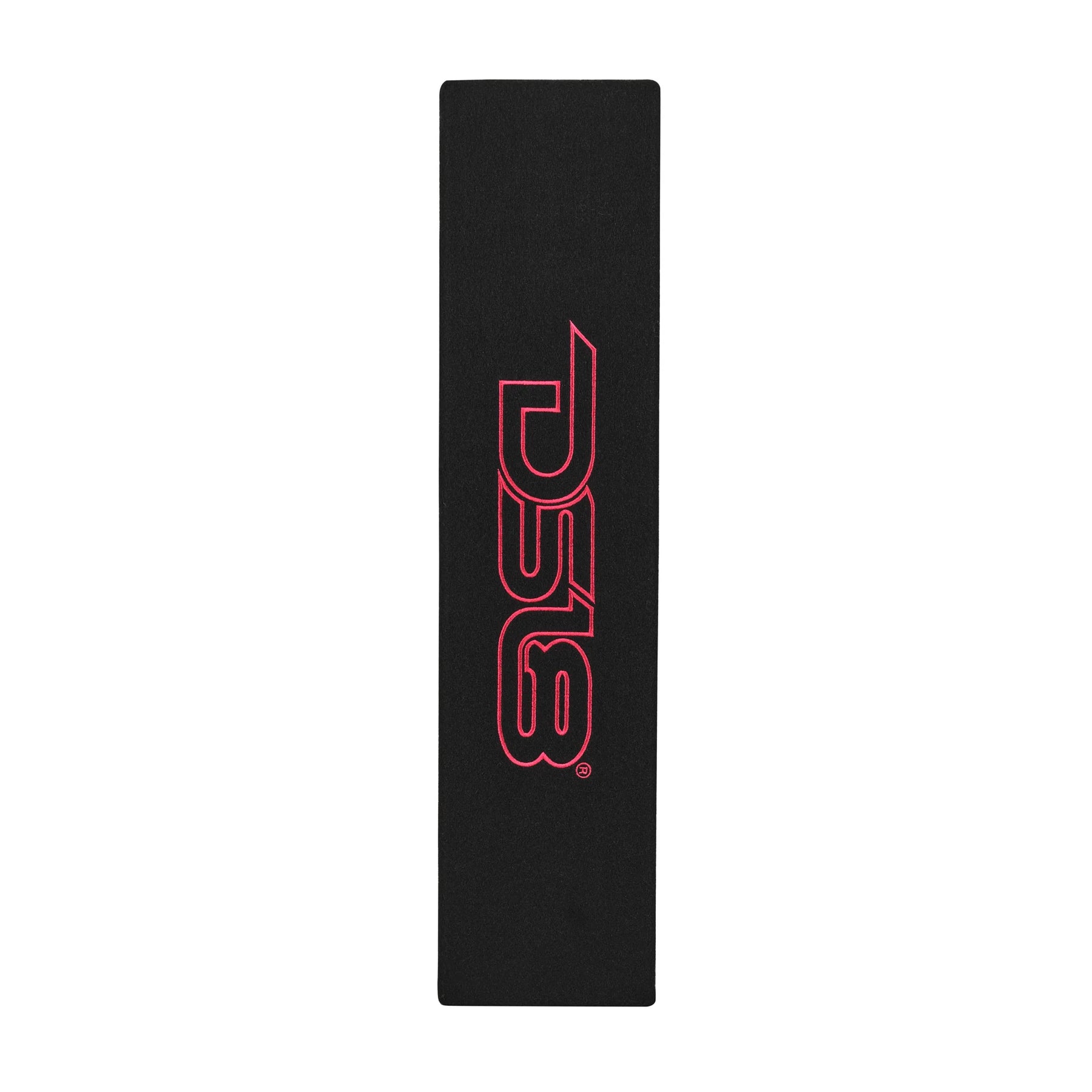

• Finish Material: Black Carpet

• -3dB Dropping Point (F3): 80 Hz

Enclosure Measurements:

• Height: 22.25" (565mm)

• Width: 9.5" (241mm)

• Depth: 5.25" (133mm)

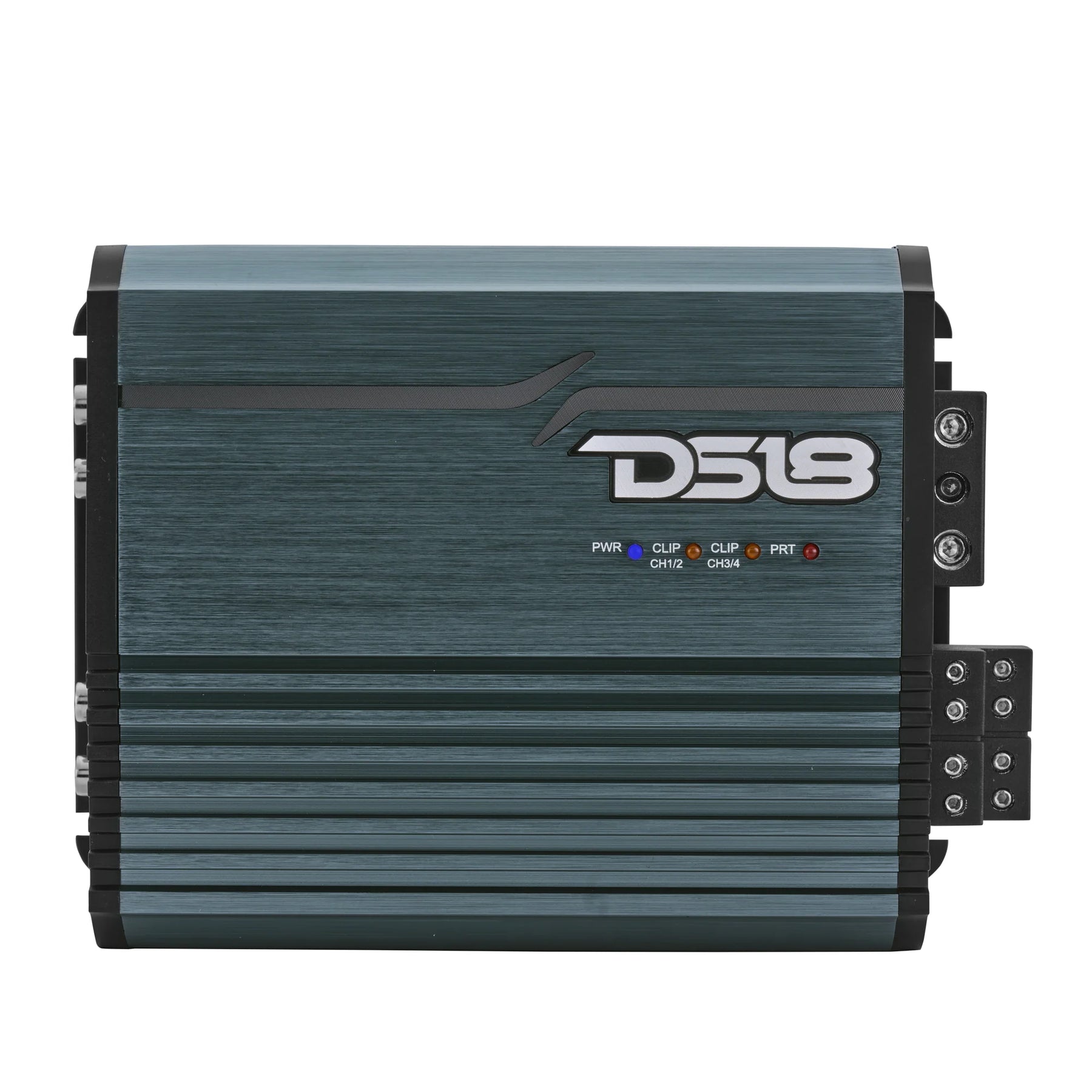

Amplifier (FRP-1.2K4) Power:

• RMS Power @ 4 Ohms: 4 x 120W

• RMS Power @ 2 Ohms: 4 x 200W

• RMS Power @ 1 Ohm: 4 x 300W

• RMS Power @ 4 Ohms Bridge: 2 x 350W

• RMS Power @ 2 Ohms Bridge: 2 x 500W

Amplifier (FRP-1.2K4) Audio:

• Frequency Response: 10Hz-20kHz

• Signal to Noise Ratio: 90dB

• Efficiency @ 4 Ohms: 97%

• Damping Factor: 90

• Input Impedance: 10k

• Total Harmonic Distortion (THD): 0.5%

• Low-Level Input Range: 400mV-6V

• Selectable X-Over: Yes, HPF / FULL / LPF

• X-Over Filter Range: 10Hz-2kHz

• Bass Boost Frequency: 50Hz

• Bass Boost Range: 0-12dB

• Channel Separation: 50dB

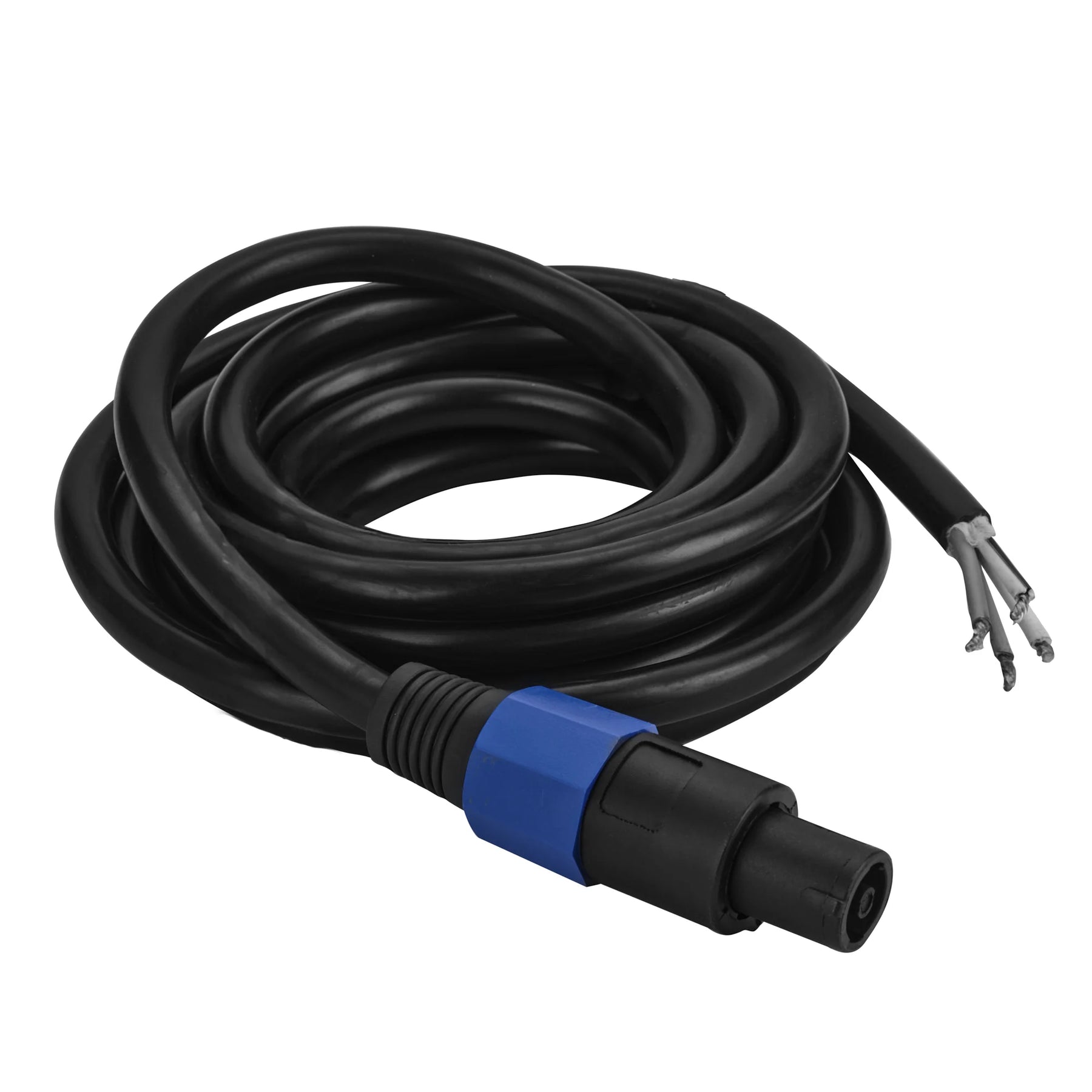

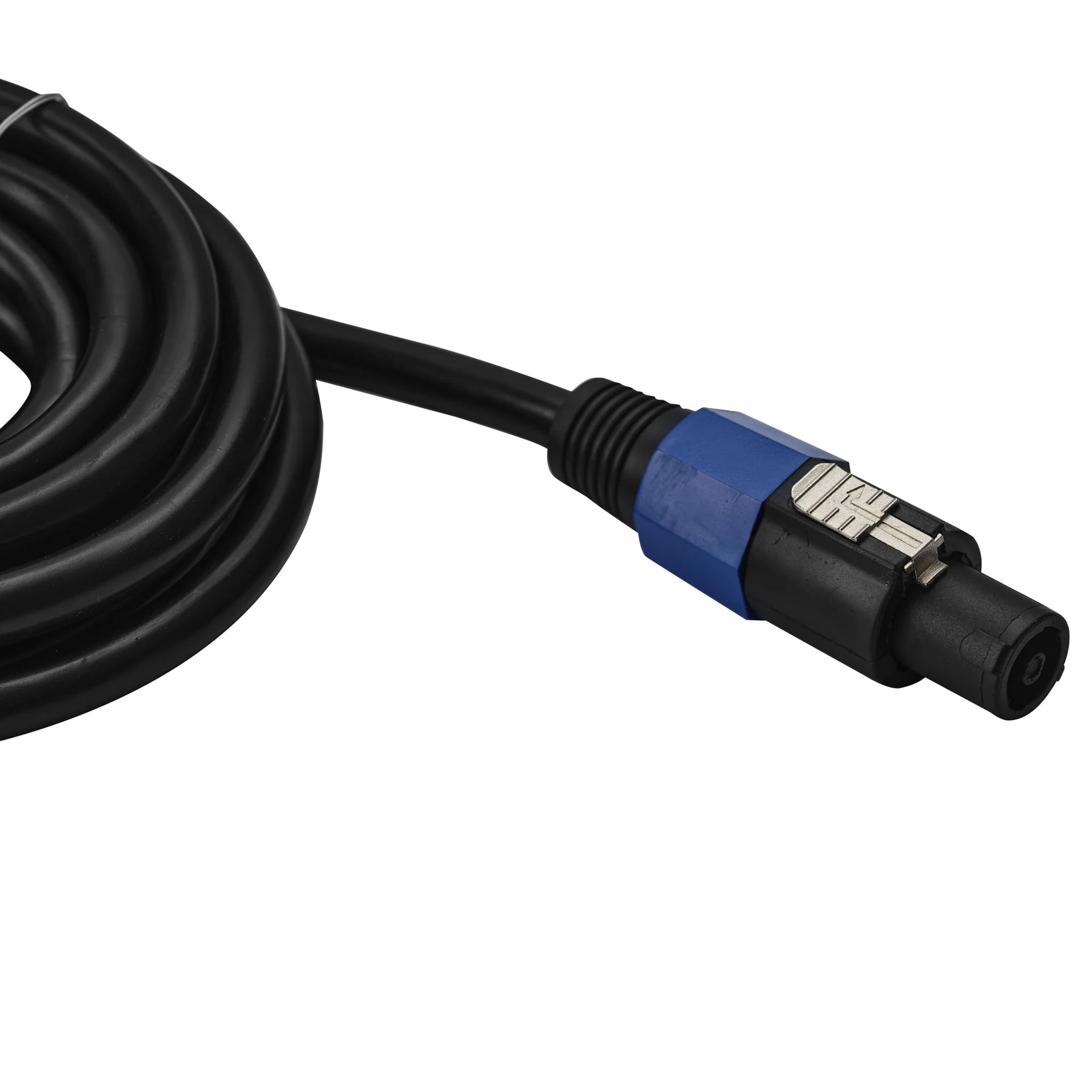

Speaker Wires:

• Type: Speakon (Male)

• Total Length: 12ft (3.6m)

• Conductor Material: Copper (OFC)

• Number of Conductors: 4

• Gauge: 14 AWG

• Nominal Outside Diameter: 8mm

• Cable Construction Type: Stranded / Multi-Twist

• Shield Material / Color: PVC / Black
