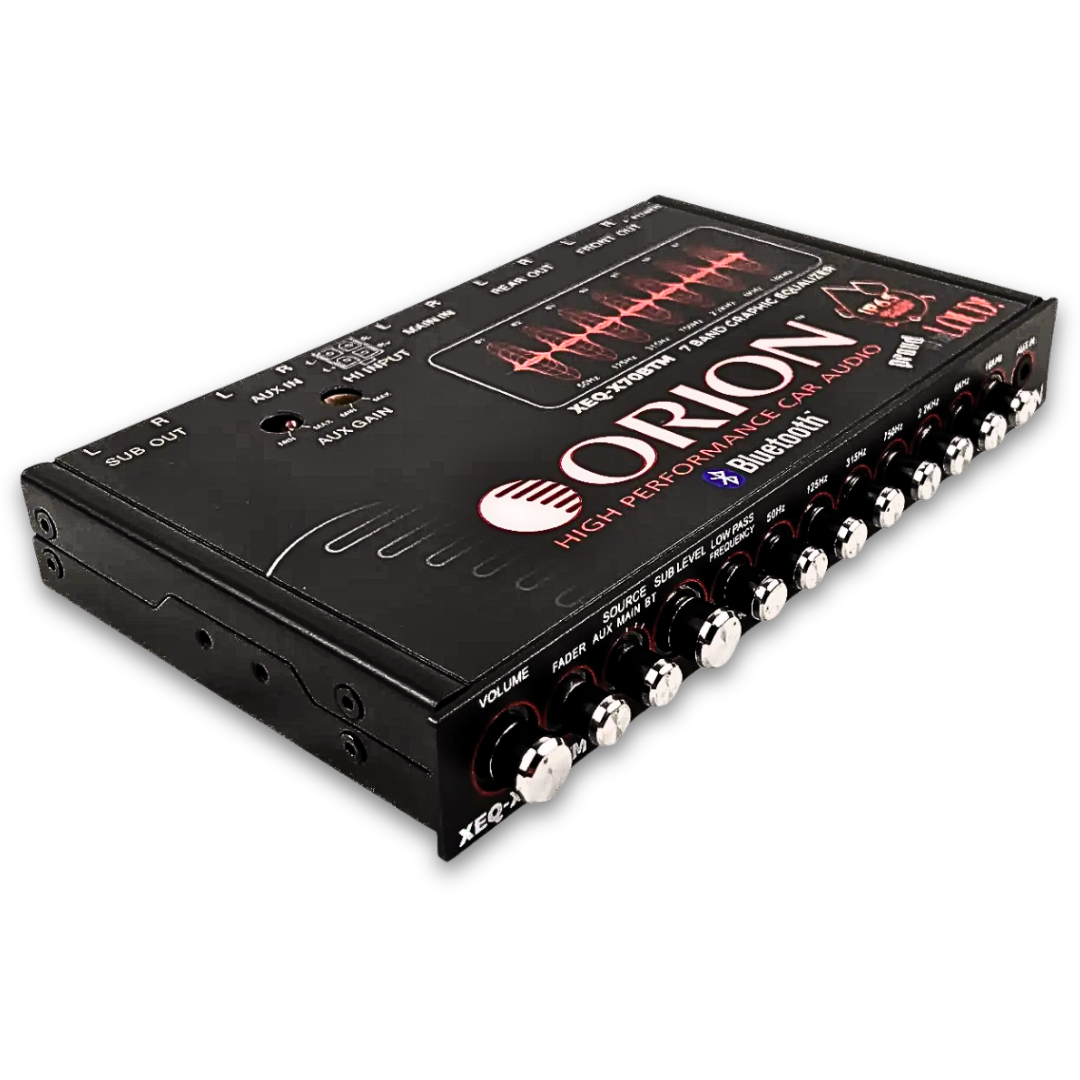

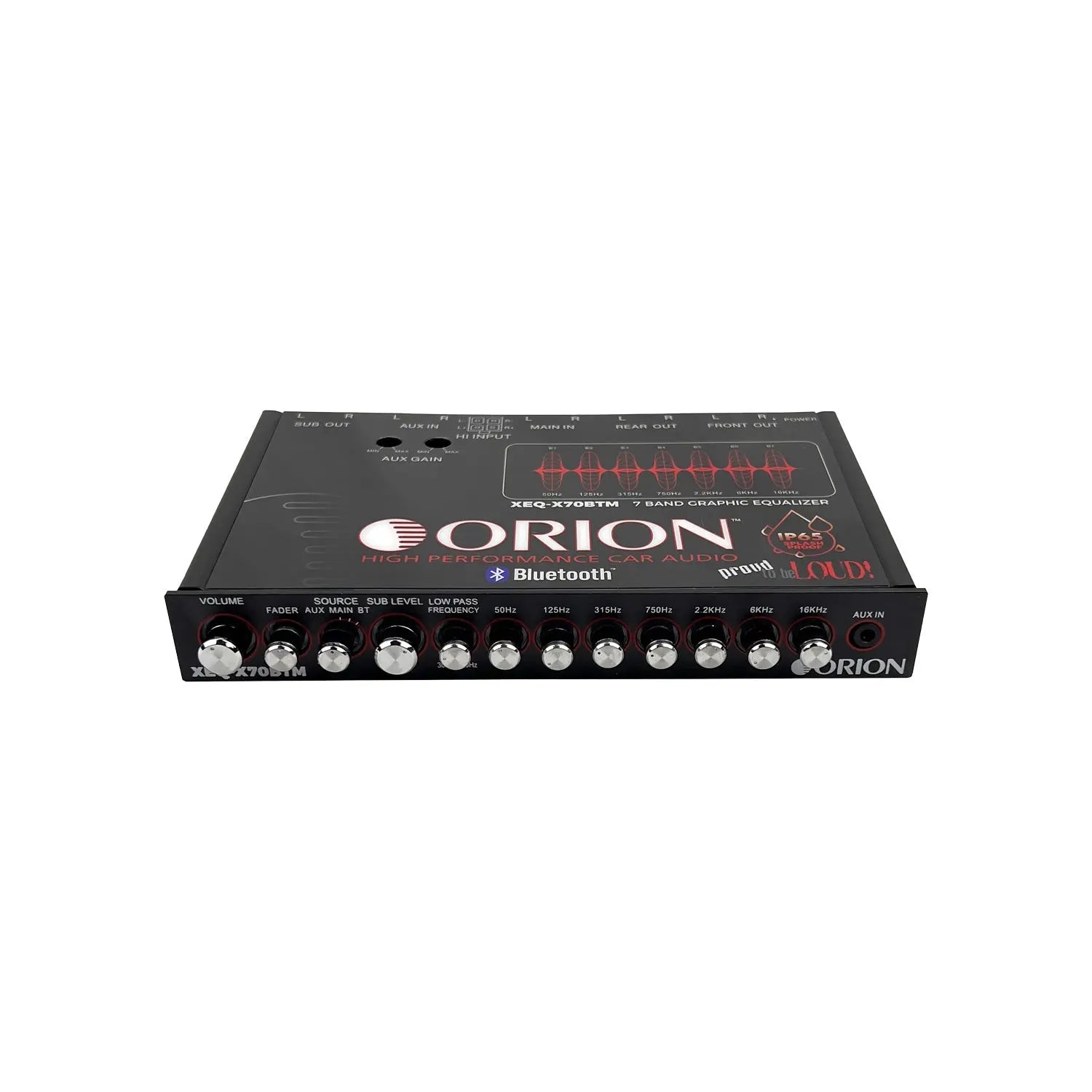

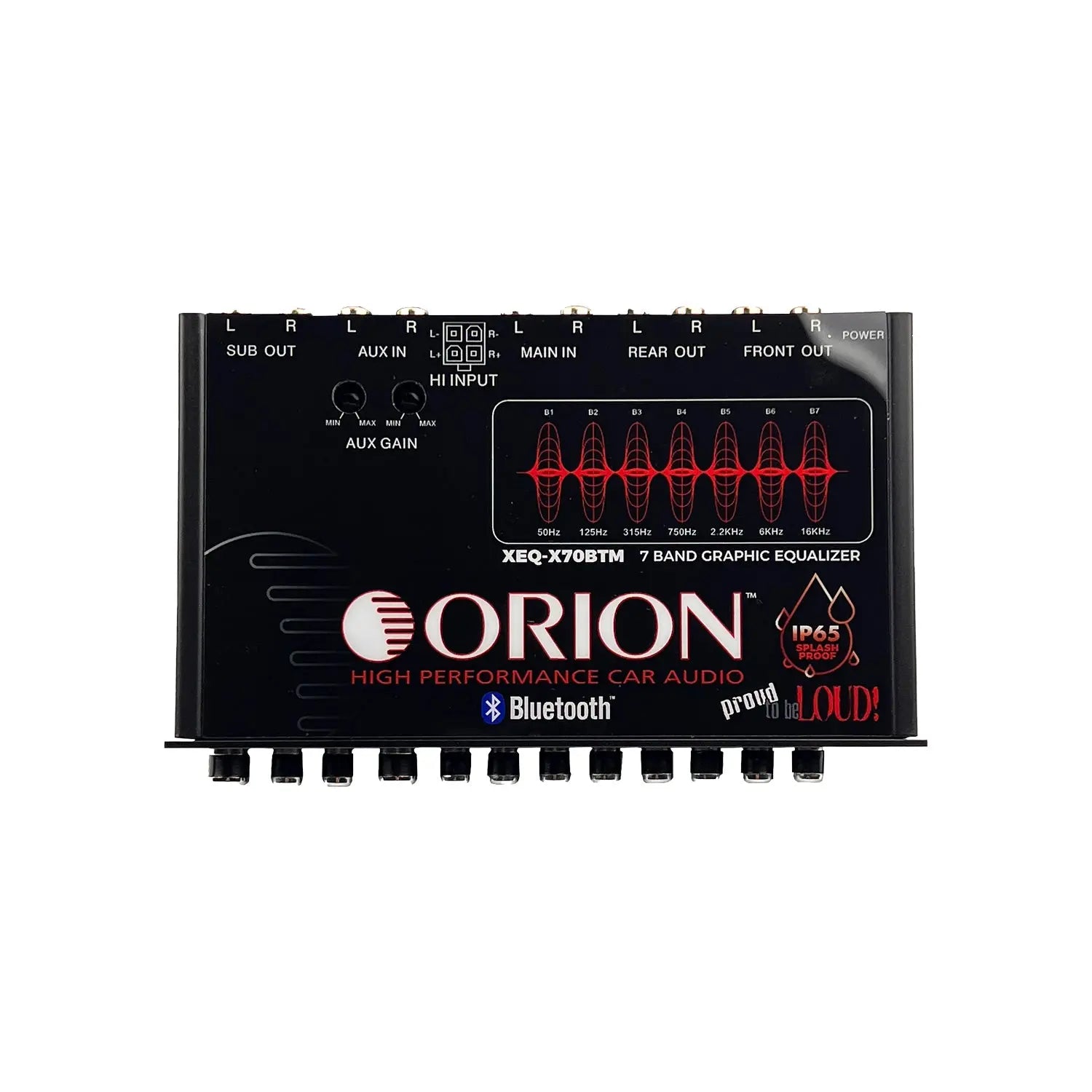

Orion XEQ-X70BTM 7-Band Marine Grade Graphic Equalizer with Bluetooth

The XTR XEQ-X70BTM is a marine-grade 7-band graphic equalizer designed to bring precision audio tuning to your boat's sound system, while providing the convenience of Bluetooth connectivity. This robust equalizer is IPX5 rated, ensuring it can withstand harsh marine environments, making it perfect for enhancing audio on boats or other watercraft.

Featuring seven adjustable frequency bands (ranging from low bass to high treble), the XEQ-X70BTM allows for fine-tuning of your audio output, ensuring you can adjust each band to suit specific tastes and audio needs.

The inclusion of high-level inputs and Bluetooth capability offers versatile connectivity options, enabling wireless streaming from mobile devices and easy integration with existing audio systems.

In addition to its sound customization features, the XEQ-X70BTM boasts a solid build quality with protective measures against moisture and water exposure. It is designed with marine use in mind, from its durable controls to the water-resistant housing, providing reliable performance and longevity.

Whether you’re anchoring in a quiet cove or cruising open waters, this equalizer enhances your marine audio experience with clear, tailored sound.

Key Features:

• Flexible Equalization: Features seven adjustable bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz) with each capable of a -12 to +12dB adjustment, allowing for precise audio tuning.

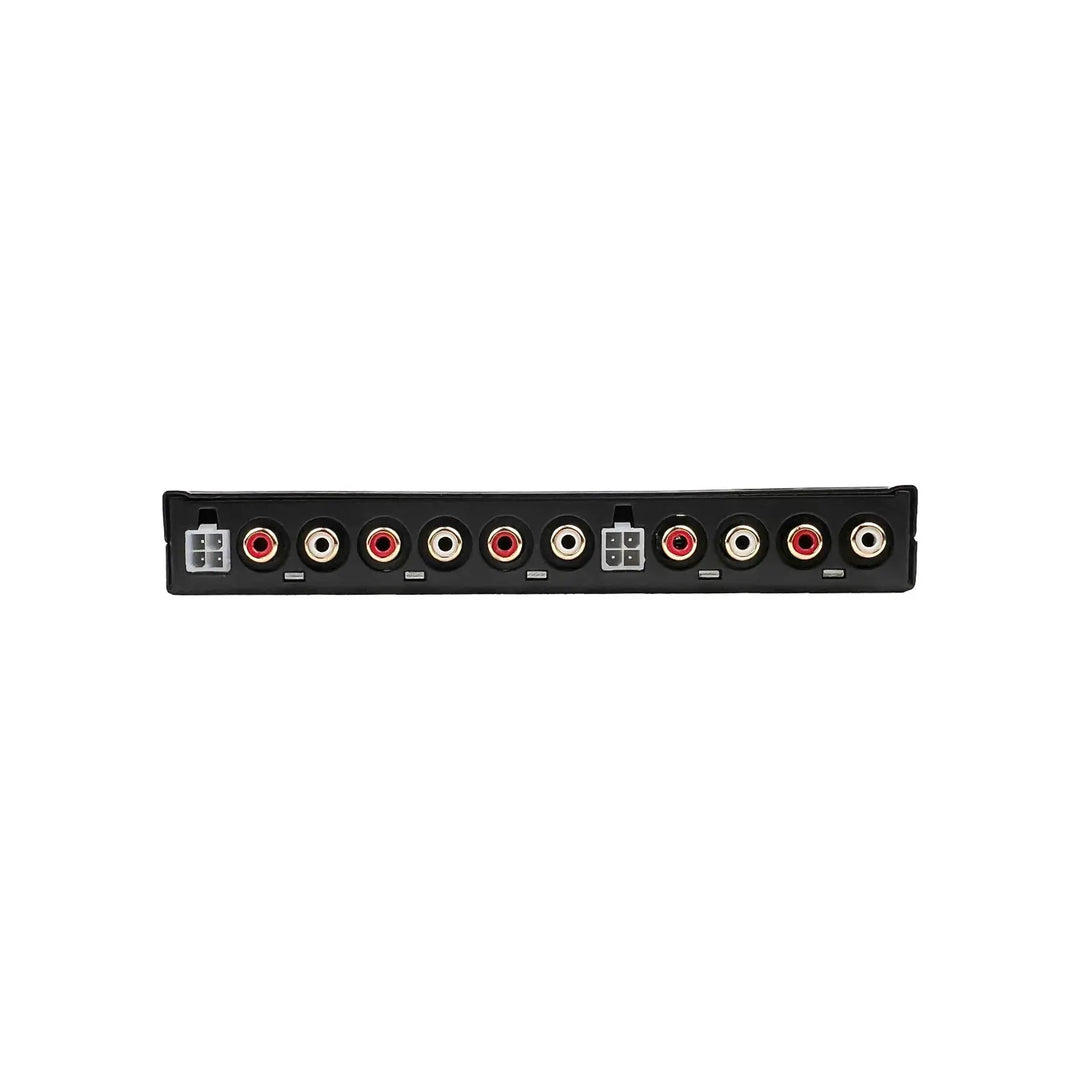

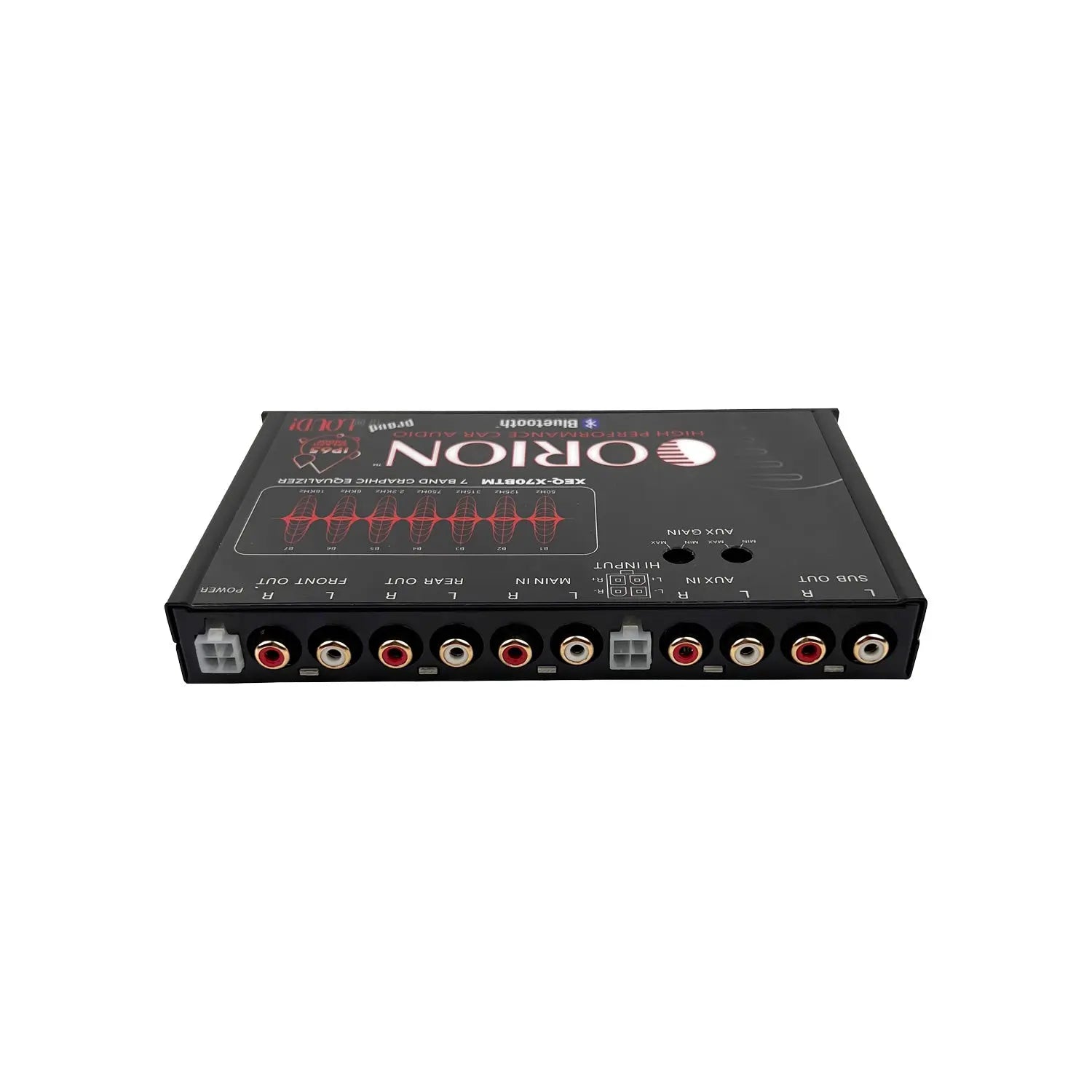

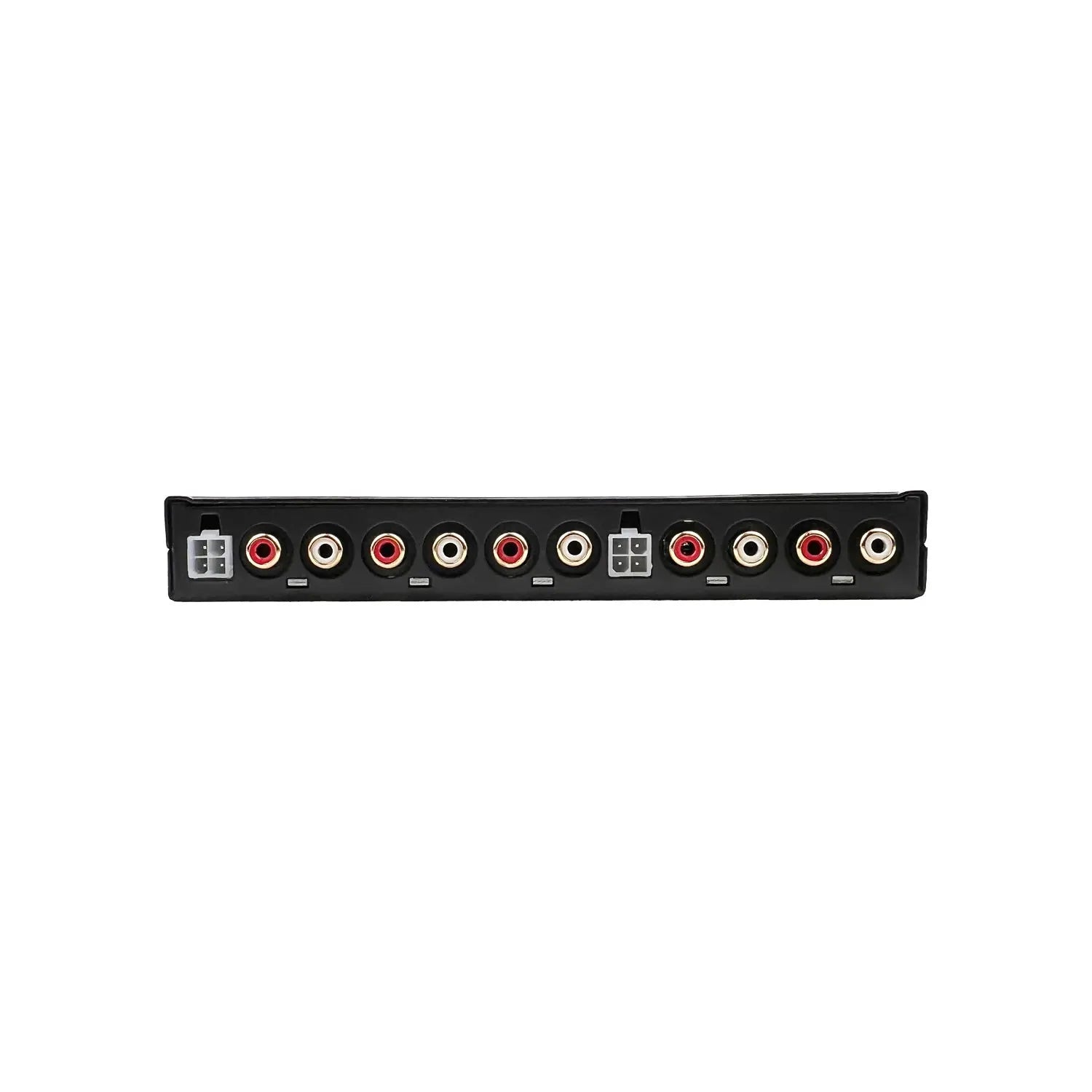

• Multiple Connectivity Options: Includes three stereo RCA outputs for front, rear, and subwoofer amplifiers, plus an RCA input and a front panel 3.5mm input for easy connection to portable devices.

• Wireless Connectivity: Offers Bluetooth for seamless streaming from mobile devices, reducing reliance on physical connections.

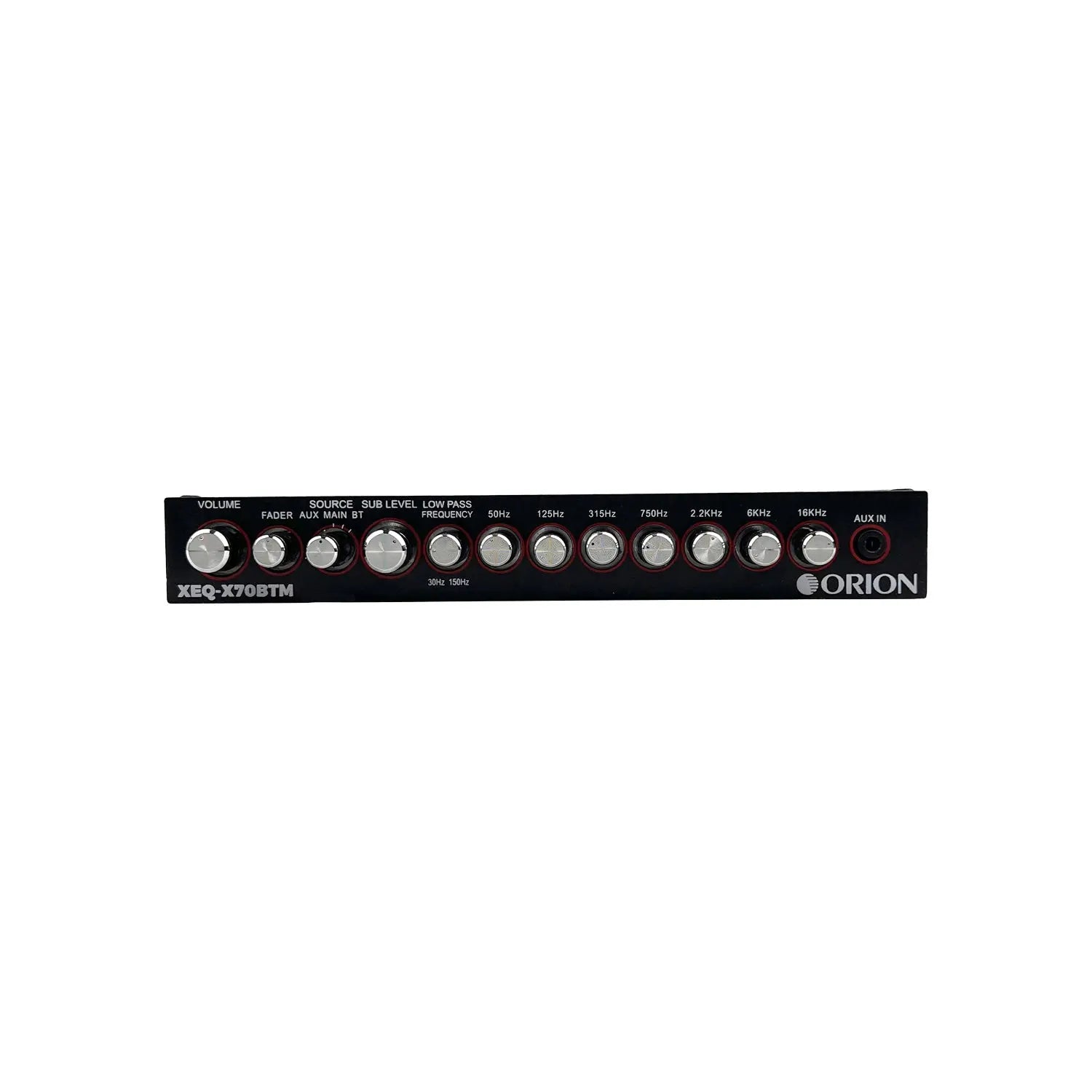

• Versatile Controls: Separate controls for master volume, subwoofer volume, and front/rear fader, along with switches for selecting main or auxiliary inputs.

• Superior Sound Quality: Extended frequency response from 20Hz to 30kHz and a 100dB signal-to-noise ratio ensure crystal-clear audio.

• High-Quality Connections: Features gold-plated RCA connectors and high-level speaker inputs for optimal audio signal output and integration with factory radios.

• IPX5 Rating: Engineered to withstand low-pressure water jets from any direction, making it suitable for marine environments.

• Marine Ready: Designed for use on boats, docks, or near pools, providing reliable performance even in wet and harsh conditions.

Specifications:

• Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz

• Boost/Cut Range: ±12dB

• Signal-to-Noise Ratio (S/N): 83dB

• Frequency Response: 8Hz - 140kHz +/-1dB

• Maximum Output Voltage: 8V

• Total Harmonic Distortion (THD): 0.01%

• Input Sensitivity (RCA): <3.6V

• Input Sensitivity (High): <10.8V

• Input Impedance: 20K Ohms

• Output Impedance: 1K Ohms

• Stereo Separation: 73dB at 1kHz

• Operating Voltage: 11V - 15V (negative ground)

Measurements:

• Width x Depth x Height: 7”x 4.25”x 1”
