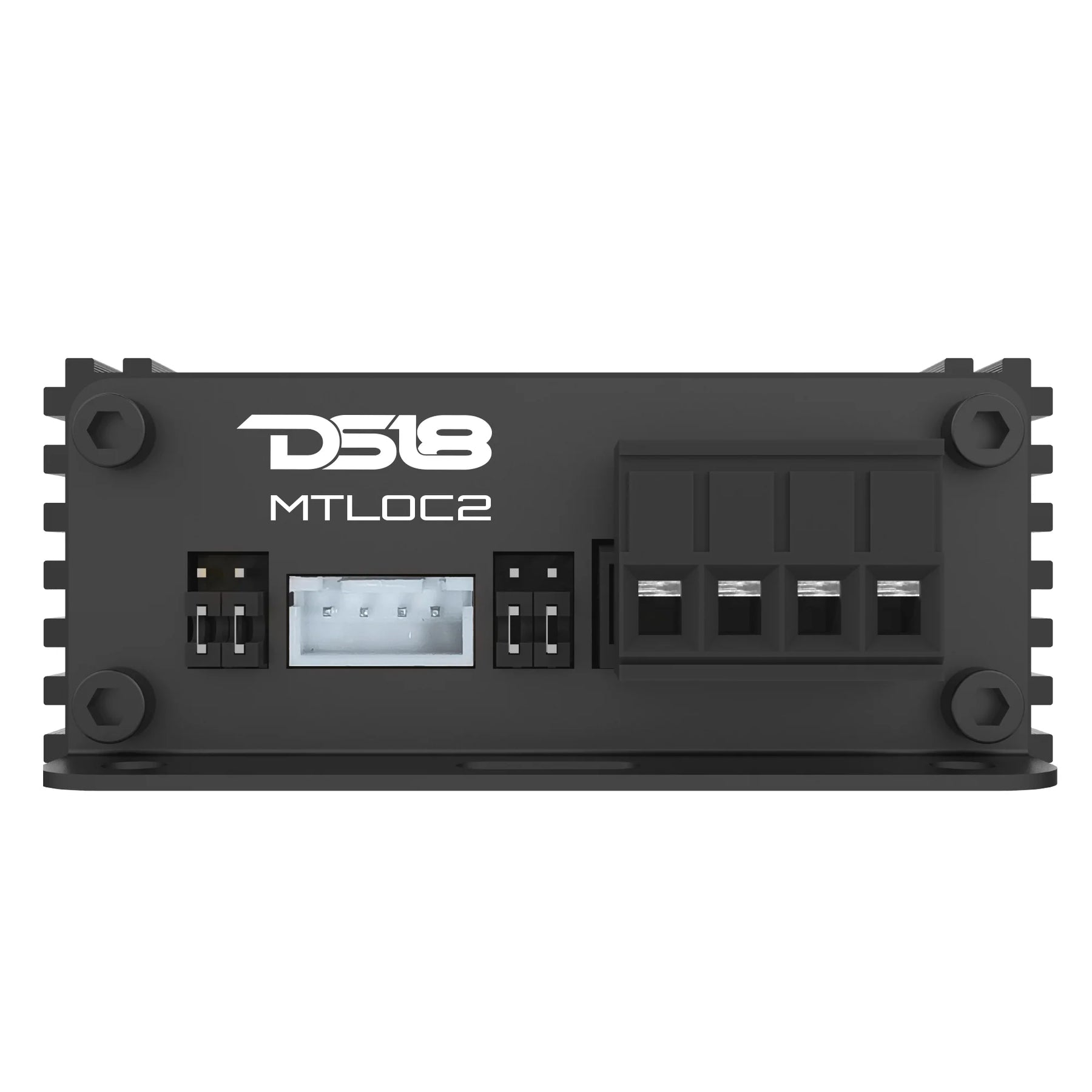

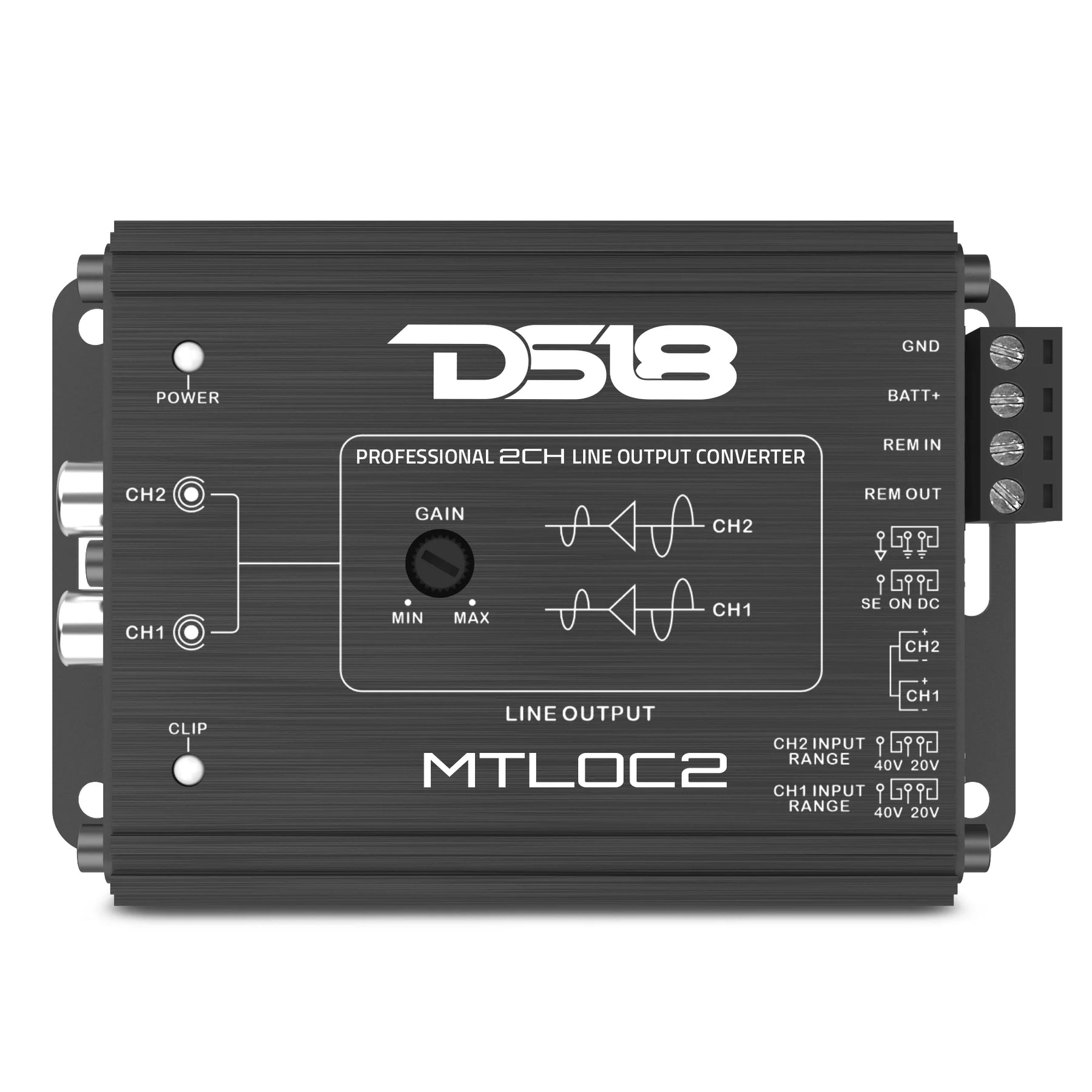

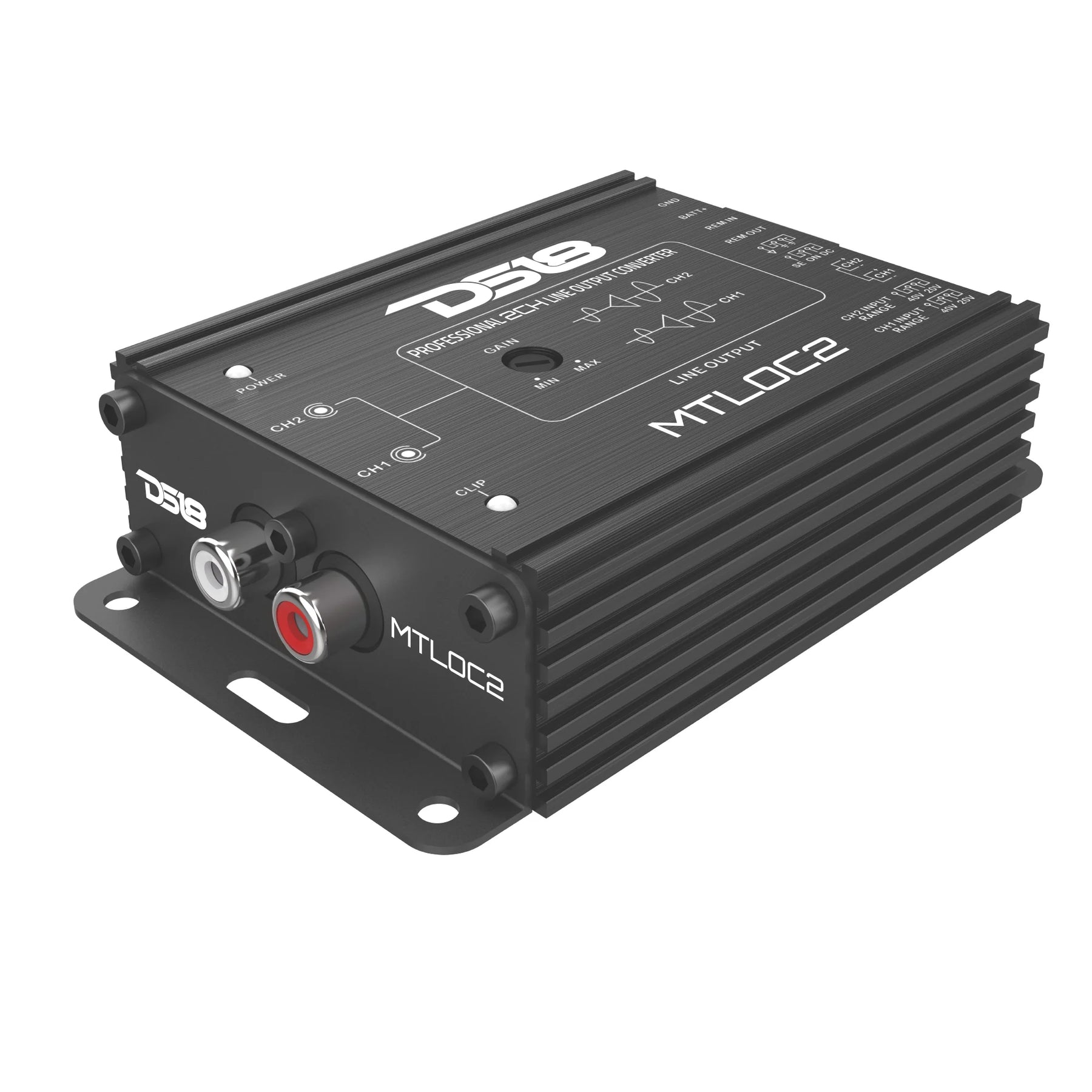

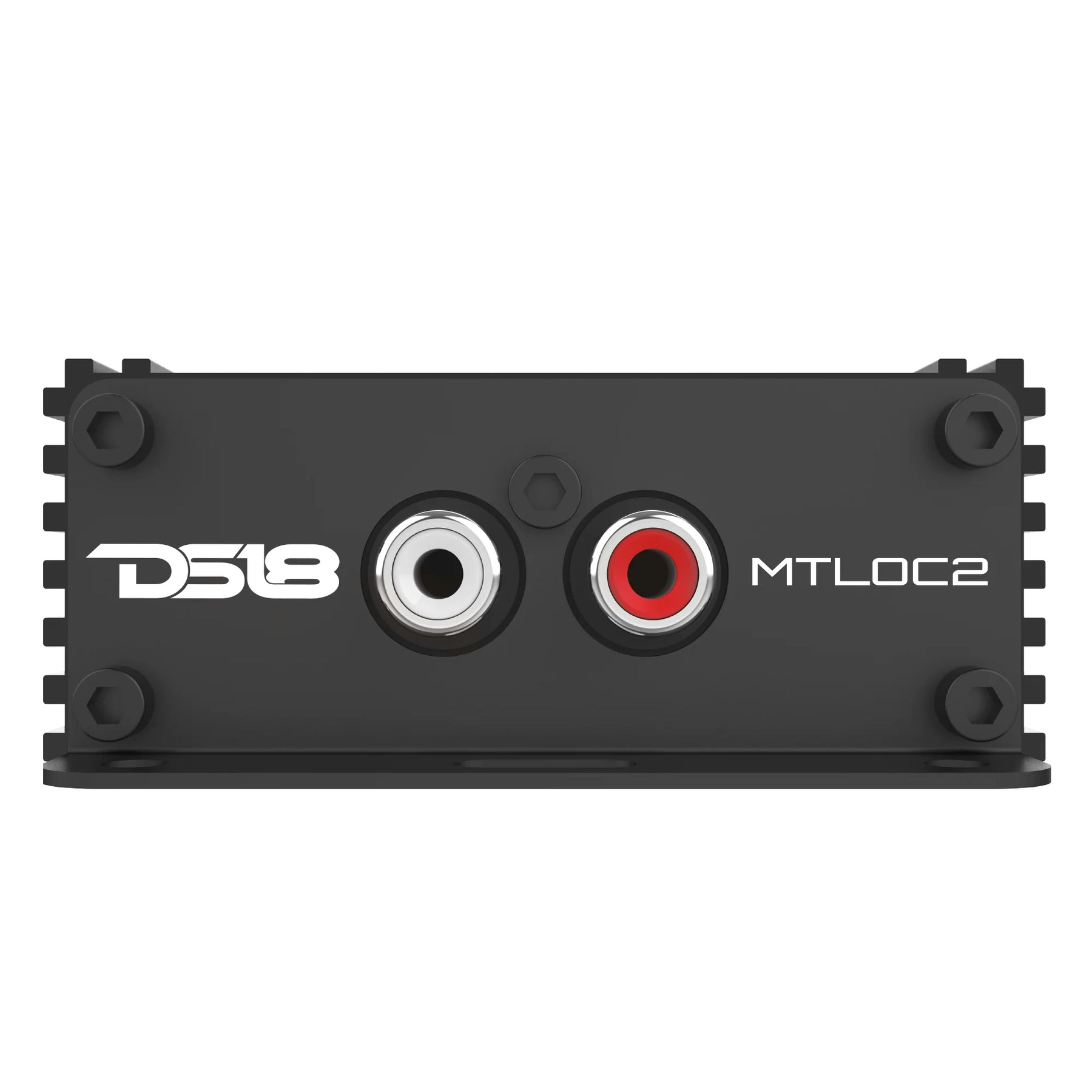

DS18’s MTLOC2 converts 2-channel factory speaker-level outputs into clean RCA signals for aftermarket amplifiers. Its selectable 20V or 40V high-level input works in various OEM systems without triggering errors.

Automatic Power-Up
Equipped with auto turn-on via audio sensing, DC offset, or remote trigger, the MTLOC2 powers your amplifier instantly and hassle-free without manual wiring.

Durability and Size
Built with surface mount technology and housed in a rugged aluminum casing, the MTLOC2 offers noise rejection, thermal protection, and a compact design for easy installation.

Superior Audio Quality
Operating from 10Hz to 20kHz with less than 0.01% distortion, the MTLOC2 preserves your music’s clarity and detail.

Key Features

• 2-Channel High-to-Low Conversion

• 20V / 40V Input Select

• Auto Turn-On (Audio / DC / Remote)

• Aluminum Casing & Noise Rejection

• 10Hz–20kHz Frequency Range (<0.01% THD)

Specifications

• Maximum Speaker Level Input: Selectable 20 / 40V (100 / 400 W RMS)

• Maximum Preamp Output: Up to 9V

• Nominal Conversion Ratio: 4:1

• Frequency Response: 10Hz - 20kHz

• Total Harmonic Distortion: 0.01%

• Signal To Noise Ratio: >110dB

• Input Impedance: 100 ohms

• Output Impedance: 100 ohms

• Power Draw: 50mA

• Recommended Fuse Rating: 1A
