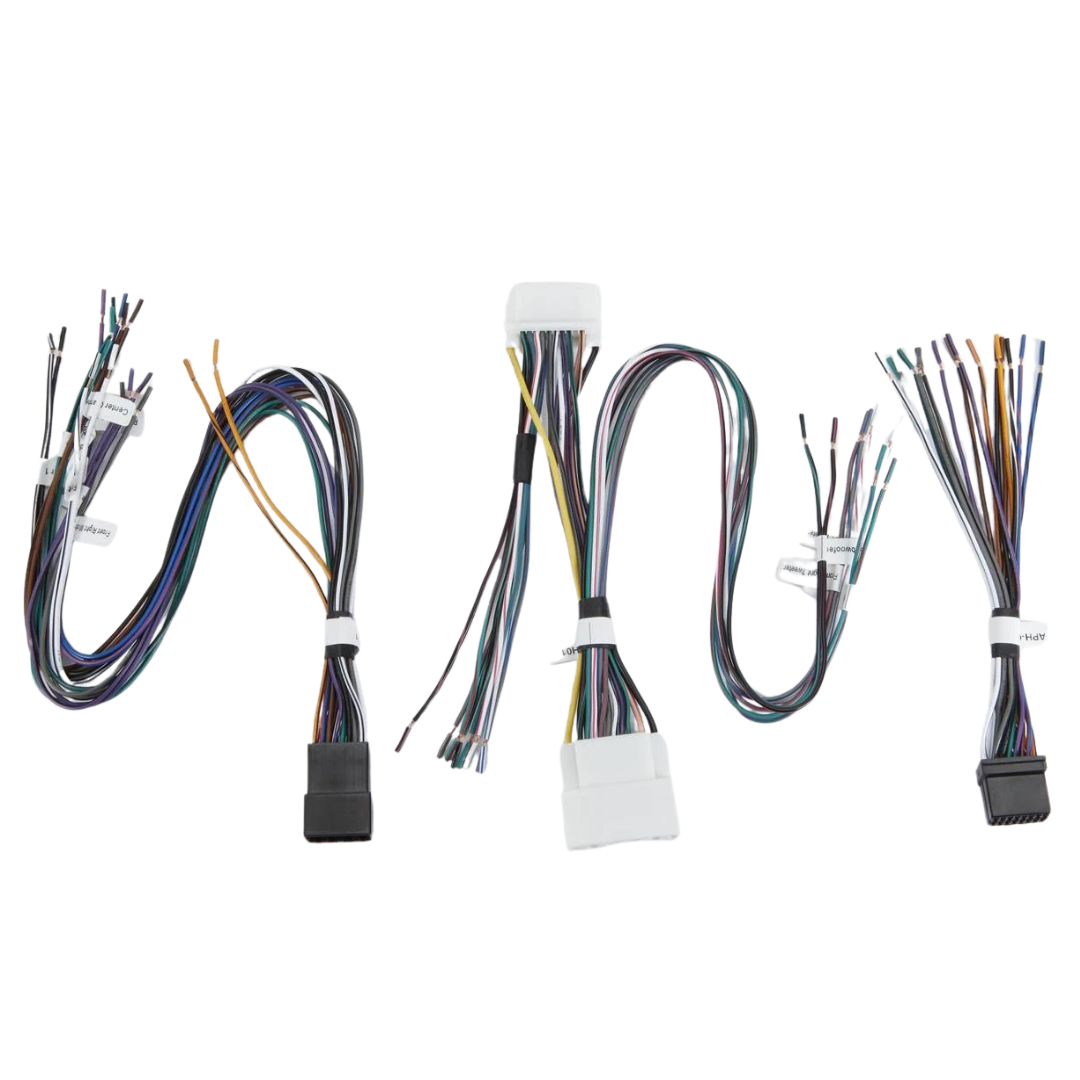

The APH-CH01 simplifies speaker wire connections when adding aftermarket amplifiers. Aftermarket amplifiers can be easily added with no need to cut or modify a vehicle’s original wiring. Each pair of wires has been labeled with the corresponding speaker name.

Simplify speaker wire connections when adding aftermarket amplifiers with our Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring.

Compatibility Notes:

• In most late model vehicles, multiple premium sound systems are offered. The connectors at the amplifier must match the image below to be compatible with the APH-CH01. If you have a different amplifier than what is pictured, you may need the APH-CH03.

Installation Notes:

• It is always best to use a tone generator (PAC Part# TL-PTG2) to verify that the tables in this manual, and the labels on the wires, match the wiring in your specific vehicle.

• Connection of the male Black 16-pin connector is only necessary if you are leaving factory speakers connected to the factory amplifier.

• The White 22-pin connector from the APH-CH01 must be connected to the factory amplifier when using a PAC AmpPRO Interface.

• Not all applicable vehicles will come equipped with a corresponding speaker for all of the wires populated in our harness. It is important to understand which speakers the vehicle is equipped with.

• If you are leaving any of the factory speakers connected to the factory amplifier, simply connect the speaker wires (color for color) between the male and female connectors. For example: If you want the rear speakers to be powered by the factory amplifier, simply connect the Green, Green / Black, Purple and Purple / Black wires from the male connector to the Green, Green / Black, Purple and Purple / Black wires from the female connector.
