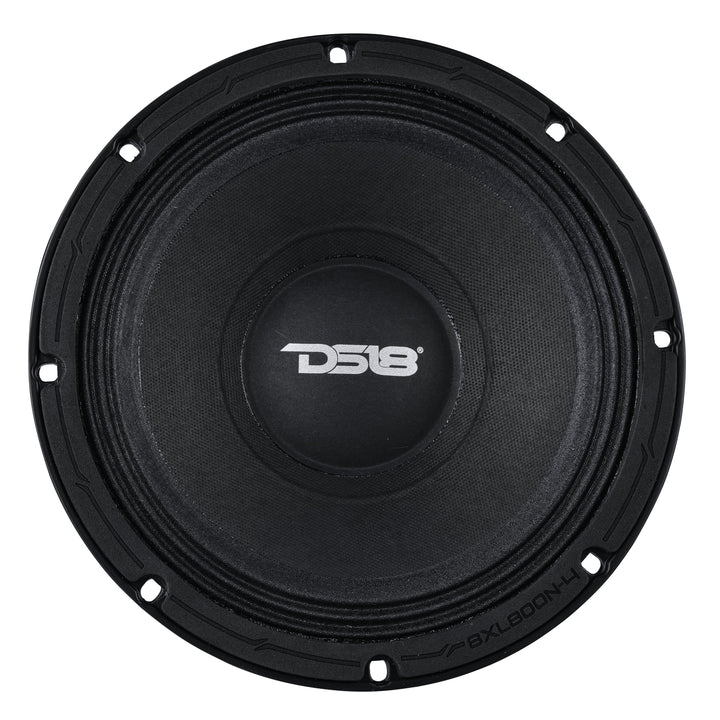

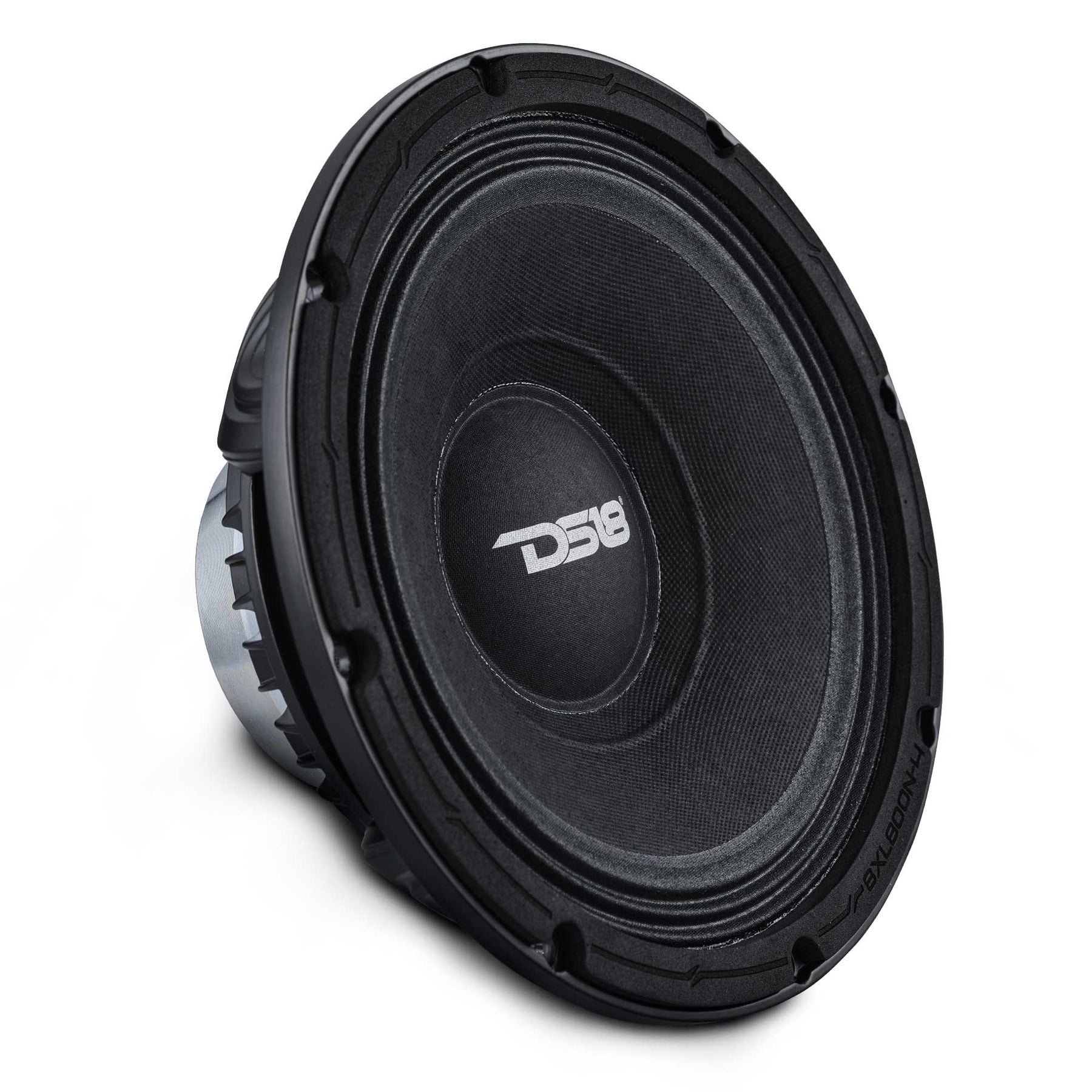

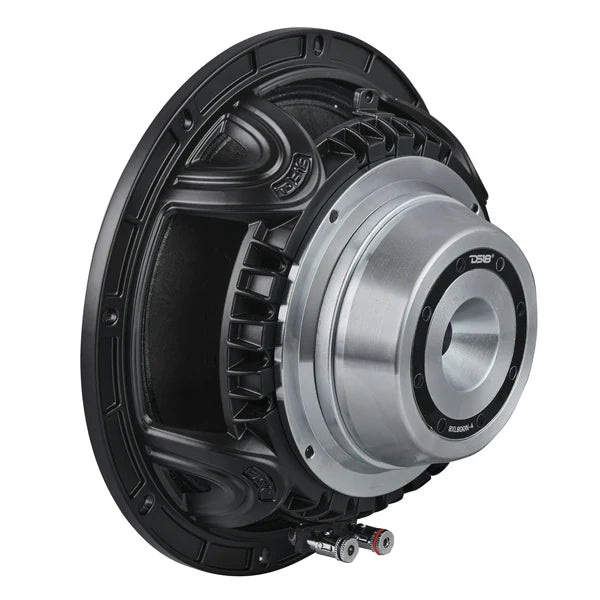

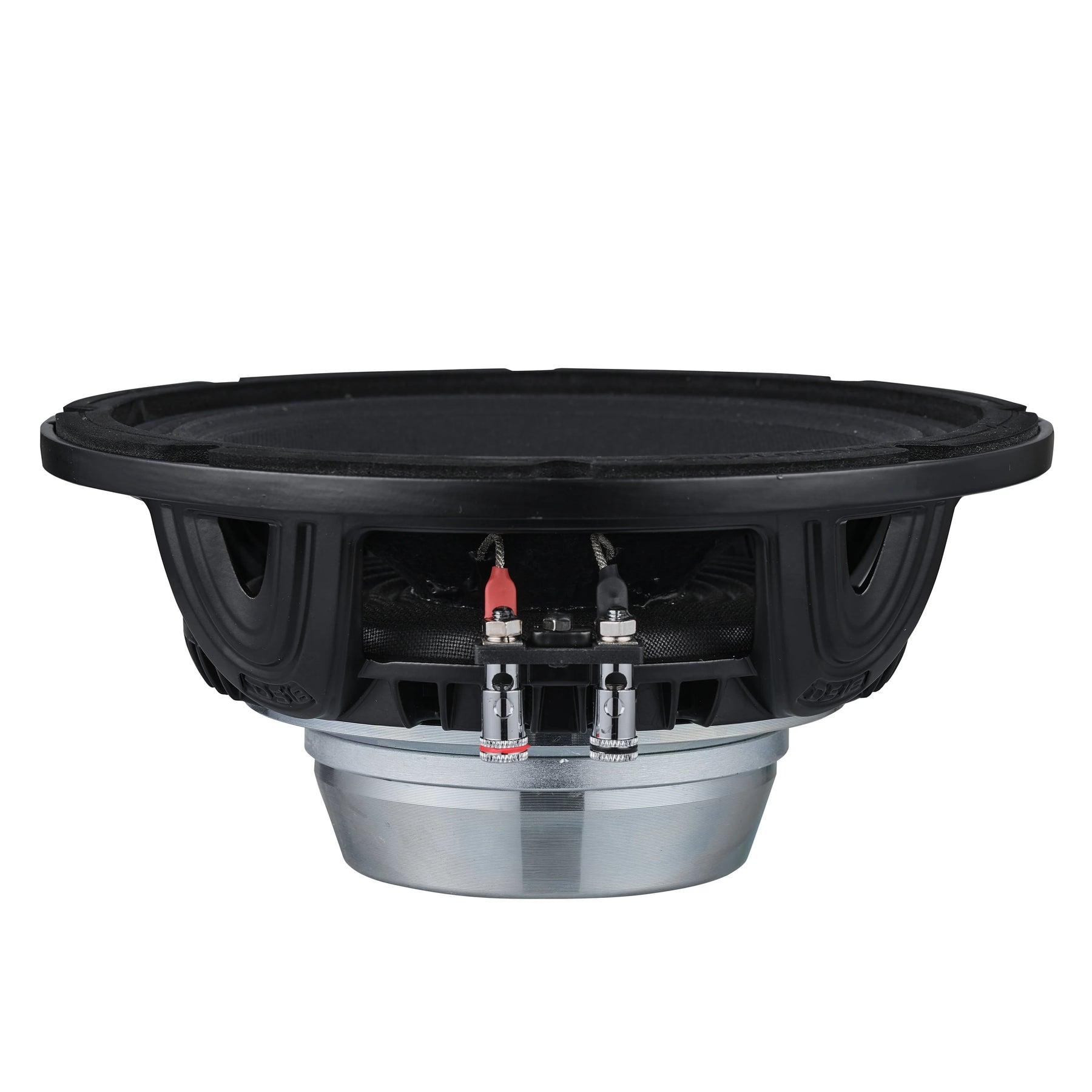

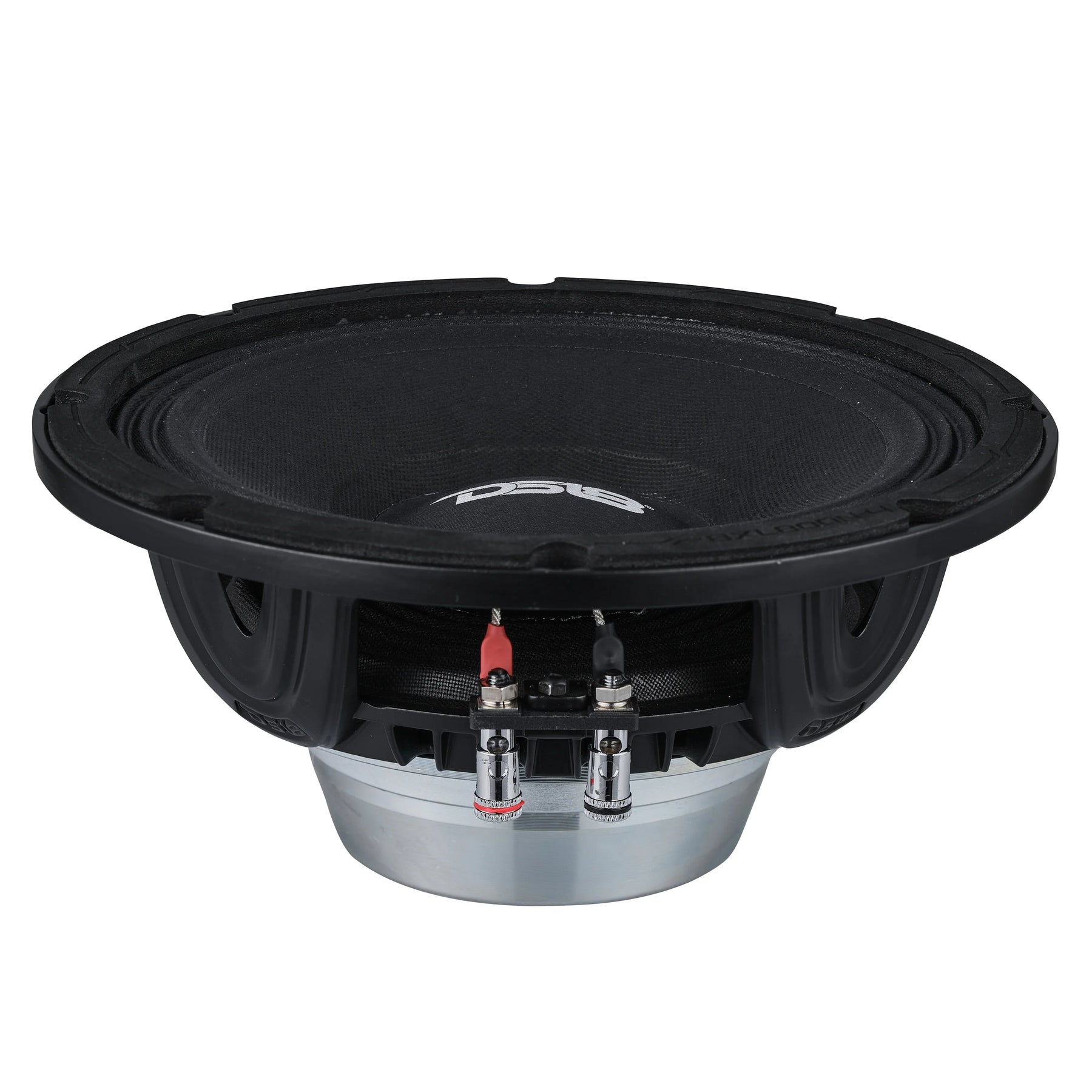

DS18 8XL800N-4 8" Mid-Range Loudspeaker with Neodymium Magnet and 2" Voice Coil - 400 Watts Rms 4-ohm

The 8XL800N-4 is designed to deliver mind-blowing clarity, making it the go-to choice for high-performance car audio systems. With an impressive power handling of 400W RMS and 800W MAX, you can reach extreme volumes while maintaining your audio’s integrity.

Precision-Tuned Frequency Response
With a wide frequency response range of 100Hz – 10kHz, the 8XL800N-4 captures every detail of your favorite tracks. Delivering perfectly balanced sound across the midrange spectrum.

Extreme Sensitivity for Maximum Output
With an insane 100.7dB sensitivity rating, this speaker produces incredibly high SPL (Sound Pressure Levels) with less power. It maximizes output without distortion, ensuring louder, clearer sound even in large vehicles and open spaces.

Advanced Engineering for Superior Durability
The 2” Kapton voice coil provides exceptional heat resistance, allowing the speaker to handle extended play at high power levels without overheating. The non-pressed paper cone enhances audio accuracy and responsiveness, while the cloth surround ensures durability and smooth performance—even under extreme conditions.

Lightweight Yet Powerful Neodymium Magnet
The 8XL800N-4 utilizes a lightweight yet incredibly powerful 7.5oz neodymium magnet. This high-strength magnetic system enhances speaker efficiency, ensuring tighter, punchier midrange frequencies with minimal distortion.

Optimized for Versatile System Integration
Designed with a 4-ohm impedance, the 8XL800N-4 is highly versatile and integrates seamlessly into multi-speaker configurations. Its push-terminal connectors ensure a secure and hassle-free installation, making it the perfect choice for custom audio builds.

Key Features

• 8" Mid-Range

• MAX Power: 800 Watts

• RMS Power: 400 Watts

• Impedance: 4-Ohm

• Neodymium Magnet

• 100.7dB

Specifications

• Nominal Diameter 8" / 203mm

• Nominal Impedance 4 ohms

• RMS Power Handling 400 watts

• MAX Power Handling 800 watts

• Sensitivity (1w/1m) 100.7dB

• Frequency Response 100Hz-10KHz

• Recommended High-Pass Crossover 160Hz

Features

• Interleaved Sandwich Voice Coil (ISV) No

• Demodulating Rings Yes

• Improved Heat Dissipation Yes

• Cone Shape Curvilinear

• Speaker Terminals Push 12ga

Motor

• Voice Coil Diameter 2" / 50.8mm

• Voice Coil Former Material Kapton

• Winding Material CCAW

• Cone Material Non-pressed Paper

• Dust Cap Material Paper

• Surround Material Cloth

• Spider Diameter 5" / 127mm

• Leads Type Direct to Cone

• Basket Material Aluminum

• Basket Color/Finish Satin Black

• Magnet Material Neodymium

• Magnet Weight 7.5 Oz

• Displacement Volume 0.03L / 0.00105ft

Thiele & Small Parameters

• Equivalent Volume 18.11L / 0.639ft

• Excursion (one way) 2.3mm

• Free Air Resonance 87Hz

• Mechanical Factor 5.325

• Electrical Factor 0.207

• Total Factor 0.199

• Mechanical Mass 16.17g

• Mechanical Compliance 0.278mm/N

• BL Factor 10.8

• Voice Coil Inductance 0.04mH

• Cone Area 213.82cm

• DC Resistance 3.4 ohm

• Mechanical Mass w/o air 12.5g

Measurement

• Overall Diameter 8.2" / 210mm

• Overall Depth 3.85" / 98mm

• Front Mount Baffle Cutout 7.2" / 183mm

• Mounting Depth 3.38" / 86mm

• Motor Diameter 4" / 102mm
