DS18 PRO-SDF6R Round Bolt-on Horn Diffuser for Mid-Range Loudspeakers

DS18 PRO-SDF6R Round Bolt-on Horn Diffuser for Mid-Range Loudspeakers

Regular price $54.95
/
  • Fast & Free Shipping on all USA Orders
  • Have a Question? 1-800-927-9390
  • Safe & Secure payments
  • In stock, ready to ship
  • Inventory on the way
Shipping calculated at checkout.

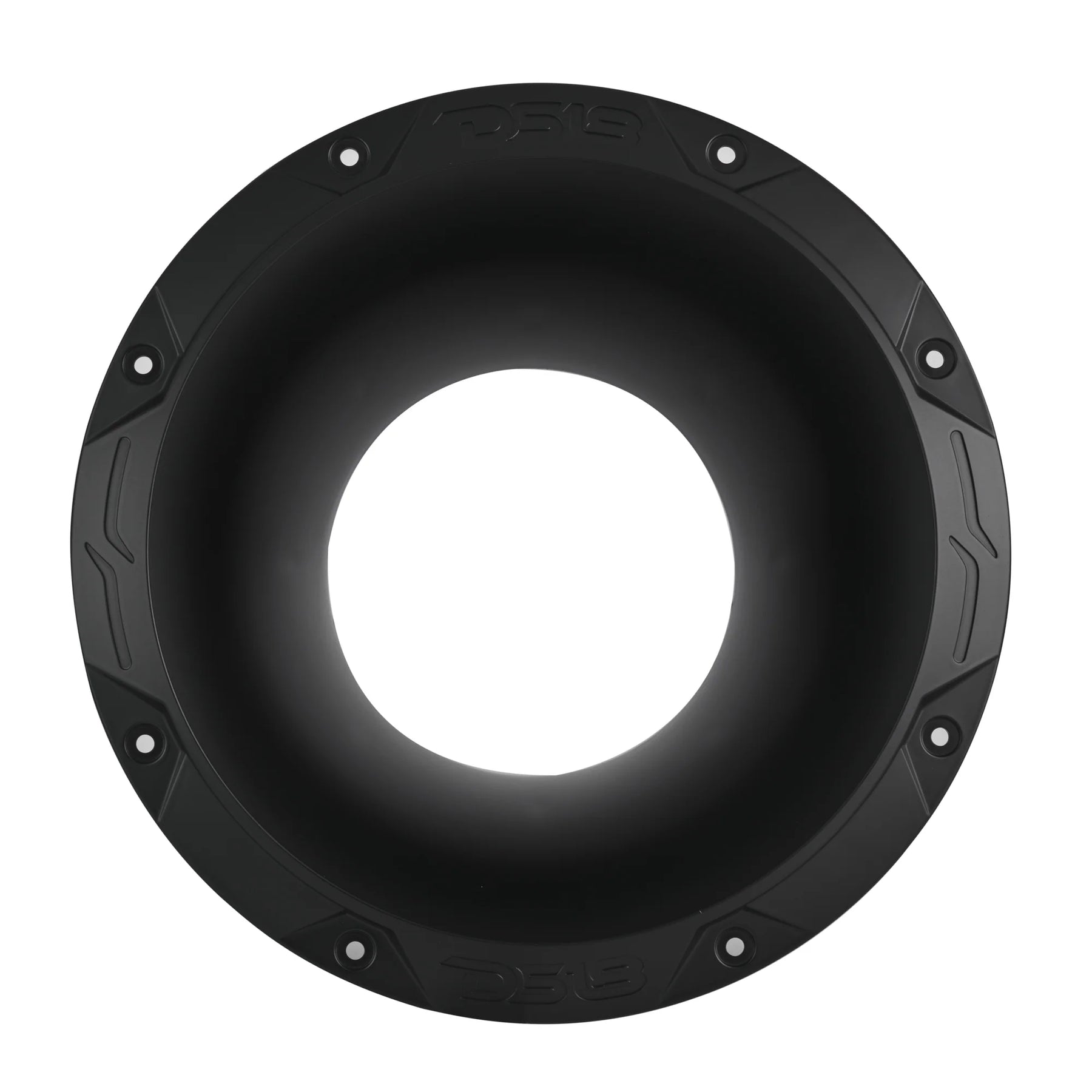

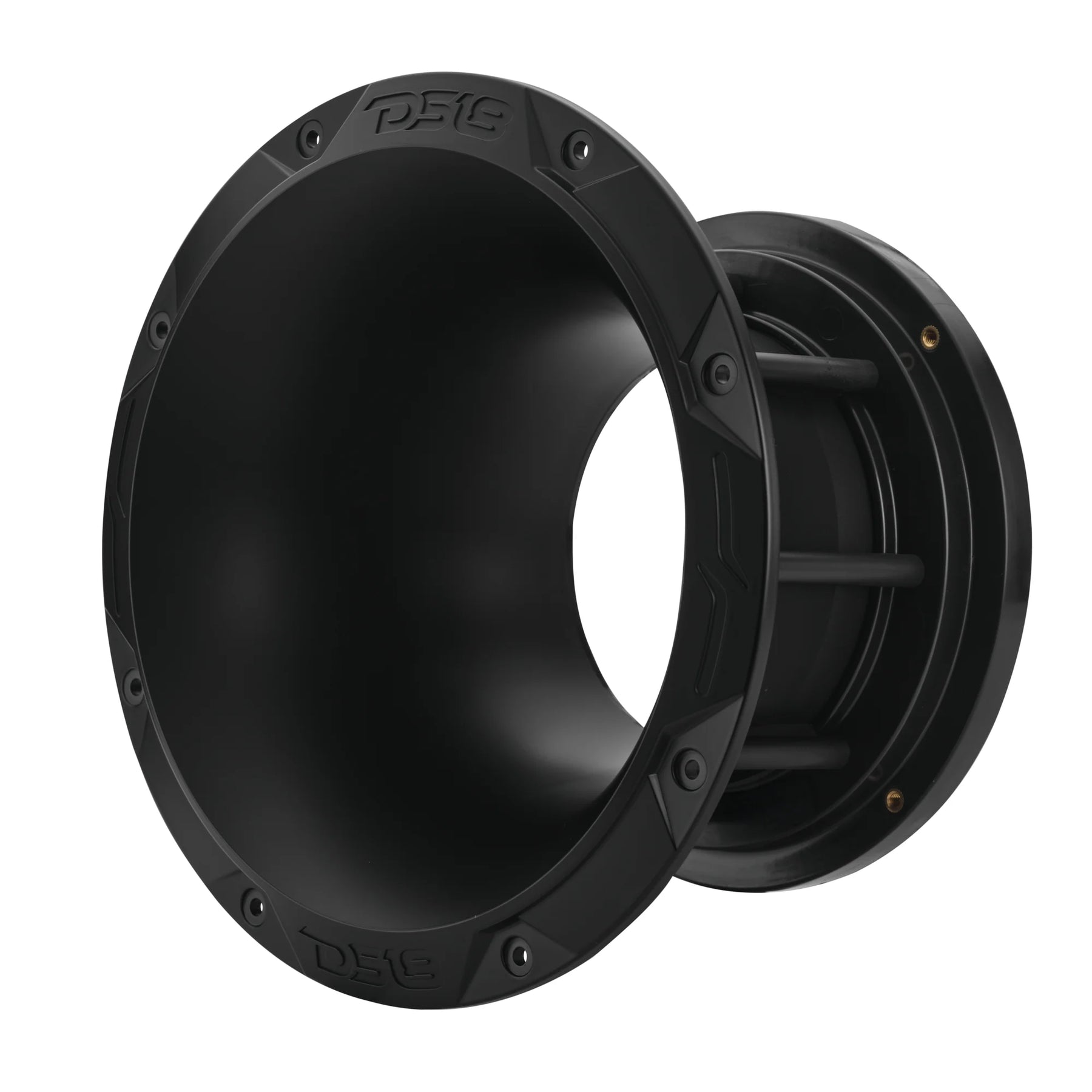

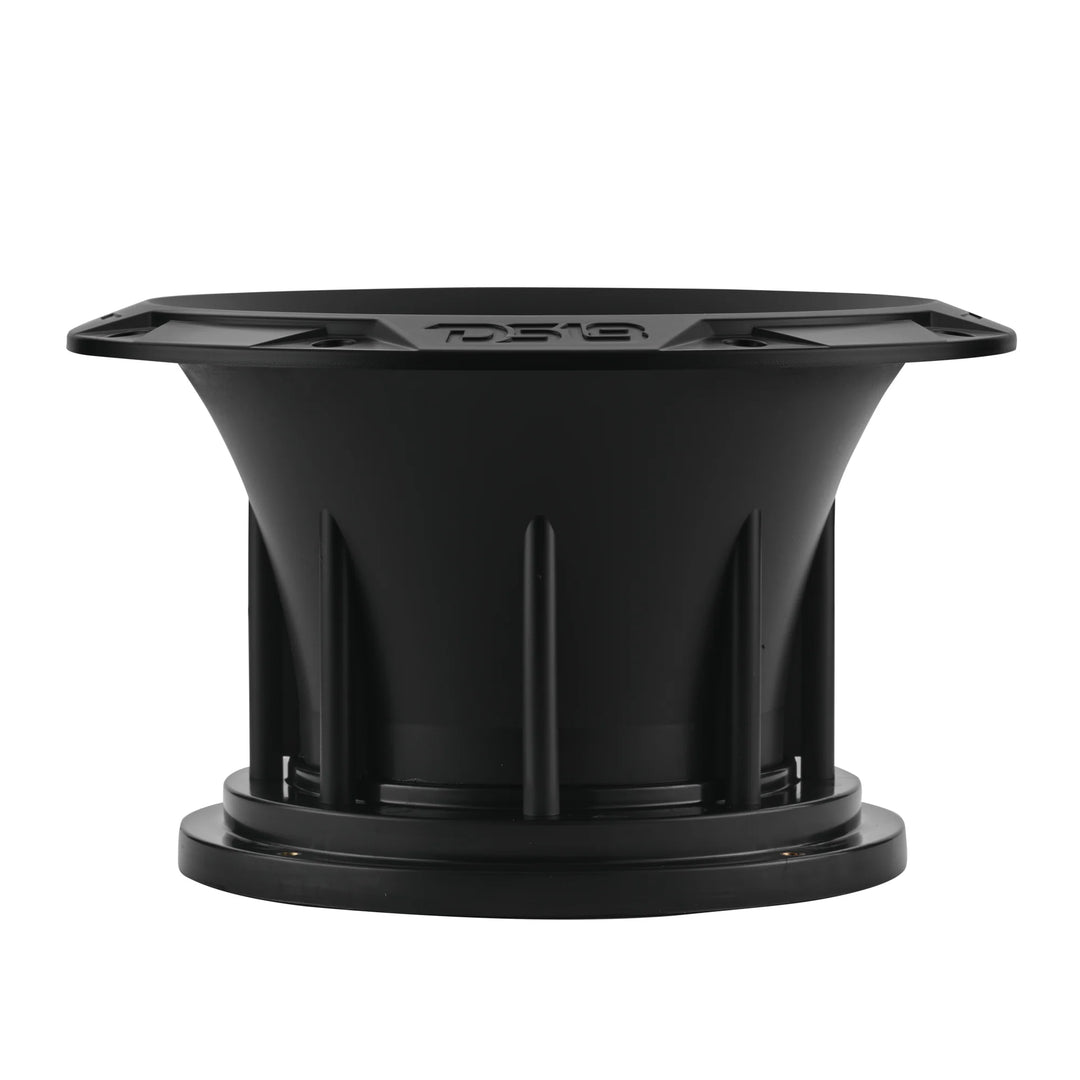

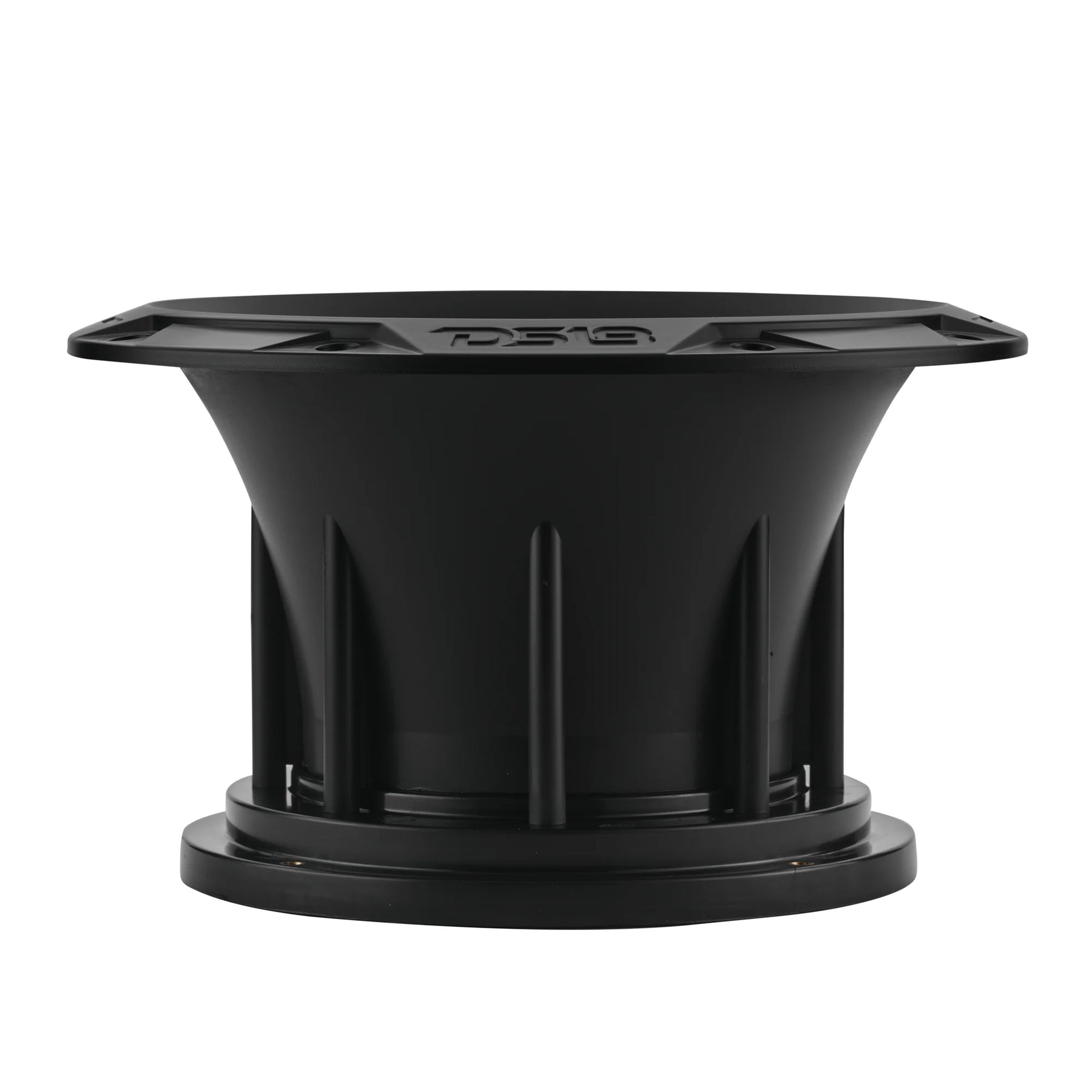

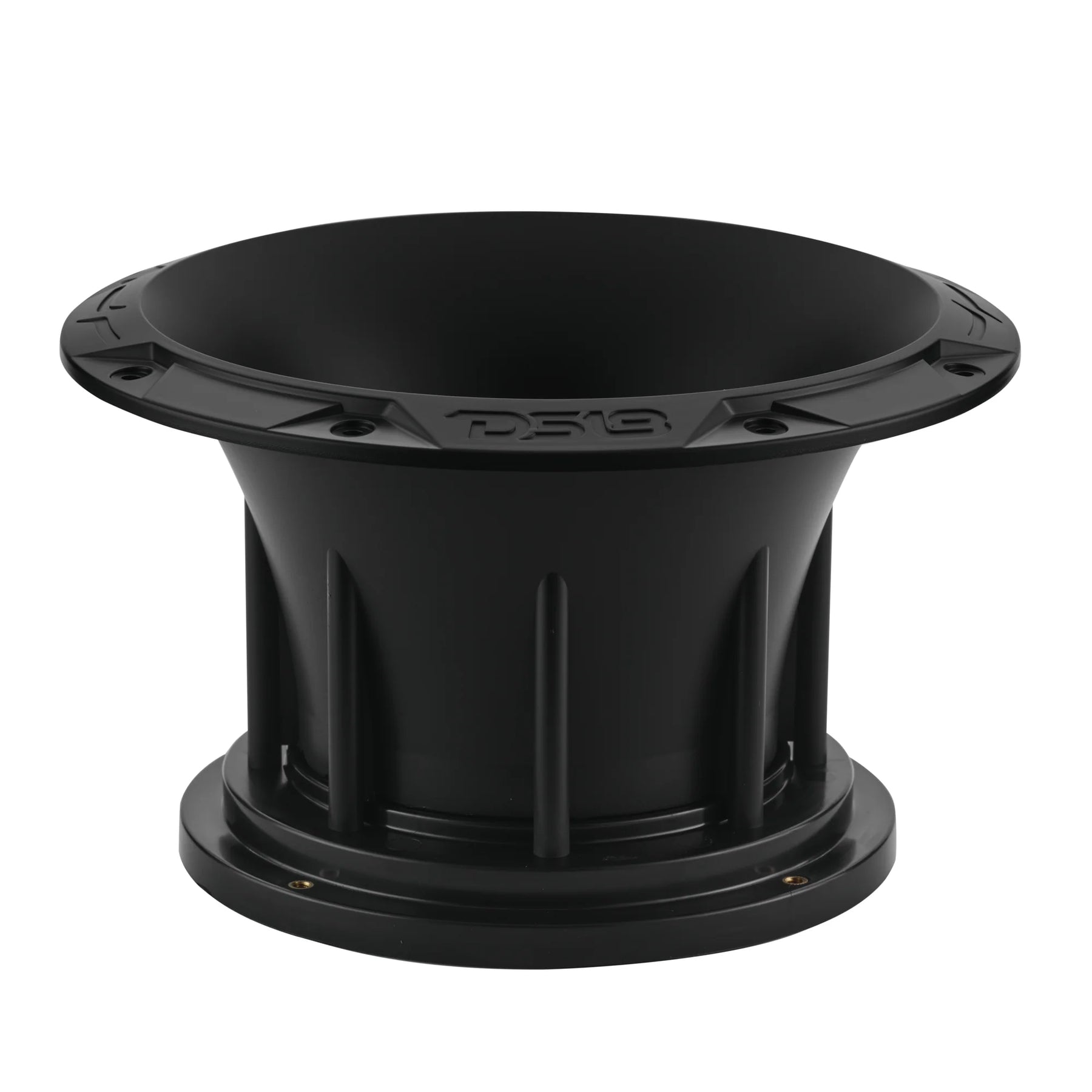

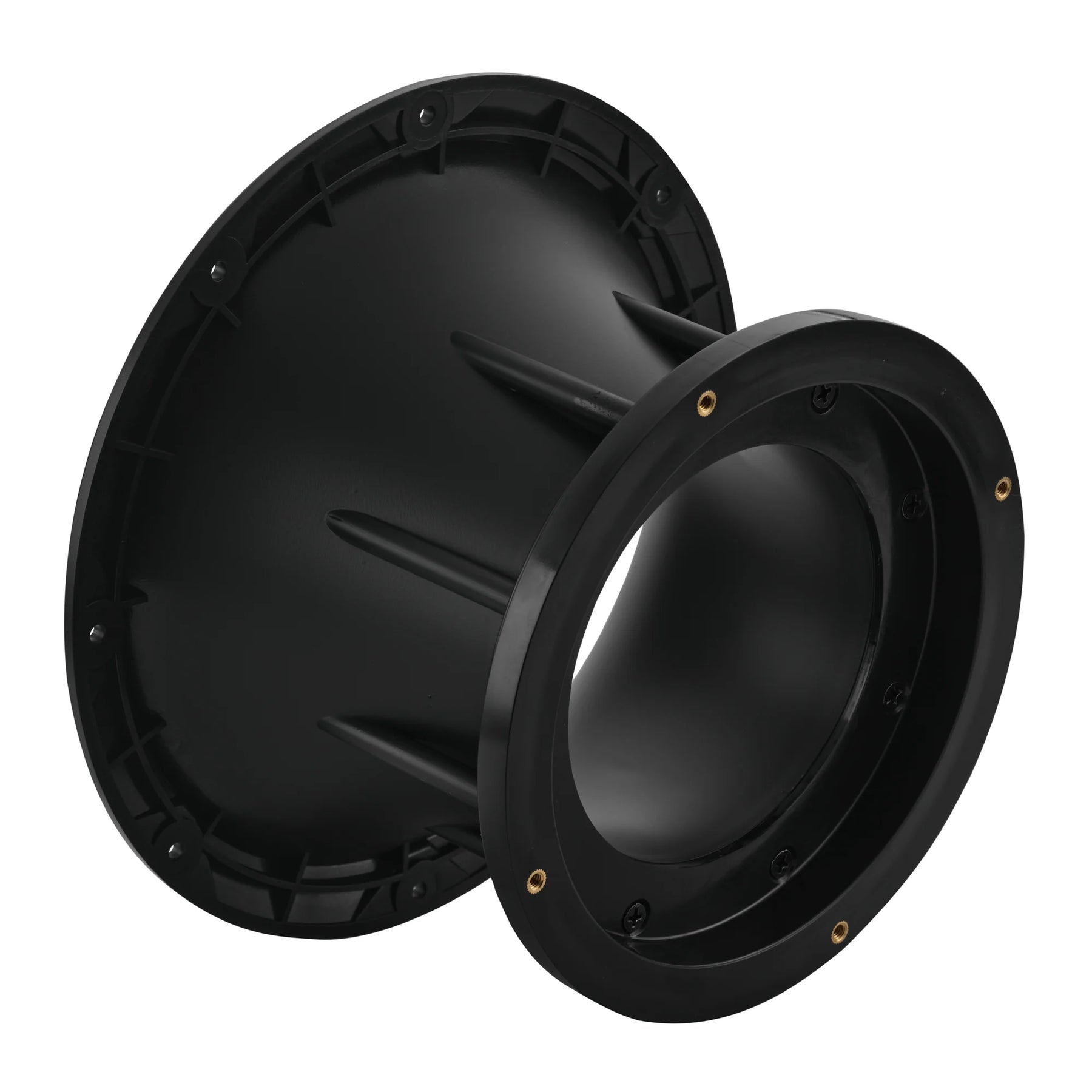

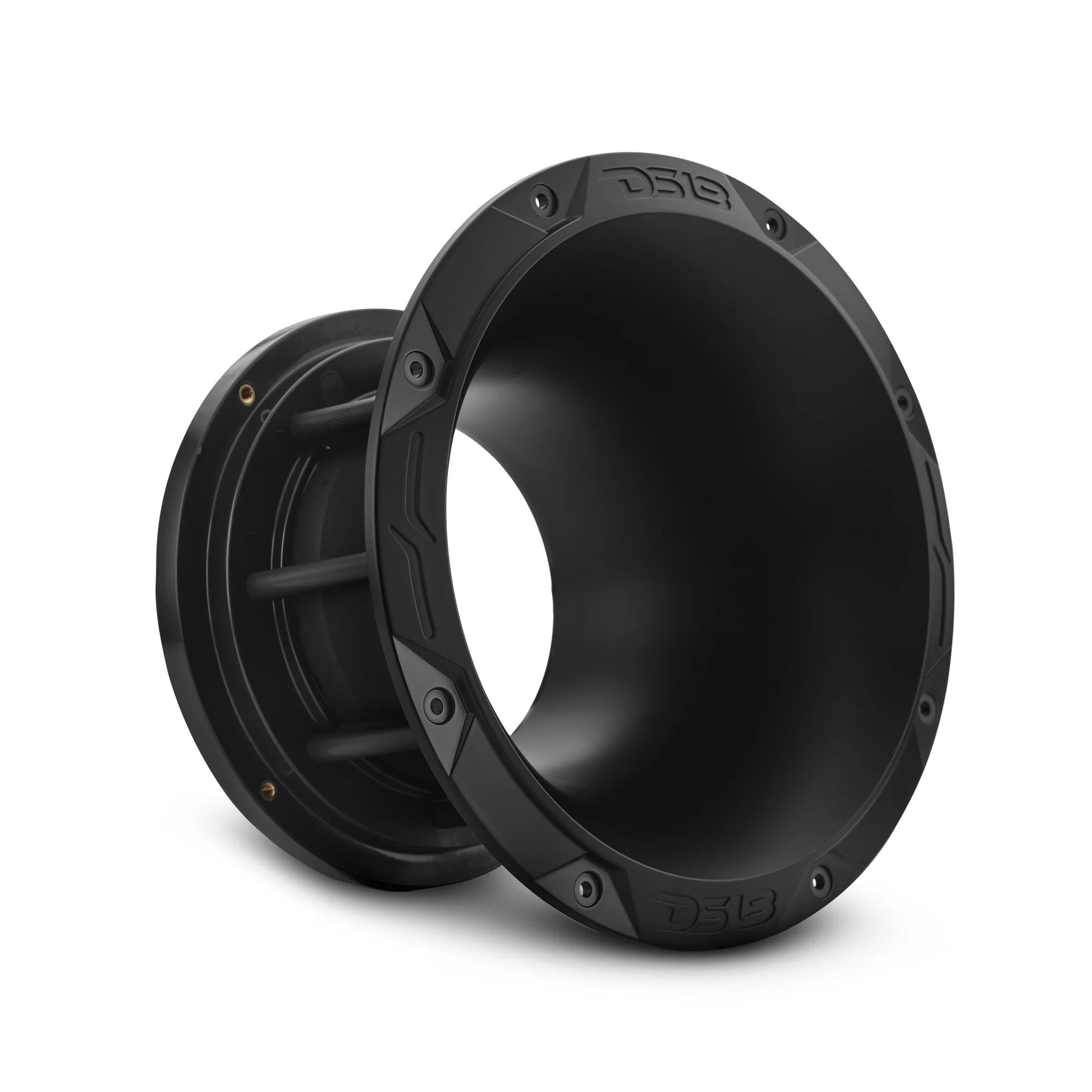

If you're running 6.5” midrange loudspeakers, DS18’s PRO-SDF6R is your secret weapon for sharper projection and cleaner vocals. This round bolt-on horn diffuser upgrades your front stage with a wide 90° dispersion, giving your mids the focus and range they’ve been missing.

Built for the Culture
Made from tough ABS with a clean matte black finish, the PRO-SDF6R adds an aggressive look to your setup—perfect for show builds or open-air street systems where every decibel counts.

Drop-In, Bolt-On

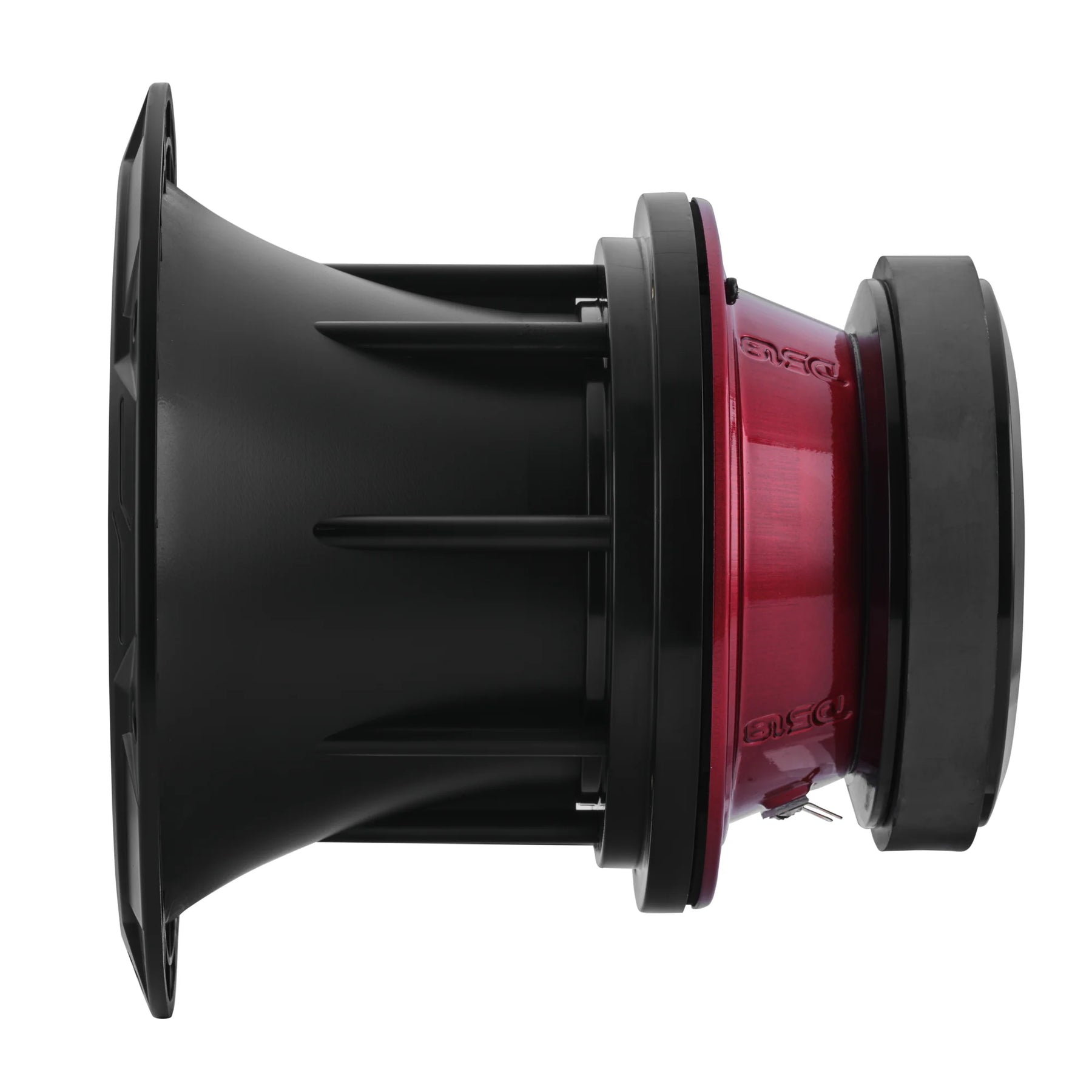

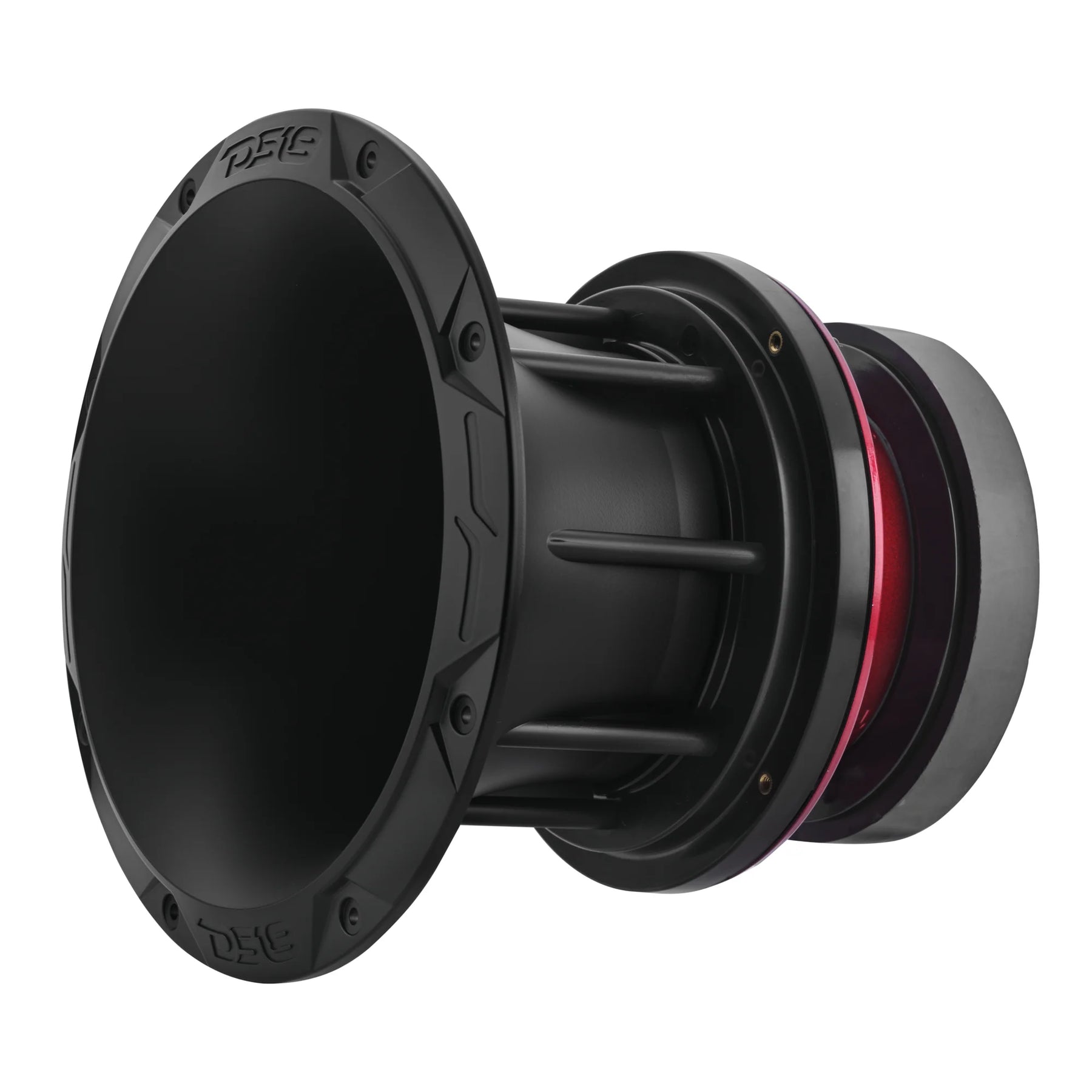

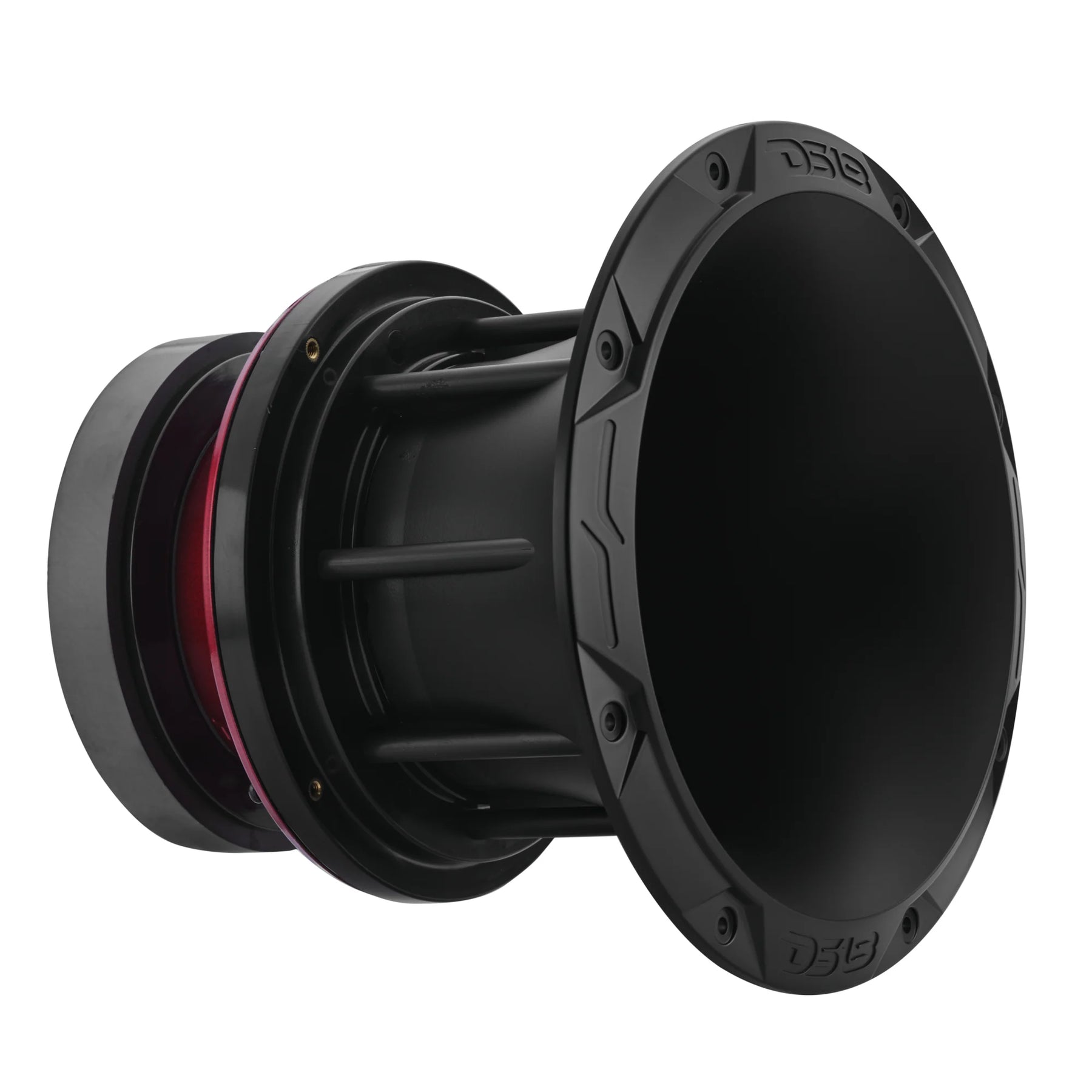

Designed for easy bolt-on installation, the PRO-SDF6R fits any standard 6.5" midrange speaker with matching bolt patterns (6.26"/159mm speaker pattern, 8"/205mm horn flange). It’s a direct performance upgrade for DS18 PRO-X, PRO-GM, or any comparable 6.5” loudspeaker that needs better throw.

Features:

  • Sharper Projection - Great for Line Array (LA) Speakers
  • Wide 90° Dispersion
  • Durable ABS Build
  • Bolt-On Design
  • Universal Fit

Specifications:

  • Nominal Speaker Diameter: 6.5" / 165mm
  • Nominal Horn Size: 8.6" / 220mm
  • Throat Diameter: 4" / 101mm
  • Installation Type: Bolt-On
  • Sound Coverage: 90°
  • Body Material: ABS
  • Color: Black Matte

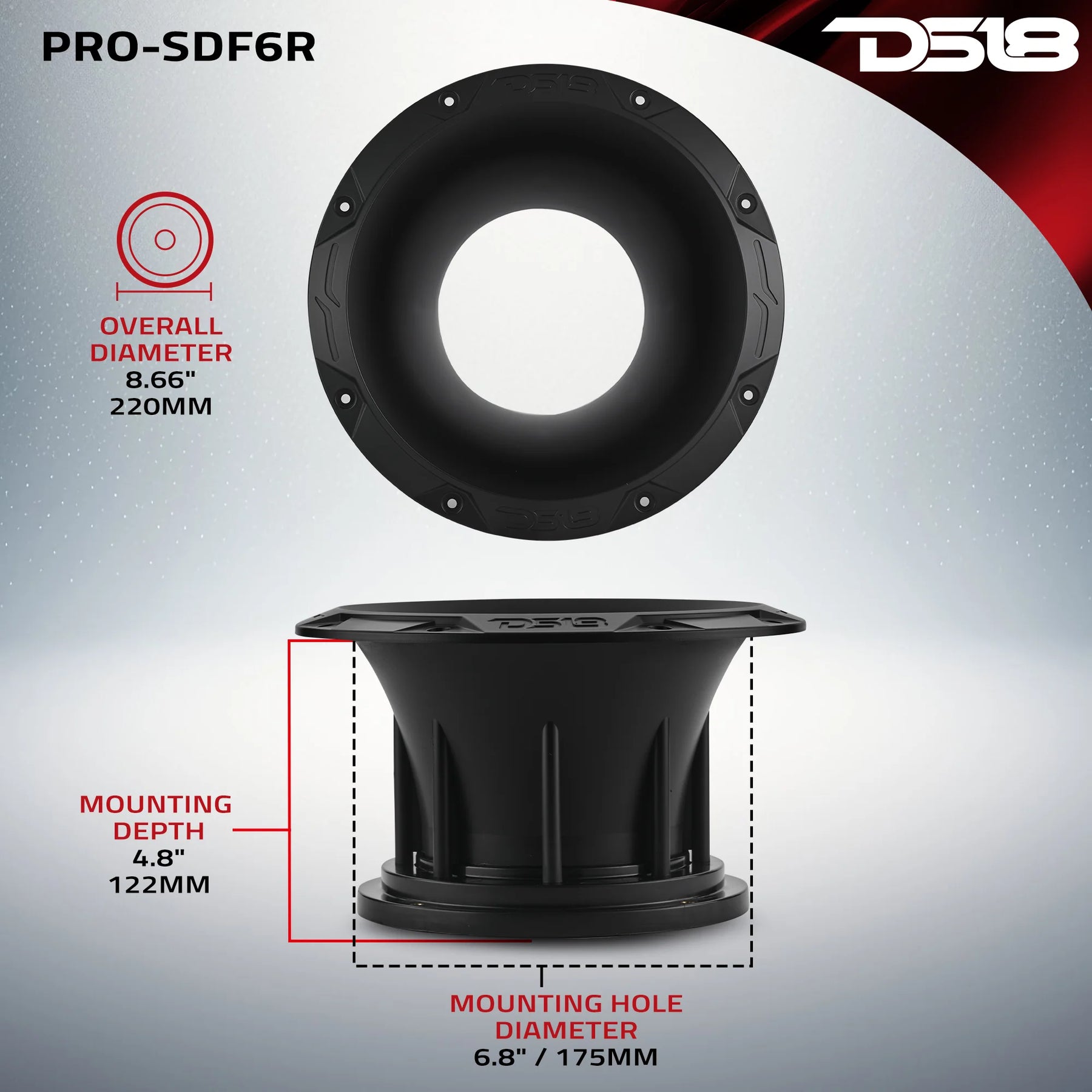

Measurements:

  • Overall Diameter: 8.66" / 220mm
  • Overall Depth: 5.2" / 132mm
  • Mounting Depth: 4.8" / 122mm
  • Mounting Hole Diameter: 6.8" / 175mm
  • Bolt Pattern (Horn): 8" / 205mm
  • Bolt Pattern (Speaker): 6.26" / 159mm

***SPEAKER IS NOT INCLUDED***
