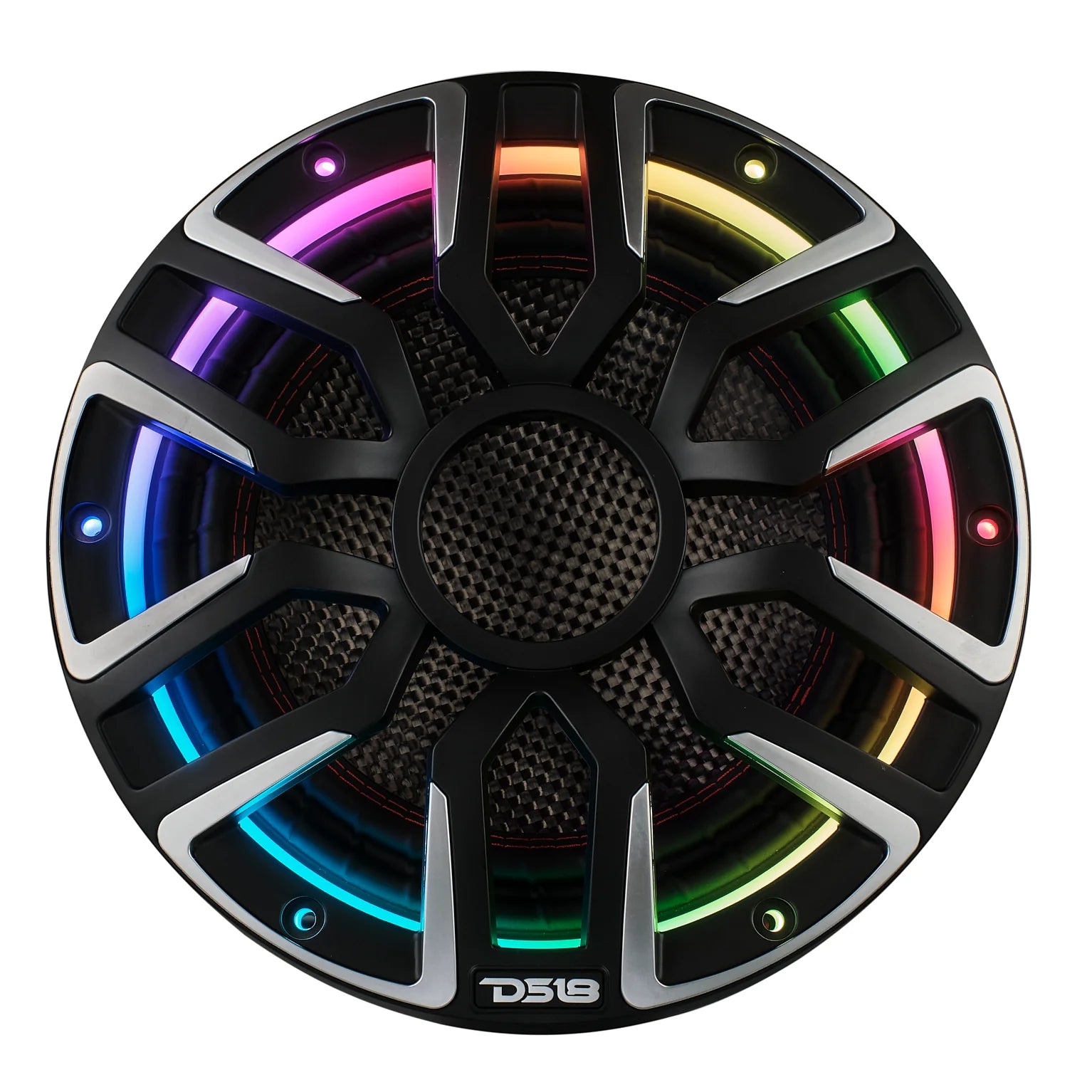

Designed To Endure
From ocean spray to off-road grit, this IP65-rated subwoofer is built for harsh environments. UV-stabilized, Santoprene sealed, and cast in marine-grade aluminum.

Illuminate With Intent
Digital LED lighting is seamlessly integrated into this subwoofer and is controlled via the LC-DRM (sold separately) and DS18 LC App.

Polished Finish
Every detail is designed for a clean install and flawless performance. Finished in White Gloss or Black Satin, the NVY-M10SUB blends into premium builds effortlessly.

General Specifications

• Nominal Diameter 10" / 254mm

• Nominal Impedance 4 ohms

• RMS Power Handling 600W

• MAX Power Handling 1200W

• Sensitivity (1w/1m) 85dB

• Frequency Response 20Hz-250KHz

• Recommended Low-Pass Crossover 120Hz


Body / Features

• UV Compliant Yes, 100% Stable

• Protection Coating Yes with PU

• Decorative Strips Yes, Electroplated

• Marine Grade Type IP65

• Digital LED Lights

• Grill Type Injection Molded Composite (ASA)

• Speaker / Lights Connector Waterproof Type

• Color / Finish Gloss White

Woofer Specifications

• Voice Coil Diameter 3" / 76.5mm

• Voice Coil Former Material Black Aluminum

• Winding Material CCAW

• Cone Material Carbon Fiber

• Surround Material Santoprene (Rubber)

• Basket Material Aluminum Molded with PU Coating

• Magnet Material Neodymium

• Magnet Weight 20 Oz

Thiele & Small Parameters

• Equivalent Volume Vas 13.65L / 0.482ft3

• Excursion (one way) Xmax 9.75mm

• Free Air Resonance Fs 38Hz

• Mechanical Factor Qms 4.26

• Electrical Factor Qes 0.45

• Total Factor Qts 0.41

• Moving Mass Mms 157.5g

• Compliance Cms 0.11mm/N

• Bl Factor Bl 18.7

• Voice Coil Inductance Le 0.75mH

• Diaphragm Area Sd 298.65cm2

• Dc Resistance Re 3.7 Ohms

• Efficiency Bandwidth Product EBP 84

Speaker Measurement

• Overall Diameter 10.5" / 268mm

• Overall Depth 6.93" / 176mm

• Front Mount Baffle Cutout 8.66" / 220mm

• Mounting Depth 5.31" / 135mm

• Motor Diameter 5.23" / 133mm
