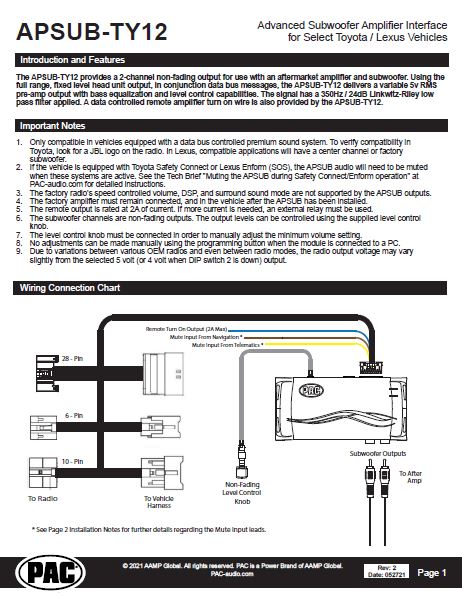

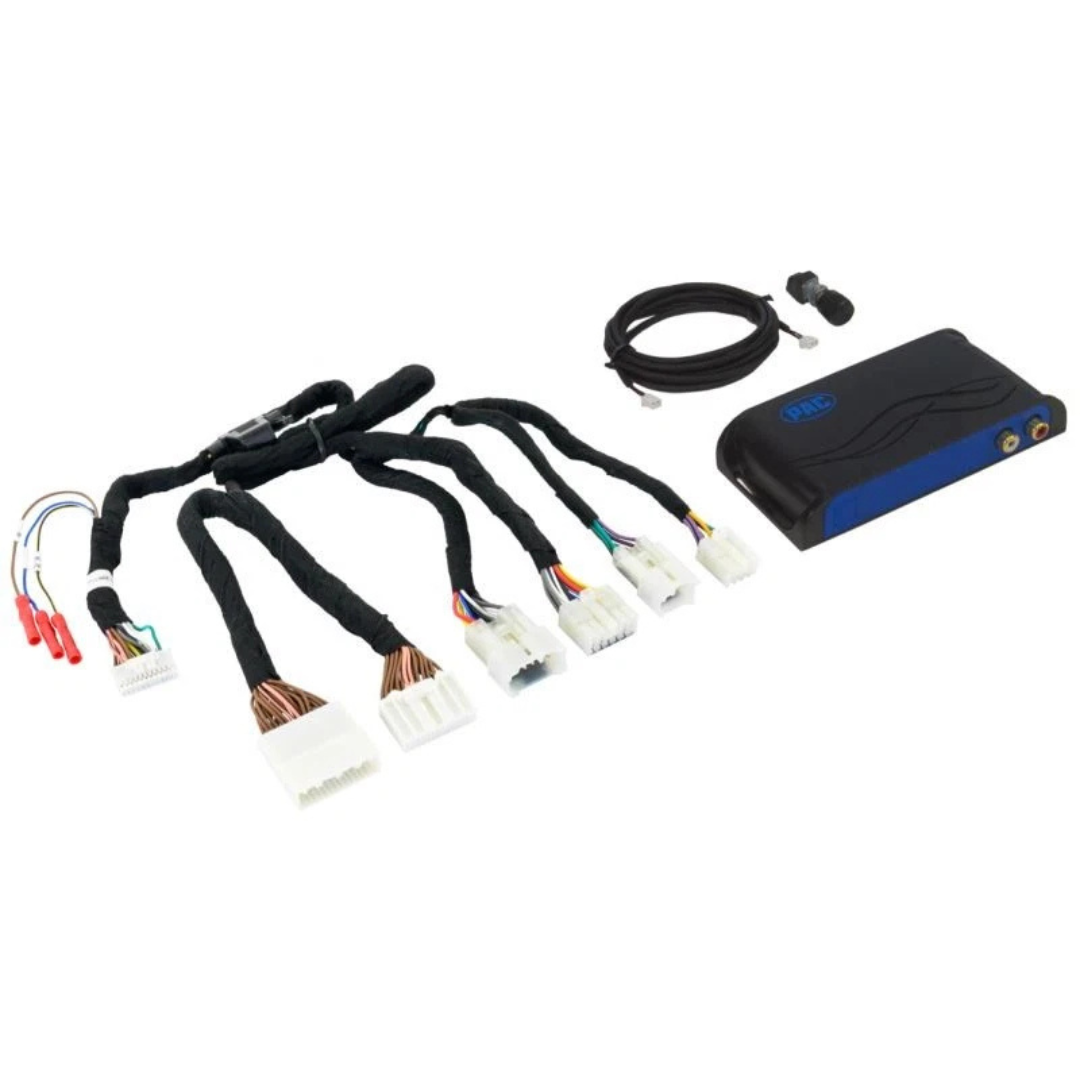

The APSUB-TY12 provides a 2-channel non-fading output for use with an aftermarket amplifier and subwoofer. Using the full range, fixed level head unit output, in conjunction data bus messages, the APSUB-TY12 delivers a variable 5v RMS pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low pass filter applied. A data controlled remote amplifier turn on wire is also provided by the APSUB-TY12.

Compatibility Notes:

• Vehicle must be equipped with a factory JBL system.

Important Notes:

• Only compatible in vehicles equipped with a data bus controlled premium sound system. To verify compatibility in Toyota, look for a JBL logo on the radio. In Lexus, compatible applications will have a center channel or factory subwoofer.

• If the vehicle is equipped with Toyota Safety Connect or Lexus Enform (SOS), the APSUB audio will need to be muted when these systems are active. See the Tech Brief "Muting the APSUB during Safety Connect/Enform operation" at PAC-audio.com for detailed instructions.

• The factory radio's speed controlled volume, DSP, and surround sound mode are not supported by the APSUB outputs.

• The factory amplifier must remain connected, and in the vehicle after the APSUB has been installed.

• The remote output is rated at 2A of current. If more current is needed, an external relay must be used.

• The subwoofer channels are non-fading outputs. The output levels can be controlled using the supplied level control knob.

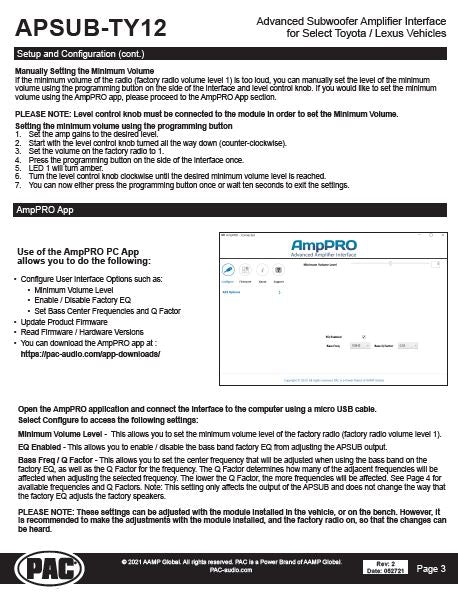

• The level control knob must be connected in order to manually adjust the minimum volume setting.

• No adjustments can be made manually using the programming button when the module is connected to a PC.

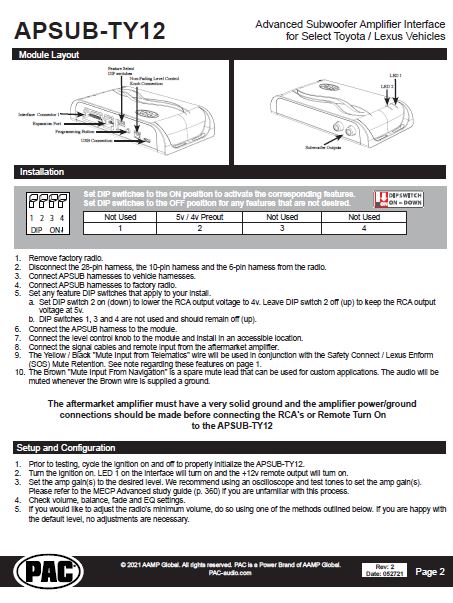

• Due to variations between various OEM radios and even between radio modes, the radio output voltage may vary slightly from the selected 5 volt (or 4 volt when DIP switch 2 is down) output.
