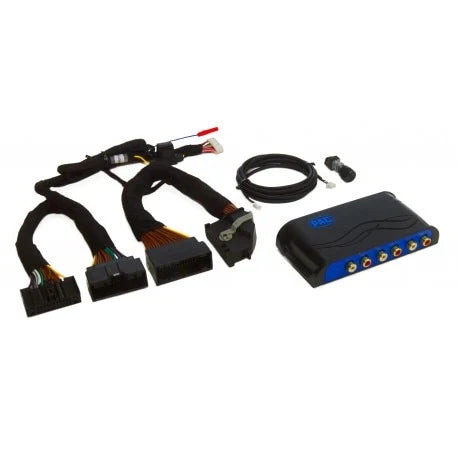

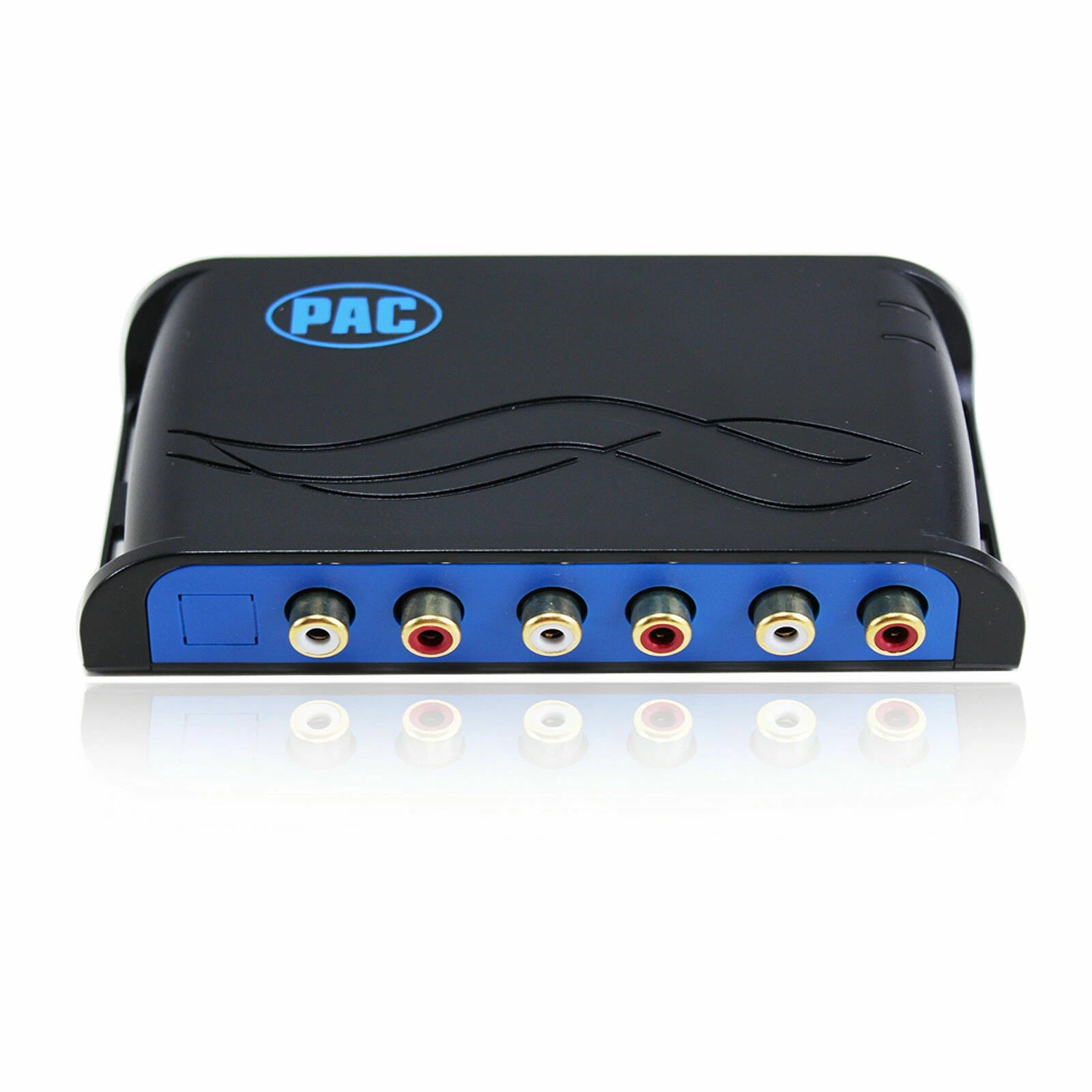

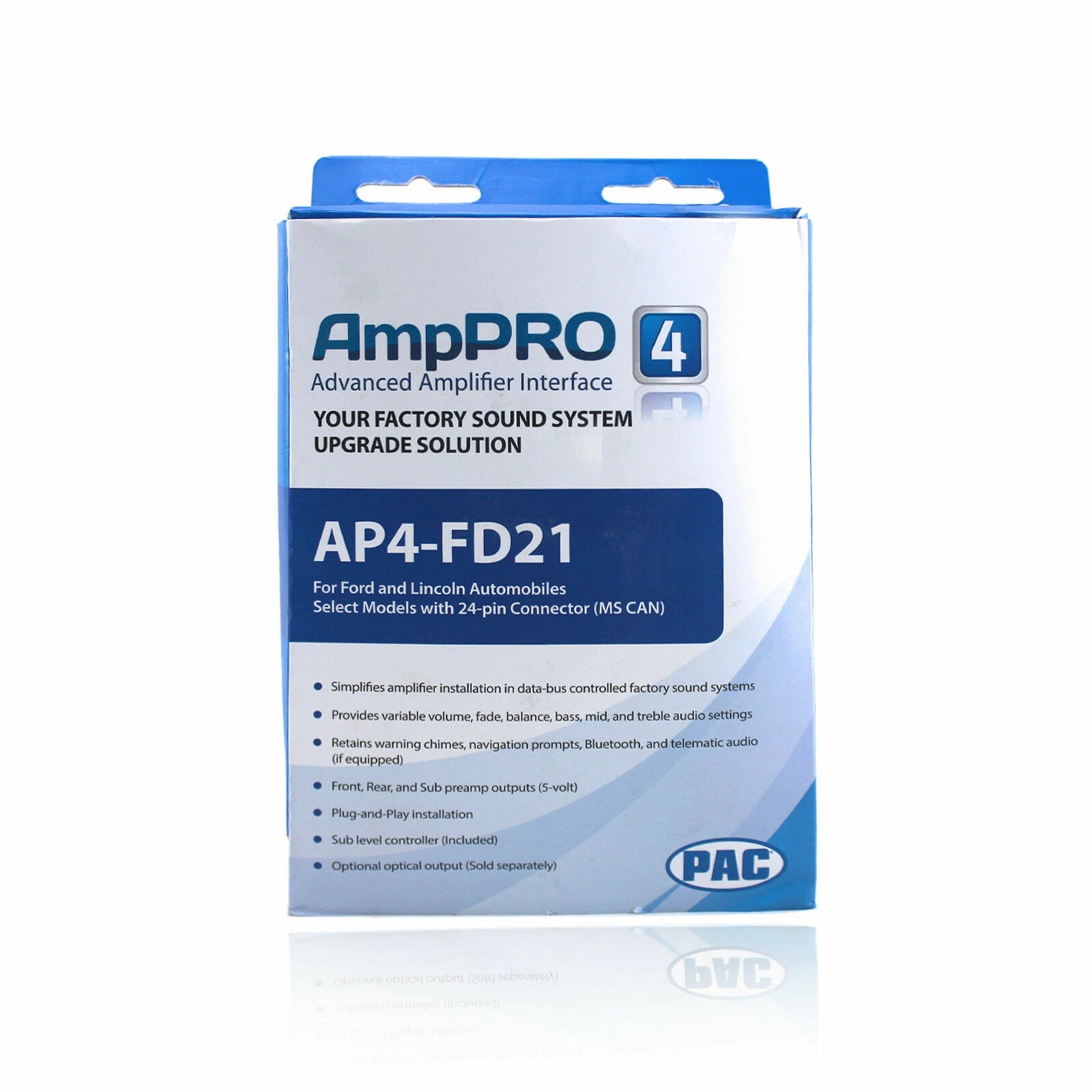

The AP4-FD21 provides a 6-channel pre-amp output for use with aftermarket audio equipment. Using the full range, fixed level head unit output, in conjunction with CAN messages, the AP4-FD21 delivers a variable 5v RMS pre-amp output with fading, balance, equalization, and level control capabilities.

The module also retains all audio from other vehicle features such as factory navigation prompts, Bluetooth, SYNC, and parking sensor chimes. A data controlled remote amplifier turn on wire is also provided by the AP4-FD21. When used in conjunction with the APA-TOS1 (sold separately), the module can provide a variable 2-channel fiber optic digital audio output (TOSLINK).

Compatibility Notes:

• This product is compatible with data-bus controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm that the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system please contact an authorized Ford service center for further clarification.

• 2018-2019 Super Duty Trucks can have either Sony or B&O systems to be compatible.

• 2019+ Mustang must have B&O System to be compatible. If the amp looks like the one pictured, it is compatible. The amp can be found in the driver's kick panel. If the system is amplified and not badged then the AP4 is not compatible as this is a completely analog system.

Important Notes:

• This interface is only compatible in vehicles equipped with a data bus controlled premium sound system. To verify compatibility, look for a Sony badge on the door speakers, center speaker, or factory sub woofer.

• The factory amplifier must remain connected, and in the vehicle after the AmpPRO has been installed.

• The remote output is rated at 2A of current. If more current is needed an external relay must be used.

• The remote output may remain active once the key has been removed if the vehicle needs to pass chime or SYNC audio.

• If your chimes played through the factory speakers, and all speakers have been disconnected from the factory amp, all chimes will then play through the speaker in the dash.

• Channels 5 and 6 are non-fading outputs. The output level of channels 5 and 6 can be controlled using the supplied level control knob.

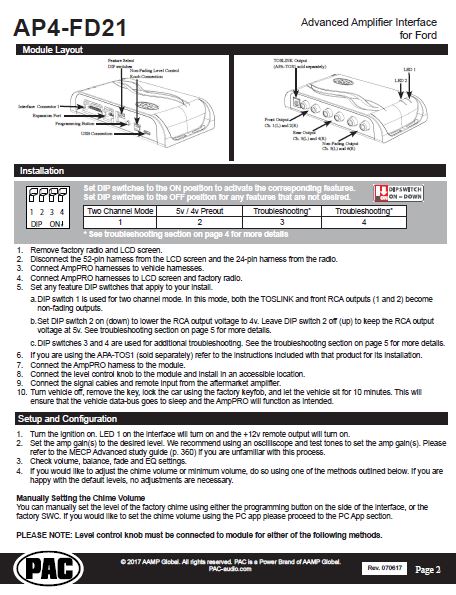

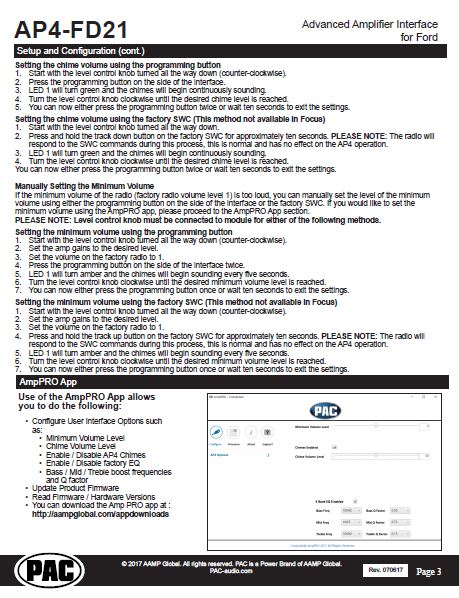

• The chime volume and minimum volume levels are set to 0 dB by default. If you are happy with this level in your particular application then additional adjustment is not required. Please refer to the Setup and Configuration section on page 2 for more details.

• Ford Focus: You cannot use the steering wheel controls to activate the chime and minimum volume adjustment.

• The level control knob must be connected in order to manually adjust the chime volume and minimum volume settings.

• The factory radio's speed controlled volume and surround sound mode are not supported by the AP4 outputs.

• No adjustments can be made manually using the programming button, or the factory SWC when the module is connected to a PC.
