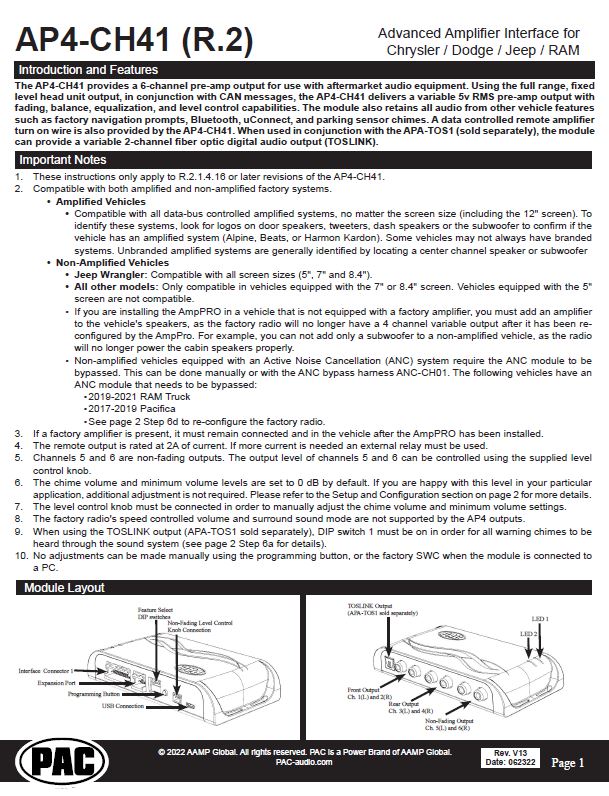

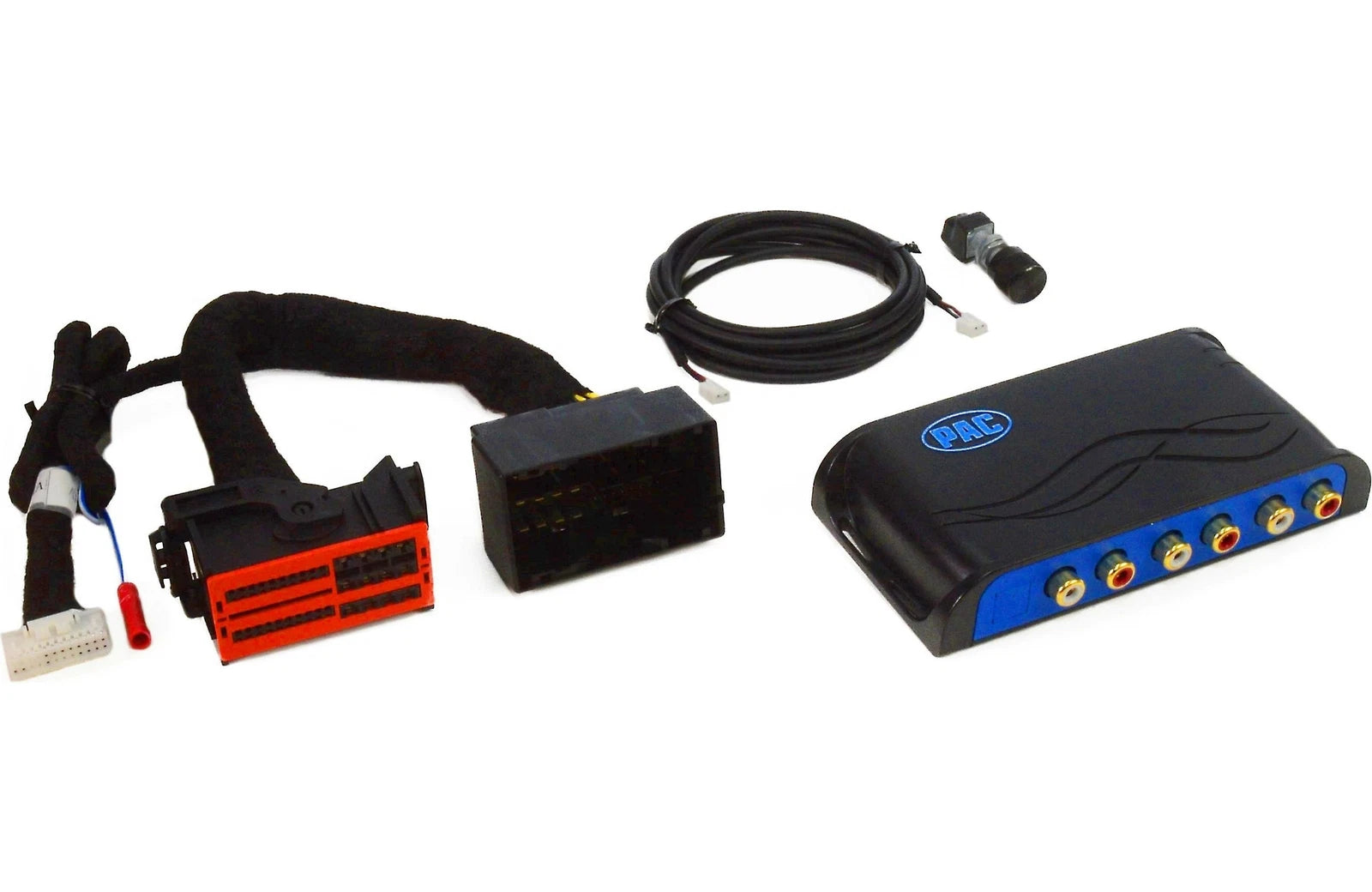

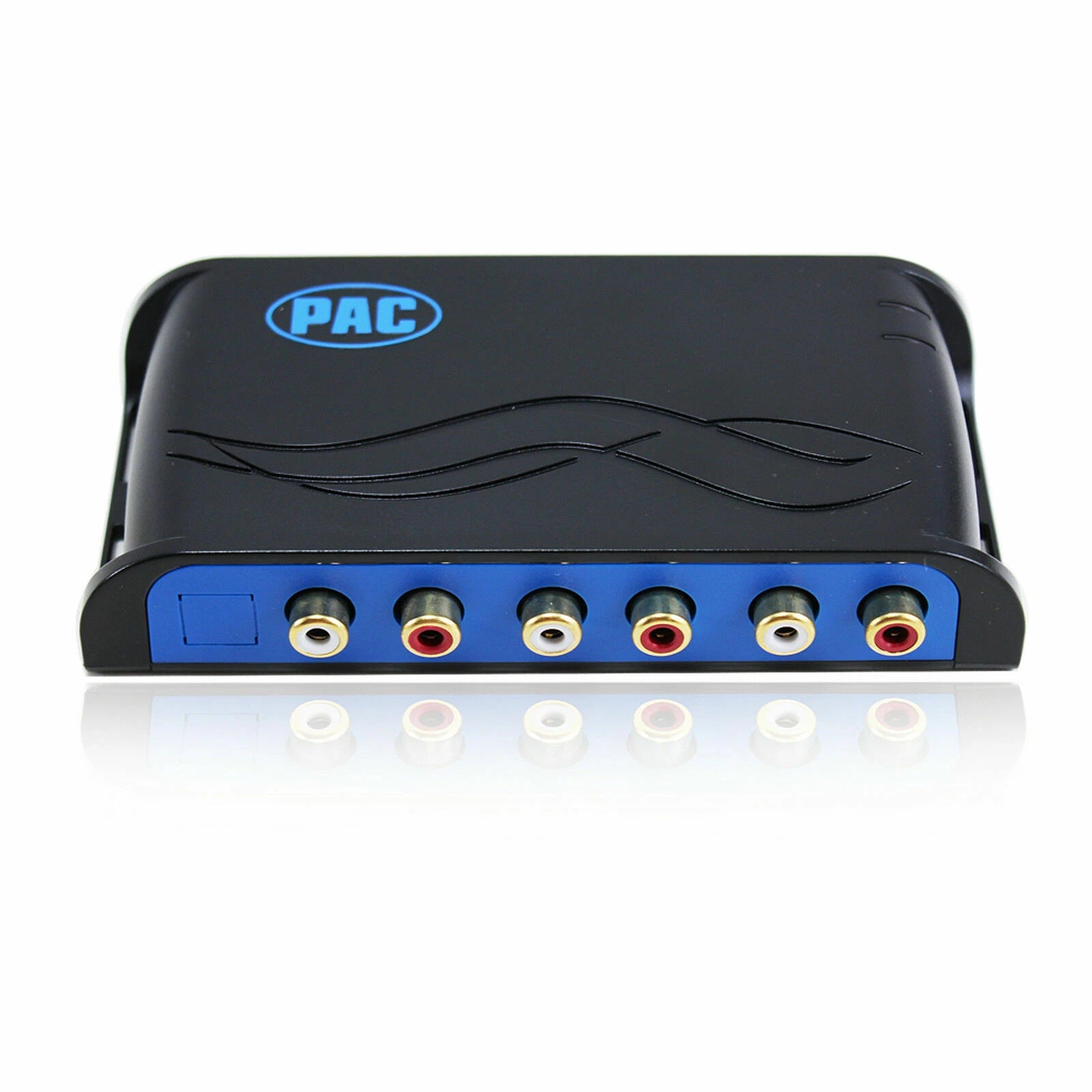

The AP4-CH41 provides a 6-channel pre-amp output for use with aftermarket audio equipment. Using the full range, fixed level head unit output, in conjunction with CAN messages, the AP4-CH41 delivers a variable 5v RMS pre-amp output with fading, balance, equalization, and level control capabilities.

The module also retains all audio from other vehicle features such as factory navigation prompts, Bluetooth, uConnect, and parking sensor chimes. A data controlled remote amplifier turn on wire is also provided by the AP4-CH41. When used in conjunction with the APA-TOS1 (sold separately), the module can provide a variable 2-channel fiber optic digital audio output (TOSLINK).

Disclaimer:

• Compatible with both amplified and non-amplified factory systems.

• Jeep Cherokee, Chrysler 200, and Maserati: These vehicles must be equipped with a factory amplifier as the AP4 cannot reprogram the factory radio to think that an amplifier is present.

Amplified Vehicles:

• Compatible with all data-bus controlled amplified systems, no matter the screen size (including the new 12" screen). To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats or Harman Kardon. Some vehicles may not always have branded compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
  Non-Amplified Vehicles

***Jeep Wrangler/Gladiator: Compatible with all screen sizes (5”, 7”, and 8”).***

***All other models: Only compatible with vehicles equipped with the 7” or 8” screen. Vehicles equipped with the 5” screen are not compatible.***

If you are installing the AmpPRO in a vehicle that is not equipped with a factory amplifier, you must add an amplifier to the vehicle's speakers, as the factory radio will no longer have a 4-channel variable output after it has been reconfigured by the AmpPRO. For example, this will not work to add only a subwoofer to a non-amplified vehicle, as the radio will no longer power the cabin speakers properly.

Non-amplified vehicles equipped with an Active Noise Cancellation (ANC) system require the ANC module to be bypassed. This can be done manually or with the ANC bypass harness ANC-CH01.

The following vehicles have an ANC module that needs to be bypassed:

• 2017-2019 Chrysler Pacifica

• 2015-2016 Jeep Grand Cherokee

• 2019 RAM Truck (Non-Classic)

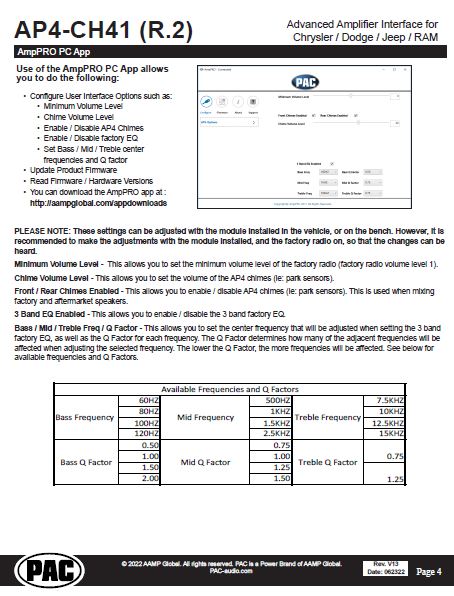

Use of the AmpPRO App allows you to do the following:

• Configure User Interface Options such as:

• Minimum Volume Level

• Chime Volume Level

• Enable / Disable factory EQ

• Bass / Mid / Treble boost frequencies and Q factor

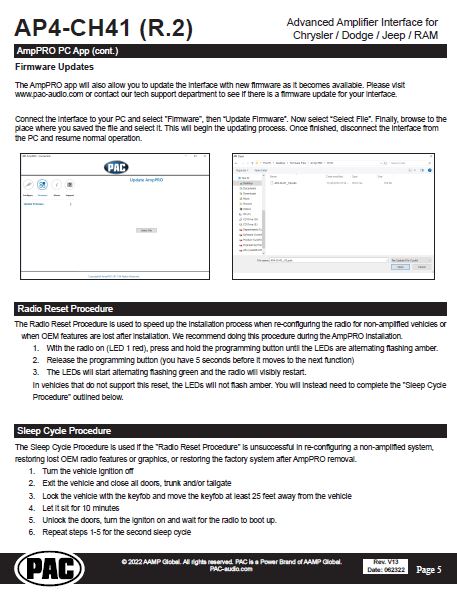

• Update Product Firmware

• Read Firmware / Hardware Versions
