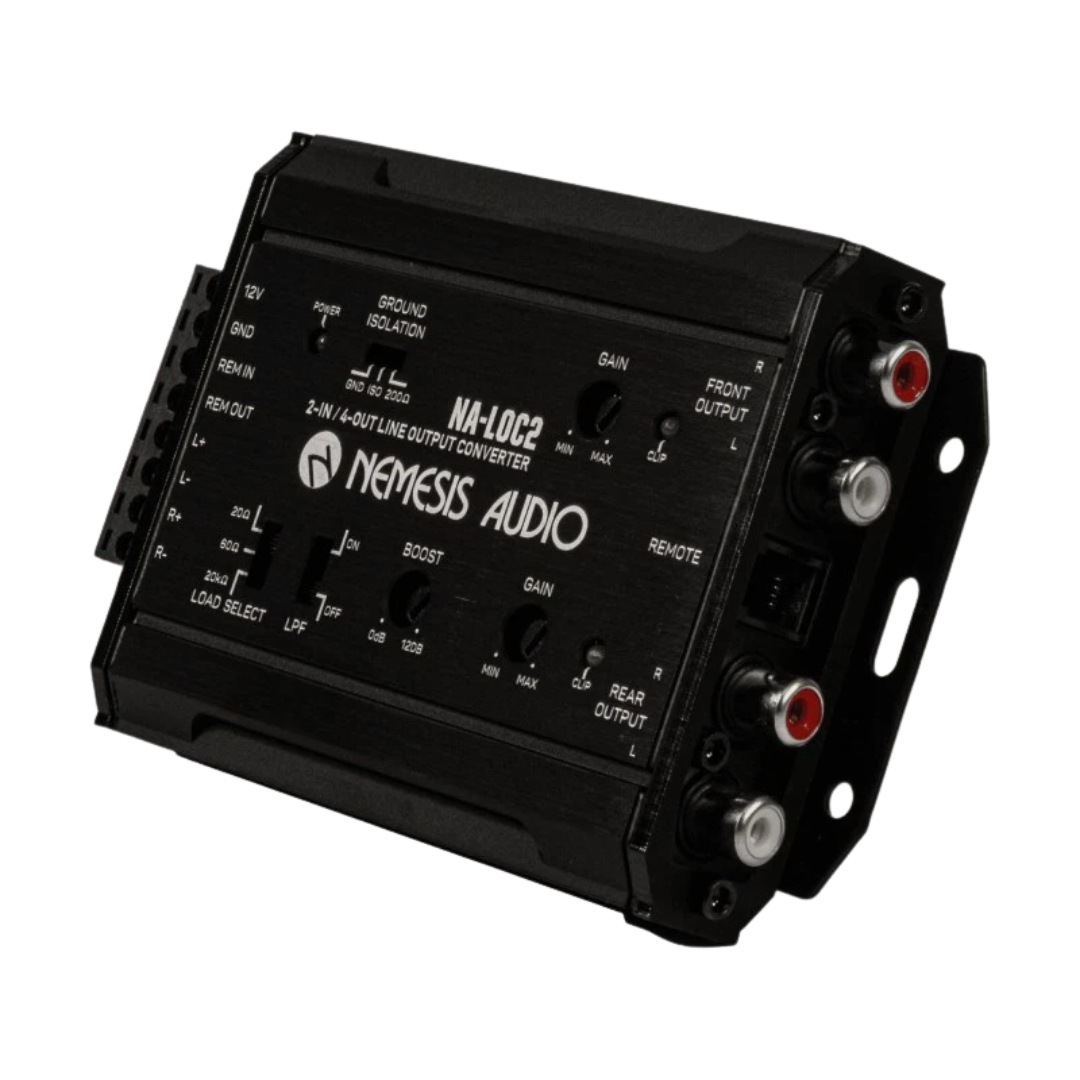

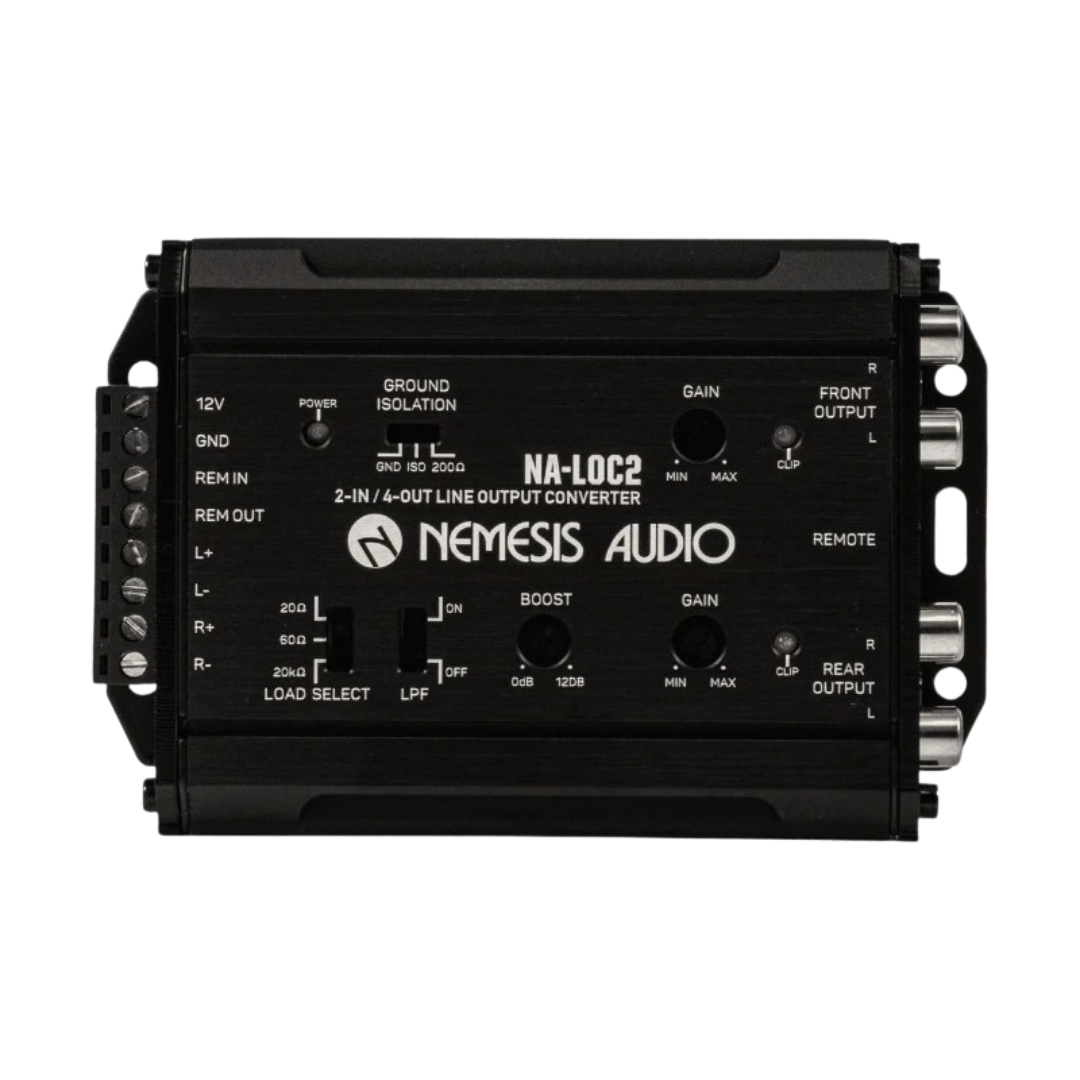

Bring Your Factory Audio to Life
Tired of weak bass and flat sound from your stock system? The Nemesis Audio NA-LOC2 gives your factory setup a serious performance upgrade without any hassle. With high-voltage speaker-level inputs that handle up to 40 volts, this compact converter works with nearly any OEM audio source. It sends out a strong 9.5-volt RCA signal across four channels, perfect for powering aftermarket amps with clean, high-quality audio. You also get built-in protections like selectable load matching and ground isolation to keep your system stable and noise-free, no matter how you wire it.

More Control, More Bass, More Fun
The NA-LOC2 does more than just connect your gear, it lets you fine-tune your sound exactly how you like it. Craving extra thump? Use the bass boost feature to dial in up to 12 decibels at 45 Hz, or switch on the low-pass filter for tight, focused bass from the rear channels. The included remote bass knob gives you quick control from the driver’s seat, and the clip indicator LED makes it easy to keep your signal clean. With ultra-low distortion, wide frequency response, and plenty of tuning options, this converter turns everyday audio into something worth turning up.

Features:

• 2-Channel Speaker-Level Inputs: Accepts up to 40 volts for safe integration with factory speaker outputs.

• 4-Channel RCA Outputs: Provides up to 9.5 volts of signal to drive multiple aftermarket amplifiers.

• Line Driver Functionality: Boosts low-level signals to improve output clarity and amplifier performance.

• Factory System Compatibility: Designed to integrate seamlessly with OEM audio systems.

• Remote Bass Control Included: Wired controller allows on-the-fly bass level adjustment from the front seat.

• Selectable Input Load Settings: 20, 60, or 20K ohms switch prevents factory head unit shutdown or signal issues.

• Bass Boost Adjustment: Offers up to 12 dB of bass enhancement centered at 45 Hz.

• Rear Channel Filter Option: Switchable full range or 250 Hz low pass filter for rear outputs.

• 12V Remote Output: Sends a turn-on signal to connected aftermarket amplifiers or processors.

• Ground Isolation Switch: Reduces ground loop noise and alternator whine for cleaner audio.

• Secure Molex Connections: Simplifies wiring for speaker-level input and power with reliable terminals.

• LED Clip Detection: Indicates when output signal is approaching distortion for accurate tuning.

• Low Harmonic Distortion: Rated at 0.01% THD for clean and accurate audio reproduction.

• Wide Frequency Response: Covers 10 Hz to 20,000 Hz to maintain full-range signal integrity.

• High Signal-to-Noise Ratio: Greater than 110 dB for reduced background noise and improved clarity.

Specifications:

• Model Number: NA-LOC2

• Input Channels: 2 speaker-level channels (up to 40V)

• Output Channels: 4 RCA outputs (up to 9.5V)

• Frequency Response: 10Hz – 20,000Hz

• Total Harmonic Distortion (THD): 0.01%

• Signal-to-Noise Ratio: > 110dB

• Bass Boost: Adjustable 0–12dB at fixed 45Hz

• Filter Options: Selectable full range or 250Hz low pass (rear channels only)

• Load Selector: 20Ω / 60Ω / 20kΩ

• Turn-On Output: 12V for aftermarket amplifier trigger

• Ground Isolation: Selectable switch

• Clip Indicator: LED signal clip light

• Remote Control: Wired bass level knob included

• Connectors: Molex terminals for speaker and power inputs

• Compatibility: Designed for integration with factory audio systems
