Advanced Signal Processing for Perfect Marine Audio
Automatically detect input signals and fine-tune sound staging with speaker signal sensing, summing, and precise delay adjustments. Manage frequencies accurately using 12dB and 24dB/octave crossovers. With 6-channel high-level input, 6-channel low-level input, and 8-channel low-level output, plus Bluetooth support for wireless audio streaming, this processor delivers versatile, high-performance marine audio control.

Precision DSP Control for Marine Audio Systems
Enjoy high-quality digital audio with a Toslink optical input and convenient external remote control for preset recall and level adjustments, including a dedicated bass knob. Compatible with PC, iOS, and Android apps, this DSP processor allows full tuning and customization for the ultimate marine audio experience.

Professional-Grade DSP for Precise Marine Audio
Powered by a high-quality AKM DSP chip with 32-bit resolution and 96kHz sampling frequency, this processor delivers accurate, high-fidelity sound. A 31-band EQ allows detailed tuning and sound shaping, while six preset storage modes make switching between setups simple. LED indicators—green for power and red for protection—provide clear status monitoring for reliable operation.

Features:

• Speaker Signal Sensing, Summing & Delay: Automatically detects input signals and provides precise delay adjustments for optimal sound staging.

• Advanced Crossovers: 12 dB and 24 dB/octave crossovers for precise frequency management.

• Input/Output Channels: 6-channel high-level input, 6-channel low-level input, 8-channel low-level output.

• Wireless Connectivity: Supports Bluetooth input for convenient wireless audio streaming.

• Optical Input: Toslink input included for high-quality digital audio.

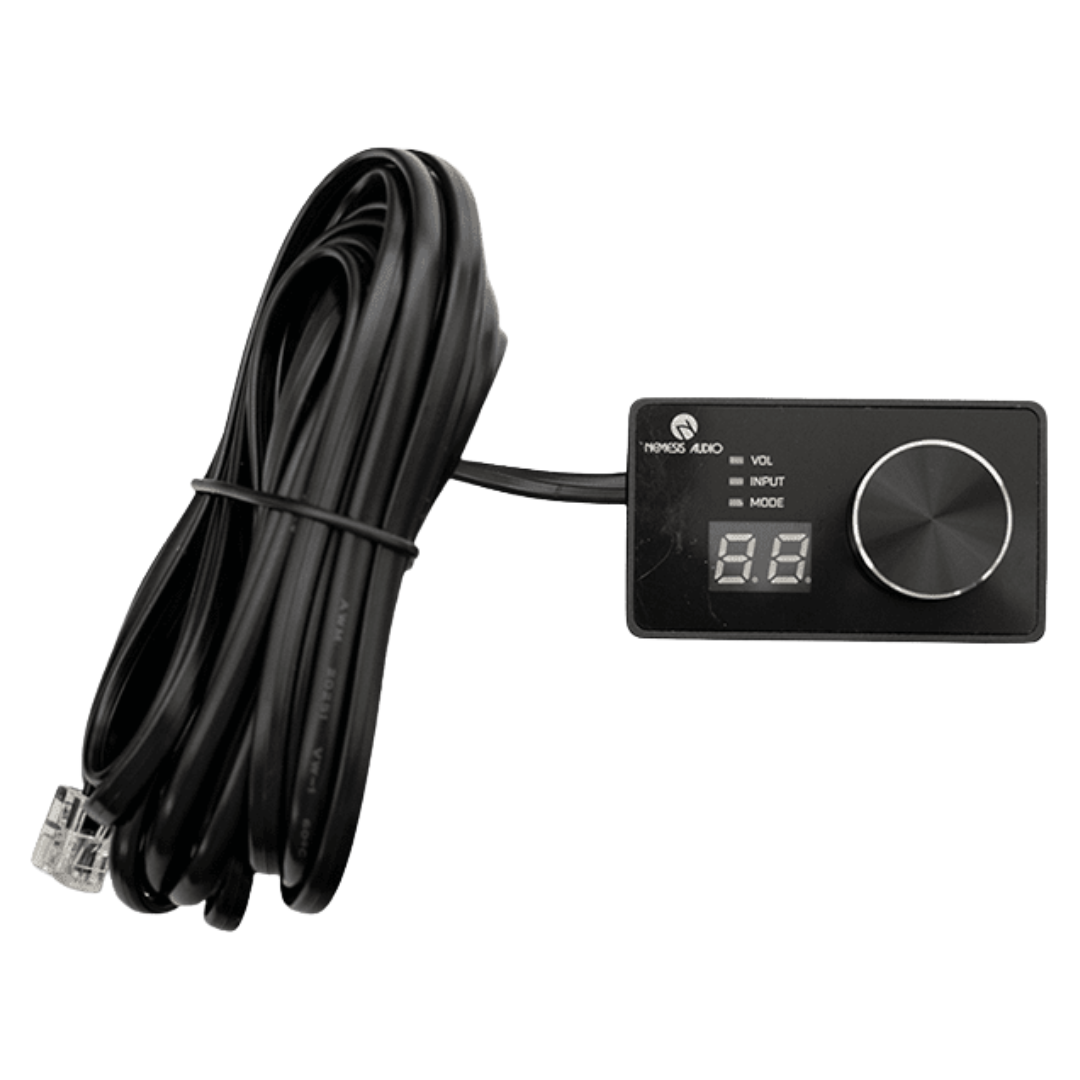

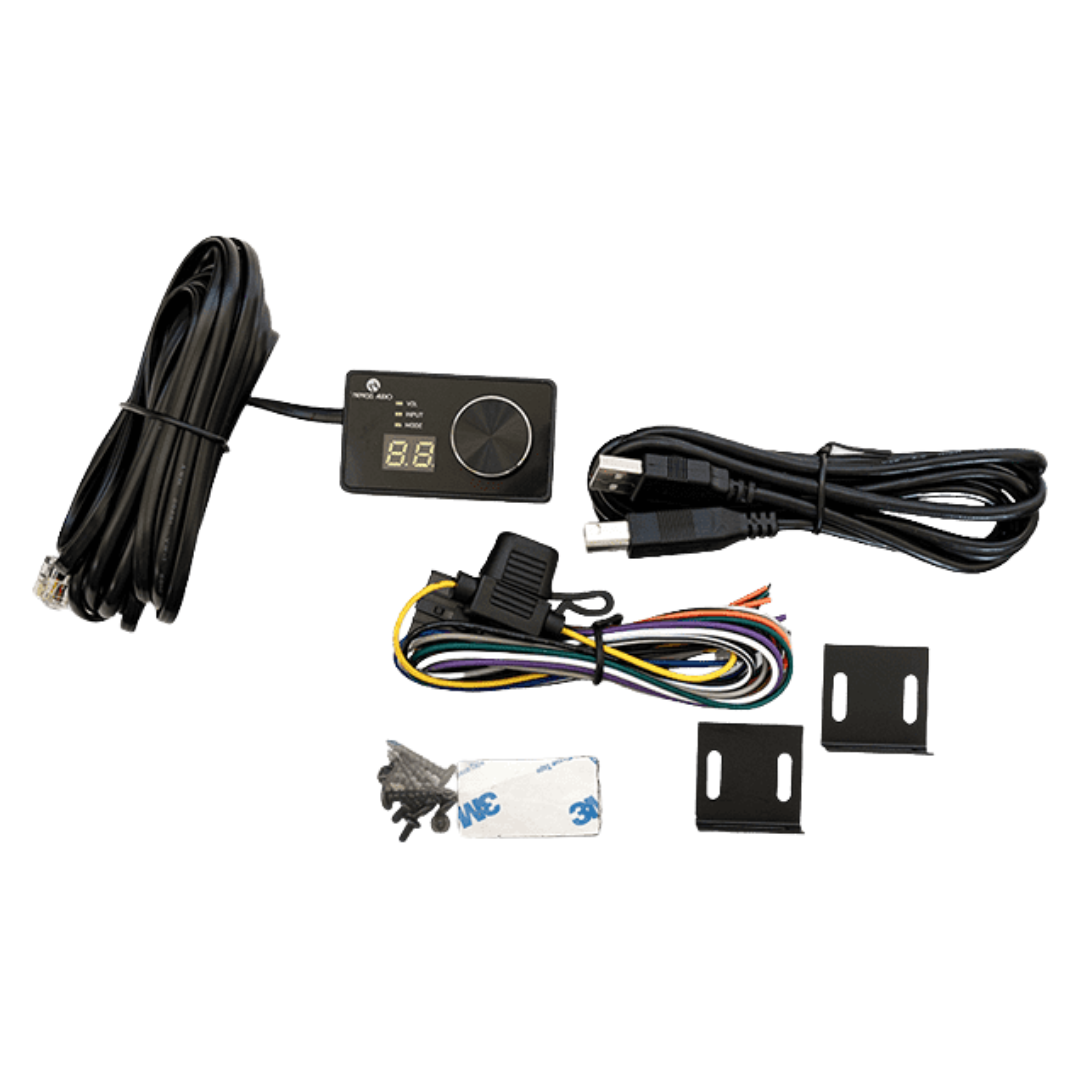

• Remote Control: External remote for preset recall and level adjustments (bass knob included).

• DSP Software Support: Compatible with PC, iOS, and Android apps for tuning and customization.

• High-Quality Components: AKM DSP chip with 32-bit resolution and 96 kHz sampling frequency.

• 31-Band EQ: Allows detailed tuning and sound shaping.

• Storage Modes: Supports 6 preset storage modes for easy switching between setups.

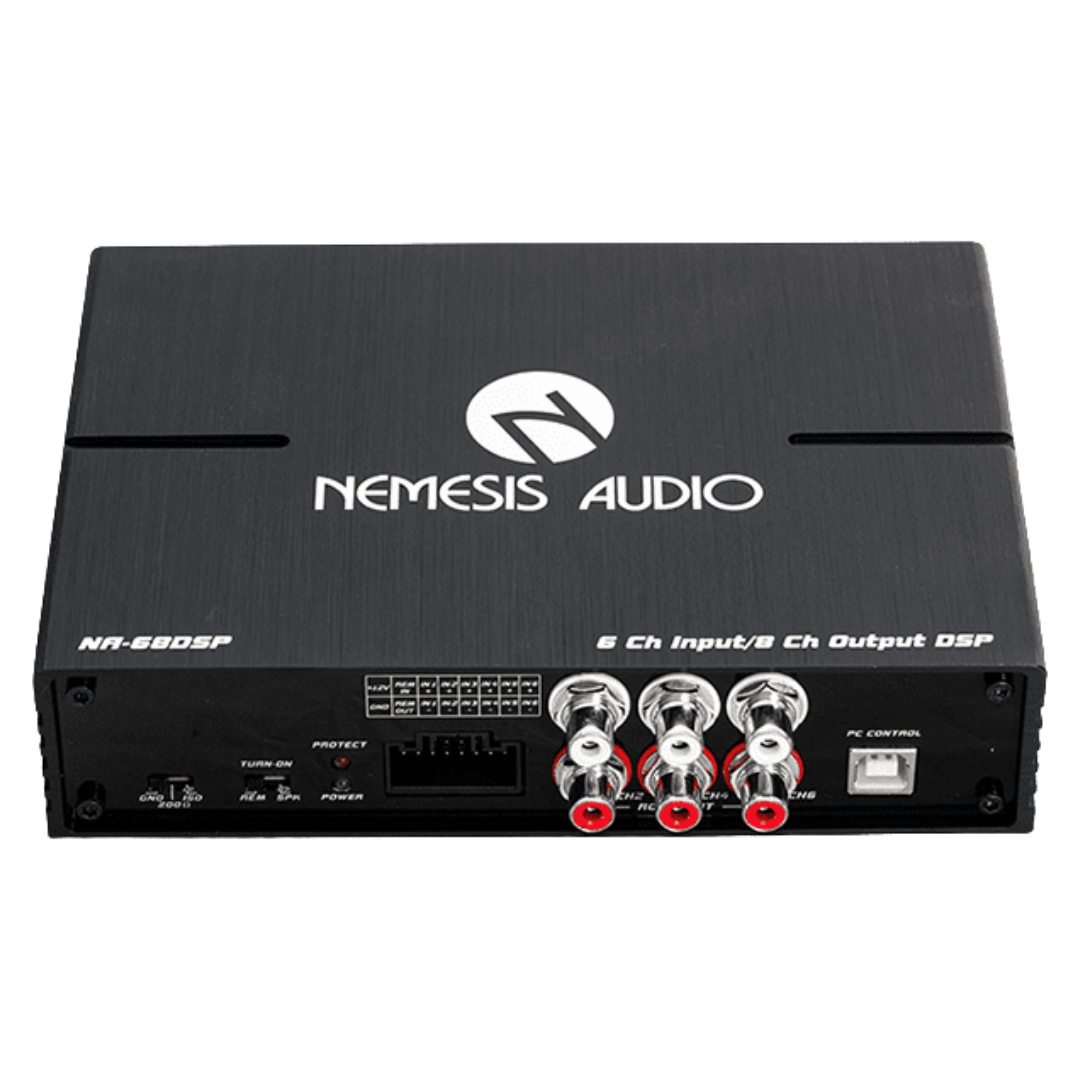

• LED Indicators: Power (Green) and Protection (Red) for clear status monitoring.

Specifications:

• Voltage Range: 6.3 – 16.3V

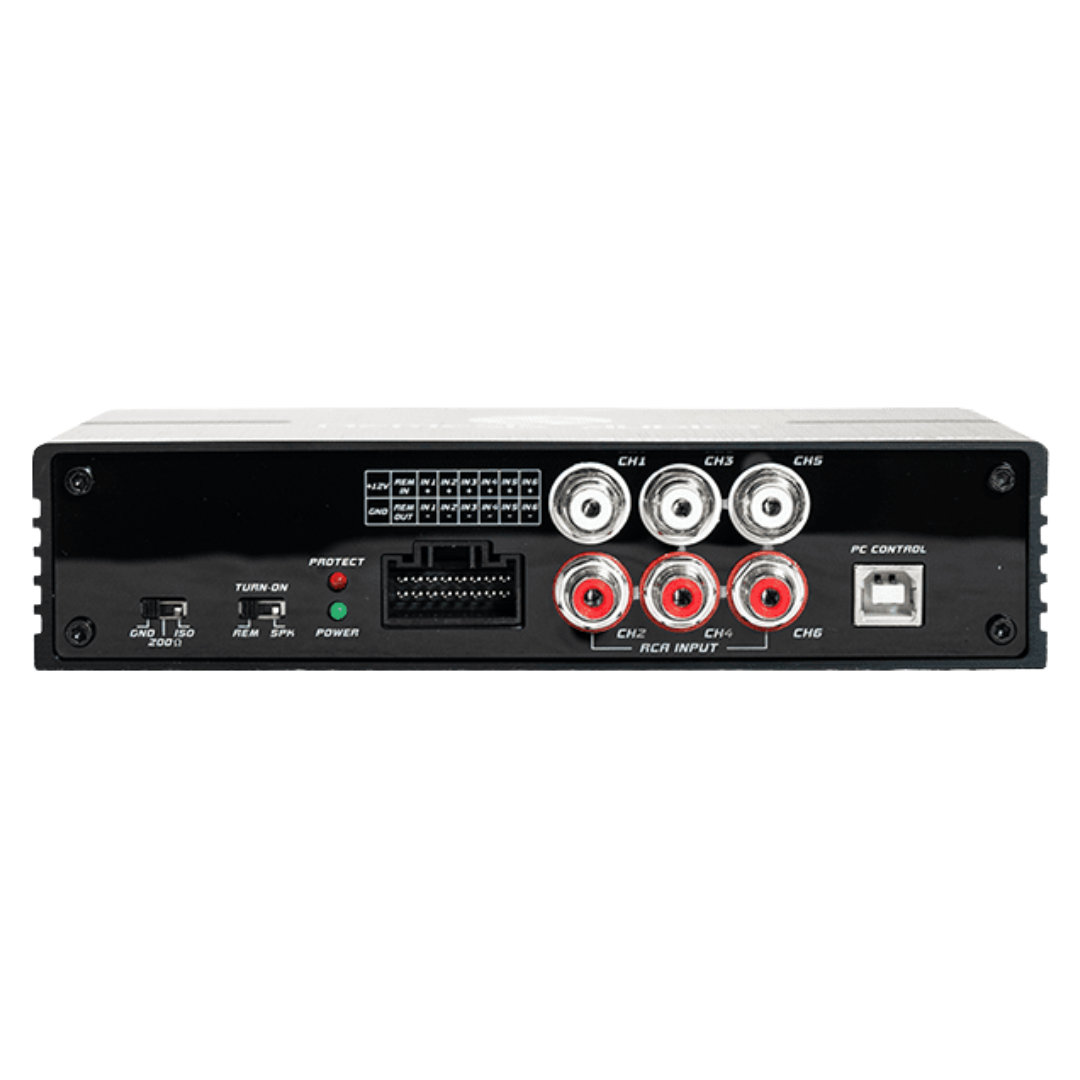

• Input Channels: 6 High-Level, 6 Low-Level, Optical Fiber, Bluetooth

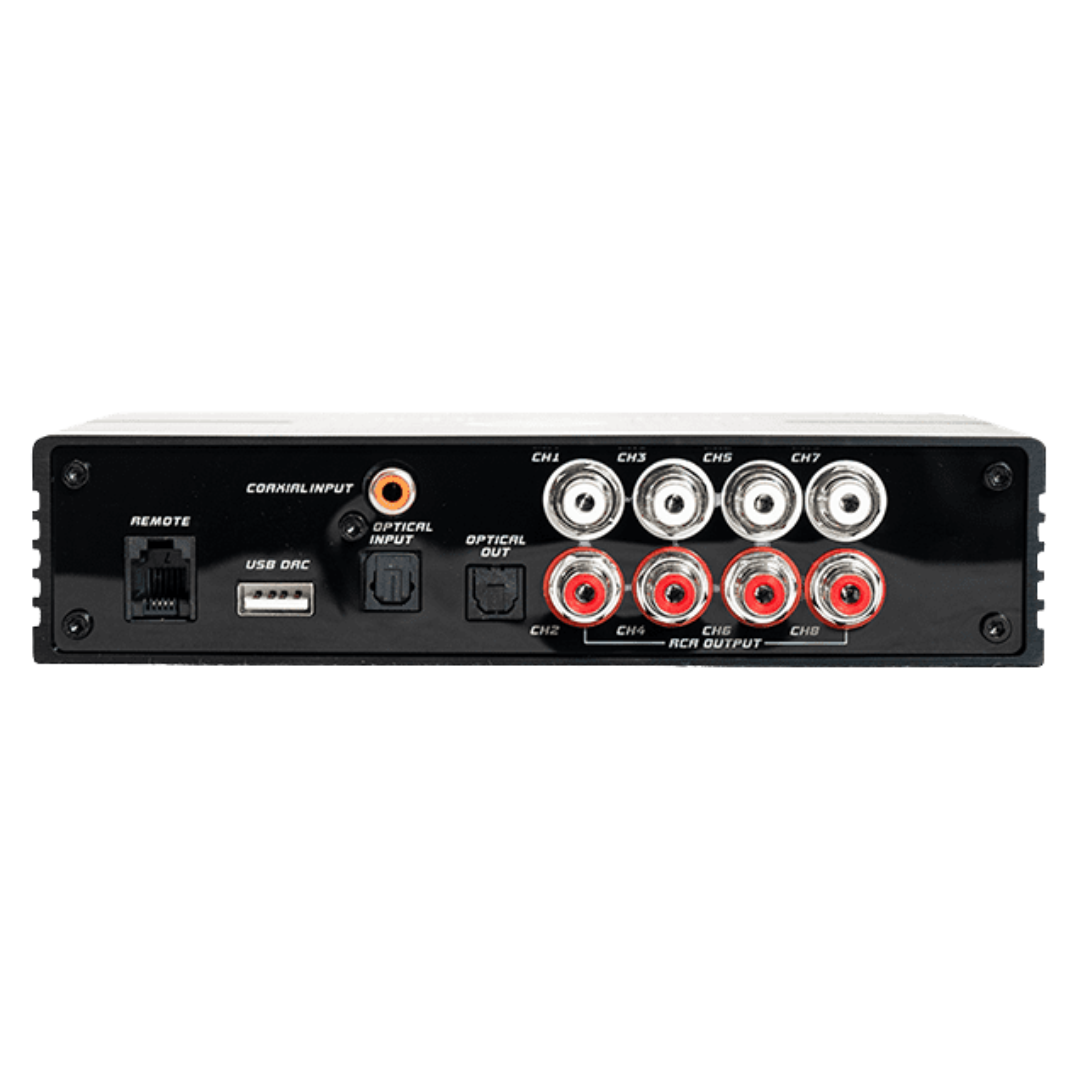

• Output Channels: 8 Low-Level outputs

• Low-Level Output Voltage: ≥3V

• SPDIF / Toslink Output: Supports cascade output

• High-Level Input Impedance: ≤33Ω (automatic selection)

• Low-Level Output Impedance: <50Ω

• RCA Input S/N Ratio: ≥107 dBA

• High-Level Input S/N Ratio: ≥105 dBA

• RCA Input T.H.D: 0.01%

• High-Level Input T.H.D: 0.02%

• RCA Input Sensitivity: 66/1.4V – 60/2.8V

• Speaker Input Sensitivity: 66/6V – 60/12V

• External Remote Output Current: >500 mA

• Turn-On Method: REM In / DC On

• DSP Resolution: 32-bit, 96 kHz sampling

• Dimensions: 175 x 146 x 40 mm
