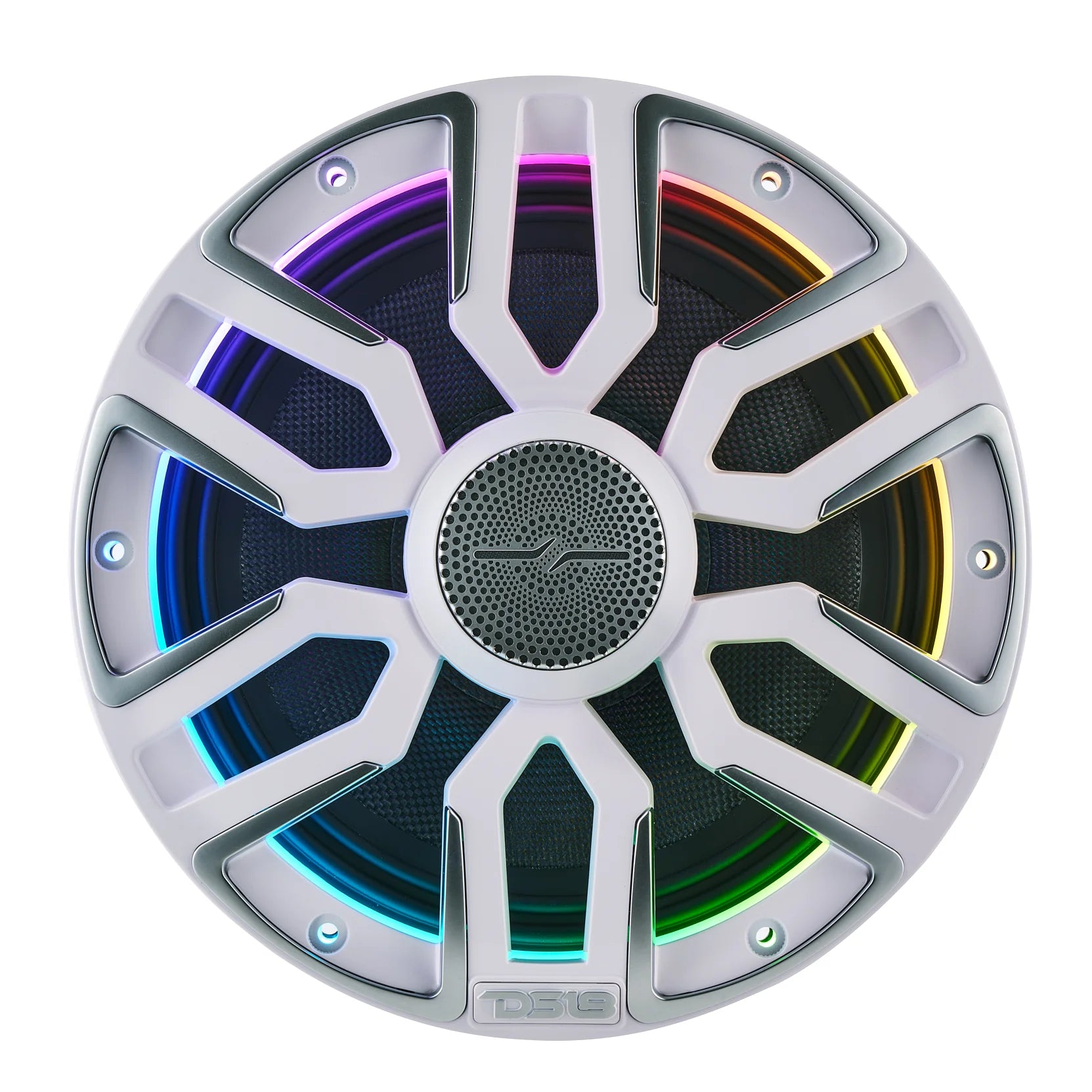

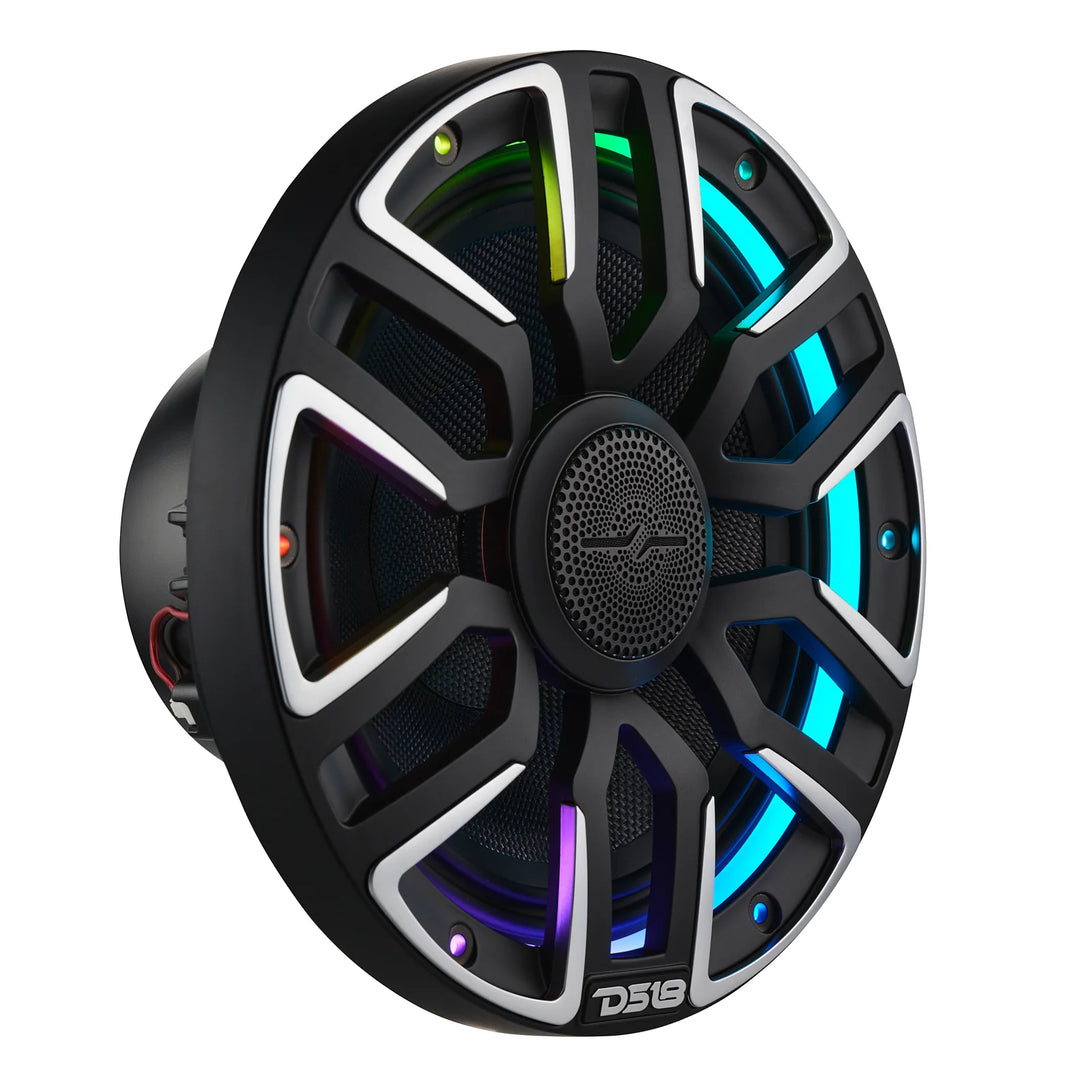

One Driver. No Gaps.
The NVY-M8 defines premium coaxial output with a marine-ready finish. Engineered with a Kevlar cone and floating bullet tweeter, it delivers crisp highs and balanced mids in an IP65-sealed format.

Durability in the Details

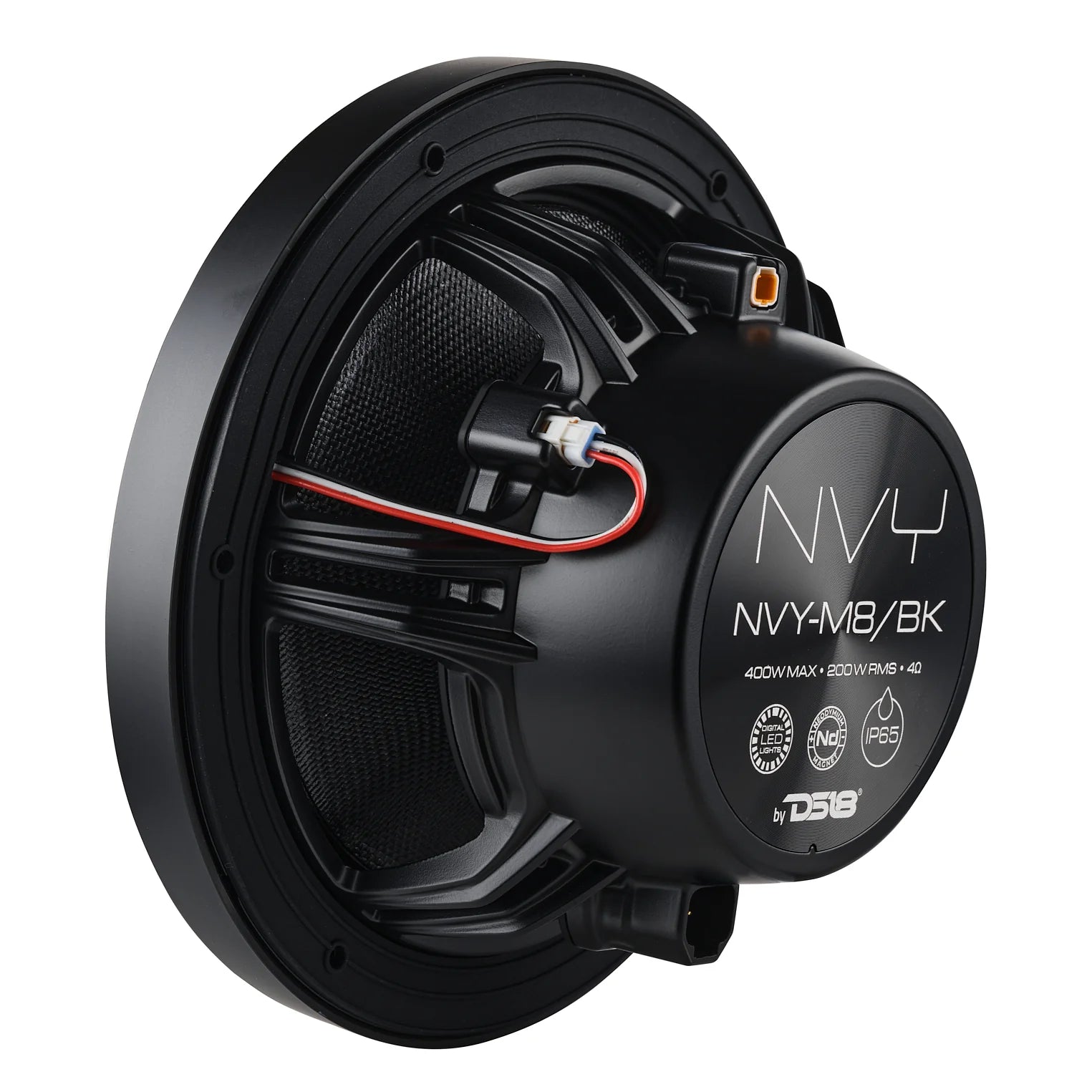

From UV exposure to spray and splash, the NVY-M8 is equipped for all conditions. Built with sealed housings, coated hardware, and a UV-treated finish, it’s prepared for long hours in harsh environments—without ever dropping in fidelity.

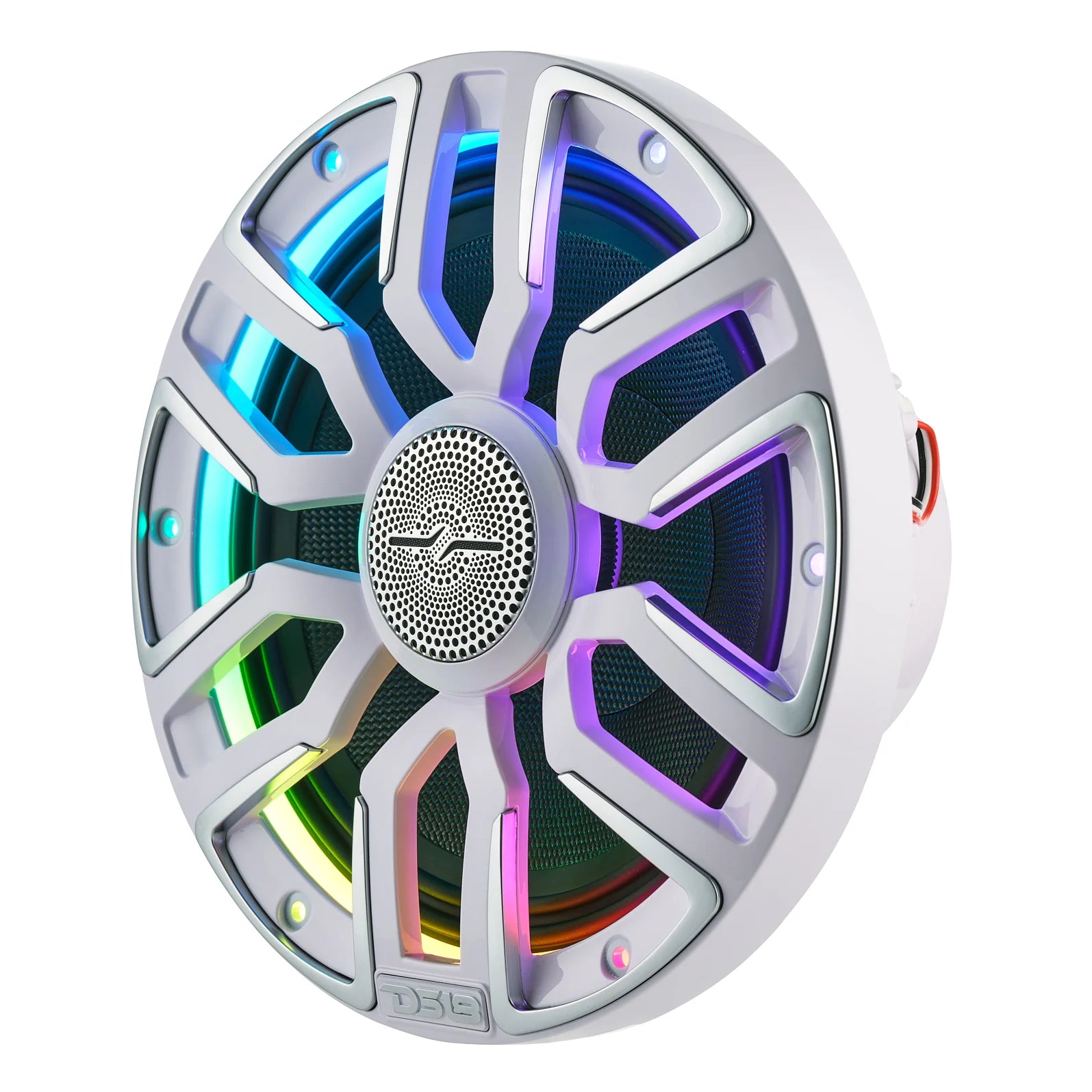

Shine From Within

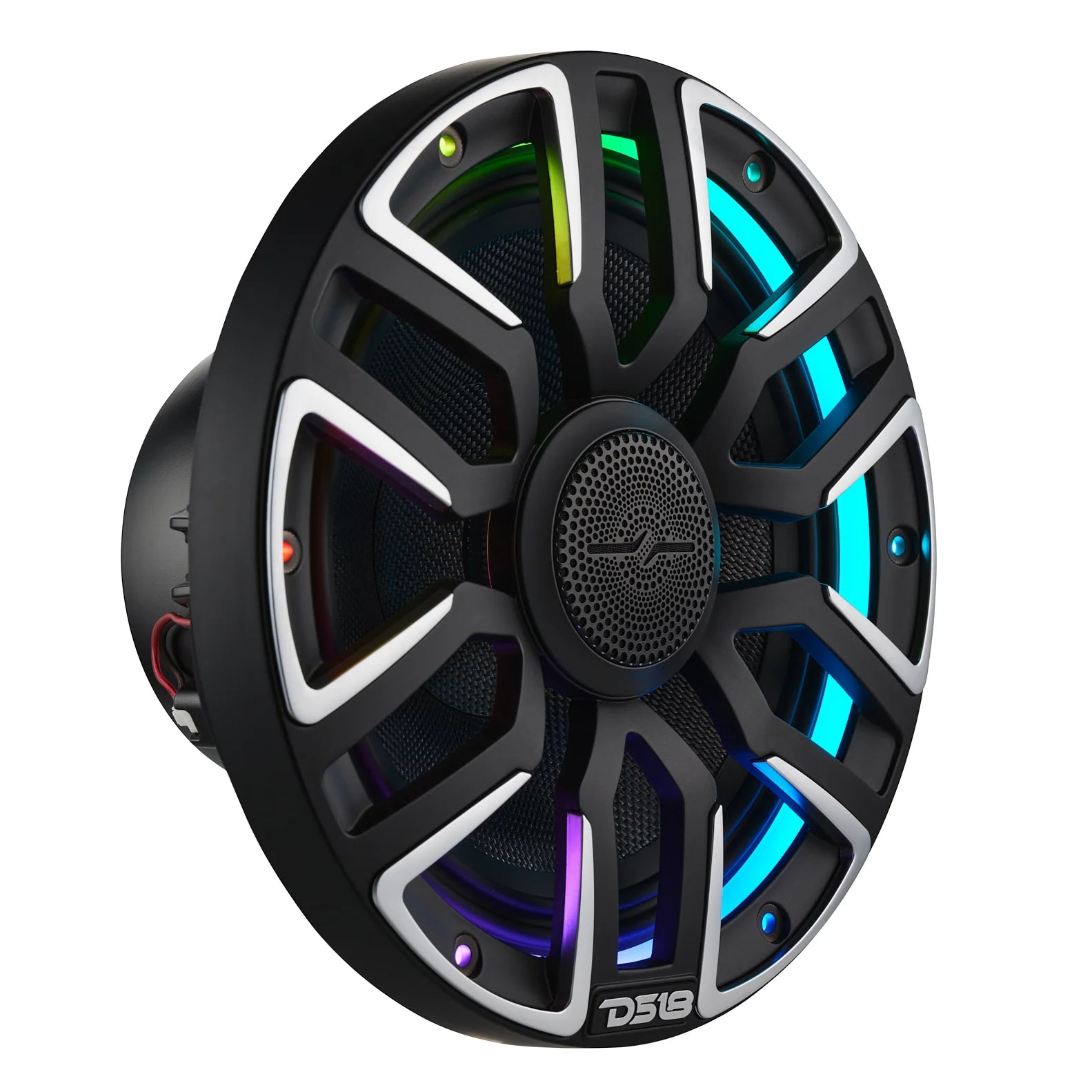

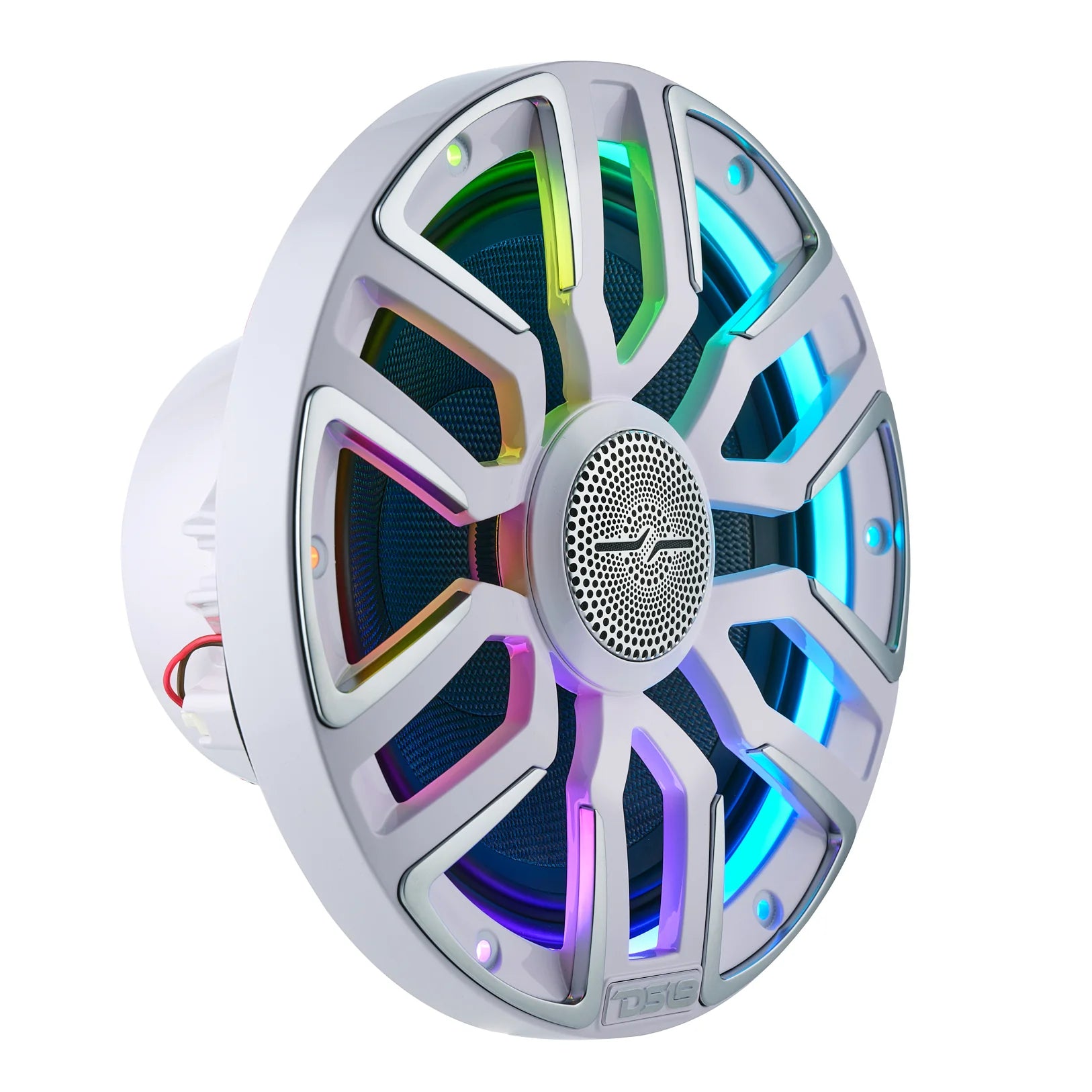

A built-in Digital LED ring brings bold color—controlled via the required LC-DRM module and DS18 LC app. Boost your systems atmosphere by making your light move with your sound.

Built for Your System

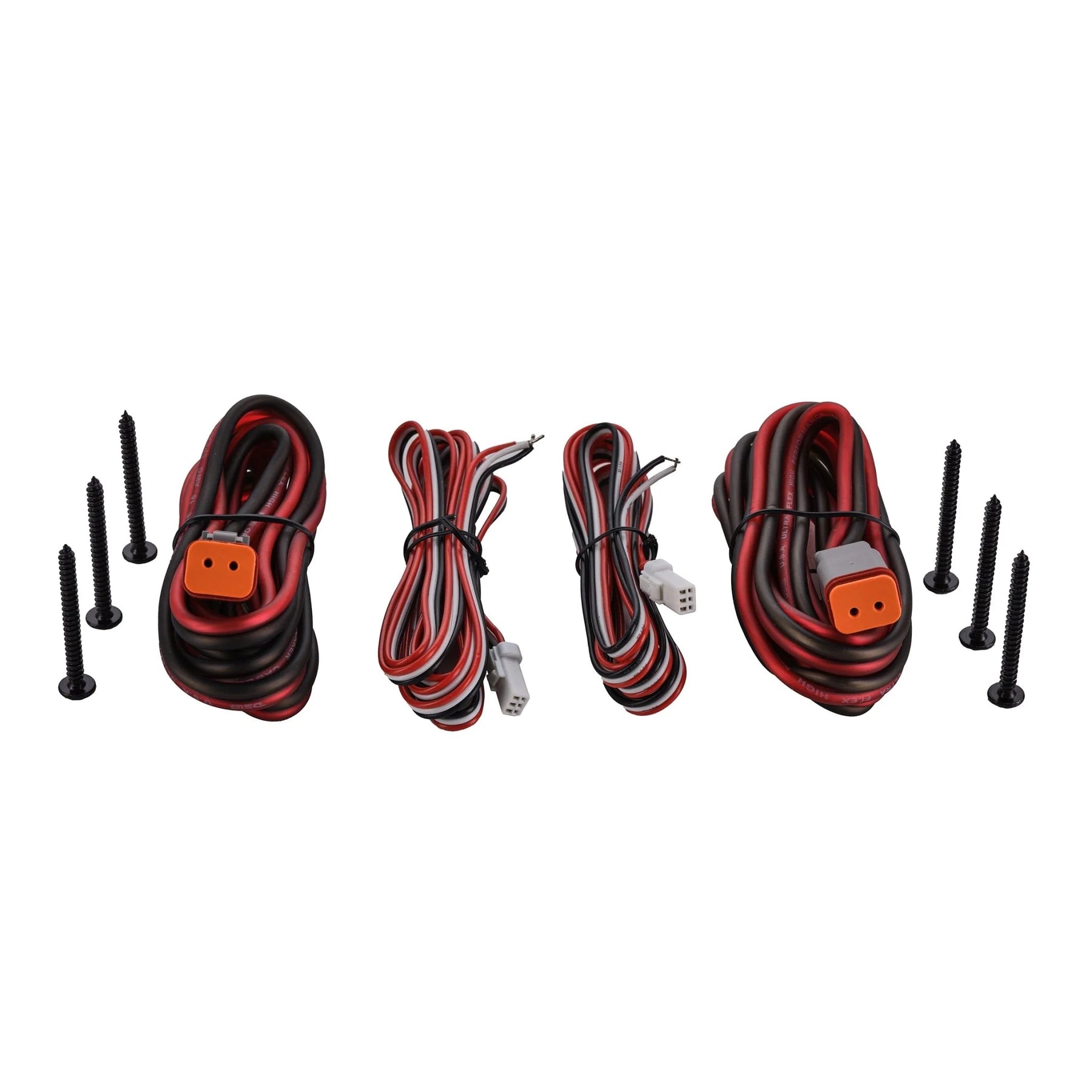

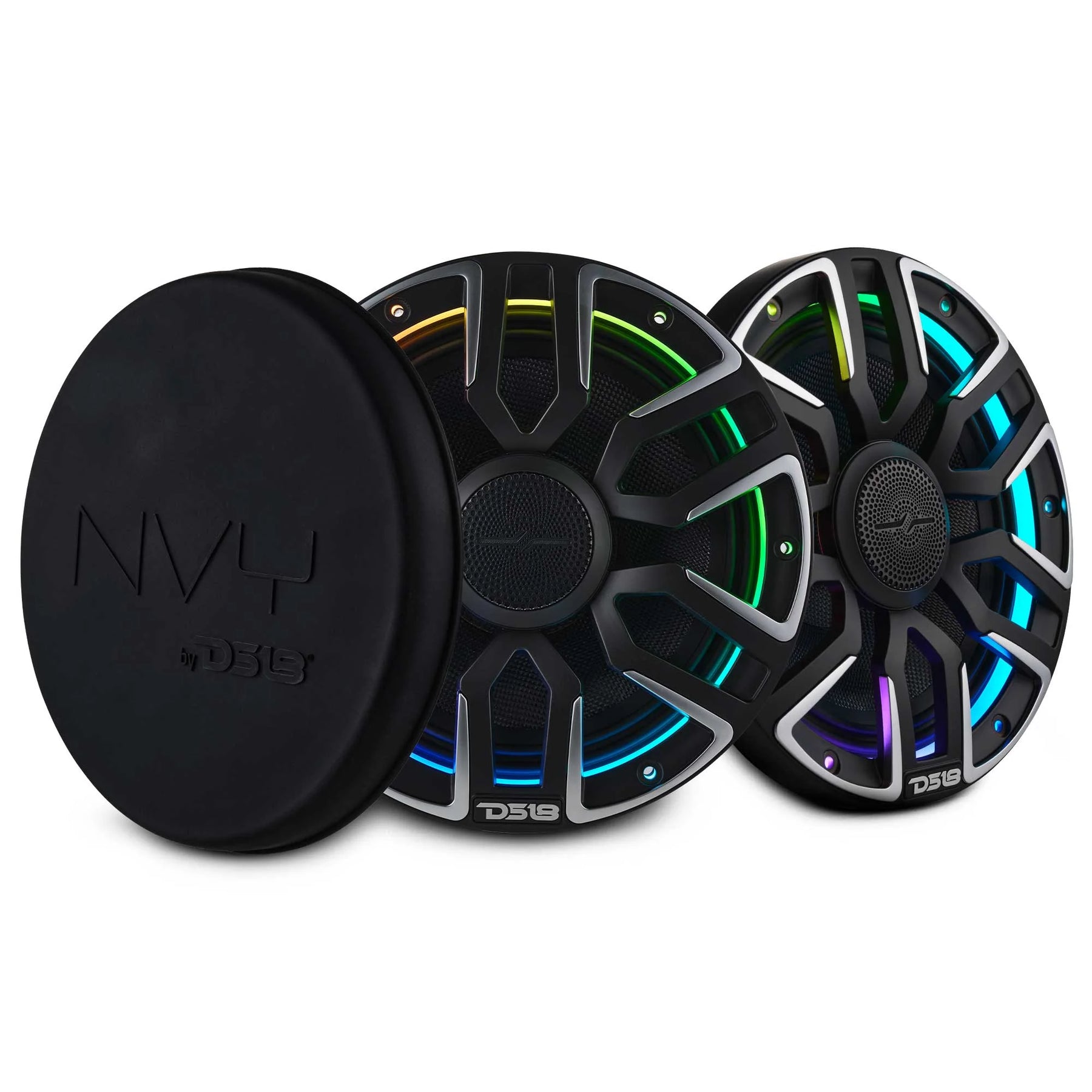

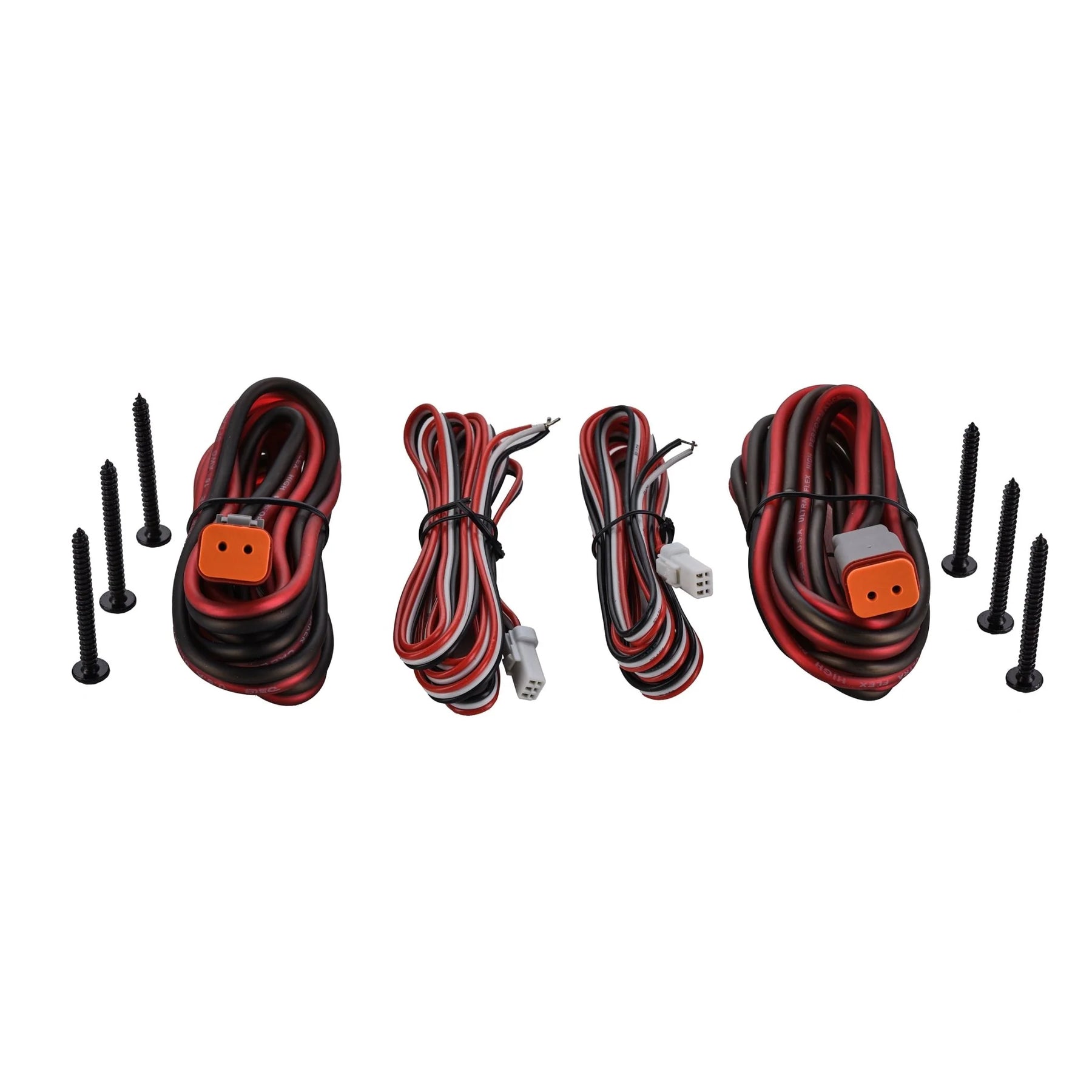

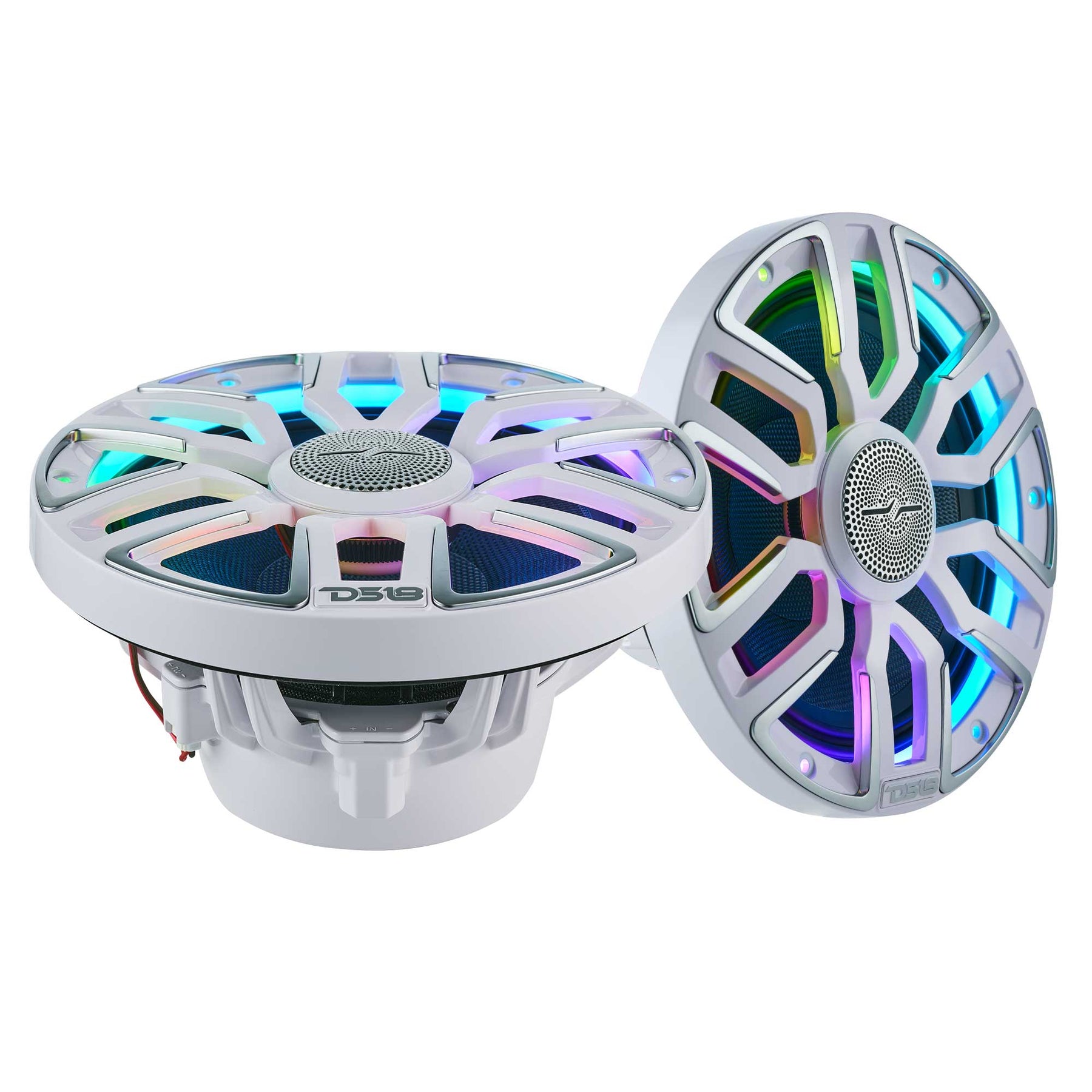

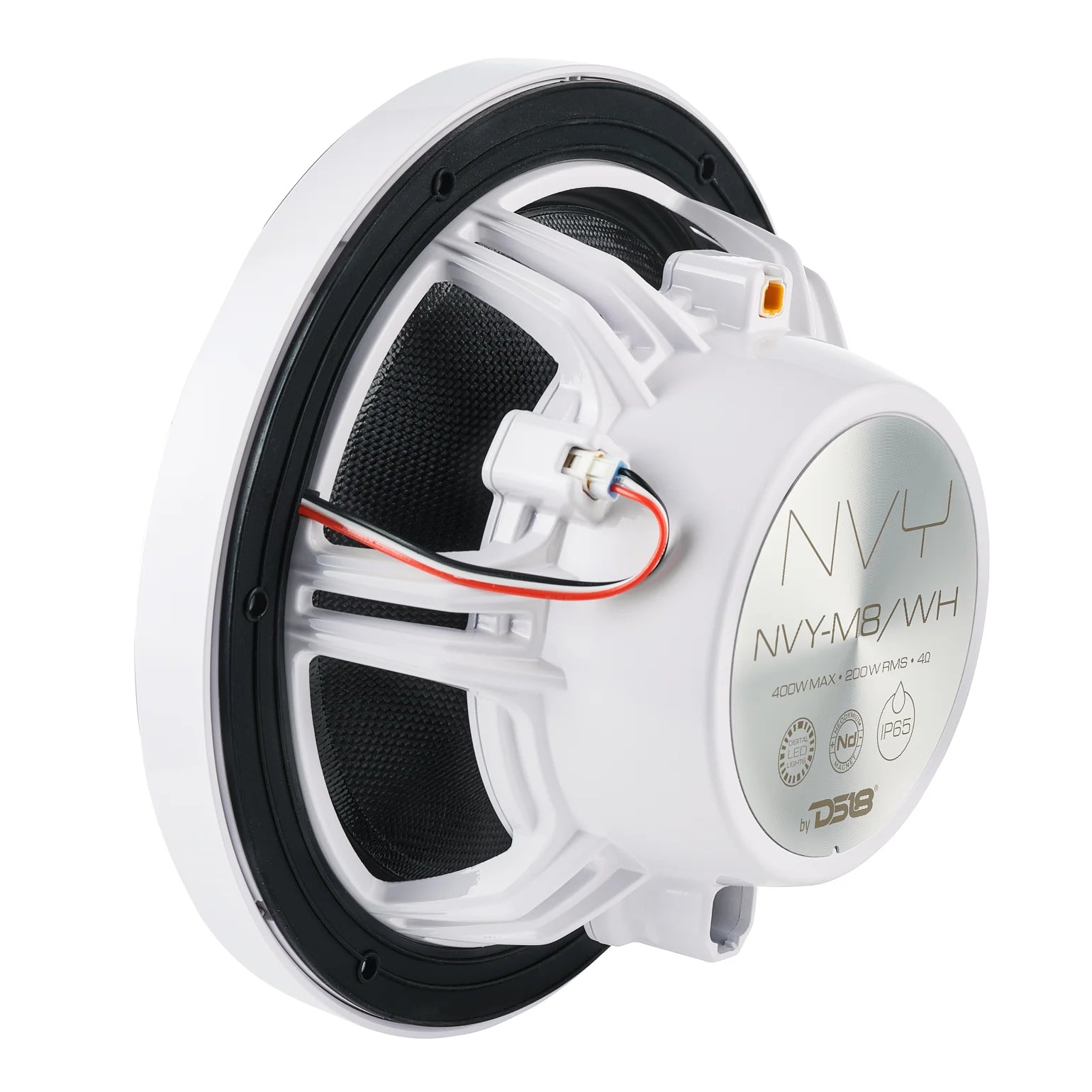

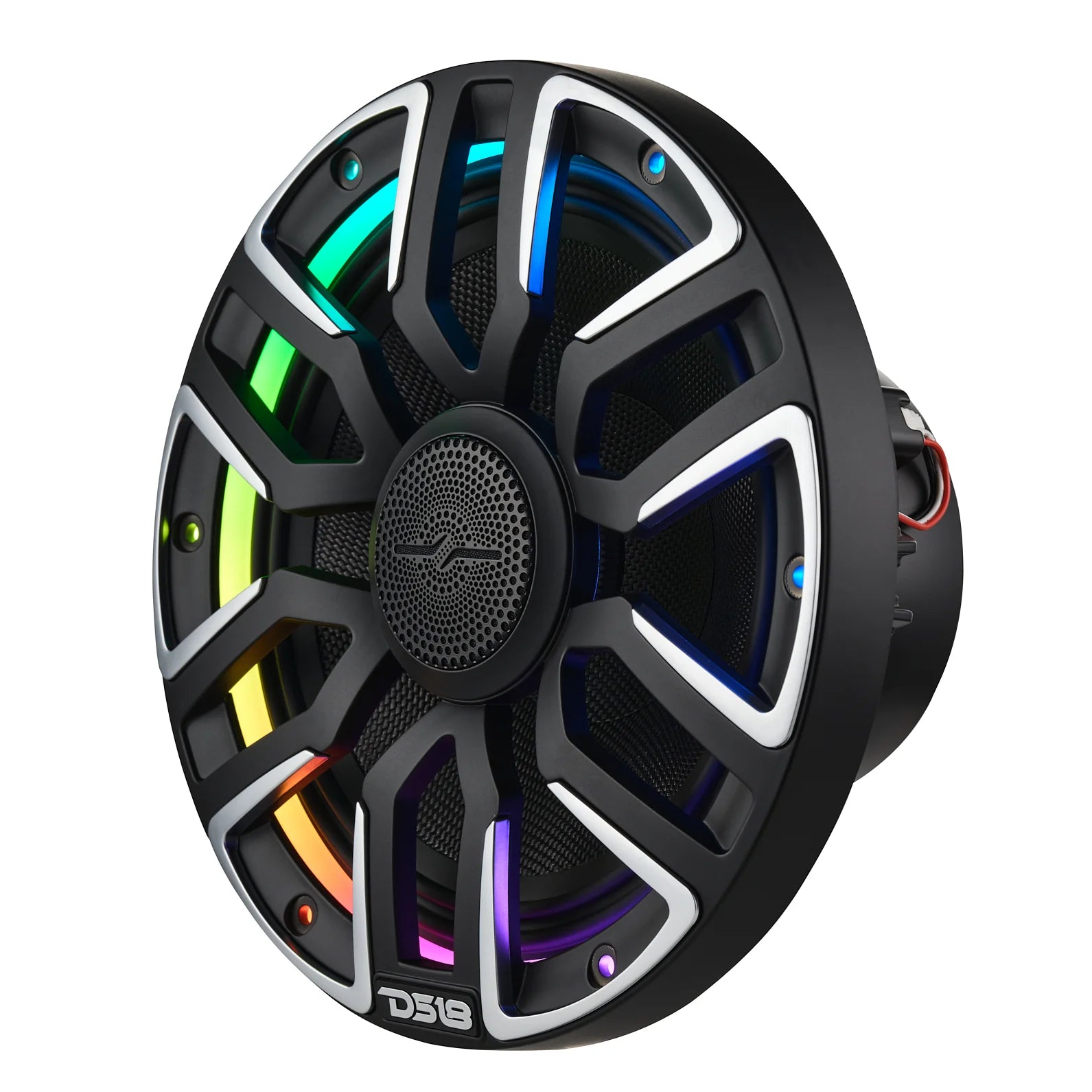

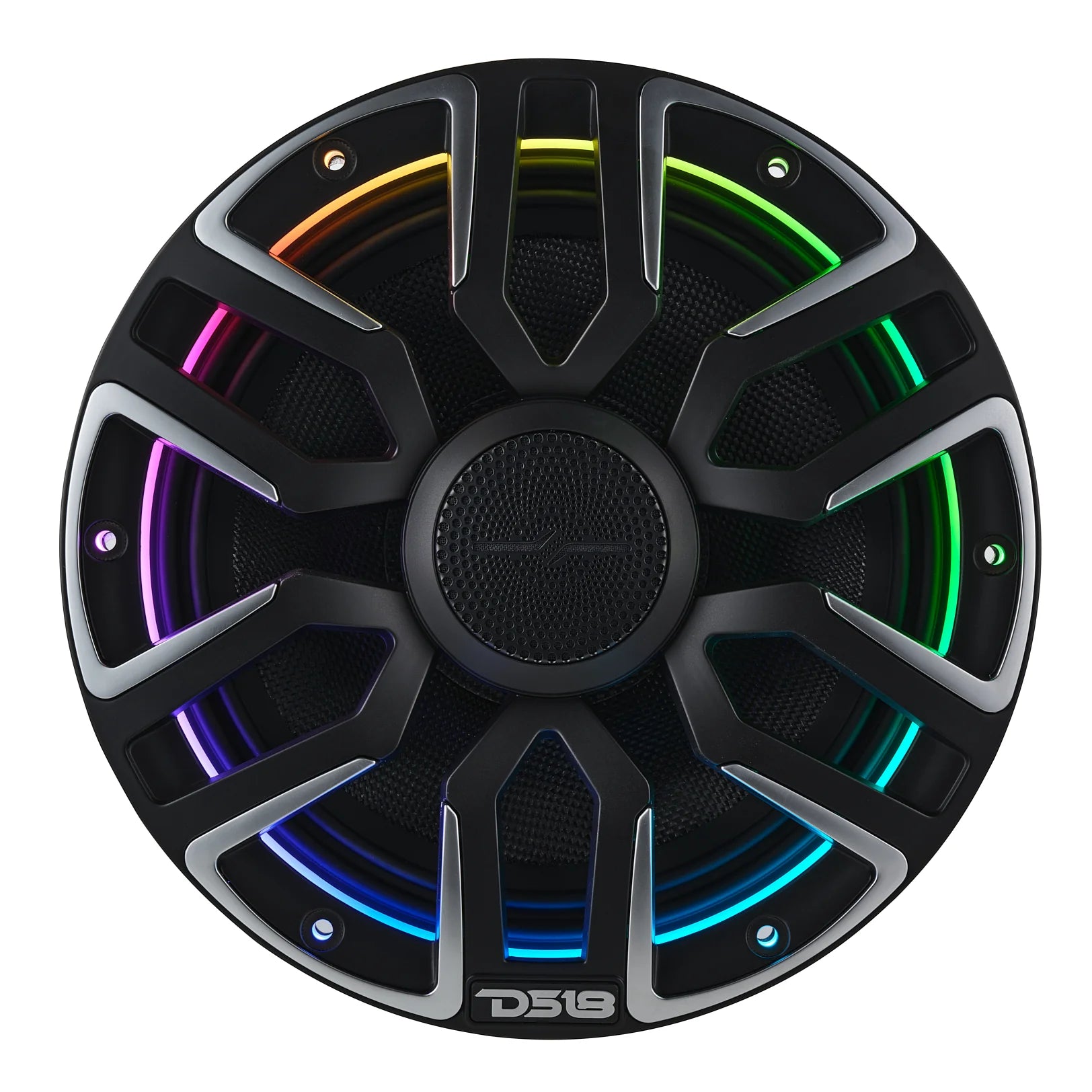

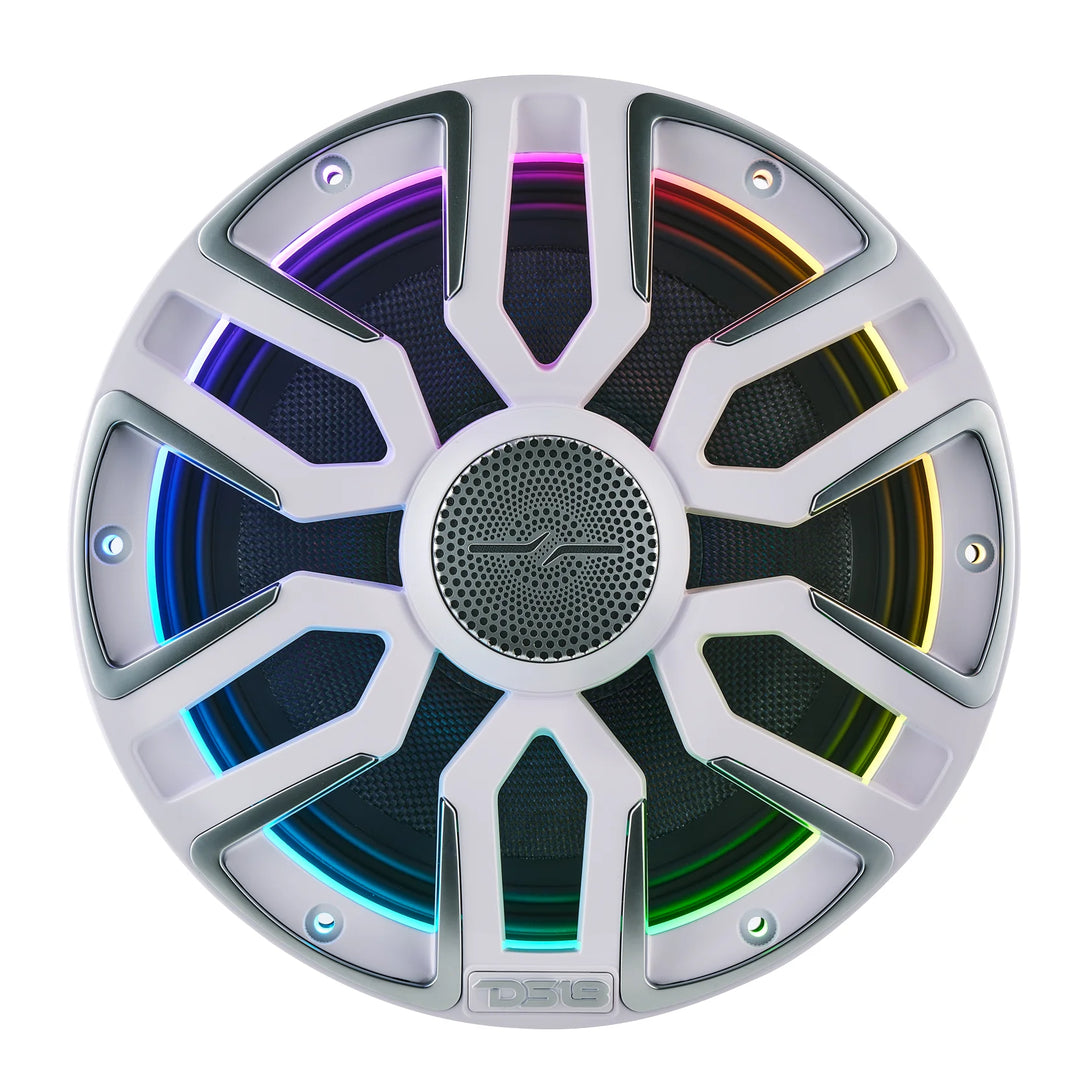

Installation-ready terminals and precision housing make the NVY-M8 easy to mount across a variety of systems. Choose between Glossy White or Satin Black to match your layout perfectly.

General Specifications

• Nominal Diameter: 8" / 203mm

• Nominal Impedance: 4 Ohms

• RMS Power Handling: 200W

• MAX Power Handling: 400W

• Sensitivity (1w/1m): 99dB

• Frequency Response: 40Hz-20KHz

• Number of Ways: 2-Way

• Recommended High-Pass Crossover: 60Hz

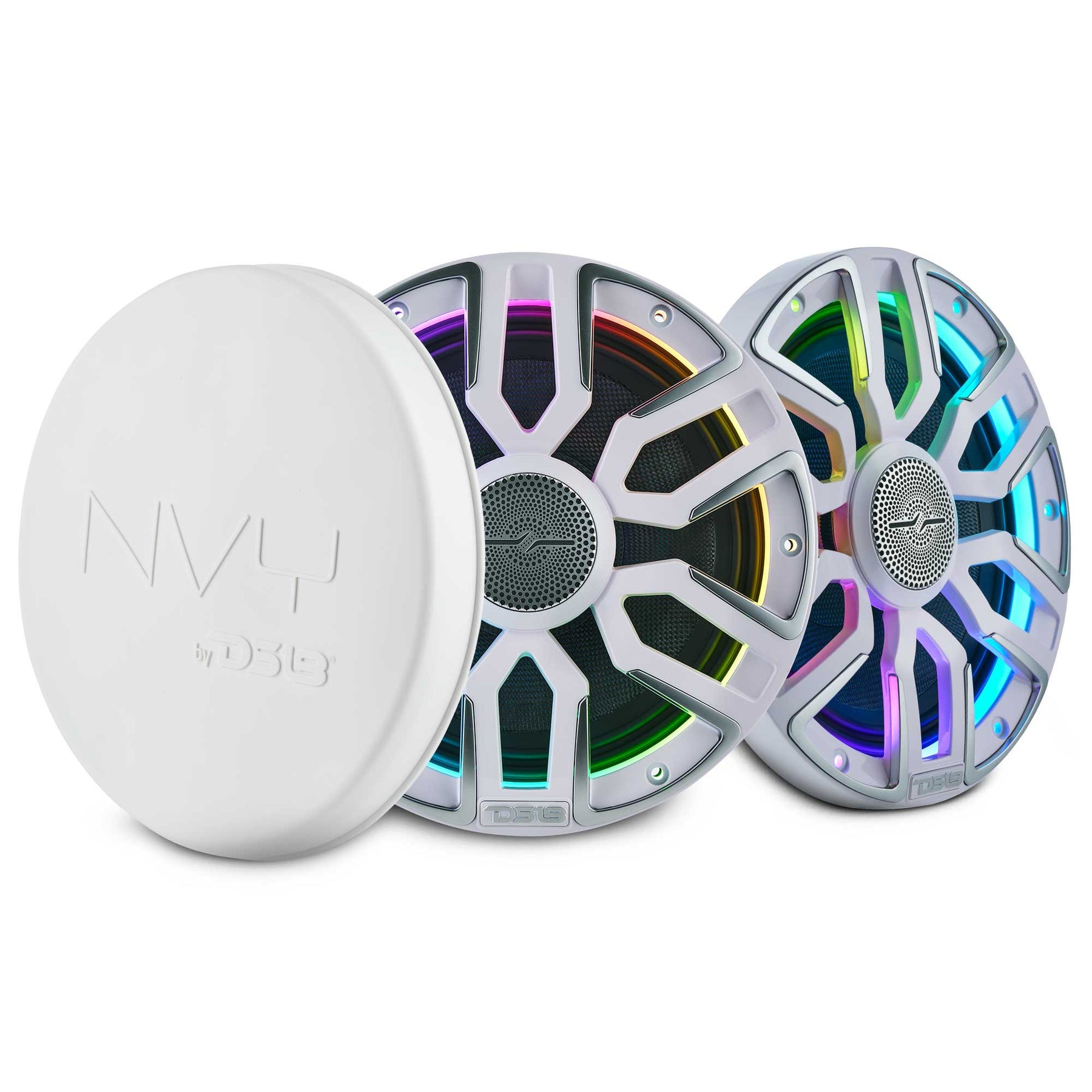

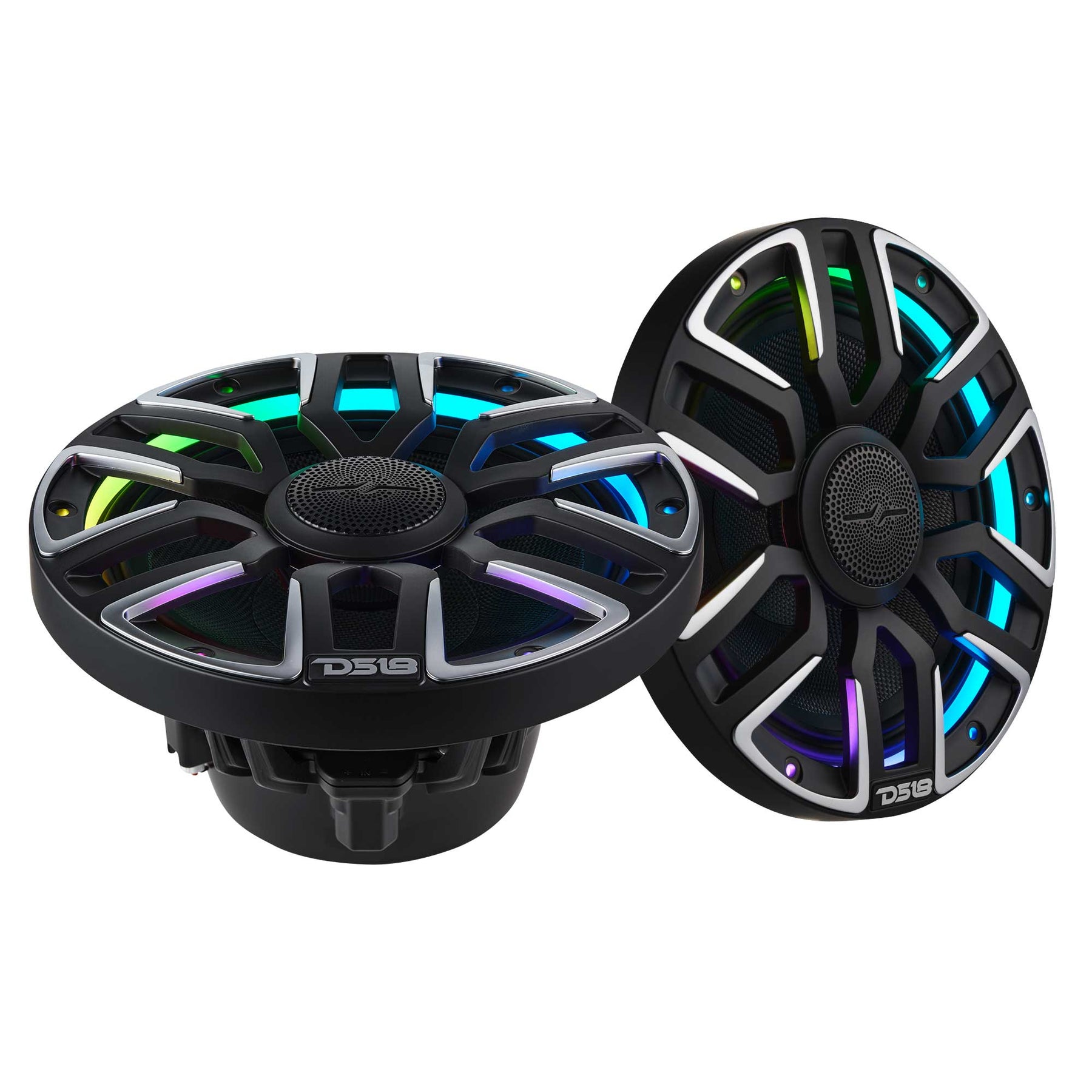

• Sold in Pairs

Body / Features

• UV Protection: Yes, 100% Stable

• Protection Coating: Yes, with PU

• Decorative Strips: Yes, Electroplated

• Marine Grade Type: IP65

• Digital LED integrated

• Digital LED Chip Type: 1815S

• Grill Type: Injection Molded Composite ASA

• Color / Finish: Gloss White

Woofer Specifications

• Voice Coil Diameter: 2" / 50.6mm

• Voice Coil Former Material: Glass Fiber

• Winding Material: CCAW

• Cone Material: Kevlar

• Dust Cap Material: Kevlar

• Surround Material: Santoprene (Rubber)

• Basket Material: Aluminum Molded with UV Protection

• Magnet Material: Neodymium

• Magnet Weight: 6.5 Oz + 1.3 Oz

Tweeter Specifications

• Type Floating: Bullet Tweeter

• Voice Coil Diameter: 1" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: PEN

• Bullet Material: Injection Molded Composite PC

• Magnet Material: Neodymium (N38H)

• Magnet Weight: 0.61 Oz

Thiele & Small Parameters

• Equivalent Volume Vas: 66.84L / 2.361ft3

• Excursion (one way) Xmax: 3.2mm

• Free Air Resonance Fs: 80Hz

• Mechanical Factor Qms: 9.609

• Electrical Factor Qes: 0.624

• Total Factor Qts: 0.586

• Moving Mass Mms: 26.82G

• Compliance Cms: 0.165mm/Bl Factor BI 8.5

• Voice Coil Inductance Le: 0.31mH

• Diaphragm Area Sd: 213.8cm²

• DC Resistance Re: 3.3 Ohms

• Efficiency Bandwidth Product EBP: 128

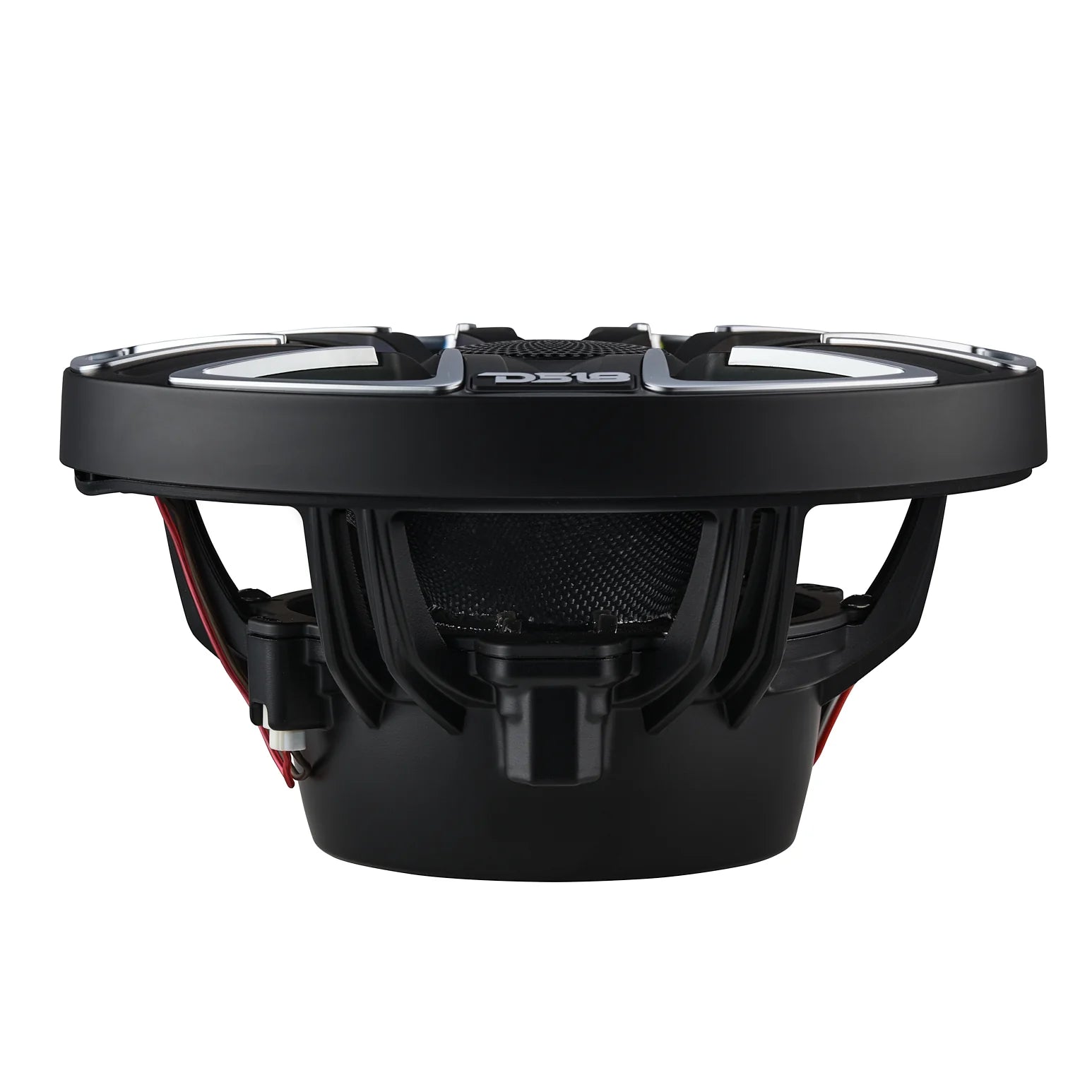

Speaker Measurement

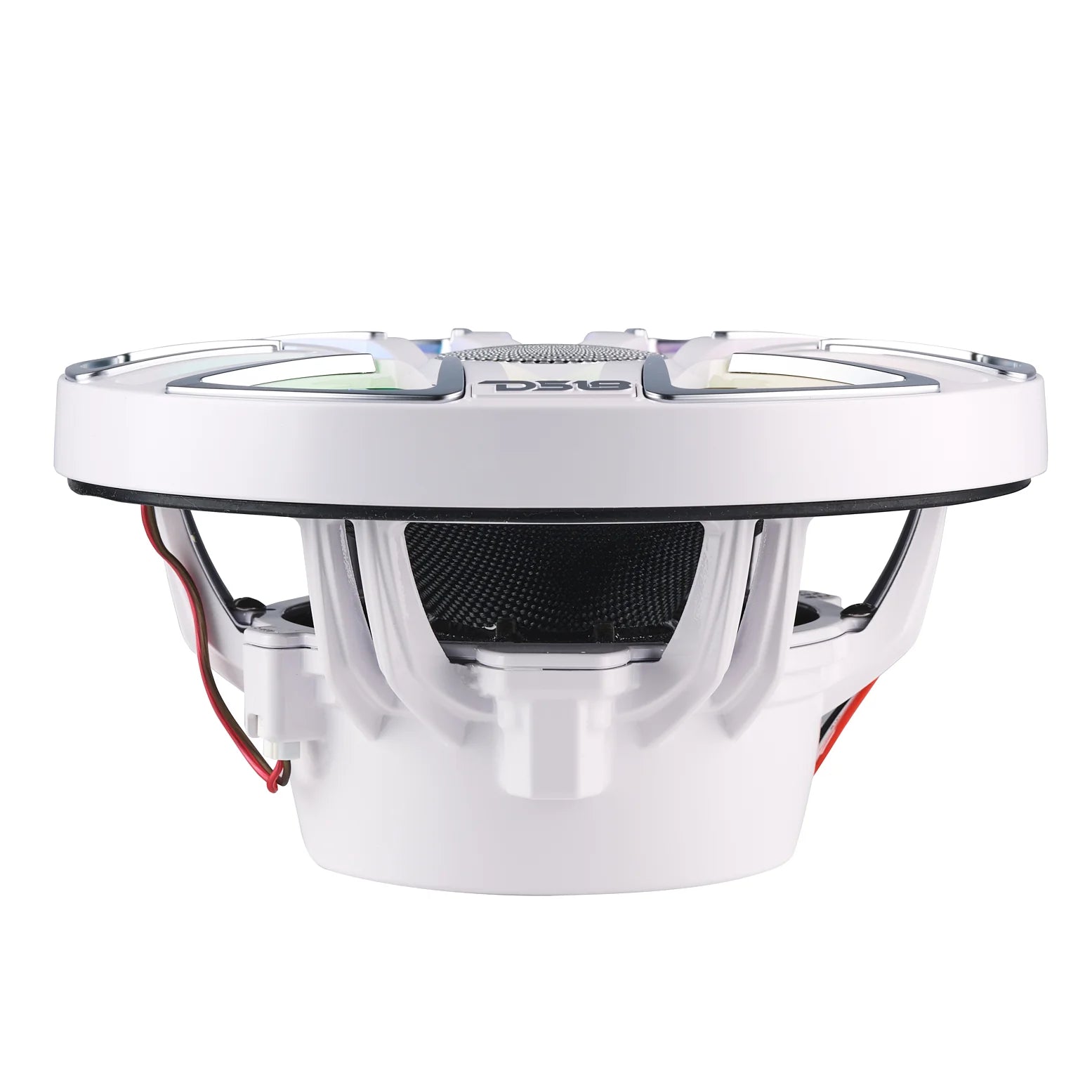

• Overall Diameter: 8.62″ / 219mm

• Overall Depth: 4.44″ / 112.94mm

• Front Mount Baffle Cutout: 6.93″ / 176.08mm

• Mounting Depth: 3.33″ / 84.75mm

• Motor Diameter: 4.2" / 108mm
