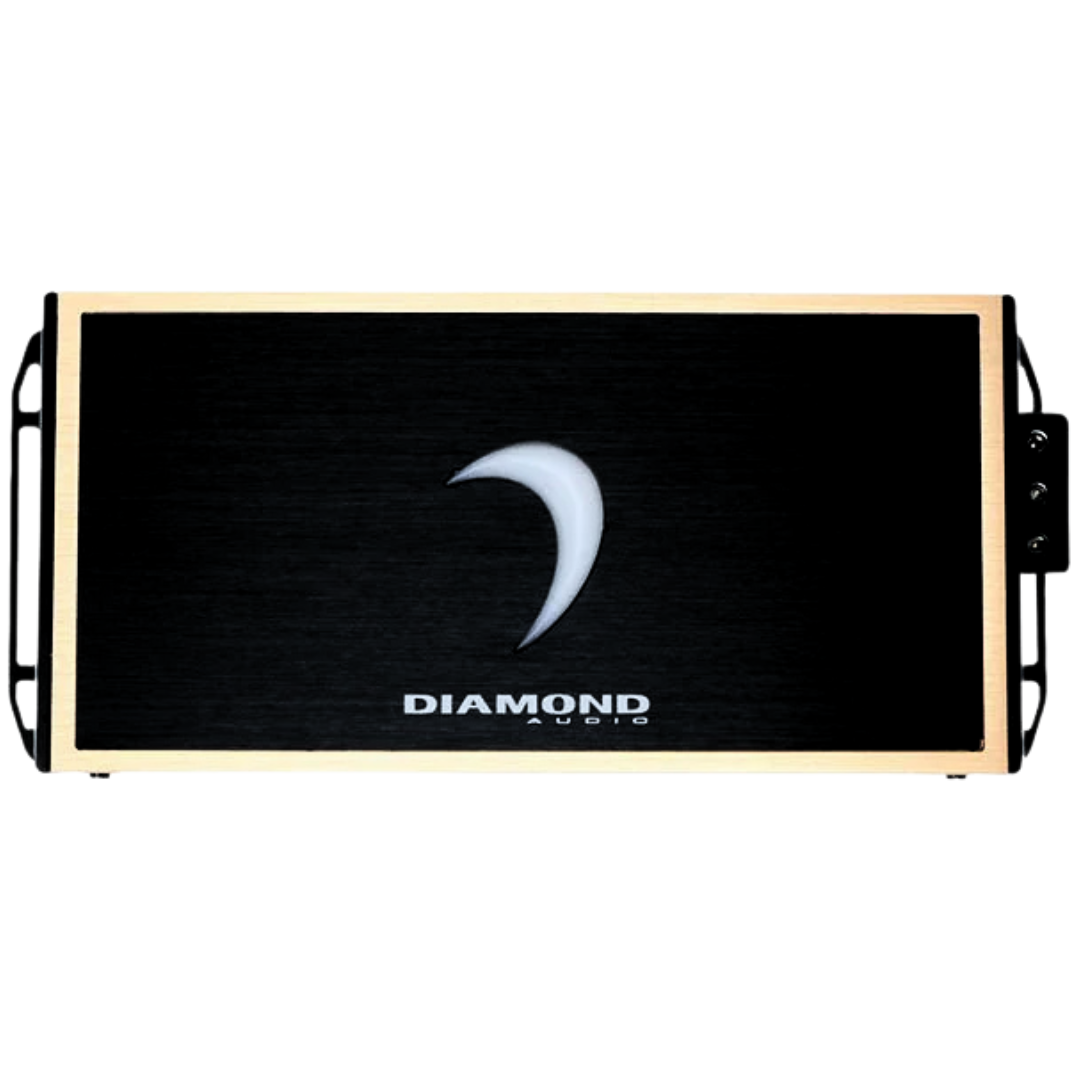

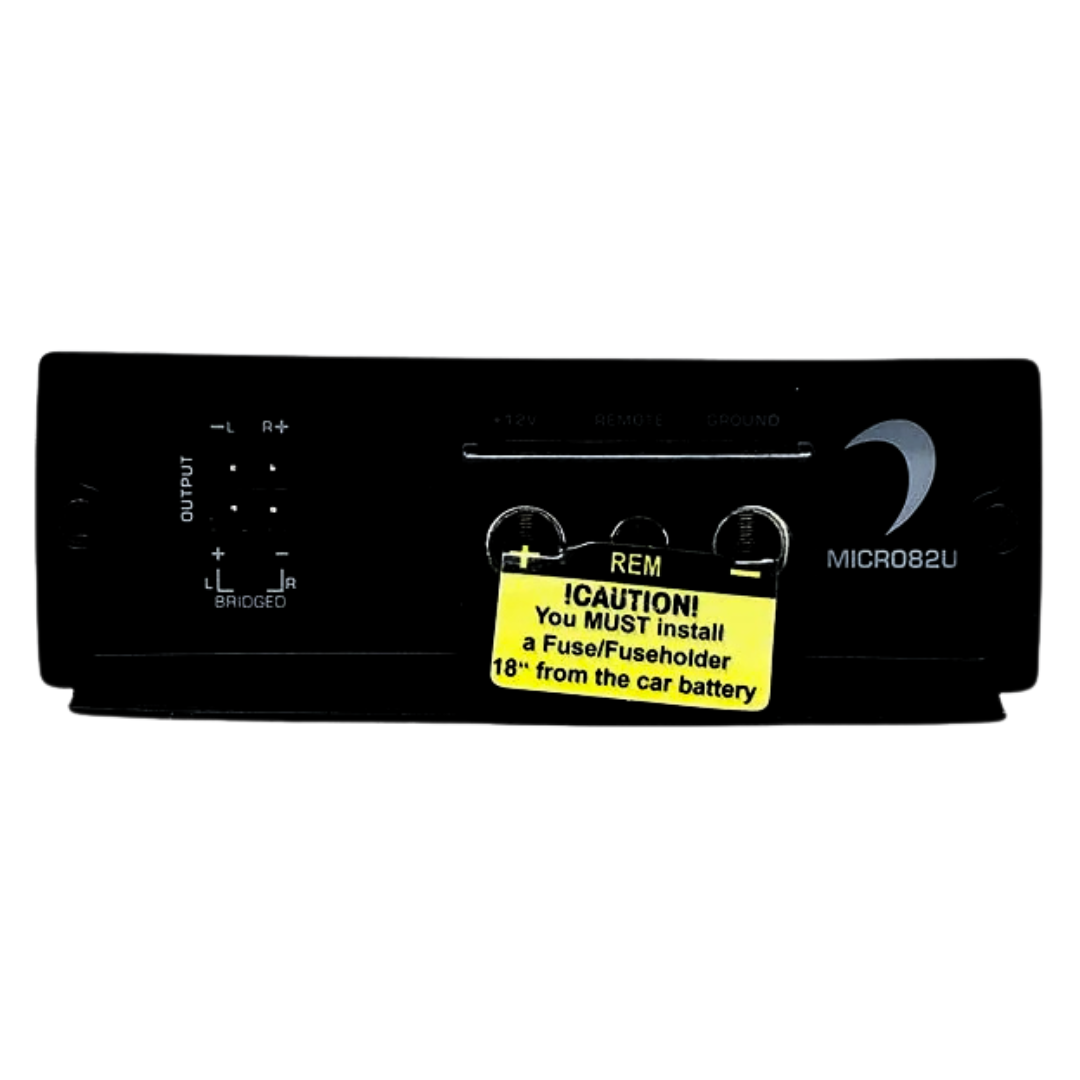

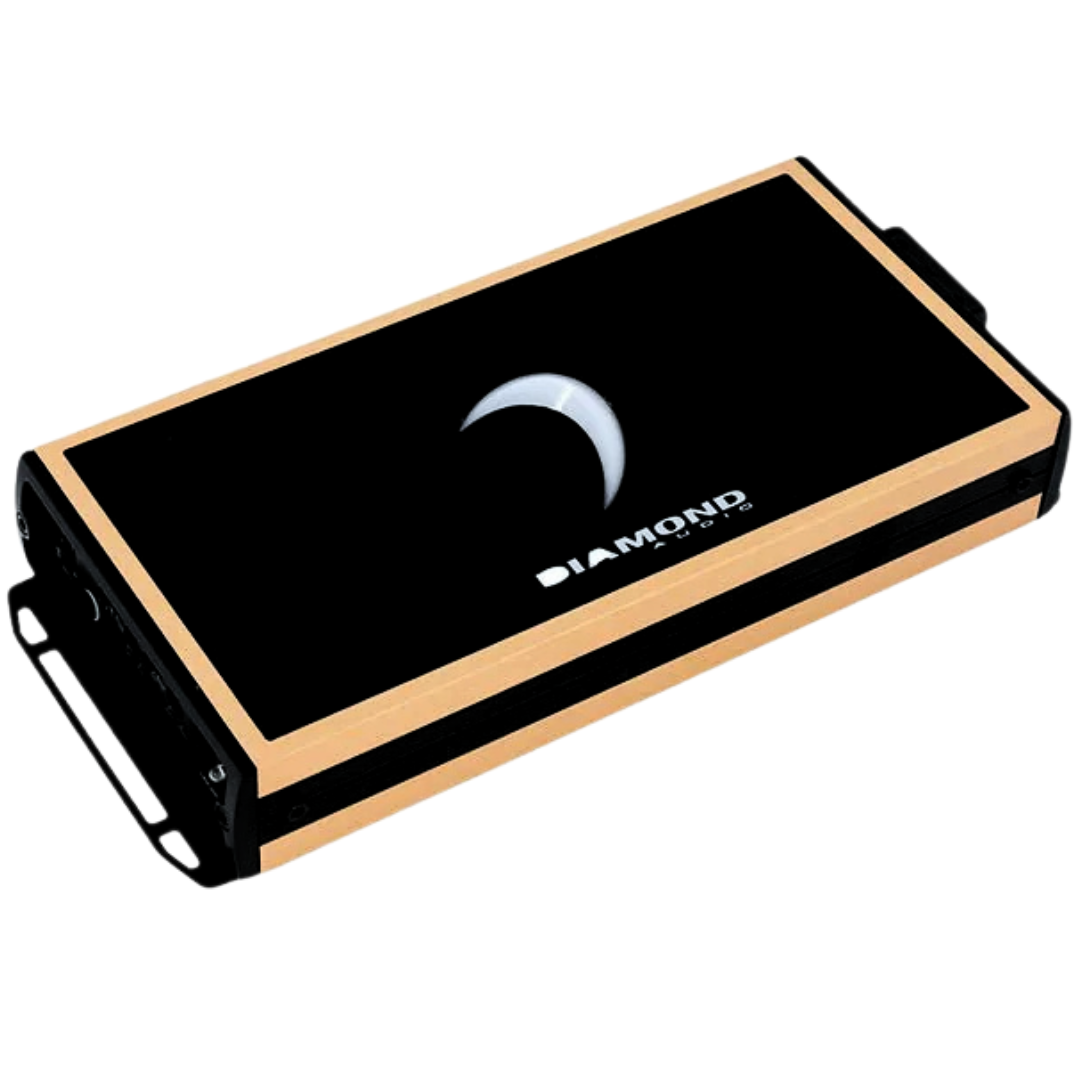

Experience compact power and all-weather performance with the Diamond Audio MICRO8U 2-Channel Full Range Class D Amplifier, engineered for enthusiasts who demand high output, efficiency, and durability. Building on the success of the original MICRO series, the MICRO8U amplifier delivers increased power and advanced technology, making it the perfect upgrade for car audio, motorcycle, marine, and powersports systems.

Designed from the ground up, the Diamond Audio MICRO8U 2-channel amplifier features a full-range Class D topology, providing clean, efficient power across the entire frequency spectrum. With impressive output capabilities, this high power car audio amplifier delivers 150W x 2 at 4 ohms, 250W x 2 at 2 ohms, and up to 500W bridged, making it ideal for powering speakers or subwoofers in compact, high-performance systems.

Built for real-world conditions, the MICRO8U Class D amplifier is conformal-coated for all-weather applications, ensuring long-lasting reliability in marine, motorcycle, ATV, UTV, and outdoor audio environments. Whether you're cruising on the water or riding through rugged terrain, this water-resistant amplifier is designed to perform in demanding conditions.

The compact amplifier design allows for easy installation in tight spaces, while the uniform platform and dimensions across most MICRO8U models ensure a clean and professional setup. With selectable REM, VOX, and DC turn-on modes, along with 2-channel or 4-channel input options, this versatile car audio amplifier integrates seamlessly into factory or aftermarket systems.

Additional features such as a 40–400Hz crossover filter, wide frequency response (10Hz–33kHz), and adjustable input sensitivity (0.2–10V) ensure precise tuning and optimal sound performance.

Key Features:

• 2-channel full range Class D amplifier

• Up to 500W max power output

• 150W x 2 @ 4Ω / 250W x 2 @ 2Ω / 500W bridged

• Conformal-coated for all-weather durability

• Compact design for easy installation

• Selectable REM / VOX / DC turn-on modes

• Adjustable crossover and input sensitivity

• Includes RCA input & speaker output harness kits

The Diamond Audio MICRO8U 2-Channel Amplifier delivers powerful, clean, and reliable performance in a compact design, making it the perfect solution for high-performance car audio and outdoor sound systems.

Specifications:

• 250W x 4 @ 2Ω

• 150W x 2 @ 4Ω

• 500W x 1 @ 4Ω BRIDGED

• All-weather Applications

• Input Sensitivity: 0.2-10 Volt

• Crossover Filter : 40-400Hz, 12dB Per Octave Slope

• Frequency Response: 10-33KHz

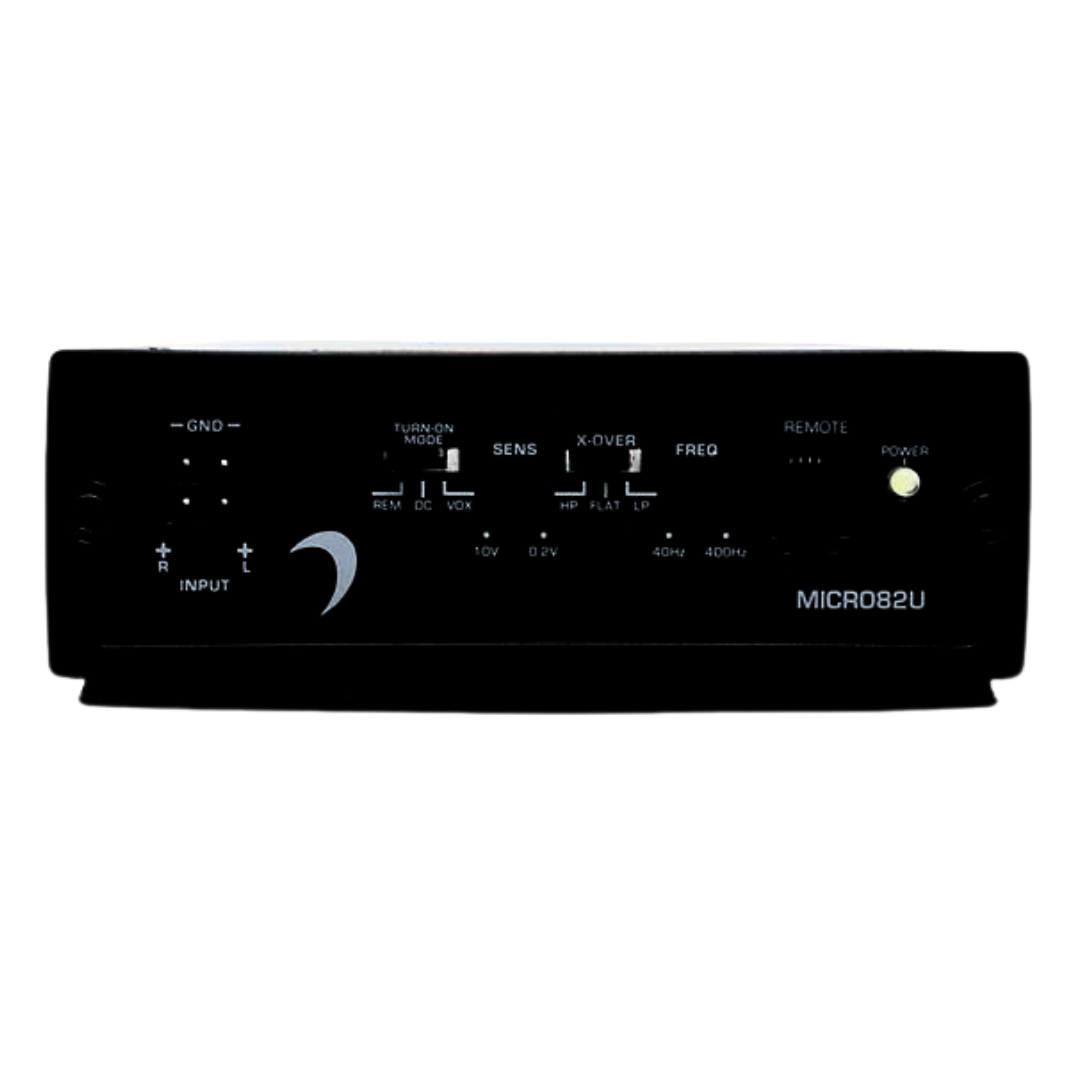

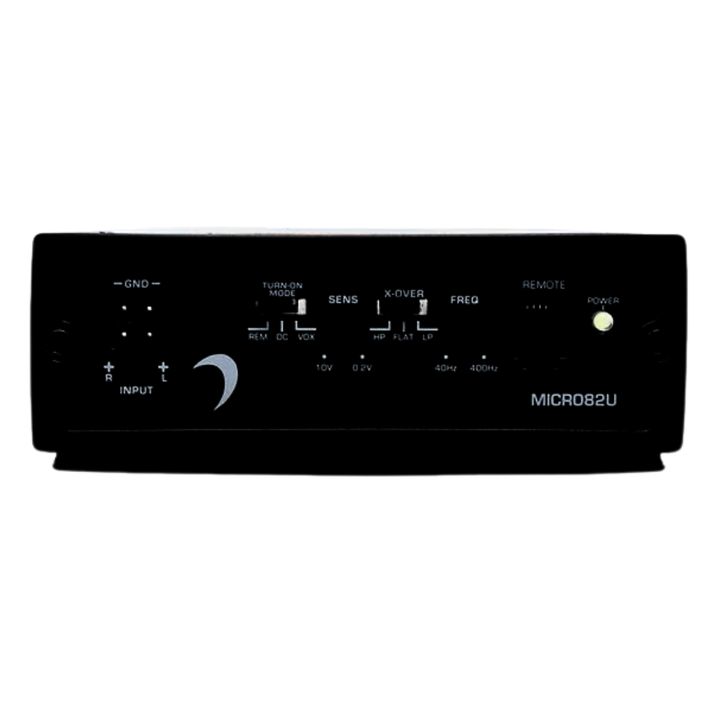

• Selectable REM / VOX / DC Turn On Modes

• Selectable 2CH / 4CH Input Modes

• Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm

• Disconnected RCA Input & Speaker Output Harness Kits Included
