Unleash serious low-frequency power with the Diamond Audio DMD1000.1D Monoblock Class D Digital Amplifier, engineered for high-output car audio systems that demand deep, controlled bass and reliable performance. As a flagship model in the DMD Series amplifiers, the DMD1000.1D delivers impressive power, advanced technology, and exceptional value in a compact design.

Powered by advanced Class D digital amplifier technology, the Diamond Audio DMD1000.1D amplifier produces 1000W RMS at 2 ohms and 680W RMS at 4 ohms, making it ideal for driving high-performance subwoofers with authority. Its high-efficiency design ensures maximum output while minimizing heat, allowing for consistent performance during extended listening sessions.

Built using 4-layer FR4 PCB construction and advanced SMD circuitry, this monoblock car amplifier provides stable power delivery and long-term durability. The inclusion of balanced differential inputs ensures clean, noise-free signal transmission, even in complex installations or factory integration systems.

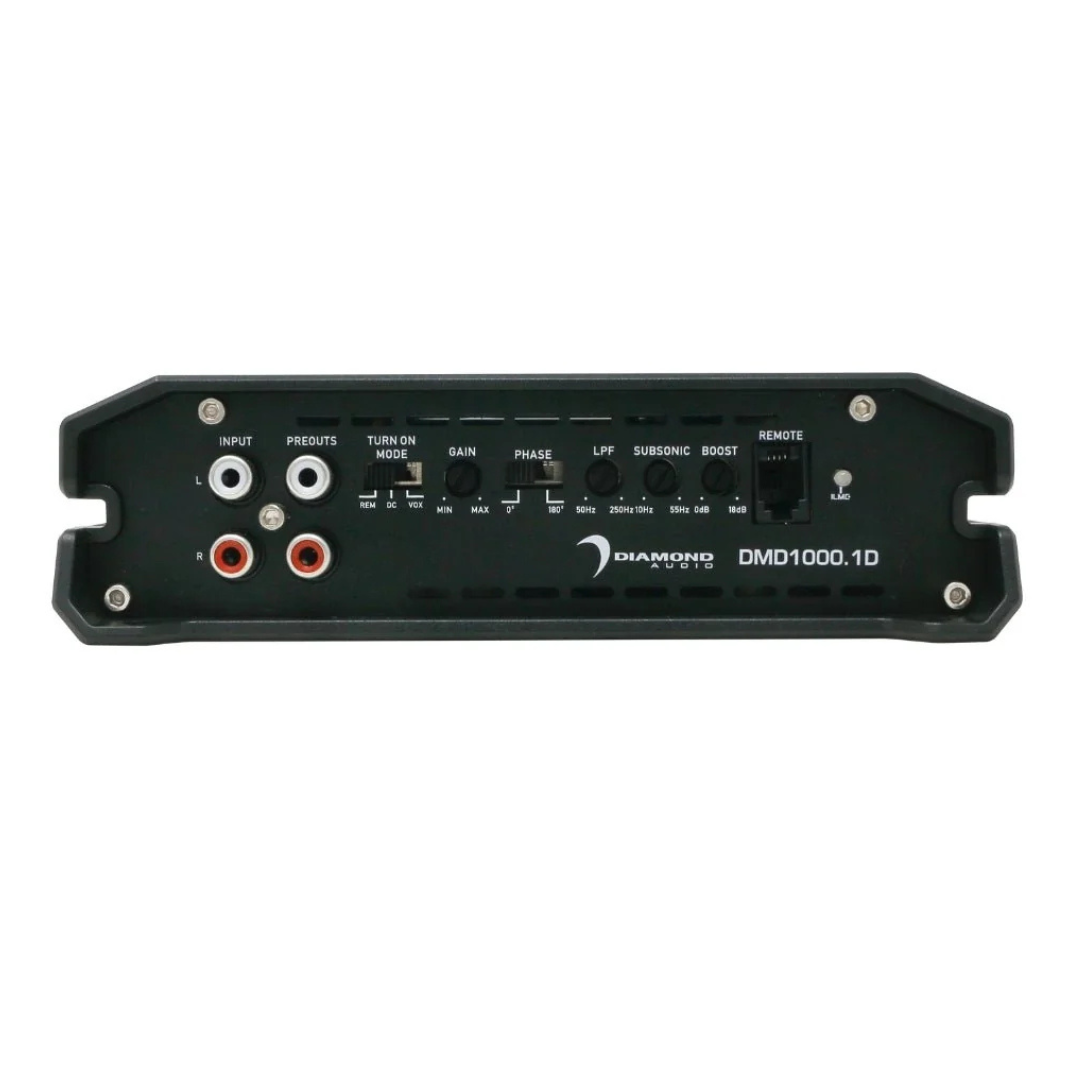

Fine-tune your bass performance with variable low-pass and high-pass crossover controls (35Hz–350Hz), adjustable phase control, and up to 18dB bass boost, giving you complete control over your subwoofer output. The included remote bass knob allows convenient real-time adjustments, putting powerful bass control right at your fingertips.

Designed for flexibility and easy installation, the DMD1000.1D Class D amplifier features selectable REM, VOX, and DC turn-on modes, ensuring compatibility with both OEM and aftermarket head units. The LED-lit logo provides clear power and protection status, while built-in short circuit, thermal, and voltage protection ensures long-lasting reliability.

Key Features:

• Model: DMD1000.1D monoblock Class D digital amplifier

• 1000W RMS @ 2Ω / 680W RMS @ 4Ω

• Compact, high-efficiency amplifier design

• 4-layer PCB with advanced SMD technology

• Variable LPF/HPF crossover and phase control

• Up to 18dB bass boost for maximum impact

• Balanced differential inputs for clean signal

• Selectable REM / VOX / DC turn-on modes

• Includes remote bass knob and LED status indicator

The Diamond Audio DMD1000.1D amplifier delivers powerful, precise, and hard-hitting bass, making it the ultimate choice for high-performance and competition-ready car audio subwoofer systems.

Specifications:

• 1000W RMS @ 2Ω

• 680W RMS @ 4Ω

• Power Supply: Full WPM

• Power Supply Threshold: 10.0V-17.0V (DC)

• Idle Current: (0.7A)

• THD 4 (1KHZ @4Ω): 0.03%

• S/N RATIO (A WEIGHTED @1W): 76.7dBA

• S/N RATIO (A WEIGHTED @FP): 96.7dBA

• Low Level Input: 0.2mV-10.0V

• High Level Input: Up to 25W RMS

• Low Level Input: 22KΩ

• Output Impedance: 0.051Ω

• Damping Factor (50Hz@4Ω): >70

• Bandwidth (-3db): 10Hz-350Hz

• Variable High-Pass: 35Hz-350Hz

• Variable low-Pass: 35Hz-350Hz

• Fuse Rating: 3x40A

Dimensions

• Length x Width x Height: 8”x6.85”x1.9” (203.1mm x 174mm x 48.4 mm)
