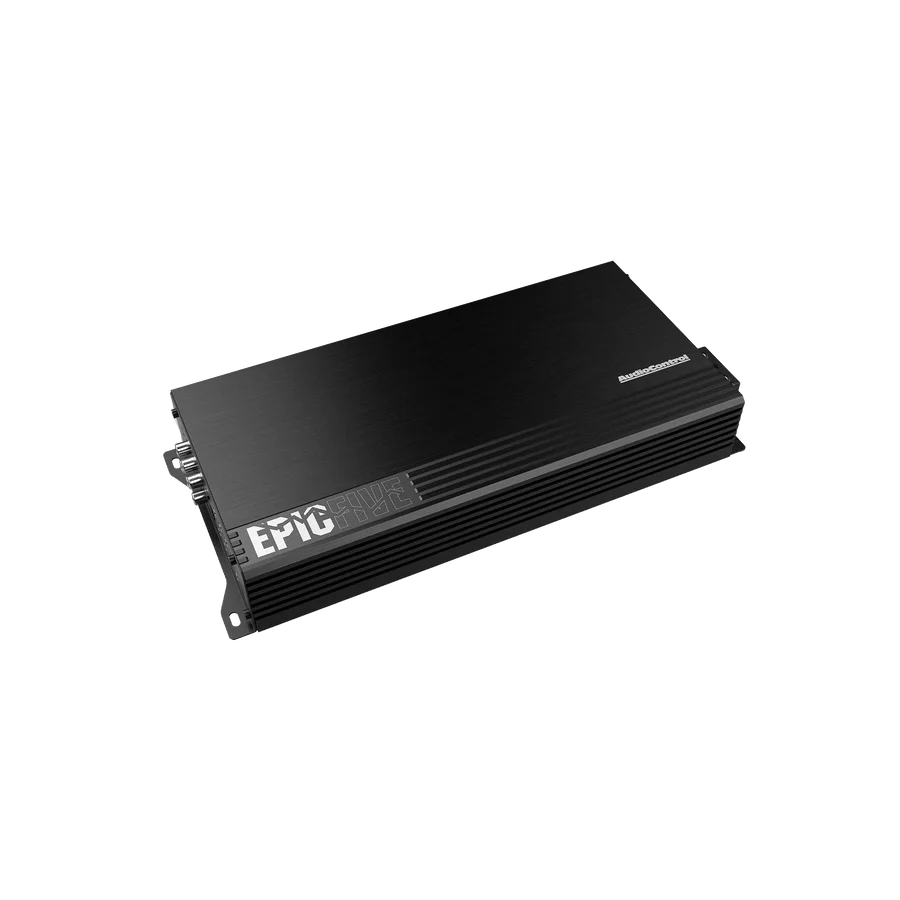

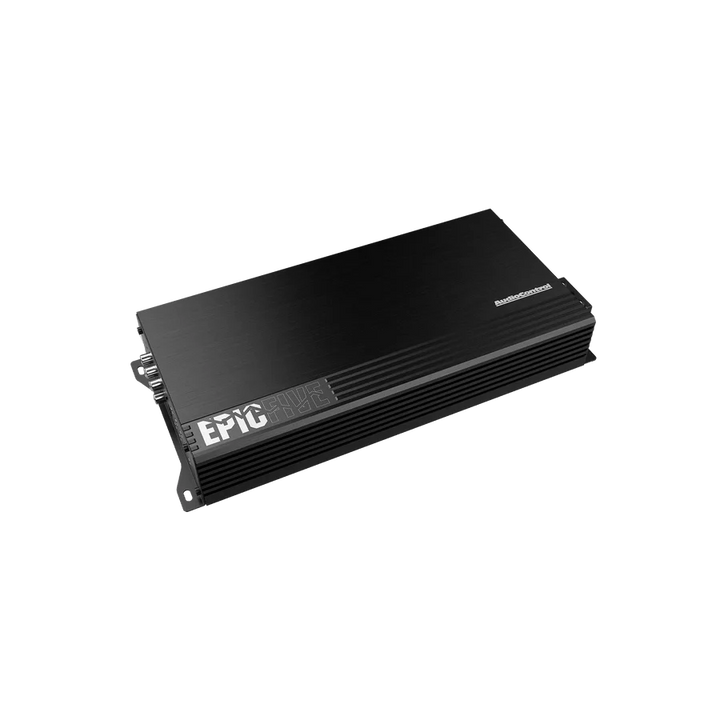

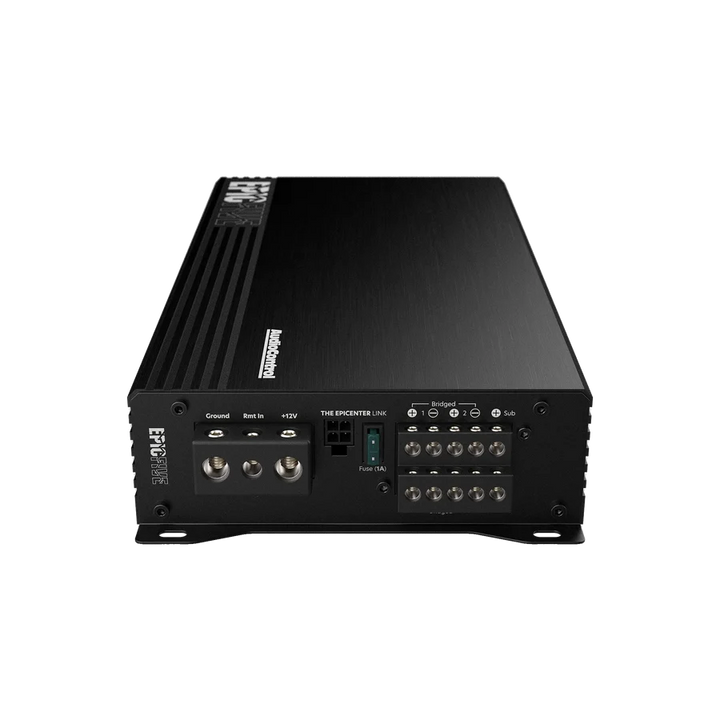

The AudioControl EPIC Series 5-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, ensuring maximum power output while maintaining efficiency. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.

• 0-12dB Variable Bass Boost Q: Selects the frequency to boost

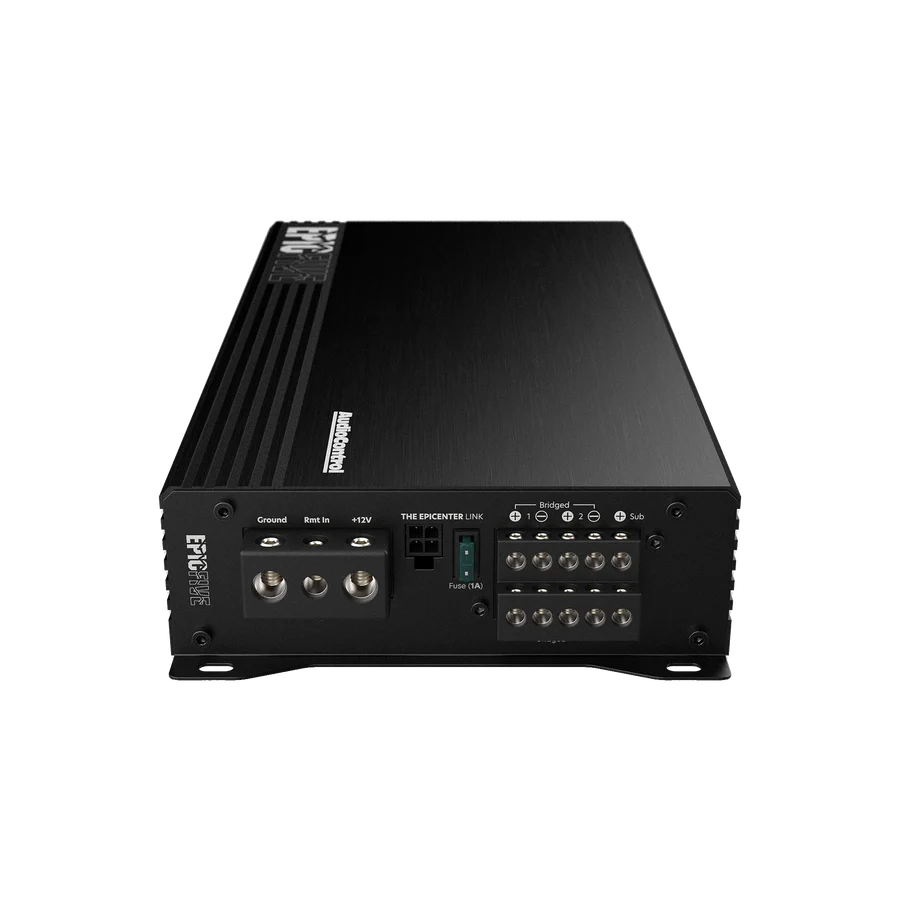

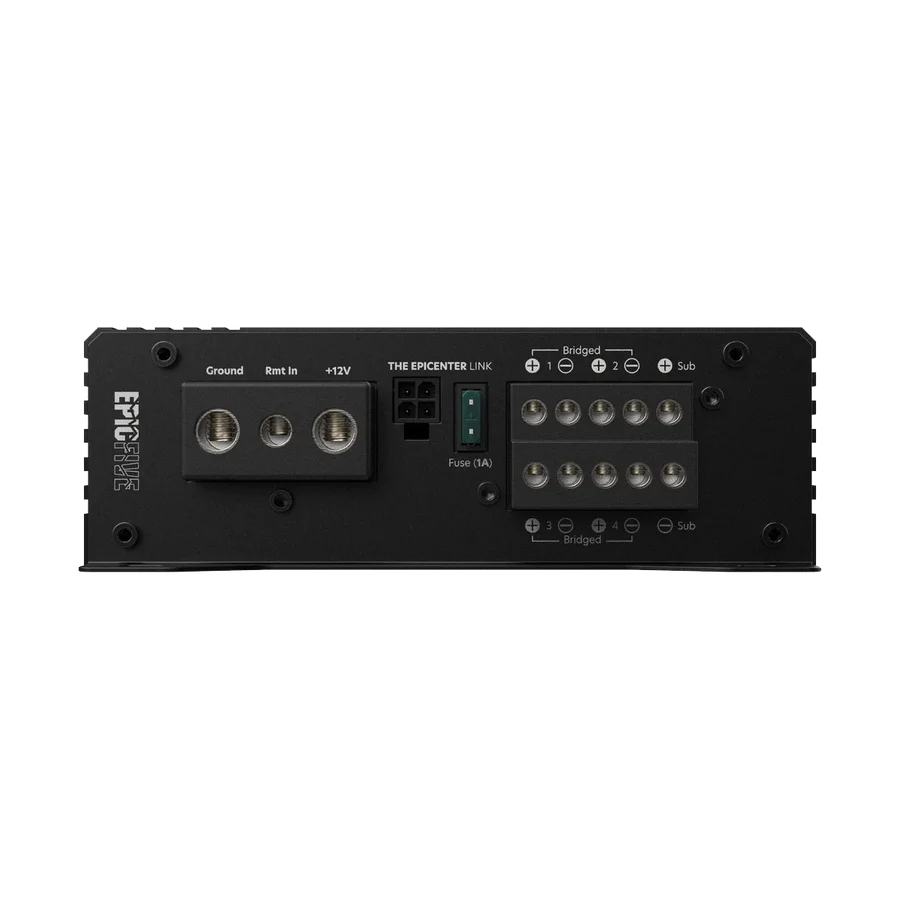

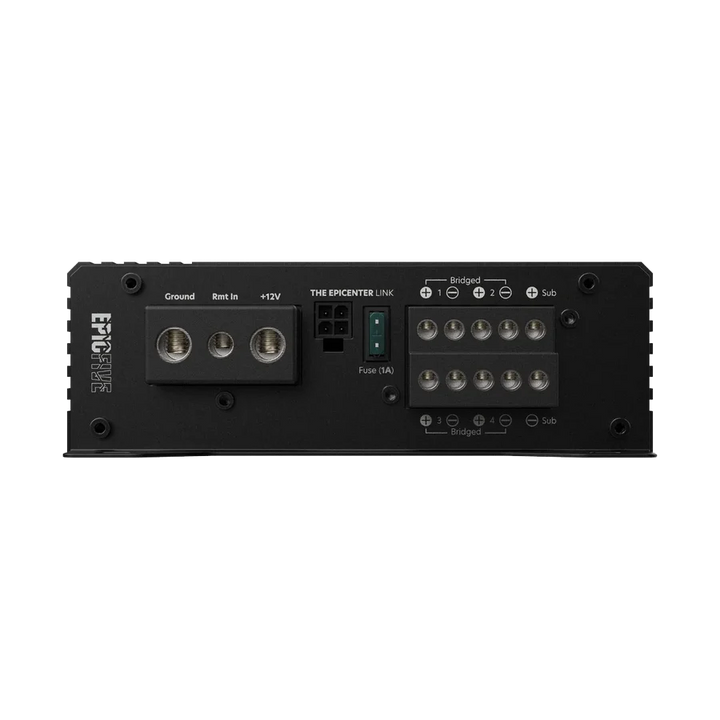

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.

• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).

• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

• Output Over-Current Protection (OCP)

• Input Over-Voltage Protection (OVP)

• Input Under-Voltage Protection (UVP)

• Output DC-Offset Protection (DCP)

• Over-Temperature Protection (OTP)

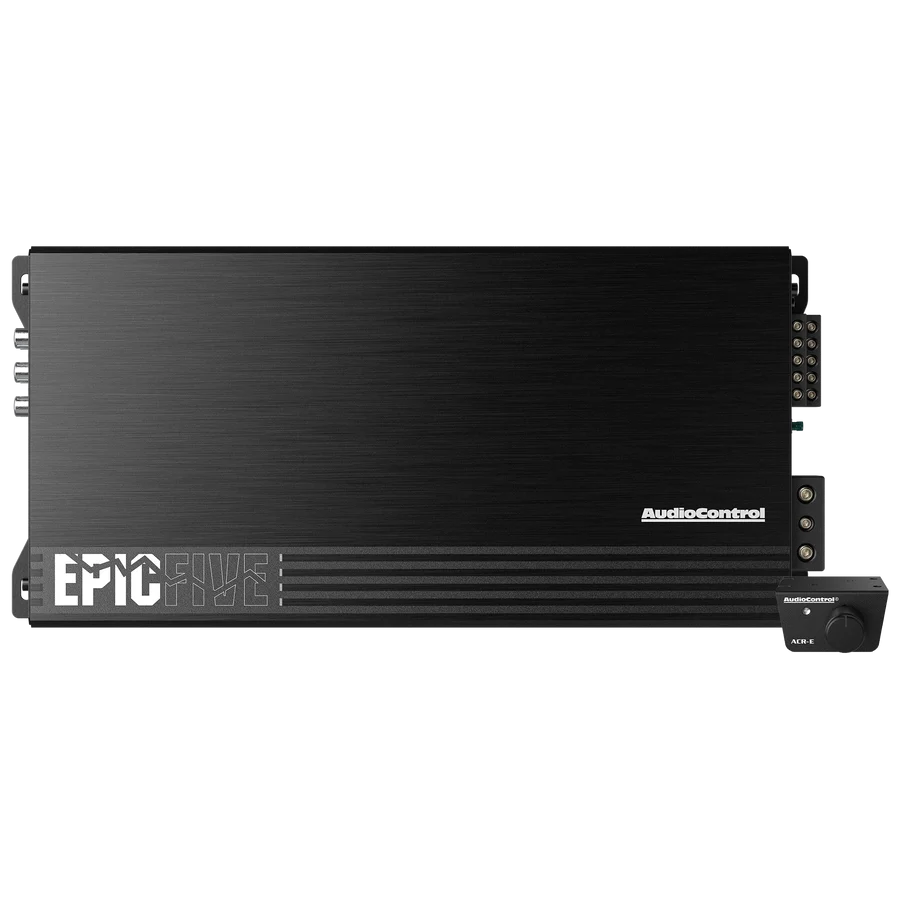

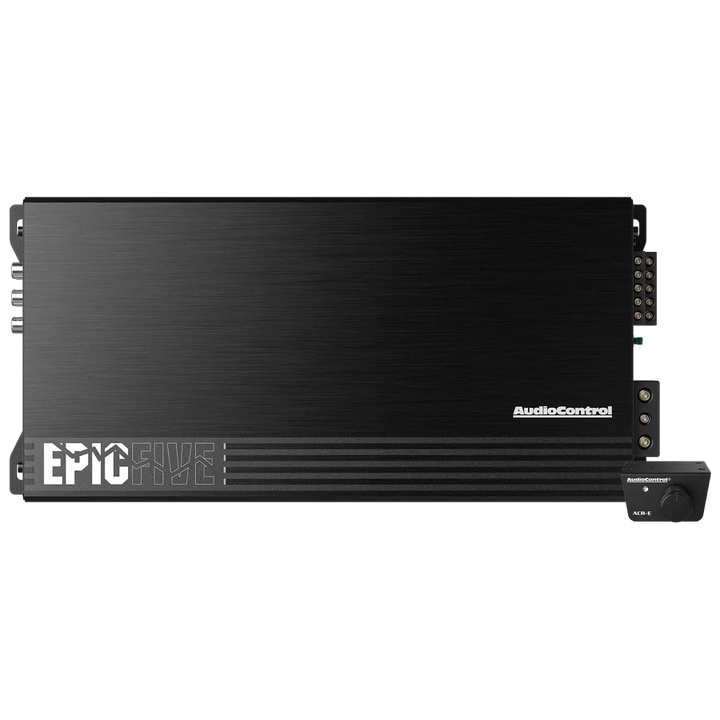

• Included ACR-E Remote Control knob

THE EPICENTER LINK: Simplify your install by connecting the EPIC amplifier directly to an EPICENTER bass restoration processor.

Features:

• Compact High-Power Class D Amplifier

• High-Current Design

• 4 x 75 Watts + 1 x 300 Watts @ 4 ohms

• 4 x 150 Watts + 1 x 500 Watts @ 2 ohms

• 1 x 700 Watts @ 1 ohm

• 2 x 300 Watts @ 4 ohms Bridged

• Smart Auto-Reset Protection Circuit

• 12 dB/octave Linkwitz-Riley Variable HP/LP Filters

• 12 dB/octave Variable Subsonic Filter

• Solid Power/Speaker Terminals with Hex Screws

• Built for THE EPICENTER®

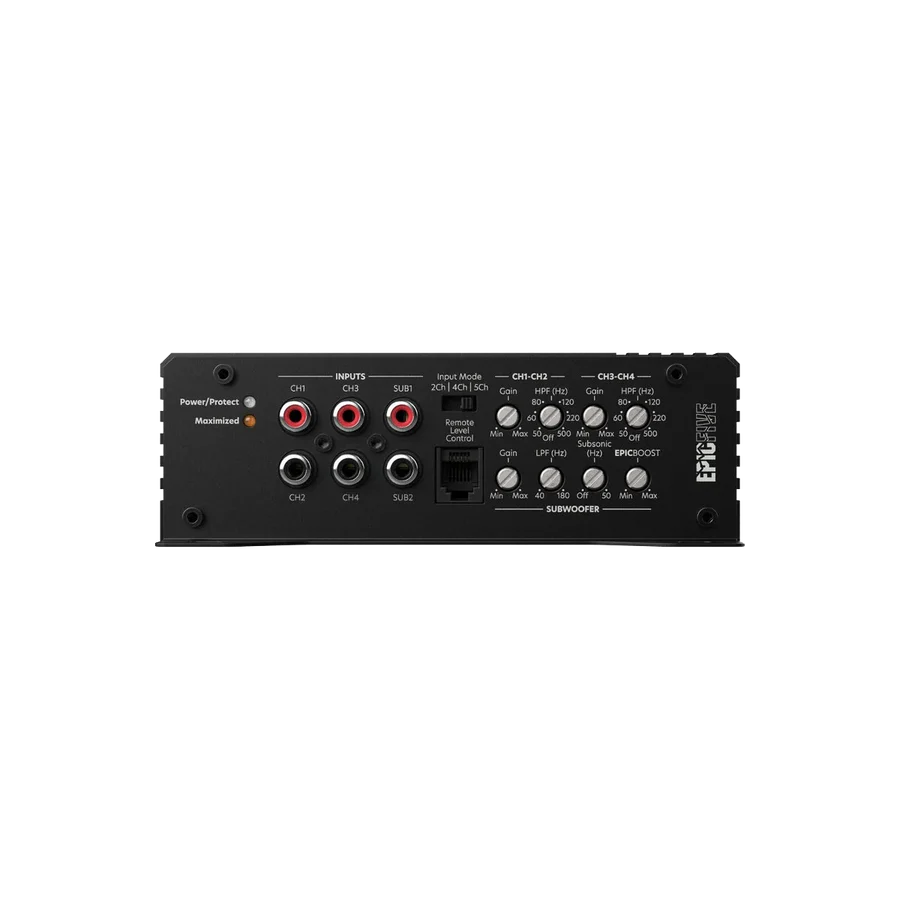

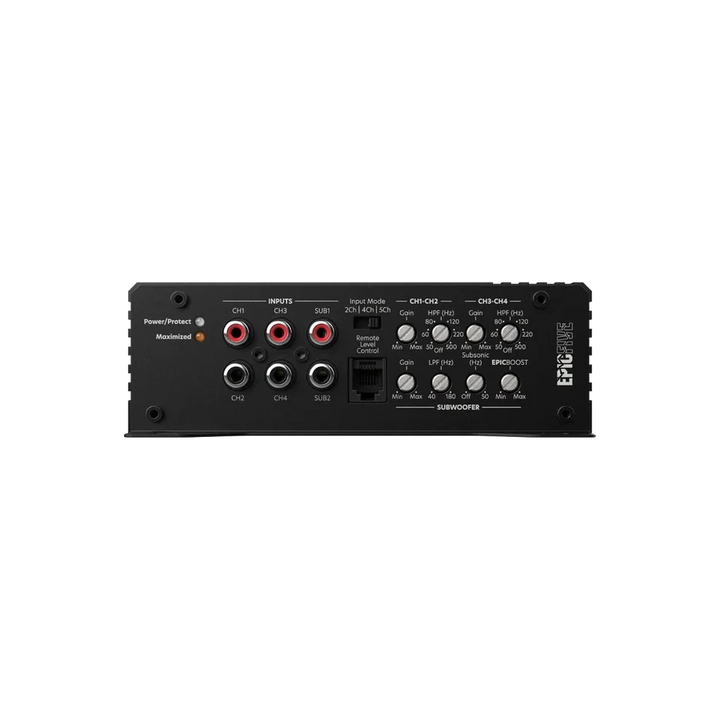

Inputs:

• Line-Level Inputs: 500mV – 12V RMS

Outputs:

• Continuous Power (RMS) @ 14.4V

• 4 x 75 Watts + 1 x 300 Watts @ 4 ohms

• 4 x 150 Watts + 1 x 500 Watts @ 2 ohms

• 1 x 700 Watts @ 1 ohm (subwoofer output)

• 2 x 300 Watts @ 4 ohms Bridged

Performance:

• Frequency Response (+/- 1 dB):

• 10 Hz – 24 kHz (Ch1/2/3/4)

• 12 Hz – 181 Hz (Ch5)

• S/N Ratio: 92.1 dBa, Ref 75 Watts @ 4 ohms

• Power / Ground Wire Gauge: 4 AWG

• Recommended Fuse Rating: 150 Amps

• High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz

• Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz

• Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz

• EPIC Boost: Frequency Center: 45 Hz, Gain: 0 to 12 dB

• Speaker Terminal Wire Gauge: 8 AWG

Measurements:

• 6.1″ W x 13.35″ L x 2.01″ H
