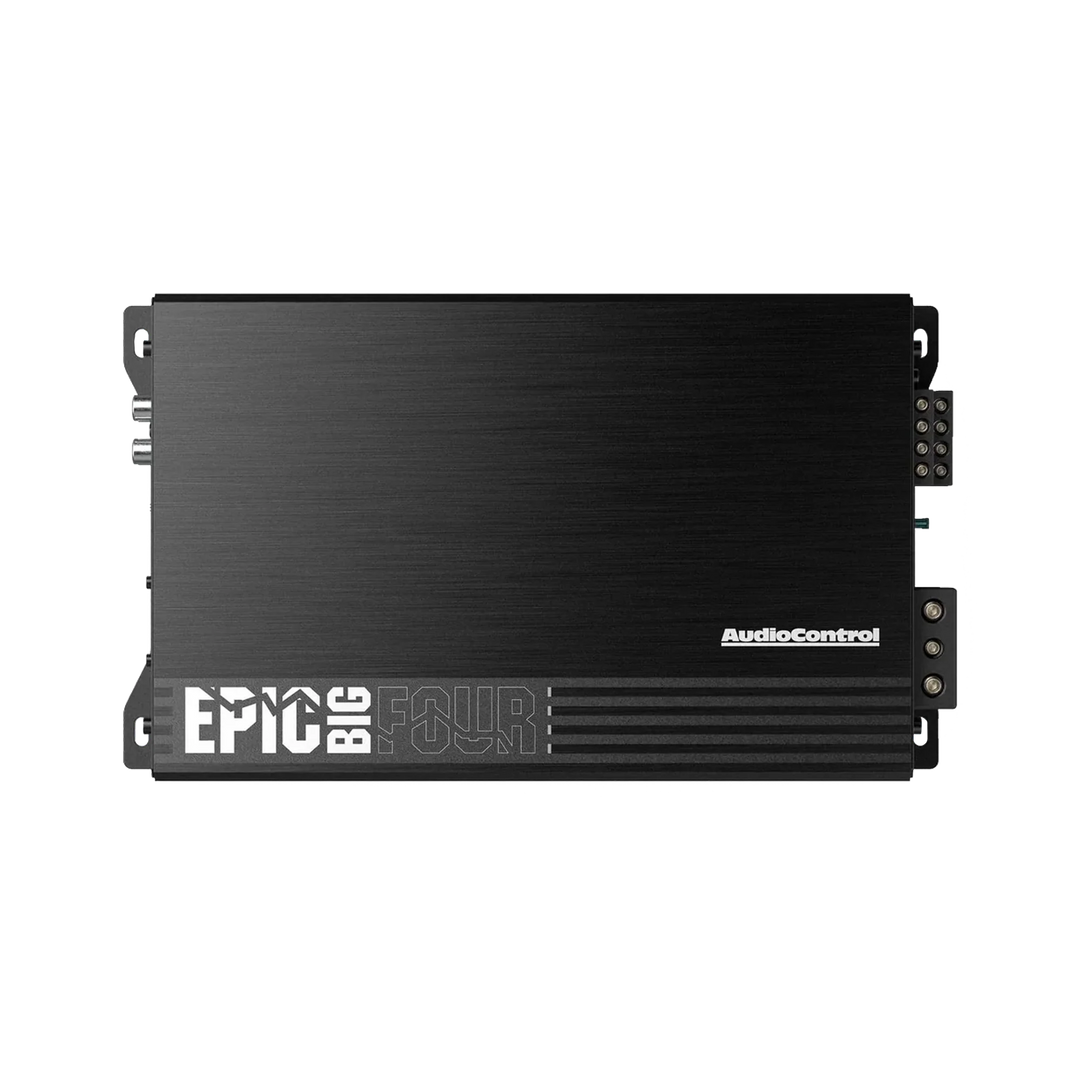

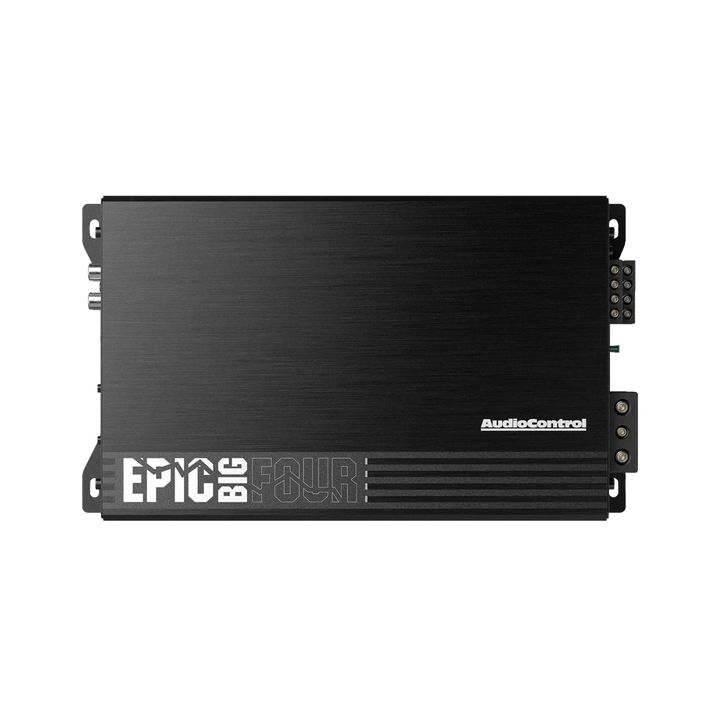

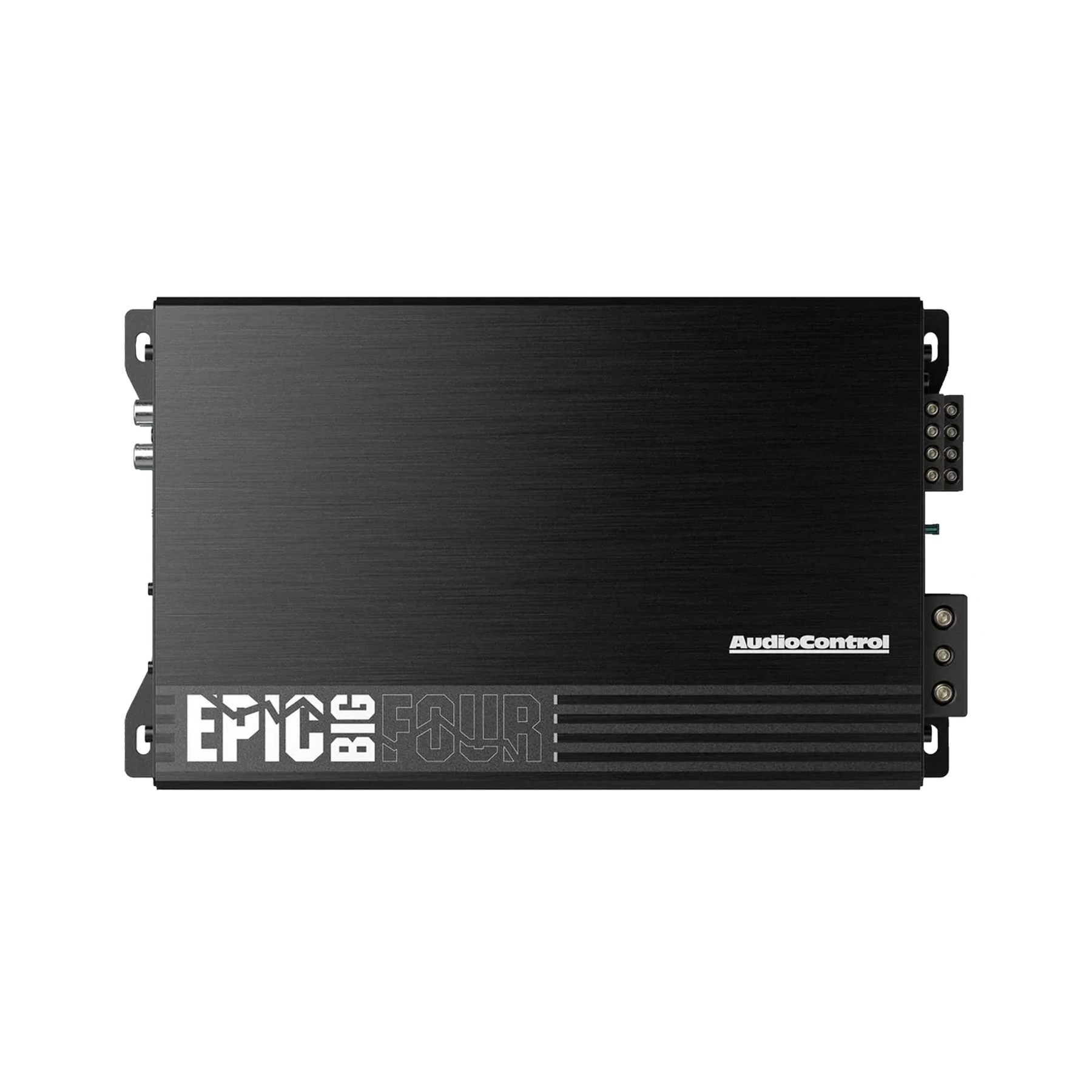

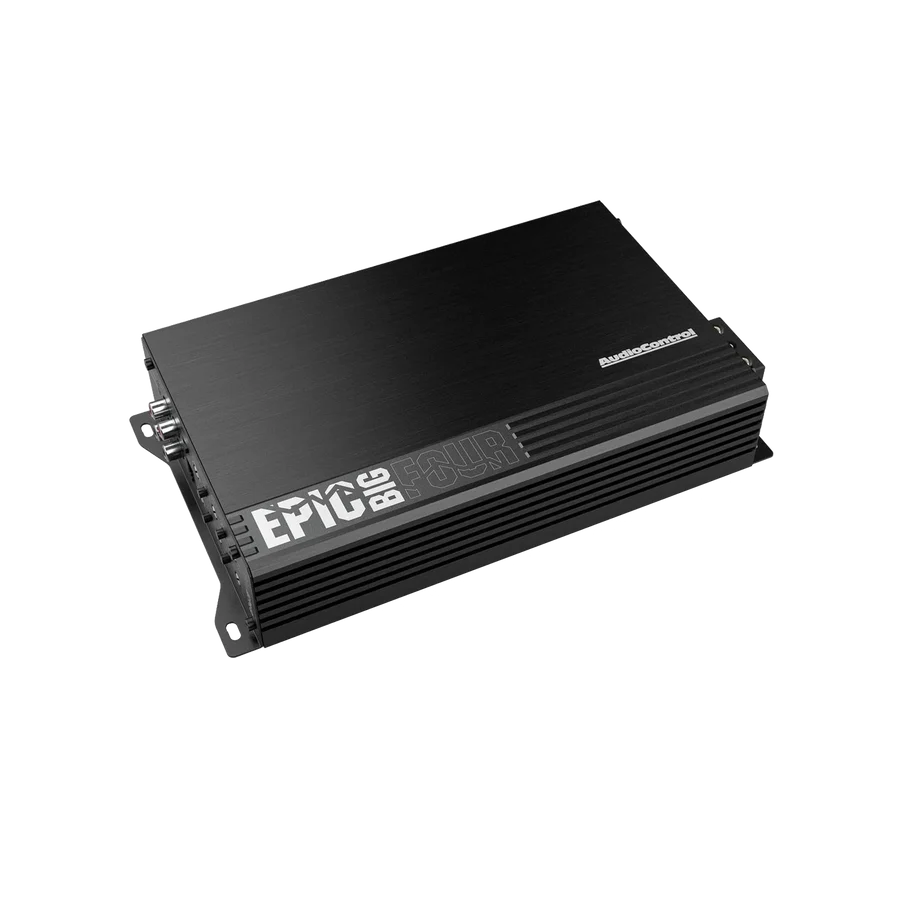

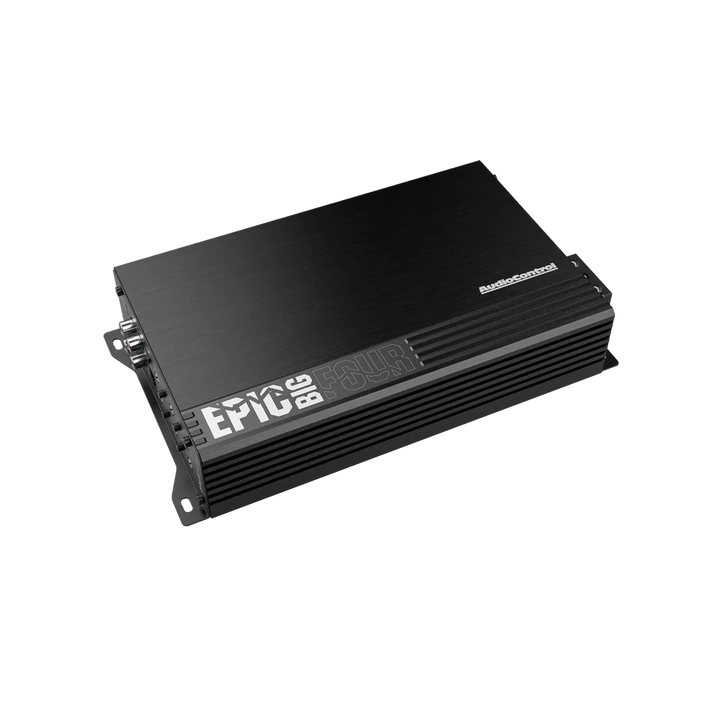

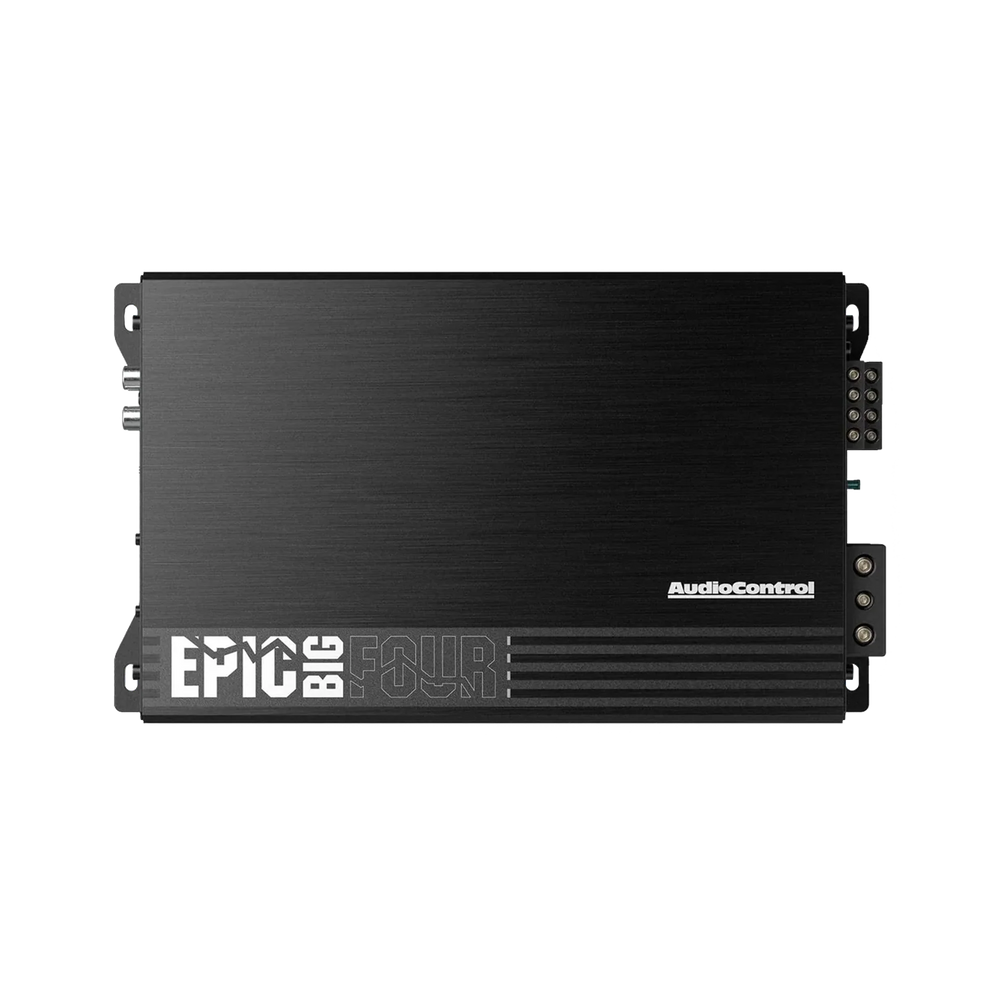

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package. The EPICBIGFOUR is designed to deliver massive power at 1400W RMS.

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.

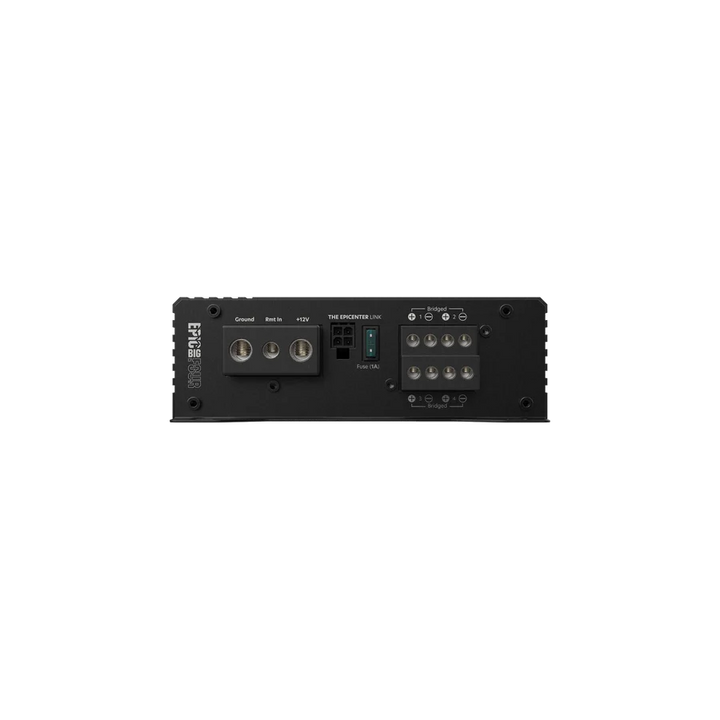

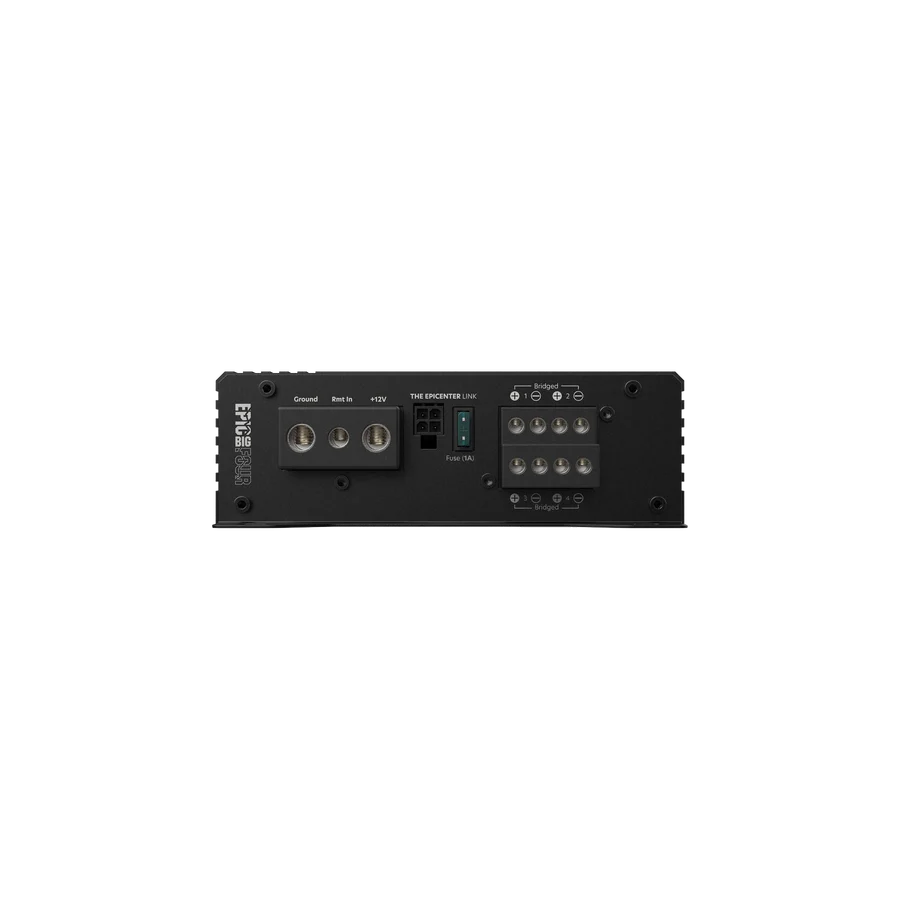

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.

• 89dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).

• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

• Output Over-Current Protection (OCP)

• Input Over-Voltage Protection (OVP)

• Input Under-Voltage Protection (UVP)

• Output DC-Offset Protection (DCP)

• Over-Temperature Protection (OTP)

THE EPICENTER LINK: Simplify your install by connecting the EPIC amplifier directly to an EPICENTER bass restoration processor.

Features:

• Compact High-Power Class D Amplifier

• High-Current Design – 2Ω Stable

• 4 x 200 Watts @ 4 ohms

• 4 x 350 Watts @ 2 ohms

• 2 x 650 Watts @ 4 ohms Bridged

• Smart Auto-Reset Protection Circuit

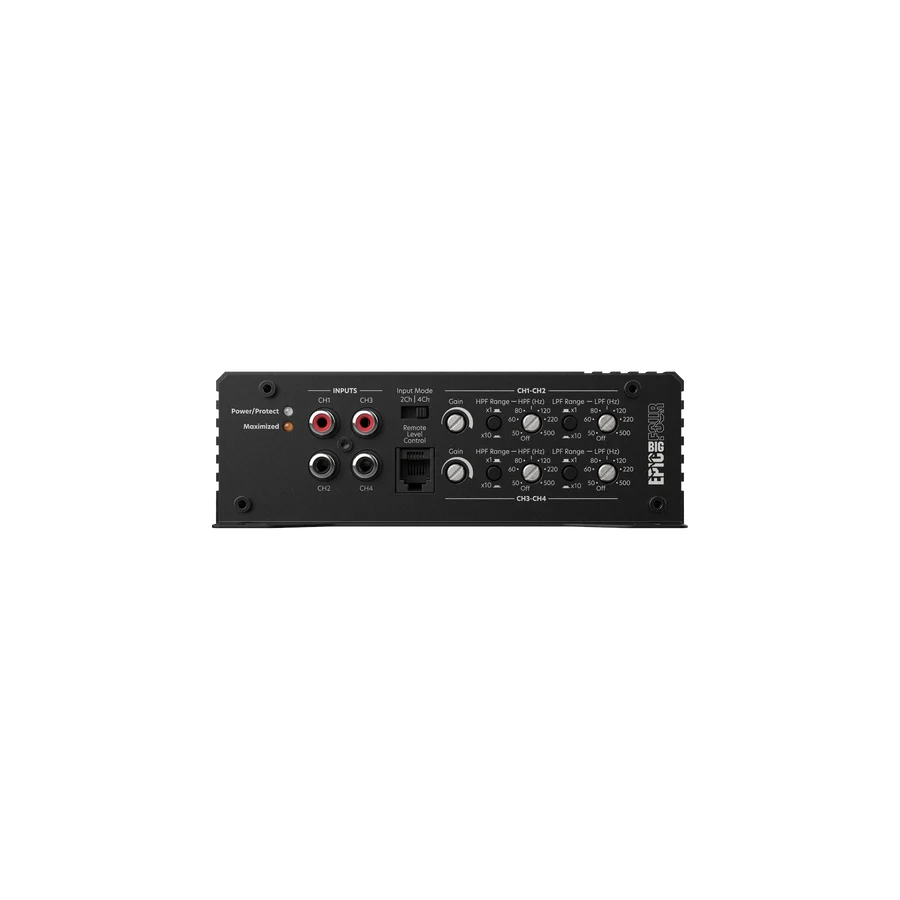

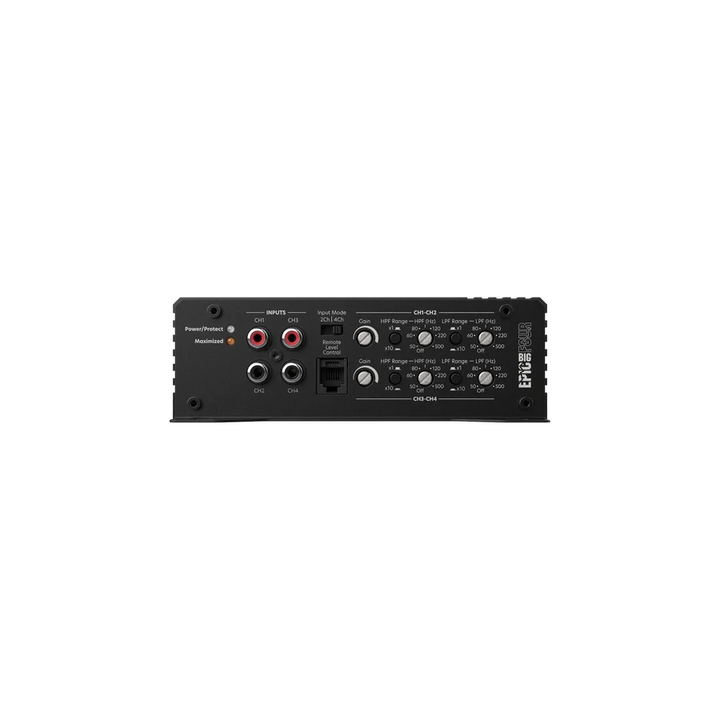

• 12 dB/octave Linkwitz-Riley Variable High Pass & Low Pass Filters

• Solid Power/Speaker Terminals with Hex Screws

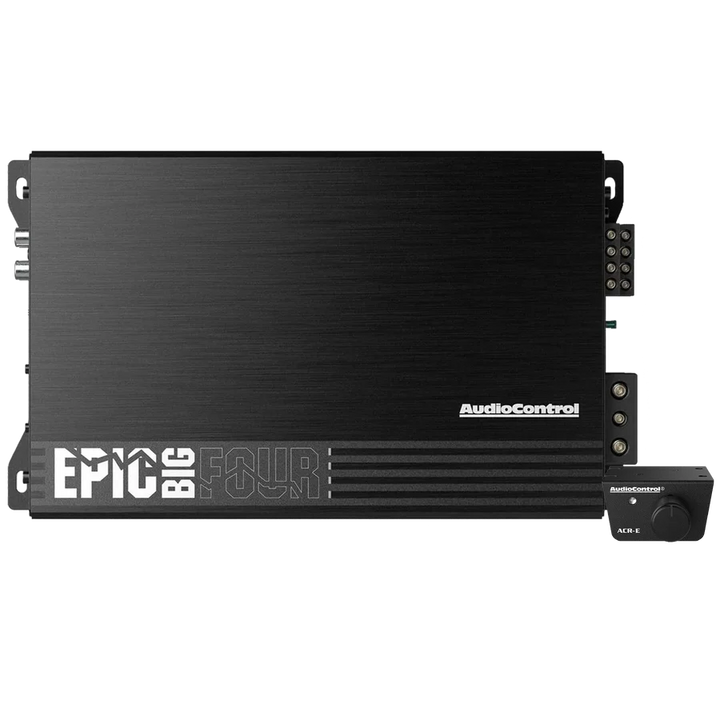

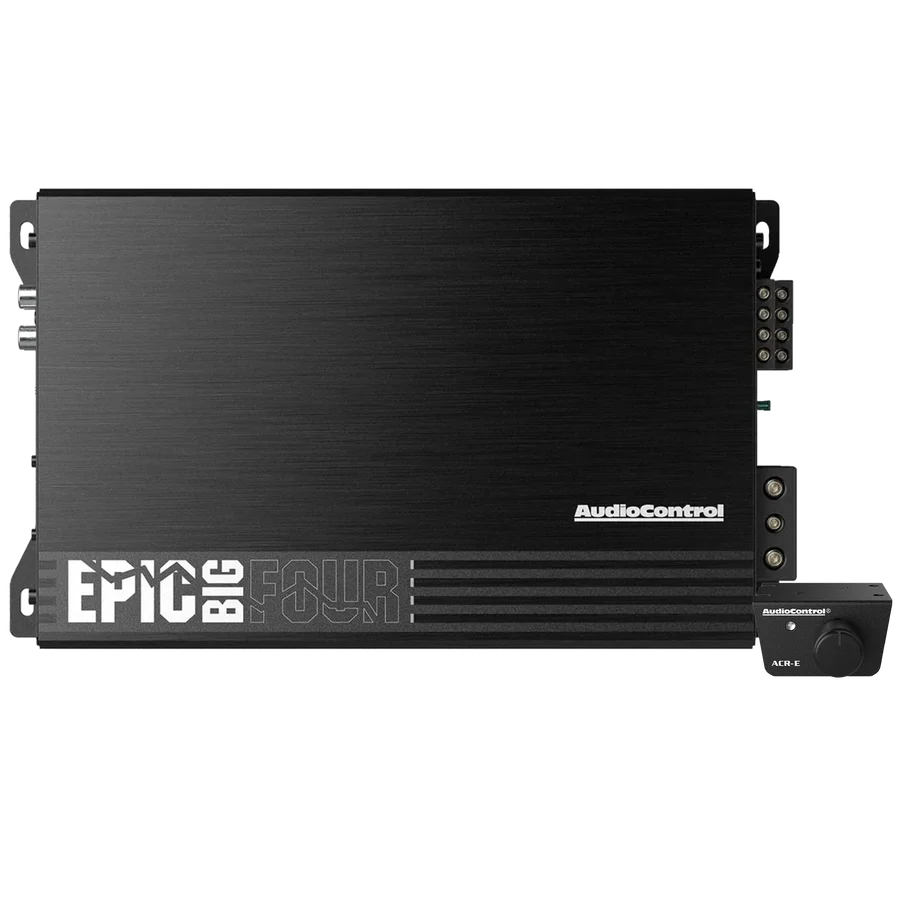

• ACR-E Remote Bass Knob Included

Continuous Power (RMS) @ 14.4V:

• 4 x 200 Watts @ 4 ohms

• 4 x 350 Watts @ 2 ohms

• 2 x 650 Watts @ 4 ohms Bridged

Specifications:

• Frequency Response (+/- 1 dB): 10 Hz – 22 kHz

• S/N Ratio: 89 dBa, Ref 200 Watts @ 4 ohms

• Power / Ground Wire Gauge: 4 AWG

• Recommended Fuse Rating: 150 Amps

• High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz

• Low Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz

• Speaker Terminal Wire Gauge: 8 AWG

Measurements:

• 6.1″ W x 10.56″ L x 2.01″ H
