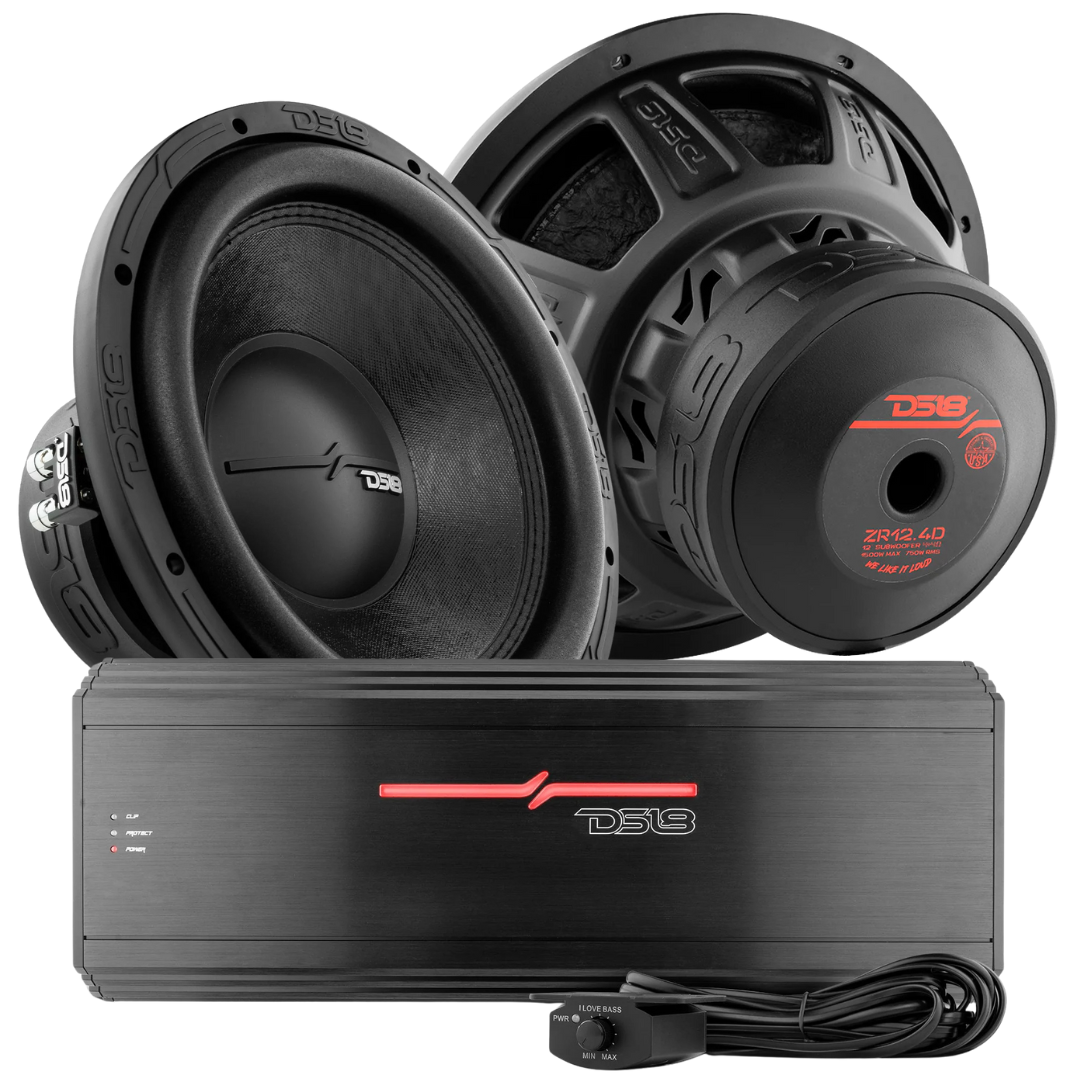

THIS PACKAGE INCLUDES:

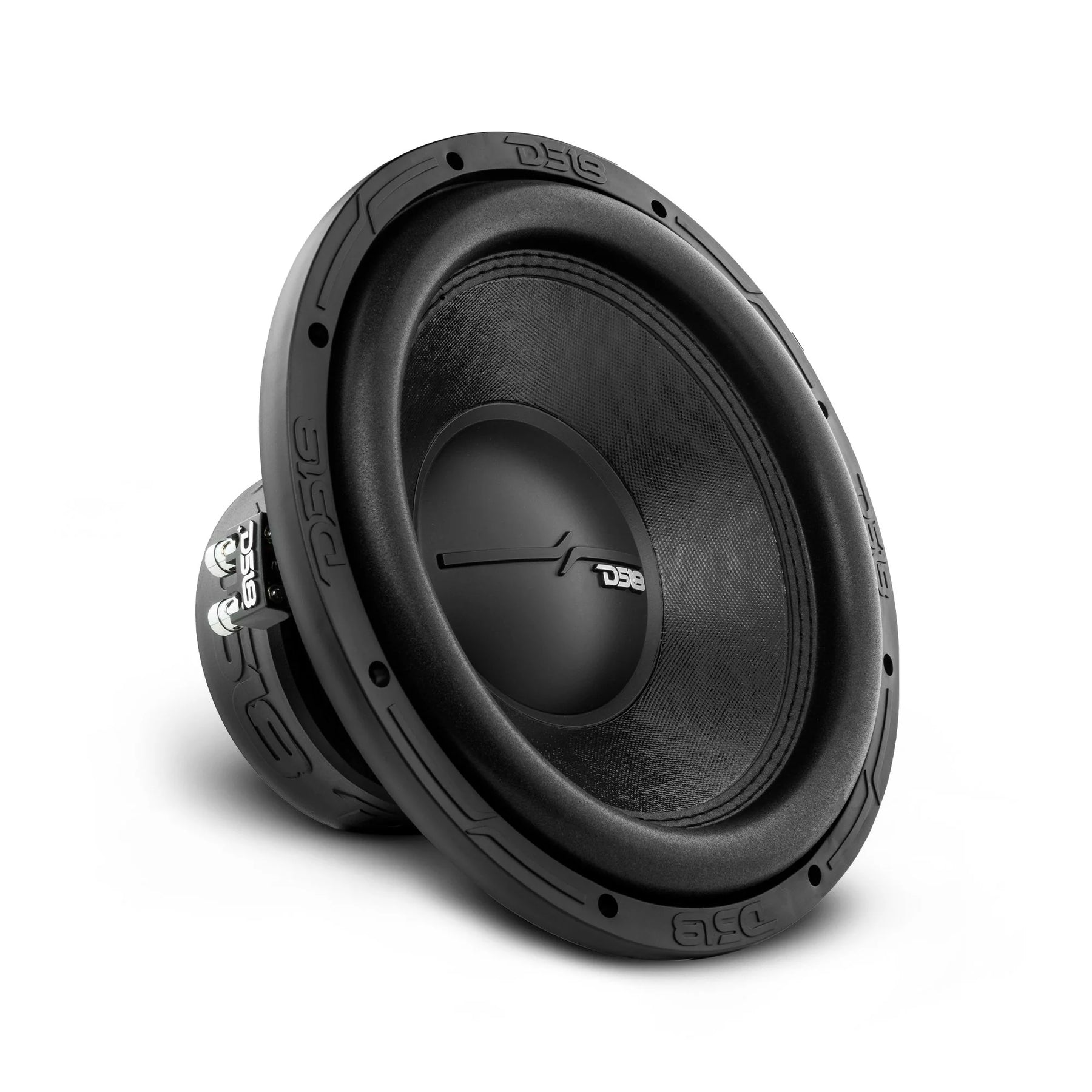

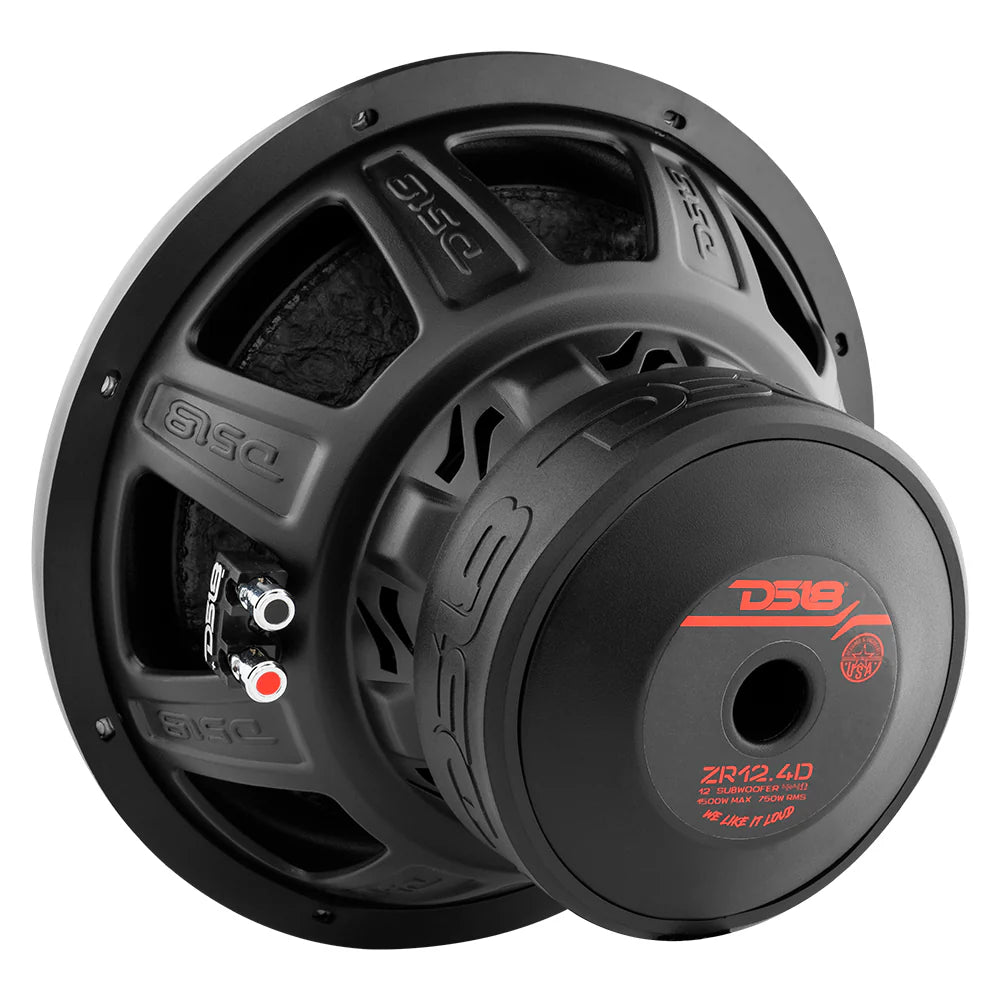

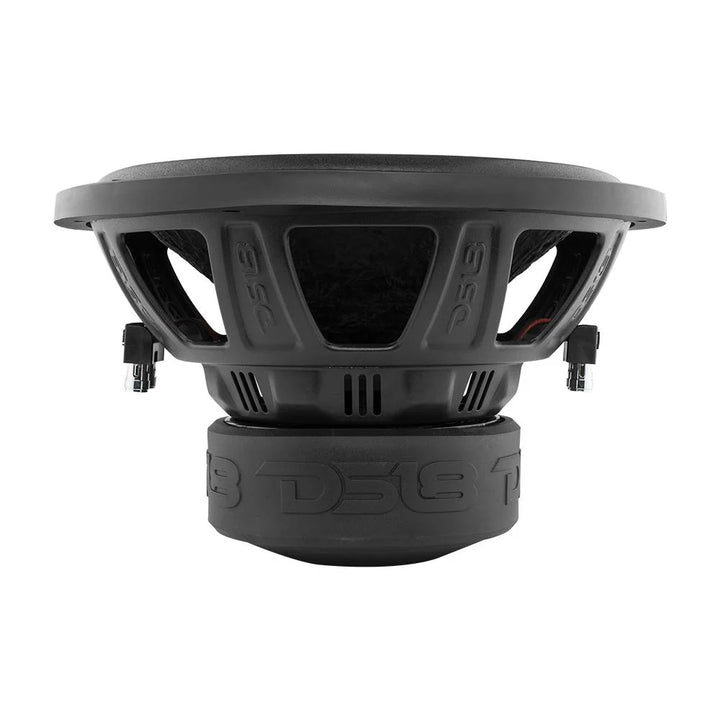

• (2) DS18 ZR12.4D 12" Subwoofer with 2.5" Aluminum Voice Coil - 750 Watts Rms 4-ohm DVC

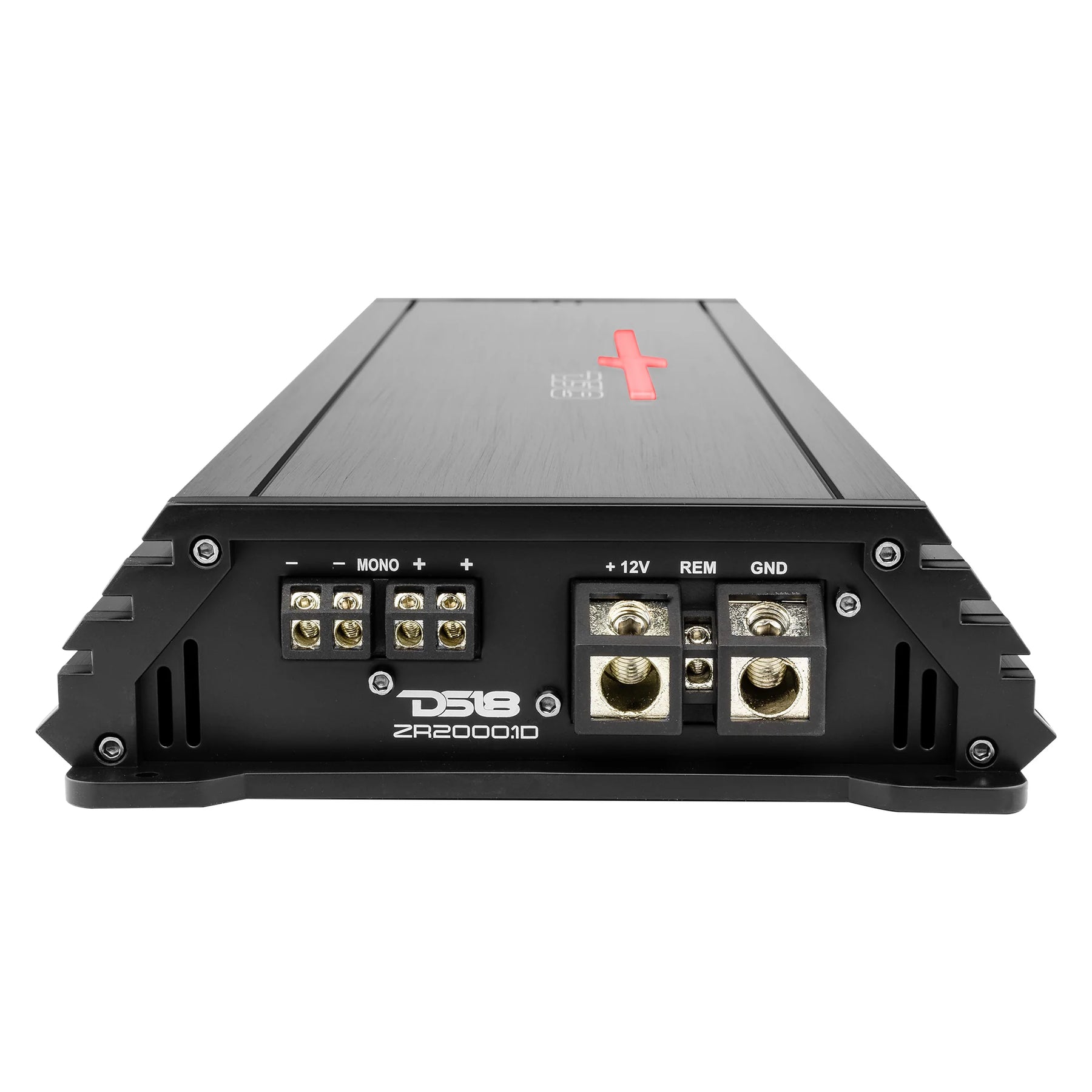

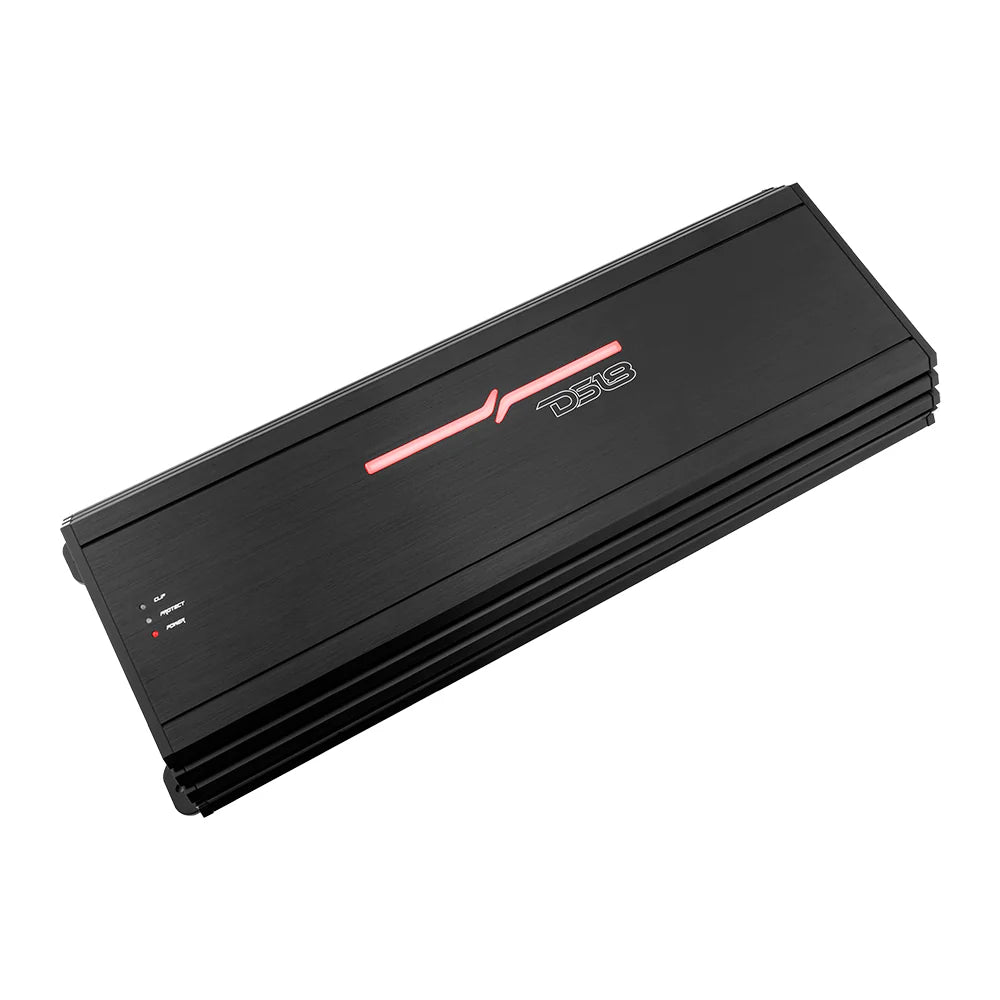

• (1) DS18 ZR2000.1D 2000W Rms Monoblock Amplifier - 1 x 2000 Watts Rms @ 1-ohm

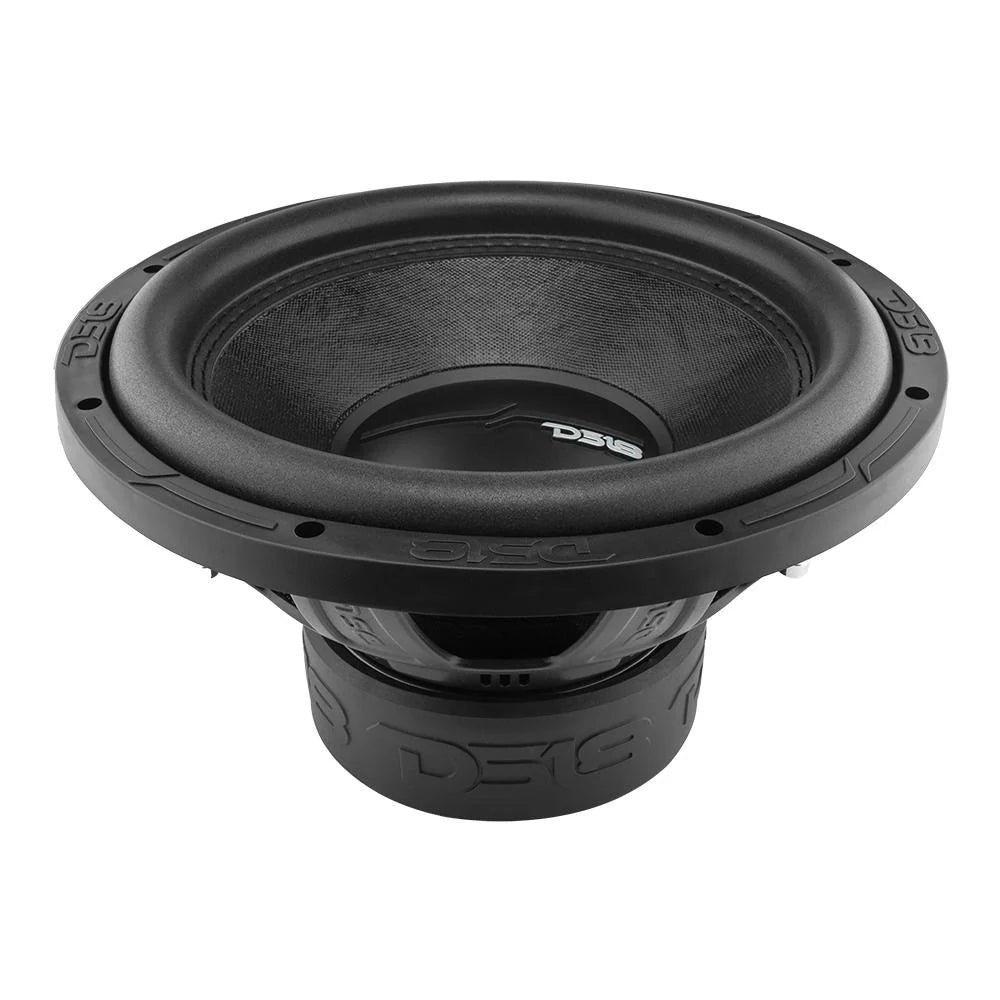

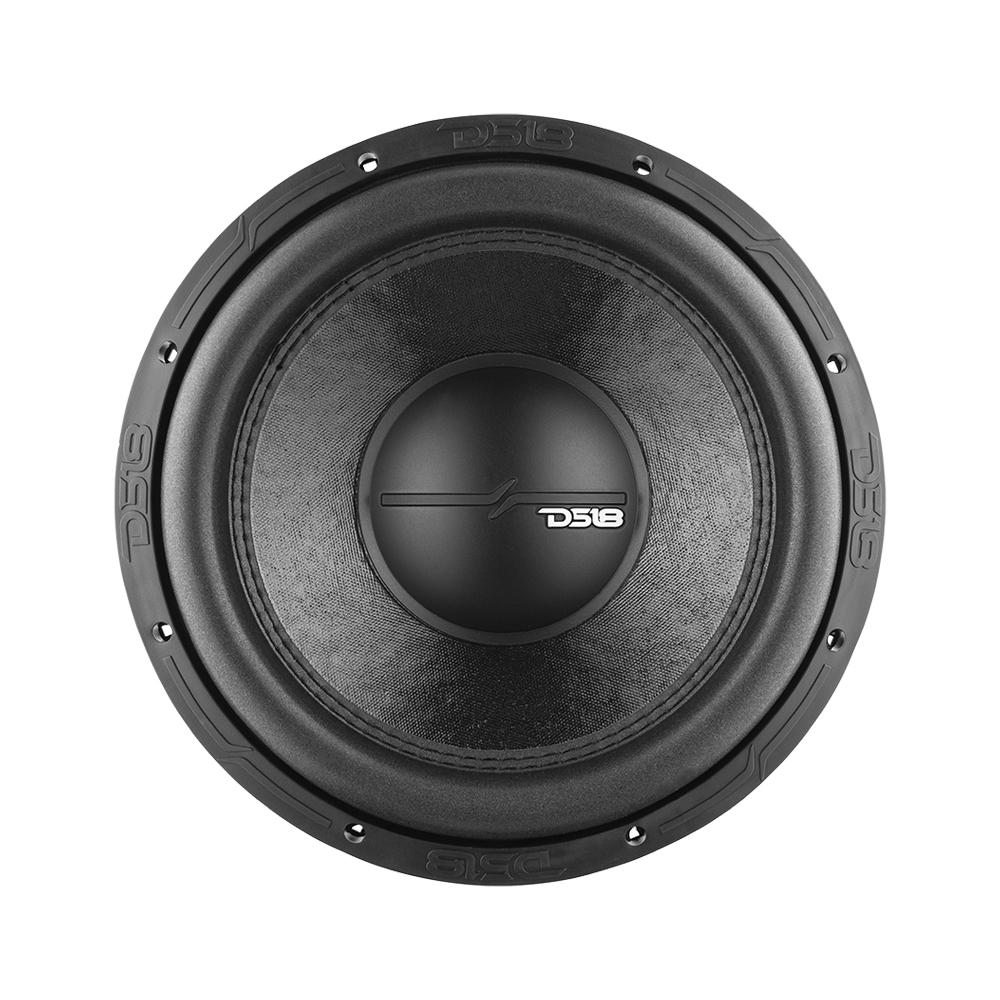

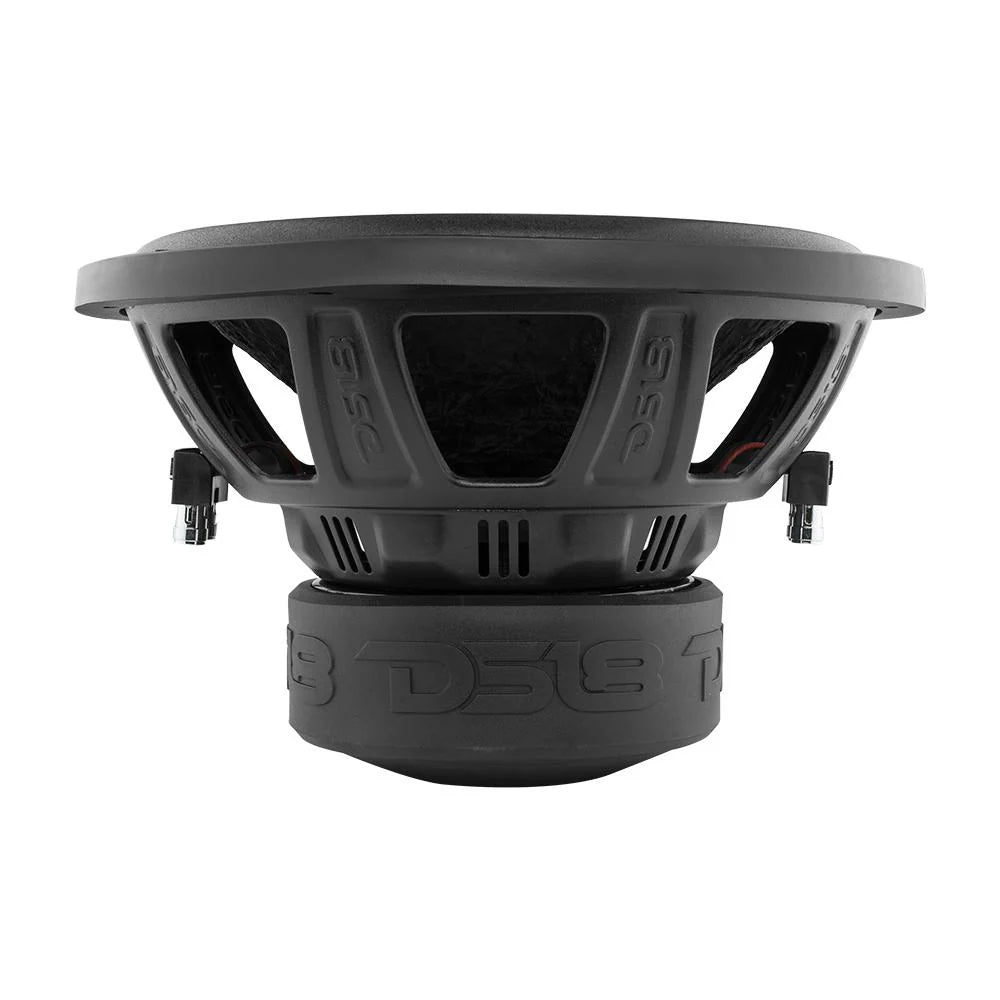

The ZR subline is renowned for its exceptional performance, and the ZR12.4D is no exception. With a robust 1500W of MAX power handling and 750W of RMS power handling, the ZR12.4D guarantees a spine-tingling audio experience that will leave you craving for more. Its 2.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 4+4 ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.

Key Features:

• 12" Subwoofer

• MAX Power: 1500 Watts

• RMS Power: 750 Watts

• Impedance: 4-Ohm 2.5" DVC

• Ferrite Magnet

• 82dB

Specifications:

• SKU: ZR12.4D

• Nominal Diameter: 12" / 305mm

• Nominal Impedance: 4 + 4 Ohm

• RMS Power Handling: 750W

• Maximum Power Handling: 1500W

• Sensitivity (1w/1m): 82 dB

• Frequency Response: 25-200Hz

• Recommended Lo Pass Crossover: 90Hz

Motor:

• Voice Coil Diameter: 2.5" / 61.6mm

• Voice Coil Former Material: Aluminum

• Winding Material: Copper

• Cone Material: Non-Pressed Paper

• Dust Cap Material: PPI

• Surround Material: Foam

• Basket Material: Steel

• Basket Color/Finish: Black Matte

• Magnet Material: Ferrite

• Magnet Weight: 100 Oz

Thiele & Small Parameters:

• Equivalent Volume Vas: 22.7 L

• Free Air Resonance Fs: 28 Hz

• Mechanical Factor Qms: 5.08

• Electrical Factor Qes: 0.94

• Total Factor Qts: 0.79

• Moving Mass Mms: 268.1g

• Compliance Cms: 66.4 m/N

• Bl Factor BI: 10.7

• Voice Coil Inductance Le: 818.8m mH

• Diaphragm Area Sd: 502.73 Cm2

• DC Resistance Re: 3.4 + 3.4 Ohm

• Efficiency Bandwidth Product EBP: 29.8

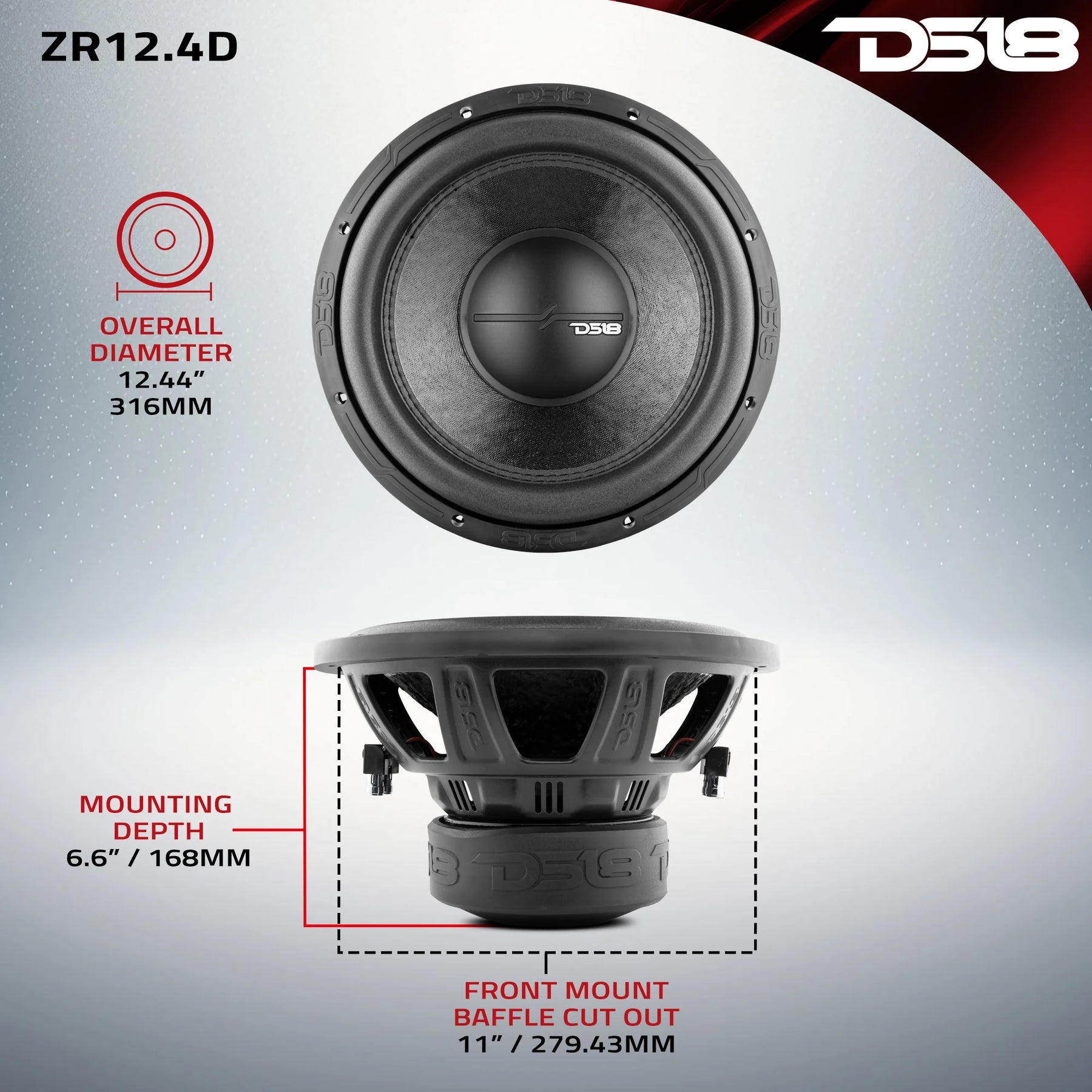

Measurements:

• Overall Diameter: 12.36" / 314mm

• Overall Depth: 7.55" / 192mm

• Front Mount Baffle Cutout: 11.2" / 284mm

• Mounting Depth: 6.6" / 168mm

• Motor Diameter: 6.1" / 155mm

• Displacement Volume: 0.07 ft3

• Gross Single Unit Weight (lb): 18.5

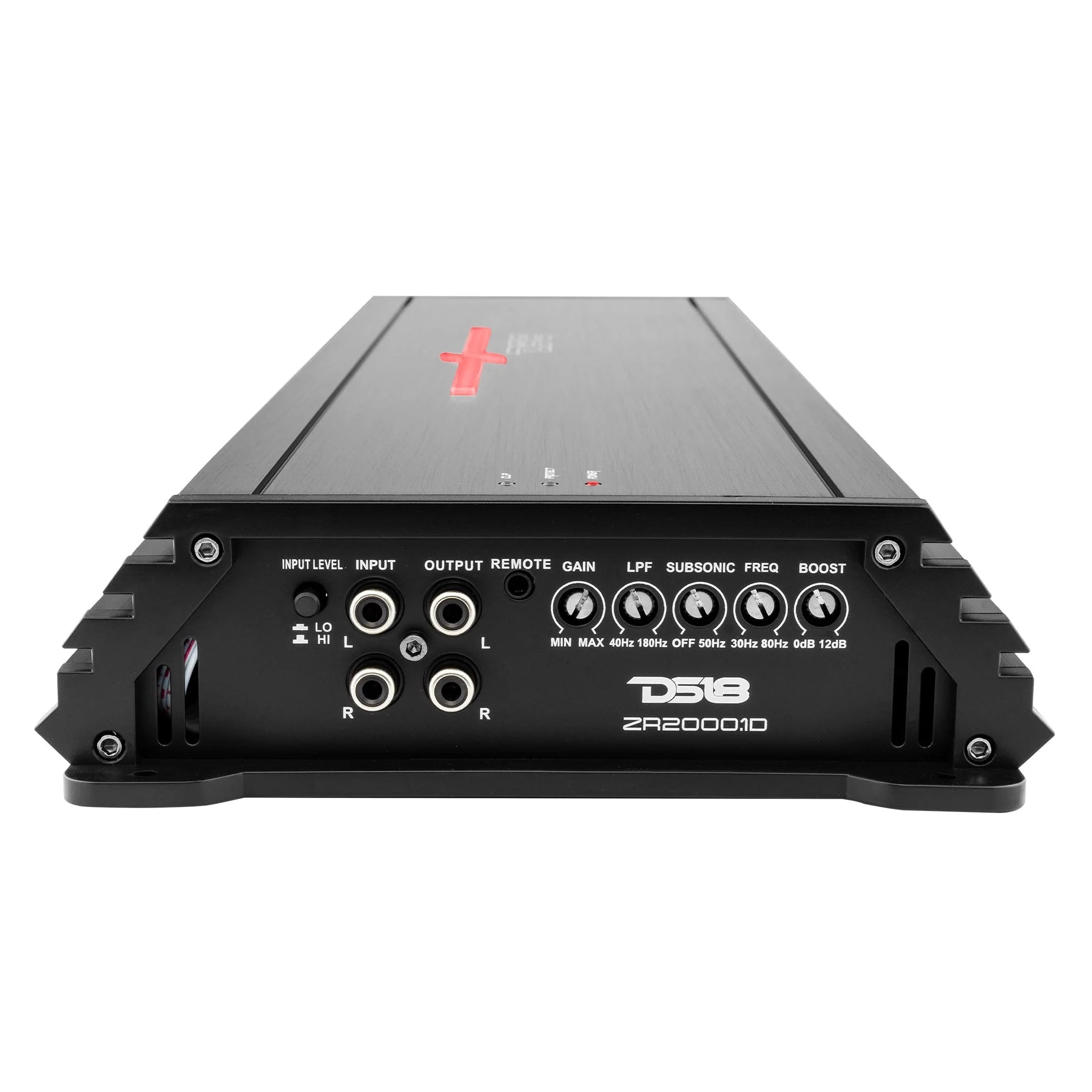

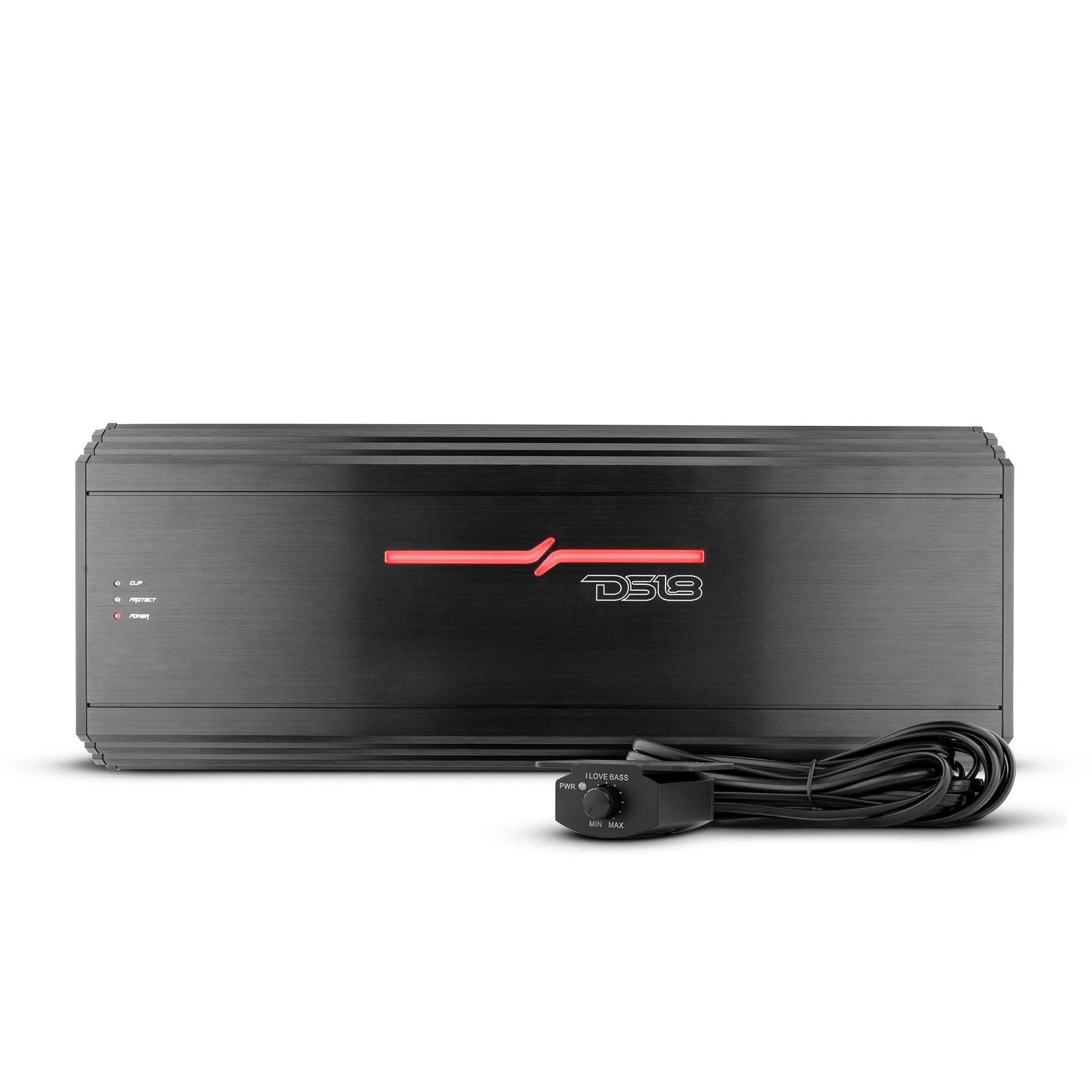

With DS18's ZR2000.1D, the possibilities are endless. It boasts an impressive array of tuning options, including Lowpass, Subsonic, as well as a Bass Boost Switch Selector that allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.

Key Features:

• 1 Channel Subwoofer Monoblock

• Class D

• 1 ~ 4 Ohm Stable

• 1 x 2000 Watts @ 1 Ohm

• Clip/Protection Indicator

• Bass Control Knob

• High Level Input

Power:

• Total Watts (Peak): 6000W

• RMS Power @ 4 Ohm: 800W

• RMS Power @ 2 Ohm: 1300W

• RMS Power @ 1 Ohm: 2000W

Audio:

• Frequency Response: 10-220Hz

• Signal to Noise Ratio: >95dB

• Efficiency @ 4 Ohm: 80%

• Damping Factor: 220

• Input Impedance: 20K ohm

• Total Harmonic Distortion (THD): 0.01%

• Low Level Input Range: 0.2-6V

• Selectable X-Over: LPF Fixed

• X-Over Filter Range: 40-180Hz

• Bass Boost Range: 0-12dB

• Bass Boost Frequency: 30-80Hz

• Infrasonic Filter: 10-50Hz

Features:

• Amplifier Class: Digital

• Amplifier Type: Monoblock Subwoofer

• Number of Channels: 1

• Minimum Impedance: 1 Ohm

• Led Indicator: Clipping/protect/power

• Power Input Terminal Size: 0 GA

• Fuse Size: 200 A

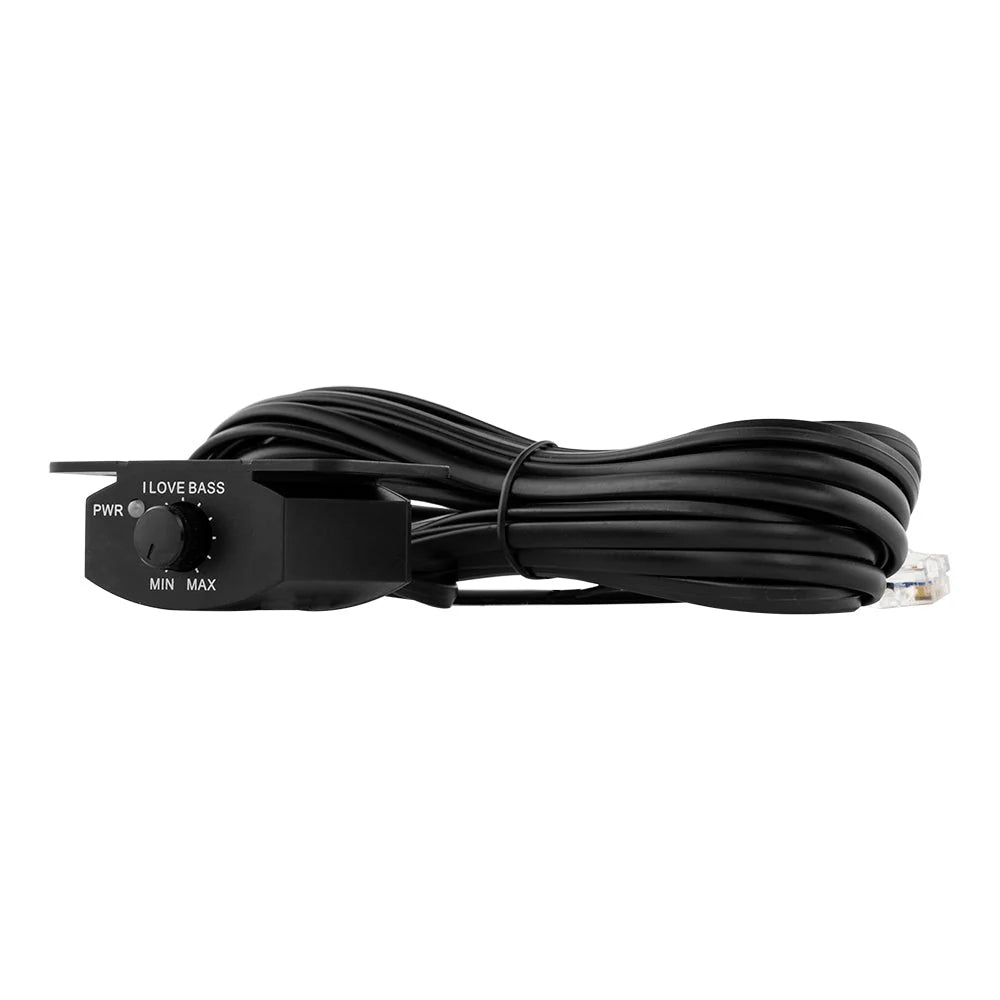

• Remote Level Control: Yes / Dash Mount

• Max Voltage Input: 16 Volts

• Body Color / Finish: Black Aluminum Brush

Measurements:

• Overall Length: 19.13" / 486mm

• Overall Wide: 7.24" / 184mm

• Overall Height: 2" / 53mm

• Heatsink Length: 17.75" / 451mm

• Gross Single Unit Weight: 8.1Lb
