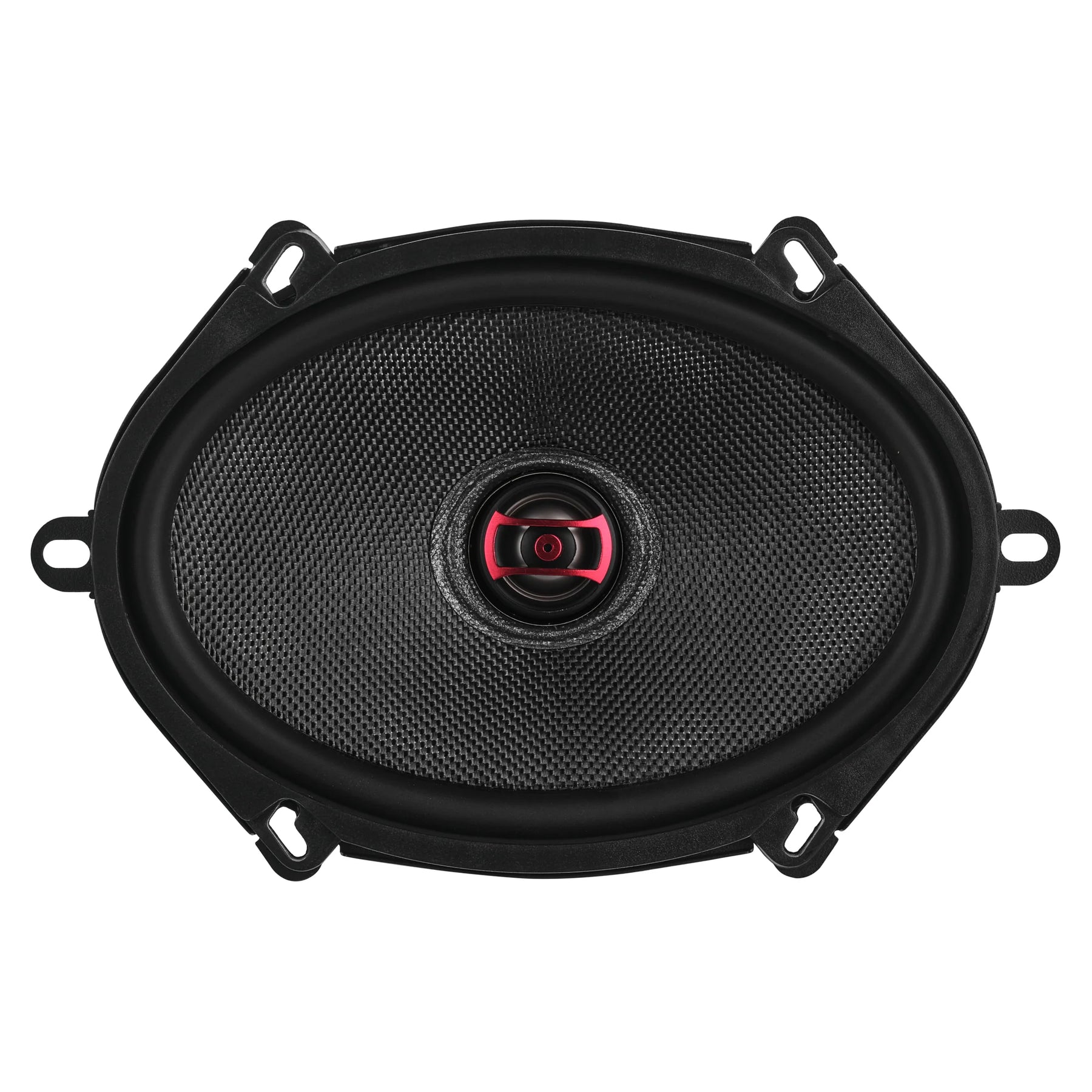

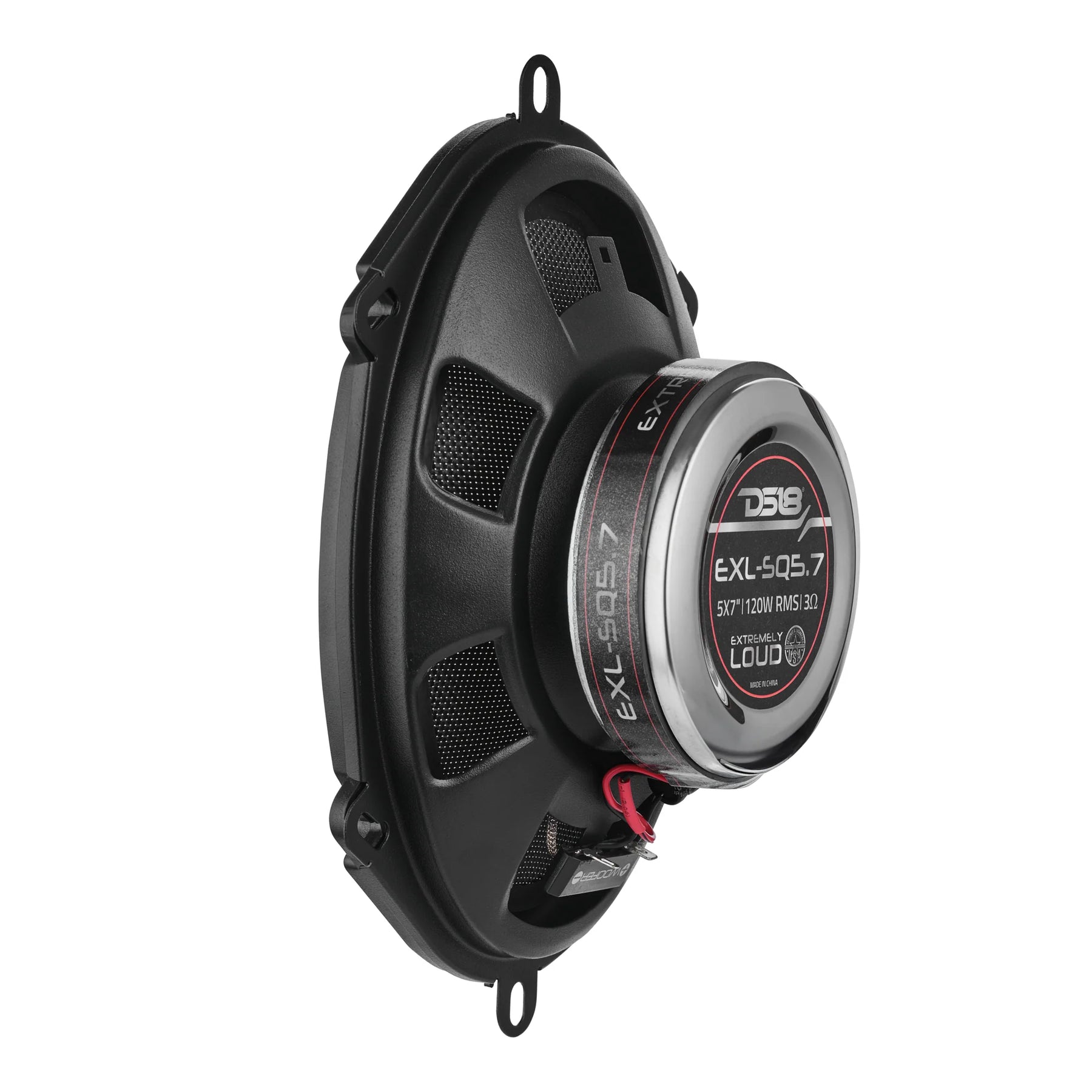

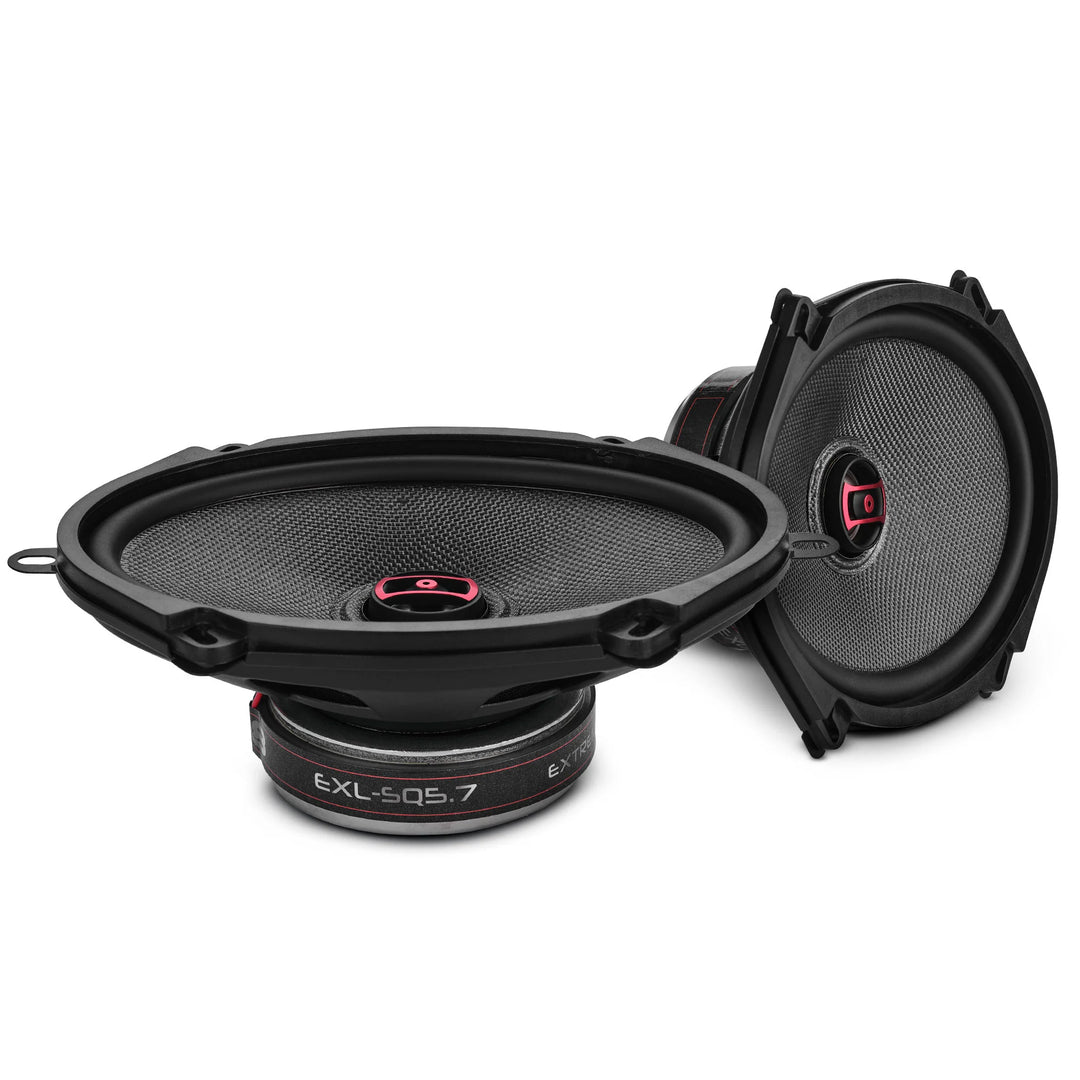

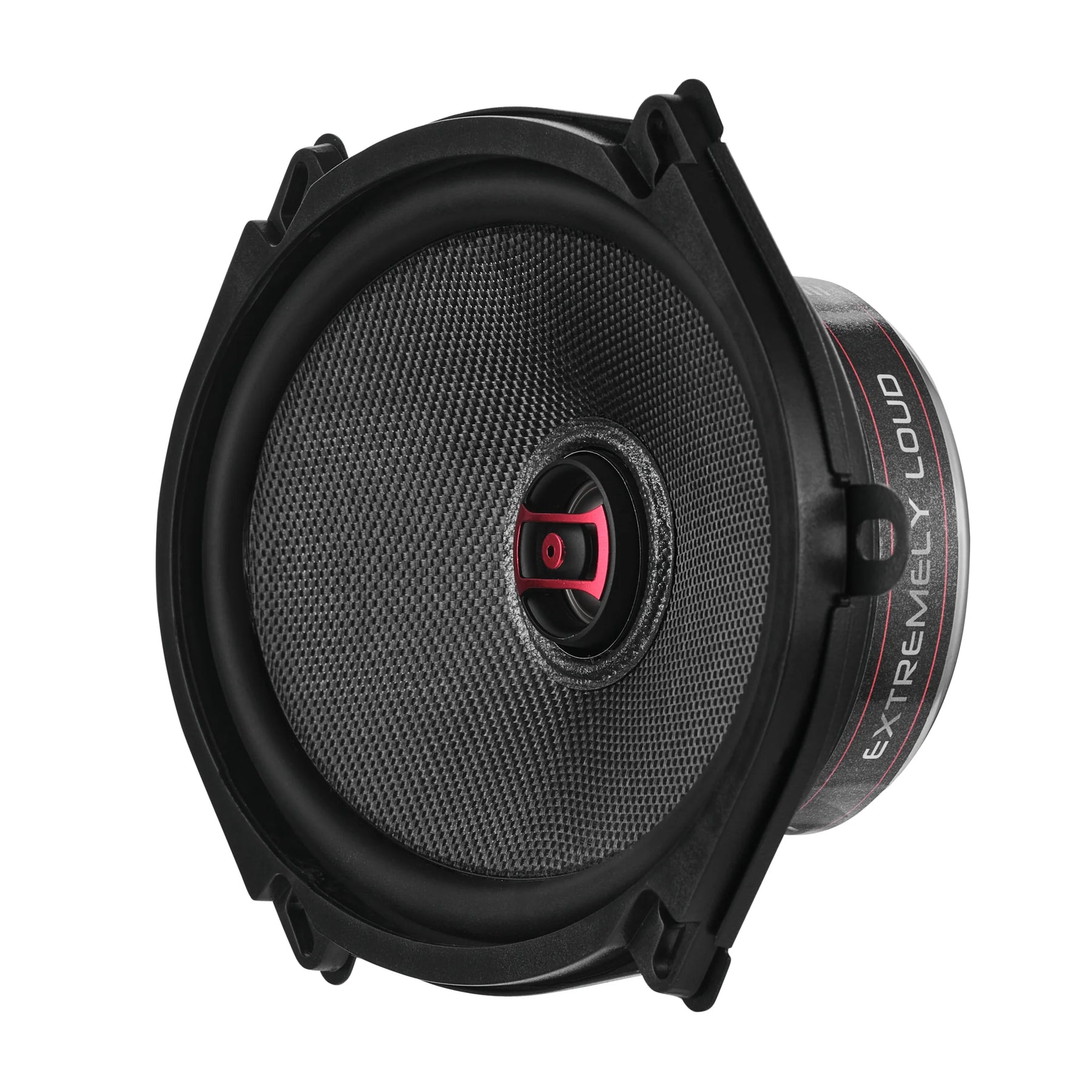

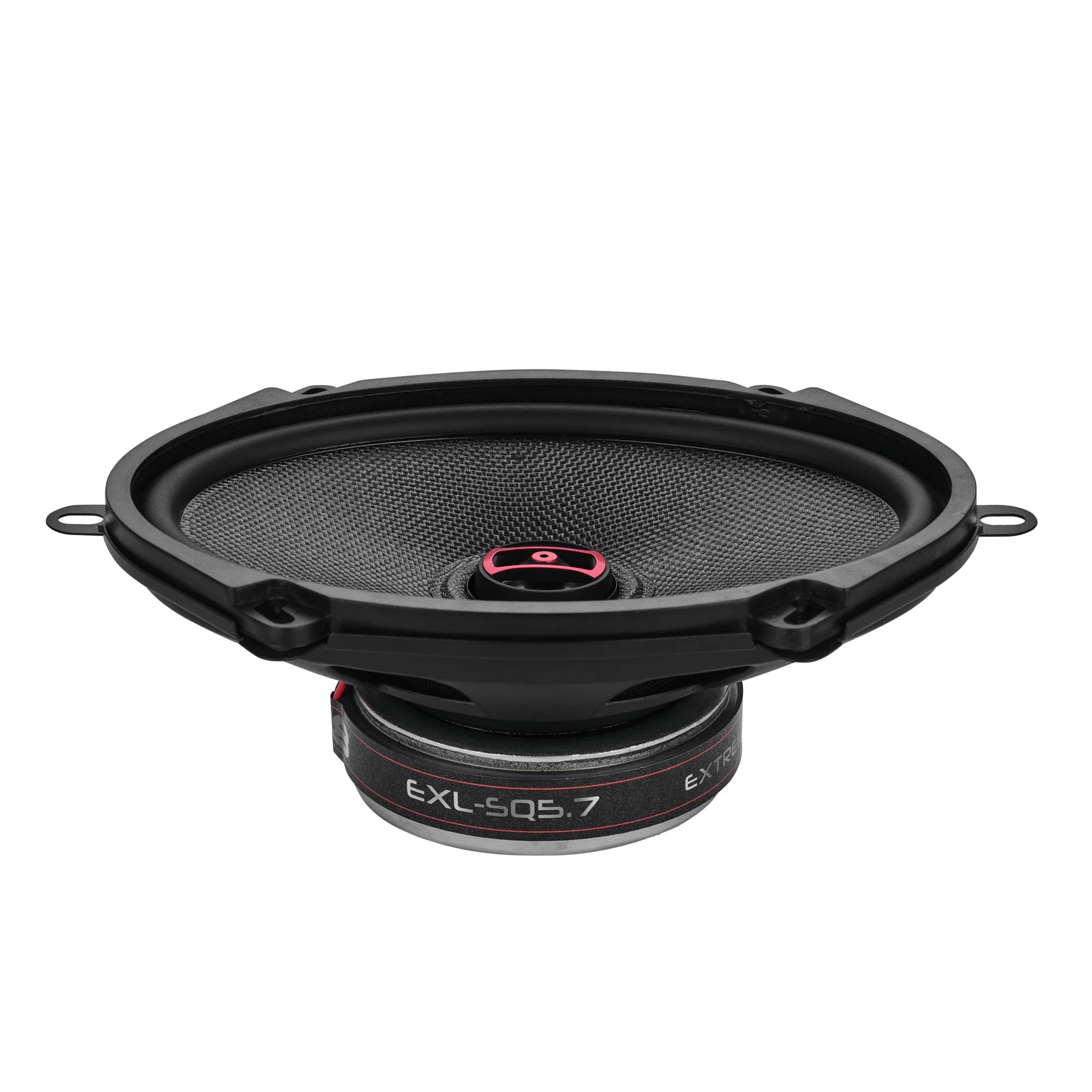

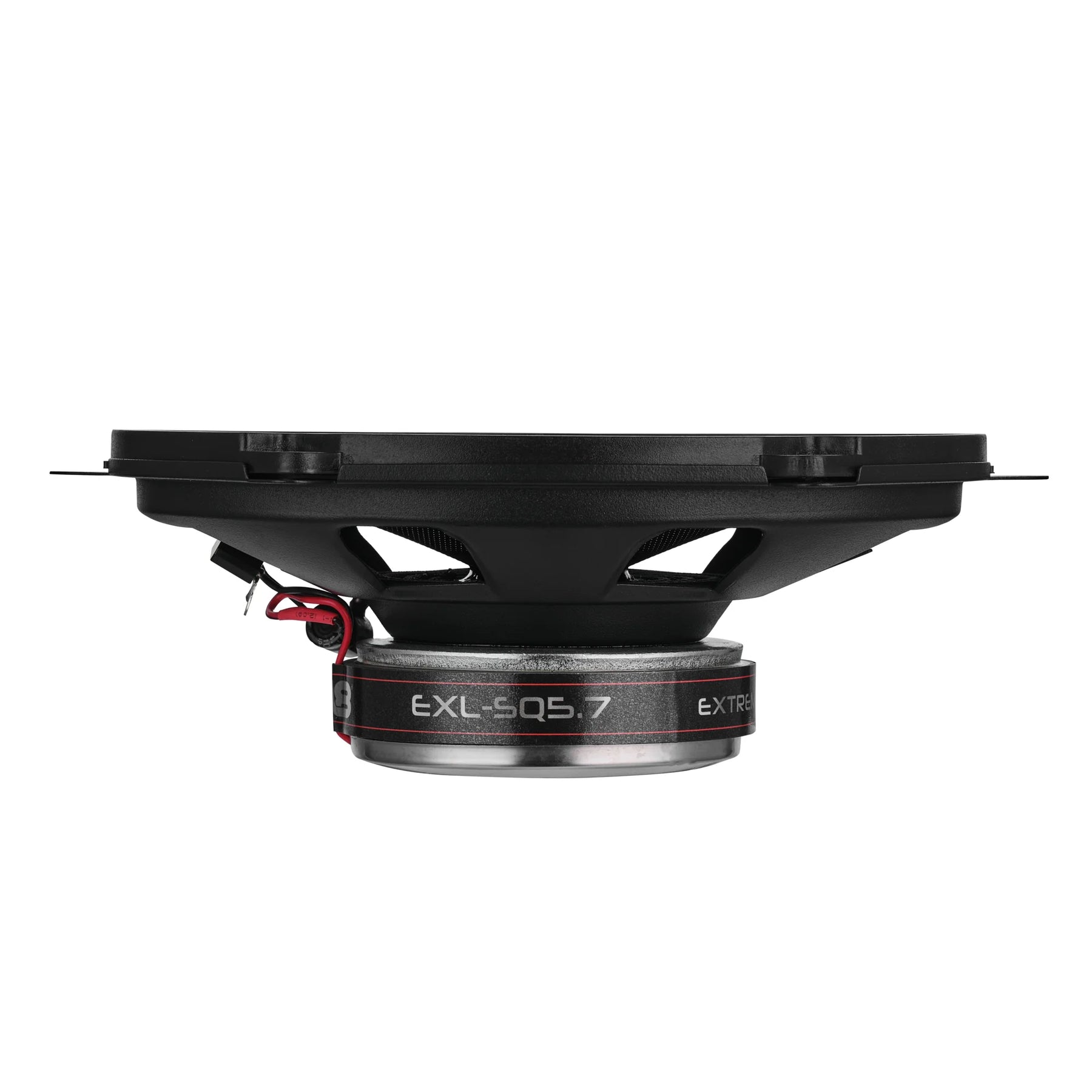

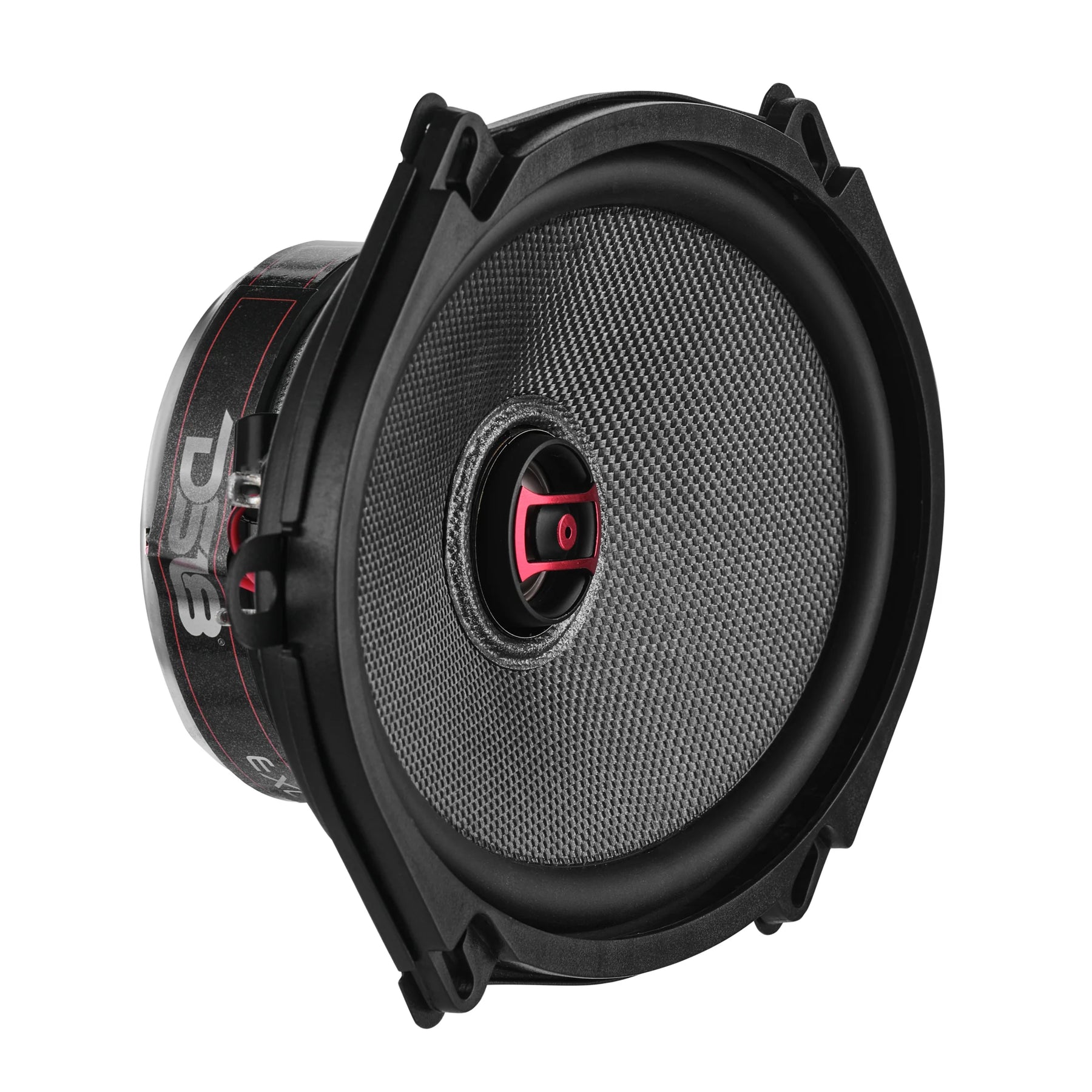

The EXL-SQ5.7 pushes 120W RMS at 3 ohms, and handles a MAX of 400 watts. This speaker details sound from 60Hz up to 22kHz and cuts through any mix easy!

Advanced Speaker Components: Featuring a durable glass fiber woofer cone with rubber surround, the EXL-SQ5.7 ensures longevity and accurate reproduction. The 1.3-inch ASV voice coil handles heat effectively for consistent performance. A barium magnet weighing powers the system for tight, controlled response.

High-Performance Tweeter: The included 1.14-inch PEI dome neodymium tweeter delivers sharp, clear highs. The built-in crossover protection smoothly integrates with the woofer and decreases distortion.

Built to Last: Constructed with a robust steel basket finished in black, the EXL-SQ5.7 is built for durability and long-term use in demanding automotive environments.

Upgrade to DS18’s EXL-SQ5.7 for pro-grade quality and power that will bring your audio to life!

Key Features:

• 5x7" 2-Way Coaxial

• MAX Power: 400 Watts

• RMS Power: 120 Watts

• Impedance: 3-Ohm

• Barium & Neodymium Magnets

General Specifications:

• Nominal Diameter: 5x7" / 127x177.8mm

• Nominal Impedance: 3 ohm

• RMS Power Handling: 120W

• MAX Power Handling: 400W

• Sensitivity (1w/1m): 90 dB

• Frequency Response: 60Hz - 22KHz

• Recommended HI Pass Crossover: 80Hz

• Number of ways: 2-way

Woofer Specifications:

• Voice Coil Diameter: 1.3" / 33mm

• Voice Coil Former Material: ASV

• Winding Material: Copper

• Cone Material: Glass Fiber

• Surround Material: Rubber

• Basket Material: Steel

• Basket Color/Finish: Black

• Magnet Material: Barium

• Magnet Weight: 13.5 Oz

Thiele & Small Parameters:

• Equivalent Volume: 14.11L / 0.498ft3

• Free Air Resonance: 78Hz

• Mechanical Factor: 3.219

• Electrical Factor: 1.466

• Total Factor: 1.144

• DC Resistance: 2.8 ohm

Tweeter Specifications:

• Nominal Diameter: 1.14in / 20.3mm

• Voice Coil Diameter: 0.8" / 13mm

• Diaphragm Material: Mylar

• Magnet Material: Neodymium

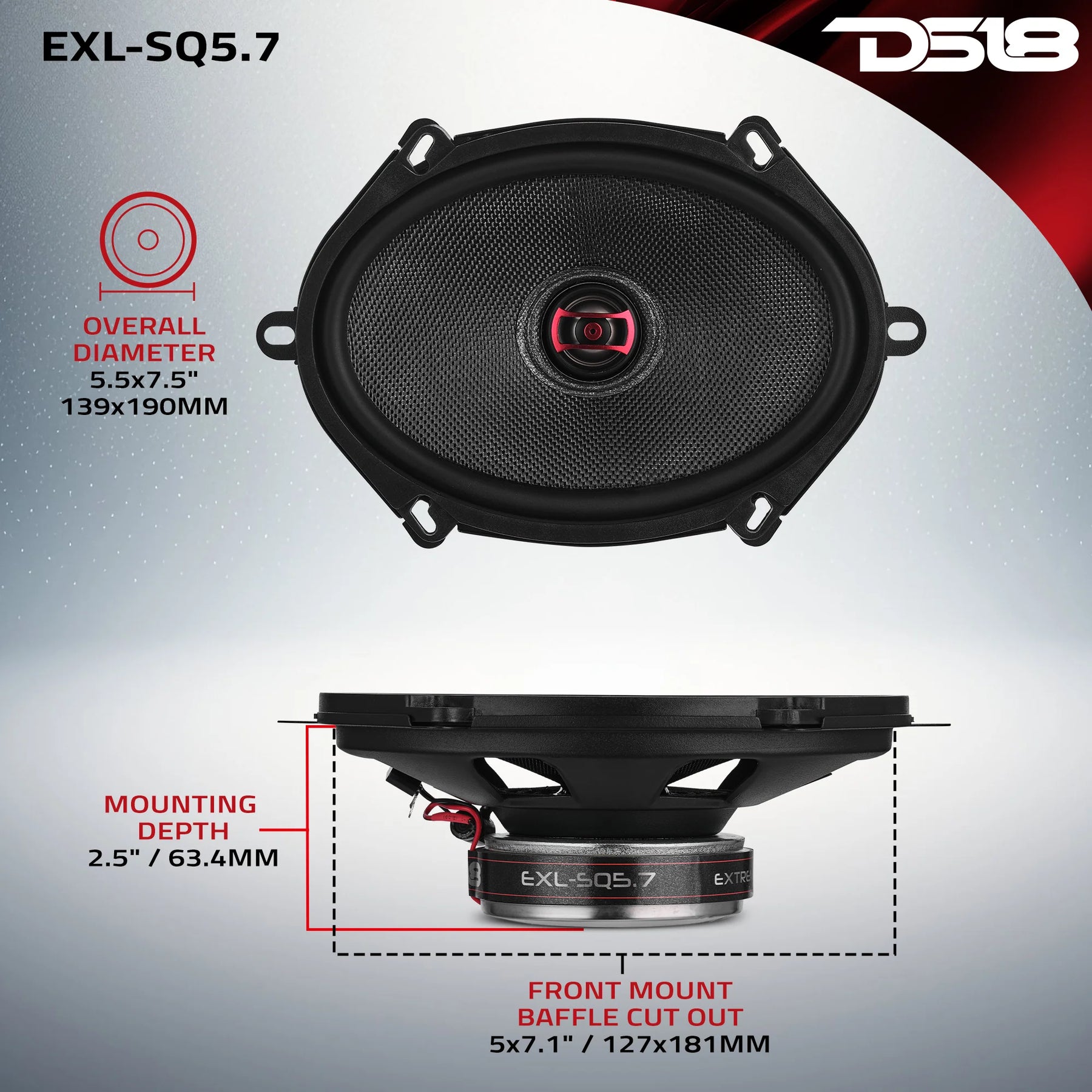

Speaker Measurement:

• Overall Diameter: 5.5x7.5" / 139x190mm

• Overall Depth: 2.87" / 73mm

• Front Mount Baffle Cutout: 5"x7.1" / 127x181mm

• Mounting Depth: 2.5" / 63.4mm

• Motor Diameter: 3.54" / 90mm
