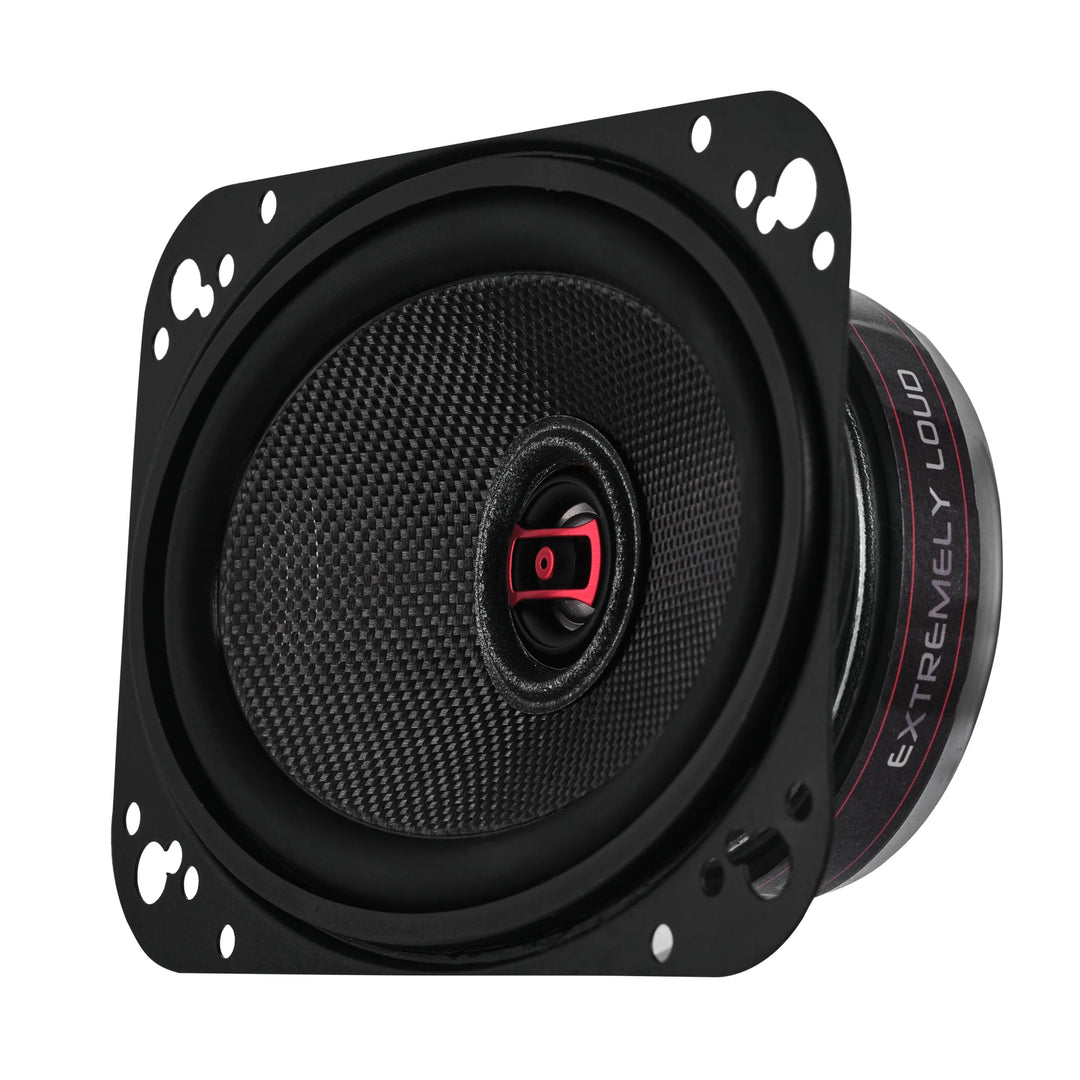

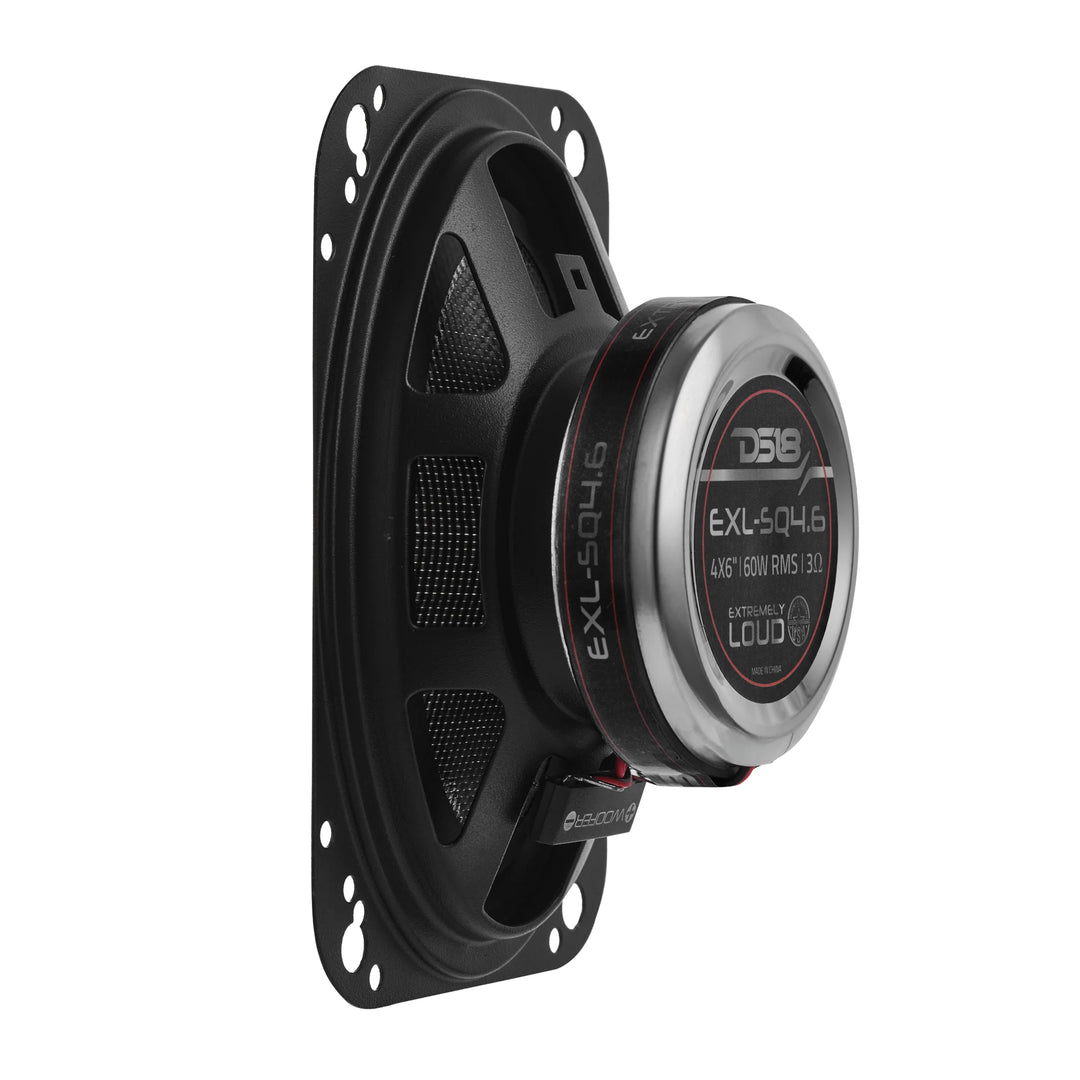

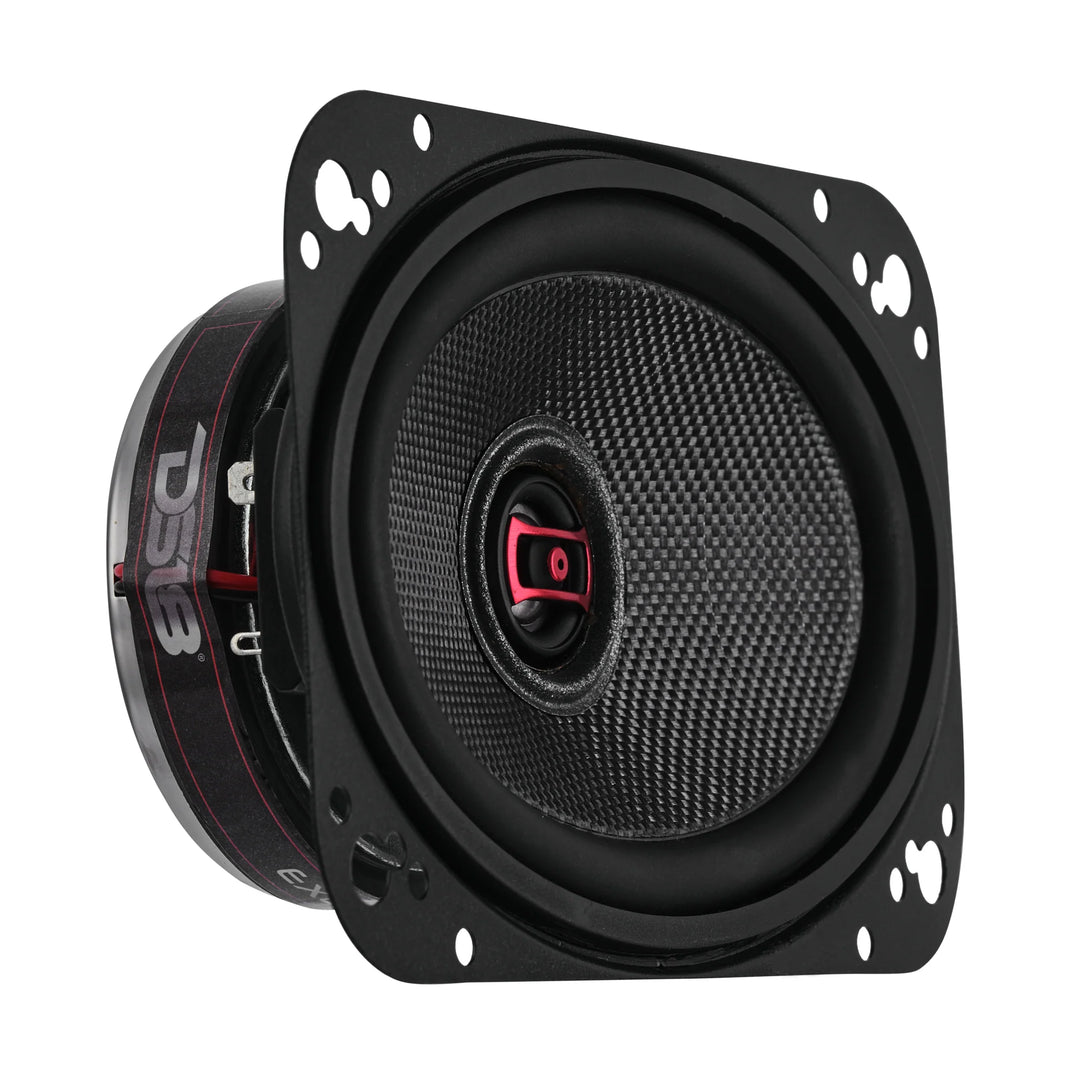

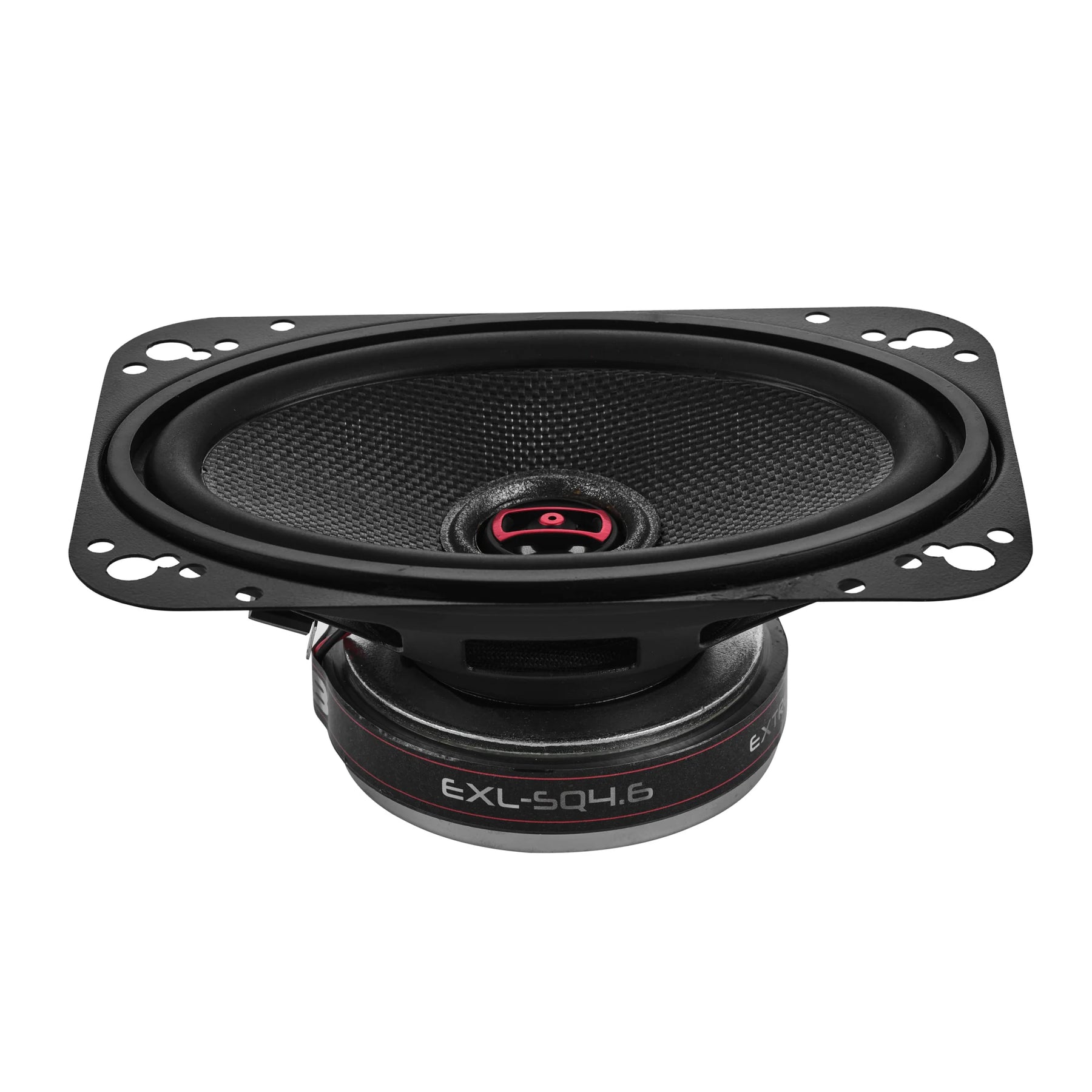

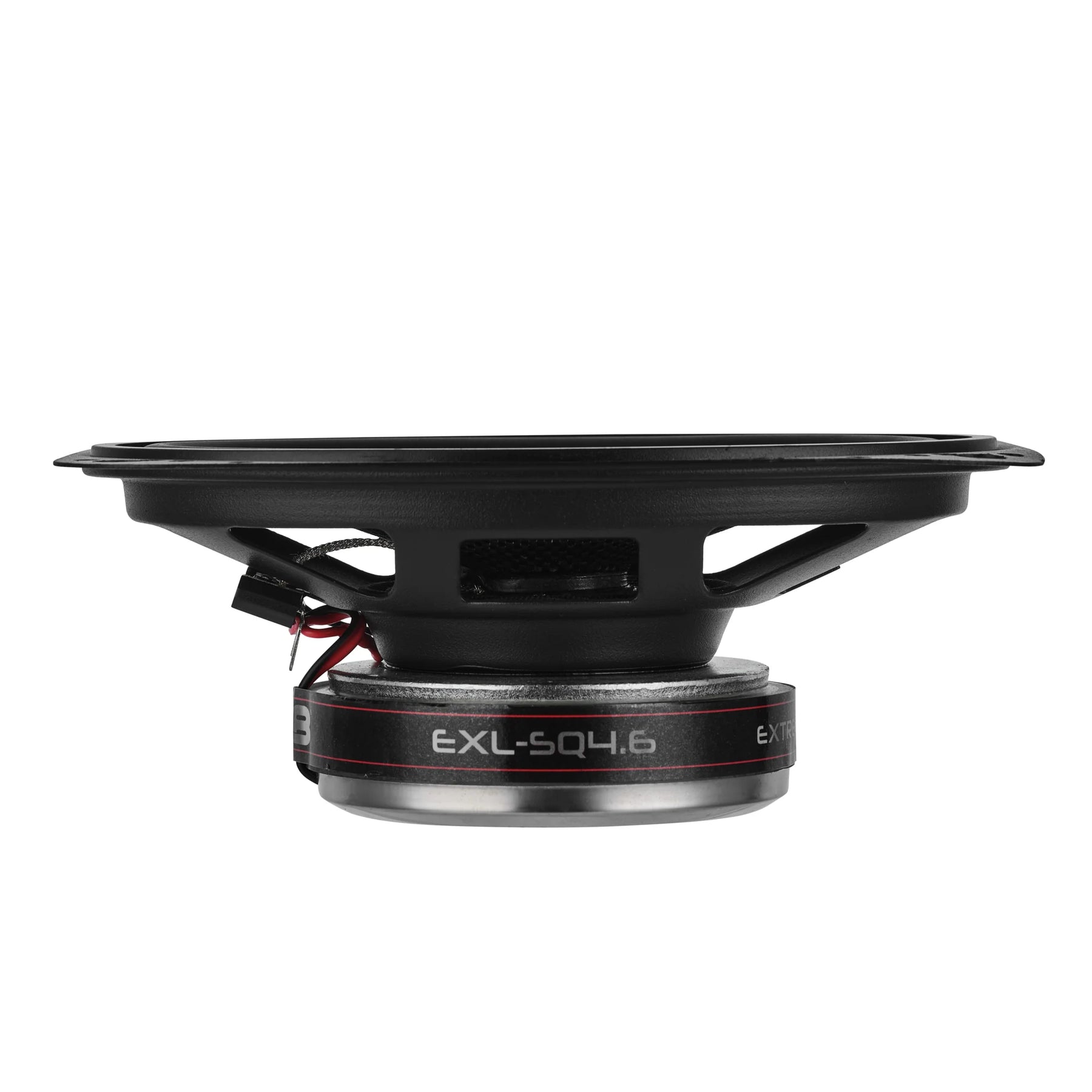

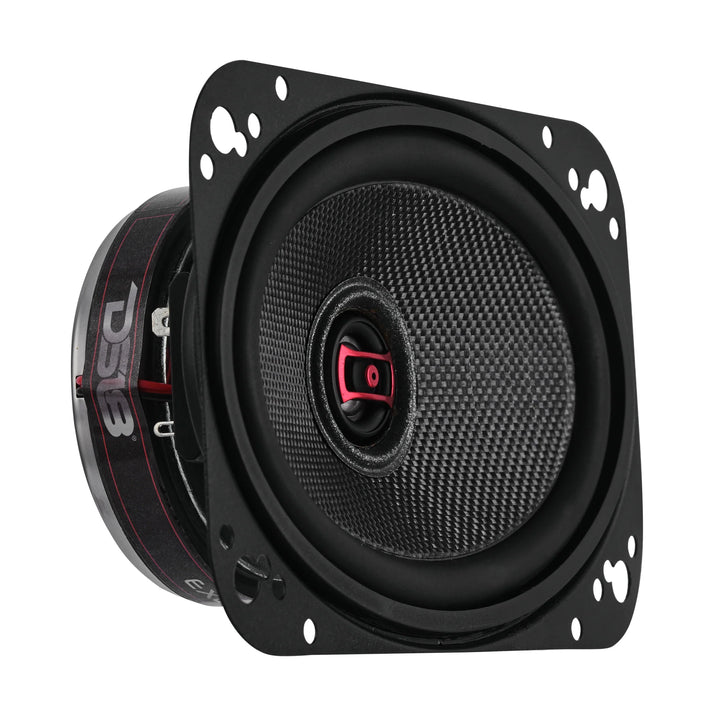

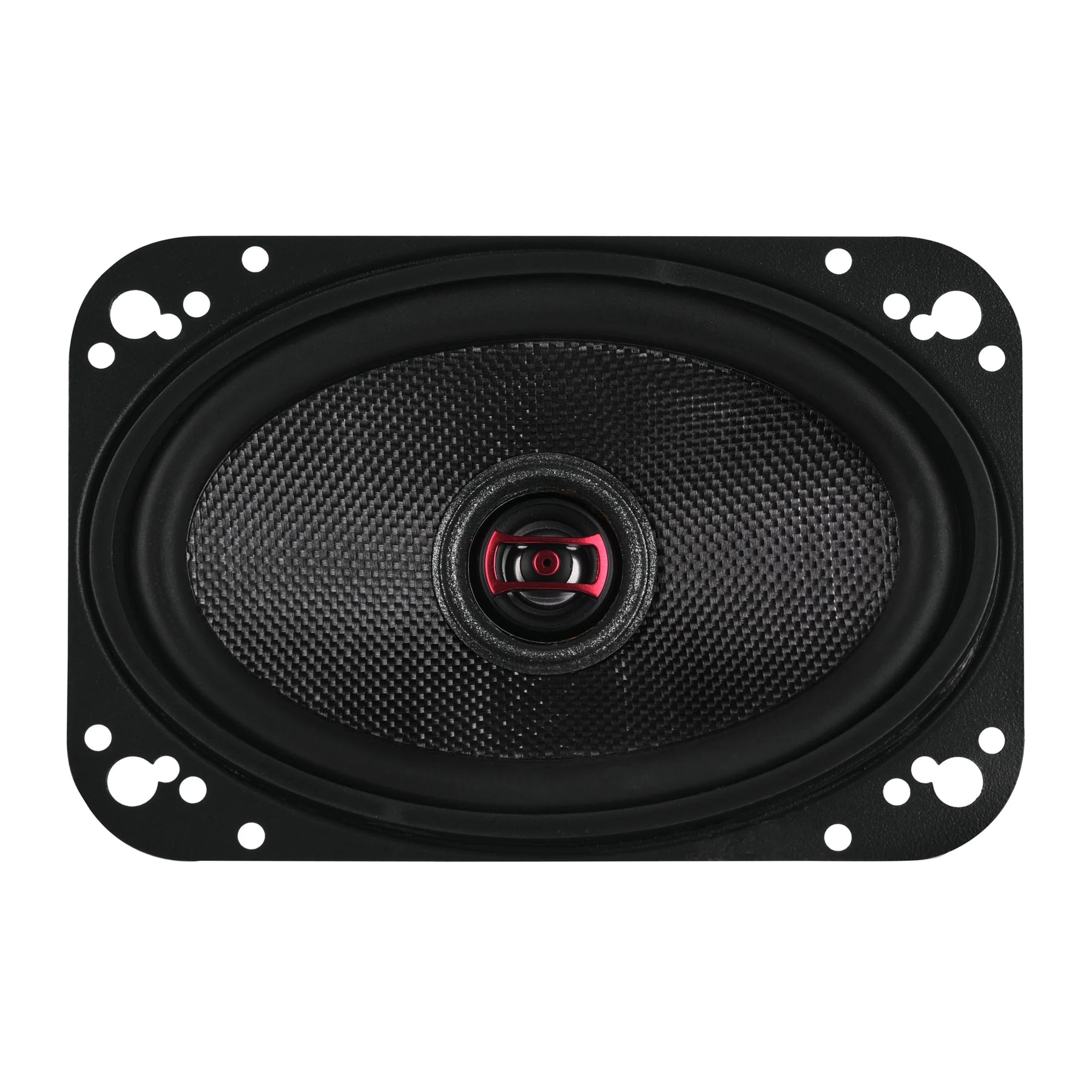

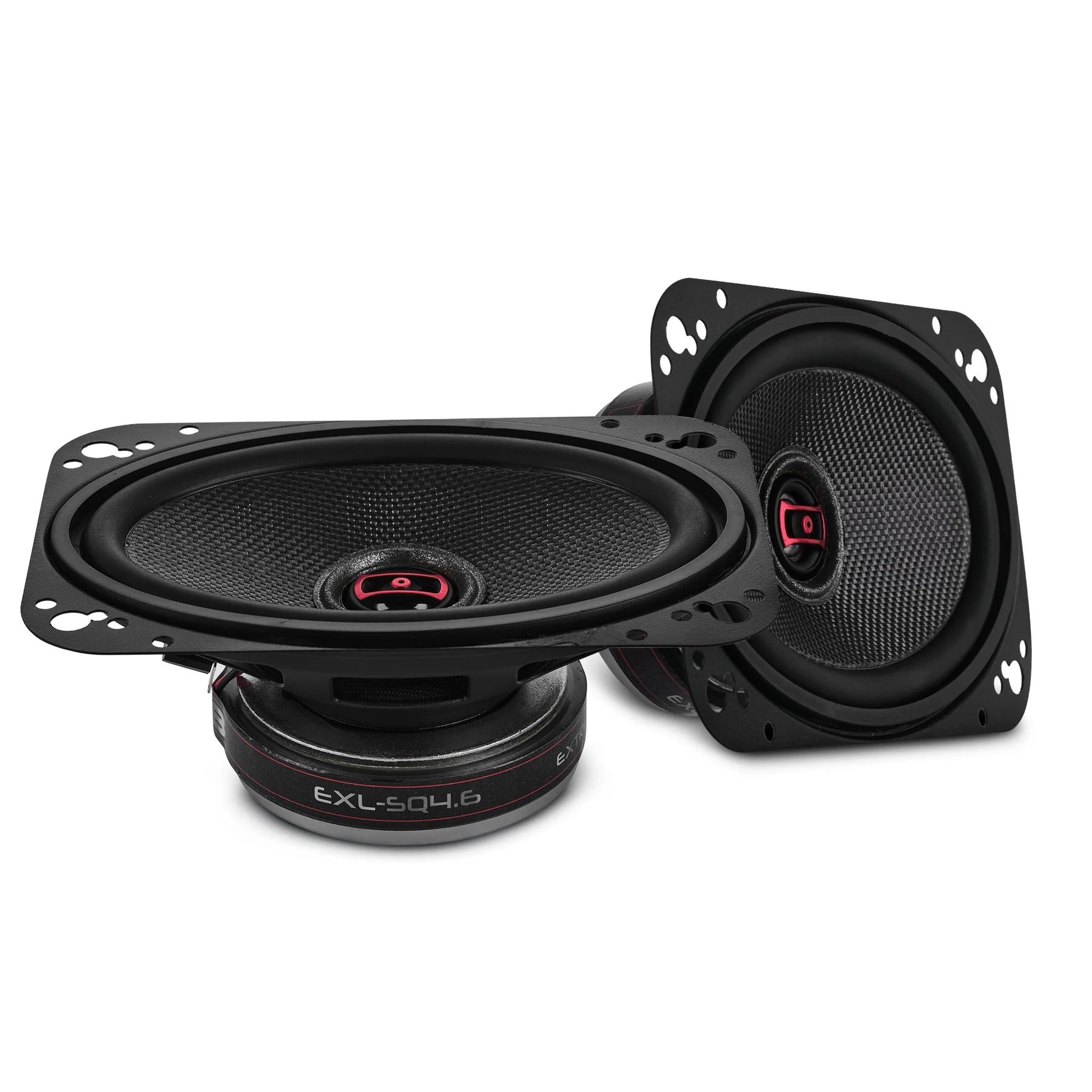

The EXL-SQ4.6 is your new weapon of choice for smooth detail that slices through road noise with ease.

Tuned for Precision: Handling up 60W RMS and 260W MAX, the EXL-SQ4.6 transforms any ride into a rolling soundstage. With a frequency response from 80Hz to 22kHz, you’ll hear every detail like never before.

Built with Purpose: The EXL-SQ4.6’s glass fiber cone and rubber surround deliver responsive low-end with pro-grade clarity. The 1” ASV voice coil stays cool under pressure, while the 9oz barium magnet drives smooth, consistent sound.

Clear Highs That Cut Through: Equipped with a 0.8” neodymium tweeter and a Mylar diaphragm, the highs stay bright and distortion-free — even at high speeds.

Rugged by Design: Housed in a black steel basket, the EXL-SQ4.6 is built tough for the road. And yes, the grilles are included.

Level up your setup with DS18’s EXL-SQ4.6!

Key Features:

• 4x6" 2-Way Coaxial

• MAX Power: 260 Watts

• RMS Power: 60 Watts

• Impedance: 3-Ohm

• Barium & Neodymium Magnets

General Specifications:

• Nominal Diameter: 4x6" / 101.6x152.4mm

• Nominal Impedance: 3 ohm

• RMS Power Handling: 60W

• MAX Power Handling: 260W

• Sensitivity (1w/1m): 87 dB

• Frequency Response: 80Hz - 22KHz

• Recommended HI Pass Crossover: 100Hz

• Number of ways: 2-way

Woofer Specifications:

• Voice Coil Diameter: 1in / 25.5mm

• Voice Coil Former Material: ASV

• Winding Material: Copper

• Cone Material: Glass Fiber

• Surround Material: Rubber

• Basket Material: Steel

• Basket Color/Finish: Black

• Magnet Material: Barium

• Magnet Weight: 9 Oz

Thiele & Small Parameters:

• Equivalent Volume: 3.6L / 0.12ft3

• Free Air Resonance: 96Hz

• Mechanical Factor: 4.964

• Electrical Factor: 1.136

• Total Factor: 0.924

• DC Resistance: 2.8 ohm

Tweeter Specifications:

• Nominal Diameter: 0.8in / 20.3mm

• Voice Coil Diameter: 0.5" / 13mm

• Diaphragm Material: Mylar

• Magnet Material: Neodymium

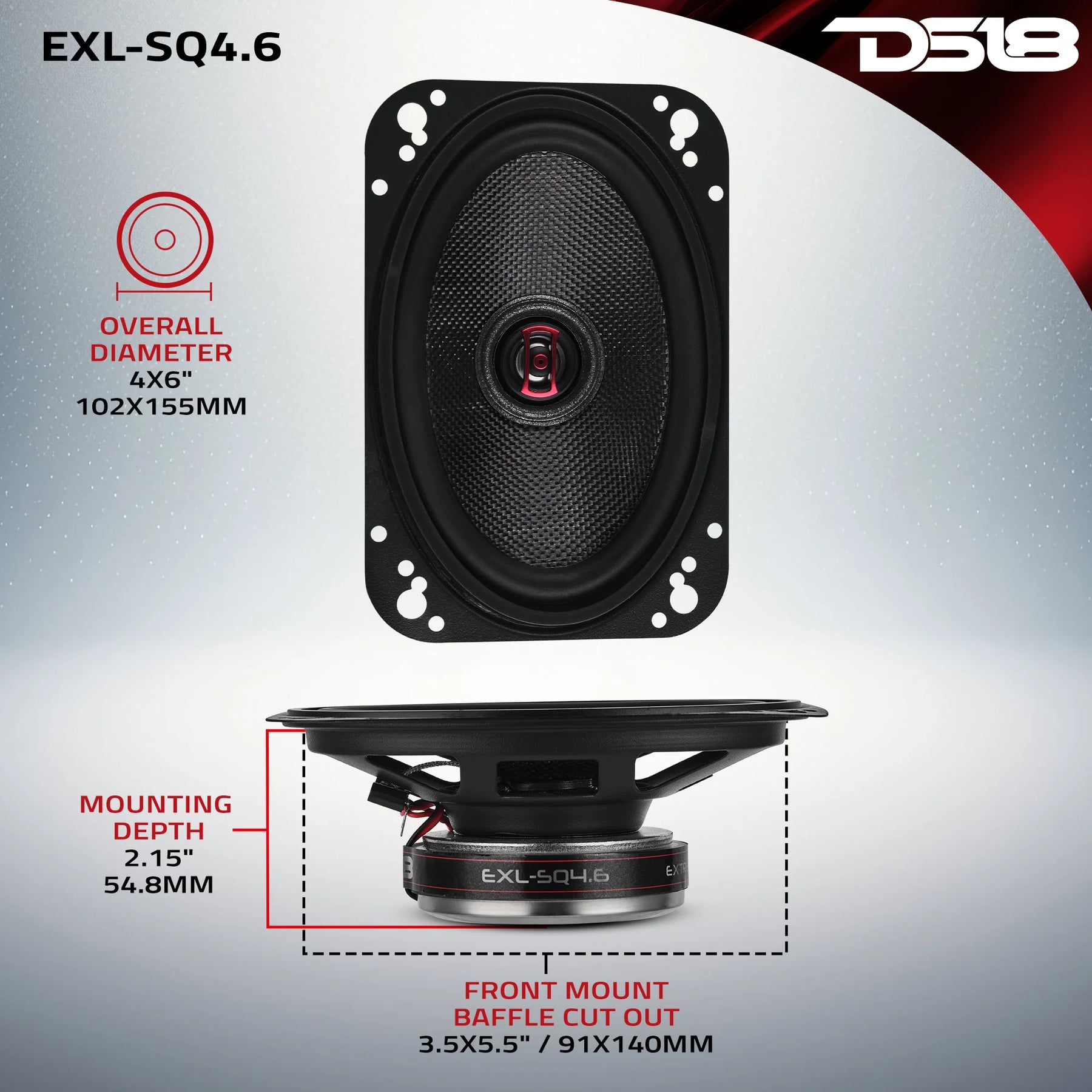

Speaker Measurement:

• Overall Diameter: 4x6" / 102x155mm

• Overall Depth: 2.37" / 60.4mm

• Front Mount Baffle Cutout: 3.5x5.5" / 91x140mm

• Mounting Depth: 2.15" / 54.8mm

• Motor Diameter: 3.14" / 80mm
