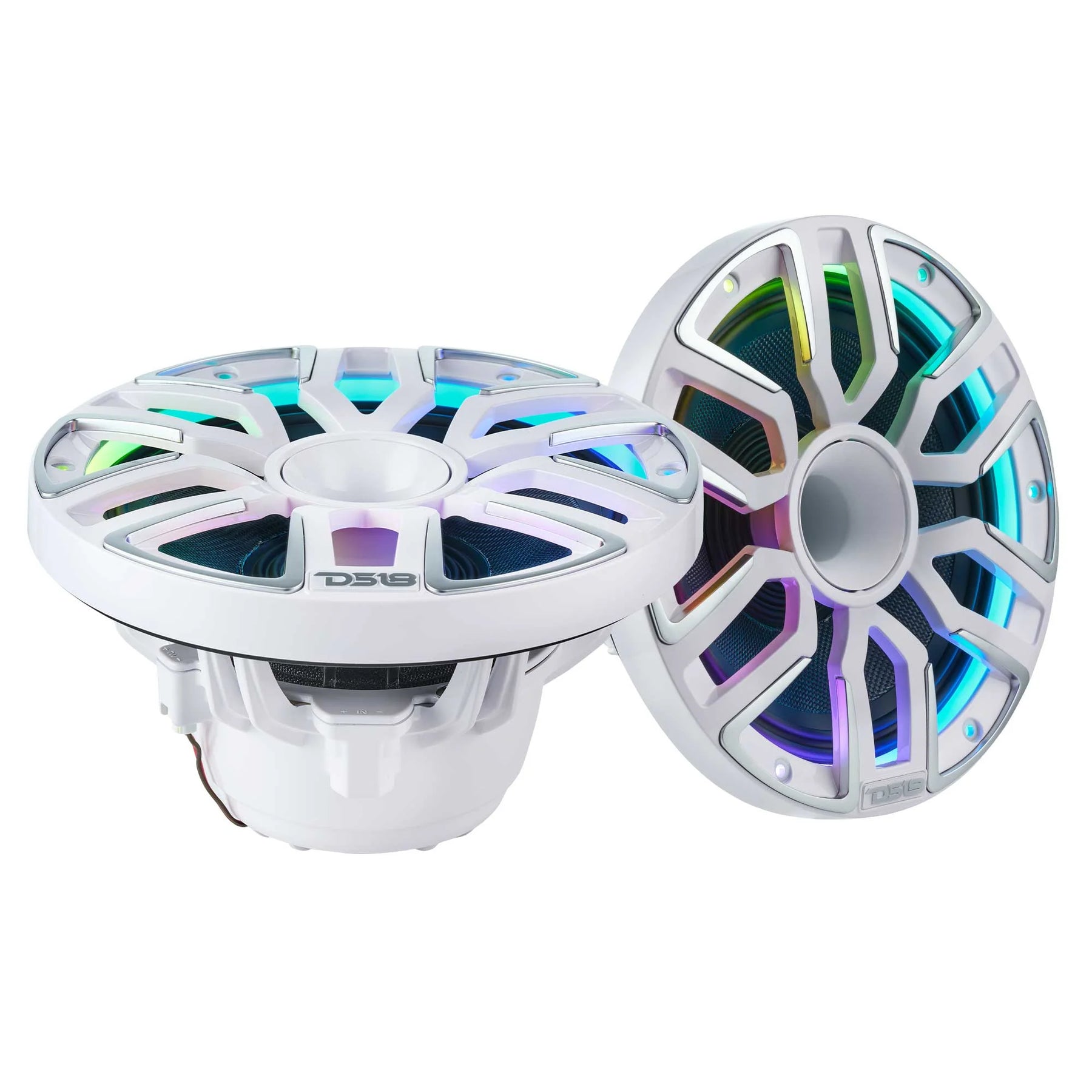

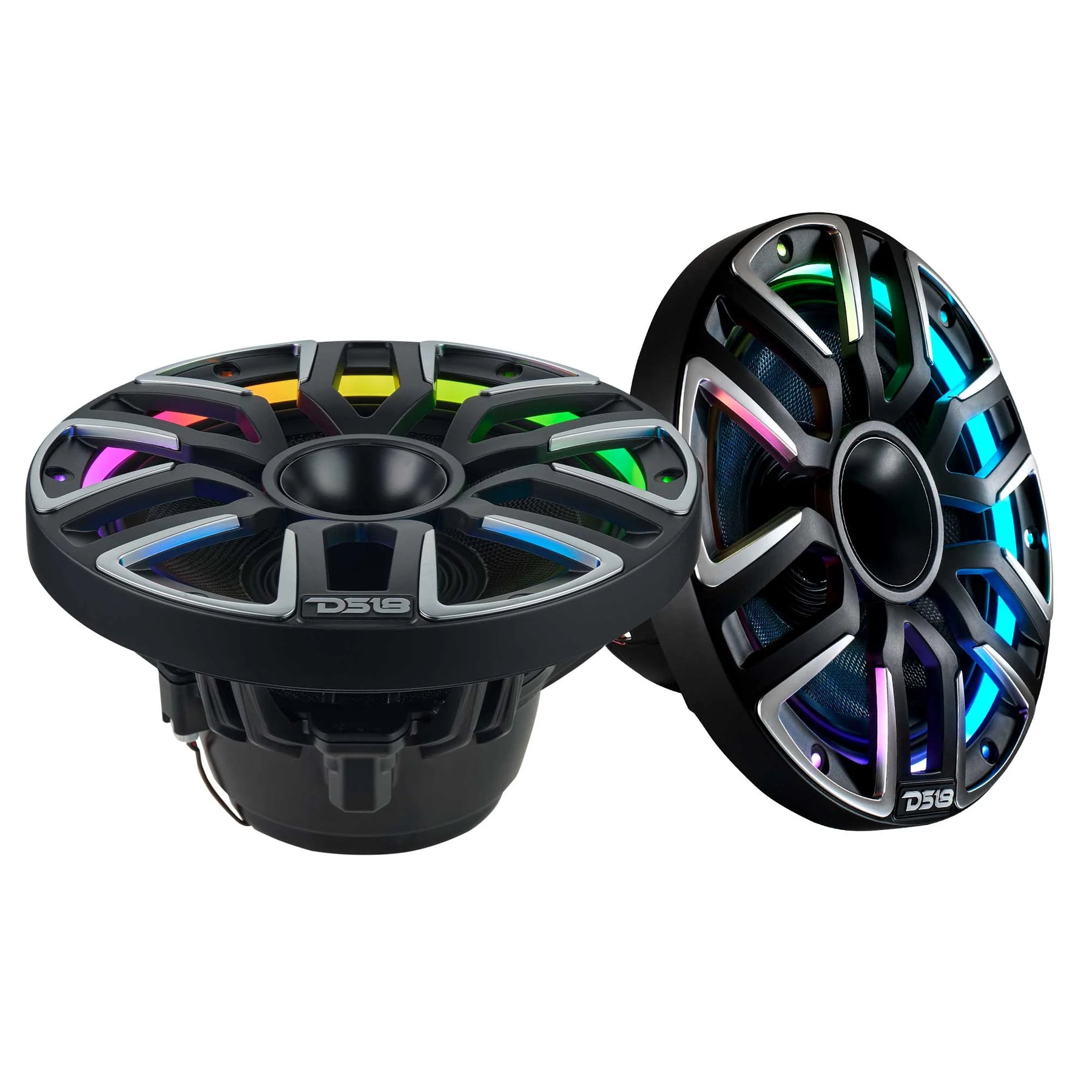

Full-Range Power

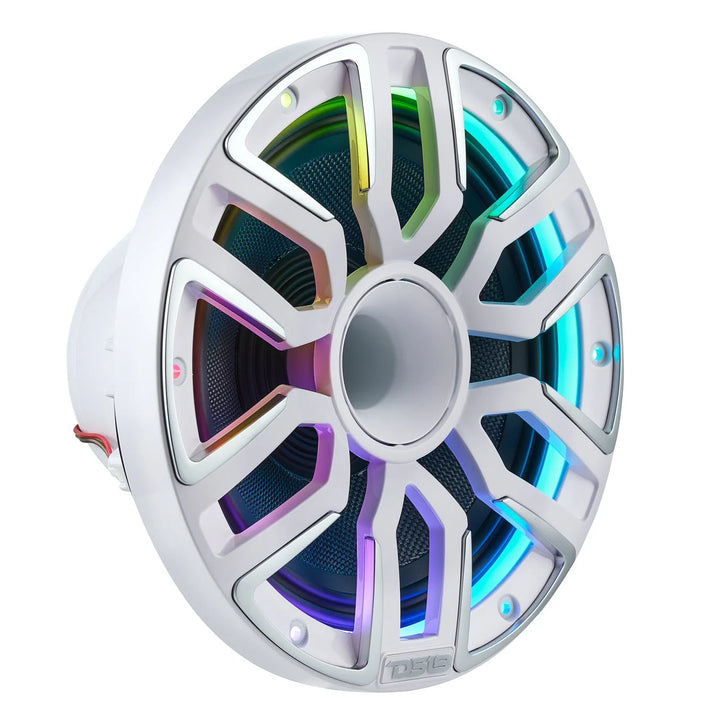

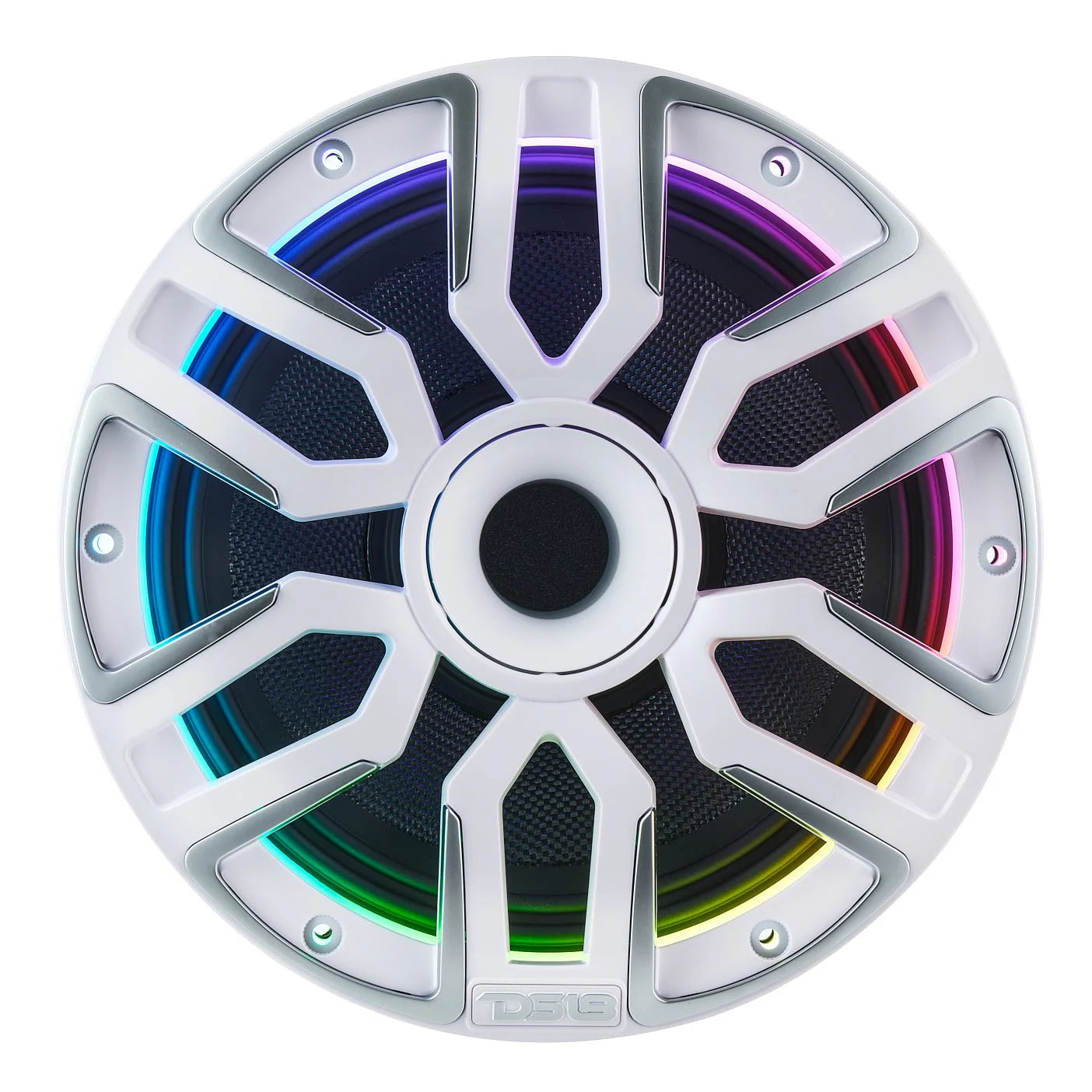

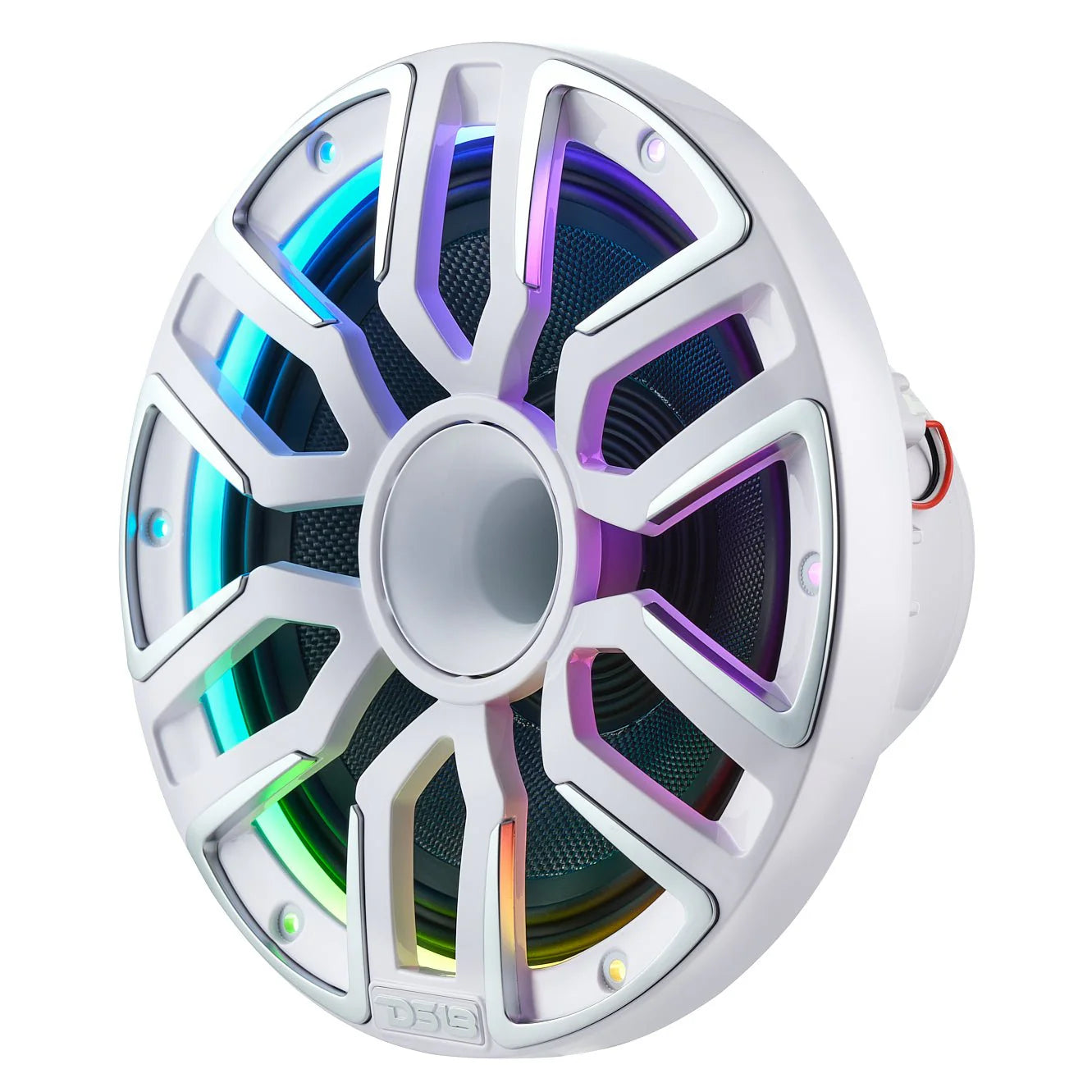

The NVY-M8DC blends coaxial clarity with compression driver force—delivering 200W RMS of marine-grade sound. From midbass to highs, it fills open spaces with advanced control.

Built For All Elements

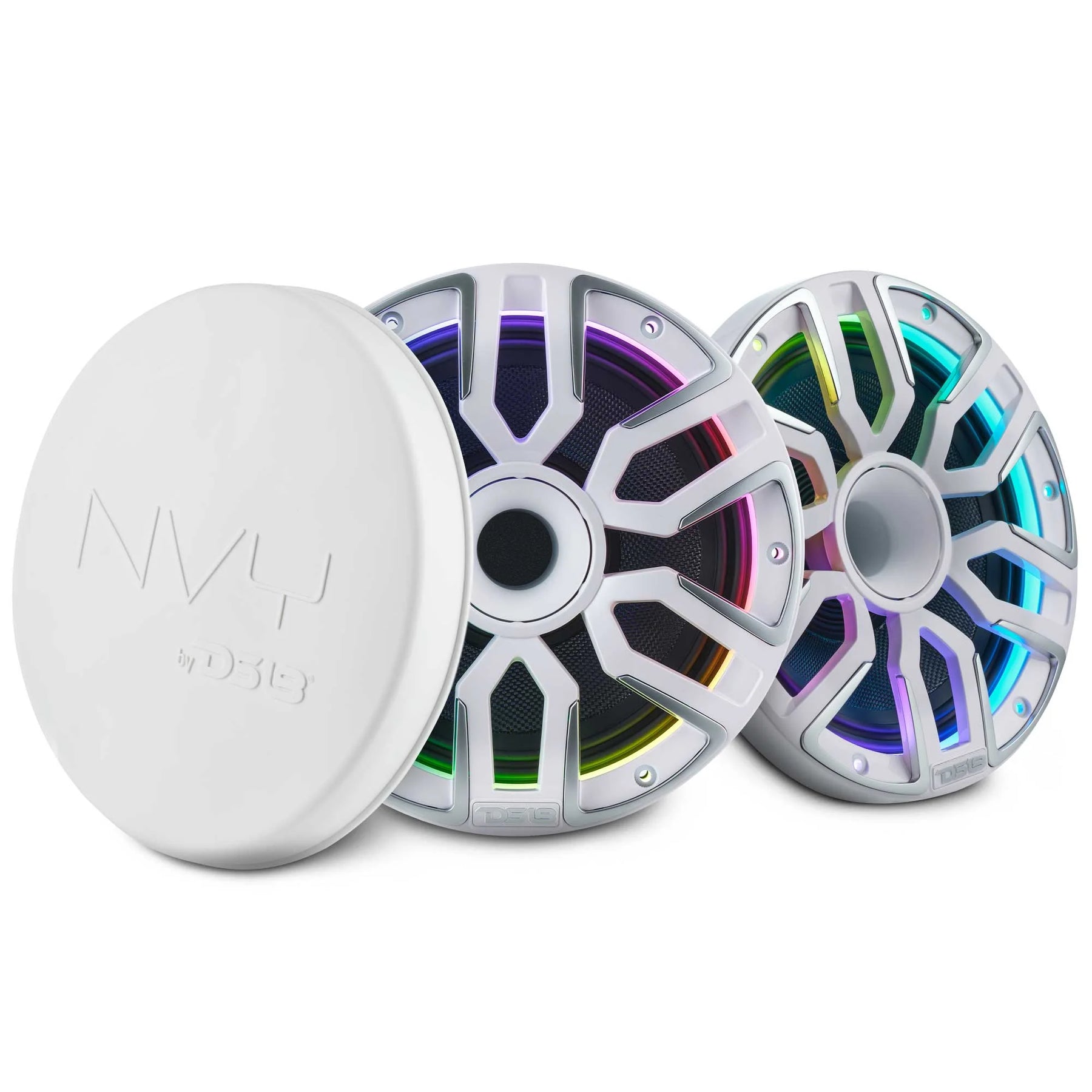

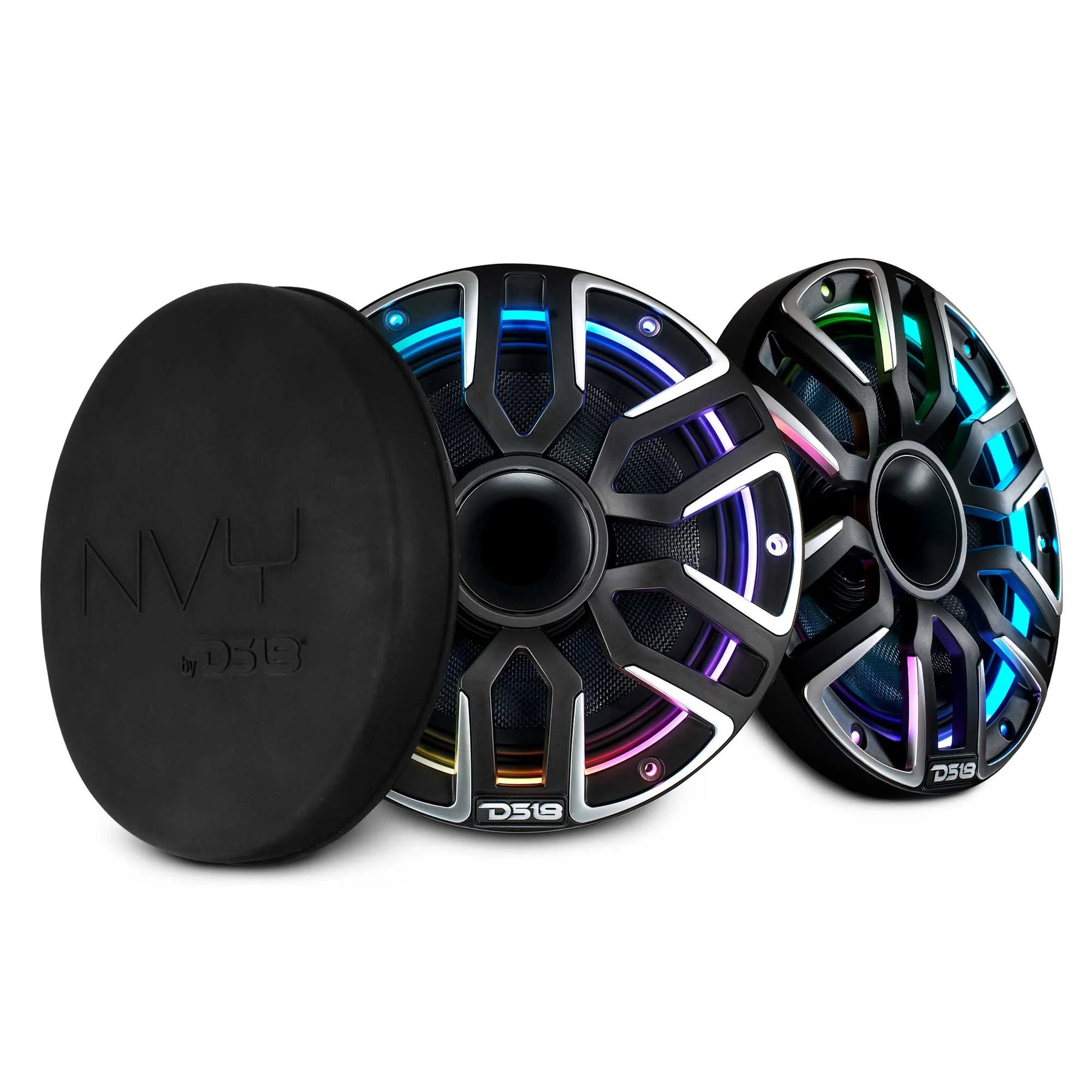

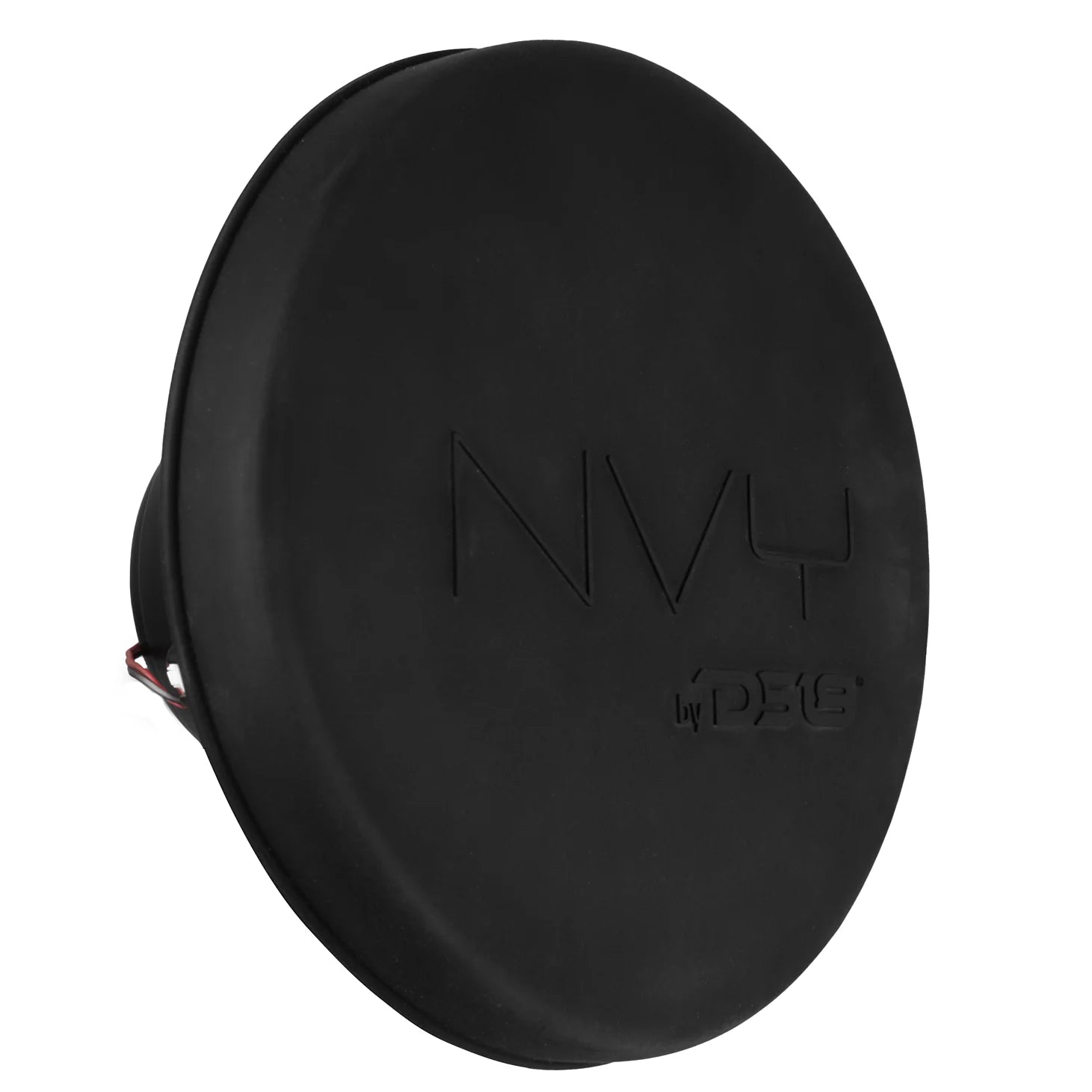

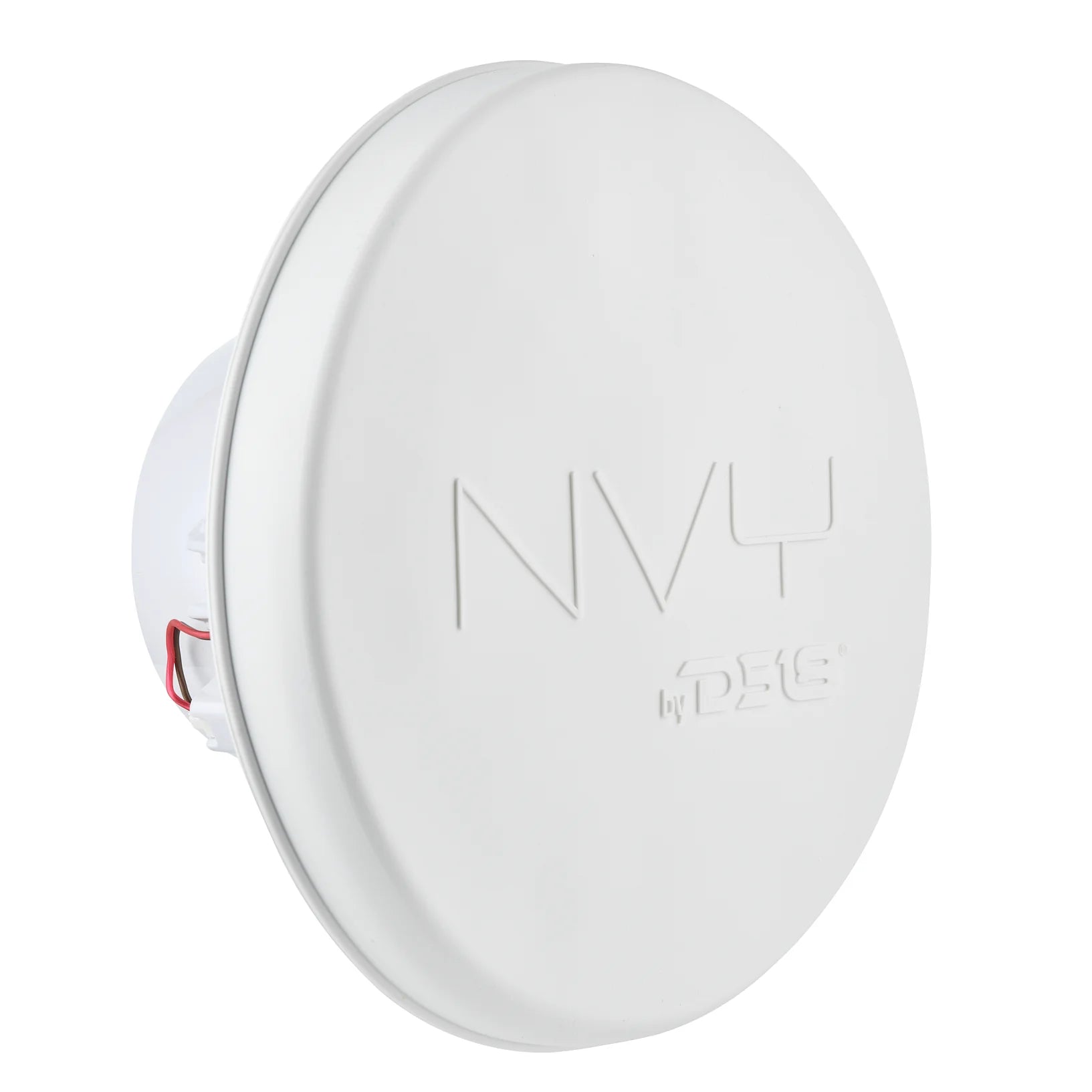

An IP65 waterproof rating, UV resistance, and rugged silicone covers keep the NVY-M8DC performing through salt, spray, and sun. It’s outdoor-ready and protected without compromise.

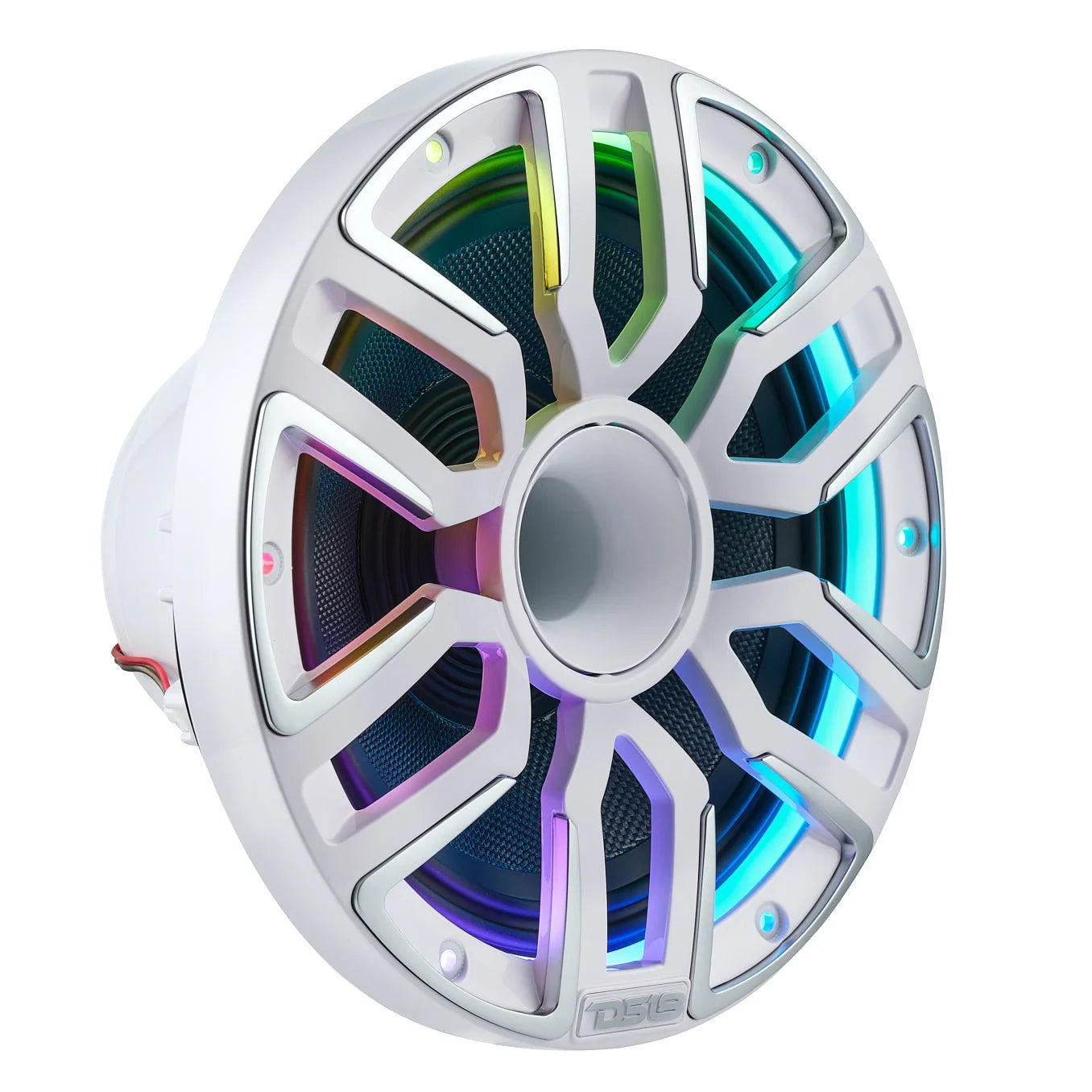

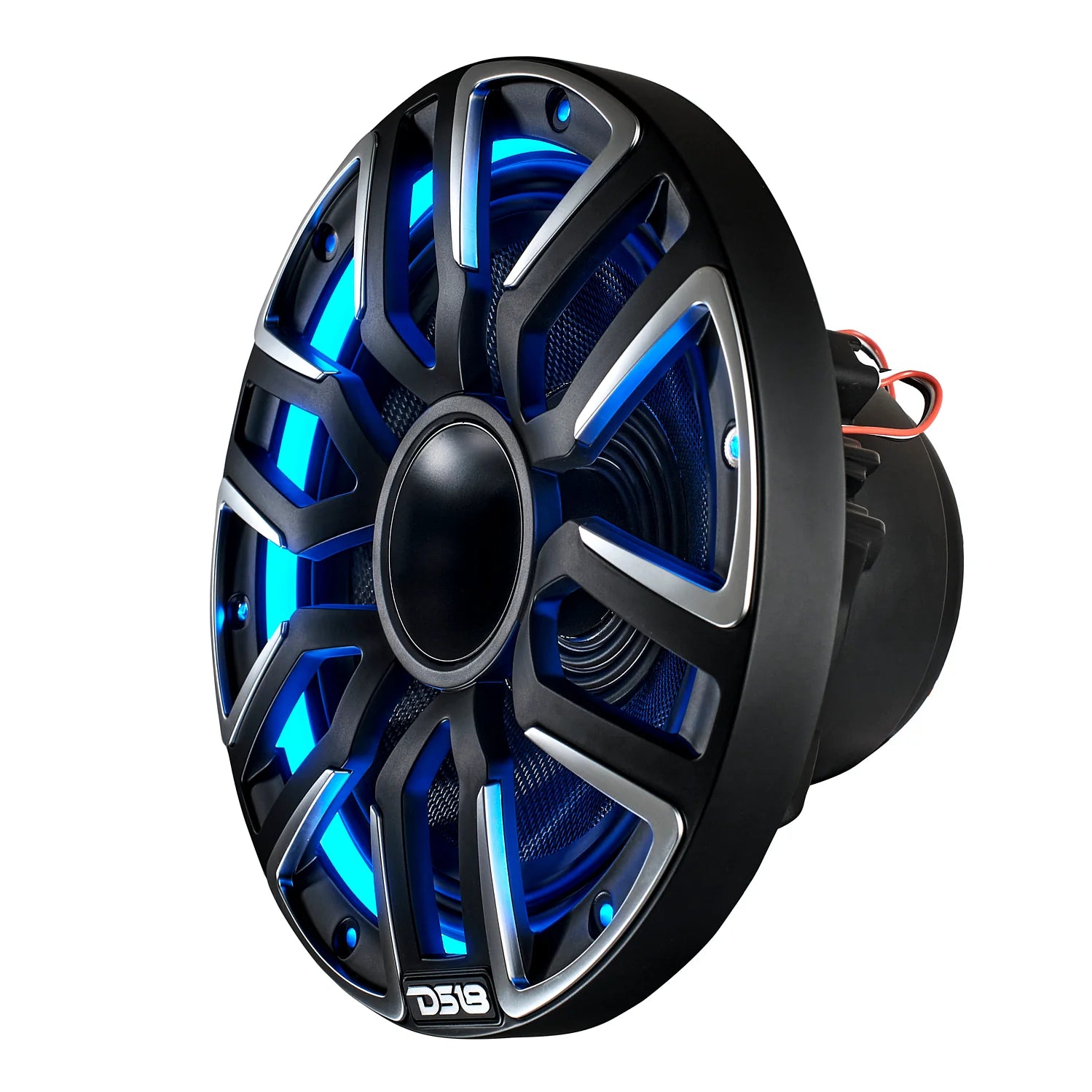

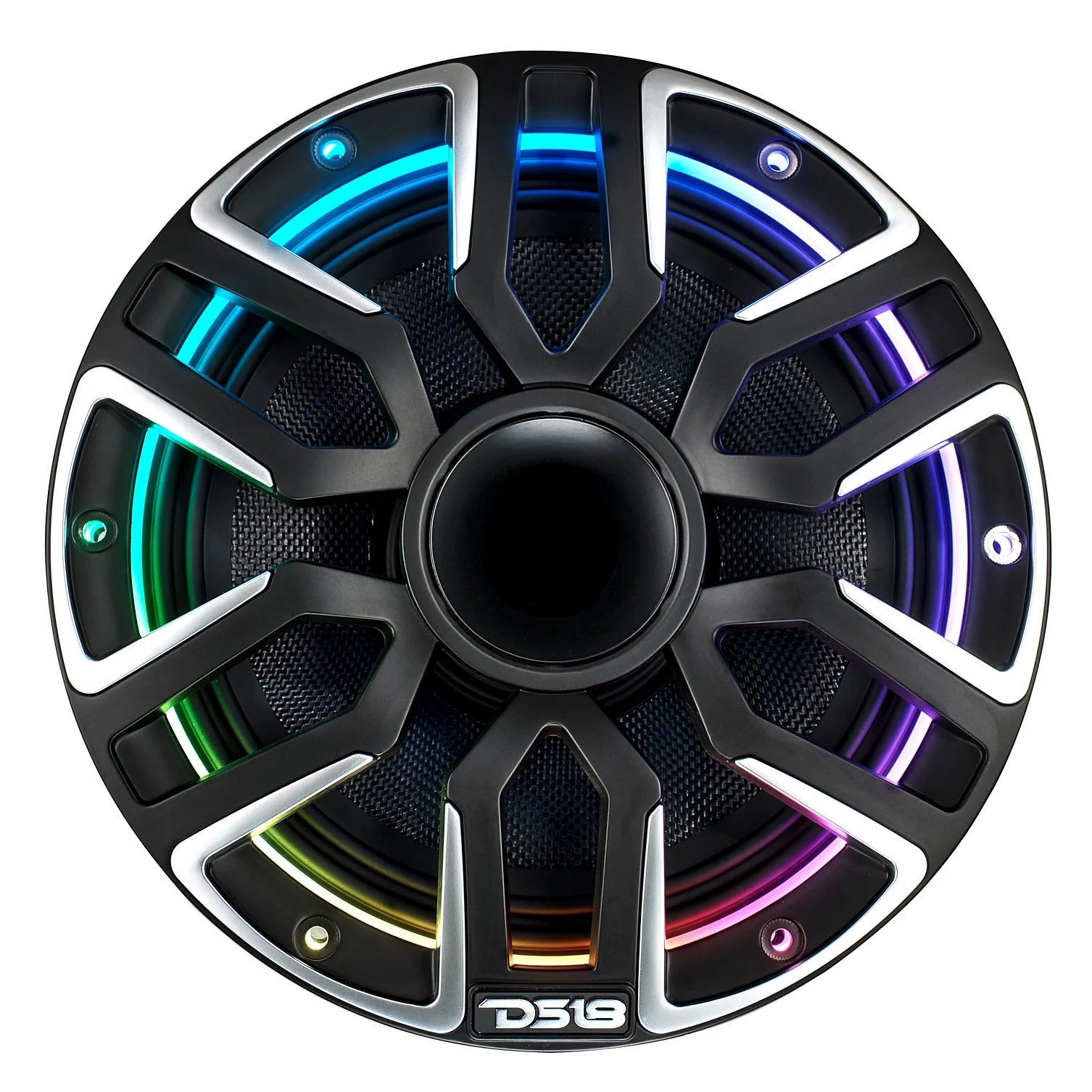

Light Up Every Moment

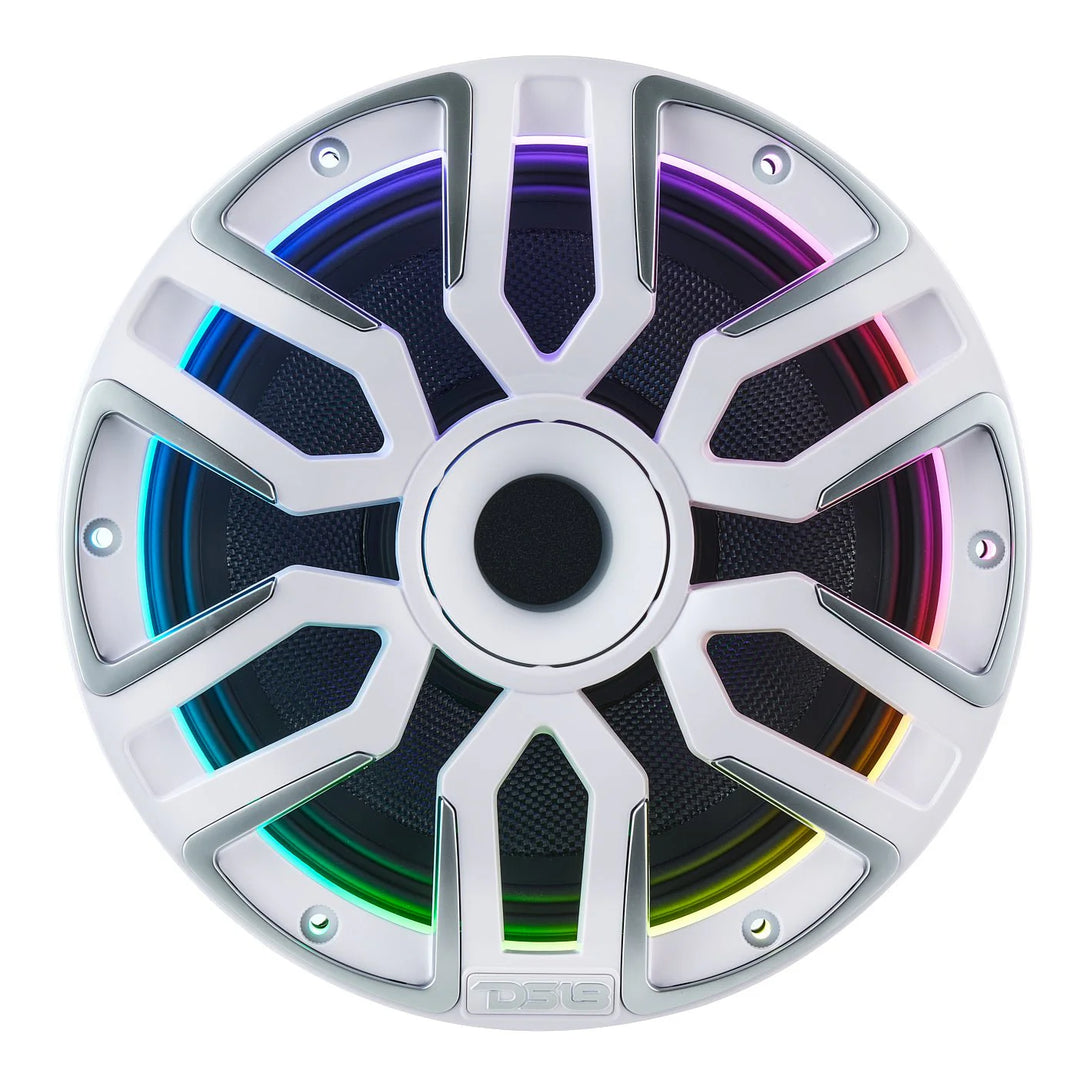

An integrated Digital LED ring gives the NVY-M6DC its visual signature. Fully customizable via the LC-DRM module and DS18 LC app—allowing you to set the mood or match it.

Download the DS18 LC APP compatible with the DS18 LC-DRM module. This App works with both Android and iPhone.

This digital lighting system requires a digital signal from a compatible module to function correctly. Do not attempt to power it with direct current (DC). DS18’s BT Digital LED Control Module, LC-DRM, is required. (SOLD SEPARATELY)

Reinforced For The Ride

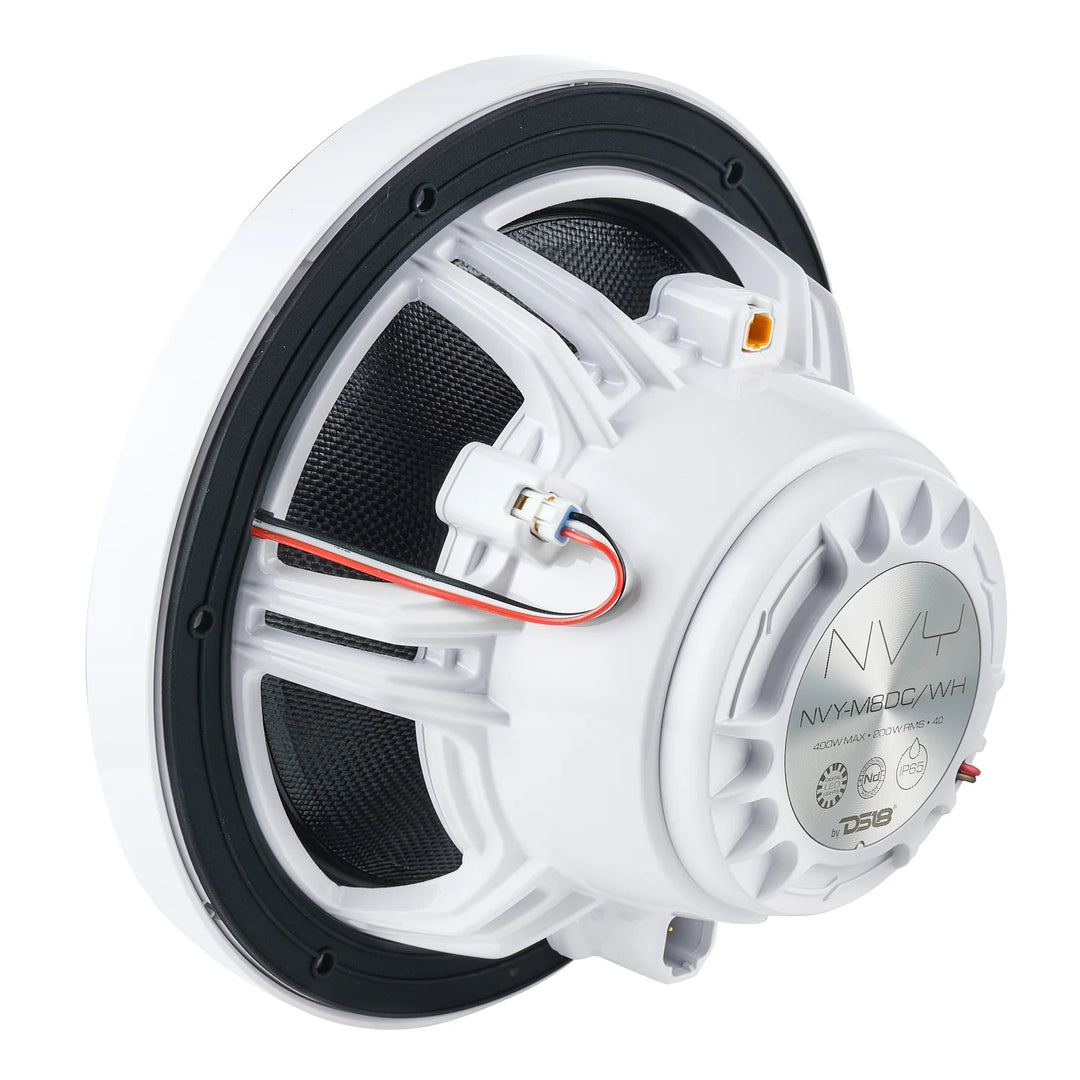

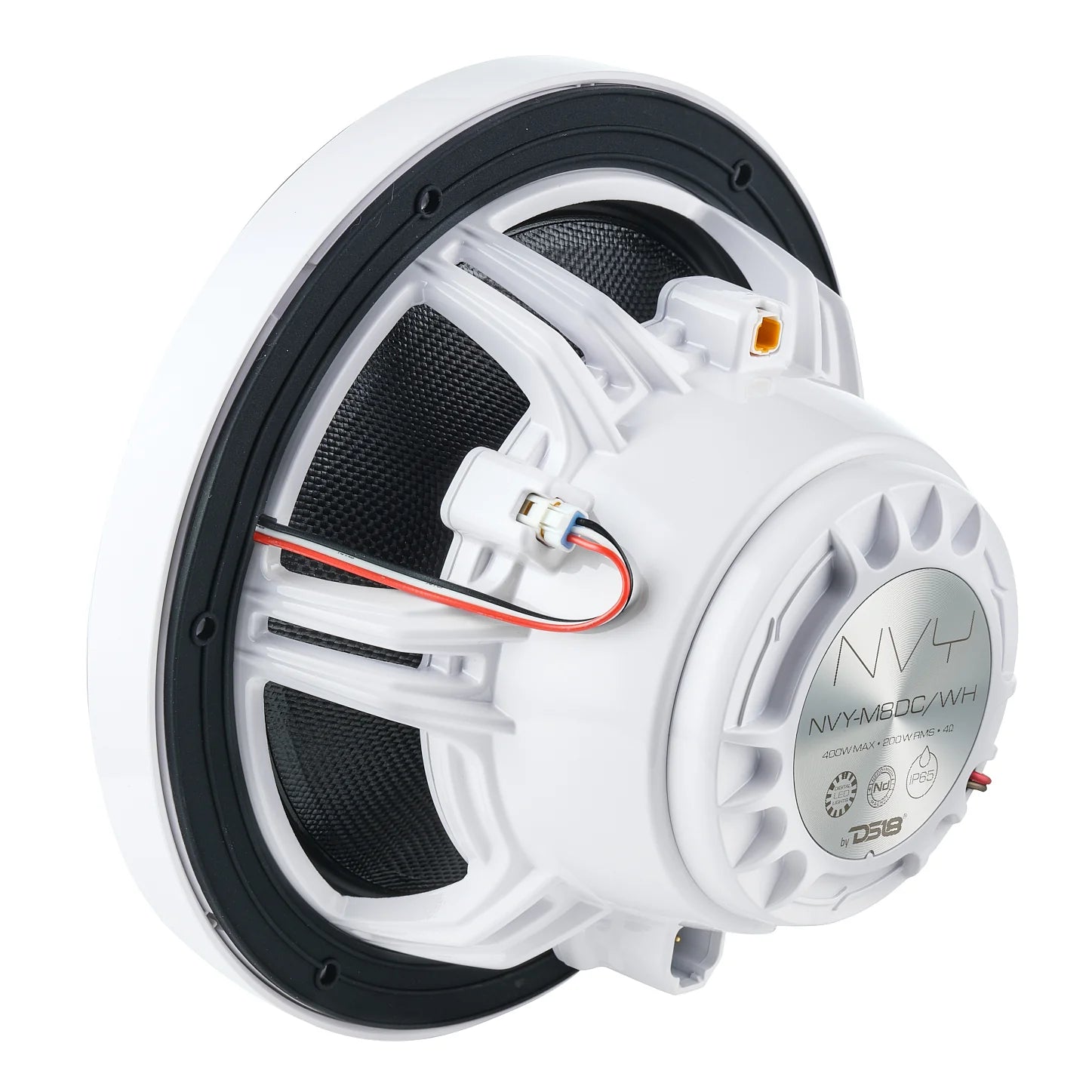

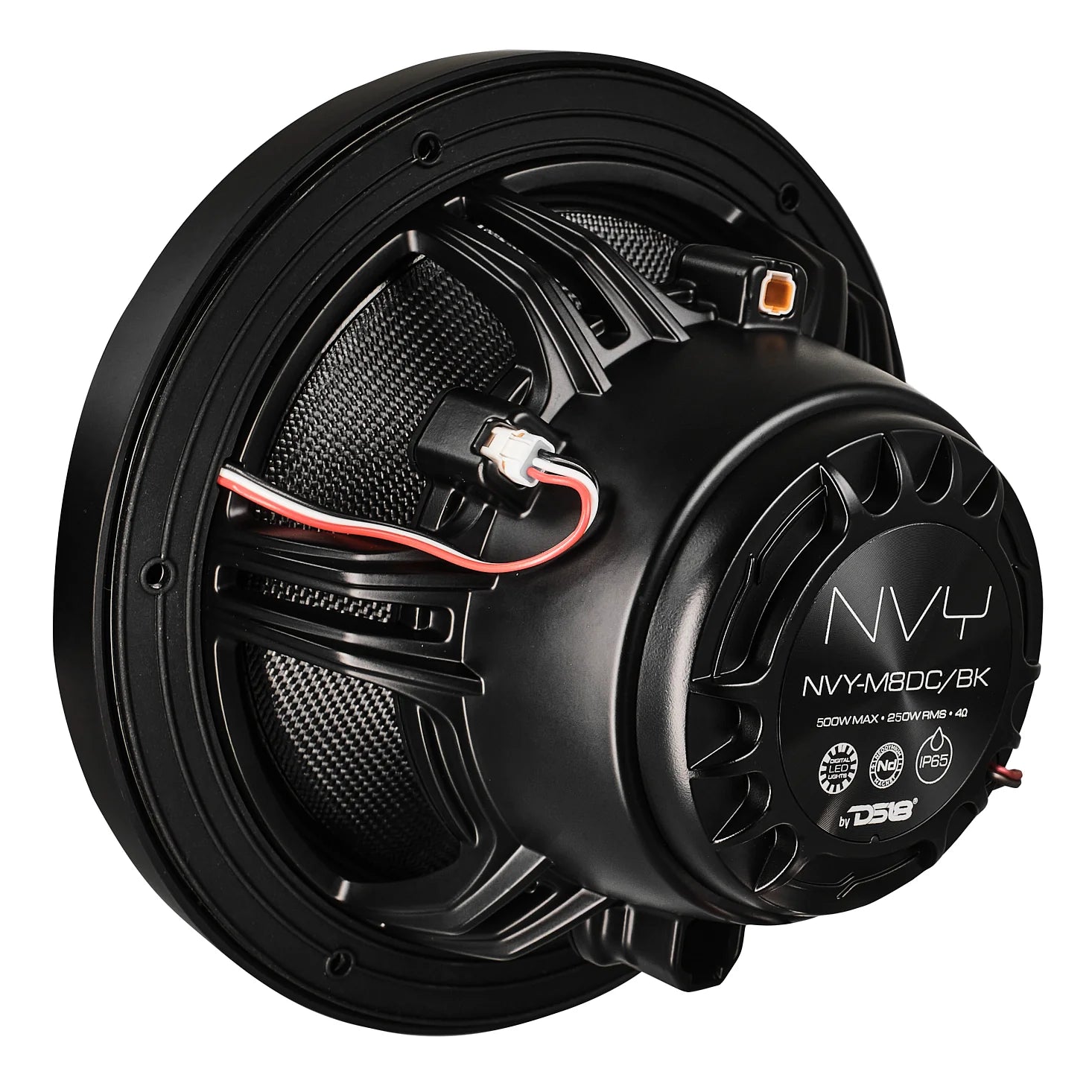

At the core is a Kevlar-reinforced cone—ultra-light, ultra-tough, and built for impact. Paired with a Santoprene surround and molded aluminum basket, it delivers precision without compromise.

General Specifications

• Nominal Diameter: 8" / 203mm

• Nominal Impedance: 4 ohms

• RMS Power Handling: 200W

• MAX Power Handling: 400W

• Sensitivity (1w/1m): 99dB

• Frequency Response: 40Hz-20KHz

• Number of Ways: 2-Ways

• Recommended High-Pass Crossover: 60Hz

• Sold in Pairs

Body / Features

• UV Protection: Yes, 100% Stable

• Protection Coating: Yes, with PU

• Decorative Strips: Yes, Electroplated

• Marine Grade Type: IP65

• LED Lights Yes, Digital LED integrated

• Digital LED Chip Type: 1815S

• Grill Type: Injection Molded Composite ASA

• Color / Finish: Black

Woofer Specifications

• Voice Coil Diameter: 2" / 50.6mm

• Voice Coil Former Material: Glass Fiber

• Winding Material: CCAW

• Cone Material: Kevlar

• Dust Cap Material: Kevlar

• Surround Material: Santoprene (Rubber)

• Basket Material: Aluminum Molded with UV Protection

• Magnet Material: Neodymium

• Magnet Weight: 8 Oz

Driver Specifications

• Type Compression Horn

• Voice Coil Diameter: 1" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: PEN

• Horn Material: Aluminum

• Magnet Material: Neodymium (N38H)

• Magnet Weight: 1.85 Oz

Thiele & Small Parameters

• Equivalent Volume Vas: 52.36L / 1.849ft3

• Excursion (one way) Xmax: 3.2mm

• Free Air Resonance Fs: 85Hz

• Mechanical Factor Qms: 12.46

• Electrical Factor Qes: 0.653

• Total Factor Qts: 0.621

• Moving Mass Mms: 26.82g

• Compliance Cms: 0.165mm / Bl Factor BI 8.5

• Voice Coil Inductance Le: 0.31mH

• Diaphragm Area Sd: 213.8cm²

• DC Resistance Re: 3.3 Ohms

• Efficiency Bandwidth Product: EBP 130

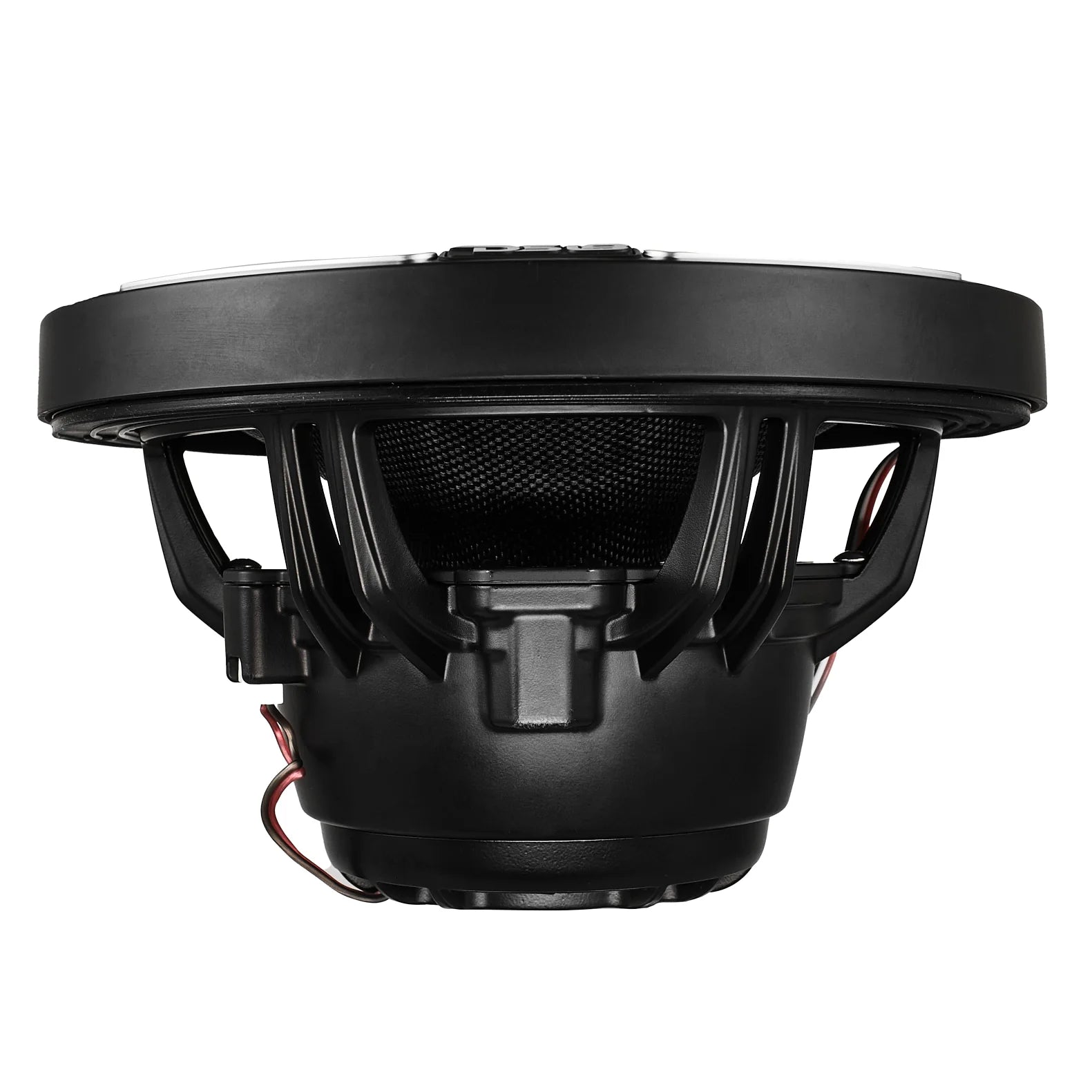

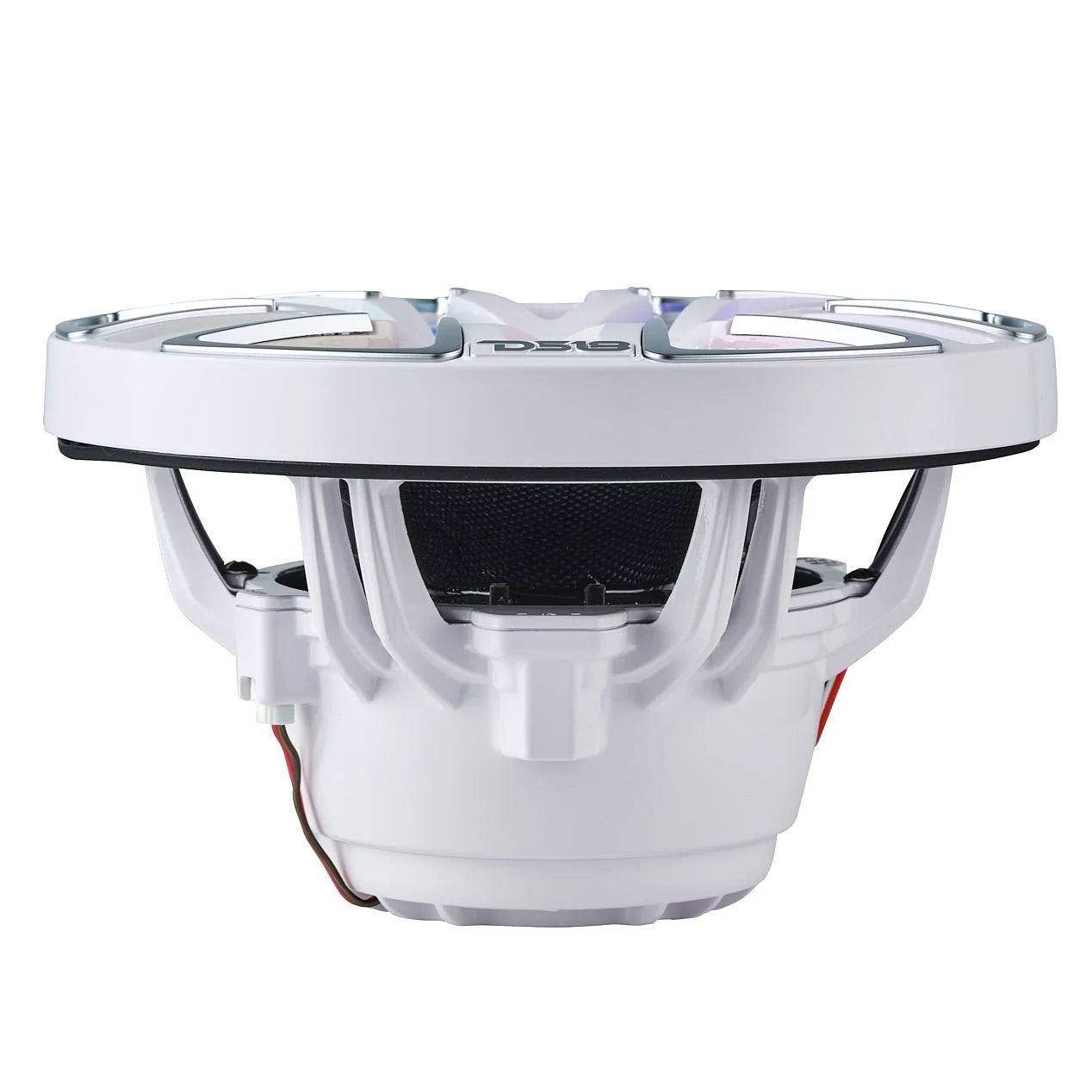

Speaker Measurement

• Overall Diameter: 8.62″ / 219mm

• Overall Depth: 5.12″ / 129.96mm

• Front Mount Baffle Cutout: 6.93″ / 176.08mm

• Mounting Depth: 4.01″ / 101.75mm

• Motor Diameter: 3.93" / 100mm
