Push Further

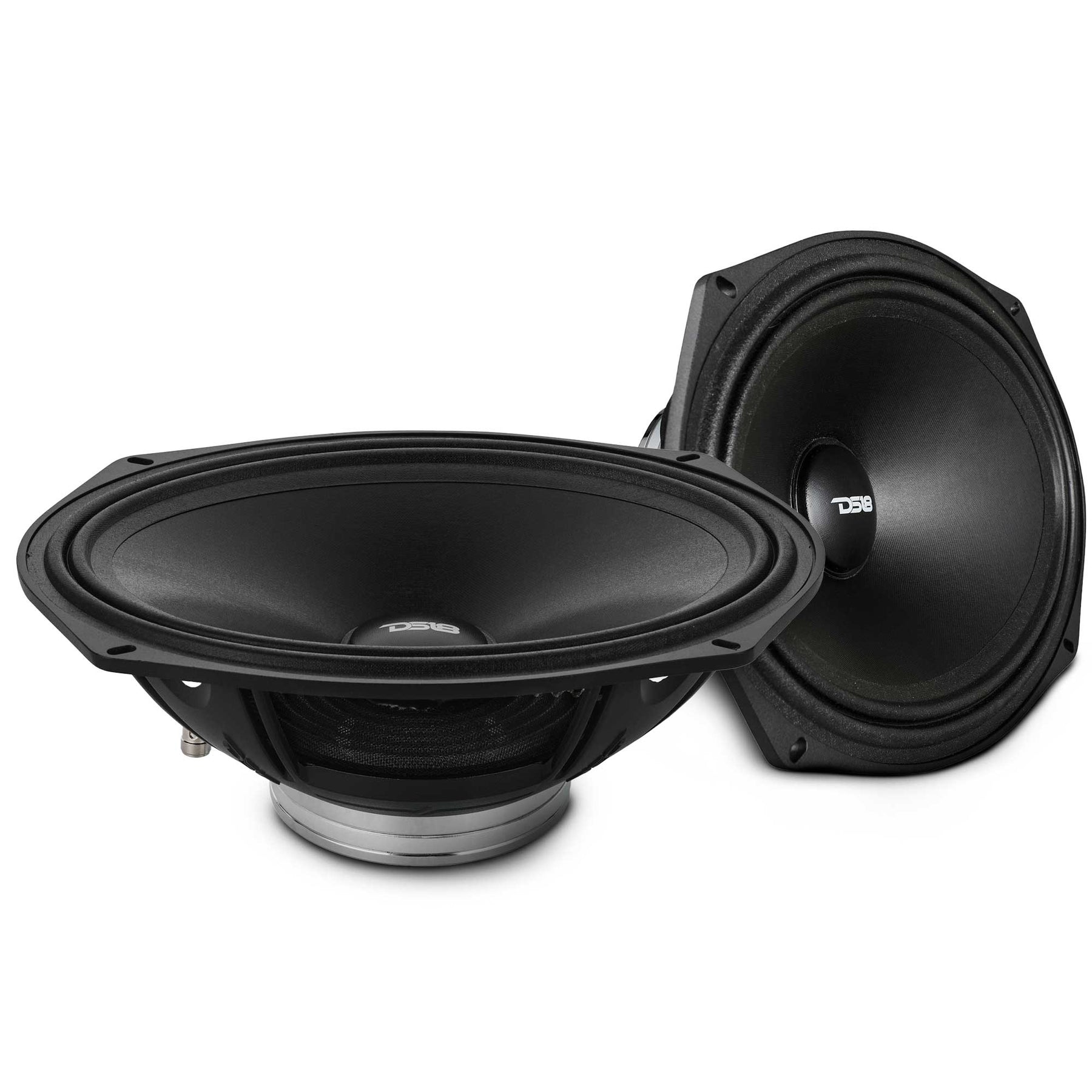

The NVY-69PROEVO pushes power and precision in a 6x9" form engineered for open-road audio. A 96dB sensitivity mean every watt carries weight.

Built For All Elements
With an IP65-rated resin-finished cone, treated surround, and sealed motor, the 69PROEVO defies the elements.

No Limits
From its copper ribbon coil to its curvilinear cone and spider-crossed leads, every part supports sustained, distortion-free output.

Designed For Your Ride
With push terminals, sealed internals, and a precisely contoured frame, install is simple and clean in all motorcycles and powersports builds.

General Specifications

• Nominal Diameter: 6x9" / 146x217mm

• Nominal Impedance: 4 Ohms or 2 Ohms

• RMS Power Handling: 250W

• MAX Power Handling: 500W

• Sensitivity (1w/1m): 96dB

• Frequency Response: 70Hz-16Khz

• Recommended High-Pass Crossover: 80Hz

• Sold in Pairs

Body / Features

• Demodulating Rings: Yes

• Improved Heat Dissipation: Yes

• Cone Shape: Curvilinear

• Speaker Terminals: Push 14ga

• Waterproof Rating: IP65

Motor Specifications

• Voice Coil Diameter: 1.5" / 38.5mm

• Voice Coil Former Material: TIL

• Winding Material: Copper Ribbon

• Cone Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish

• Dust Cap Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish

• Surround Material: Treated Cloth

• Leads Connection Type: Spider Crossed

• Basket Material: Aluminum

• Basket Color/Finish: Black

• Magnet Material: Neodymium

• Magnet Weight: 5.1 Oz

Thiele & Small Parameters

• Equivalent Volume: 23.72L / 0.837ft3

• Excursion (one way): 2mm

• Free Air Resonance: 68Hz

• Mechanical Factor: 10.76

• Electrical Factor: 0.7

• Total Factor: 0.66

• Mechanical Mass: 24.634g

• Mechanical Compliance: 0.298mm/N

• BL Factor: 6.34

• Voice Coil Inductance: 0.175mH

• Cone Area: 226.98cm2

• Mechanical Mass w/o air: 21.1g

Speaker Measurement

• Overall Diameter: 6.4x9.1" / 163x232mm

• Overall Depth: 3.6" / 92mm

• Front Mount Baffle Cutout: 5.7x8.6" / 146x217mm

• Mounting Depth: 3.4" / 86mm

• Motor Diameter: 3.54" / 90mm
