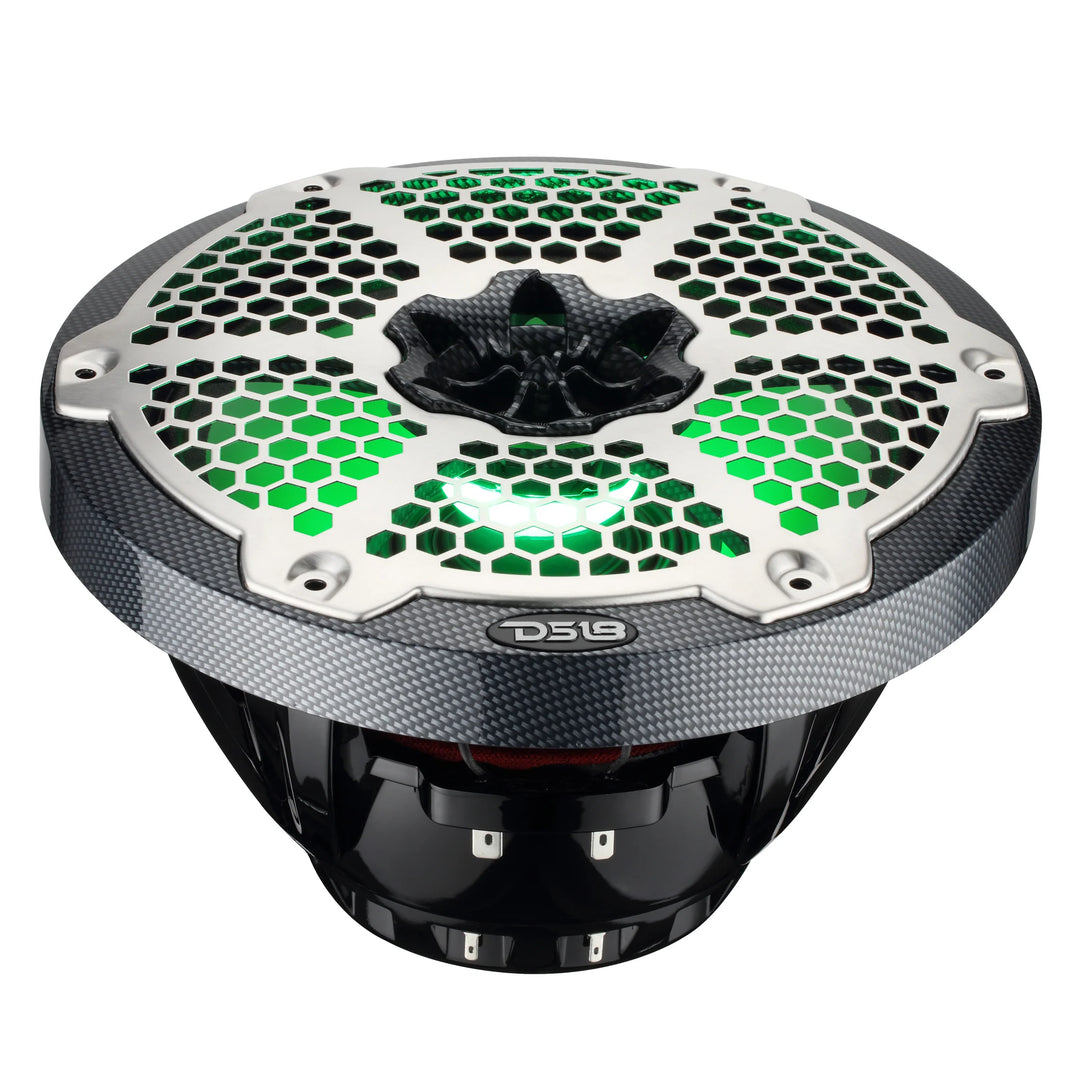

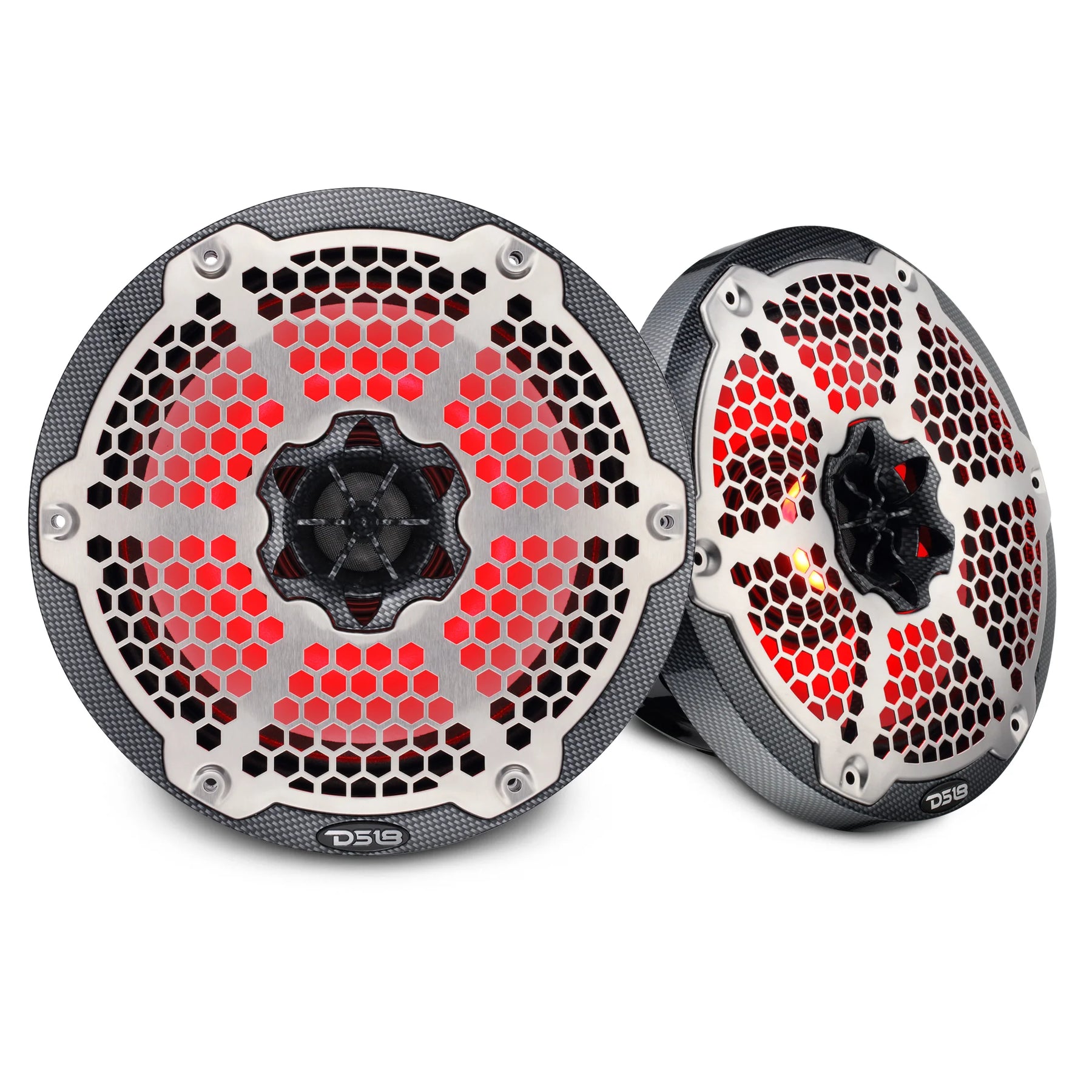

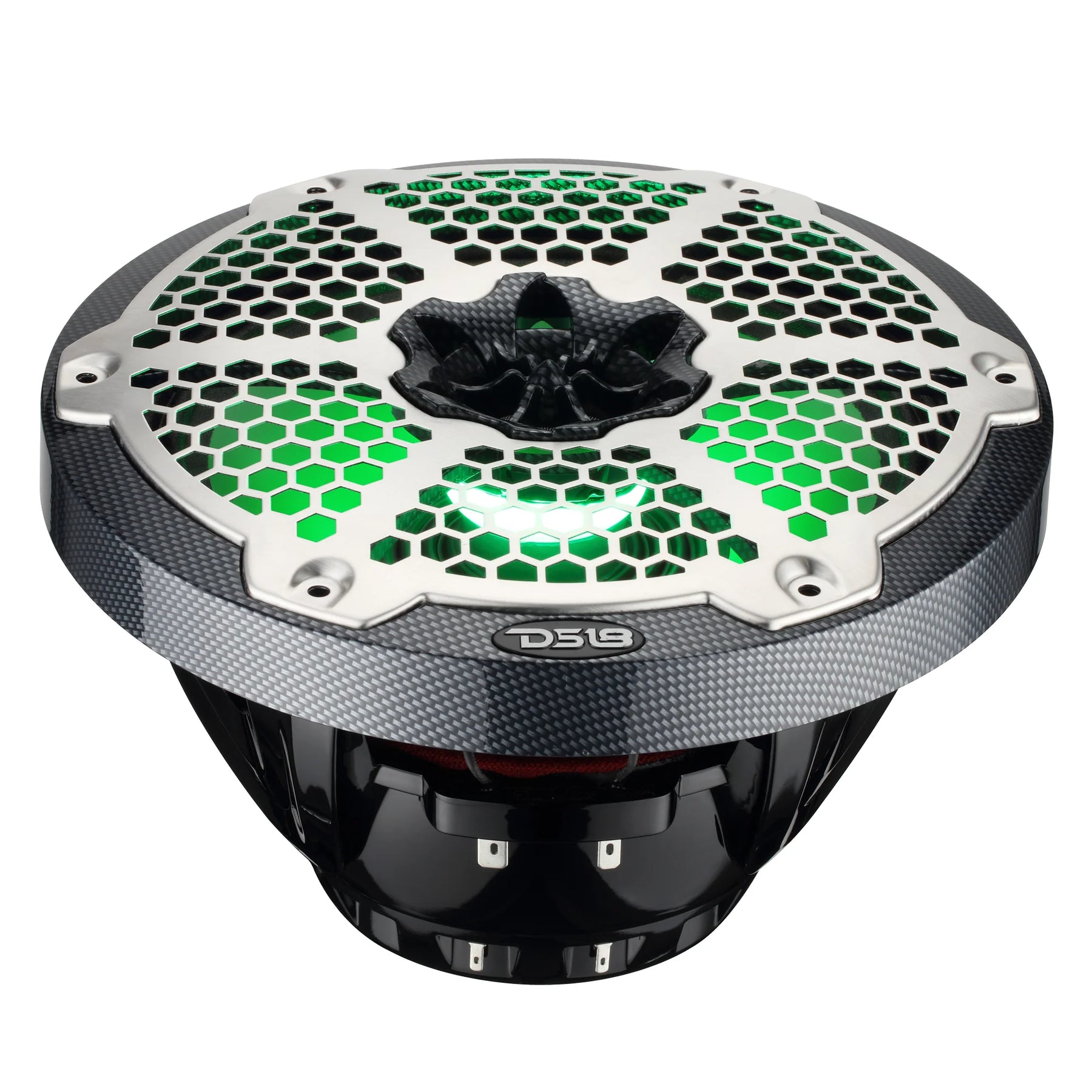

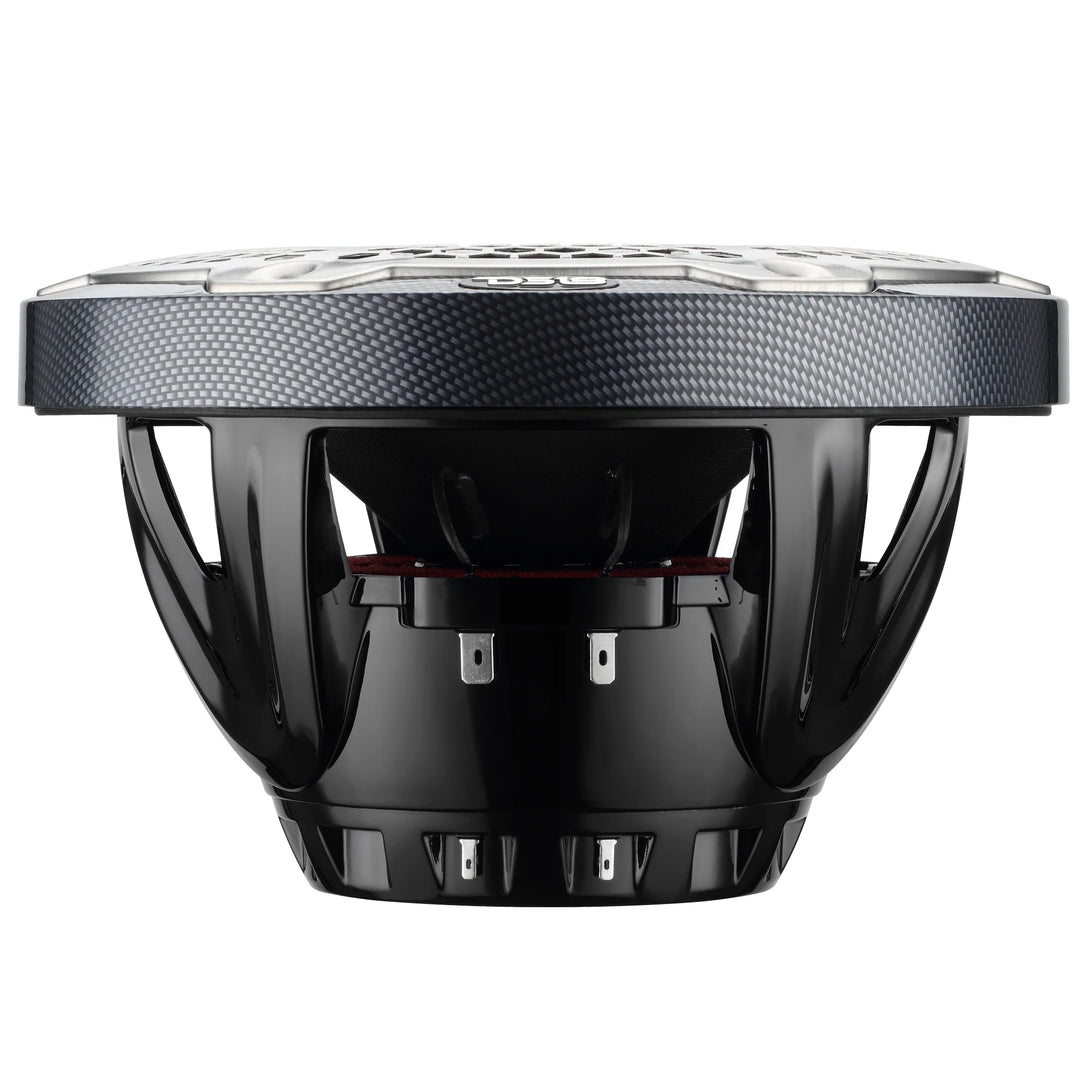

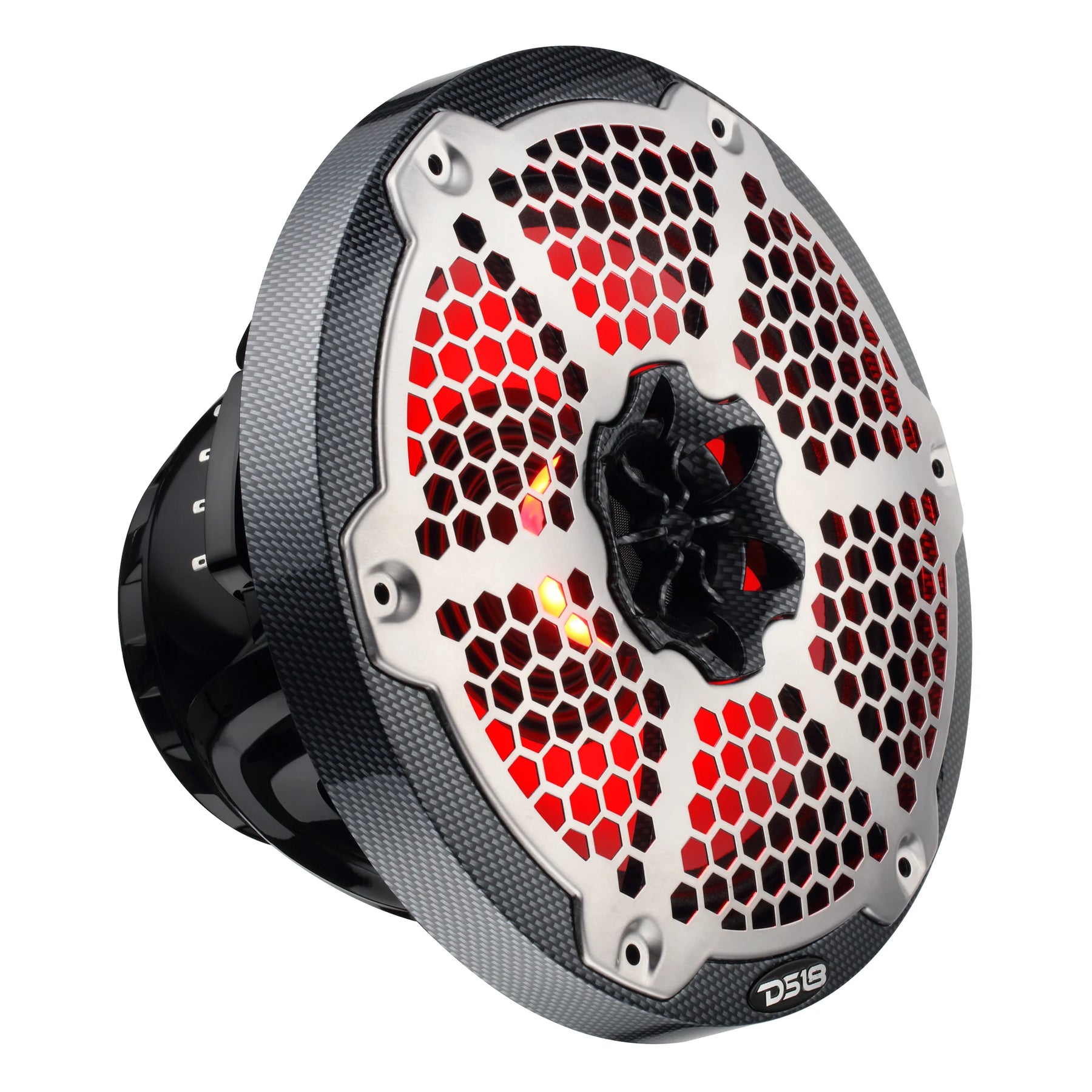

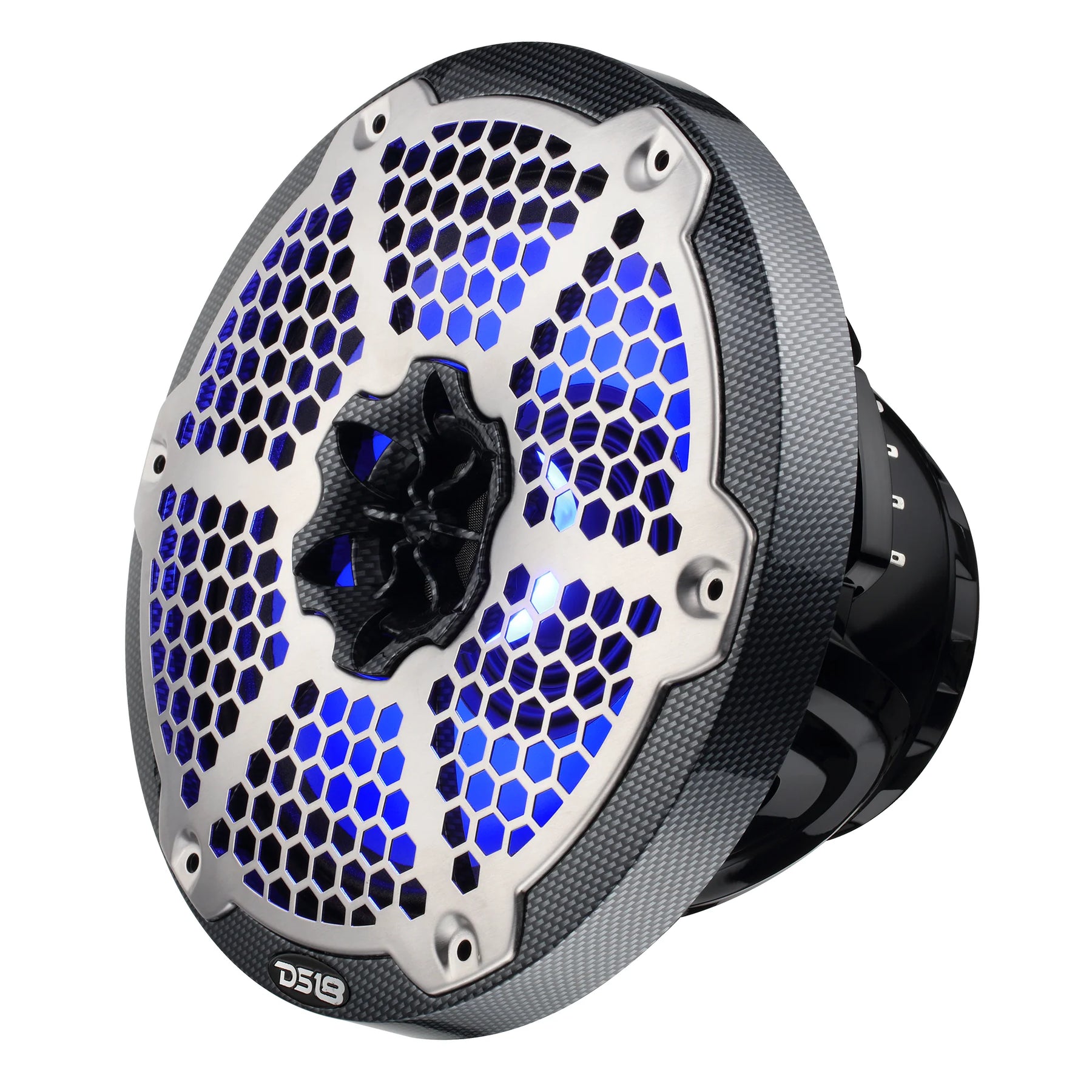

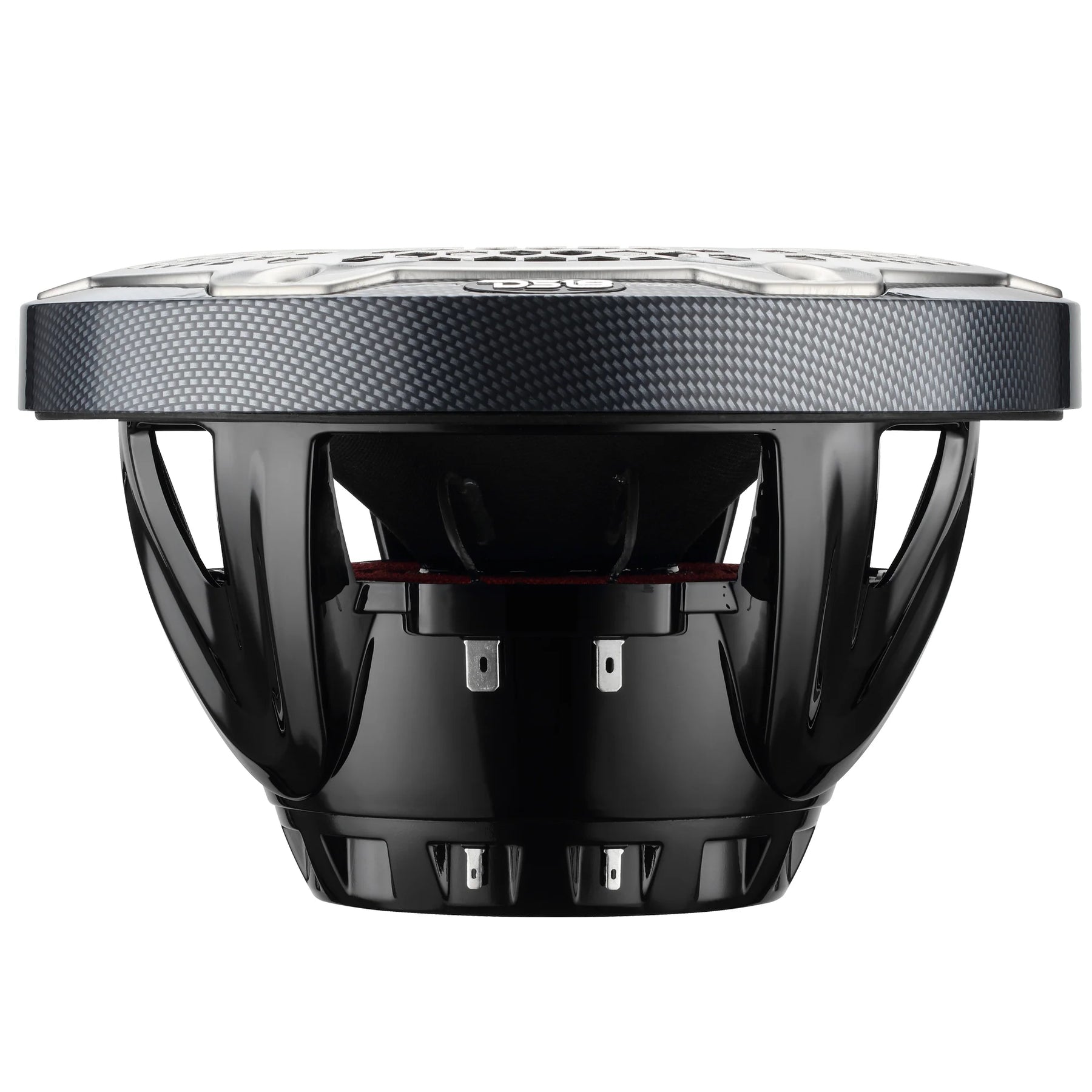

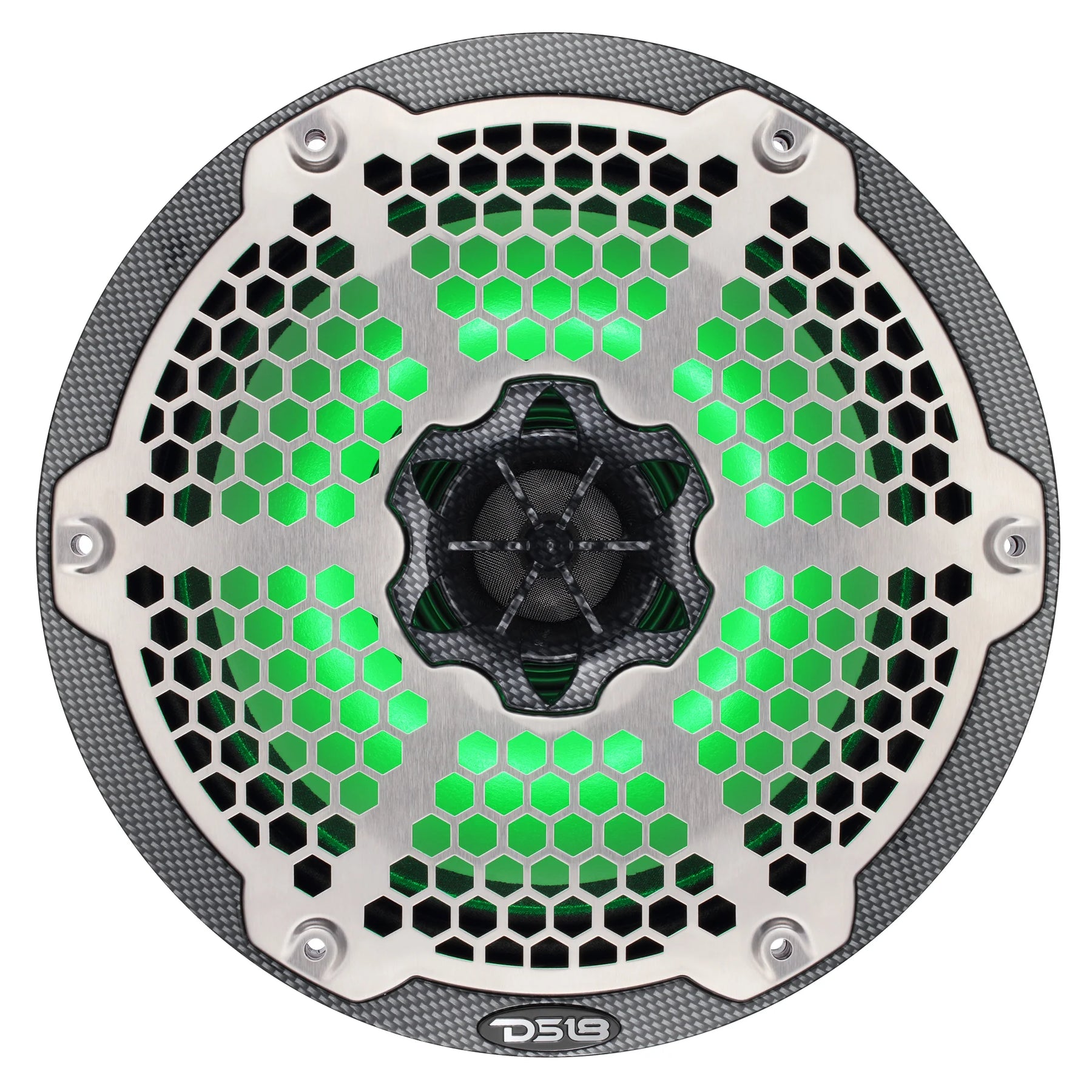

8” Marine Grade Hybrid Speaker with RGB LED, Compression Driver, Neodymium Magnet

Experience the punch of DS18’s CF-8MD, rated at 350W RMS and designed for marine and powersports enthusiasts who like it LOUD!

Advanced Hybrid 2-Way Design
Featuring a high-performance 2” voice coil woofer with treated paper cone, the NXL-8MD is paired with a 1” neodymium compression driver and CNC aluminum horn reproducing audio from 50Hz up to 20kHz.

Marine-Grade Construction & Lighting
The IP65 rated speaker is housed in a UV-protected injection-molded ASA basket. A removable stainless steel grill guards against corrosion. Integrated 12V RGB LED lighting adds customizable flair to your audio system.

Installation Made Easy
The CF-8MD fits standard 8.6” diameter openings with a 3.8” mounting depth, and is sold in pairs for balanced stereo sound.

Features:

• Neodymium compression driver with CNC aluminum horn for crisp highs

• Waterproof and UV-protected for all-weather durability IP65

• Removable Stainless Steel Grill

• Vibrant RGB Lighting

• Speaker covers included

General Specifications:

• Nominal Diameter: 8" / 203mm

• RMS Power Handling (Combined): 350W

• MAX Power Handling (Combined): 700W

• Sensitivity (1w/1m) (Combined): 108dB

• Frequency Response (Combined): 50Hz-20kHz

• Number of Ways: 2-Ways

• UV Compliant: Yes, 100% Stable

• Marine Grade Type: IP65

• RGB LED: Yes, 12VDC LED integrated

• Grill Type: Injection Molded Composite ASA with UV Protection coating +
• Removable 316 Stainless Steel metal mesh

• Sold in Pair: Yes

• Color / Finish: Carbon Fiber

Woofer Specifications:

• Nominal Impedance: 4 Ohms

• RMS Power Handling: 300W

• MAX Power Handling: 600W

• Sensitivity (1w/1m): 96dB

• Frequency Response: 50Hz-7kHz

• Recommended Band-Pass Crossover: 80Hz-2.5kHz

• Voice Coil Diameter: 2" / 50.8mm

• Voice Coil Former Material: Glass Fiber

• Winding Material: CCAW

• Cone Material: Water-Resistant Paper

• Surround Material: Treated Cloth

• Basket Material: Injection Molded PC with UV Protection coating

• Magnet Material: Neodymium (N40H)

• Magnet Weight: 8 oz

Driver Specifications:

• Type: Compression driver with CNC solid aluminum horn

• Nominal Impedance: 4 Ohms

• RMS Power Handling: 50W

• MAX Power Handling: 100W

• Sensitivity (1w/1m): 108dB

• Frequency Response: 1kHz-20kHz

• Crossover: Built-In 12dB/Oct with overload protection

• Recommended High-Pass Crossover: 2.5kHz

• Voice Coil Diameter: 1" / 25.4mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Diaphragm Material: PEN

• Magnet Material: Neodymium (N38H)

• Magnet Weight: 0.61 oz

Thiele & Small Parameters:

• Equivalent Volume: 13.25L / 0.468ft3

• Excursion (one way): 2.75mm

• Free Air Resonance: 86Hz

• Mechanical Factor: 4.481

• Electrical Factor: 0.685

• Total Factor: 0.594

• Moving Mass: 16.637g

• Compliance: 204.640uM/N

• Bl Factor: 6.069

• Voice Coil Inductance: 0.17mH

• Cone Area: 213.8CM2

• DC Resistance: 2.9 Ohms

• Efficiency Bandwidth Product: 125

Speaker Measurement:

• Overall Diameter: 8.6" / 218mm

• Overall Depth: 5.2" / 132mm

• Front Mount Baffle Cutout: 7" / 177mm

• Mounting Depth: 3.8" / 98mm

• Motor Diameter: 3.9" / 100mm
