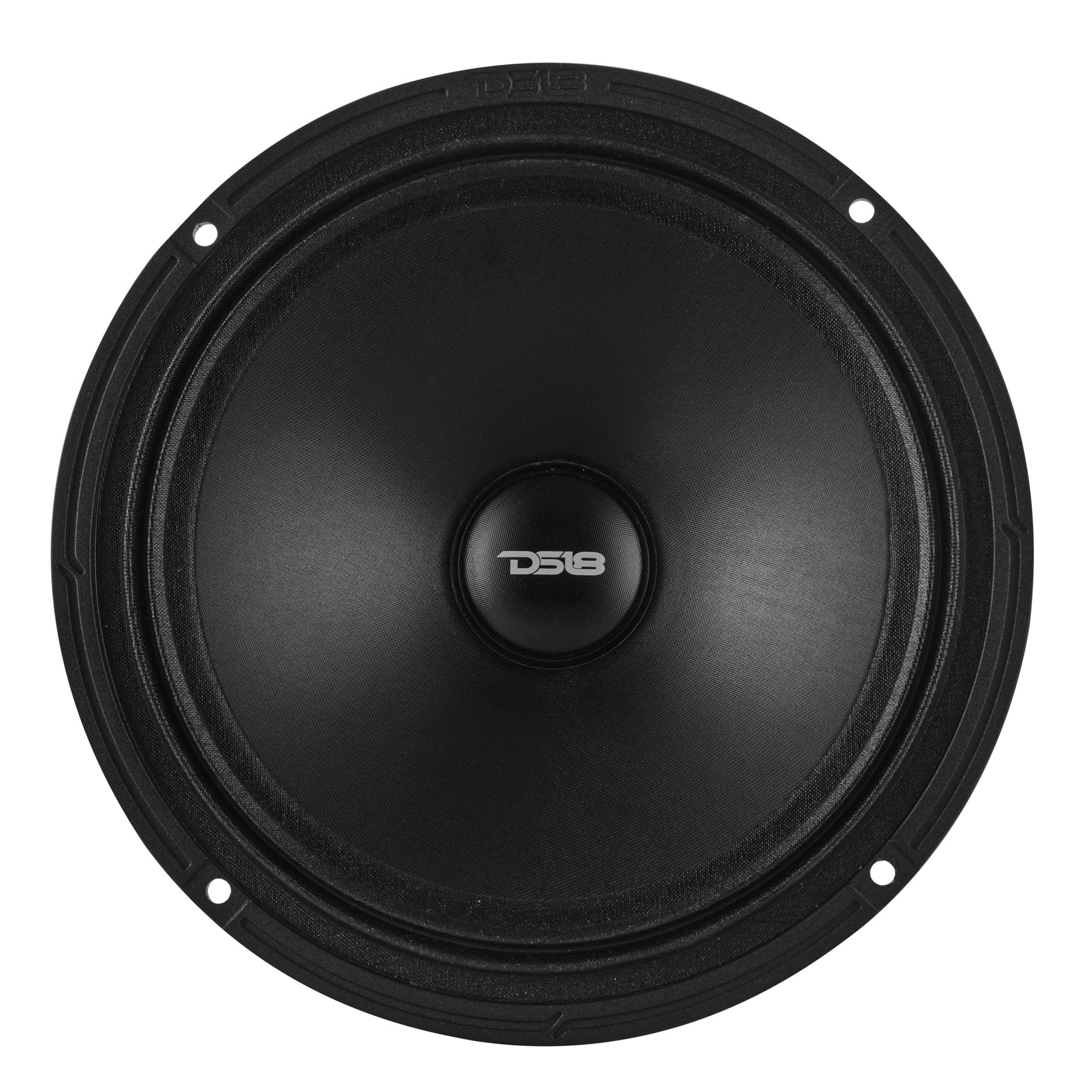

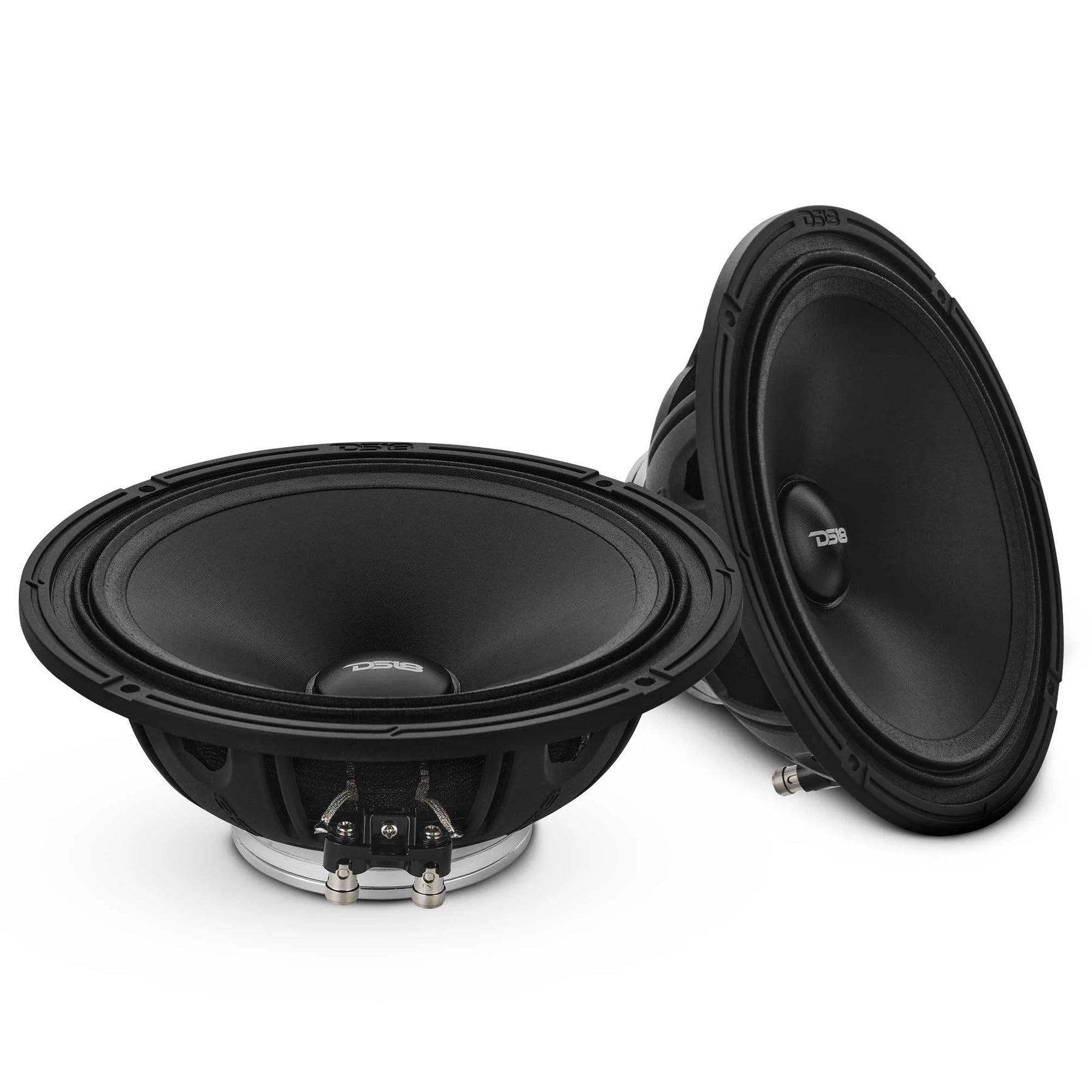

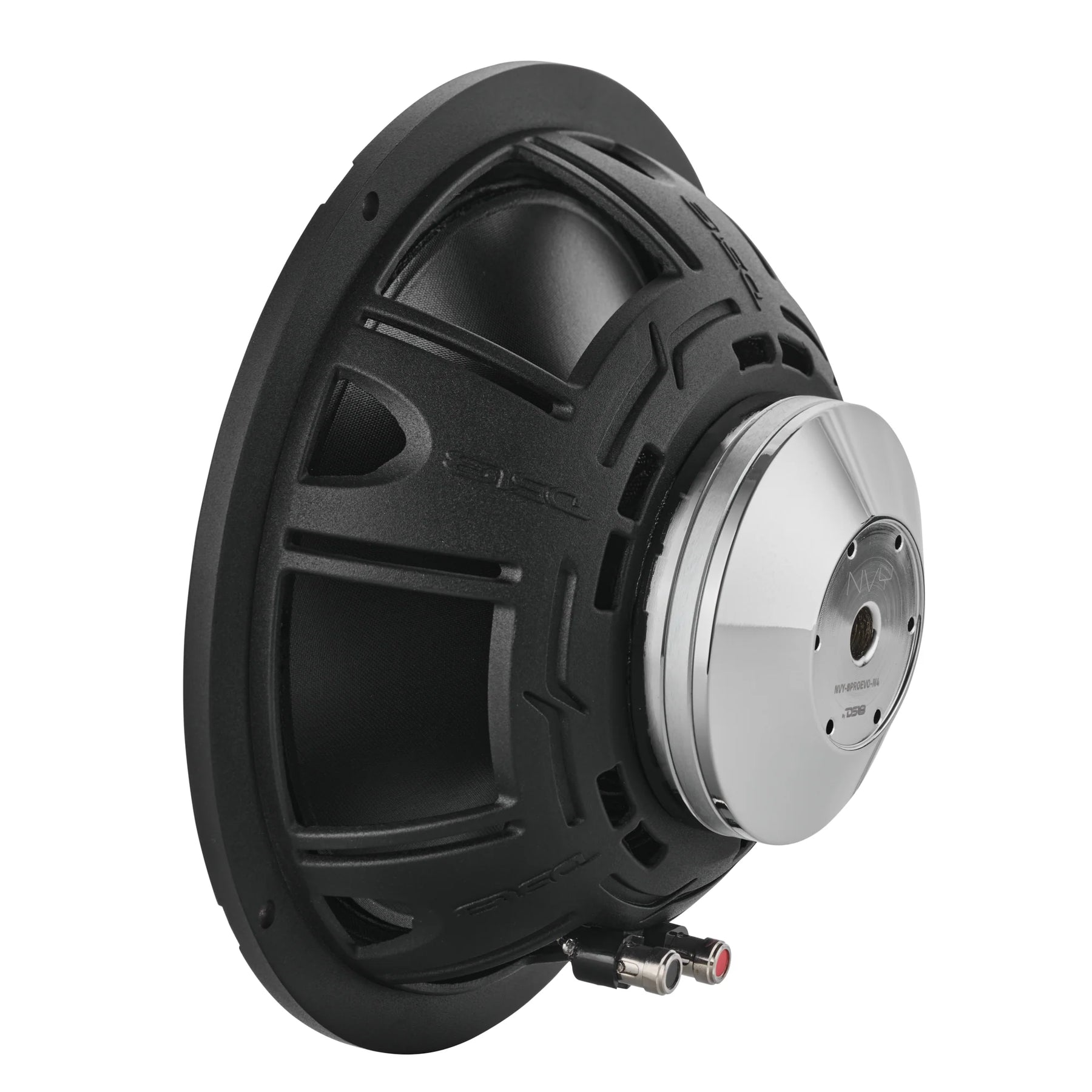

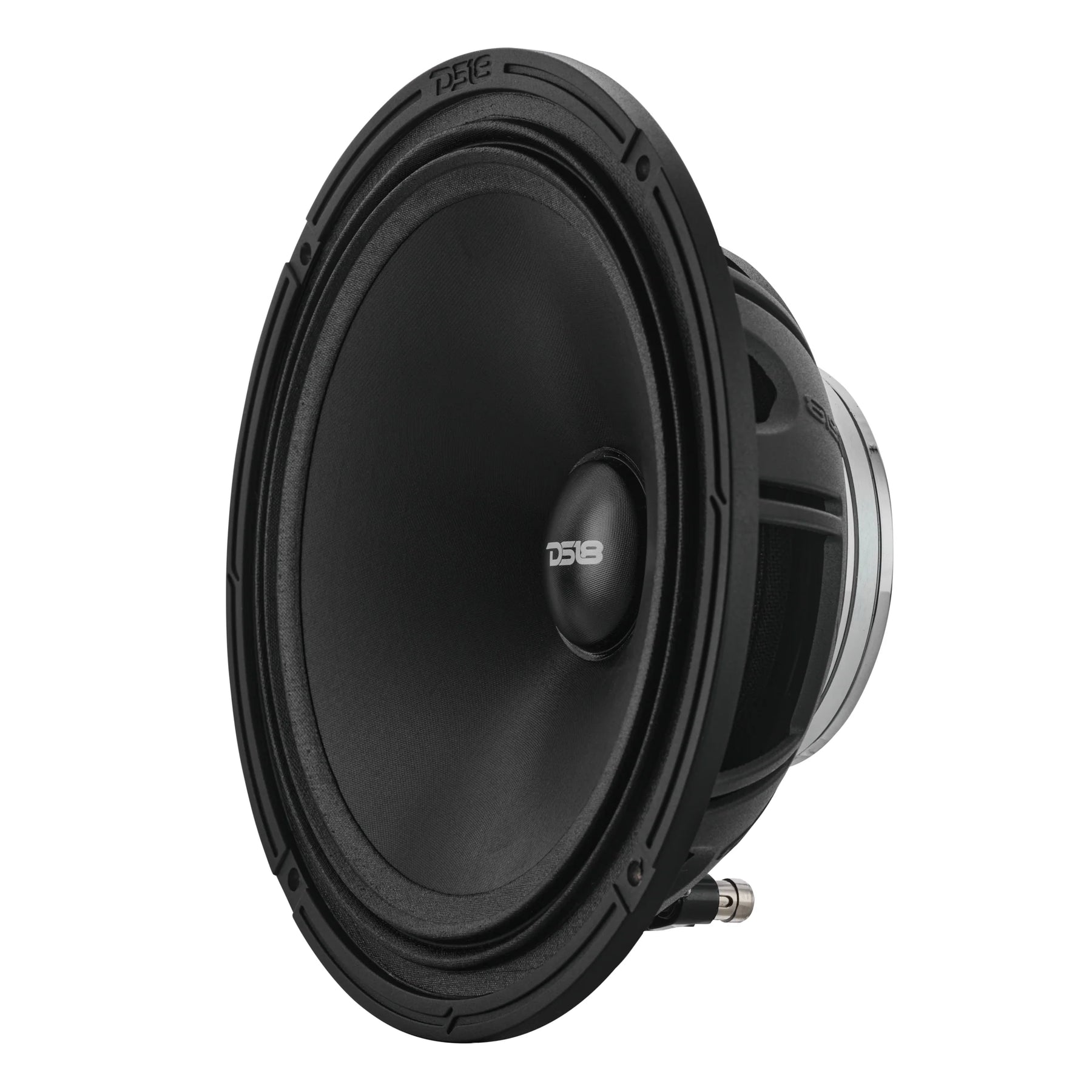

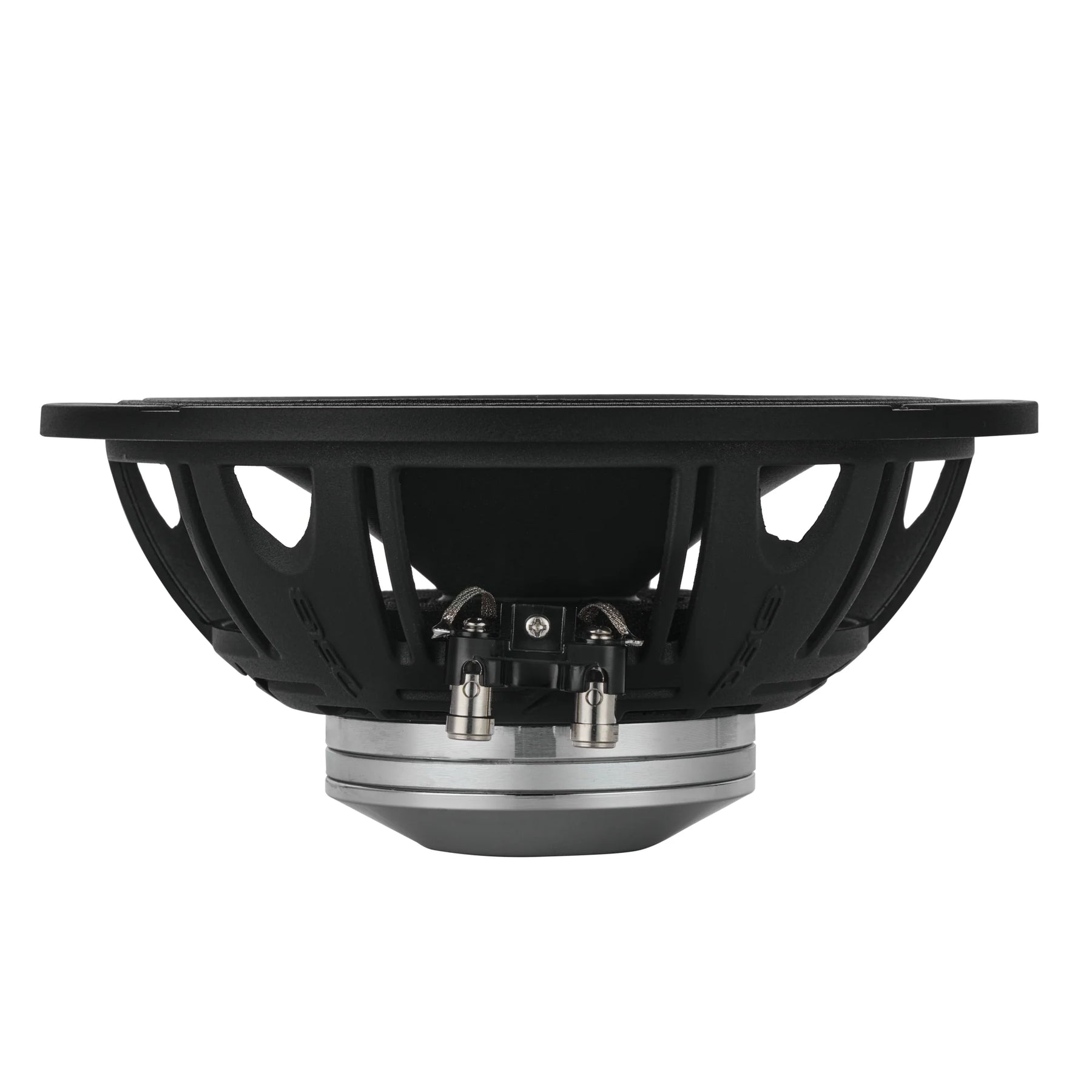

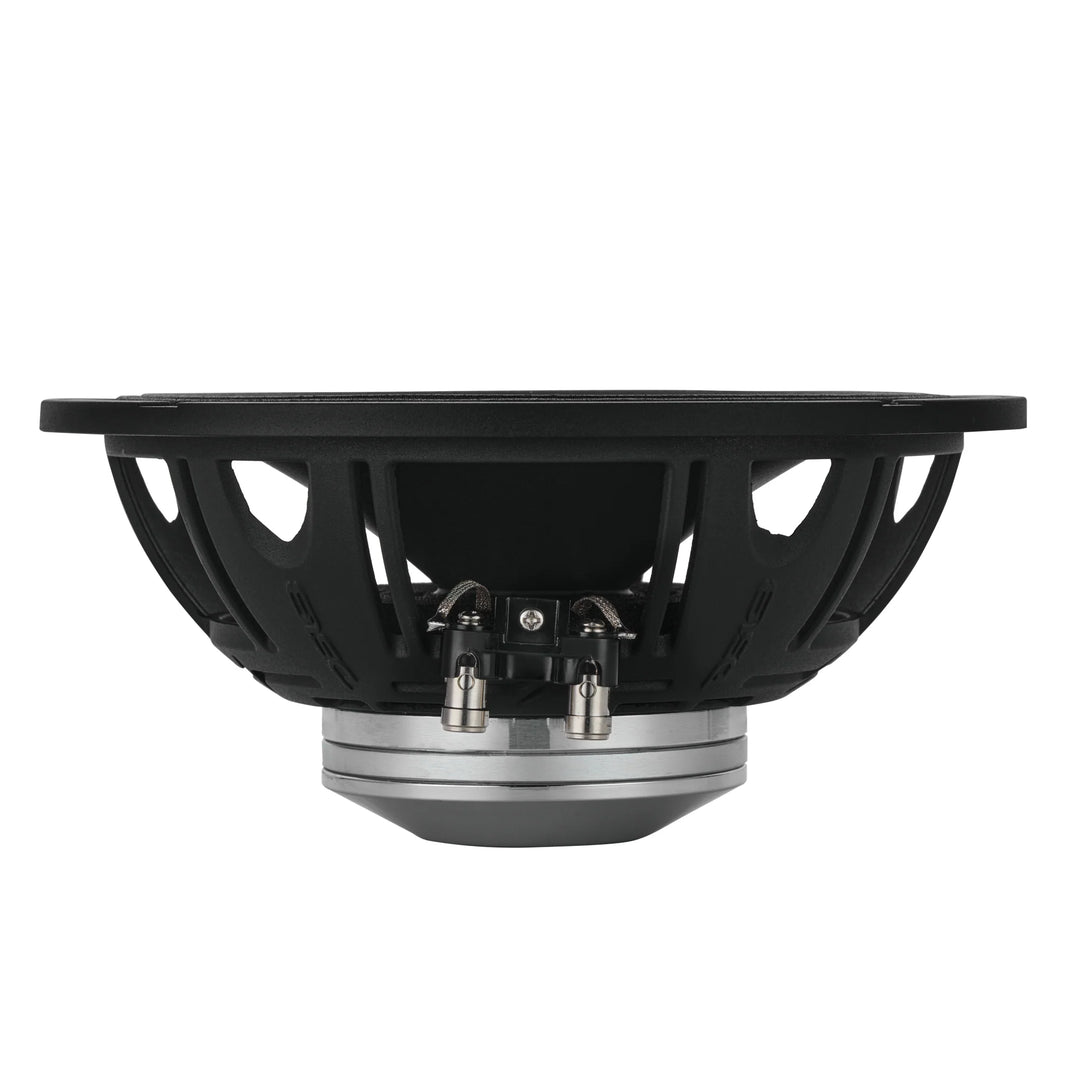

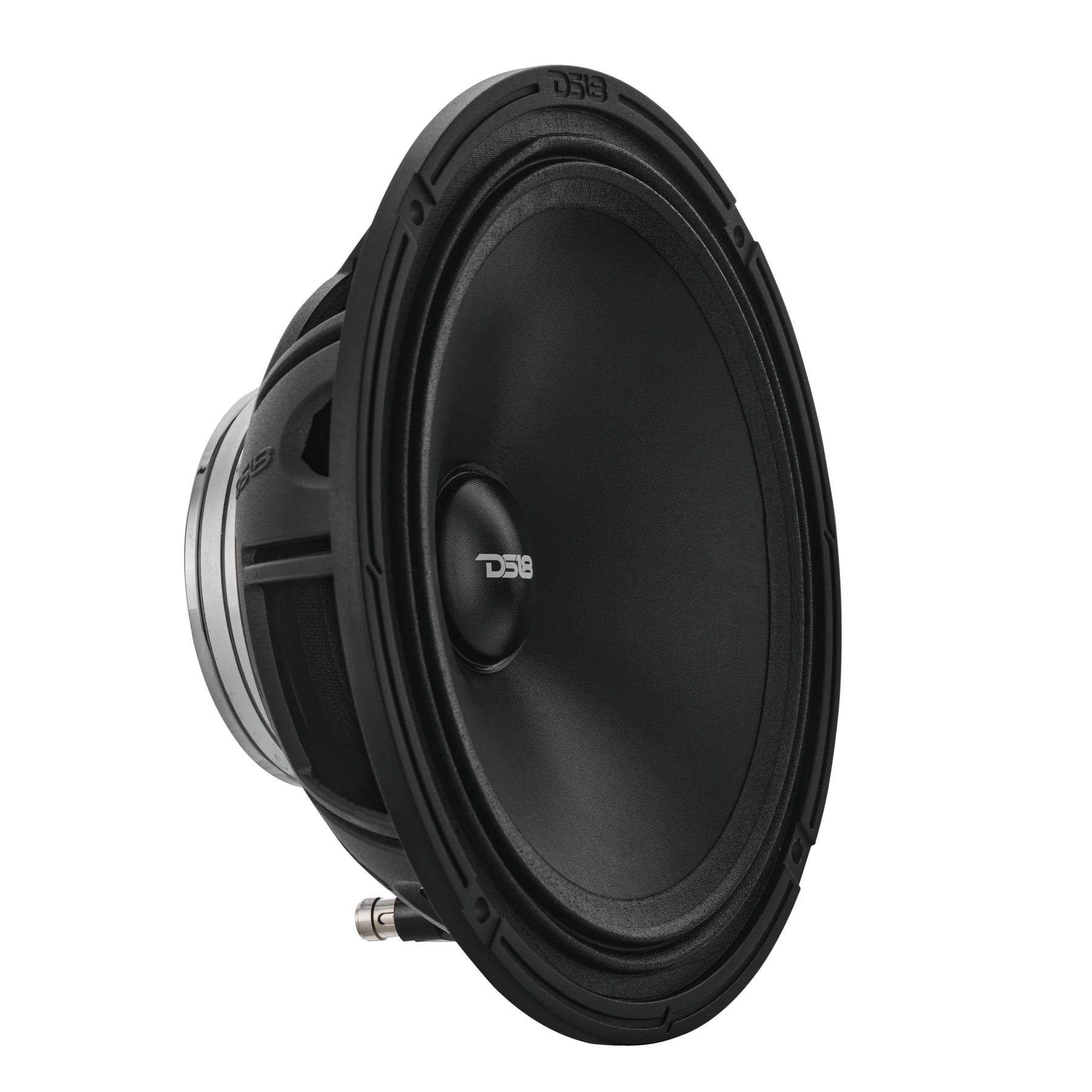

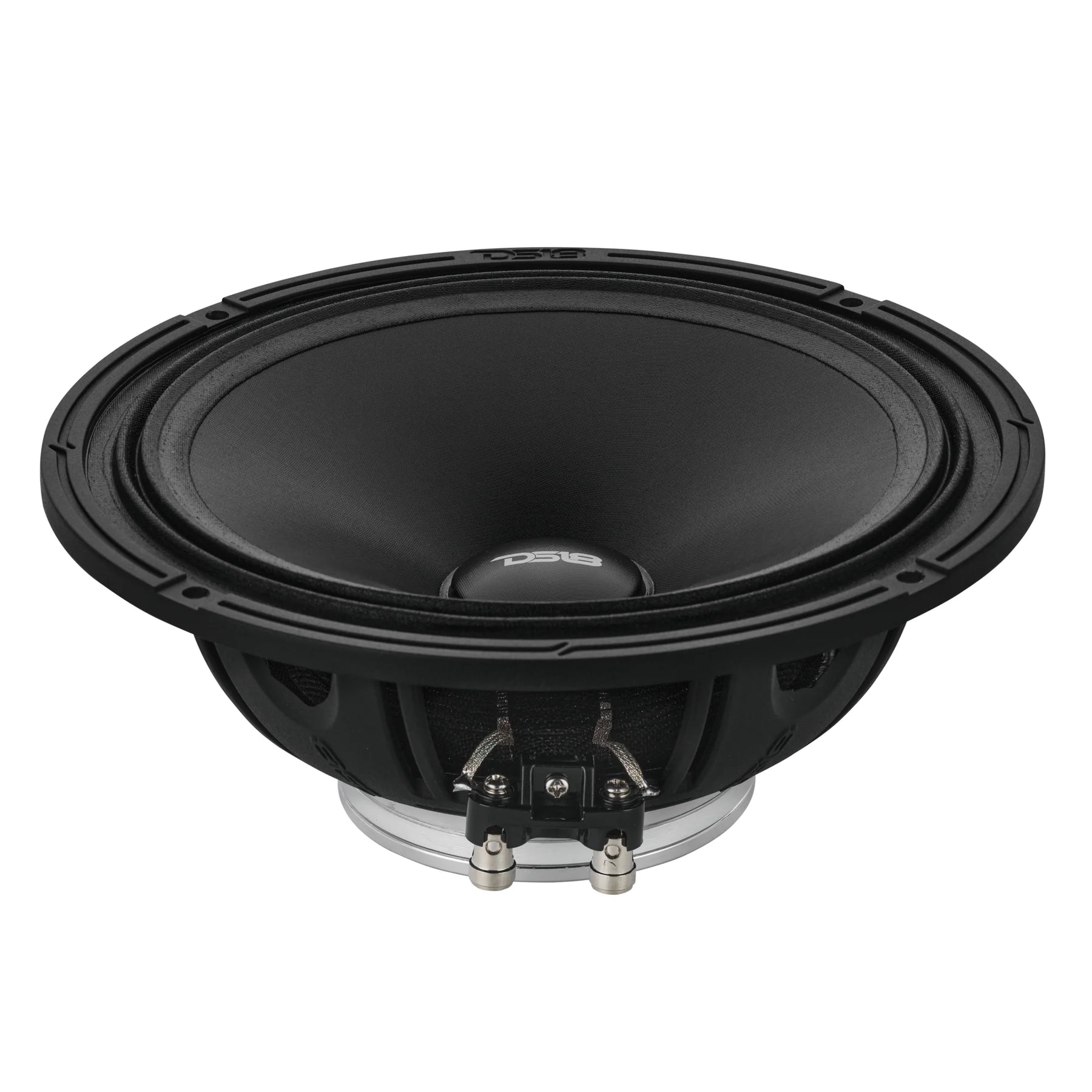

The Standard
The NVY-8PROEVO sets a new expectation for open-air audio. With 98.5dB sensitivity and coverage from 70Hz to 16kHz, this 8" loudspeaker has the authority to lead any system.

Outlast The Ride
From the water-resistant glass fiber cone to its resin-treated composite finish, every element of the 8PROEVO is designed to endure.

Consistent Performance
With 250W RMS power and smart thermal management from its TIL former and copper ribbon coil, the 8PROEVO delivers performance you can trust—even under pressure.

Seamless Fit
With push terminals and a compact footprint, this speaker installs easily into motorcycles, powersports, and marine setups.

General Specifications

• Nominal Diameter: 8" / 208mm

• Nominal Impedance: 4 Ohms or 2 Ohms

• RMS Power Handling: 250W

• MAX Power Handling: 500W

• Sensitivity (1w/1m): 98.5dB

• Frequency Response: 70Hz-16Khz

• Recommended High-Pass Crossover: 80Hz

• Sold in Pairs

Body / Features

• Demodulating Rings:: Yes

• Improved Heat Dissipation Yes

• Cone Shape: Curvilinear

• Speaker Terminals: Push 14ga

• Waterproof Rating: IP65

Motor Specifications

• Voice Coil Diameter: 1.5" / 38.5mm

• Voice Coil Former Material: TIL

• Winding Material: Copper Ribbon

• Cone Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish

• Dust Cap Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish

• Surround Material: Treated Cloth

• Leads Connection Type: Spider Crossed

• Basket Material: Aluminum

• Basket Color/Finish: Black

• Magnet Material: Neodymium

• Magnet Weight: 5.1 Oz

Thiele & Small Parameters

• Equivalent Volume: 15.01L / 0.53ft3

• Excursion (one way): 2mm

• Free Air Resonance: 84Hz

• Mechanical Factor: 13.6

• Electrical Factor: 0.73

• Total Factor: 0.69

• Mechanical Mass: 20.391g

• Mechanical Compliance: 0.168mm/N

• BL Factor: 6.94

• Voice Coil Inductance: 0.058mH

• Cone Area: 224.32cm2

• Mechanical Mass w/o air: 23.91g

Speaker Measurement

• Overall Diameter: 8.18" / 208mm

• Overall Depth: 6.6" / 93mm

• Front Mount Baffle Cutout: 7.12" / 181mm

• Mounting Depth: 3.37" / 85.5mm

• Motor Diameter: 3.54" / 90mm
