6x9” 2-Way Component Set – 120W RMS / 360W MAX – 4 Ohm

The ZXi-692C is a premium 6x9” 2-way component speaker system rated at 120W RMS and 360W MAX with a 4-ohm impedance, engineered for listeners who want strong midbass impact, clean midrange detail, and crisp, controlled highs. By separating the woofer and tweeter, this system delivers improved sound staging, clarity, and accuracy compared to traditional coaxial designs.

Component Design for Enhanced Imaging: Unlike coaxial speakers, the ZXi-692C’s true component design allows independent placement of the woofer and tweeter, creating a wider soundstage and more precise imaging. This results in vocals and instruments sounding more natural and positioned correctly across the cabin, bringing your music to life.

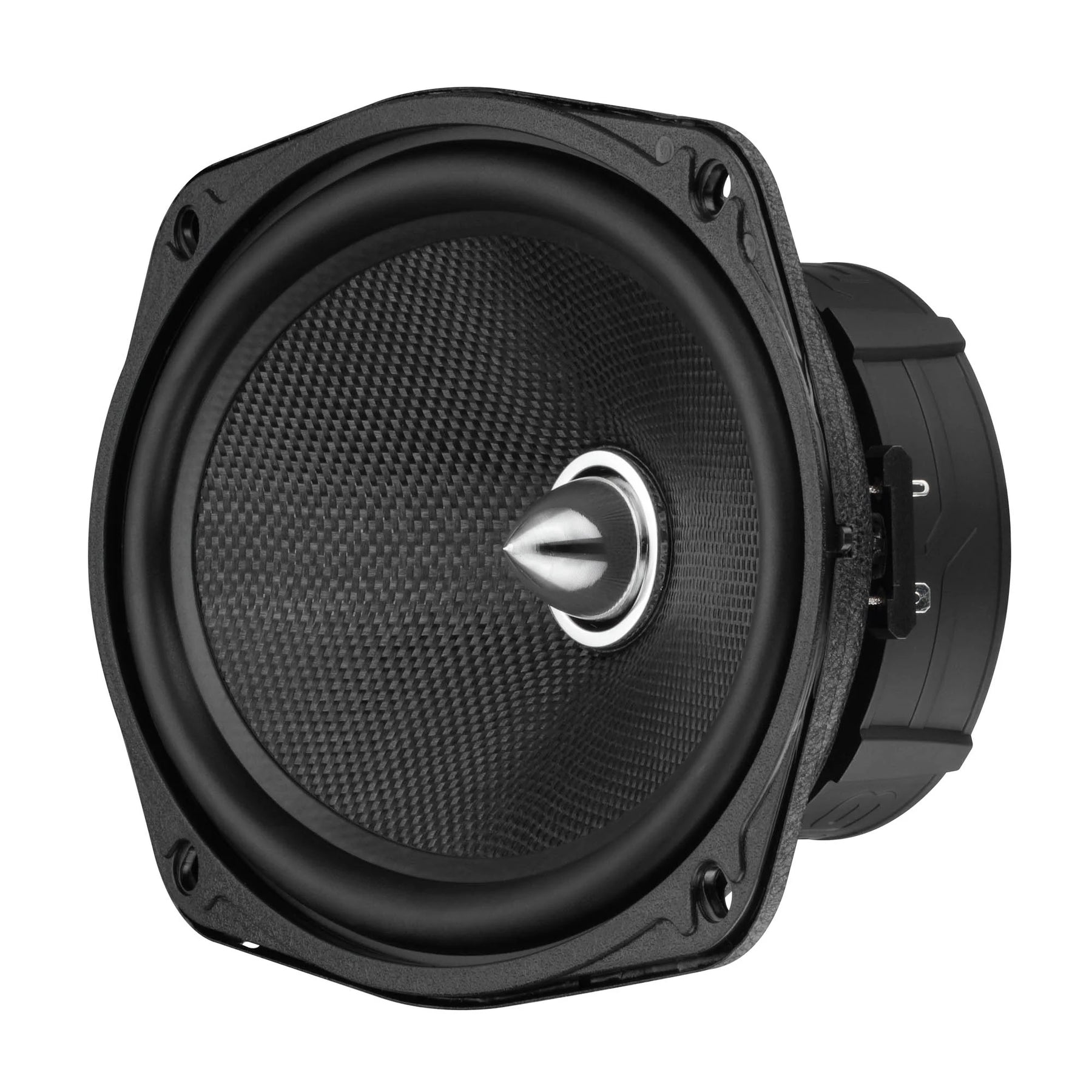

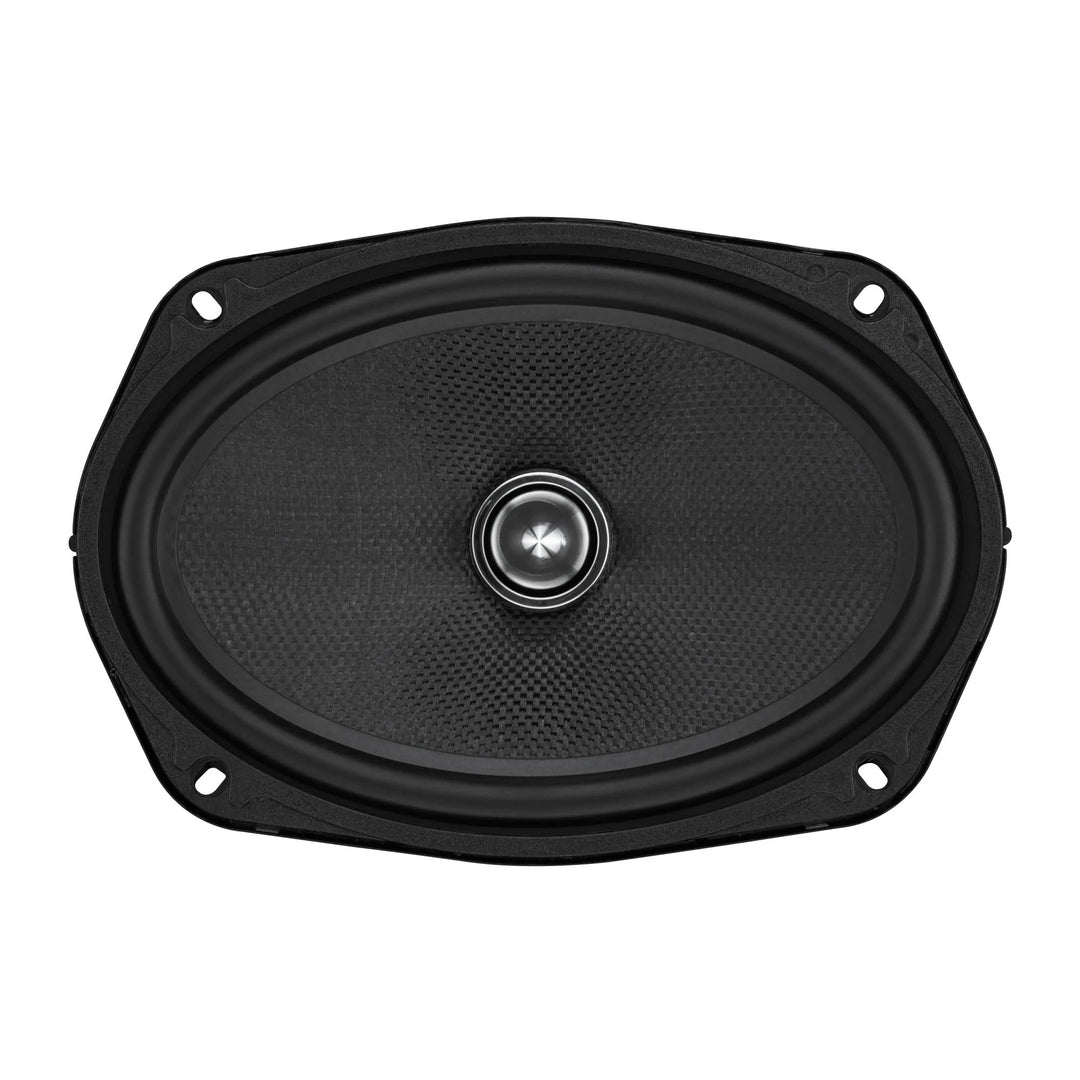

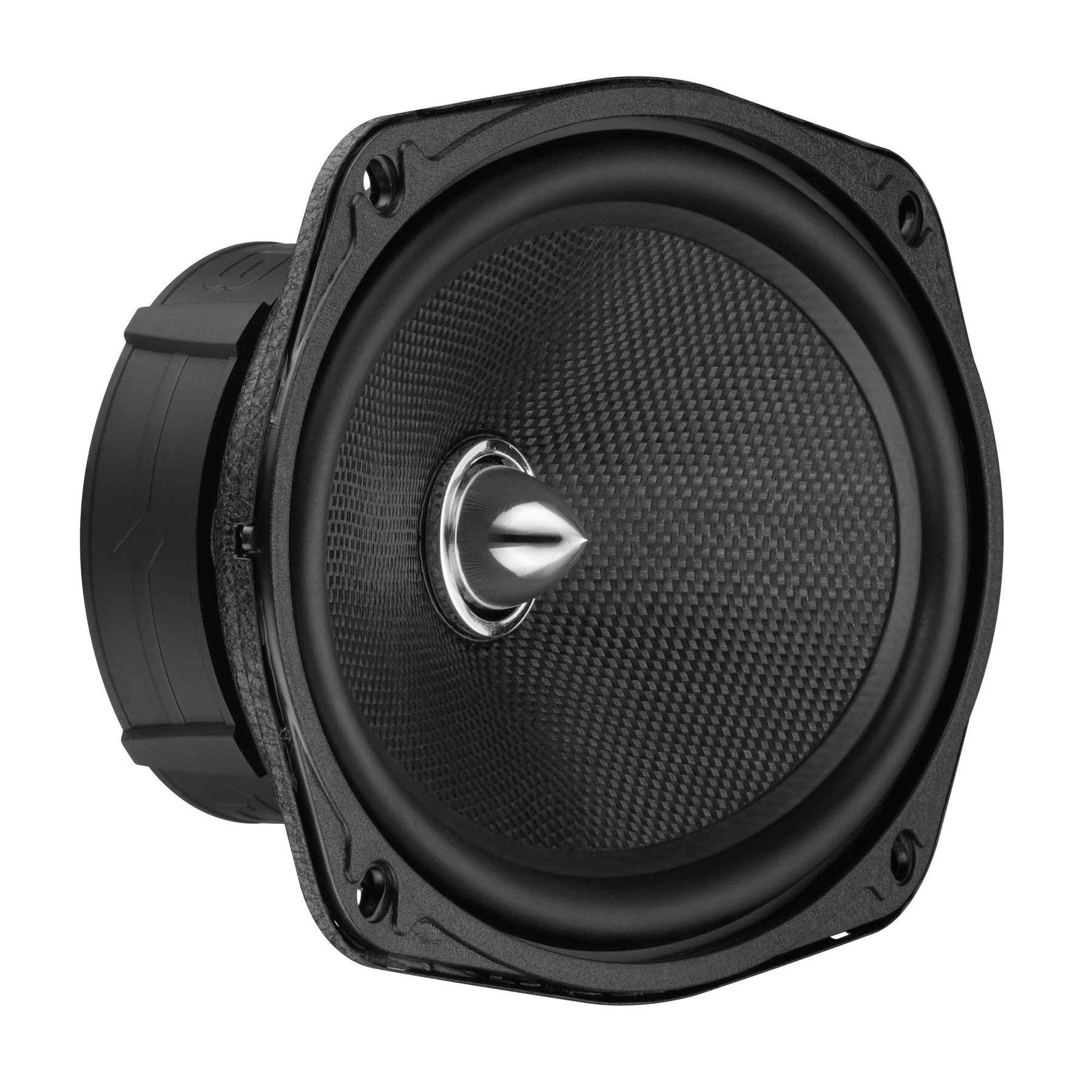

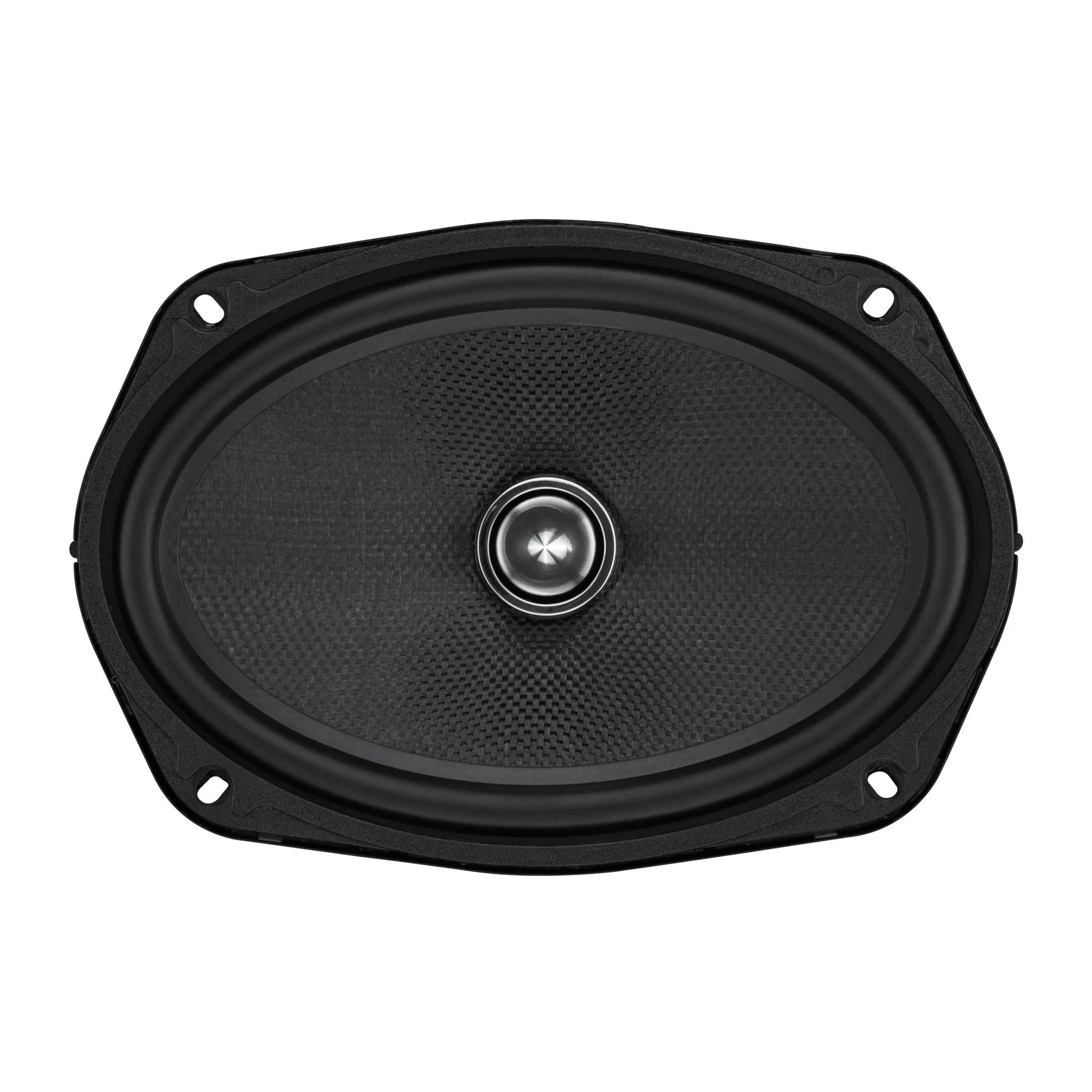

Powerful Midbass with Controlled Response: The 6x9” woofers are built with glass fiber curvilinear cones, rubber surrounds, and a rigid steel basket to produce tight, punchy midbass without distortion. This construction ensures durability while maintaining excellent cone control, even at higher volumes.

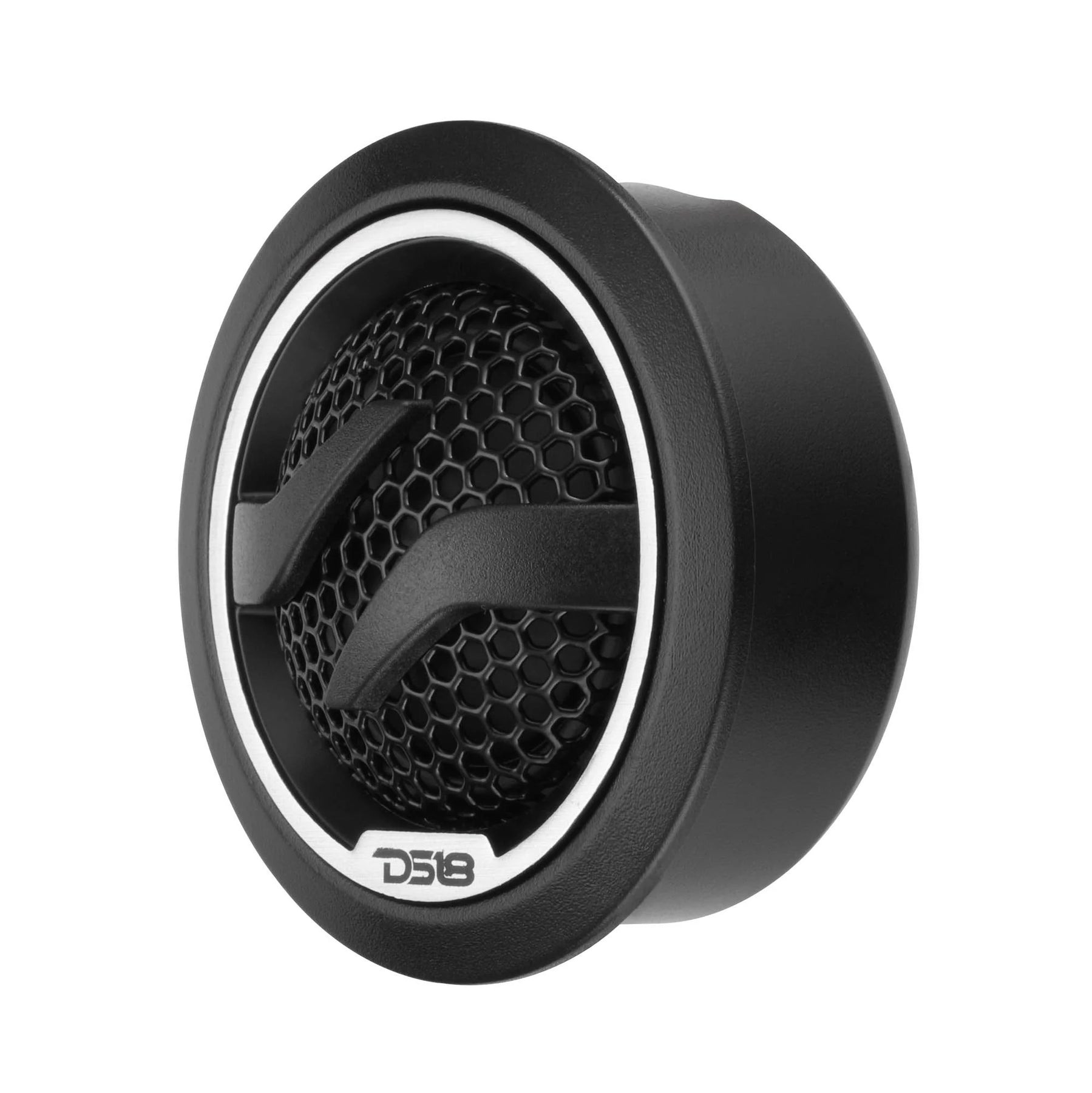

Crisp Highs with Adjustable Control: High frequencies are handled by 1” tweeters featuring a PEI diaphragm and neodymium magnet, delivering smooth, detailed highs without harshness. External passive crossovers are included with adjustable tweeter attenuation (+/- 3dB), allowing you to fine-tune the sound to match your vehicle acoustics and personal listening preference.

Complete Component Solution: The ZXi-692C includes woofers, tweeters, and external crossovers, providing a full component system ready to integrate with aftermarket amplifiers or upgraded factory systems. Whether you’re building a sound-quality-focused system or a powerful daily driver setup, this kit delivers flexibility and performance.

Upgrade your listening experience with the clarity, control, and output of DS18’s ZXi-692C component speaker system.

Key Features:

• 6x9" 2-way component speaker system

• 120W RMS / 360W MAX power handling

• Glass fiber curvilinear cone woofers for tight midbass

• 1" tweeters with PEI diaphragm and neodymium magnet

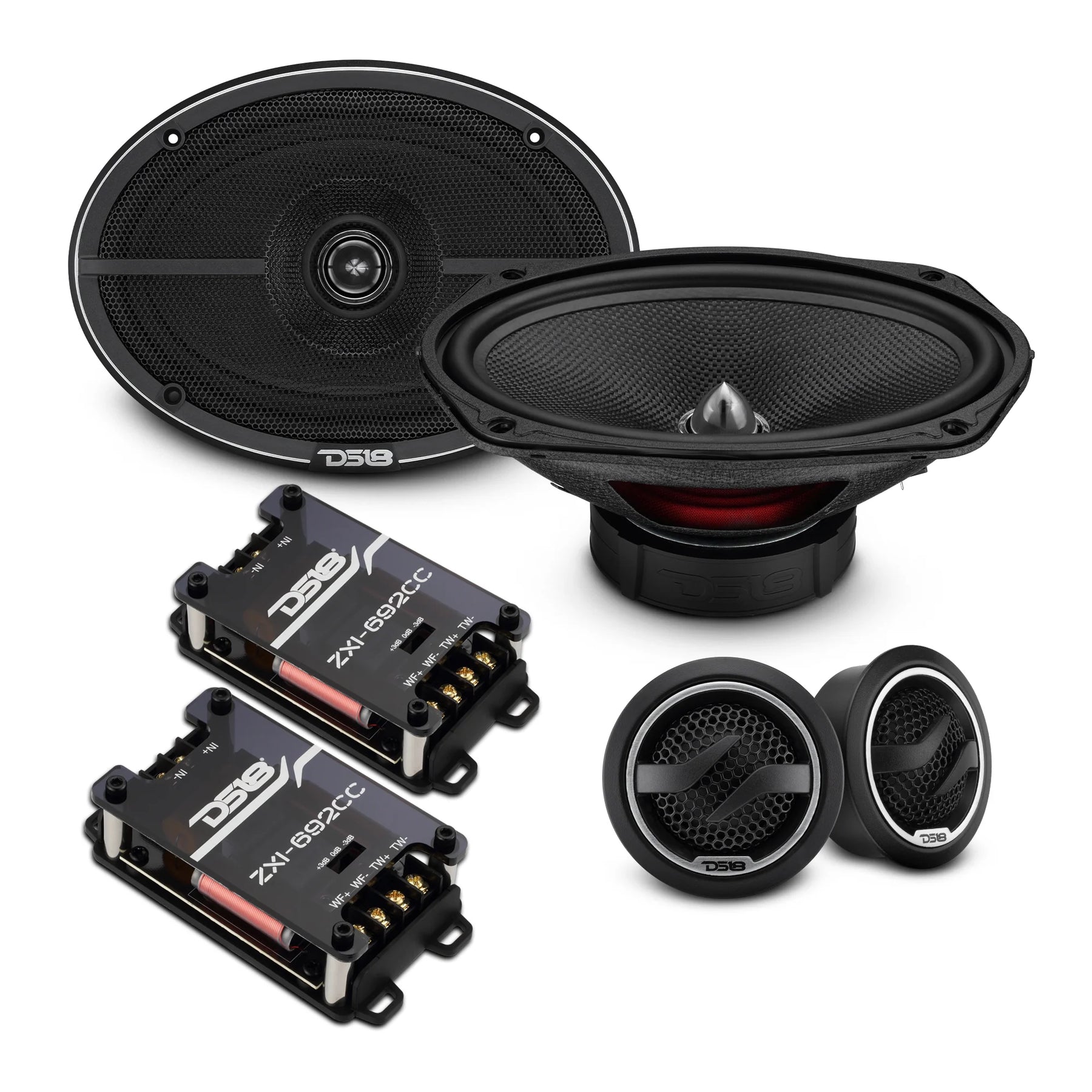

• Complete system with 2x woofers, 2x tweeters, and 2x crossovers

General Specifications:

• Nominal Size: 6x9" / 152 x 228mm

• Nominal Impedance: 4 Ohms

• RMS Power Handling: 120 Watts

• MAX Power Handling: 360 Watts

• Sensitivity (1W/1M): 90 dB

• Frequency Response: 35Hz - 20KHz

• Recommended High-Pass Crossover: 50Hz

• Number of Ways: 2-Way

• Sold As: Pair

• Grille Included: Yes

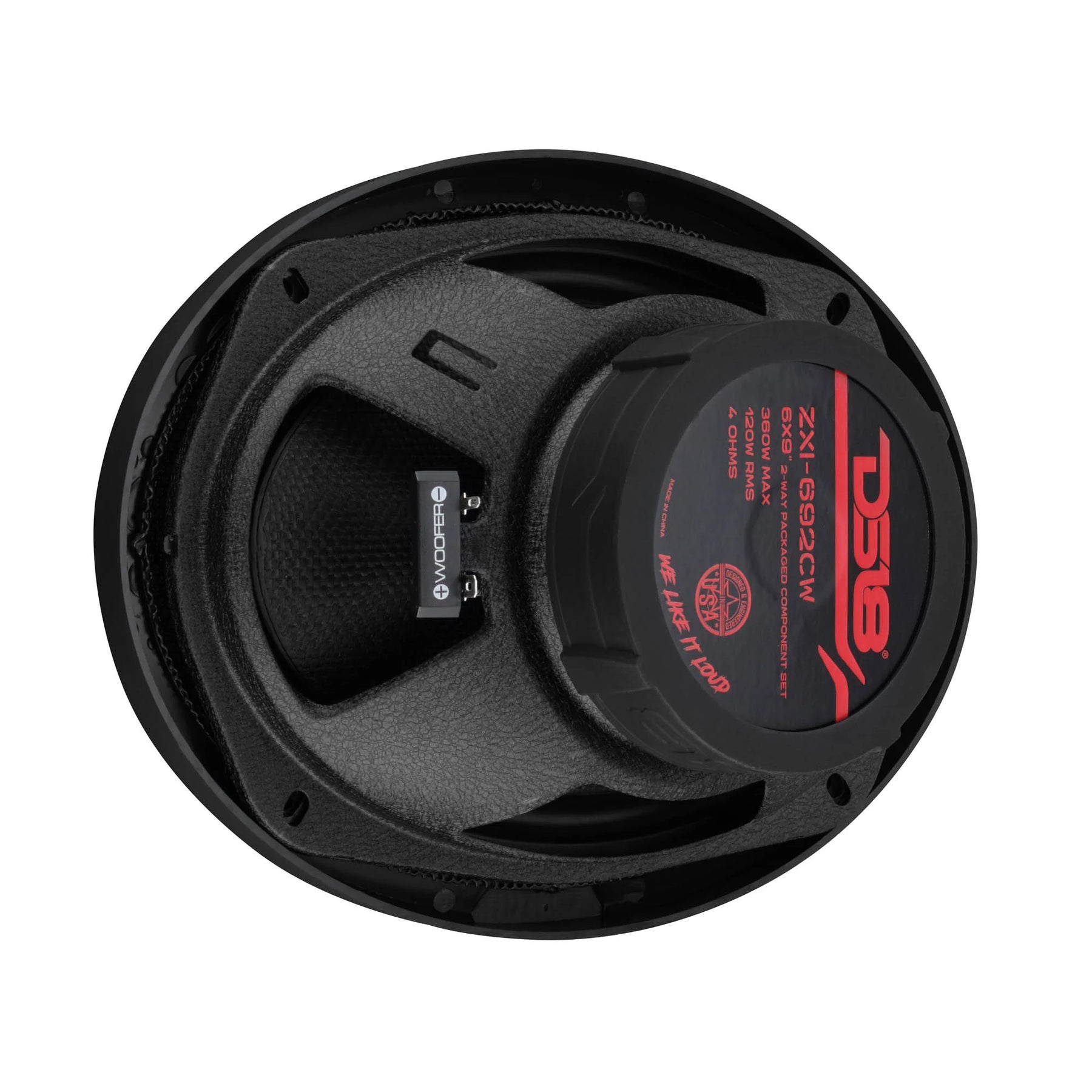

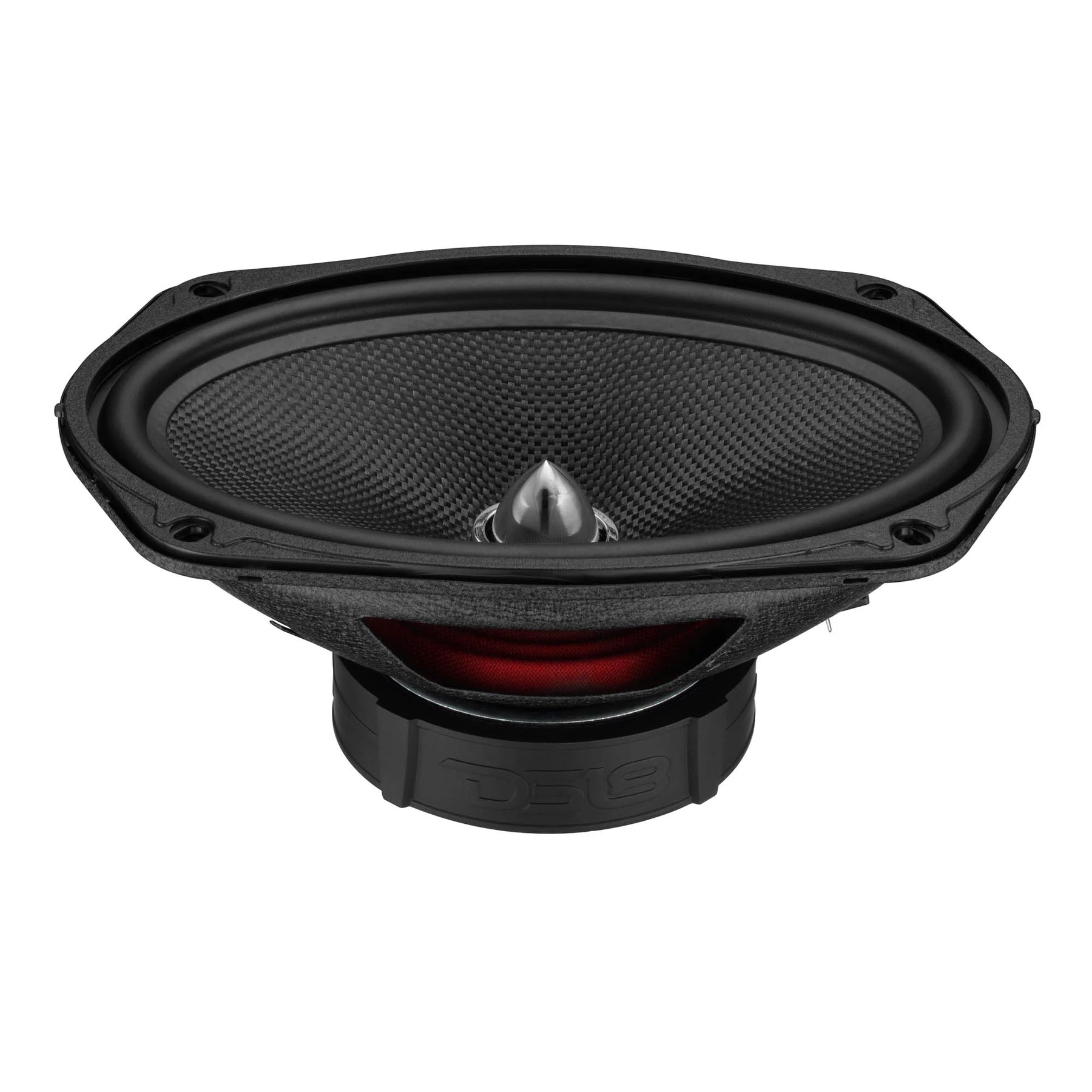

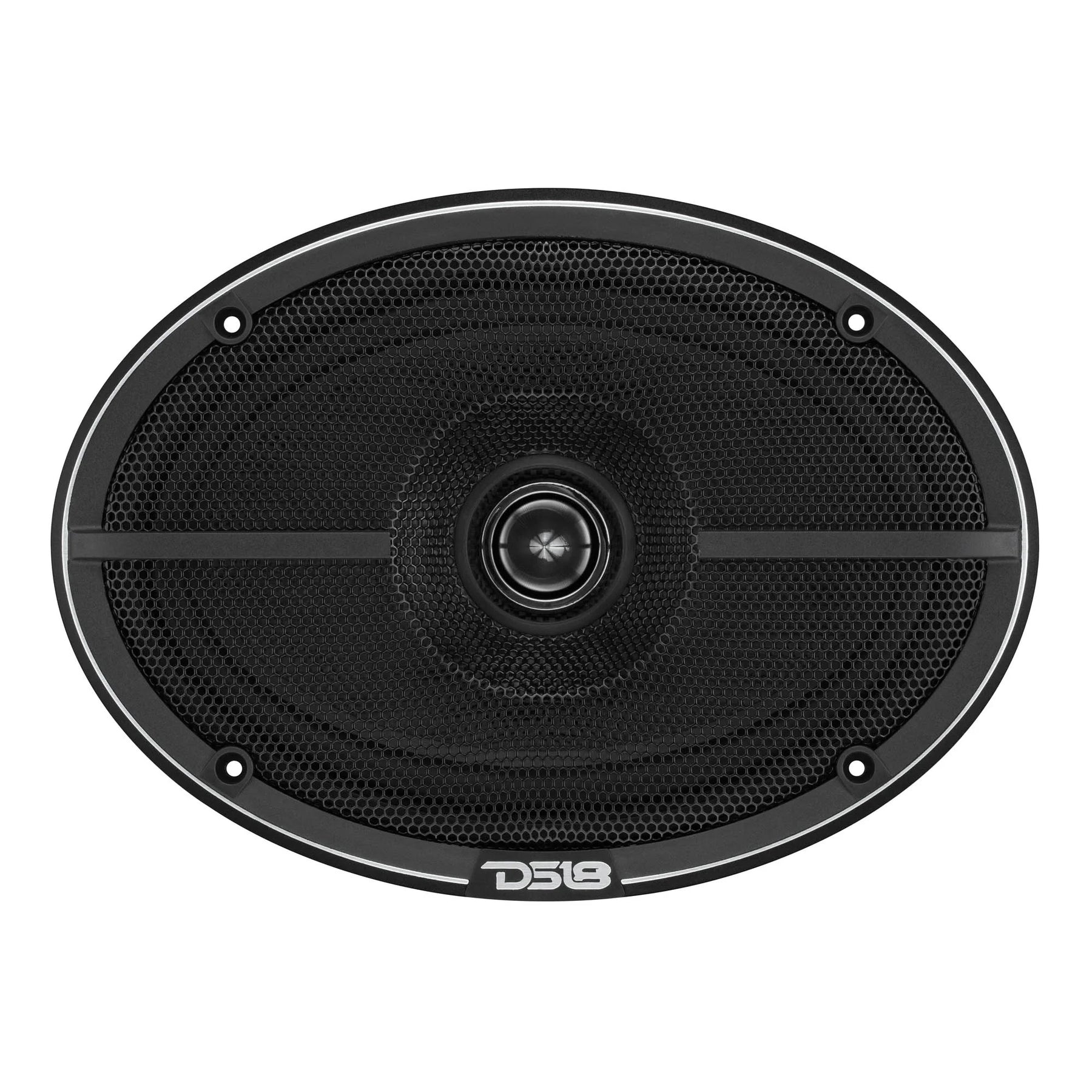

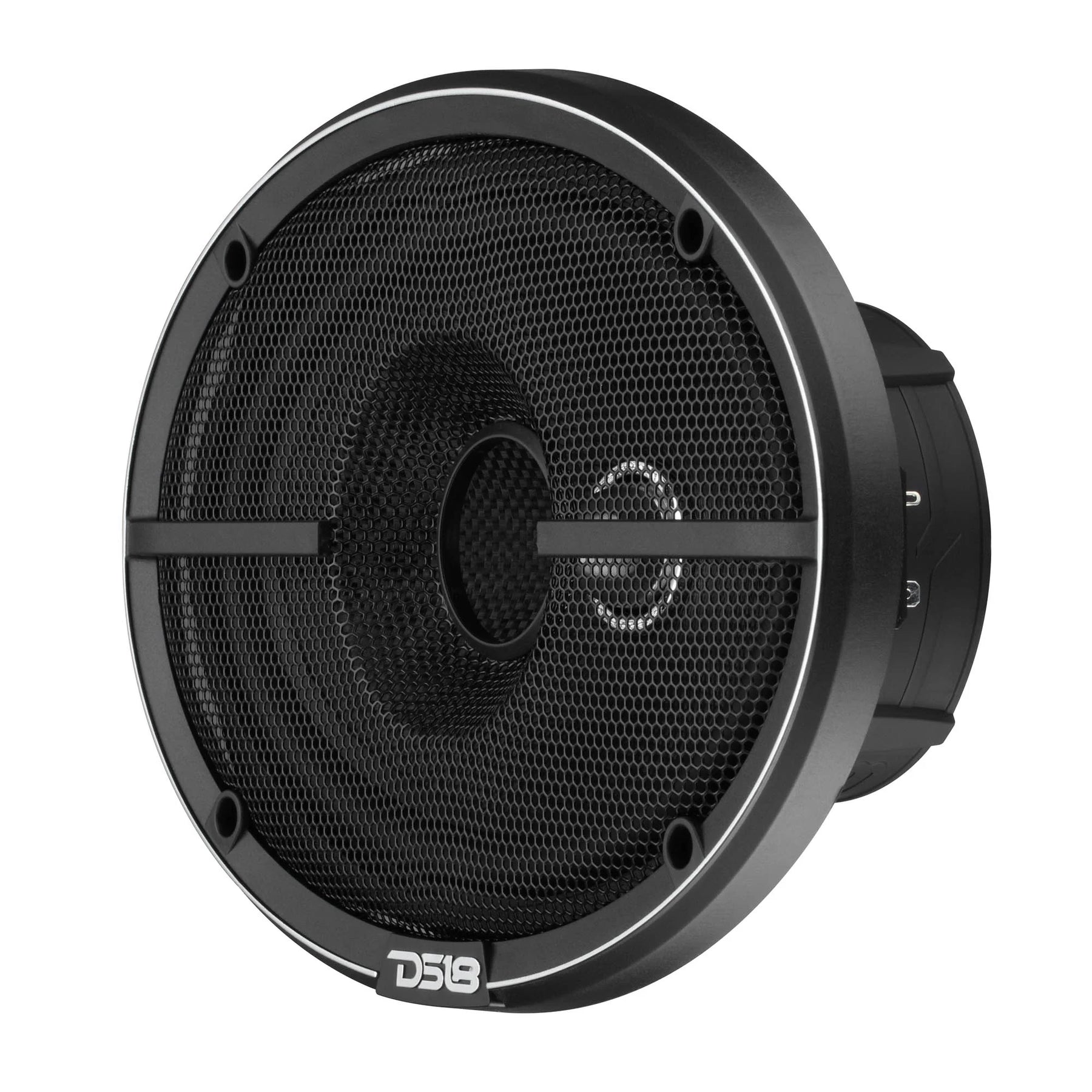

Woofer Specifications:

• Voice Coil Diameter: 1.25" / 30.5mm

• Voice Coil Former Material: KSV

• Winding Material: EISV

• Cone Material: Glass Fiber

• Cone Shape: Curvilinear

• Surround Material: Rubber

• Basket Material: Steel

• Basket Finish: Matte Black

• Magnet Material: Barium Ferrite

• Magnet Weight: 19.4 Oz

• Speaker Terminals: Spade

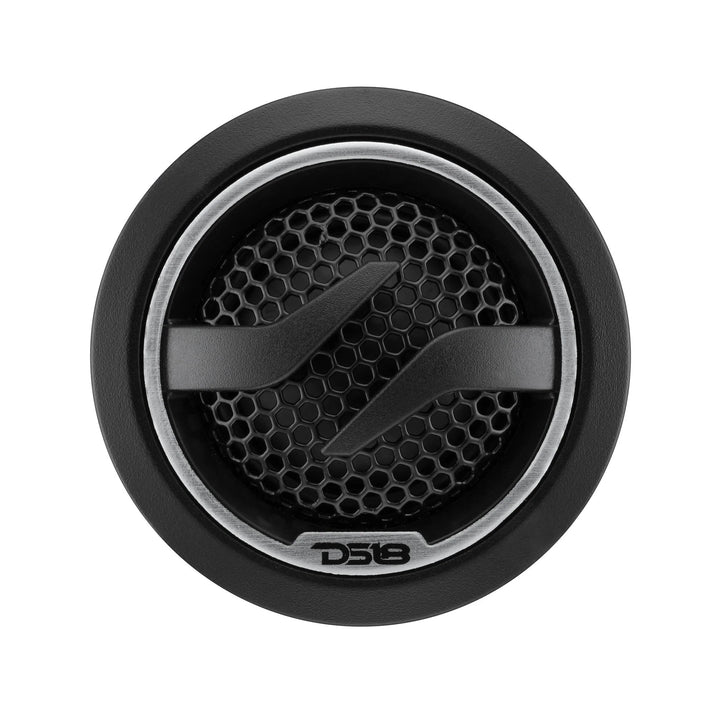

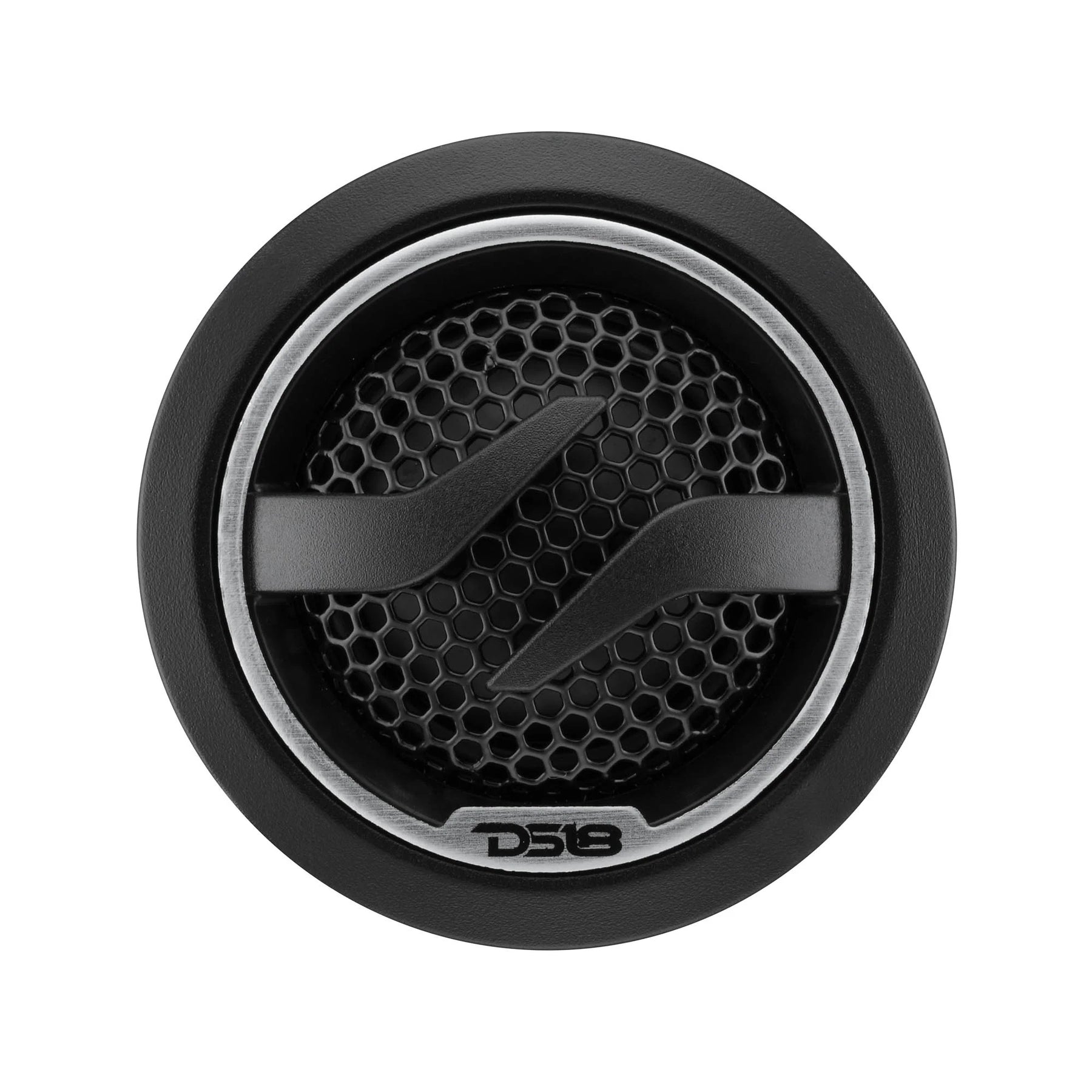

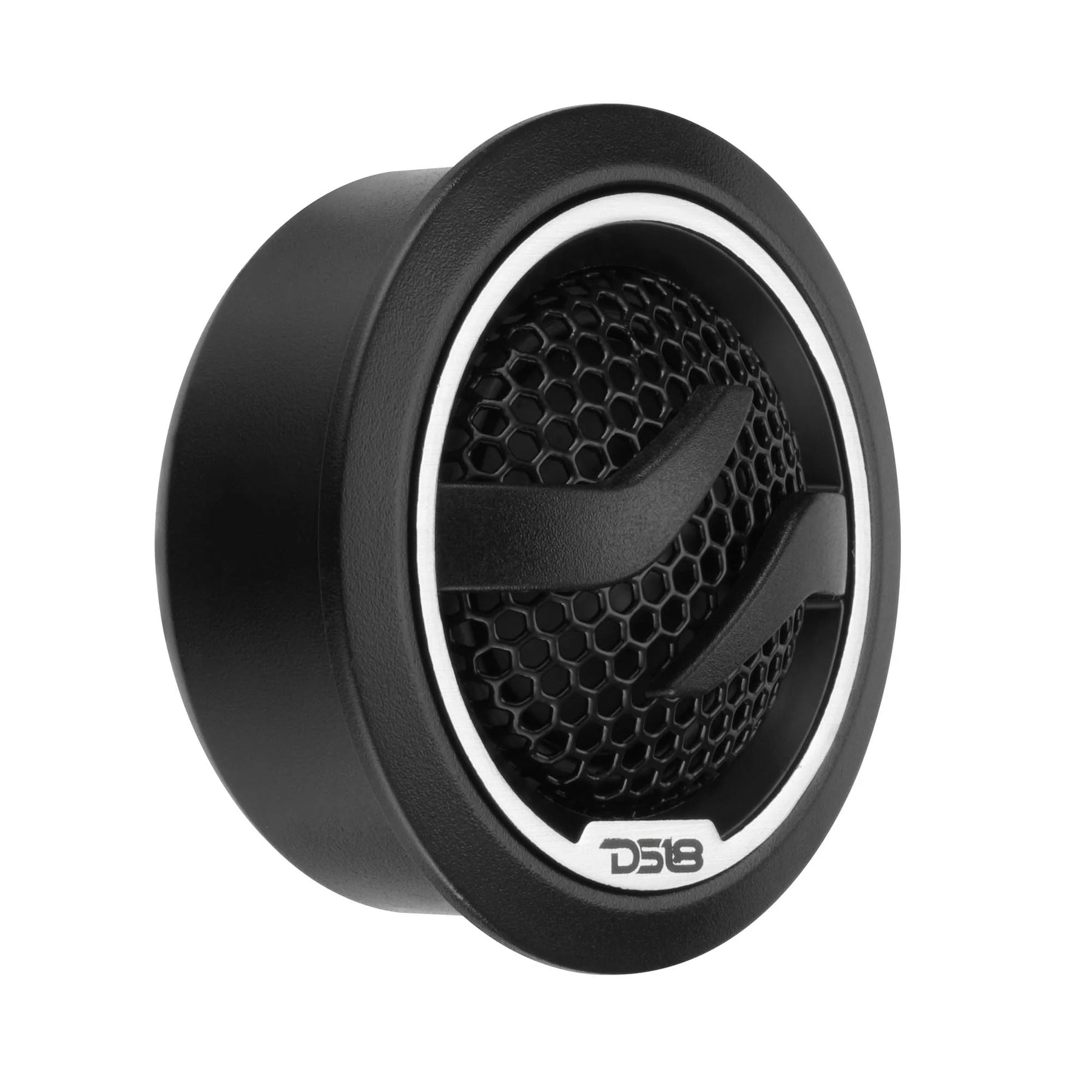

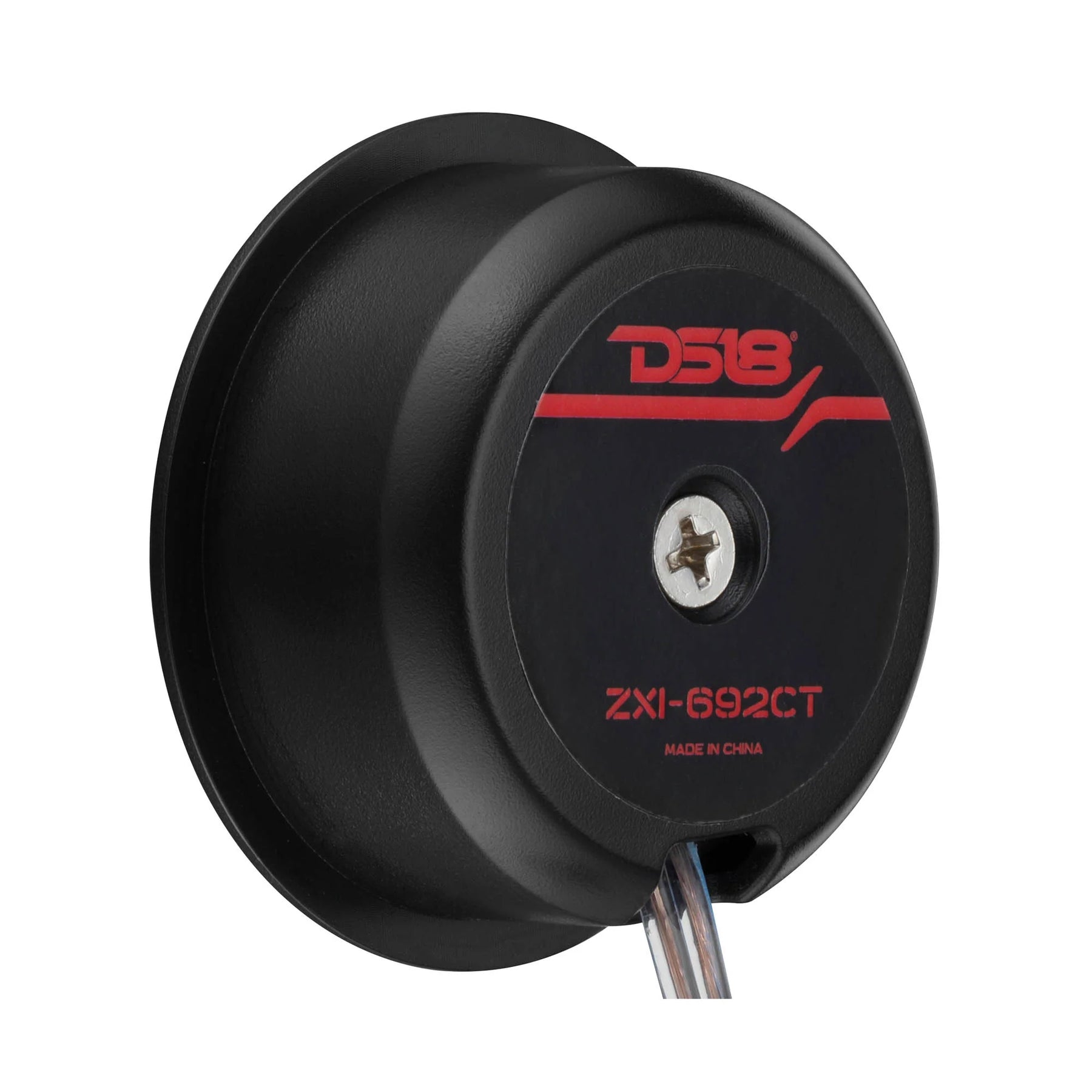

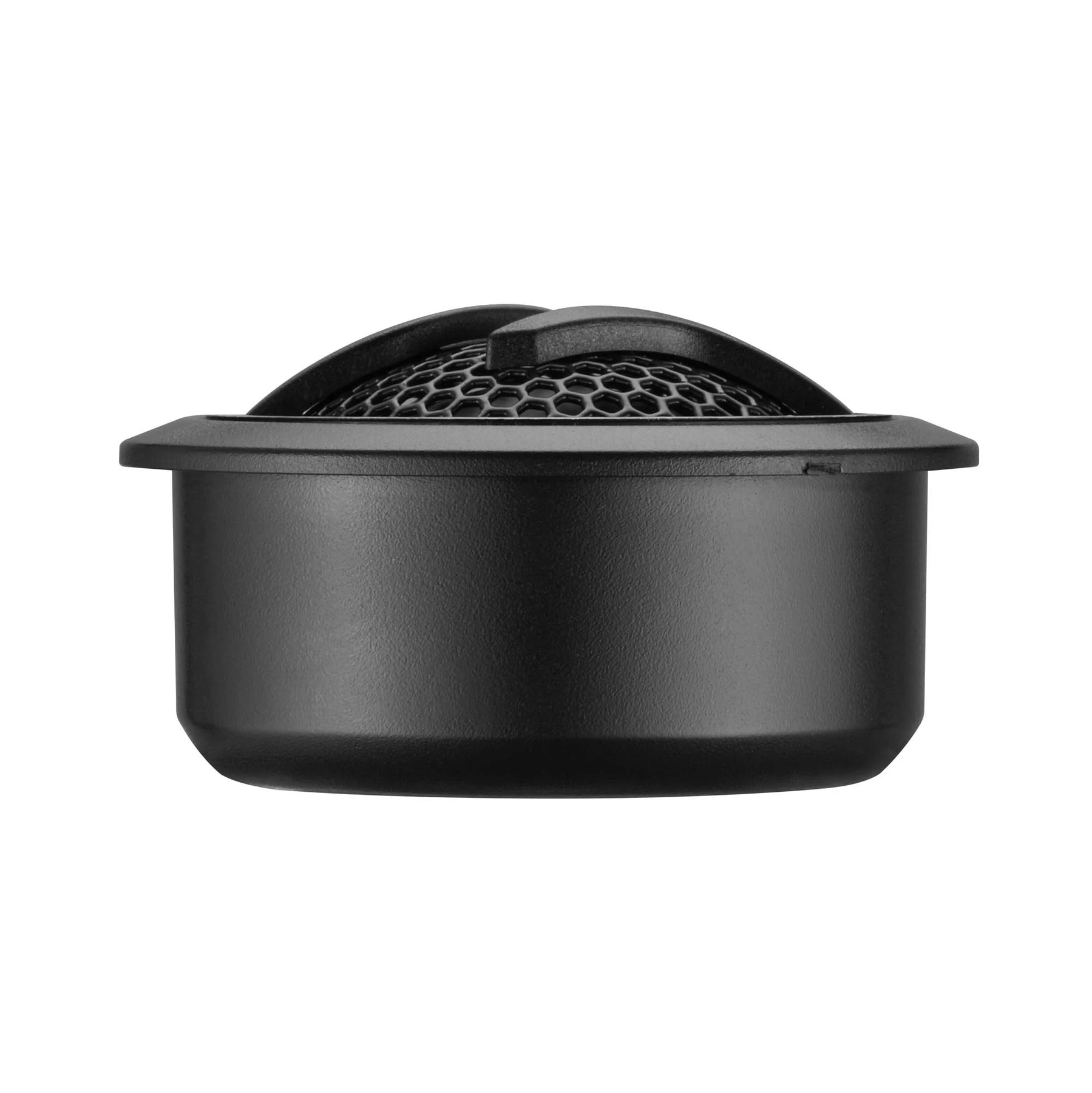

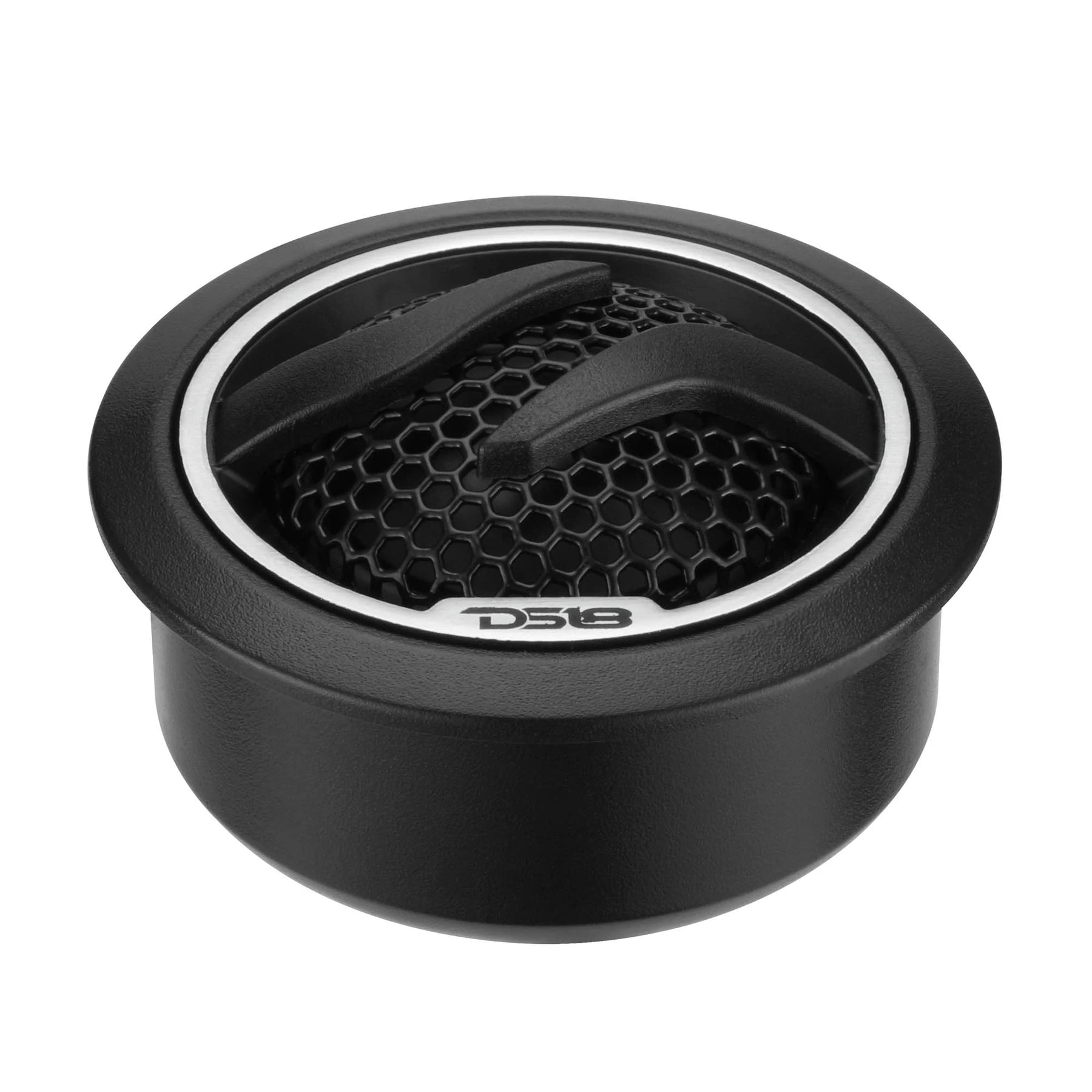

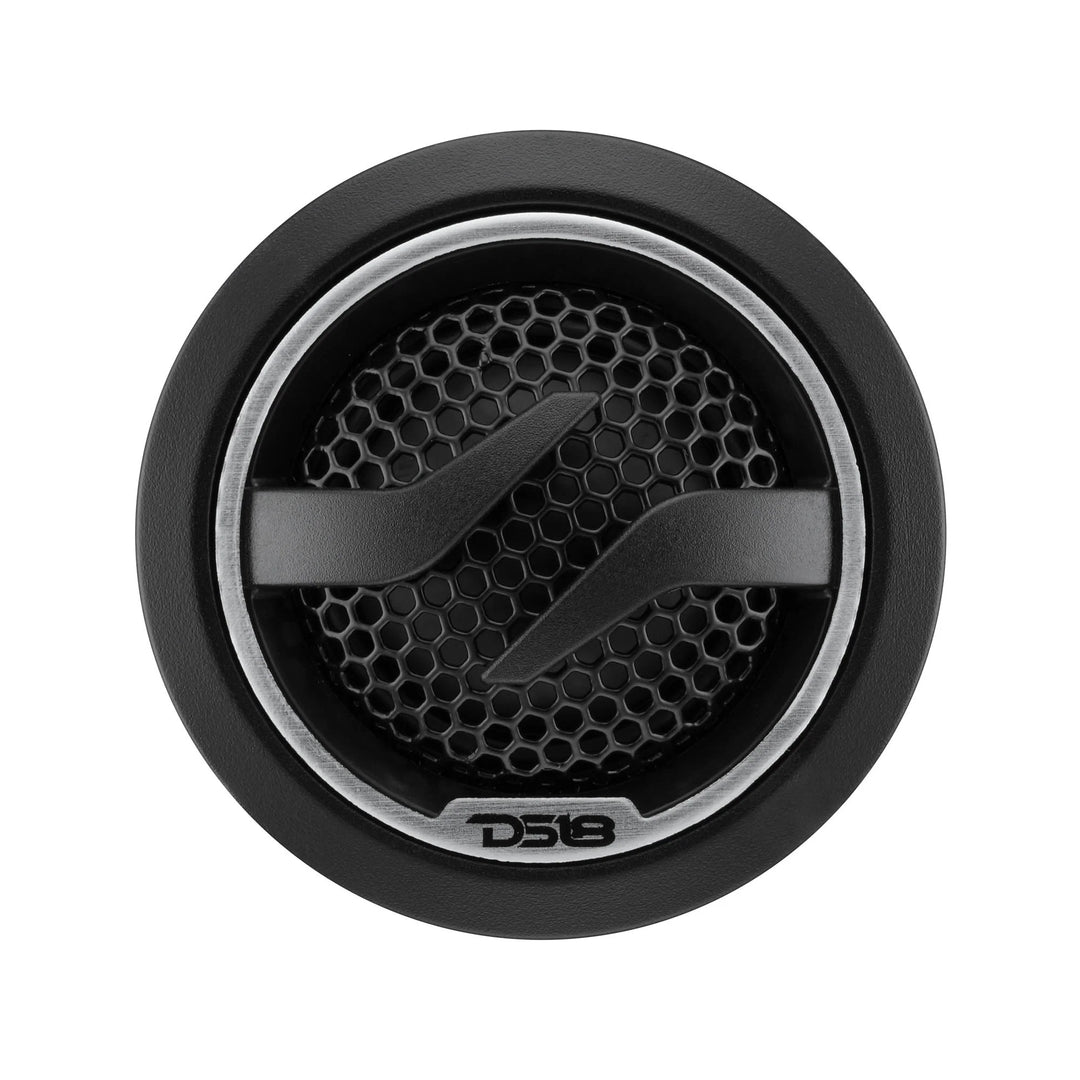

Tweeter Specifications:

• Nominal Diameter: 1" / 25.4mm

• VC Former Material: KSV

• Winding Material: EISVM

• Diaphragm Material: PEI

• Magnet Material: Neodymium

• Magnet Weight: 13g

• Body Material / Color: ABS / Black

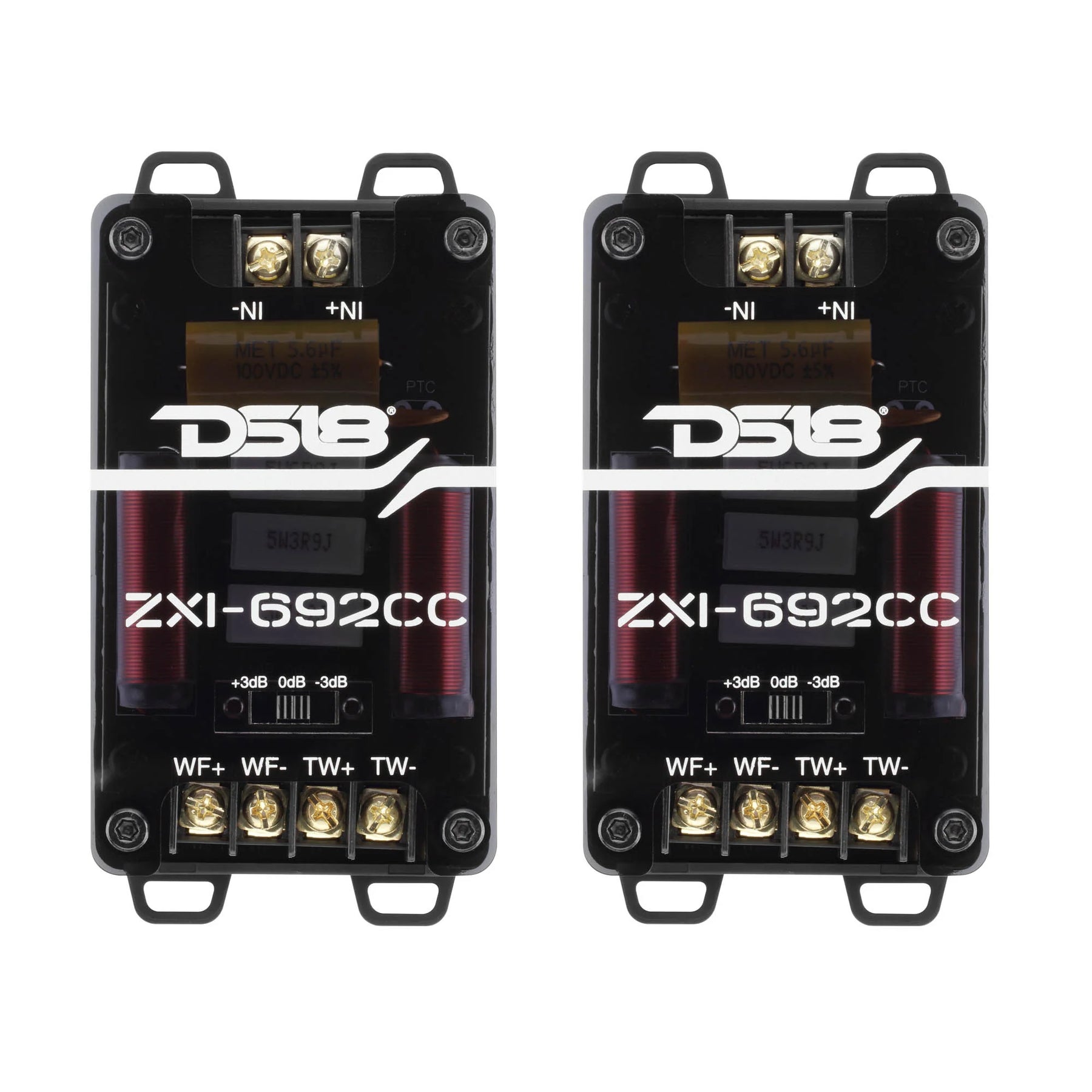

Crossover Specifications:

• Passive Crossover: 2-Way

• Crossover Point: 3.5kHz

• Power Handling: Up to 300W

• Slope: 12 dB/Oct

• Tweeter Attenuation: +/- 3dB

• Capacitor Type: NP

• Coil Type: KSV

• Terminal Type: Screw-On

• Housing Material: ABS / Acrylic

• Extra Features: Tweeter Protection

Thiele & Small Parameters:

• Equivalent Volume (Vas): 23.7L / 0.83 ft3

• Excursion (One Way) Xmax: 2.7mm

• Free Air Resonance (Fs): 60Hz

• Mechanical Factor (Qms): 7.03

• Electrical Factor (Qes): 1.4

• Total Factor (Qts): 1.16

• Mechanical Mass (Mms): 19.57g

• Mechanical Compliance (Cms): 0.35 mm/N

• BL Factor: 3.22

• Voice Coil Inductance (Le): 0.16mH

• Cone Area (Sd): 219.04 cm2

• DC Resistance (Re): 3.9 Ohms

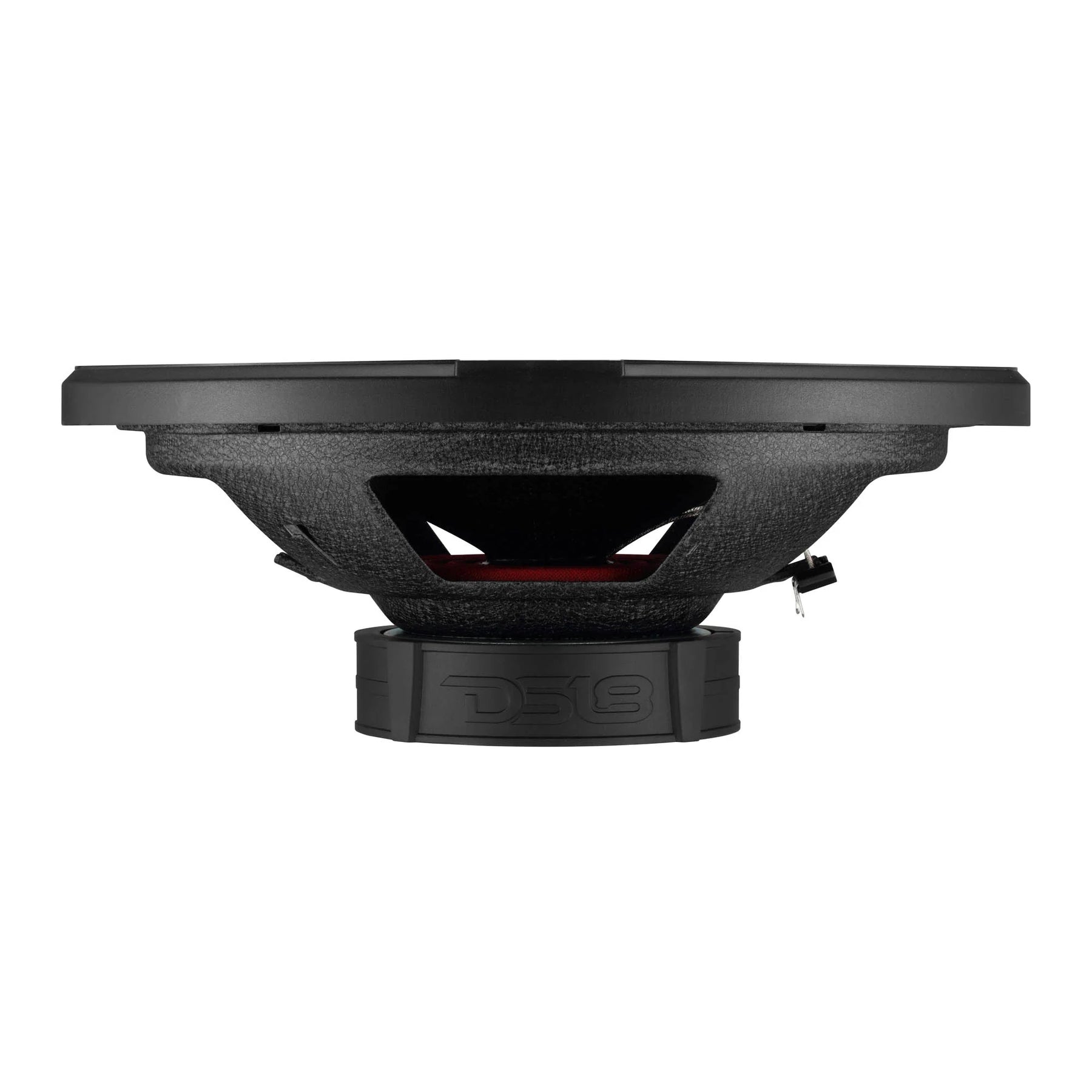

Woofer Measurements:

• Overall Diameter (Without Grille): 6.4 x 9.2" / 164 x 234mm

• Overall Depth (Without Grille): 3.6" / 92mm

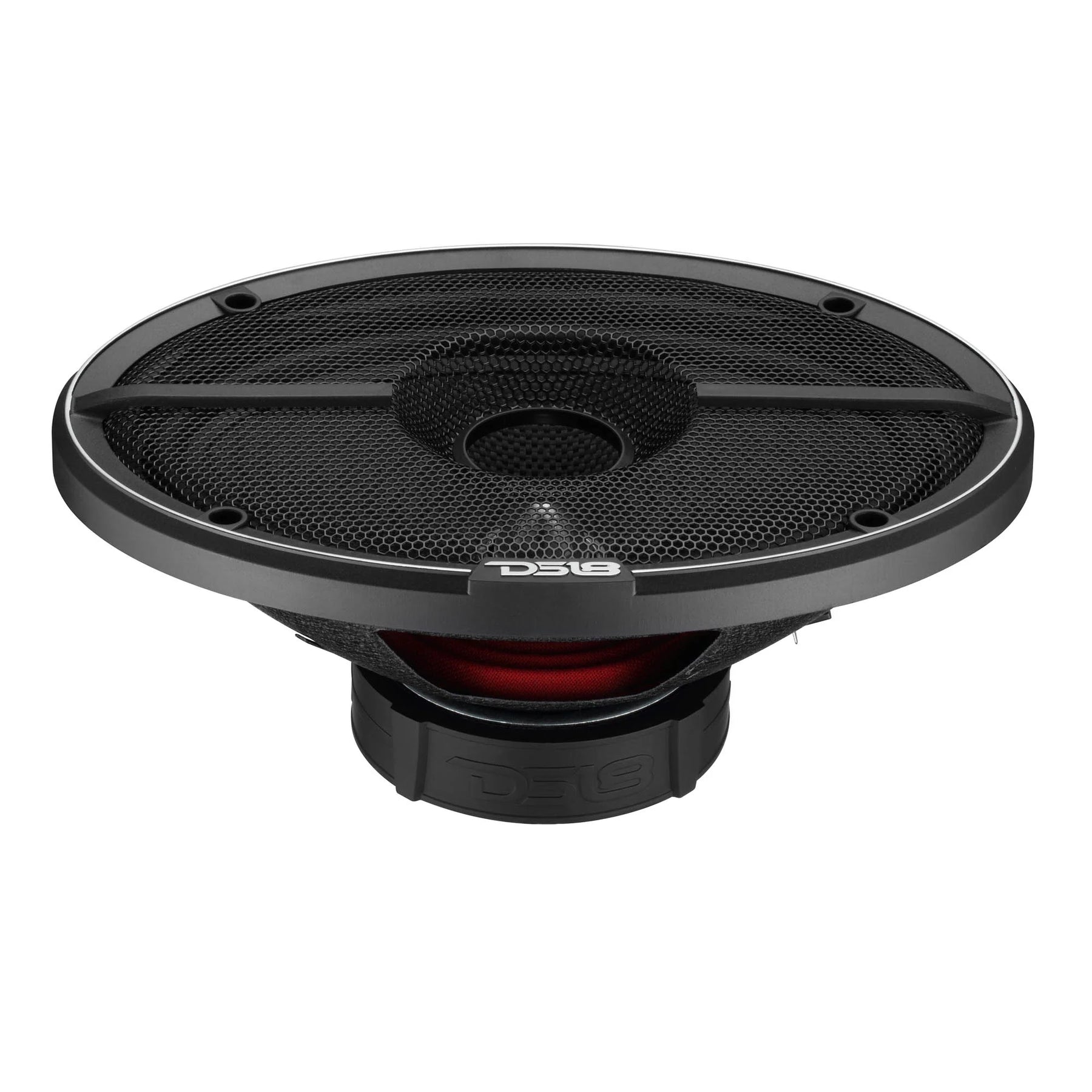

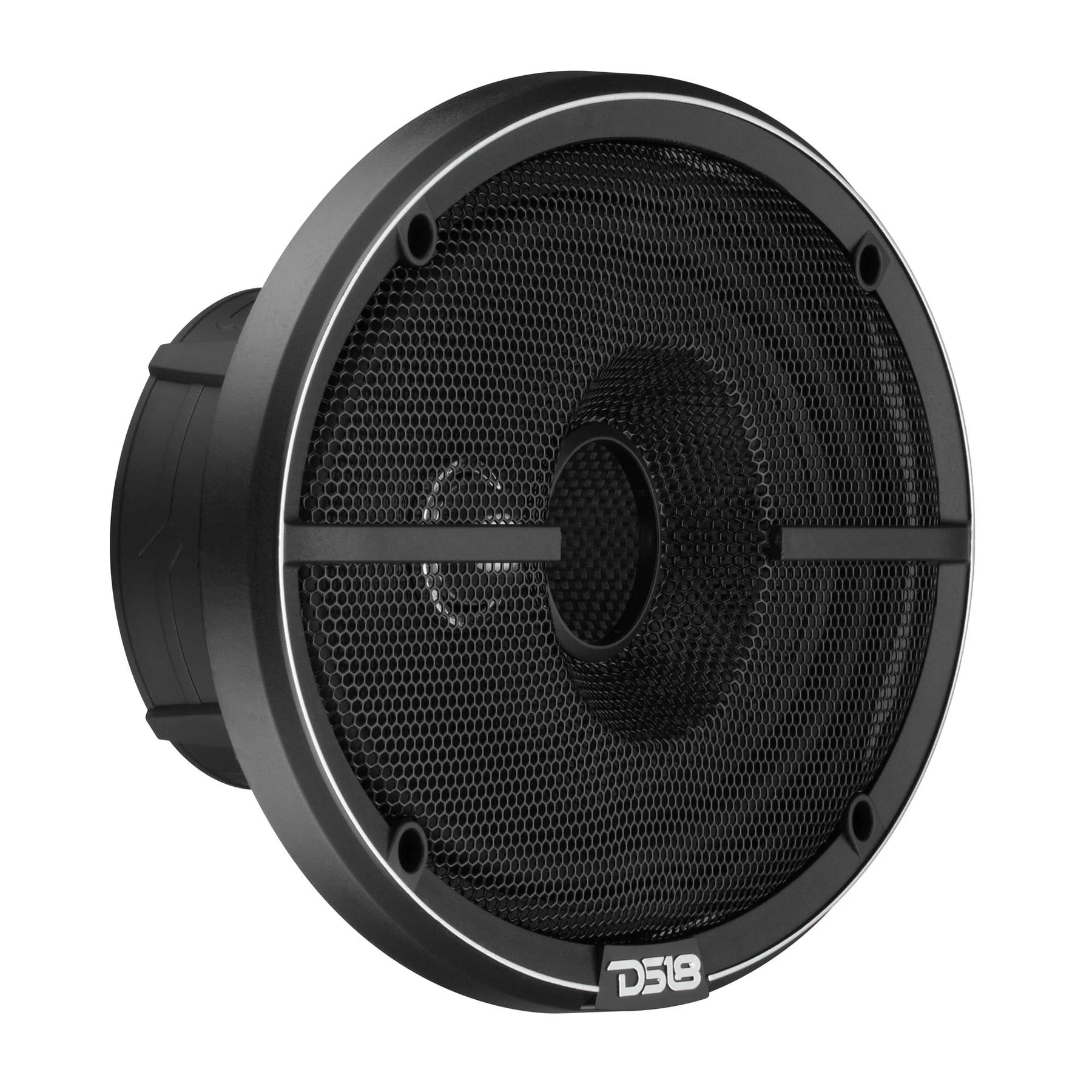

• Overall Diameter (With Grille): 10.4 x 7.5" / 265 x 191mm

• Overall Depth (With Grille): 4.16" / 107mm

• Front Mount Baffle Cutout: 6 x 8.7" / 153 x 221mm

• Mounting Depth: 3.2" / 82mm

• Motor Diameter: 4" / 100mm

Tweeter Measurements:

• Overall Diameter: 2.17" / 55mm

• Overall Depth: 1.2" / 30mm

• Front Mount Baffle Cutout: 1.9" / 48mm

• Mounting Depth: 0.8" / 20mm

Crossover Measurements:

• Overall Length: 2.5" / 65mm

• Overall Depth: 5" / 128mm

• Overall Height: 1.4" / 35.8mm
