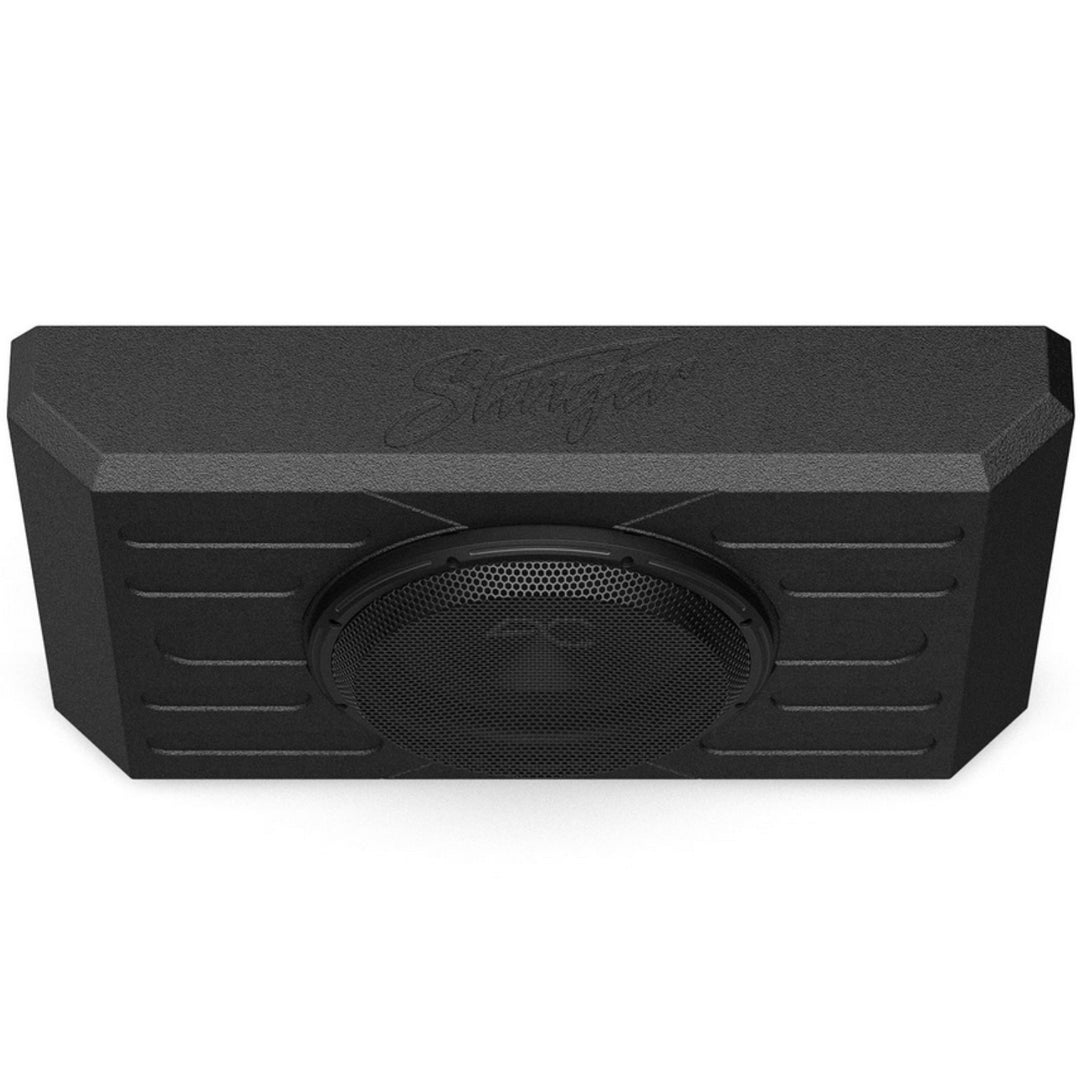

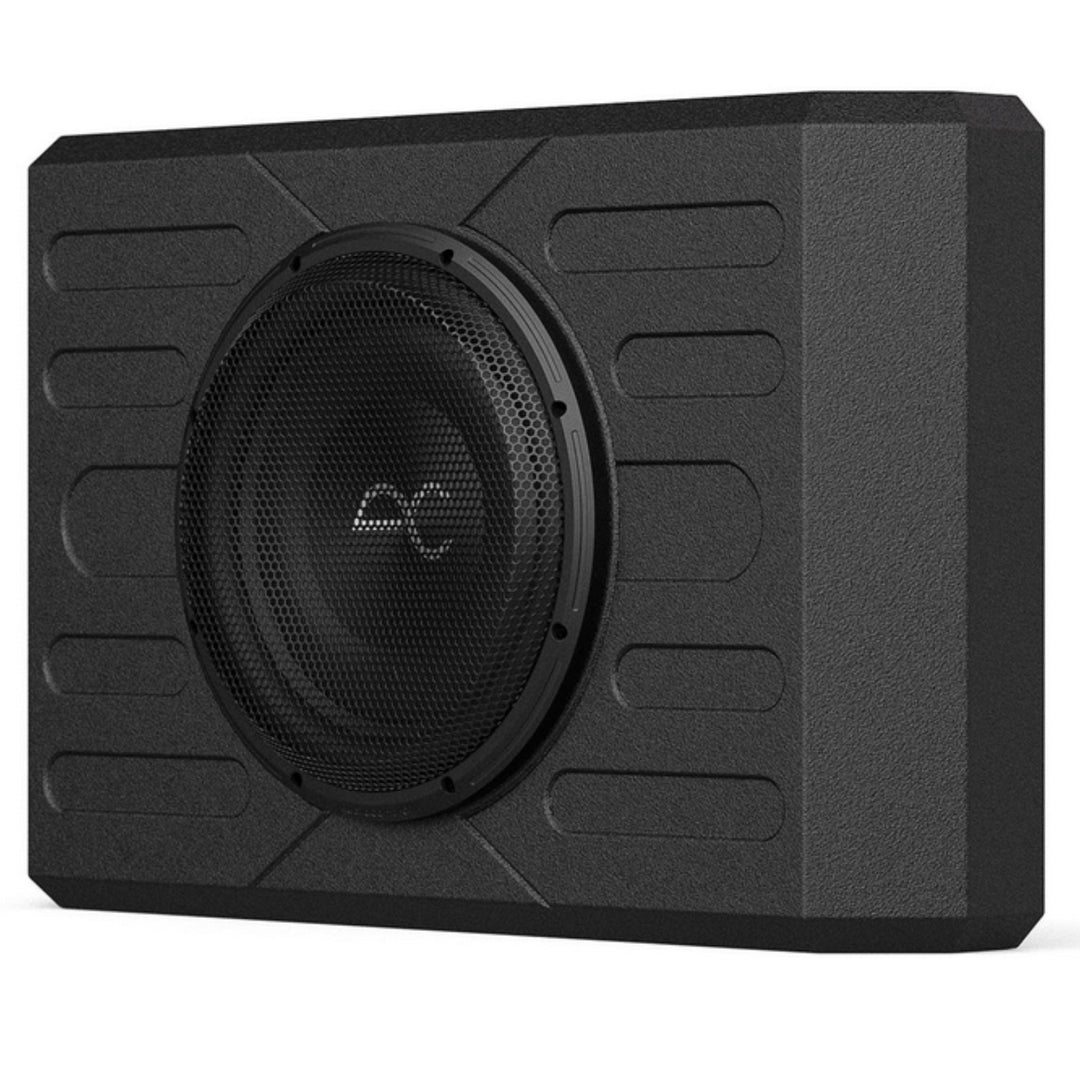

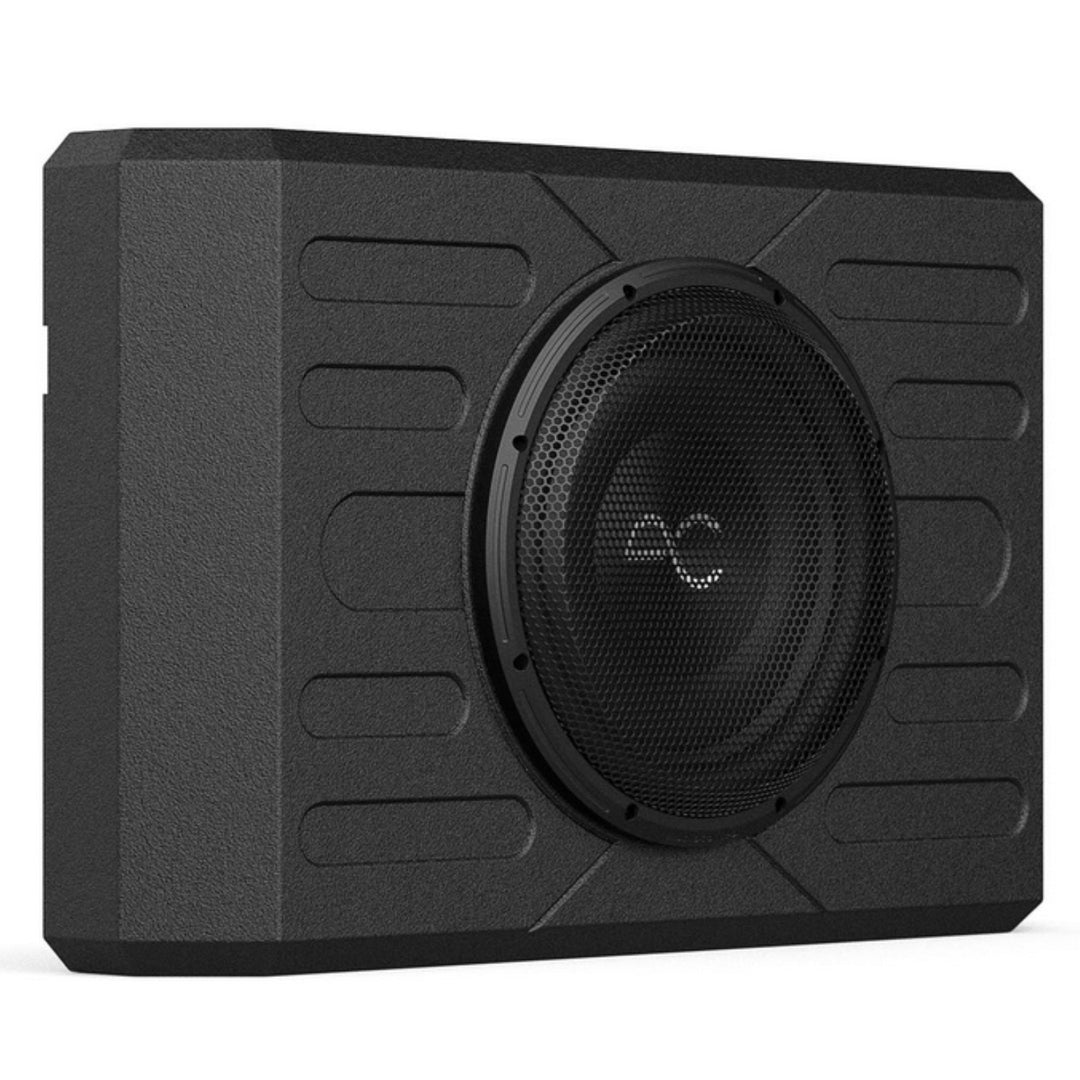

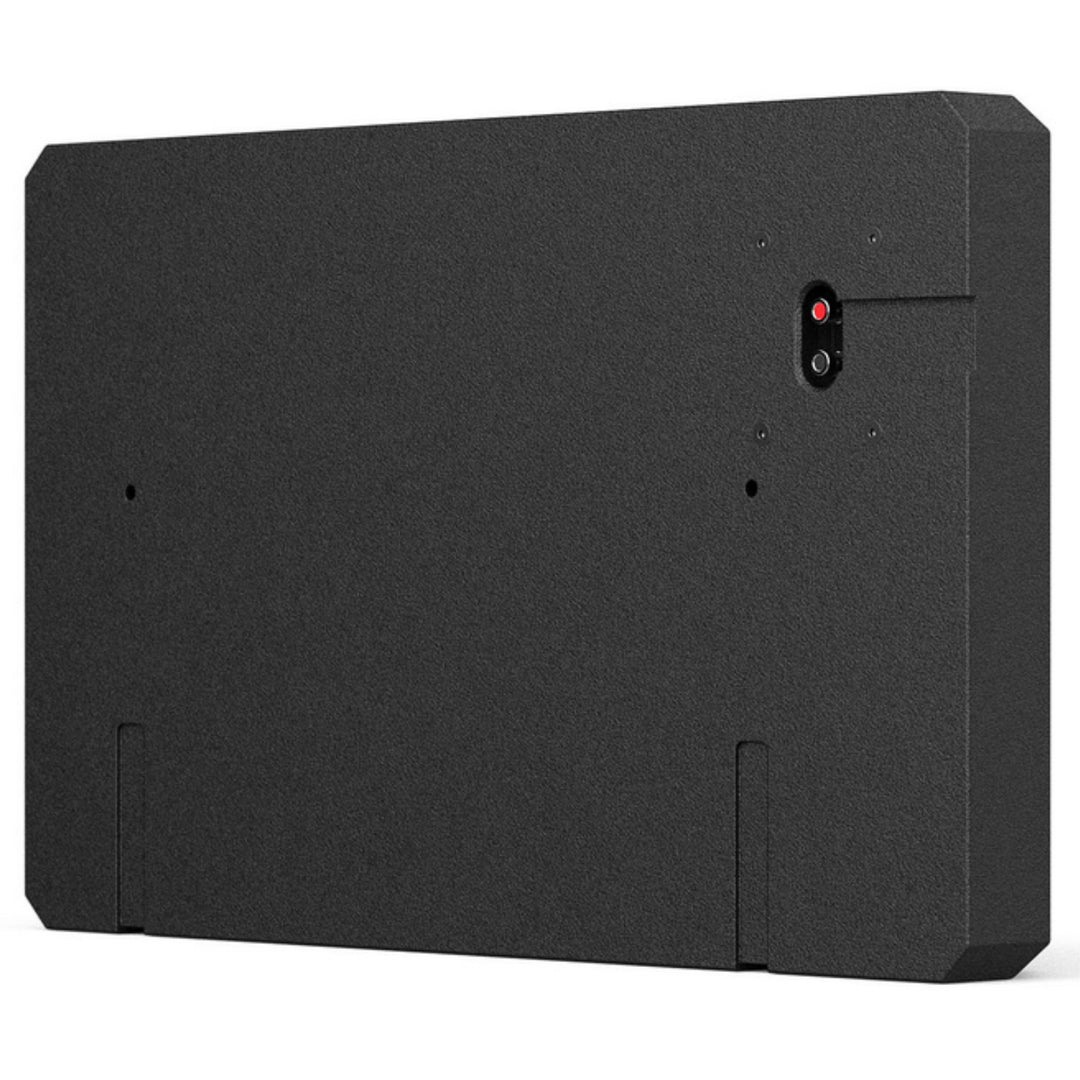

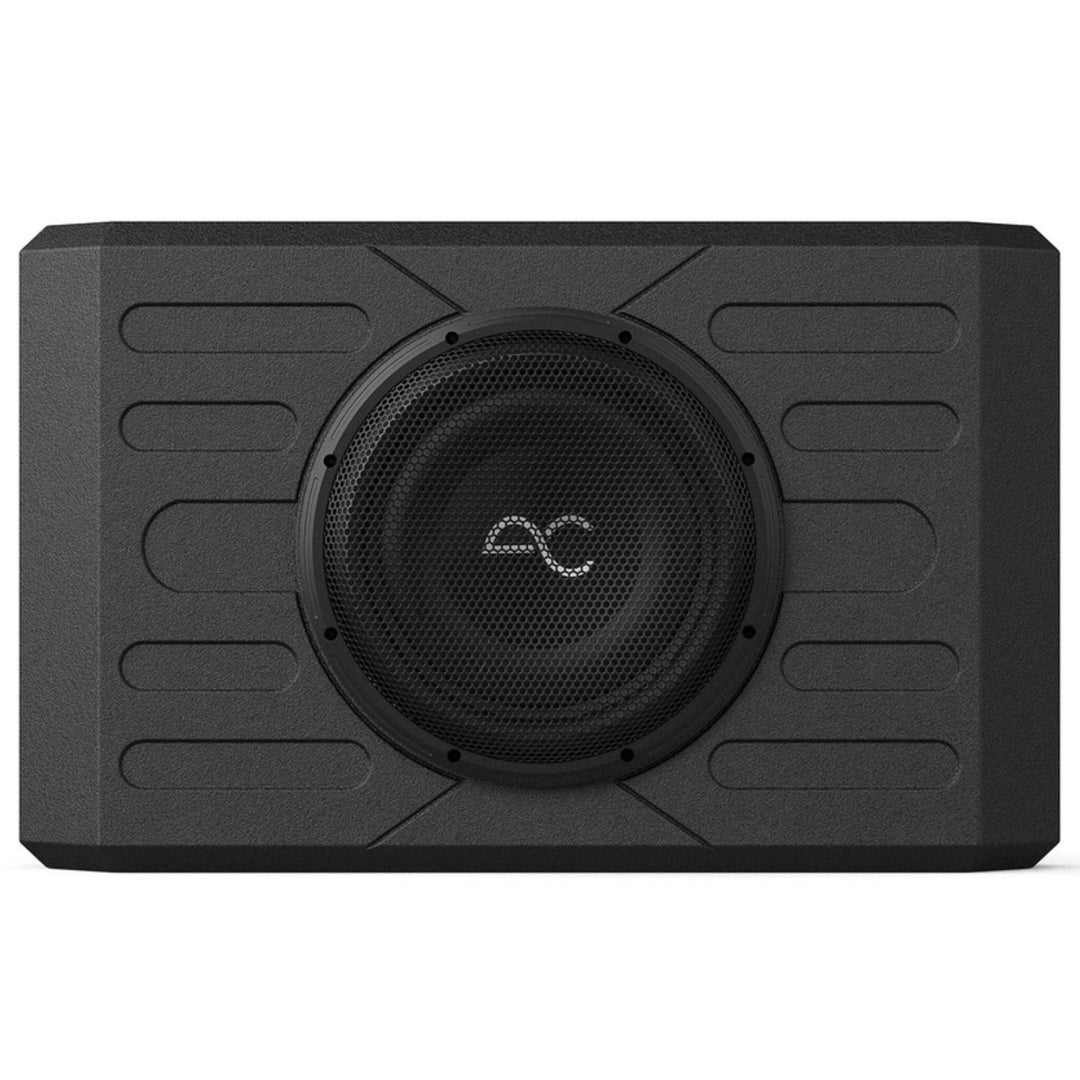

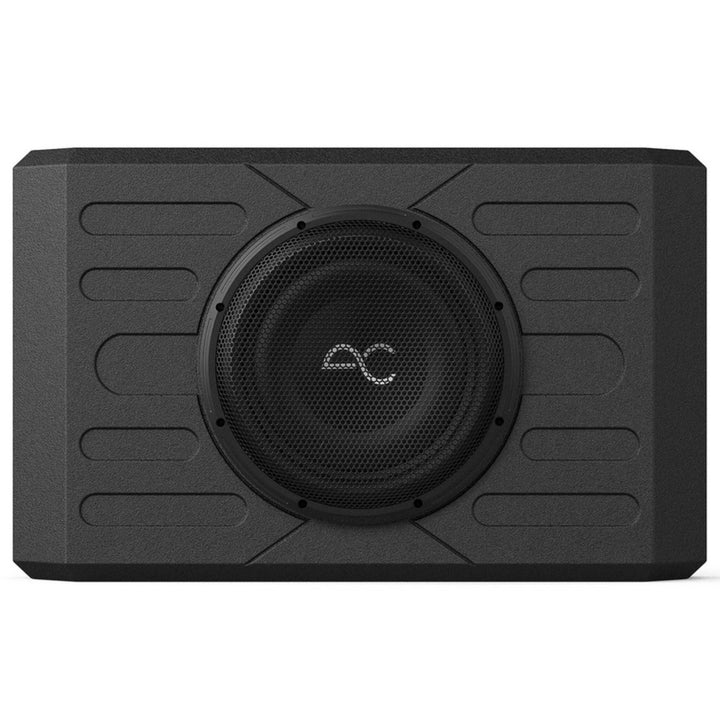

Construido resistente y hecho para adaptarse al portón trasero de su Ford Bronco, el gabinete de graves TXFBB12 de 12” ofrece una manera rápida y fácil de agregar un subwoofer AudioControl de alta potencia a su sistema de audio. La caja del subwoofer utiliza la puerta trasera para el montaje, lo que ahorra espacio y al mismo tiempo es resistente y resistente a la intemperie. Prepárese para mejorar su próxima aventura con la incorporación de esta solución de subwoofer personalizada.

Características del recinto:

• Abrigo de armadura Roadkill
• Revestimiento permanente de carcasa de EPM termoadherido (molécula de poliuretano elastomérico)
• Resistente a la intemperie para ambientes exteriores hostiles
• Propiedades de amortiguación del sonido para la reducción de la resonancia
• Resistente a rayones, grietas y descamaciones
• Resistente a químicos y manchas
• Absorción de impacto
• Protección UV
• Proporciona prevención de fugas y corrosión
• Construcción de madera contrachapada de alta densidad y 11 capas de alta resistencia
• Parrilla de subwoofer de acero revestida y duradera para mayor protección

Características del subwoofer:

• Subwoofer de montaje poco profundo de perfil bajo
• Cono de polipropileno moldeado por inyección de matriz de fibra
• Diseño resistente a la intemperie
• Formador de bobina móvil de alta temperatura de 3 capas
• Eficiencia térmica óptima
• Junta de caucho sellada para proteger el interior del gabinete
• Rejilla de subwoofer extraíble incluida.

Thiele/pequeños parámetros:

• Impedancia nominal (Z): 2 ohmios
• Resistencia CC (Re): 1,8 ohmios
• Frecuencia de resonancia (Fs): 27,8430 Hz
• Área del pistón (Sd): 0,0511 m2
• Factor de fuerza (BL): 10,3379 Tm
• Factor Q mecánico (Qms): 4,0762
• Factor Q eléctrico (Qes): 0,4073
• Factor Q total (Qts): 0,4216
• Sensibilidad 1W/M (SPL): 87.3655
• Comp. mecánica (cms): 0,2047 mm/N
• Masa en movimiento (Mms): 159,6086 g
• Excursión lineal (Xmax): 9 mm
• Compensación acústica de volumen (Vas): 74,5578 litros/2,632984 pies cúbicos
• Eficiencia de referencia (NO): 0,33% RMS
• Potencia (Pe): 400 Vatios
• Respuesta de frecuencia: 20-250 Hz
• Diámetro de la bobina móvil: 2,5 pulgadas/63,5 mm
• Desplazamiento: 0,0619 pies cúbicos/1,752 litros

Dimensiones del gabinete:

• Volumen interno: 0,706 pies cúbicos/19,99 litros
• Peso del gabinete: 16.25 libras
• Altura: 17 pulgadas/43,2 cm
• Ancho 27,5 pulgadas/69,9 cm
• Profundidad: 4,6 pulgadas/11,7 cm
