The new AXPIO-JL1 is a fully integrated dash kit package designed specifically for select Pioneer® receivers*. This complete solution features an AXPIO Series interface, vehicle-specific harnessing, a dash kit, and more.

Vehicle information and settings controlled on the factory screen are retained, displayed, and controlled on the Pioneer® touchscreen. These settings would otherwise be lost after replacing the head unit.

The built-in integration technology from Axxess also retains safety chimes through an offboard speaker, retains audio controls on the steering wheel, retains R.A.P. (Retained Accessory Power), and provides accessory power (12-volt-10-amp) and NAV output for parking brake, reverse, and speed sense.

• Designed for Pioneer DMH-W4600NEX/W4660NEX receivers*. (will work with 9” touchscreens with the additional purchase of the Metra 109-UN02 dash kit)

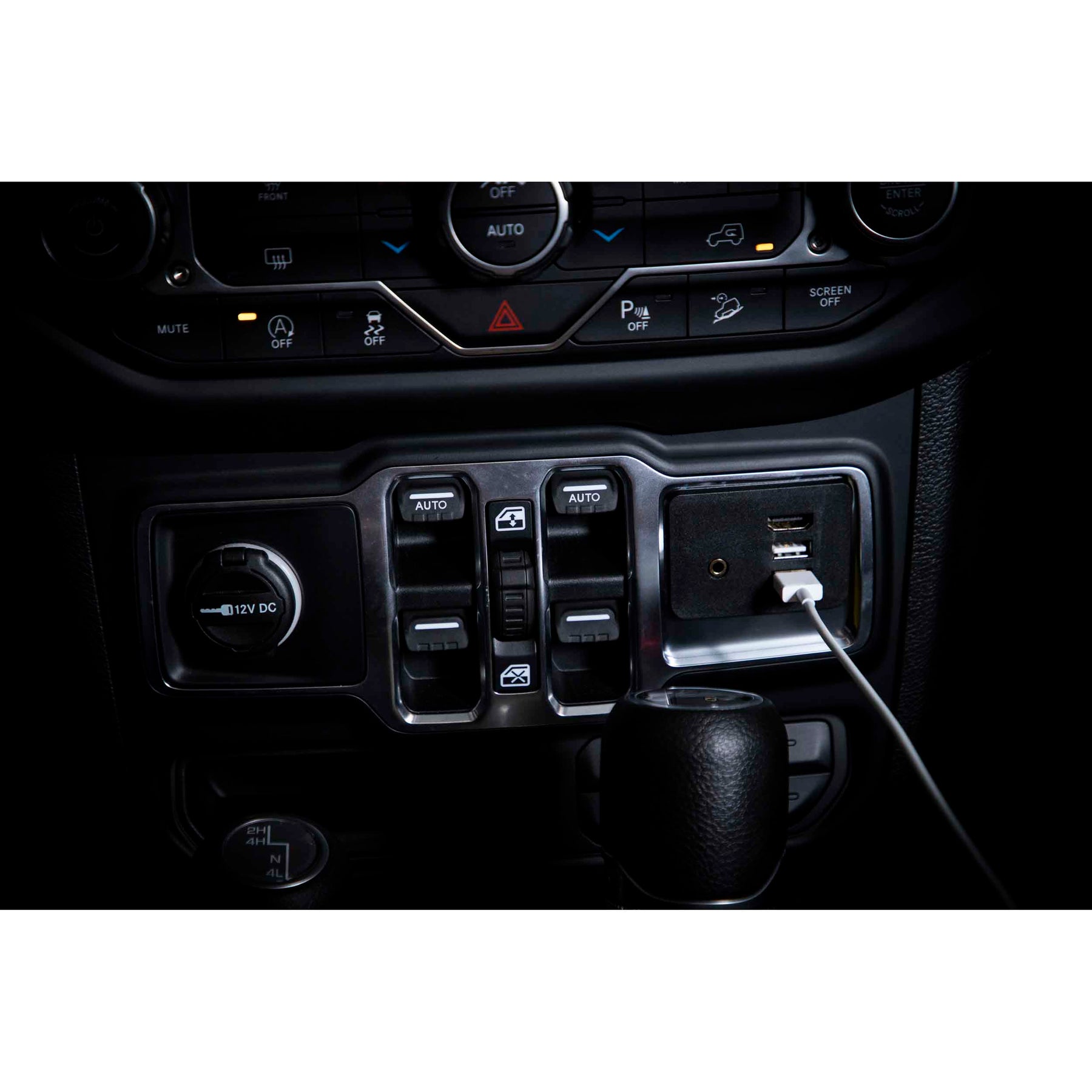

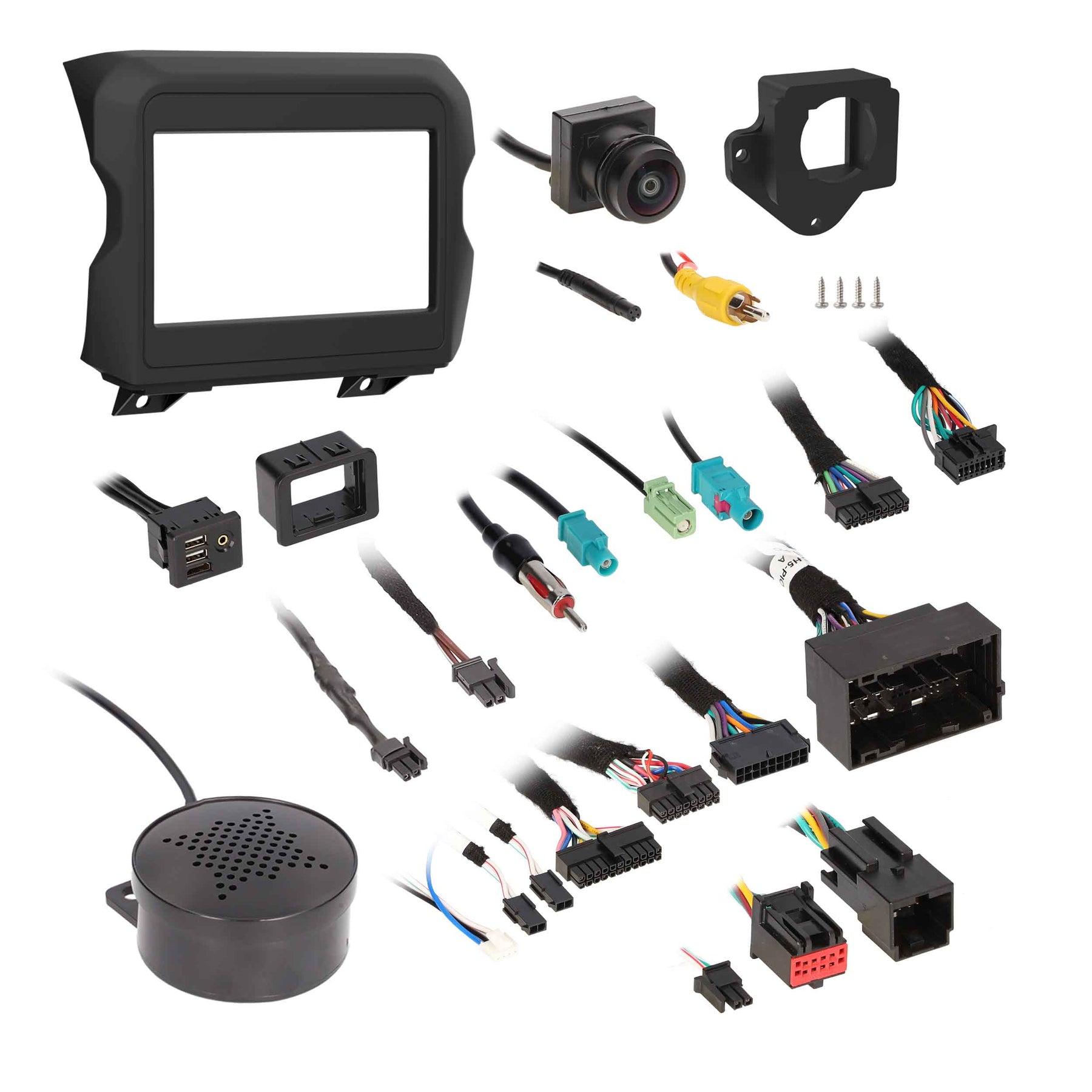

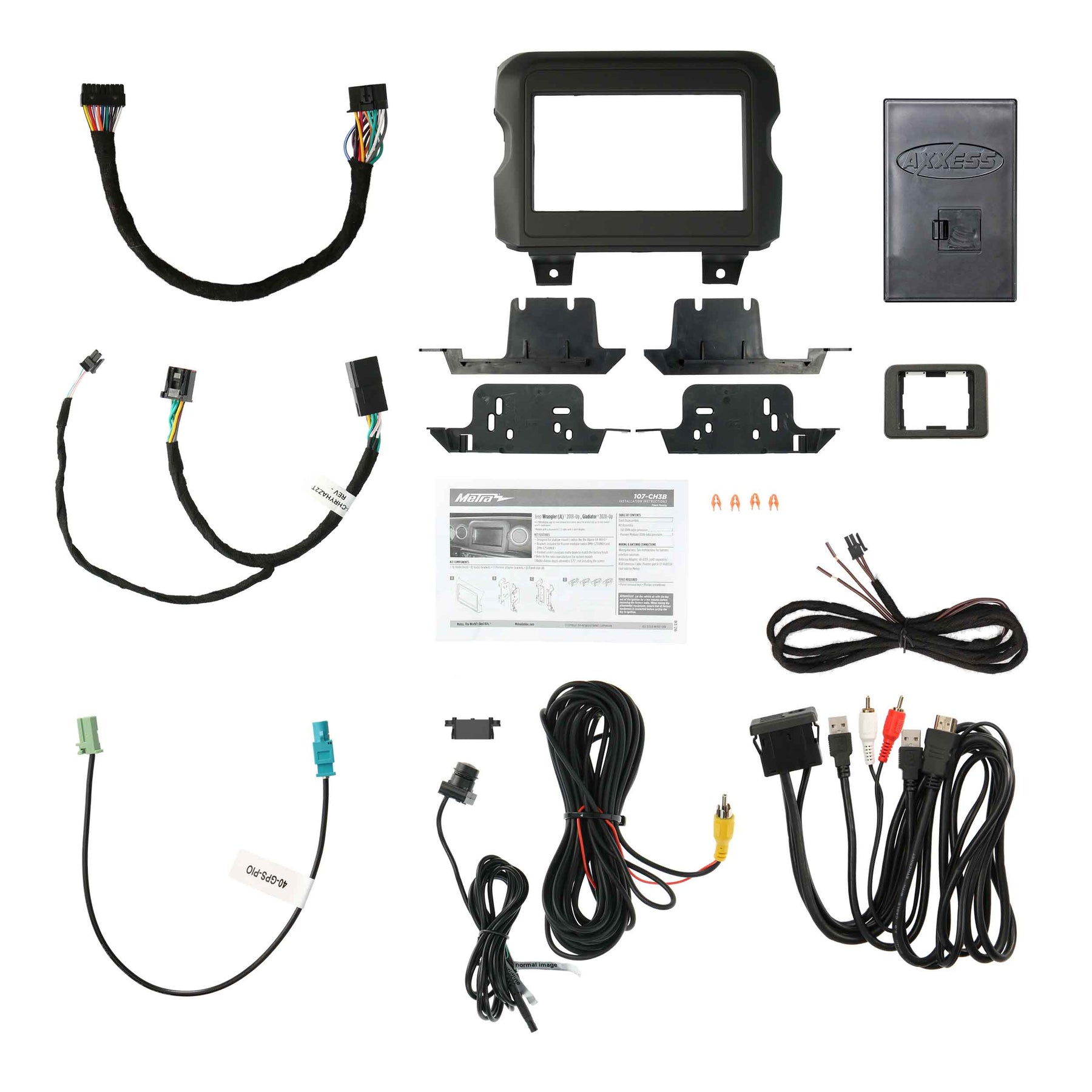

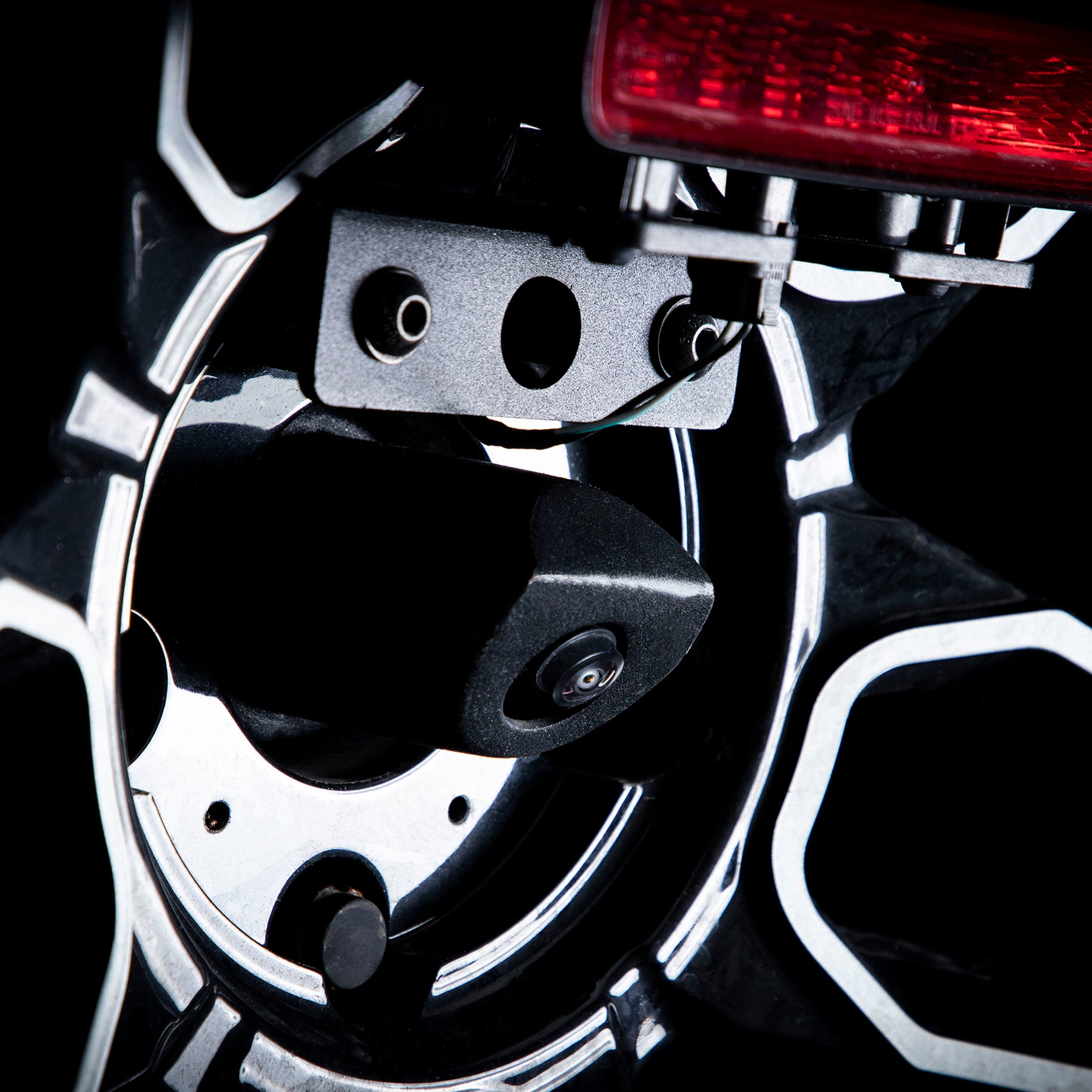

• This package includes a dash kit, interface with plug-n-play harnessing, antenna adaptor, 3’ USB/AUX/HDMI replacement with panel, and OE backup camera replacement.

• Provides a built-in STOP/START engine override (if equipped)

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through offboard speaker

• Designed for amplified or non-amplified vehicles

• Micro-B USB updatable

• Dash kit is painted scratch-resistant matte black to match the factory finish

Allows retention and adjustment of the factory personalization menu through the Pioneer radio:

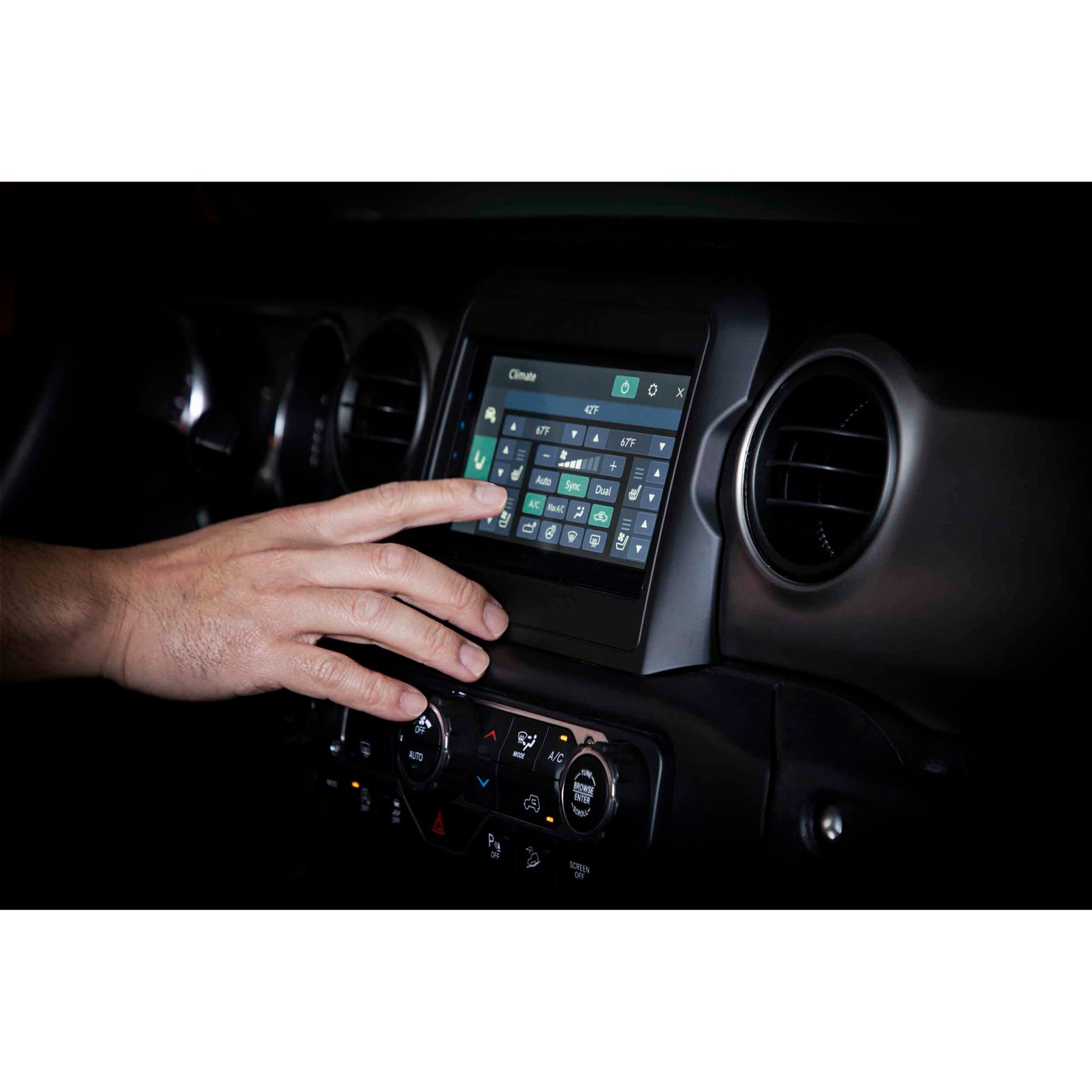

• Provides a visual view of HVAC and gauges on the Pioneer screen

• Allows adjustment of HVAC functions through the Pioneer screen

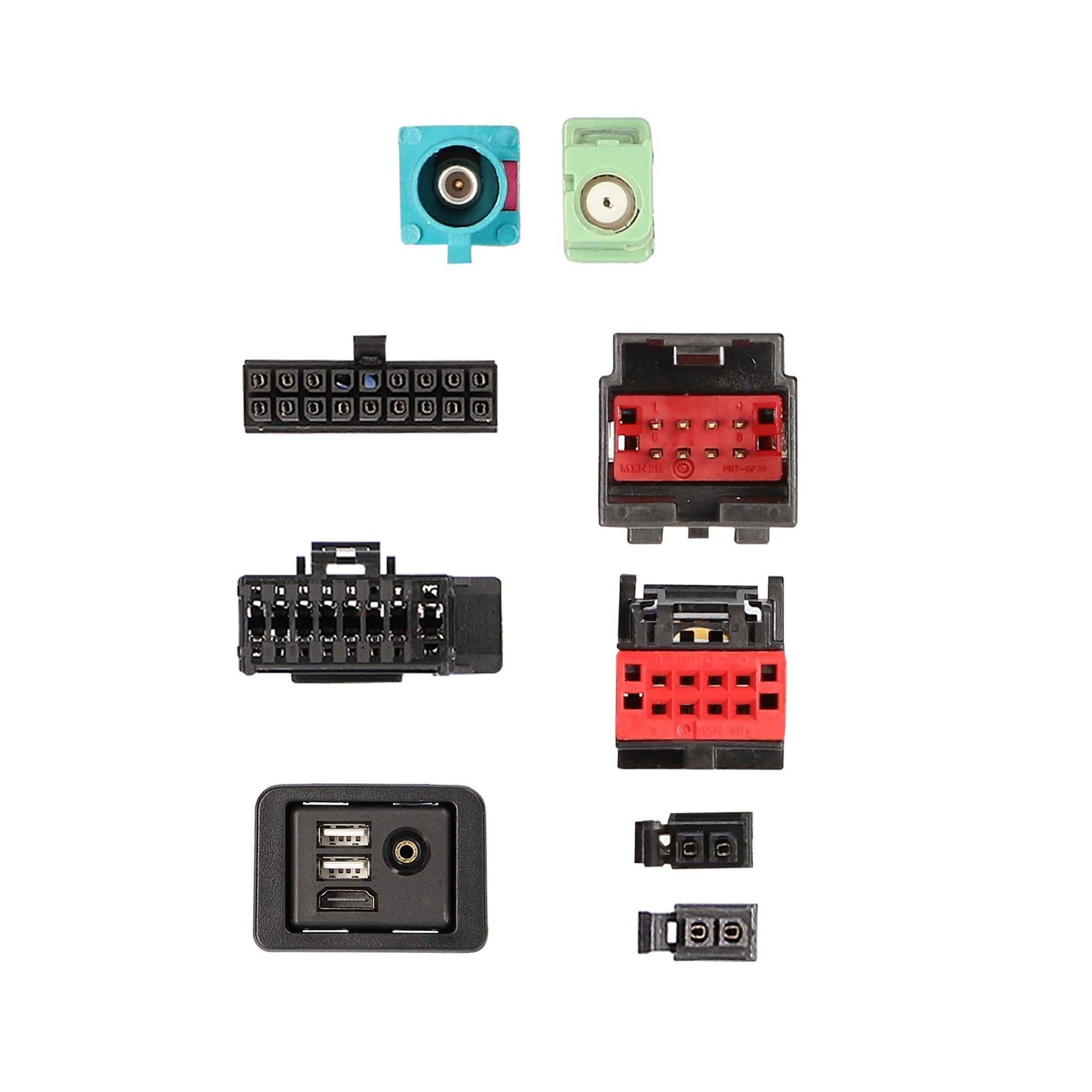

Wiring and Antenna Connections:

Wiring Harness

• (included with kit)

Antenna Adapter

• 40-EU1 (included)

• 40-GPS-PI0 (included)

Vehicle Applications

• 2019-2023 Jeep Wrangler
