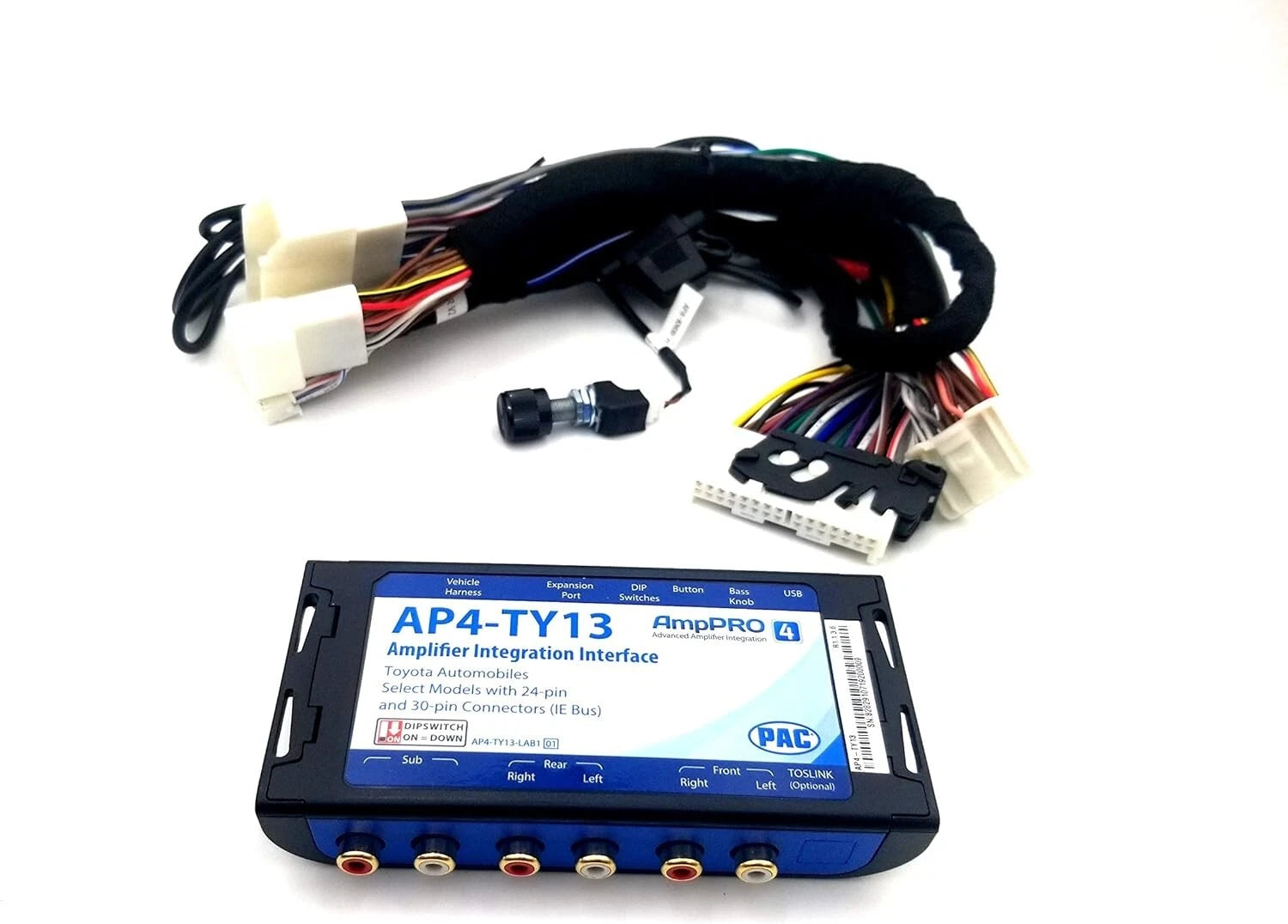

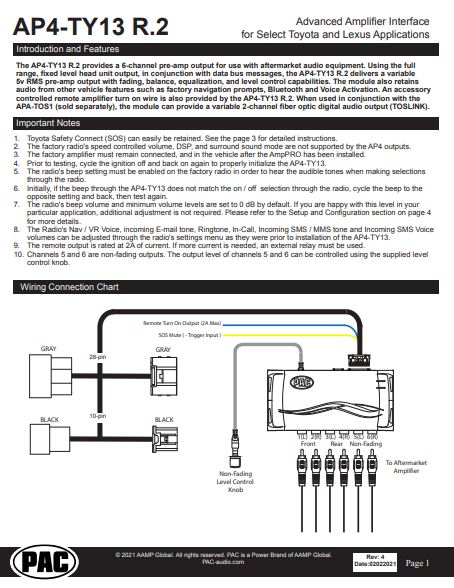

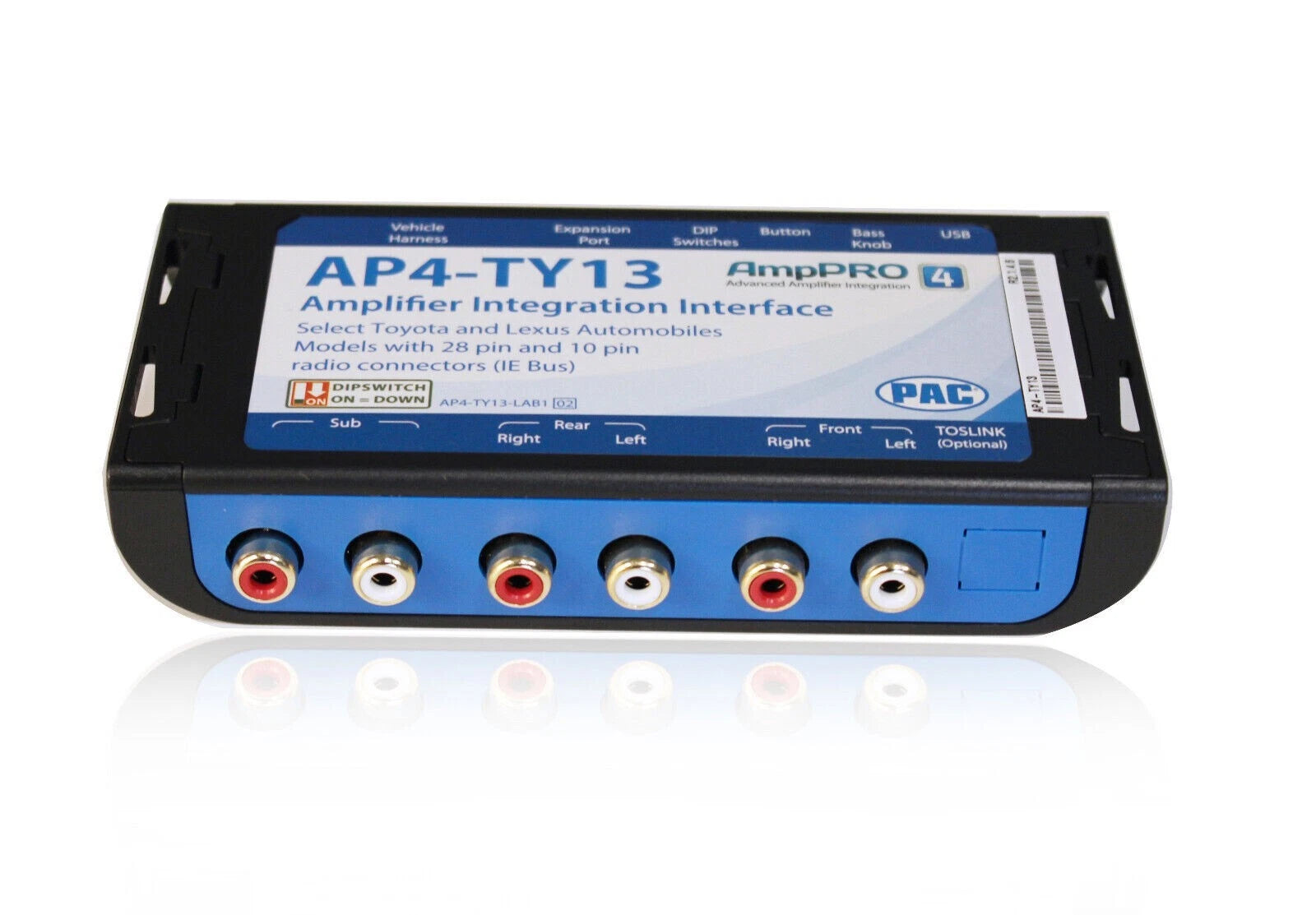

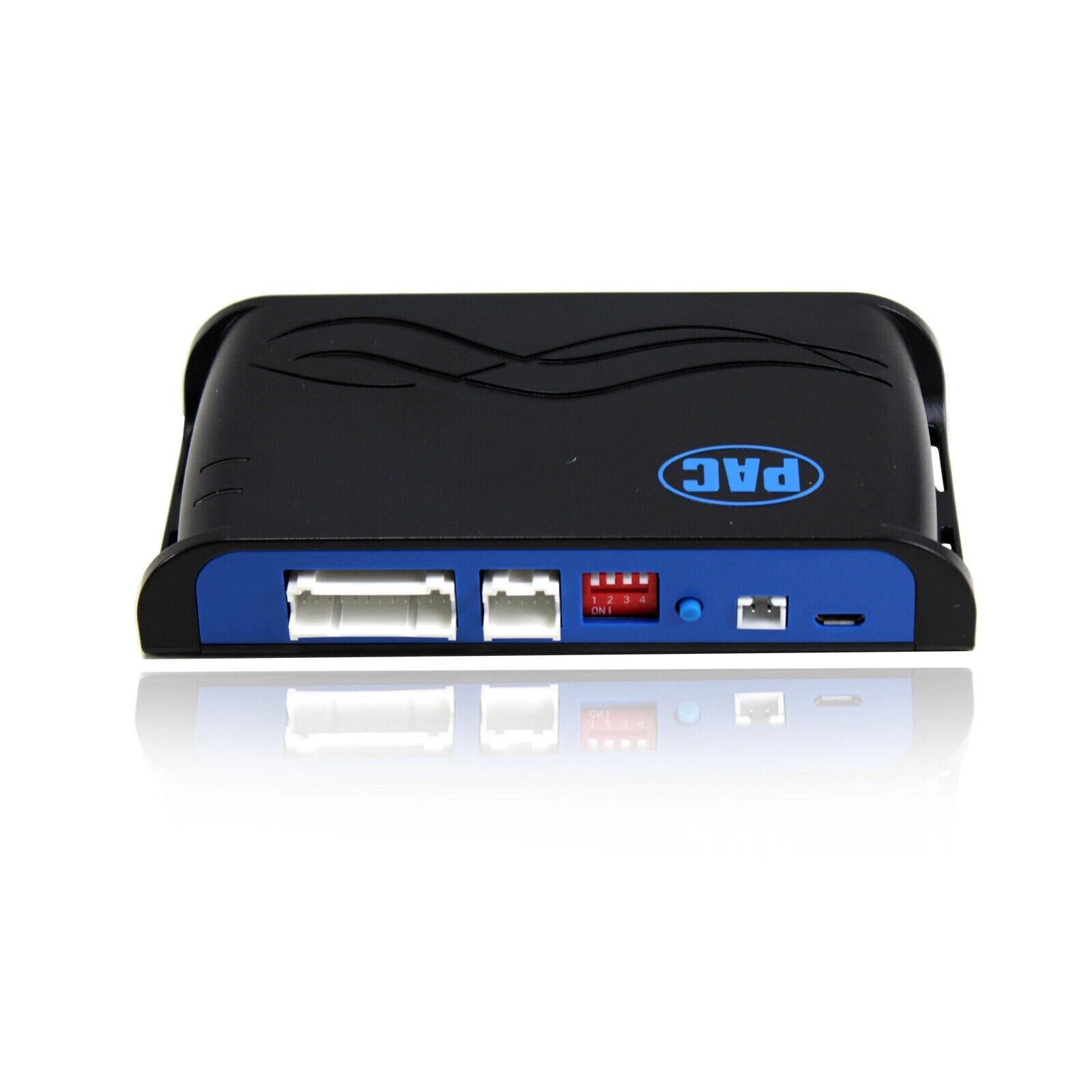

The AP4-TY13 R.2 provides a 6-channel pre-amp output for use with aftermarket audio equipment. Using the full range, fixed level head unit output, in conjunction with data bus messages, the AP4-TY13 R.2 delivers a variable 5v RMS pre-amp output with fading, balance, equalization, and level control capabilities.

The module also retains audio from other vehicle features such as factory navigation prompts, Bluetooth and Voice Activation. An accessory controlled remote amplifier turn on wire is also provided by the AP4-TY13 R.2. When used in conjunction with the APA-TOS1 (sold separately), the module can provide a variable 2-channel fiber optic digital audio output (TOSLINK).

Quickly and seamlessly add aftermarket amplifier(s) for improved audio performance while retaining the factory radio.

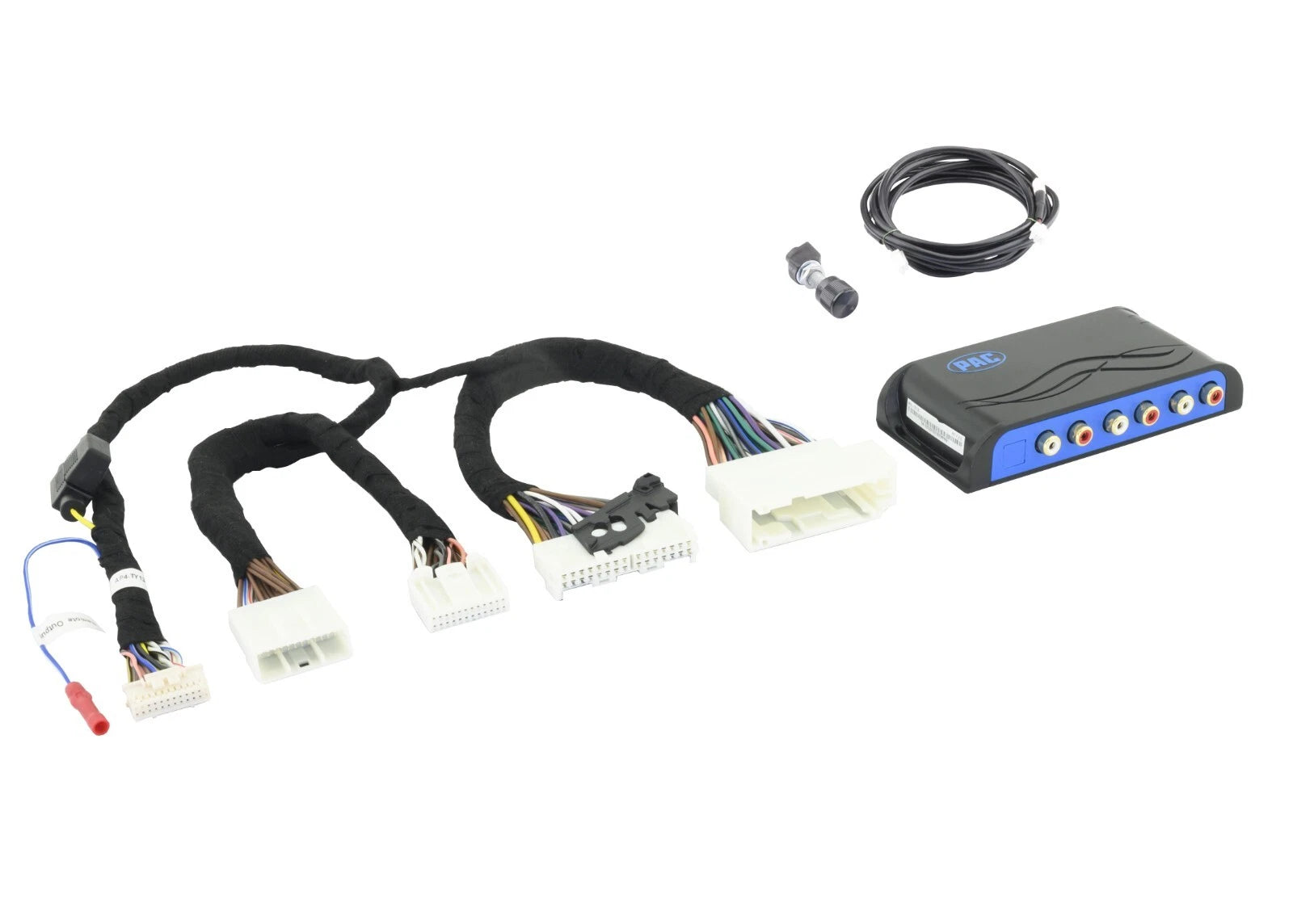

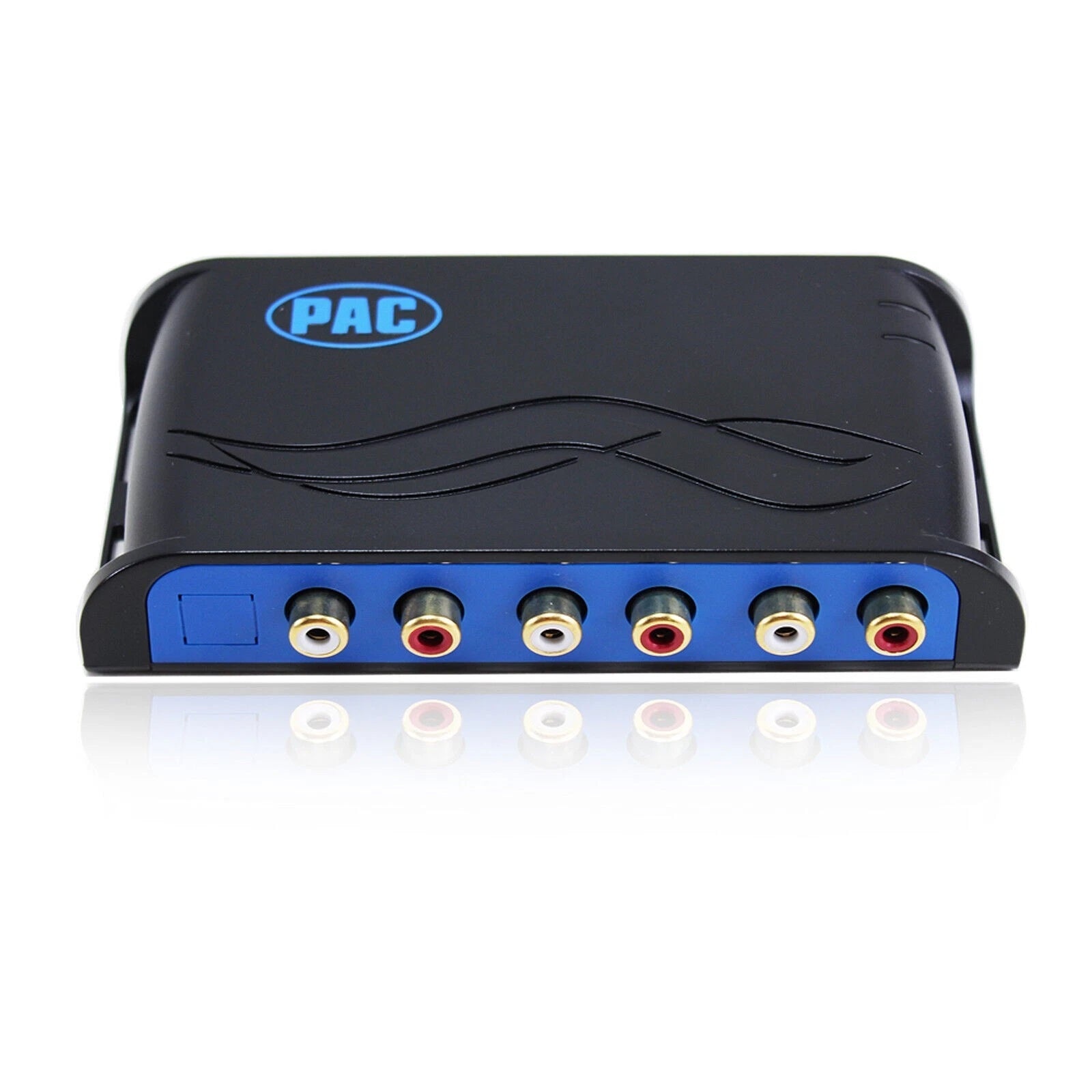

AmpPRO is a Plug-n-Play solution that plugs into the factory radio harness and provides Front/Rear/Sub RCA outputs (5 Volt RMS) to connect to your aftermarket amplifiers. The AmpPRO design avoids the disappointing results and hassle of interfacing after the factory amplifier.

Compatibility Notes:

• Vehicle must be equipped with a factory JBL system

• Lexus ES250, ES350, and NX300: Only compatible in models equipped with the 8" screen

• Lexus RX350 and RX450: Not compatible in models equipped with navigation

Important Notes

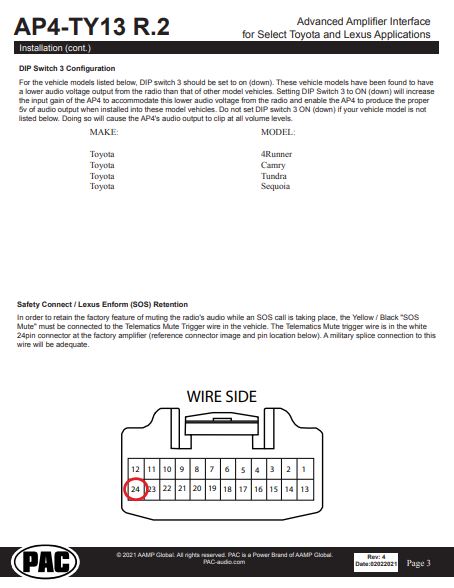

• Toyota Safety Connect (SOS) can easily be retained. See the page 3 for detailed instructions.

• The factory radio's speed controlled volume, DSP, and surround sound mode are not supported by the AP4 outputs.

• The factory amplifier must remain connected, and in the vehicle after the AmpPRO has been installed.

• Prior to testing, cycle the ignition off and back on again to properly initialize the AP4-TY13.

• The radio's beep setting must be enabled on the factory radio in order to hear the audible tones when making selections through the radio.
  Initially, if the beep through the AP4-TY13 does not match the on / off selection through the radio, cycle the beep to the opposite setting and back, then test again.

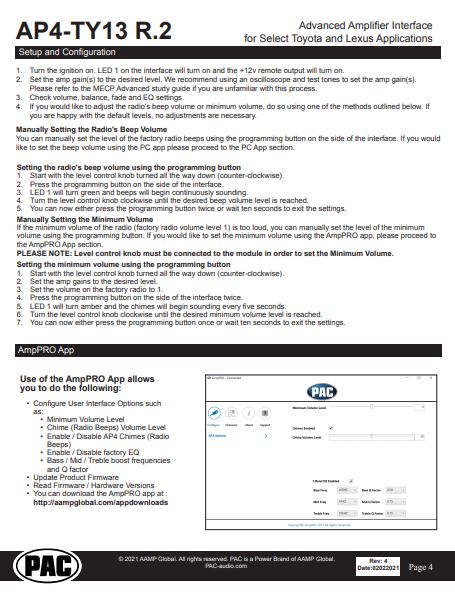

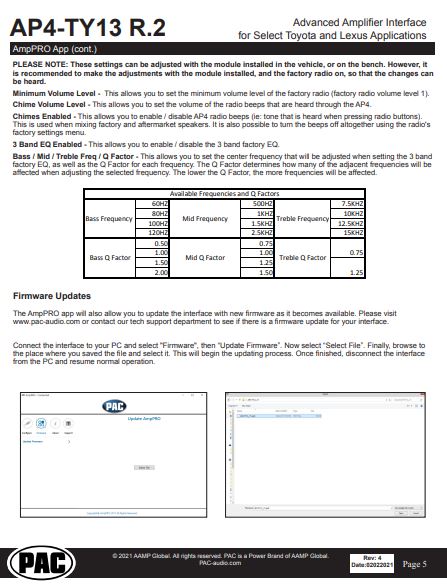

• The radio's beep volume and minimum volume levels are set to 0 dB by default. If you are happy with this level in your particular application, additional adjustment is not required. Please refer to the Setup and Configuration section on page 4 for more details.

• The Radio's Nav / VR Voice, incoming E-mail tone, Ringtone, In-Call, Incoming SMS / MMS tone and Incoming SMS Voice volumes can be adjusted through the radio's settings menu as they were prior to installation of the AP4-TY13.

• The remote output is rated at 2A of current. If more current is needed, an external relay must be used.

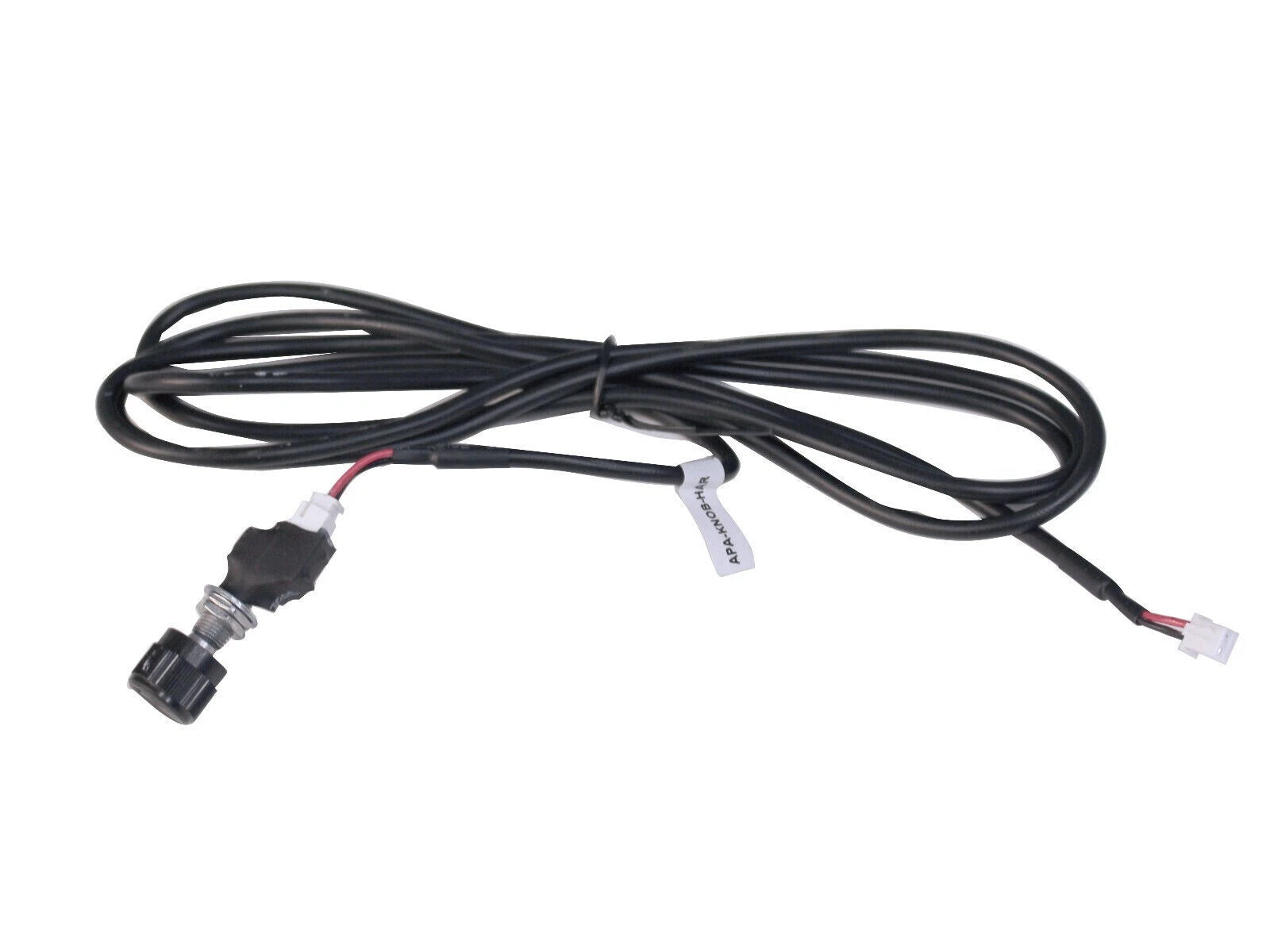

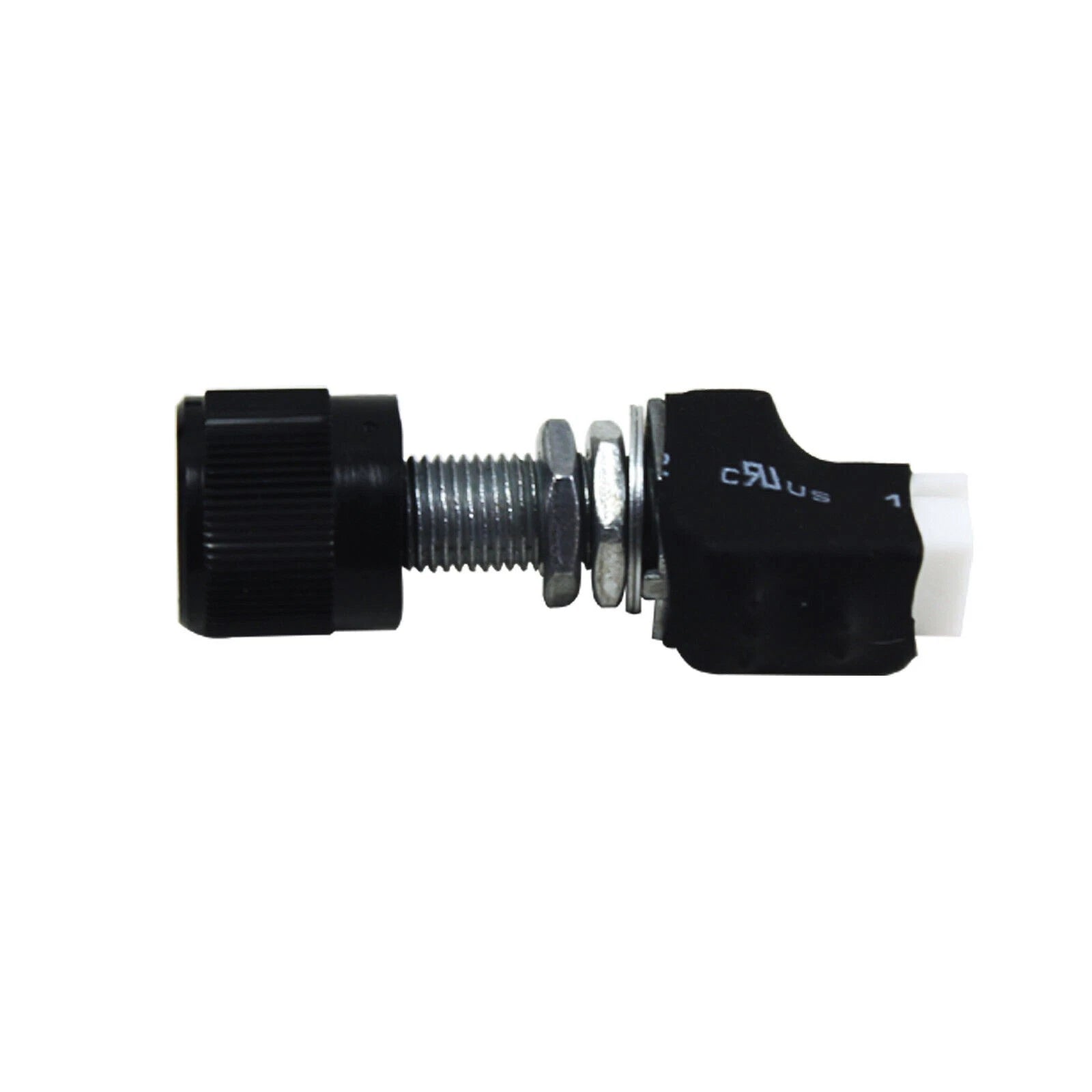

• Channels 5 and 6 are non-fading outputs. The output level of channels 5 and 6 can be controlled using the supplied level control knob.
