• Monobloque de subwoofer digital clase D
• Potencia máxima: 3000 W pico a 1 ohmio.
• Potencia RMS: 1000 vatios RMS a 1 ohmio, 650 vatios RMS a 4 ohmios, 380 vatios RMS a 4 ohmios
• Respuesta de frecuencia: 10-220 Hz
• Relación señal-ruido: >95Db
• Eficiencia a 4 ohmios: 80%
• Distorsión armónica total: 0,01%
• Rango de entrada: .02-6v
• X-Over seleccionable: LPF fijo
• Refuerzo de graves: 0-12 dB
• Fase: 0-180
• Indicador LED: Recorte, Encendido, Proteger
• Terminal de alimentación y tierra: 4 Ga
• Impedancia mínima: 1 ohmio

• Vatios totales (pico): 3000W
• Potencia RMS a 4 ohmios: 380W
• Potencia RMS a 2 ohmios: 650 W
• Potencia RMS a 1 ohmio: 1000W

• Respuesta de frecuencia: 10-220 Hz
• Relación señal-ruido: >95dB
• Eficiencia @ 4ohm: 80%
• Factor de amortiguación: 220
• Impedancia de entrada: 20K ohmios
• Distorsión Armónica Total (THD): 0,01%
• Rango de entrada de bajo nivel: 0,2-6 V
• X-Over seleccionable: LPF fijo
• Rango de filtro X-Over: 40-180 Hz
• Rango de refuerzo de graves: 0-12 dB
• Frecuencia de refuerzo de graves: 30-80 Hz
• Filtro infrasónico: 10-50 Hz

• Clase de amplificador: Digital
• Tipo de amplificador: subwoofer monobloque
• Número de canales: 1
• Impedancia mínima: 1 ohmio
• Indicador Led: recorte/protección/encendido
• Tamaño del terminal de entrada de energía: 4ga
• Tamaño del fusible: 100A

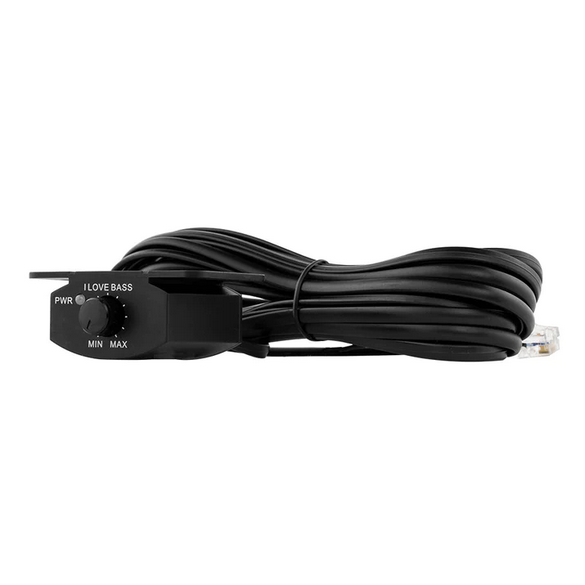

• Control de nivel remoto
• Protección térmica
• Protección de sobrecarga
• Protección de salida CC
• Protección de salida de cortocircuito
• Protección de entrada de voltaje
• Protección contra recortes
• Color/acabado del cuerpo: cepillo de aluminio negro

• Longitud total: 11,8"/301 mm
• Ancho total: 7,24"/184 mm
• Altura total: 2" / 53 mm
• Longitud del disipador de calor: 10,47"/266 mm
• Peso bruto de una sola unidad: 5,8 libras
