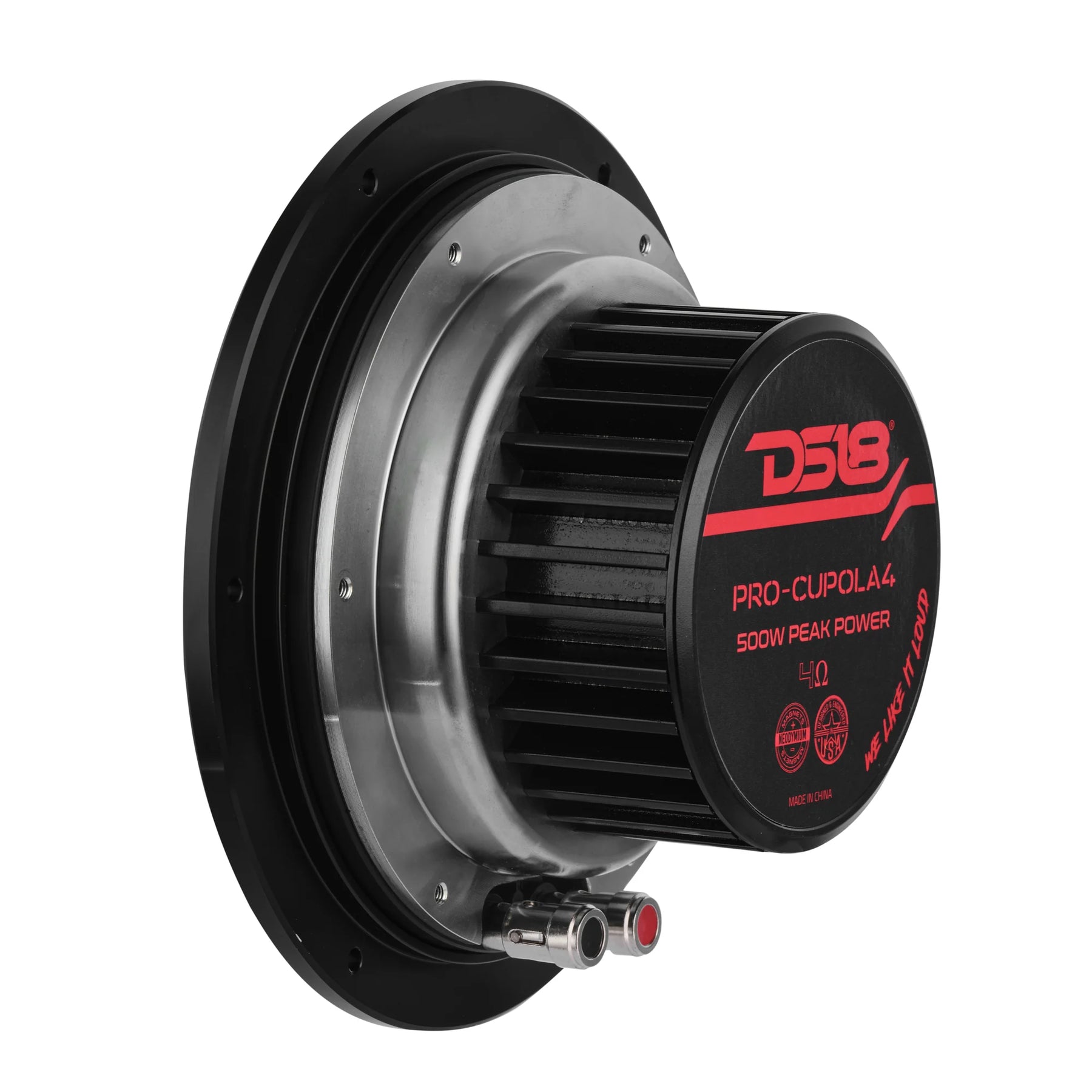

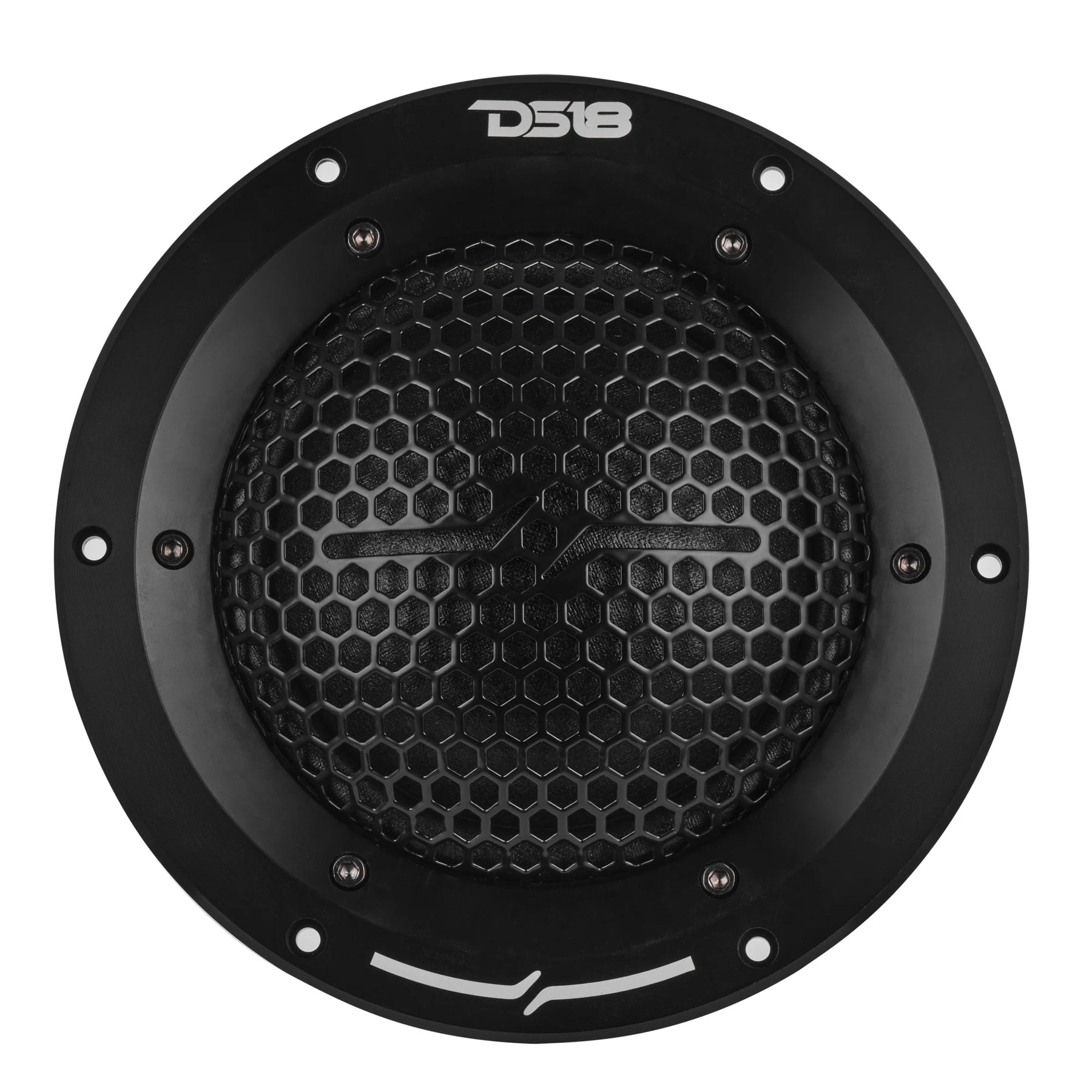

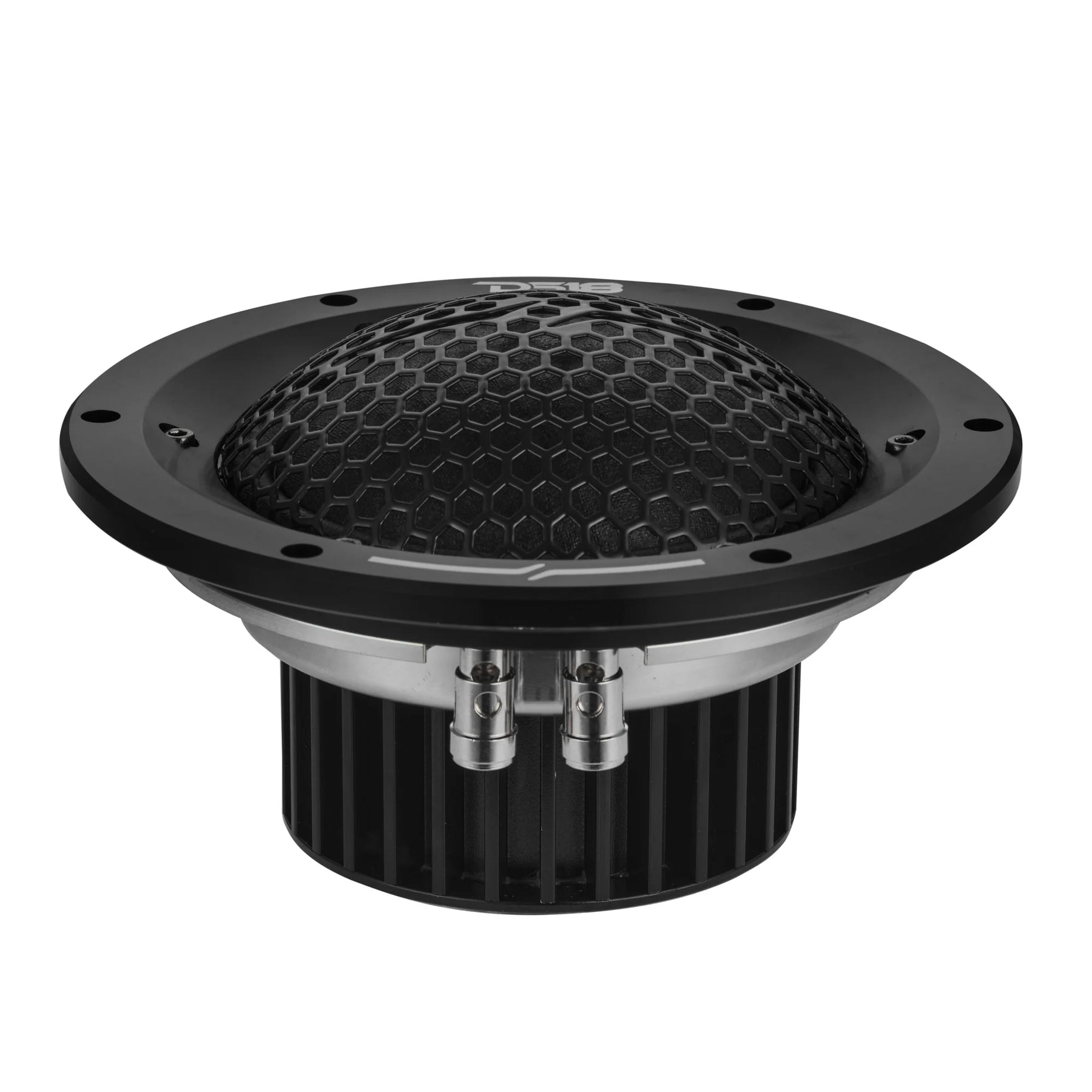

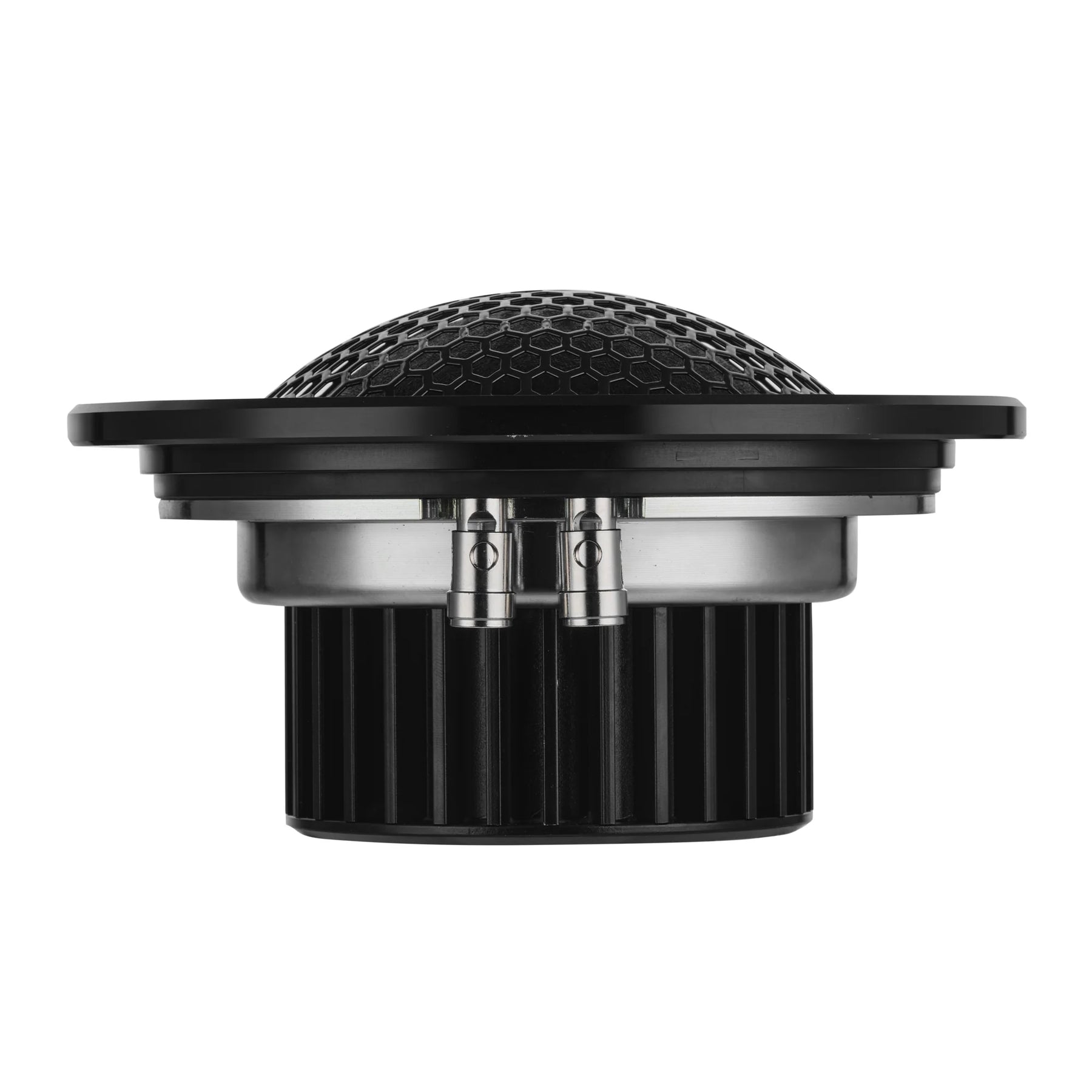

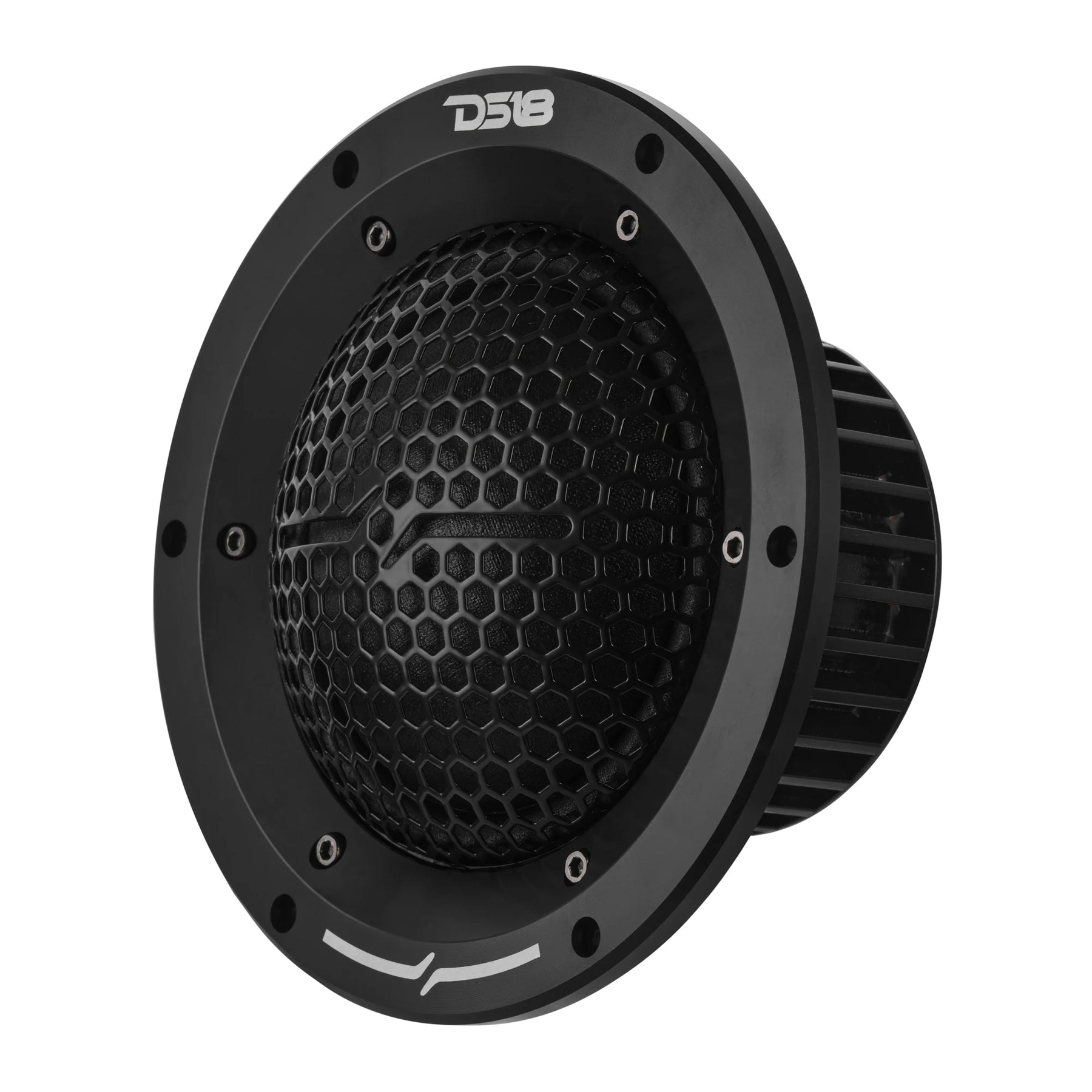

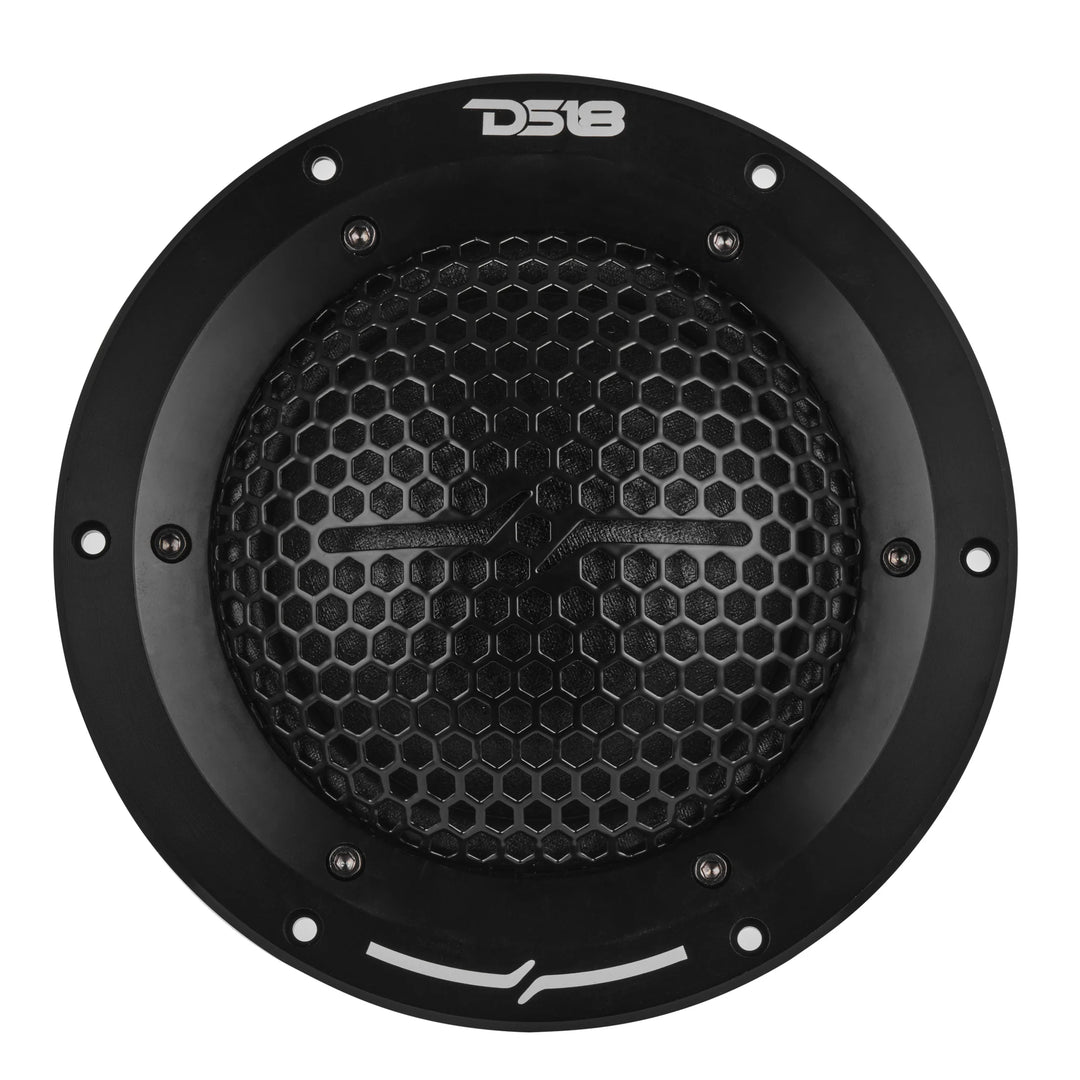

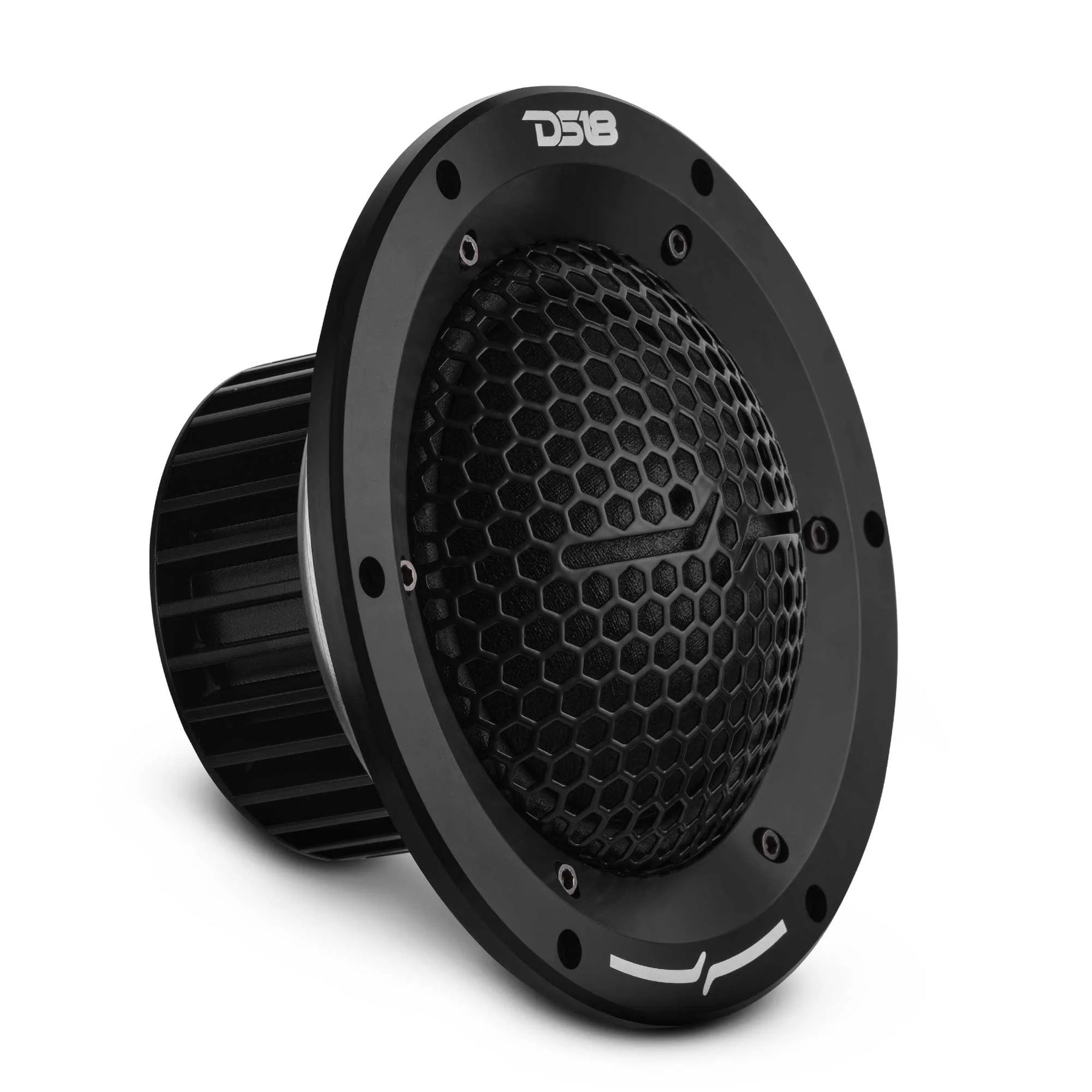

The PRO-CUPOLA4 is DS18’s elite 7” soft dome midrange loudspeaker designed to deliver expansive, accurate midrange reproduction in high-power pro audio systems.

Larger Cone, Bigger Presence: Featuring a massive 4" voice coil, coated cloth dome diaphragm, and powerful 14.33oz neodymium magnet, the PRO-CUPOLA4 handles 200W AES, 400W Program, and 500W MAX. Its 96dB sensitivity and 350Hz–9KHz frequency range allow you to fill larger spaces with smooth, rich mids.

Professional Build Quality: This speaker uses a tuned closed-end chamber with an aluminum body to control resonance and enhance fidelity. With a 2.95" mounting depth and 6.22" cutout diameter, the PRO-CUPOLA4 is perfect for serious studio monitors or premium in-car installations.

Boost your system’s sound with the PRO-CUPOLA4—DS18’s most powerful and precise dome midrange.

Key Features:

• 7” Soft Dome Midrange with 4" KSV Voice Coil

• 200W AES / 400W Program / 500W Peak Power

• 96dB Sensitivity and 350Hz–9KHz Frequency Range

• Neodymium Magnet with Aluminum Enclosure

• Large Tuned Rear Chamber for Clean Output

• Perfect for Studio Monitors or High-End Car Audio

Specifications:

• SKU: PRO-CUPOLA4

• Nominal Diameter: 7" / 178mm

• Nominal Impedance: 4 Ohms

• AES Power Handling: 200W

• Program Power Handling: 400W

• Peak Power Handling: 500W

• Sensitivity (1w/1m): 96dB

• Frequency Response: 350Hz-9kHz

• Recommended High Pass Crossover: 370Hz

Motor:

• Voice Coil Diameter: 4" / 100mm

• Voice Coil Former Material: KSV

• Winding Material: CCAW

• Diaphragm Material: Cloth

• Body Material: Aluminum

• Magnet Material: Neodymium

• Magnet Weight: 14.33 Oz

Measurement:

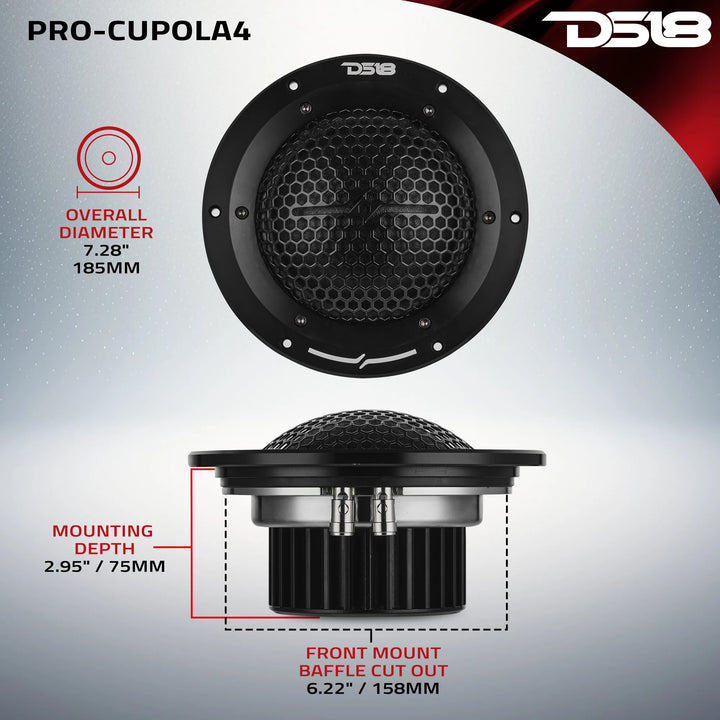

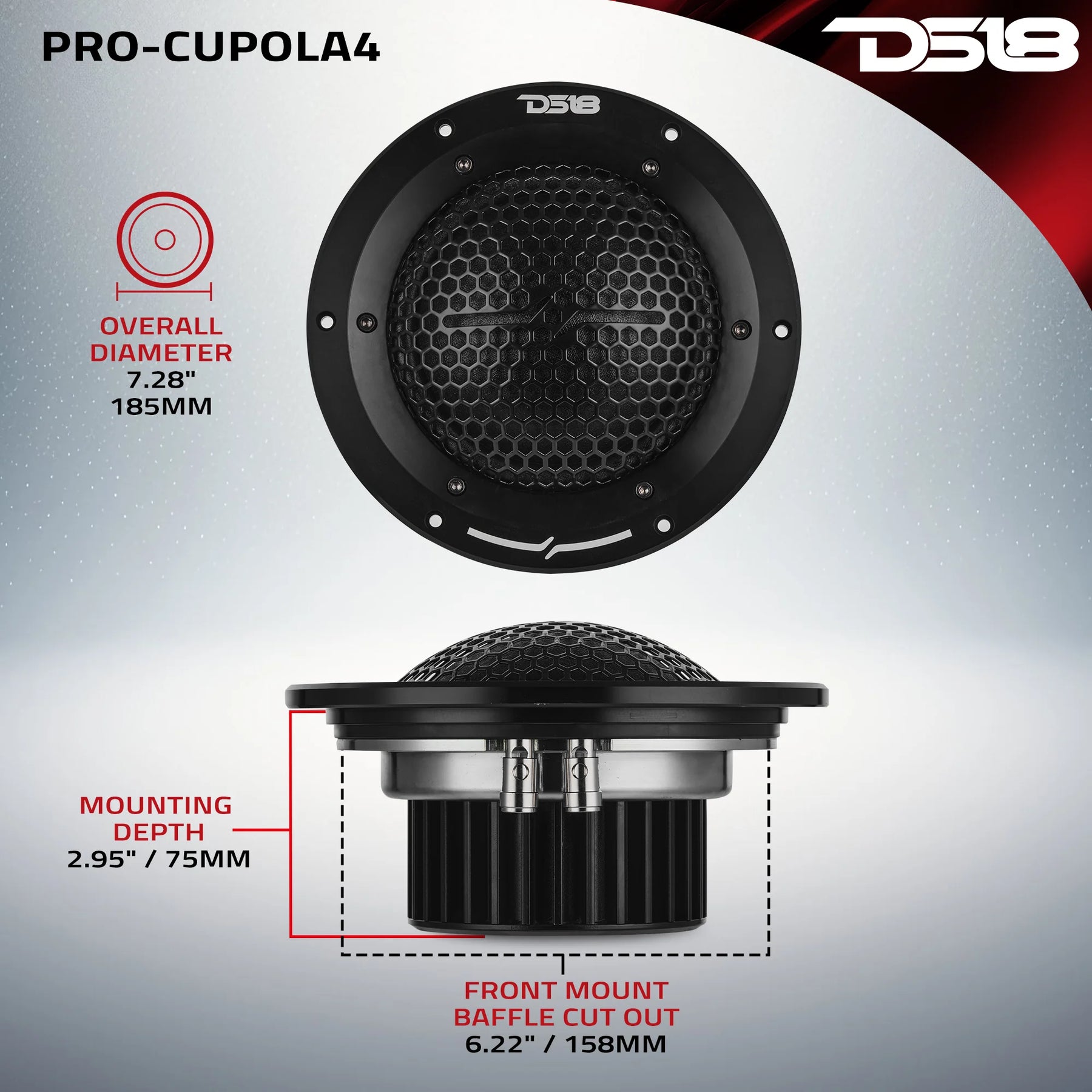

• Overall Diameter: 7.28" / 185mm

• Overall Depth: 4.17" / 106mm

• Front Mount Baffle Cutout: 6.22" / 158mm

• Mounting Depth: 2.95" / 75mm
